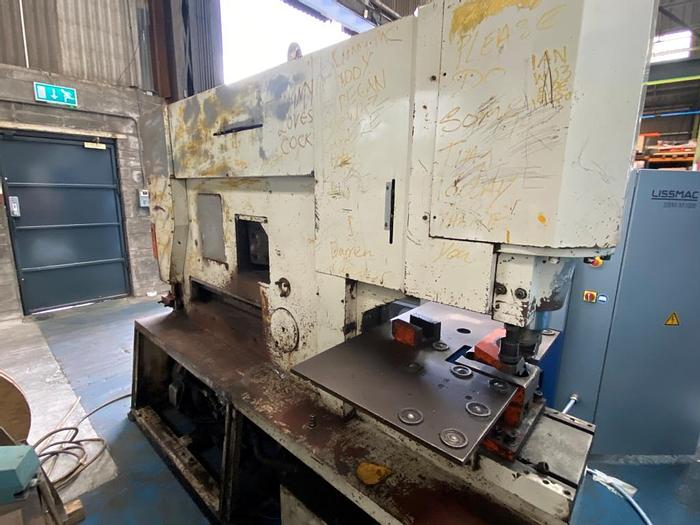

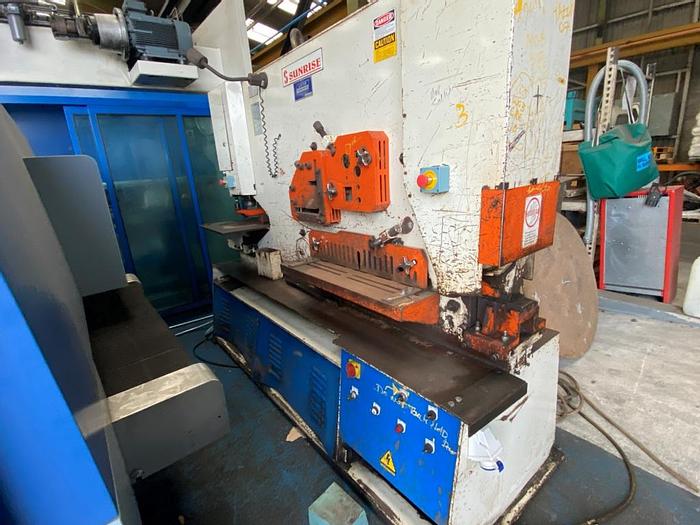

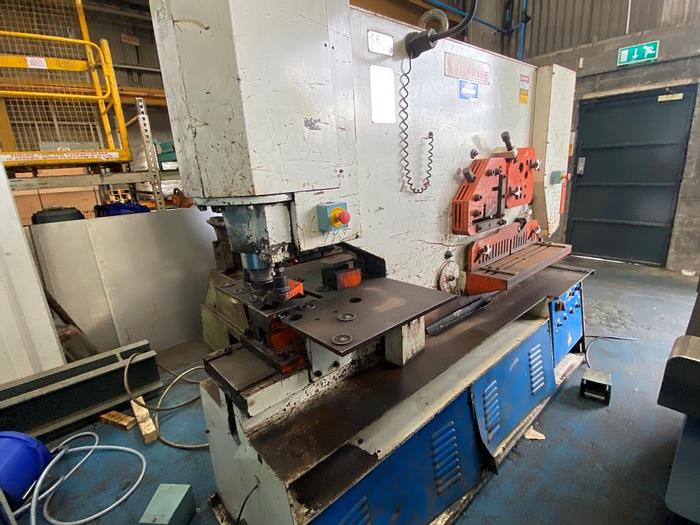

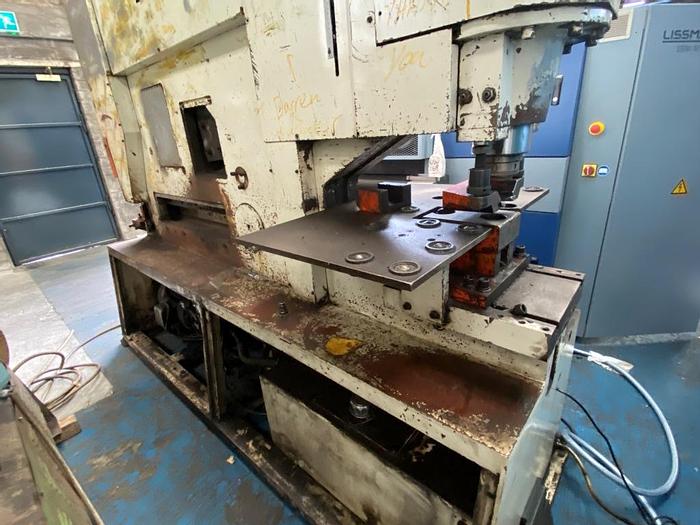

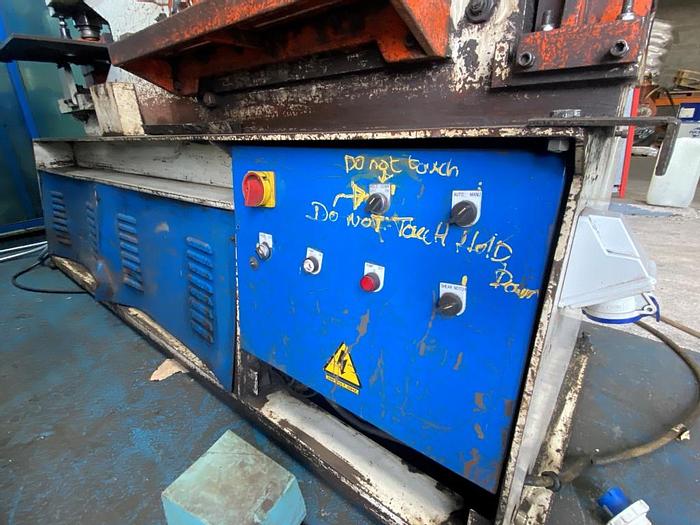

2000 Sunrise IW165SD Ironworker
Description
Sunrise IW165SD Ironworker
Machine Type: 165T Ironworker/Steelworker/Metalworker
Year: 2000
Condition: OK
Technical Specification

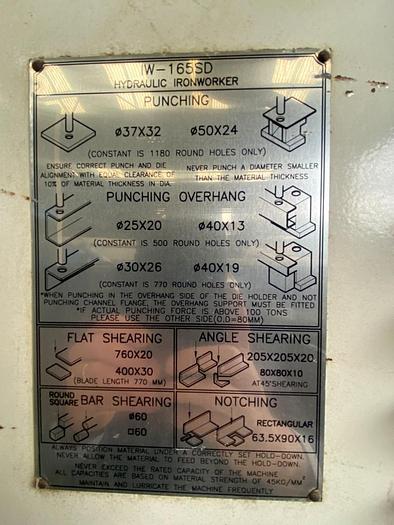

Punching Force: 165T

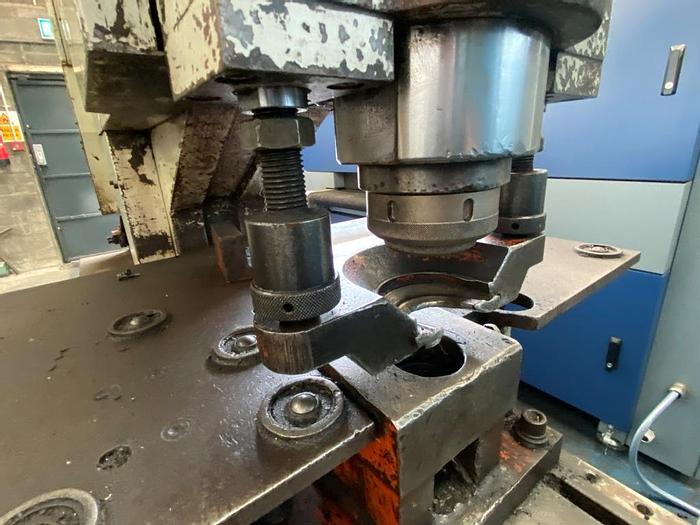

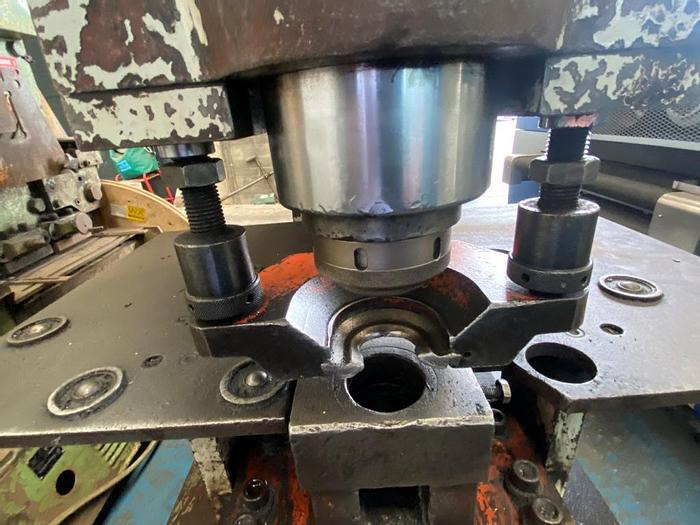

Punch Capacity: ø37 x 32mm Thickness
Punch Capacity: ø50 x 24mm Thickness
Throat Depth: 510mm
Max Stroke Length: 100mm
Working Height of Die: 1050mm

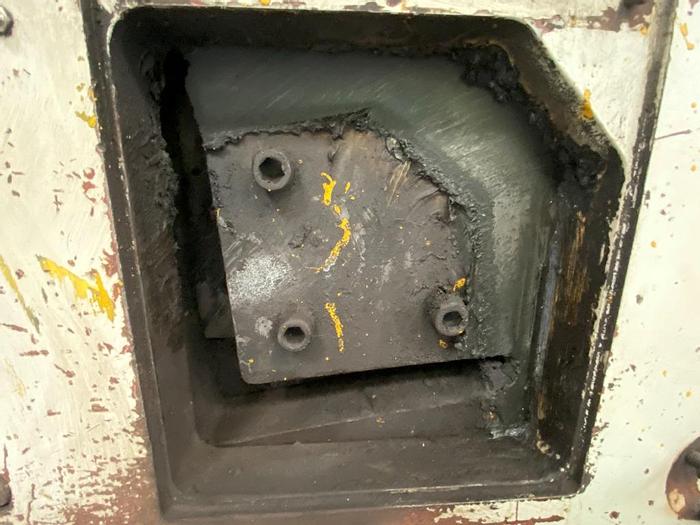

Angle Shearing Capacity: 205 x 205 x 20mm
Angle Shearing Capacity (Mitre): 80 x 80 x 10mm
Angle Shear Height: 1185mm

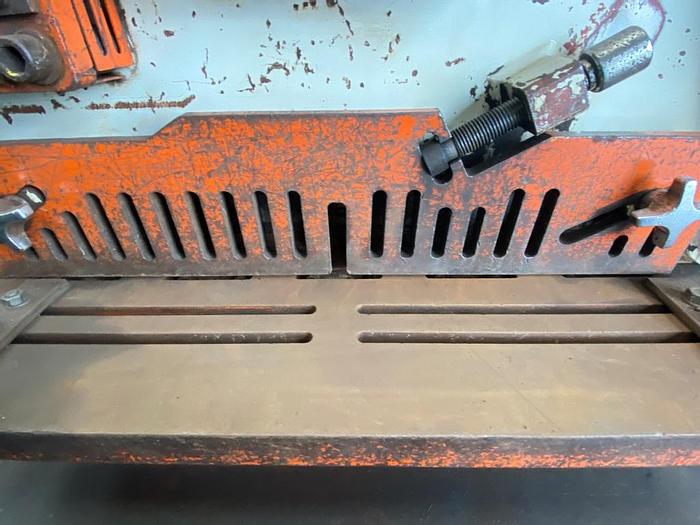

Flat Bar Shearing Capacity: 760 x 20mm
Flat Bar Shearing Capacity: 400 x 30mm

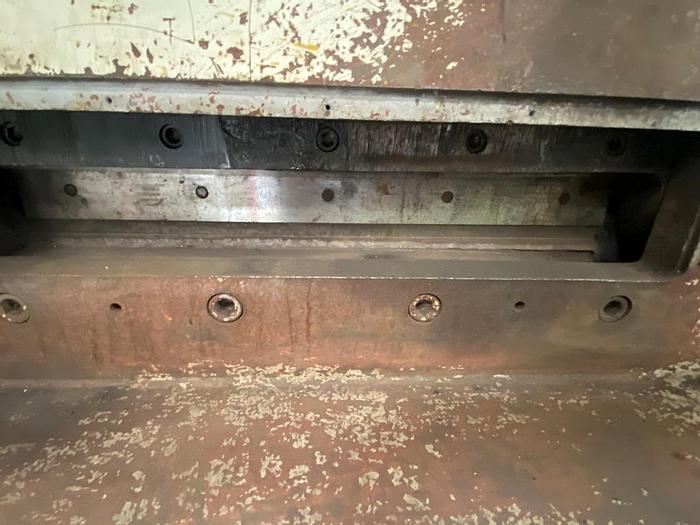

Blade Length: 770mm
Angle Flange Trim: 120mm
Working Height: 920mm
Round Bar Shearing Capacity: ø60mm
Square Bar Shearing Capacity: 60 x 60mm
Working Height: 1370mm

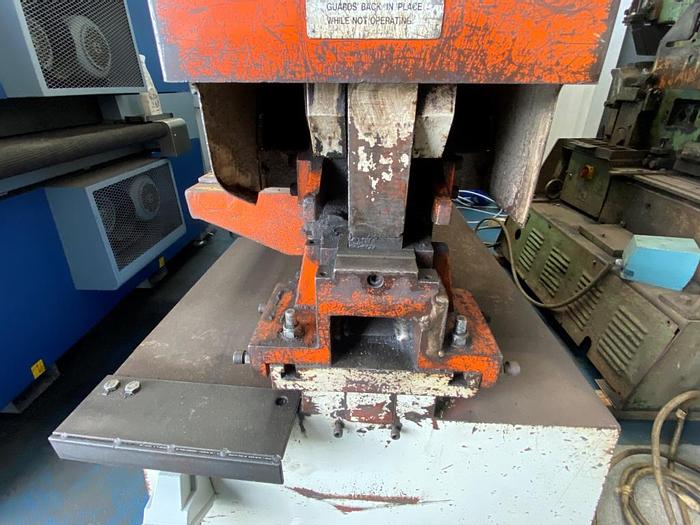

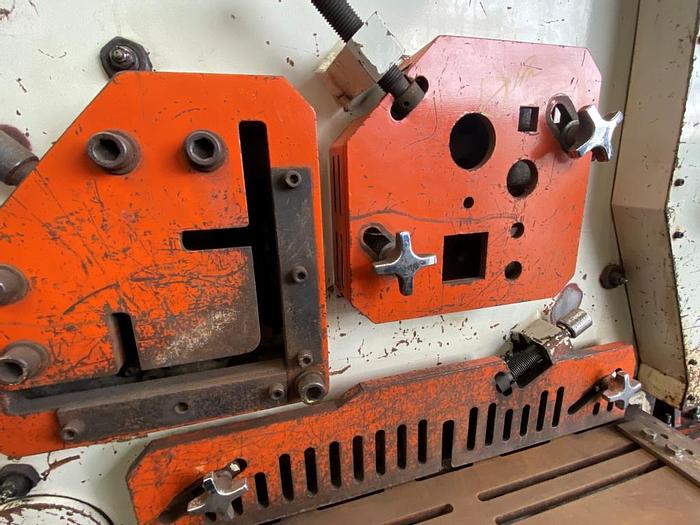

Notching Capacity: 63.5 x 90 x 16mm
Motor Power: 20HP
Machine Dimensions: 2710 x 1070 x 2010mm
Machine Weight: 5480kg
Specifications

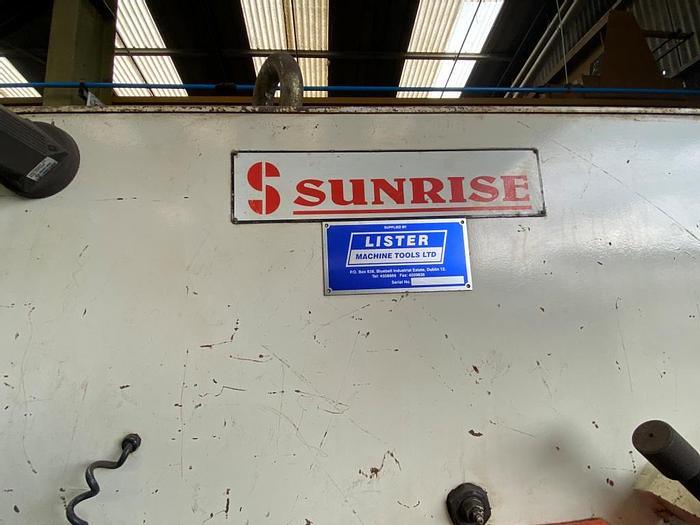

| Manufacturer | Sunrise |
| Model | IW165SD Ironworker |
| Year | 2000 |
| Condition | Used |

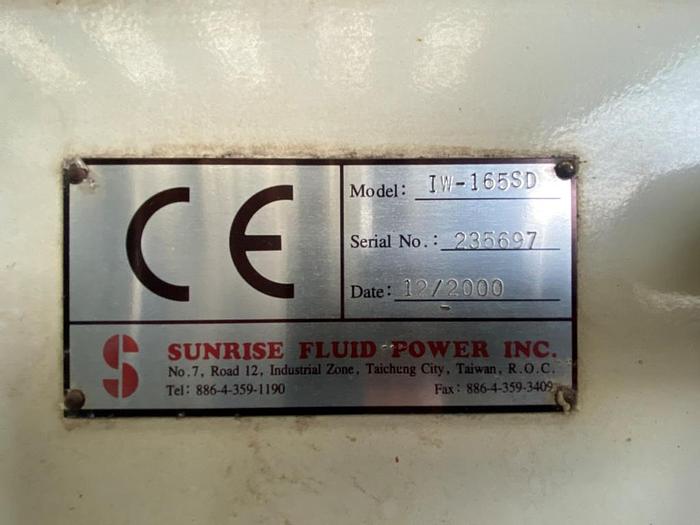

| Serial Number | 235697 |
| Machine Type | 165T Ironworker/Steelworker/Metalworker |
| Year | 2000 |
| Condition | OK |
| Punching Force | 165T |
| Punch Capacity Thickness | ø37 x 32mm Thickness |
| Punch Capacity Diameter | ø50 x 24mm Thickness |
| Throat Depth | 510mm |
| Max Stroke Length | 100mm |
| Working Height of Die | 1050mm |
| Angle Shear Height | 1185mm |
| Flat Bar Shearing Length Capacity | 760 x 20mm |
| Flat Bar Shearing Thickness Capacity | 400 x 30mm |
| Blade Length | 770mm |
| Angle Flange Trim | 120mm |
| Shear Working Height | 920mm |
| Round Bar Shearing Capacity | ø60mm |
| Square Bar Shearing Capacity | 60 x 60mm |
| Working Height | 1370mm |
| Motor Power | 20HP |
| Machine Weight | 5480kg |
