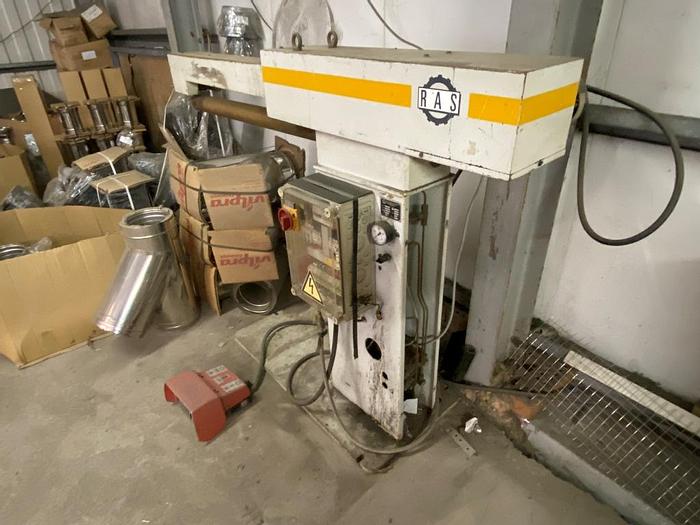

RAS 25.11 Seam Closer

RAS 25.11 Seam Closer

Machine Type: Powered Seam Closer

Condition: Good

Description

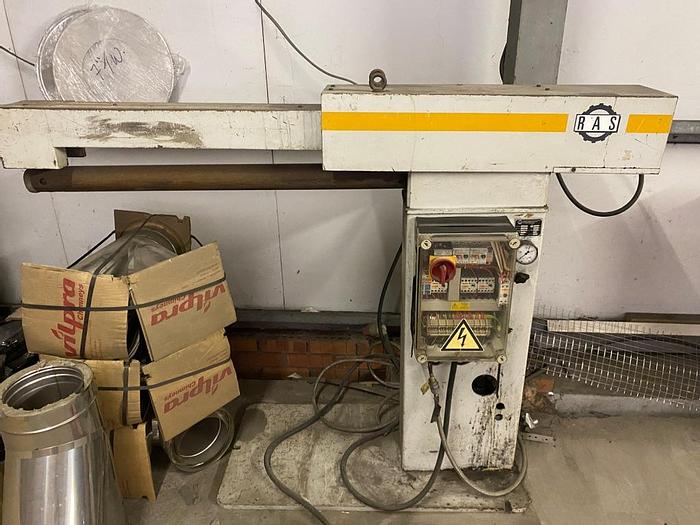

The RAS Seam Closing Machine widths closes inside and outside seams with widths of 10mm & 13mm on round tubes. The working length can be doubled turning the tube.

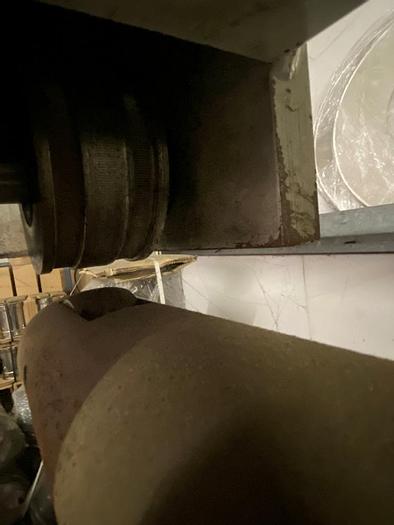

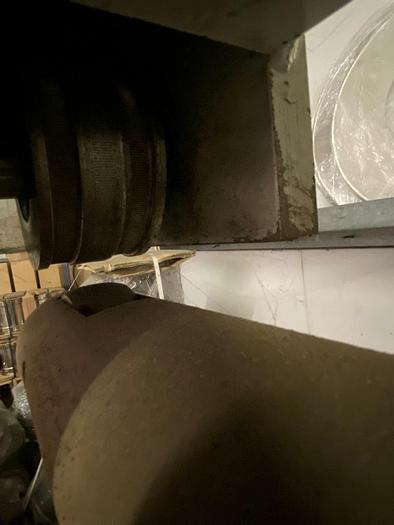

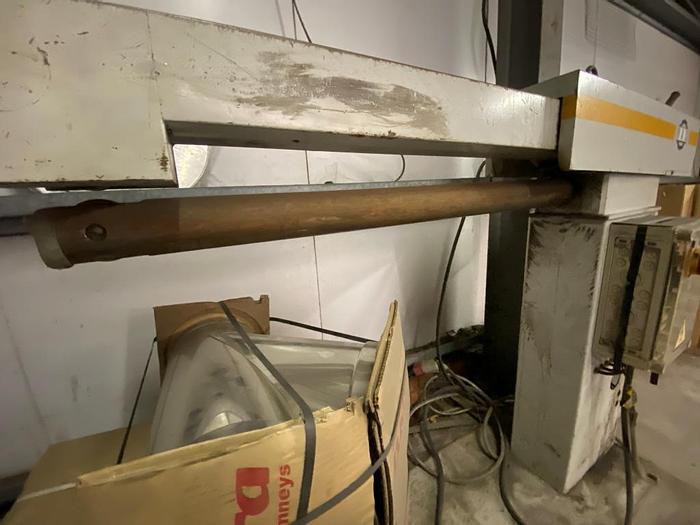

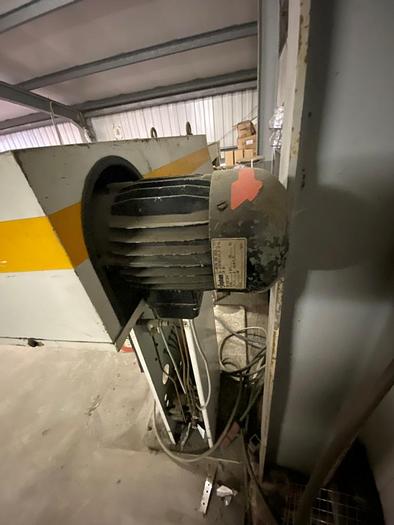

A powerful gear motor drives the hardened upper roll in roller bearings. For a secure grip, the upper roll is knurled. The upper roll can be shifted easily into one of three working positions.

It automatically locks in each position for:

1) Outside Seam 10mm/0.39"

2) Inside Seam 10mm/0.39" or 13mm/0.51"

3) Outside Seam 13mm/0.51"

The hardened lower roll, which also runs in roller bearings, can be changed easily for:

1) Outside Seam

2) Inside Seam 10mm/0.39"

3) Inside Seam 13mm/0.51"

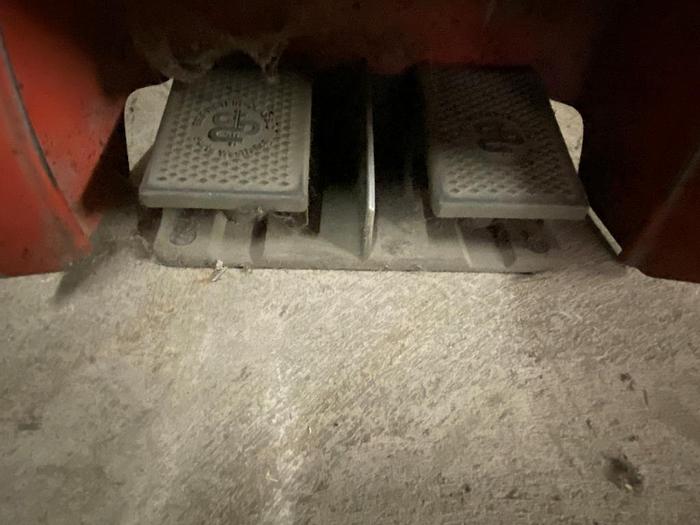

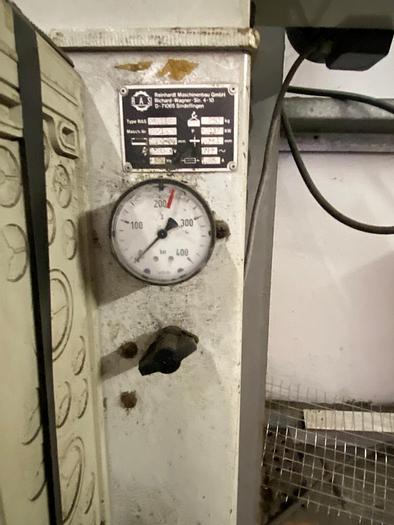

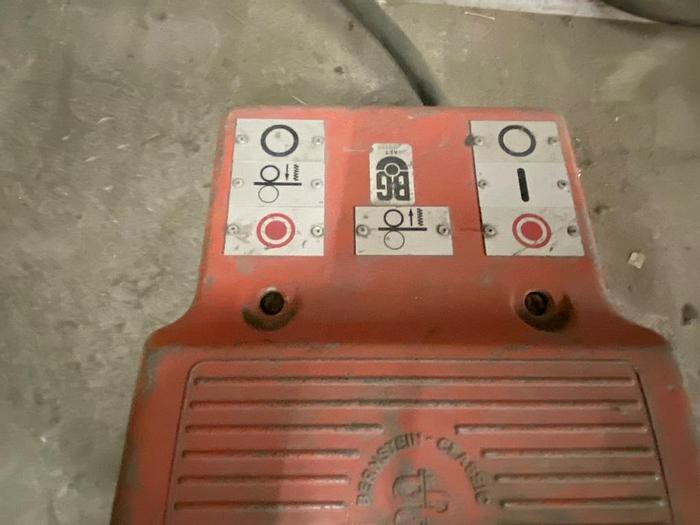

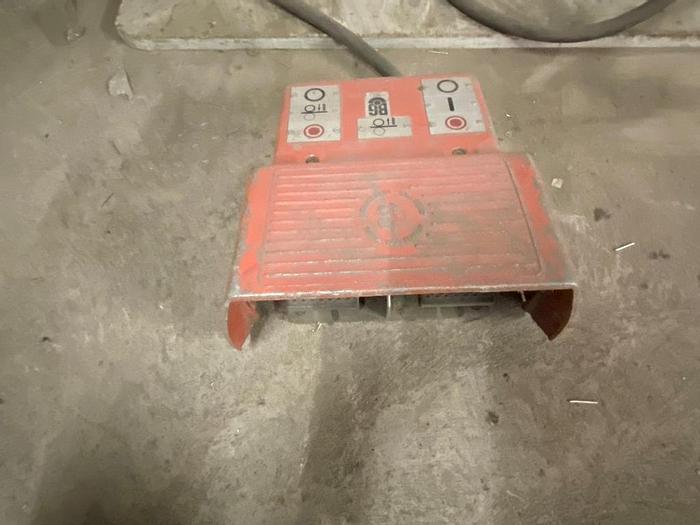

The upper roll is clamped hydraulically with a foot switch. As soon as the tube reached the limit switch the upper roll opens automatically and the drive motor stops.

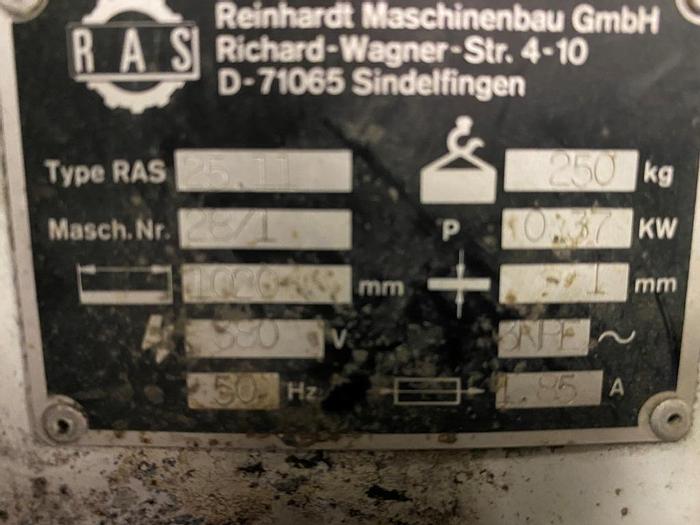

Technical Specification

Working Length: 1020mm

Max Material Thickness: 1.0mm

Shaft Diameter: 75mm

Seam Widths: 10/13mm

Speed: 16m/min

Working Height: 1020mm

Dimensions: 1740 x 520 x 1260mm

Motor Power: 0.37kW

Hydraulic Motor Power: 0.18kW

Weight: 250kg
