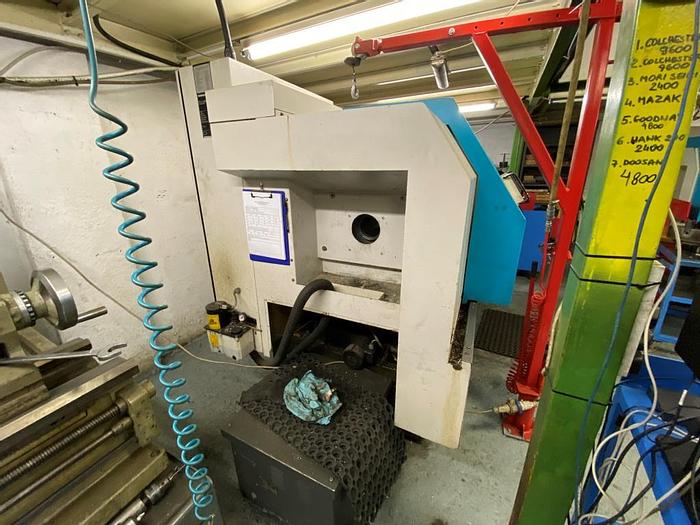

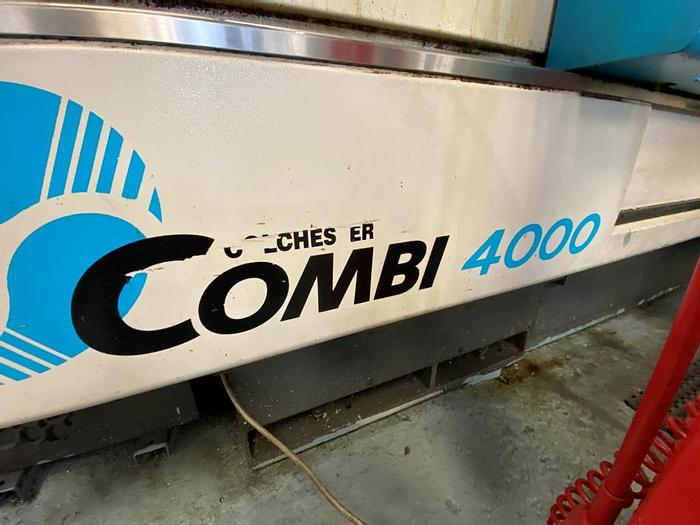

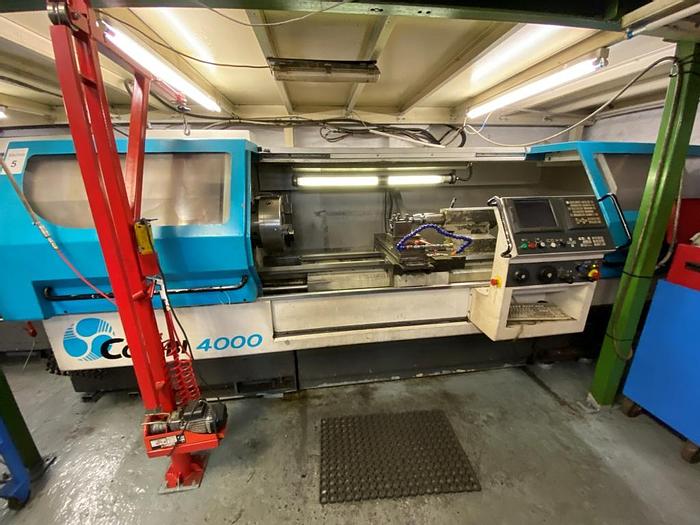

1999 Colchester Combi 4000 Manual/CNC Lathe
Description
1999 Colchester Combi 4000 Manual/CNC Lathe
Machine Type: Manual/CNC Lathe
Year: 1999

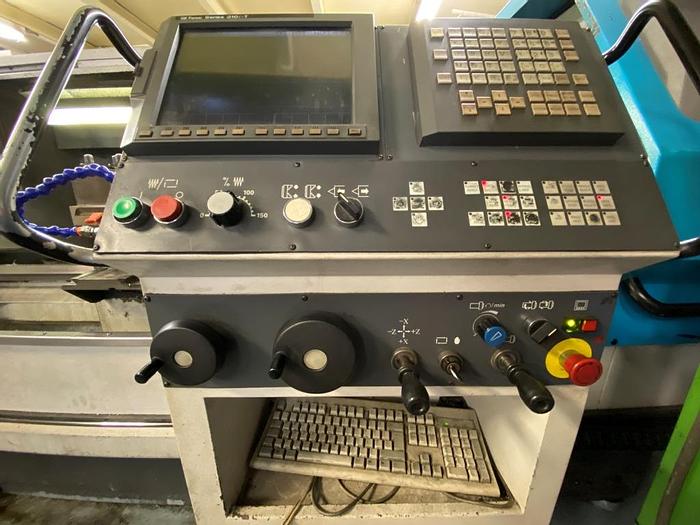

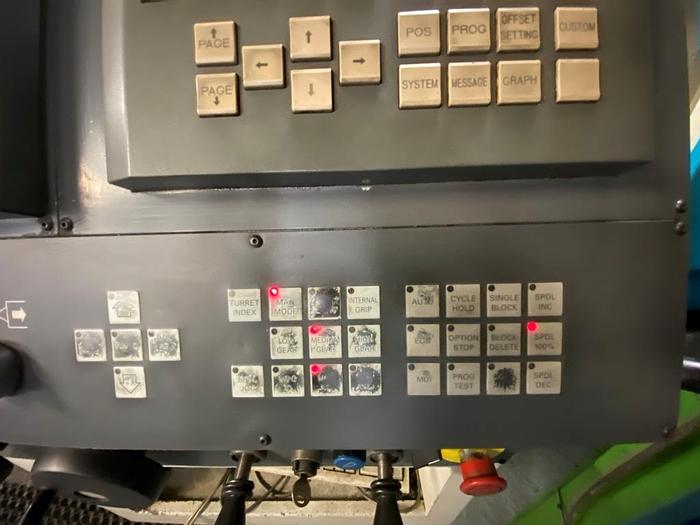

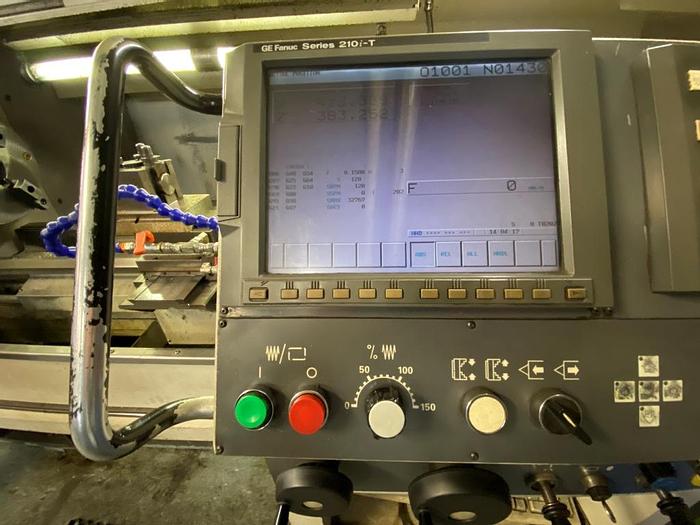

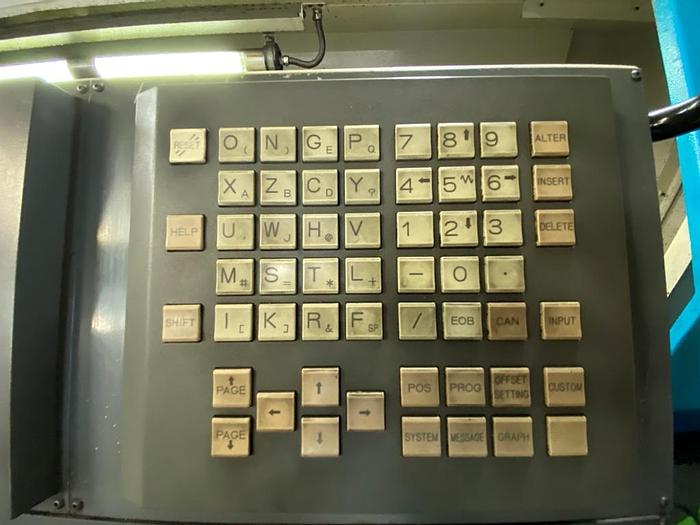

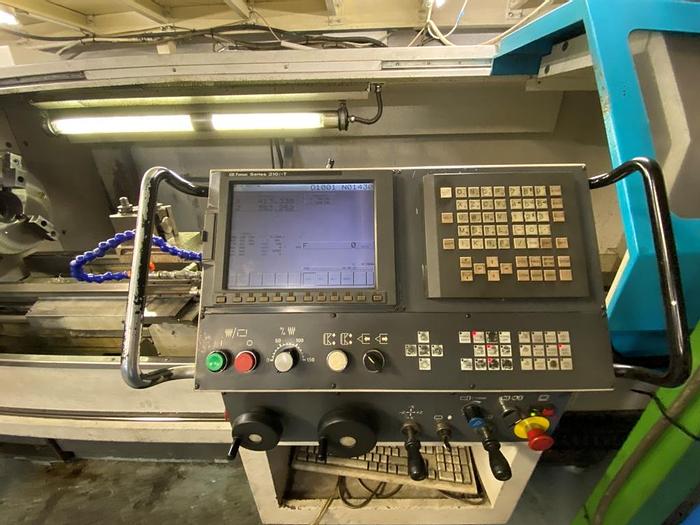

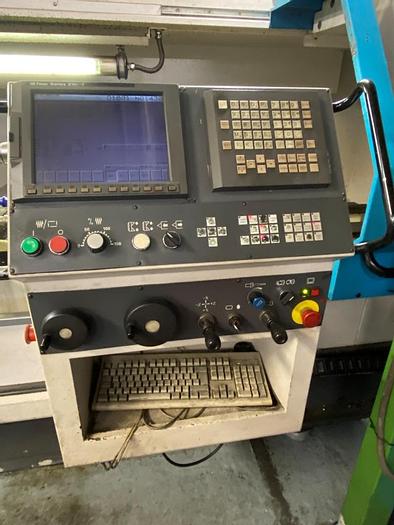

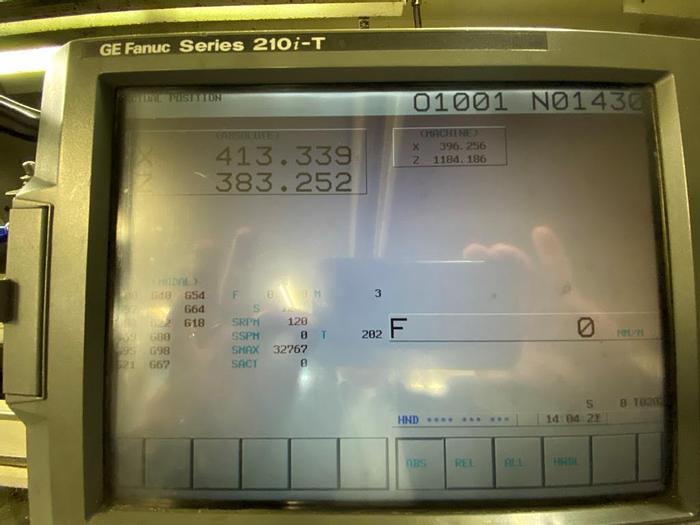

Control: Ge Fanuc Series 210i-T
Condition: Good
Includes

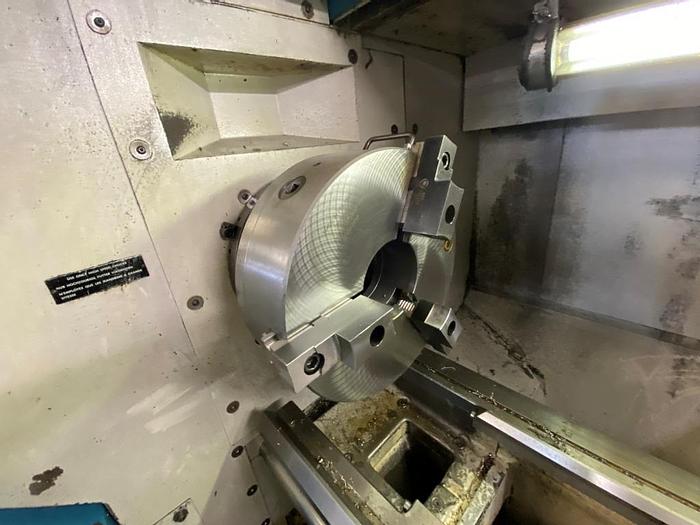

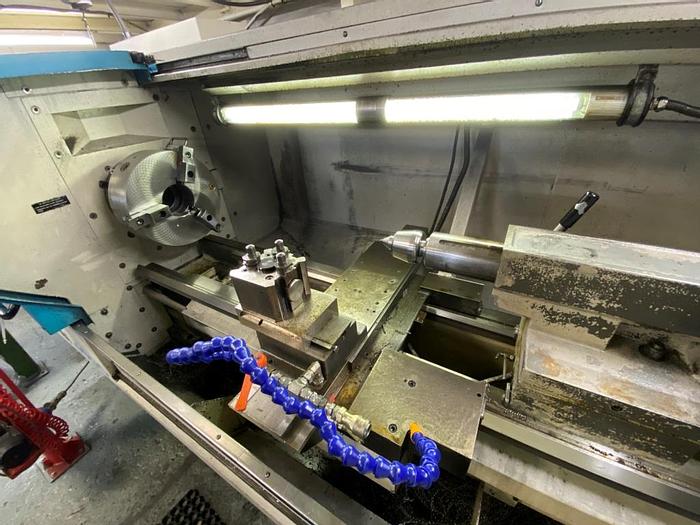

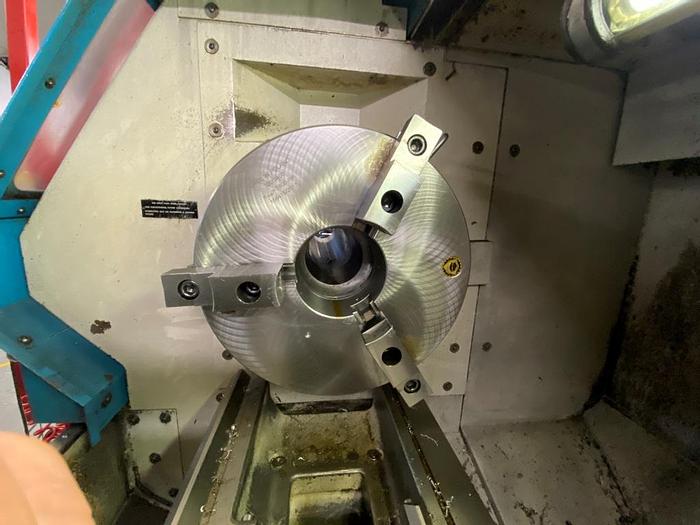

400mm 3 Jaw Chuck

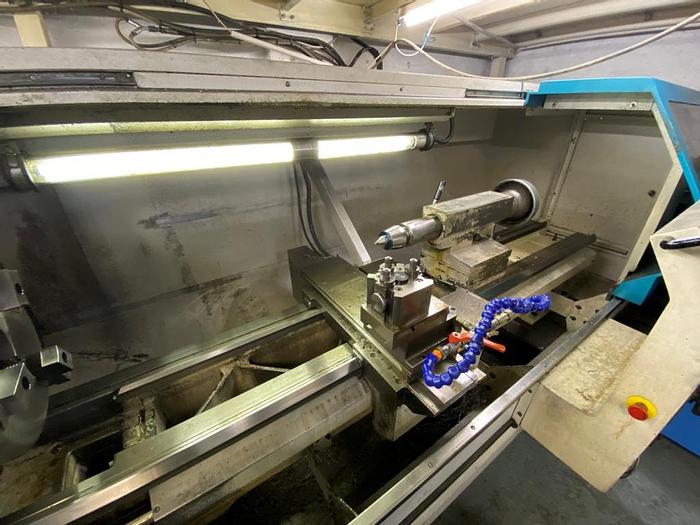

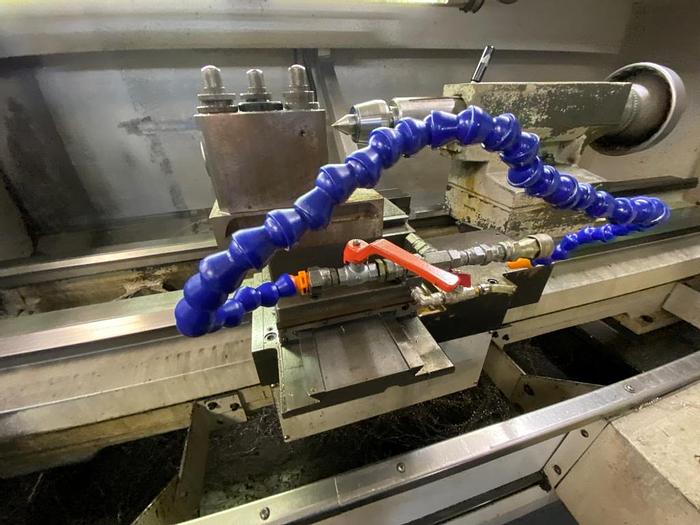

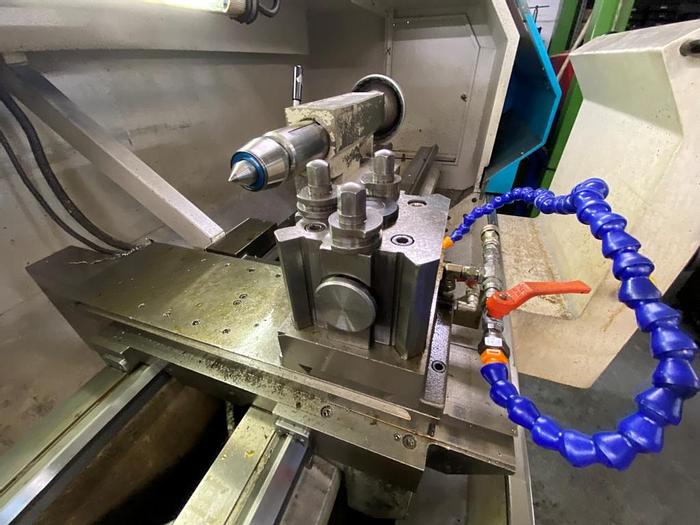

QCTP & 3 Holders
350mm Fixed Steady
220mm Fixed Steady

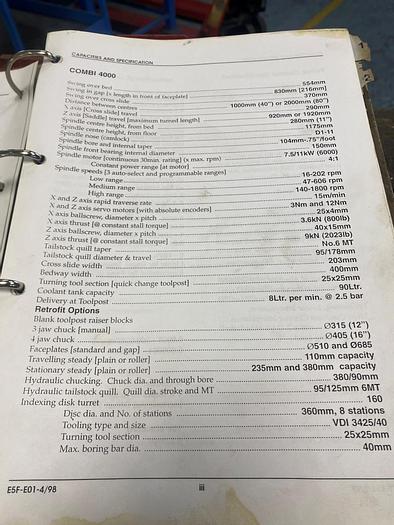

Technical Specifications
Distance Between Centres: 2000mm
Turning Diameter Over Cross-Slide: 370 mm
Swing Over Bed: 554 mm
Swing in Gap: 830mm
Spindle Nose: D1-11
Spindle Bore: 104 mm
Maximum Turning Length: 2000 mm
Cross Slide Longitudinal Travel (Z-axis): 1920 mm
Cross Slide Traversal Travel (X axis): 290 mm
Taper in Spindle: Camlock D1-6 CAMLOCK
Spindle Speeds: 16 to 1800rpm

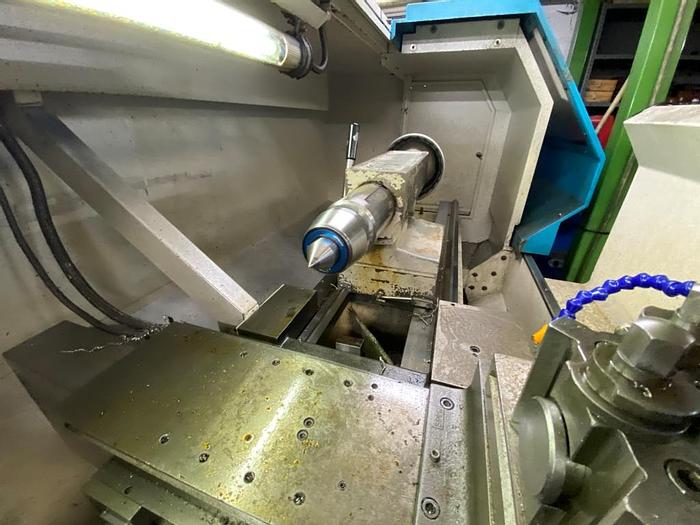

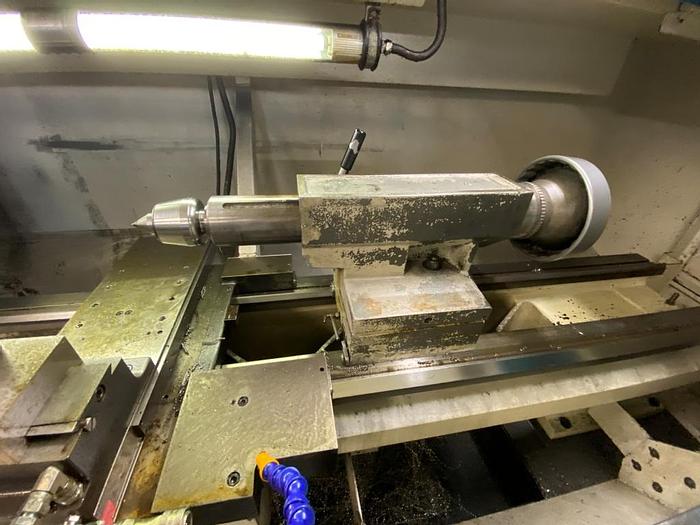

Taper in tailstock: 6 MT
Tailstock Spindle Travel: 178 mm
Tailstock Spindle Diameter: 95 mm
Rapid traverse: 10 m/min
Spindle Motor: 11 / 7.5 kW
Voltage: 400V/3ph/50Hz
Weight: Approx 4000 kg
Machine Dimensions: 3300x1800x1700 mm
Specifications
| Manufacturer | Colchester |
| Model | Combi 4000 Manual/CNC Lathe |
| Year | 1999 |
| Condition | Used |
| Machine Type | Manual/CNC Lathe |
| Year | 1999 |
| Control | Ge Fanuc Series 210i-T |
| Condition | Good |
| Distance Between Centres | 2000mm |
| Turning Diameter Over Cross-Slide | 370 mm |
| Swing Over Bed | 554 mm |
| Swing in Gap | 830mm |
| Spindle Nose | D1-11 |
| Spindle Bore | 104 mm |
| Maximum Turning Length | 2000 mm |
| Taper in Spindle | Camlock D1-6 CAMLOCK |
| Spindle Speeds | 16 to 1800rpm |
| Taper in tailstock | 6 MT |
| Tailstock Spindle Travel | 178 mm |
| Tailstock Spindle Diameter | 95 mm |
| Rapid traverse | 10 m/min |
| Spindle Motor | 11 / 7.5 kW |
| Voltage | 400V/3ph/50Hz |
| Weight | Approx 4000 kg |
| Machine Dimensions | 3300x1800x1700 mm |
