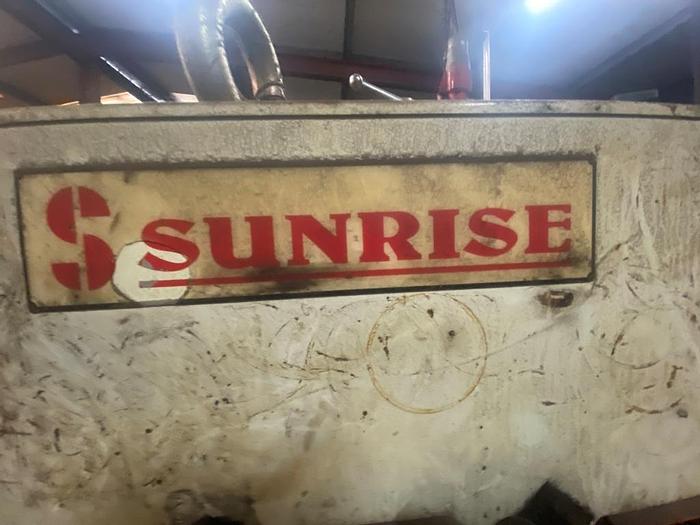

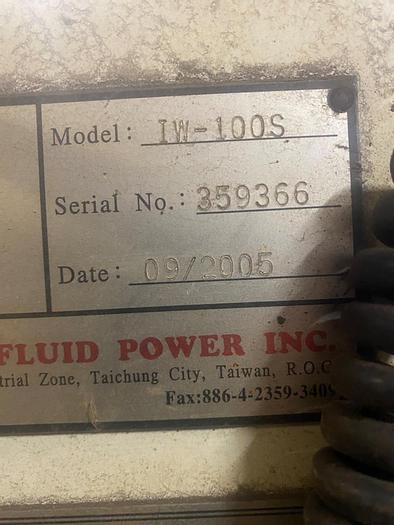

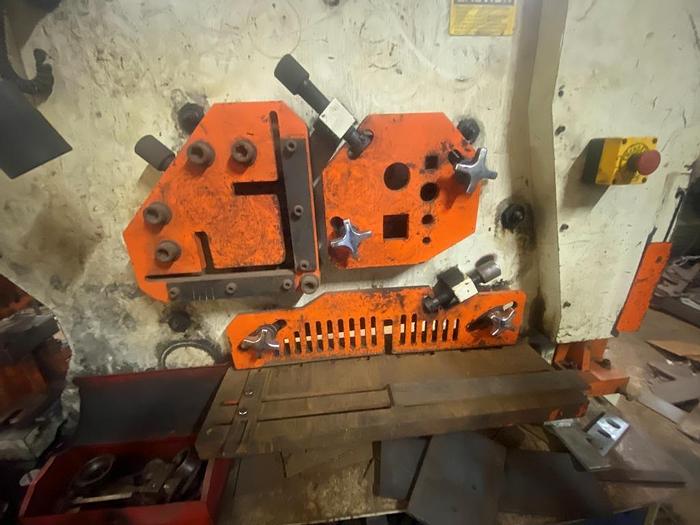

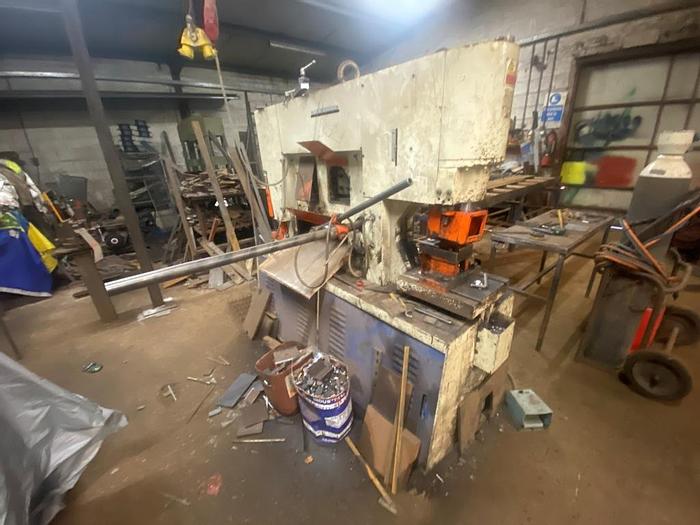

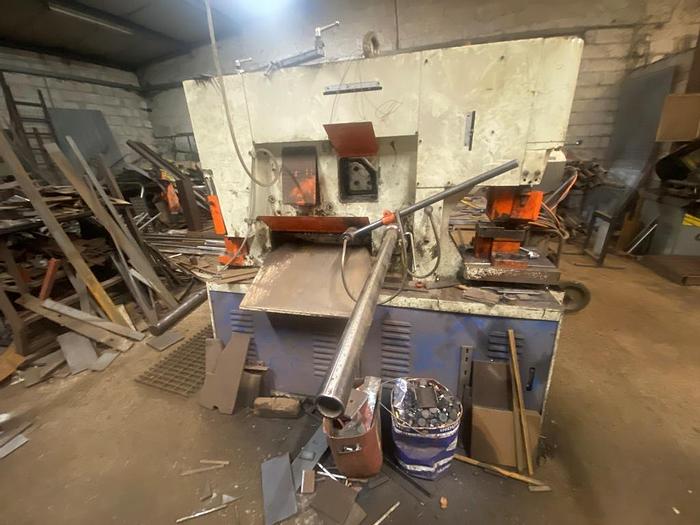

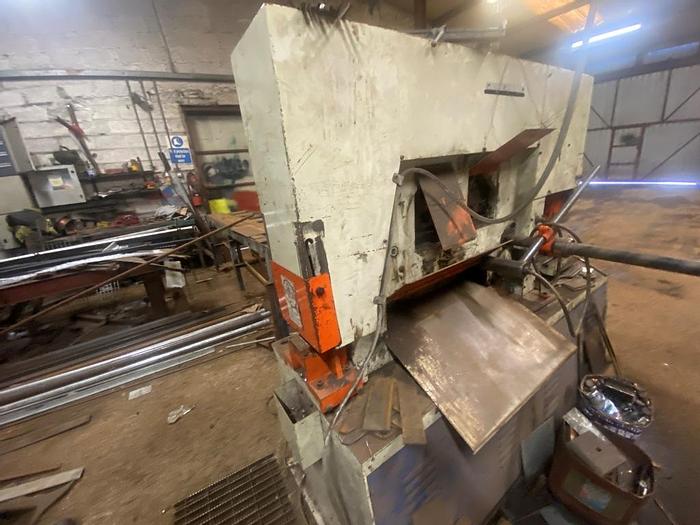

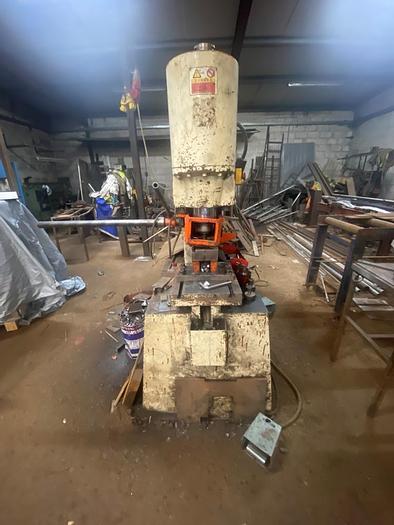

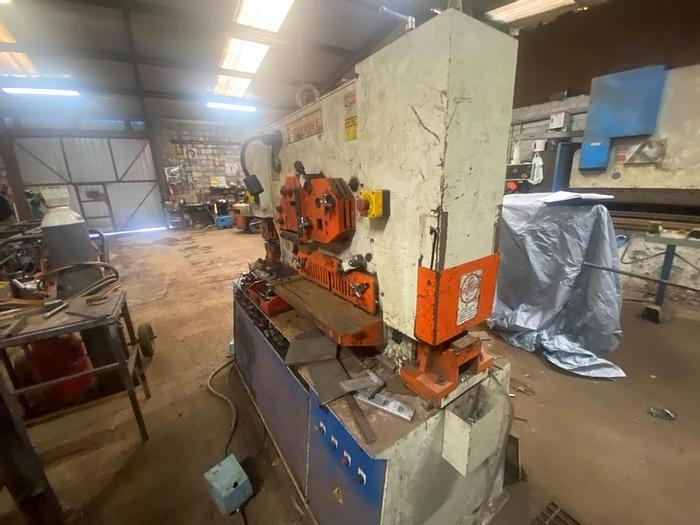

2006 Sunrise IW100S Hydraulic Ironworker

2006 Sunrise IW100S Ironworker

Machine Type: Double Cylinder Ironworker/Steelworker/Metalworker

Year: 2006

Electrical Connection: 400V/3Phase

Condition: Very Good

Includes

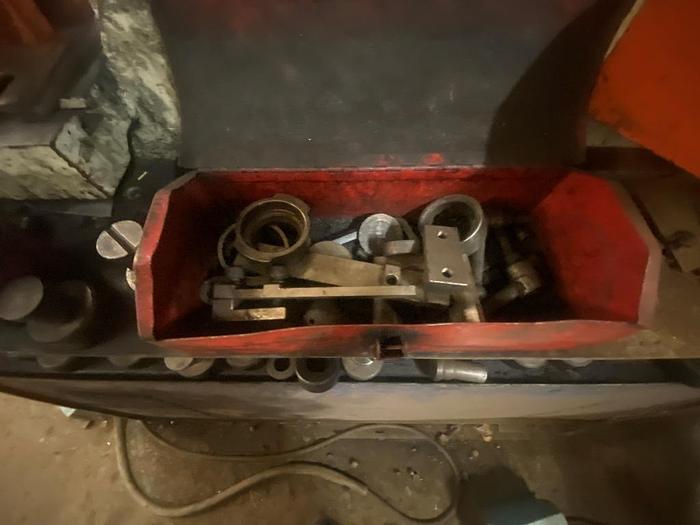

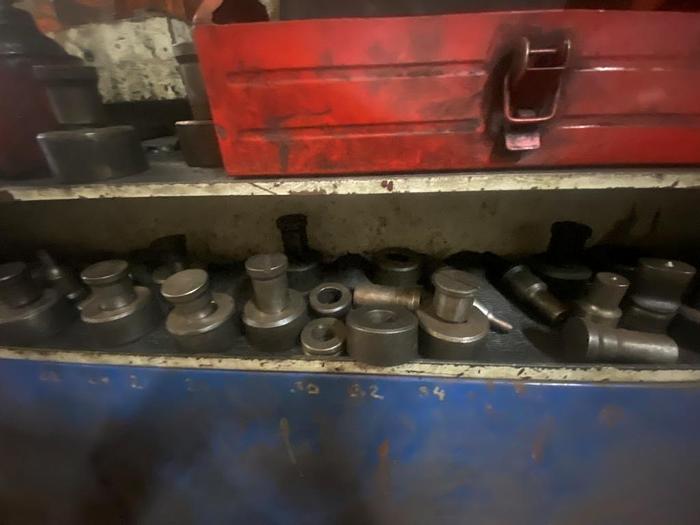

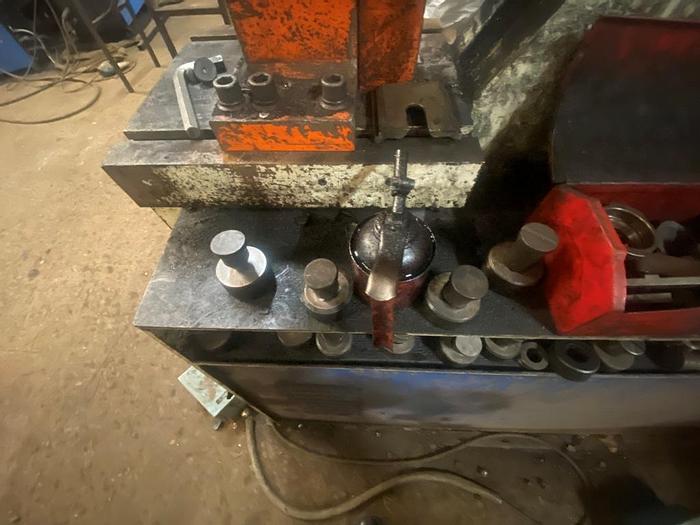

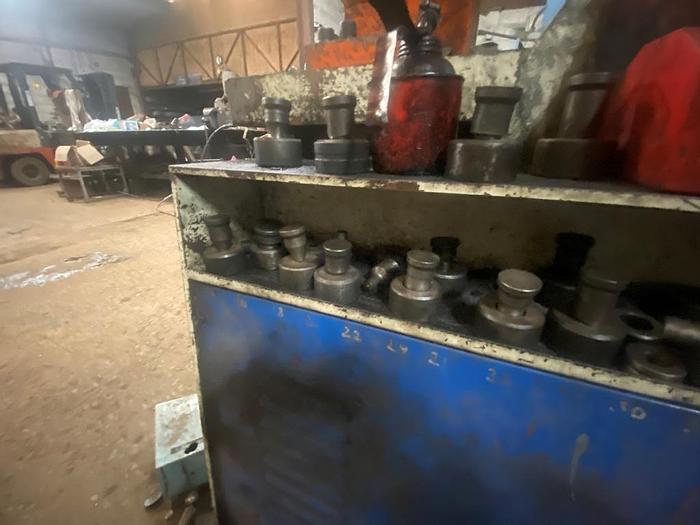

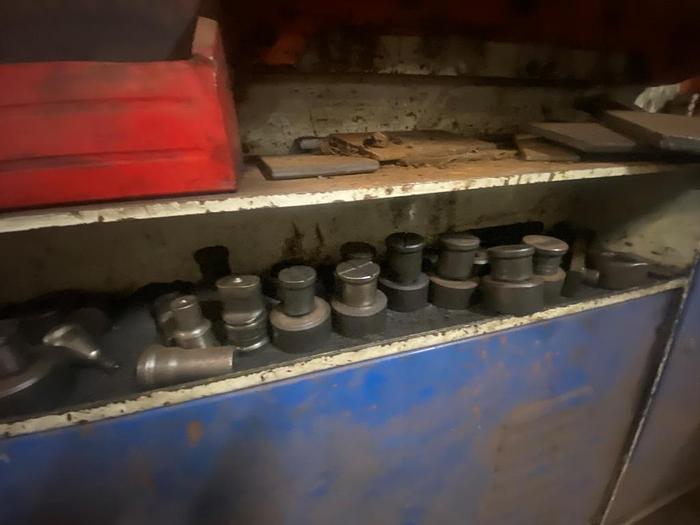

Large Selection of Punches & Dies

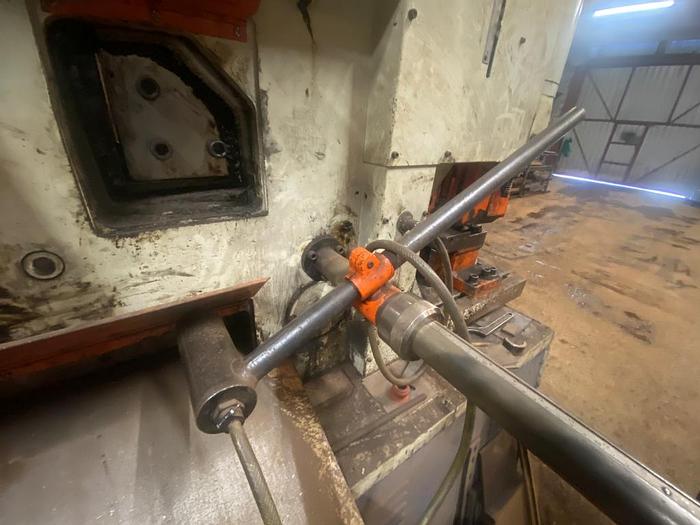

Length Stop for Shearing Station

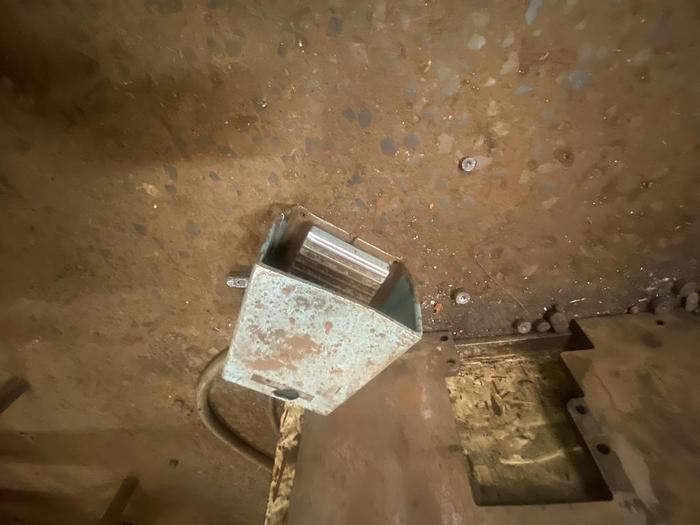

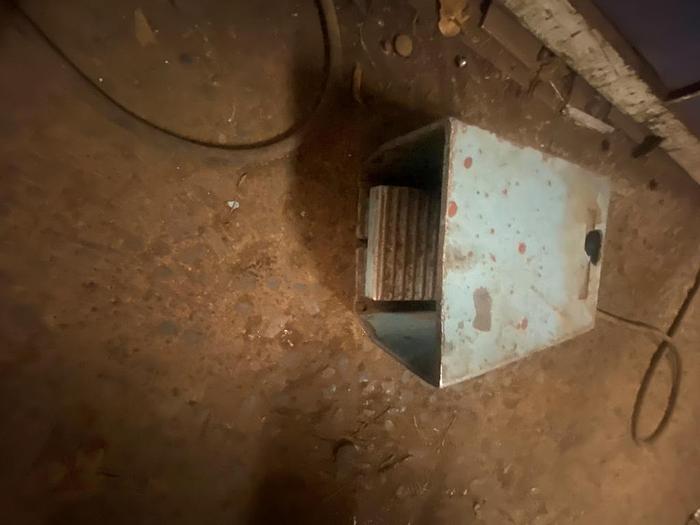

Two Foot Pedals for Dual Operation

Description

The double cylinder "S" series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, and

reliability. These ironworkers have two control foot pedals, and separate operations can be safely performed simultaneously. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. The large punching base with the "T-slot" mounting provides a solid base for securing the punching tooling, as well as a wide range of optional and custom designed tooling.

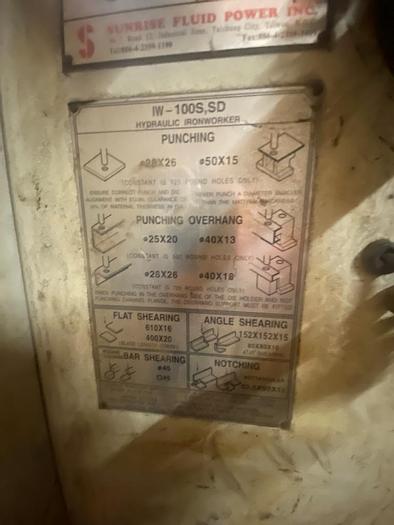

Technical Specification

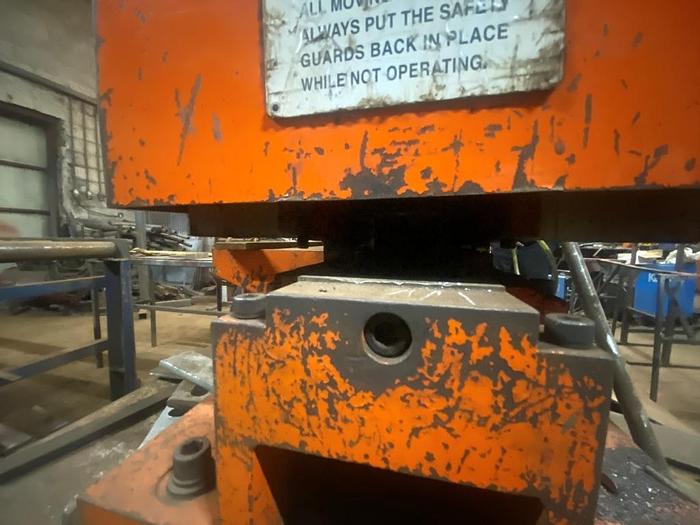

Punching Force: 100T

Punch Capacity: ø28 x 26mm

Punch Capacity: ø50 x 15mm

Throat Depth S: 310mm

Maximum Stroke Length: 100mm

Cycles / Min. (20mm stroke): 28

Working Height Up to Die: 1044mm

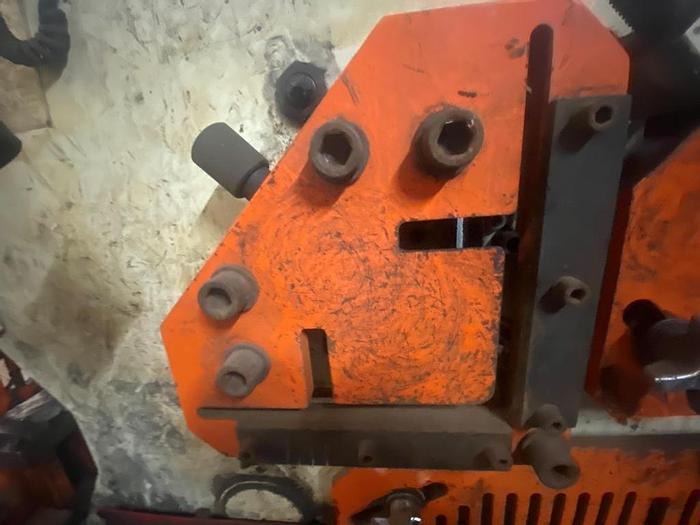

Angle Shearing At 90°: 150 x 150 x 15mm

Angle Shearing At 45° Miter: 75 x 75 x 9mm

Angle Shear Working Height: 1216mm

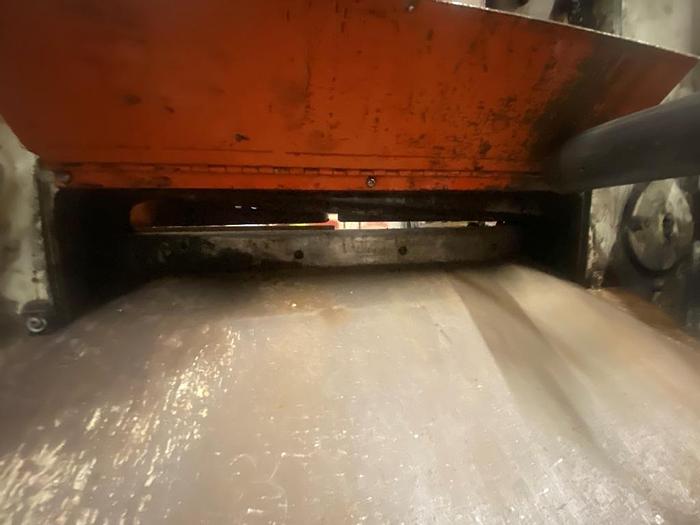

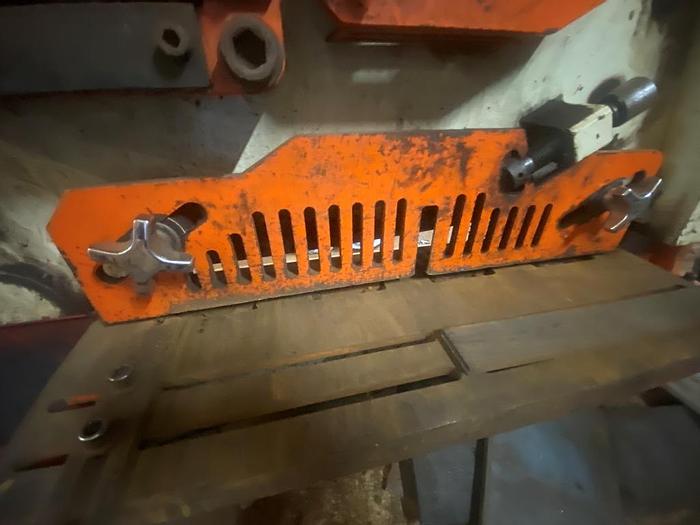

Flat Bar Shear: 610 x 16mm

Flat Bar Shear: 400 x 20mm

Blade Length: 620mm

Angle Flange Trim: 100mm

Flat Bar Shear Working Height: 954mm

Round Bar Shear: ø45mm

Square Bar Shear: 45 x 45mm

Bar Shear Working Height: 1332mm

Rectangular Notcher (W x D x T): 63.5 x 90 x 12mm

Notcher Working Height: 954mm

Motor Power: 10hp

Machine Dimensions: 2100 x 860 x 1810mm

Machine Weight: 2880kg
