1991 Haco PPM 30135 NC Controlled Pressbrake
Sold
Description

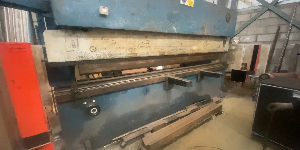

1991 Haco PPM 30135 NC Controlled Hydraulic Pressbrake
Machine Type: NC Controlled Hydraulic Pressbrake
Year: 1991
Control: Robosoft NC Control
Axes: 2 (X & Y)
Condition: Good. Damage on Bottom Tool. Machine has a bending length of 3.6m
Includes
Full Length Gooseneck Top Tool
Full Length Multi-Vee Bottom Tool
Wanderer Type Foot Pedal
Technical Specification
Bending Length: 3600mm
Bending Force: 135T
Distance Between Side Frames: 3150mm
Throat: 250mm
Daylight: 325mm
Stroke: 120mm
Table Height: 915mm
Max Approach Speed: 70mm/Sec
Max Bending Speed: 7mm/sec
Max Return Speed: 60mm/sec
Back Gauge Fingers: 2
Back Gauge Travel: 800mm
Back Gauge Powered Axis: 1 (X)
Light Curtains: Hibass Optoscan M90
Motor Power: 7.5kW
Dimensions: 4400 x 1700 x 2280mm
Weight: 9800kg
Specifications
| Manufacturer | Haco |
| Model | PPM 30135 NC Controlled Pressbrake |
| Year | 1991 |
| Condition | Used |
| Serial Number | 56893 |
| Machine Type | NC Controlled Hydraulic Pressbrake |
| Year | 1991 |
| Control | Robosoft NC Control |
| Axes | 2 (X & Y) |
| Bending Length | 3600mm |
| Bending Force | 135T |
| Distance Between Side Frames | 3150mm |
| Throat | 250mm |
| Daylight | 325mm |
| Stroke | 120mm |
| Table Height | 915mm |
| Max Approach Speed | 70mm/Sec |
| Max Bending Speed | 7mm/sec |
| Max Return Speed | 60mm/sec |
| Back Gauge Fingers | 2 |
| Back Gauge Travel | 800mm |
| Back Gauge Powered Axis | 1 (X) |
| Light Curtains | Hibass Optoscan M90 |
| Motor Power | 7.5kW |
| Weight | 9800kg |
