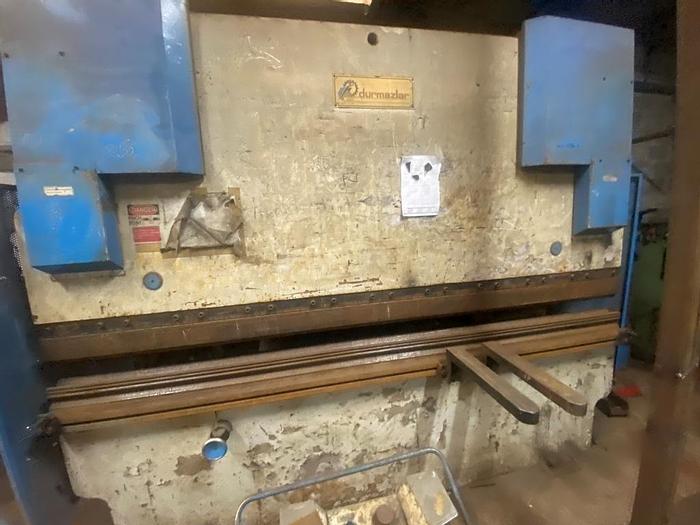

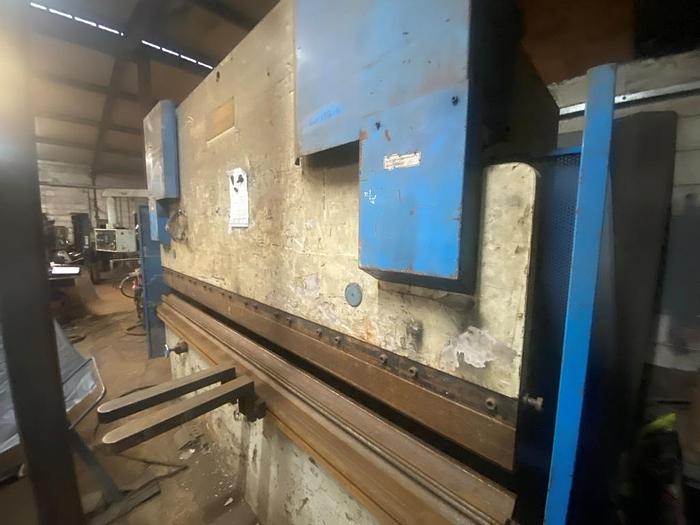

1996 Durmazlar HAP30120 Hydraulic Pressbrake
Description

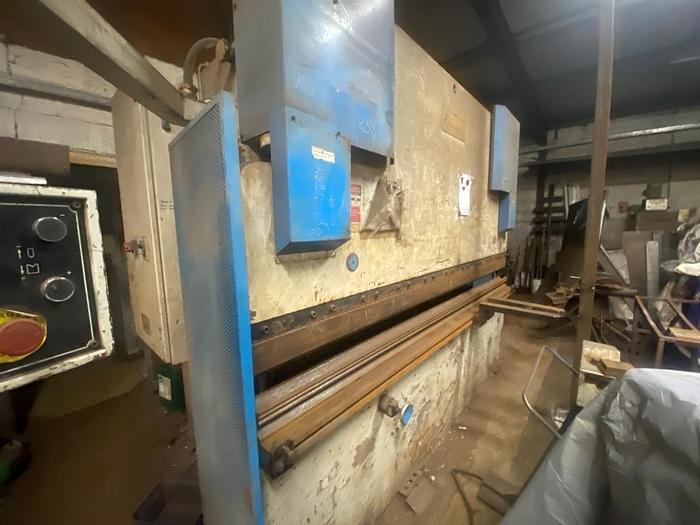

1996 Durmazlar HAP30120 NC Controlled Hydraulic Pressbrake
Machine Type: NC Controlled Hydraulic Pressbrake
Year: 1996

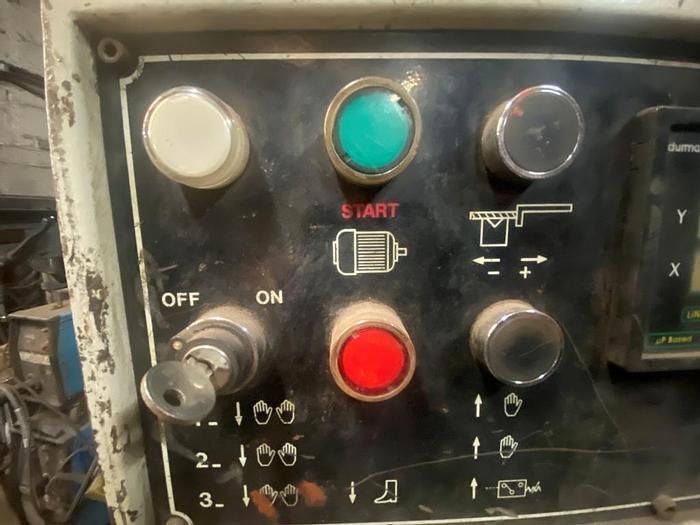

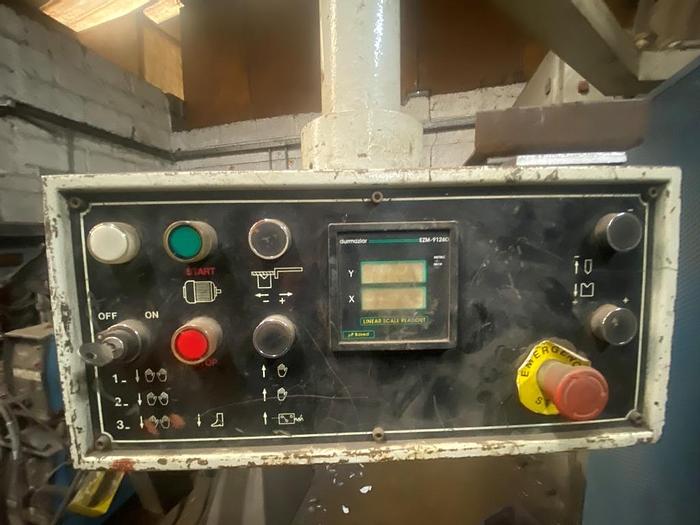

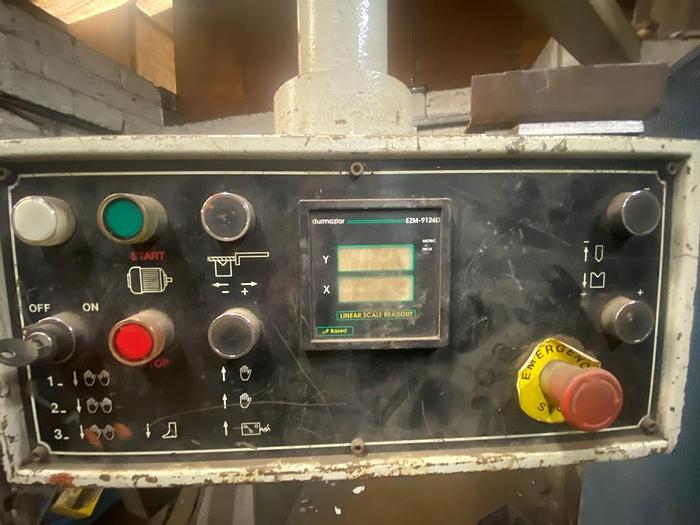

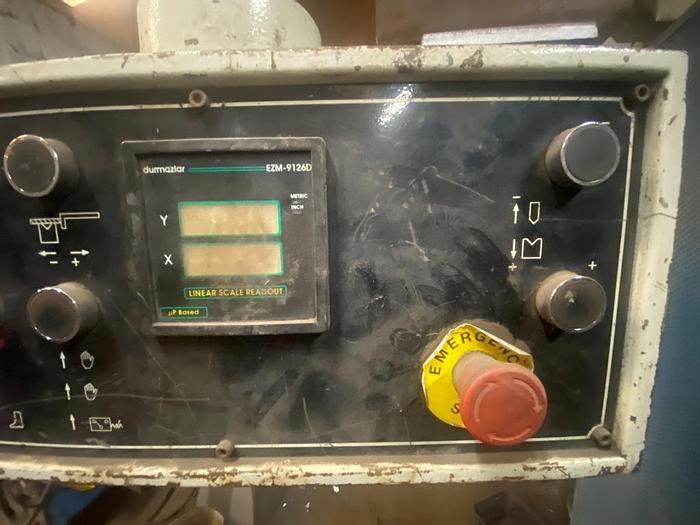

Control: Durmazlar EZM-9126D Control
Powered Axes: 2 (X,Y)
Condition: Good
Notes: No Loading Facilities on Site
Includes

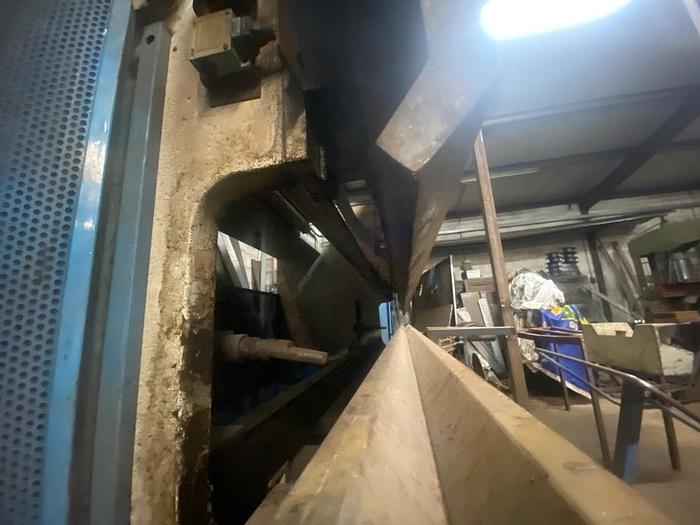

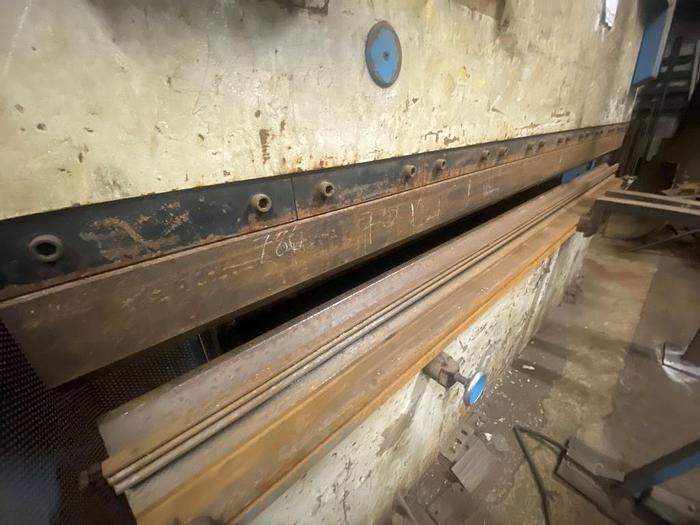

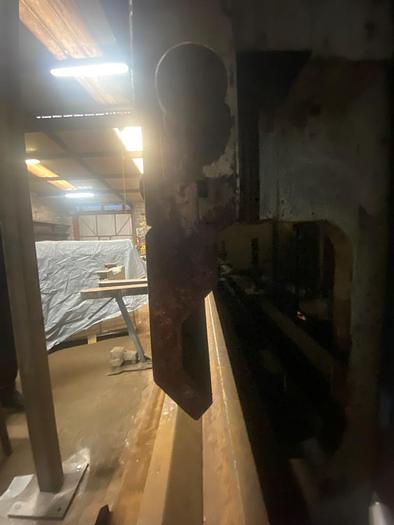

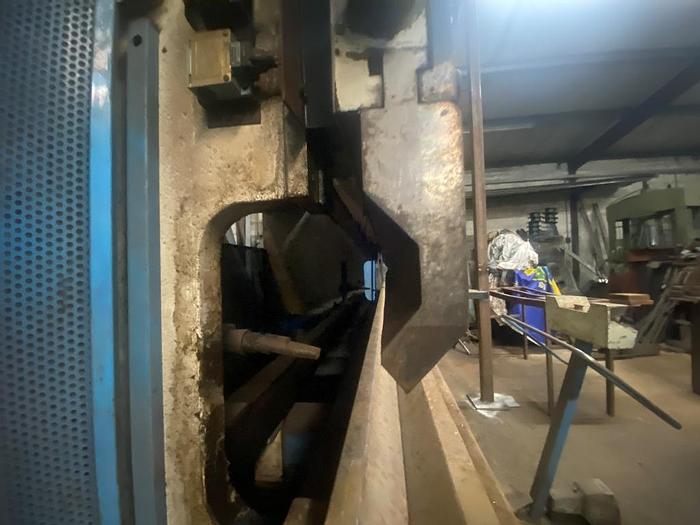

Full Length GooseNeck Top Tool

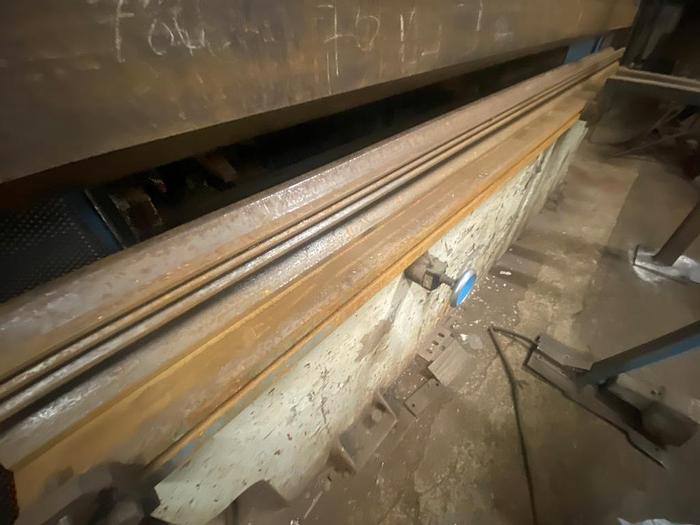

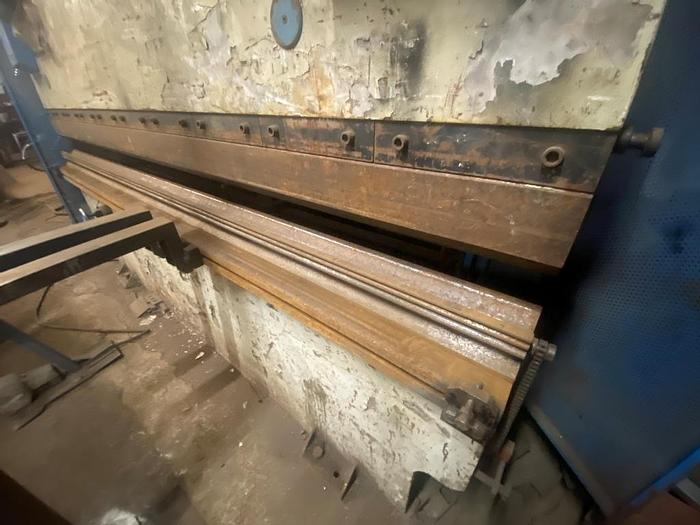

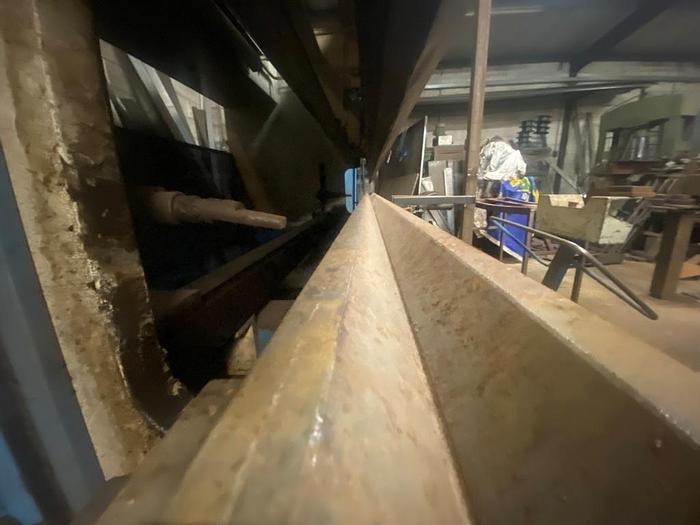

Full Length Multi-Vee Bottom Tool

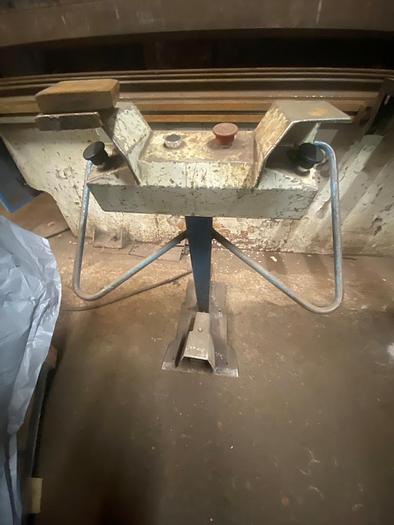

Wanderer Type Foot Pedal
Technical Specification
Bending Force: 120T
Bending Length: 3050mm
Distance Between Side Frames: 2550mm
Max Approach Speed: 100mm/sec
Max Bending Speed: 9mm/sec
Max Return Speed: 77mm/sec
Daylight: 344mm
Table Width: 220mm
Table Height: 800mm
Stroke: 160mm

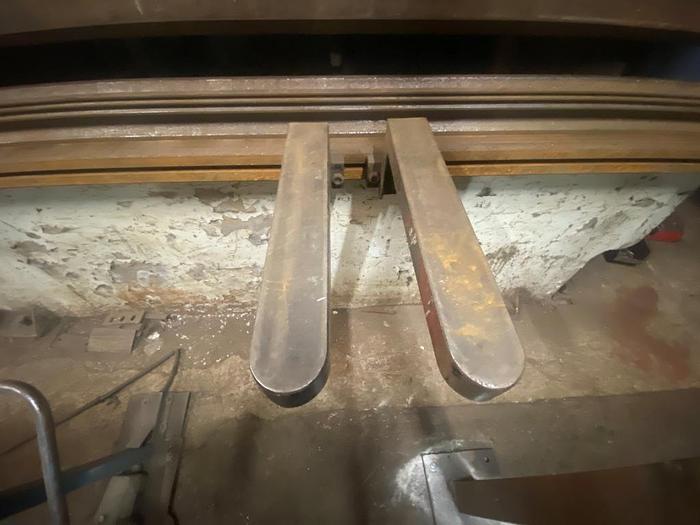

Support Arms: 2

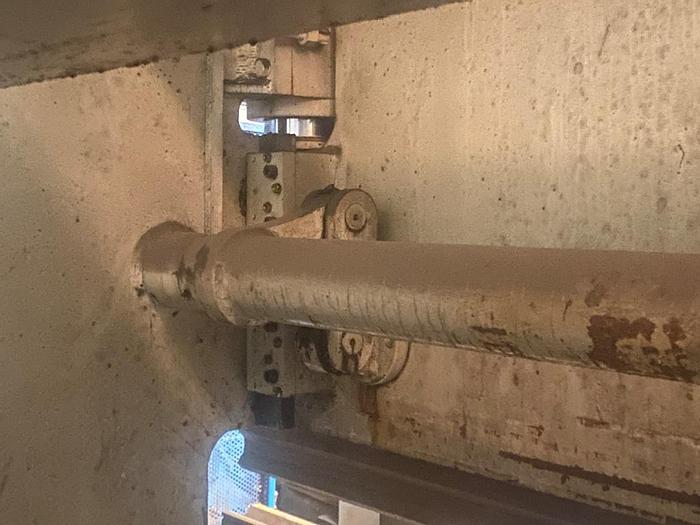

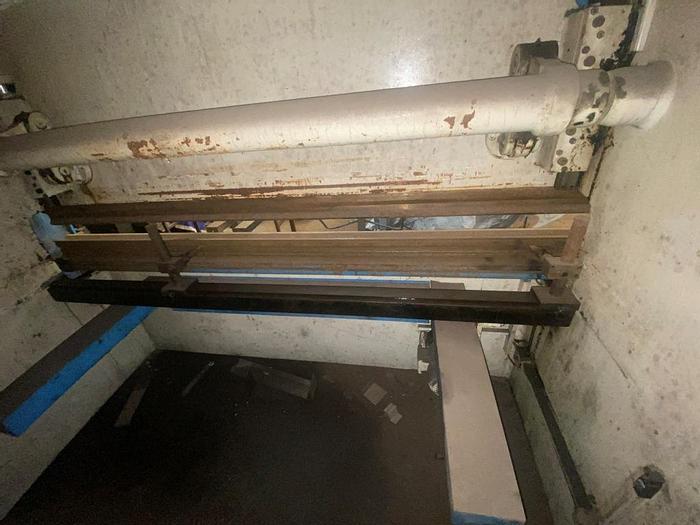

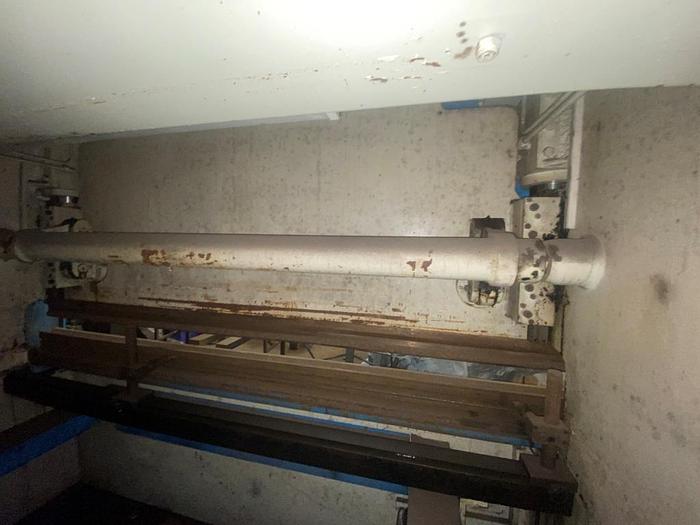

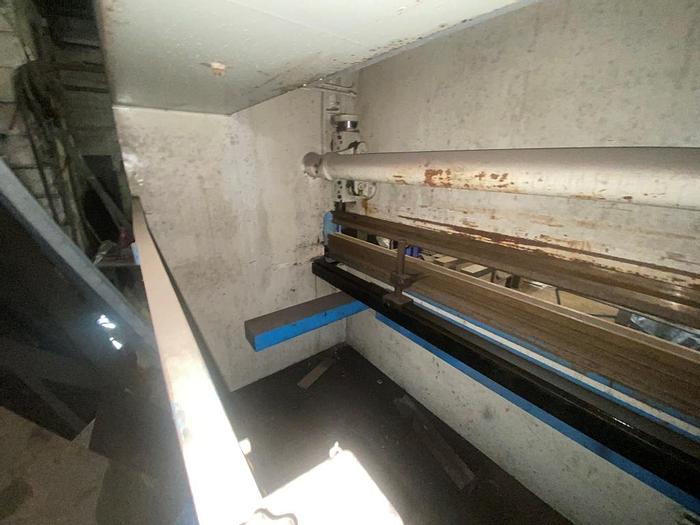

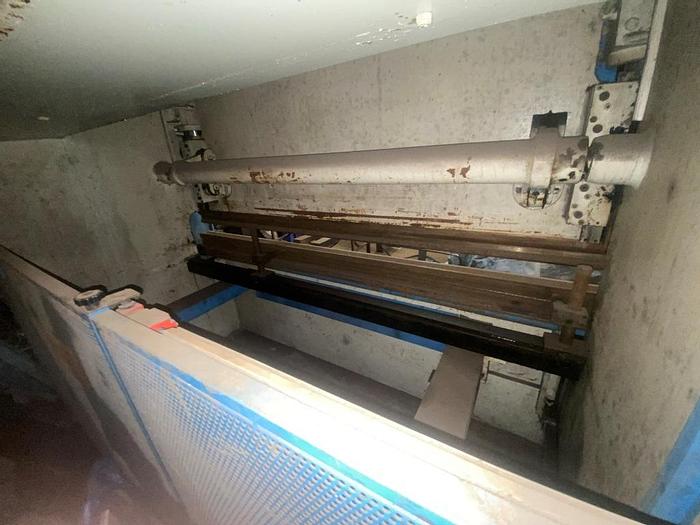

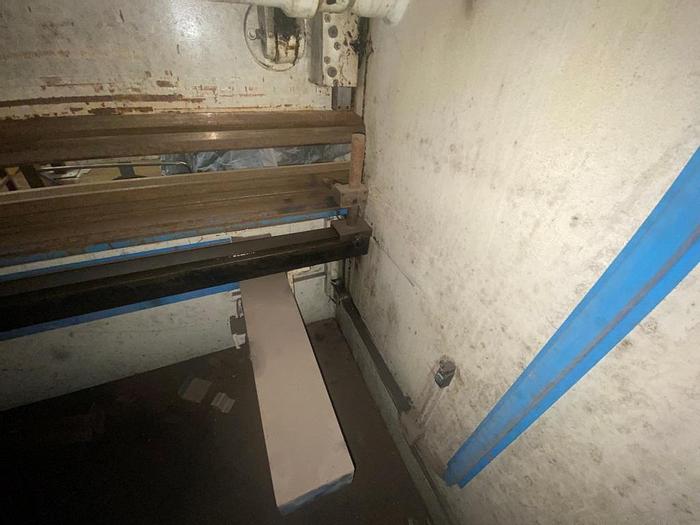

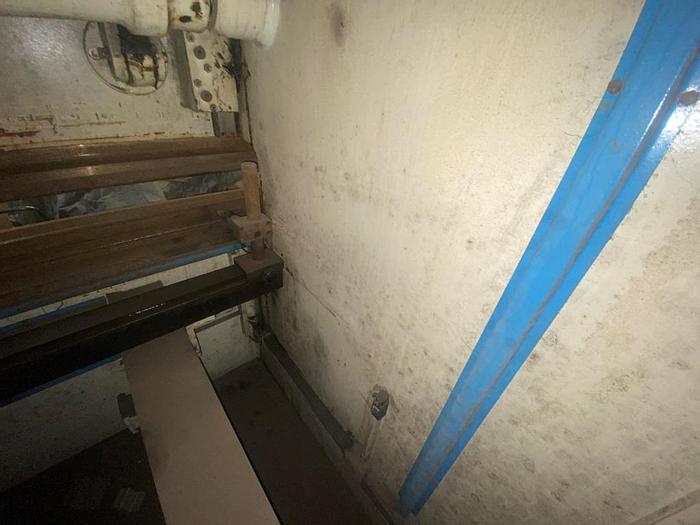

Powered Back Gauge Axis: 1 (X)
Manual Back Gauge Axes: 3 (R, Z1,Z2)
Back Gauge Fingers: 2
Back Gauge Speed: 80mm/sec
Back Gauge Travel: 620mm
Motor Power: 11kW
Oil Tank Capacity: 150L
Dimensions: 4150 x 2150 x 2600mm
Weight: 7880kg
Specifications
| Manufacturer | Durmazlar |
| Model | HAP30120 Hydraulic Pressbrake |
| Year | 1996 |
| Condition | Used |
| Stock Number | 968706 |
| Machine Type | NC Controlled Hydraulic Pressbrake |
| Year | 1996 |
| Control | Durmazlar EZM-9126D Control |
| Powered Axes | 2 (X,Y) |
| Condition | Good |
| Bending Force | 120T |
| Bending Length | 3050mm |
| Distance Between Side Frames | 2550mm |
| Max Approach Speed | 100mm/sec |
| Max Bending Speed | 9mm/sec |
| Max Return Speed | 77mm/sec |
| Daylight | 344mm |
| Table Width | 220mm |
| Table Height | 800mm |
| Stroke | 160mm |
| Support Arms | 2 |
| Powered Back Gauge Axis | 1 (X) |
| Manual Back Gauge Axes | 3 (R, Z1,Z2) |
| Back Gauge Fingers | 2 |
| Back Gauge Speed | 80mm/sec |
| Back Gauge Travel | 620mm |
| Motor Power | 11kW |
| Oil Tank Capacity | 150L |
| Weight | 7880kg |
