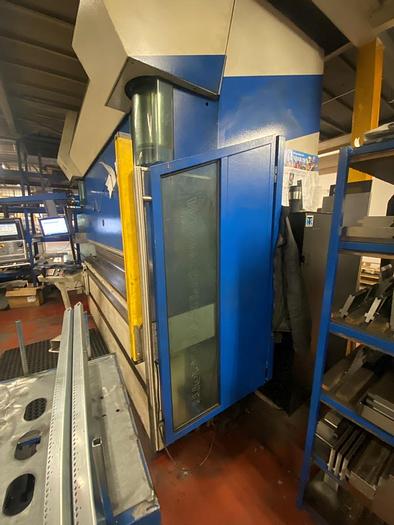

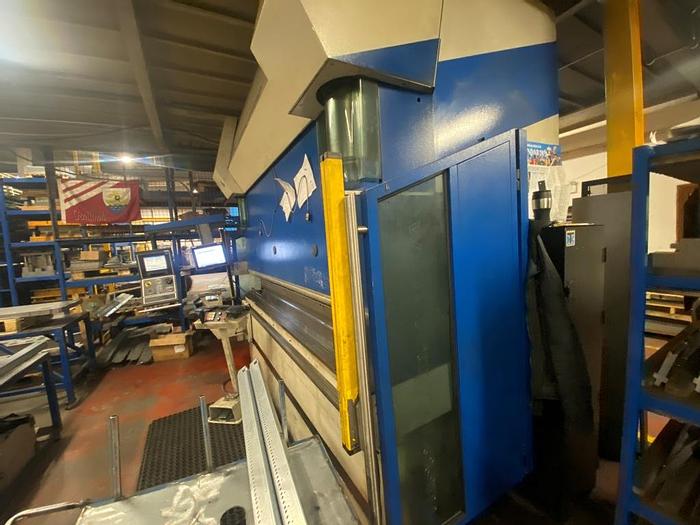

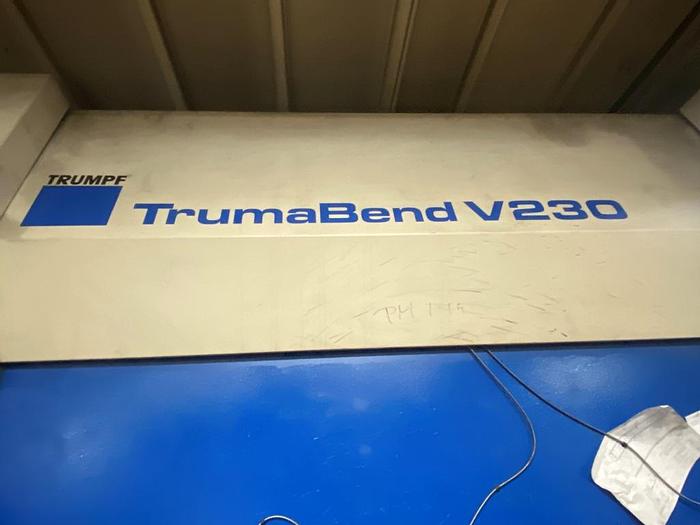

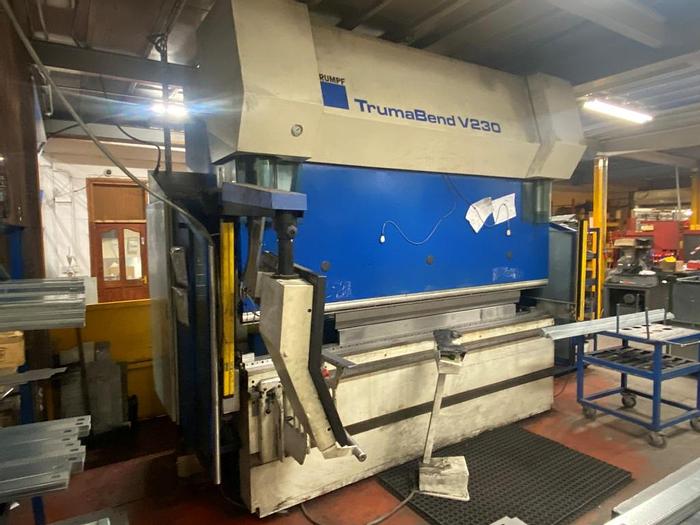

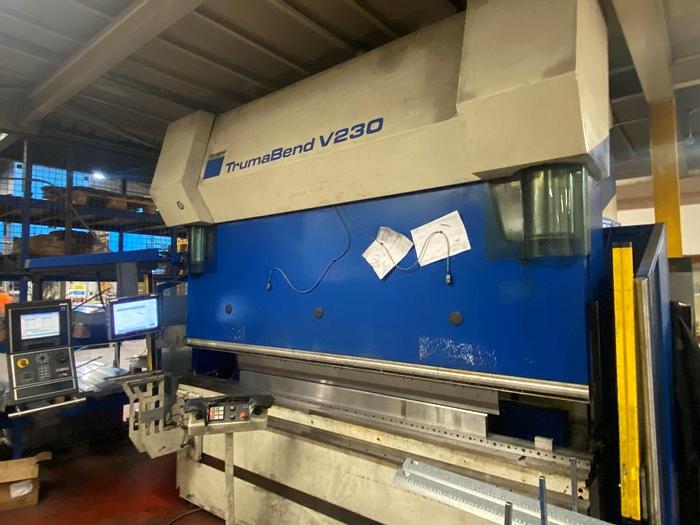

2003 Trumpf TrumaBend V230 CNC Pressbrake
Description
2003 Trumpf TrumaBend V230 CNC Pressbrake
Machine Type: CNC Pressbrake
Year: 2003

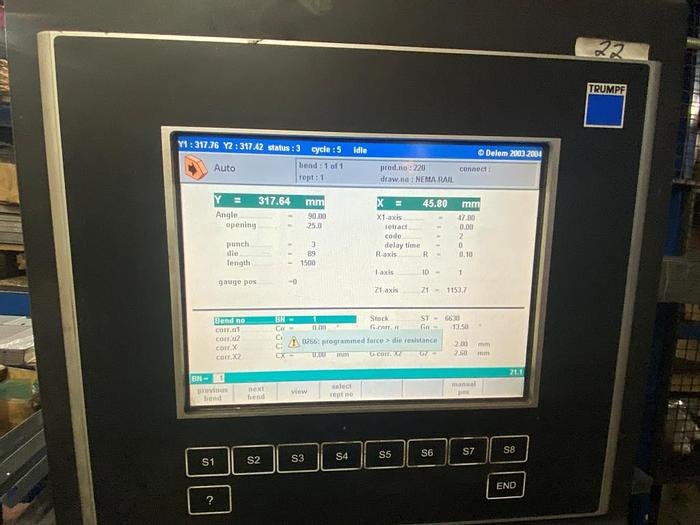

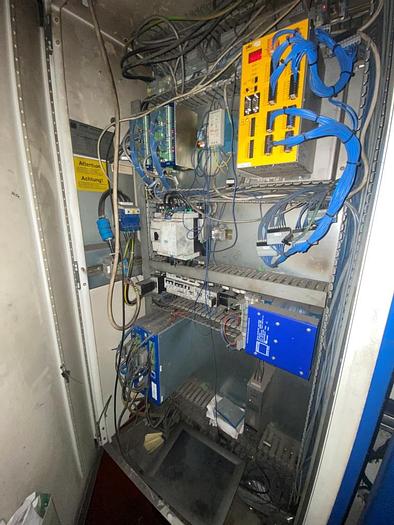

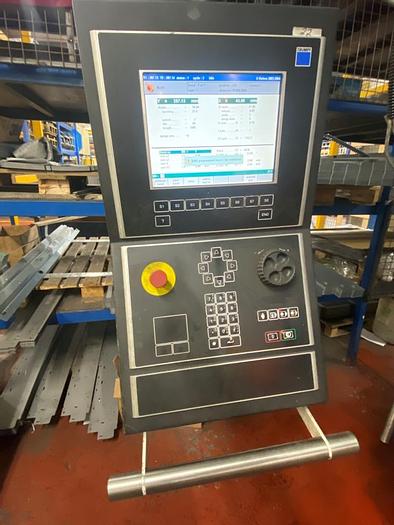

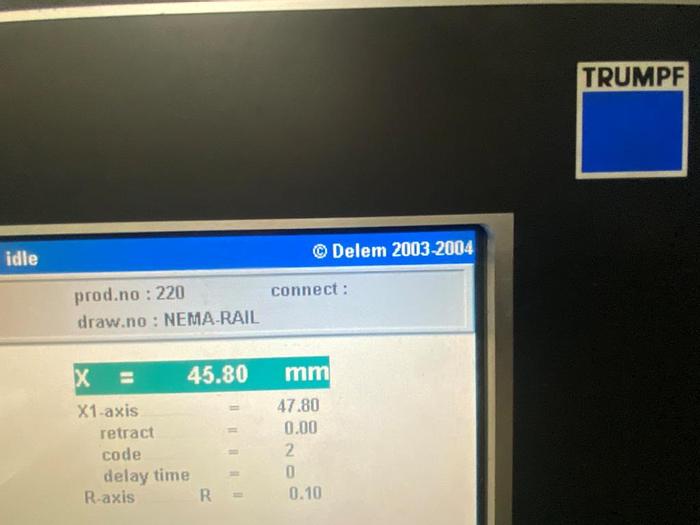

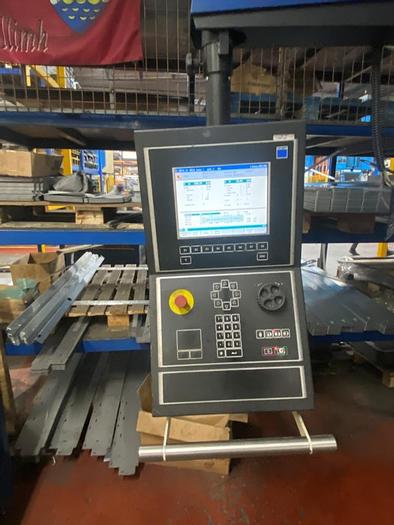

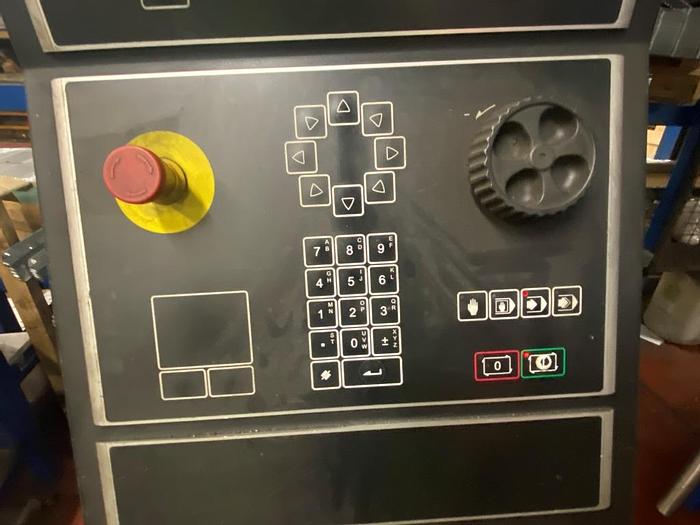

Control: Delem DA 69 on Windows, 2D graphic control with 10.4" color screen
Axes: 7 Axis Machine
Condition: Good
Notes: No Tooling is Included with this machine
Technical Specification
Bending Length: 3060mm
Tonnage: 230T
Distance Btw Side Frames: 2690mm
Stroke: 365mm
Throat Depth: 420mm
Max Daylight: 535mm
Working Height: 1050mm

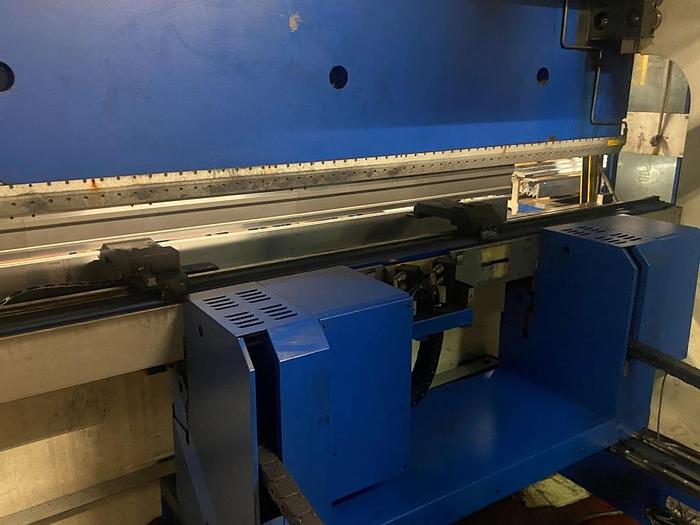

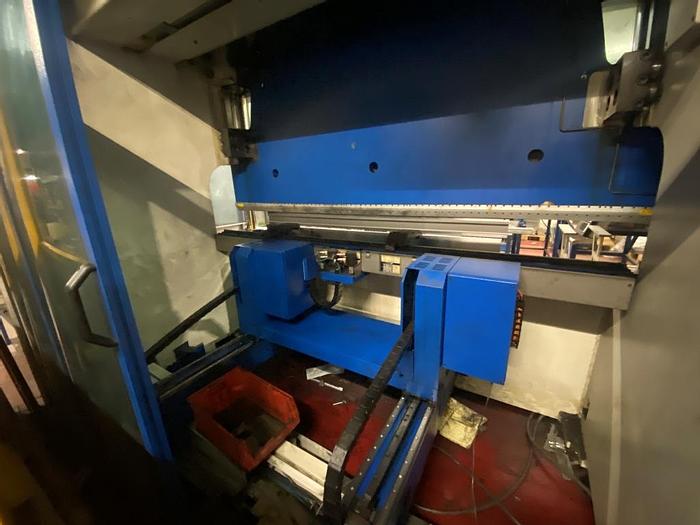

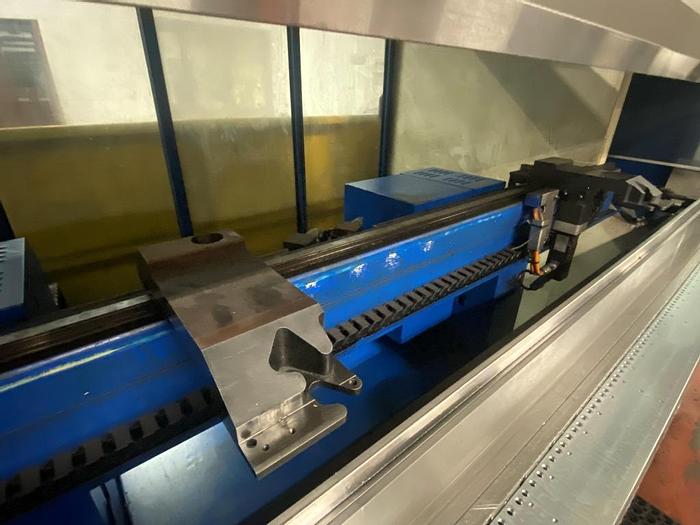

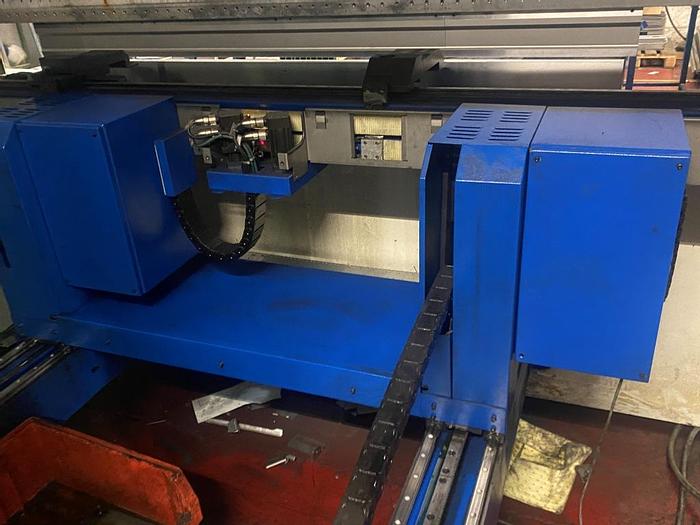

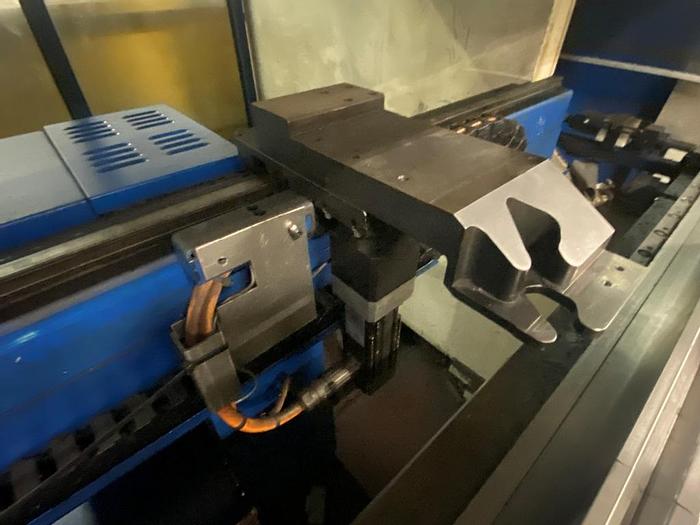

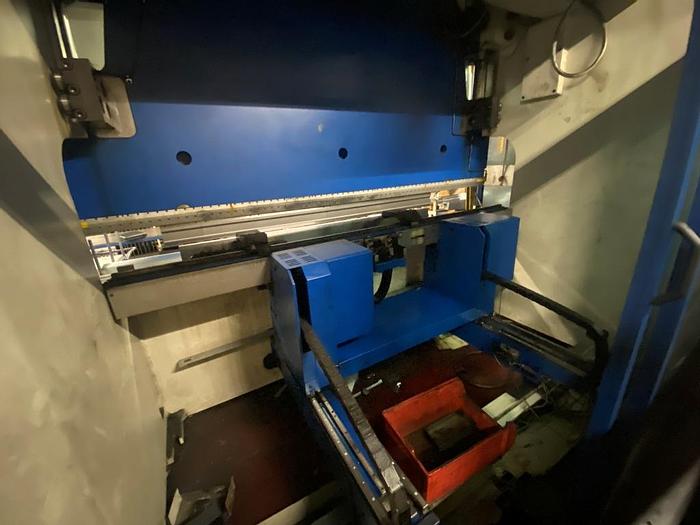

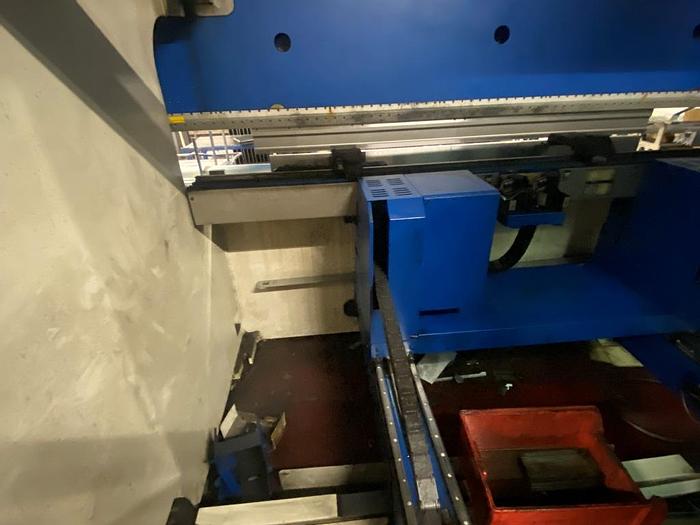

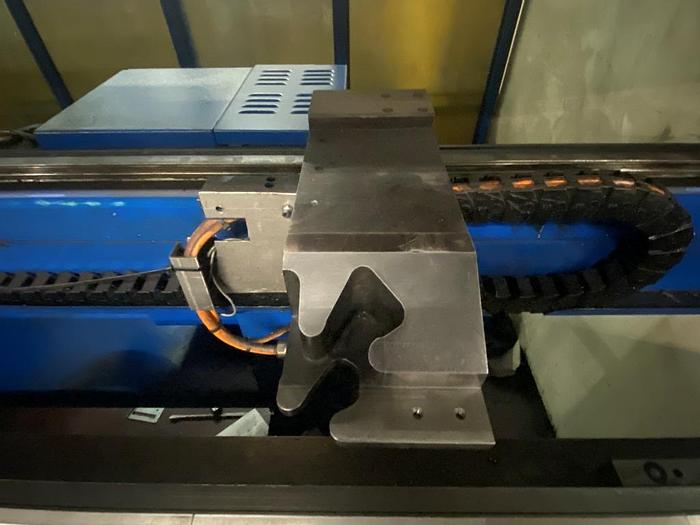

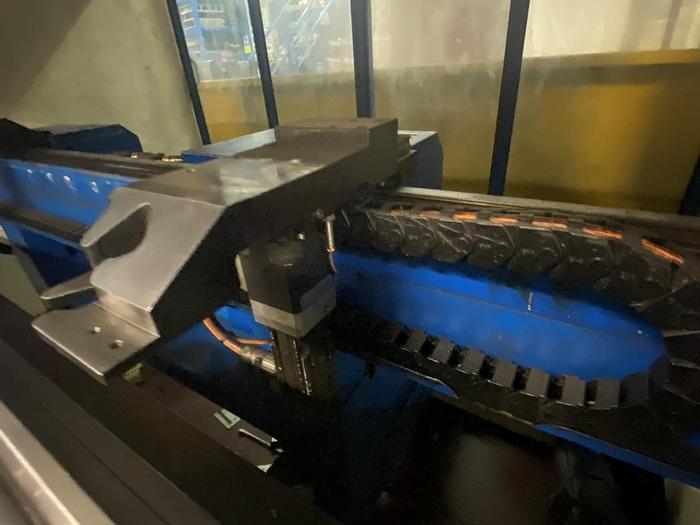

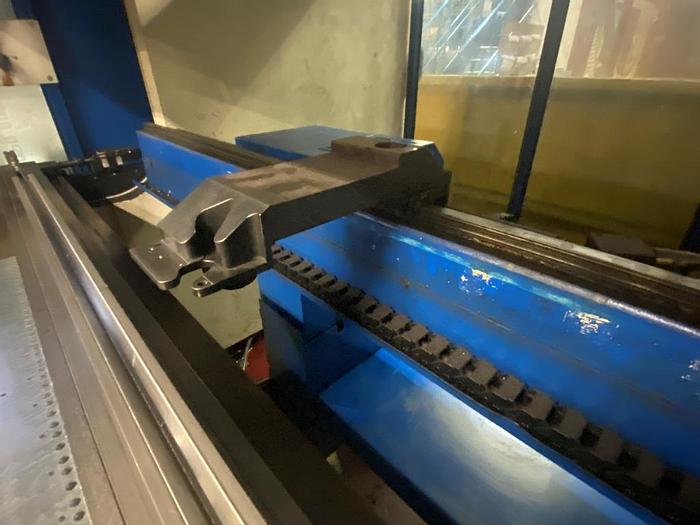

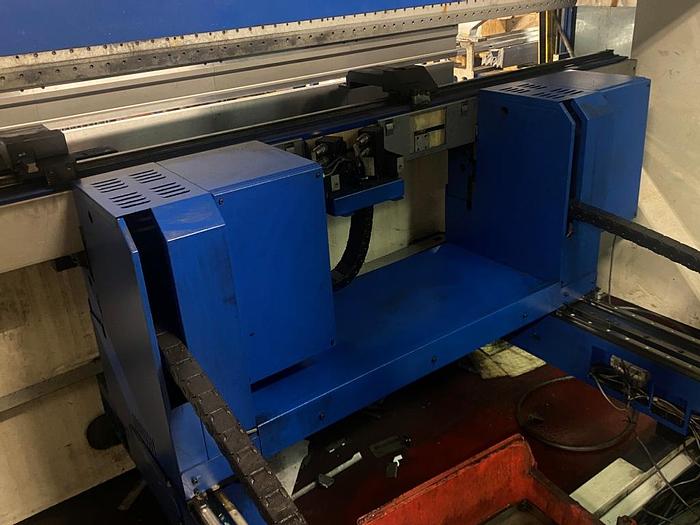

Back Gauge: 5 Axis Back Gauge. X,Delta X,Z1,Z2,R
Back Gauge Travel: 600mm

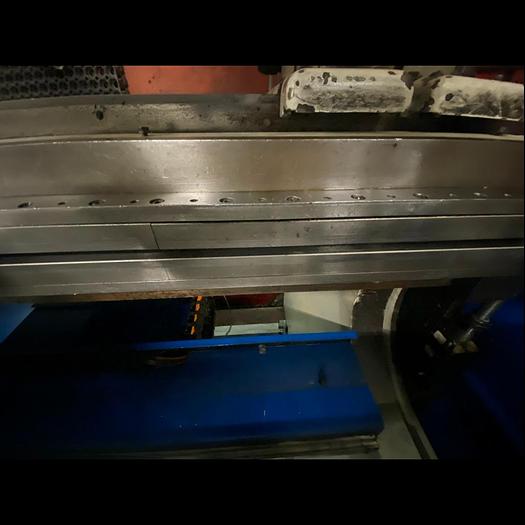

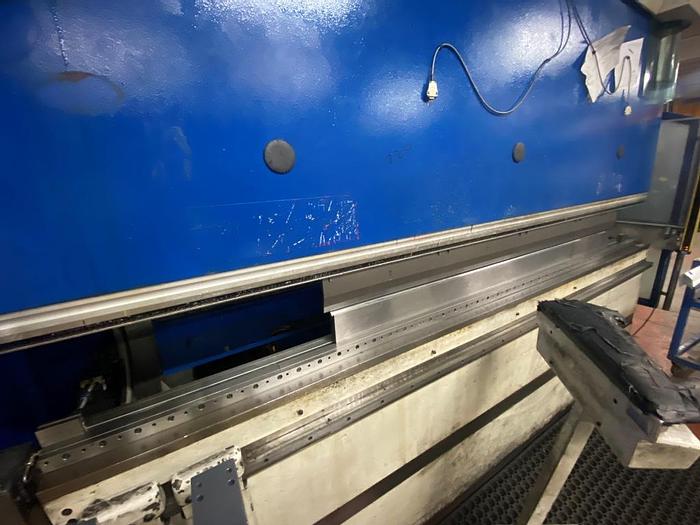

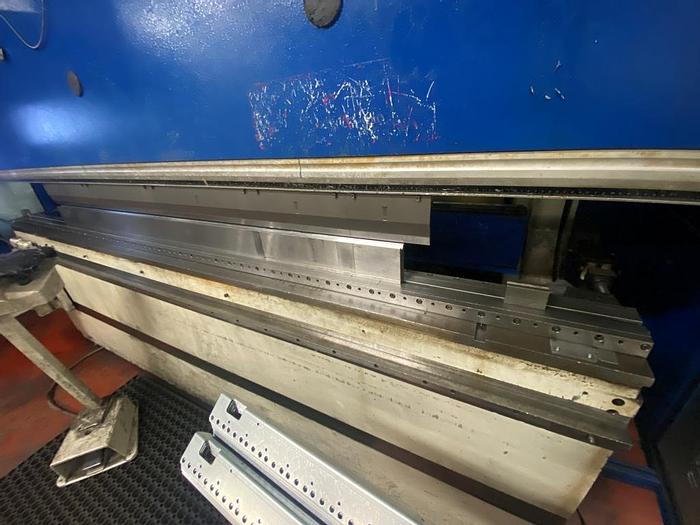

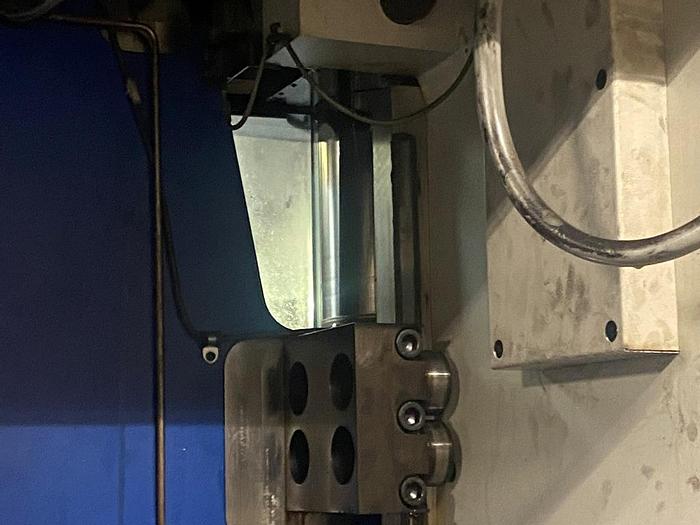

Tool Clamping: Hydraulic Top & Bottom Tool Clamping
Max Approach Speed: 200mm/sec
Max Bending Speed: 10mm/sec
Max Return Speed: 135mm/sec
CNC Crowning: Yes

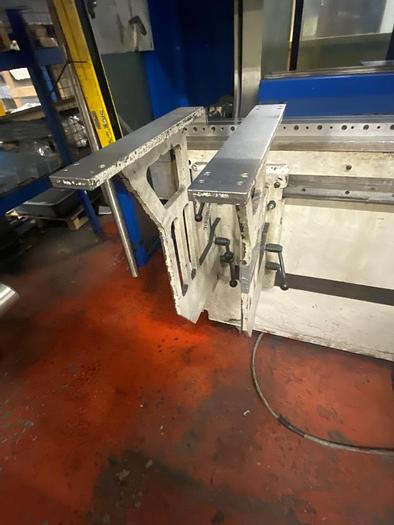

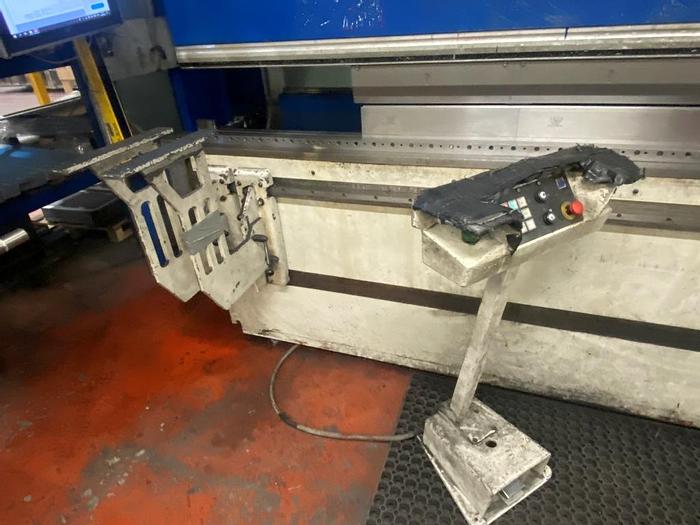

Support Arm: 2

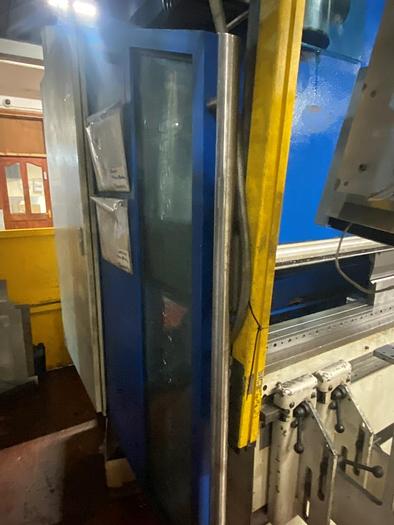

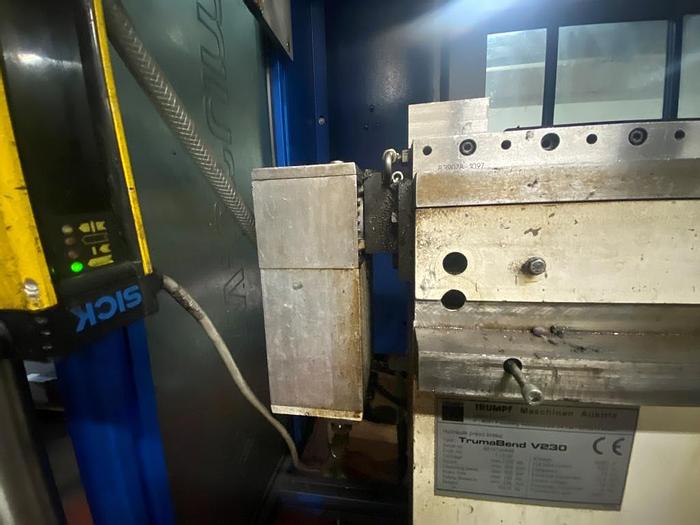

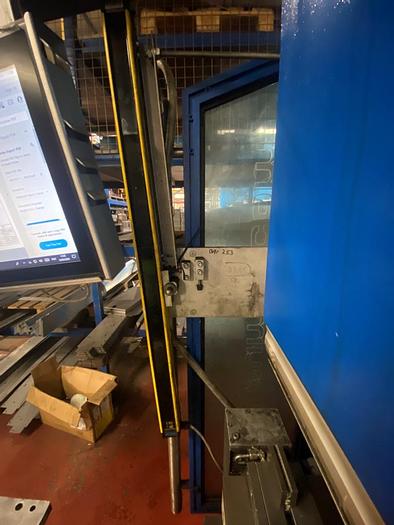

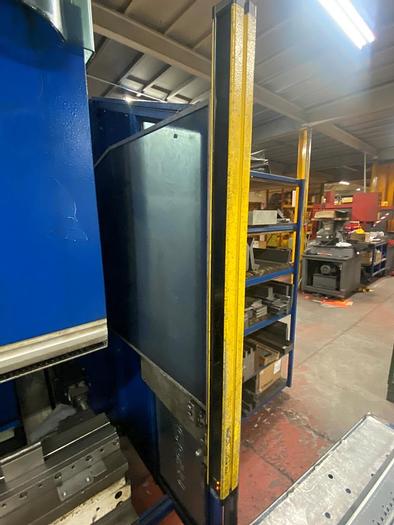

Safety Guarding: Yes

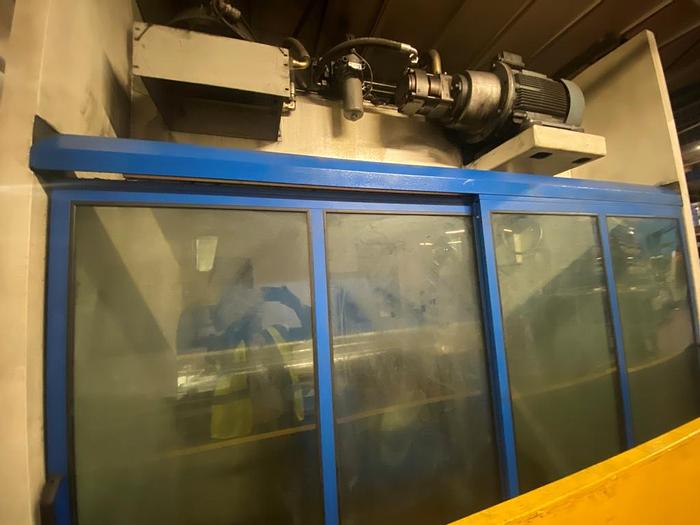

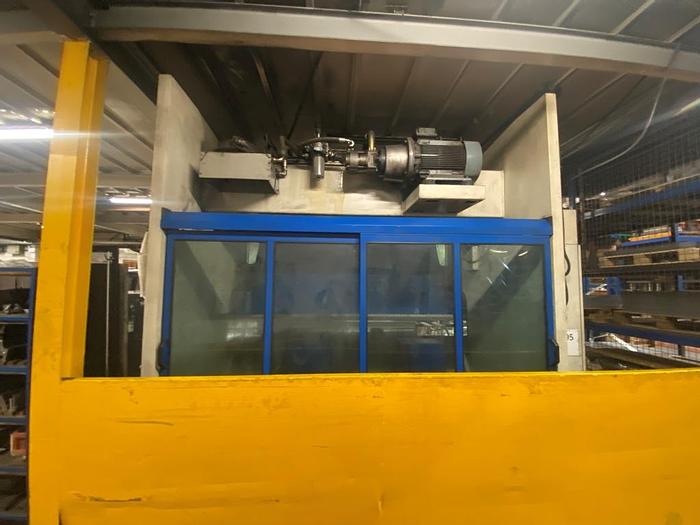

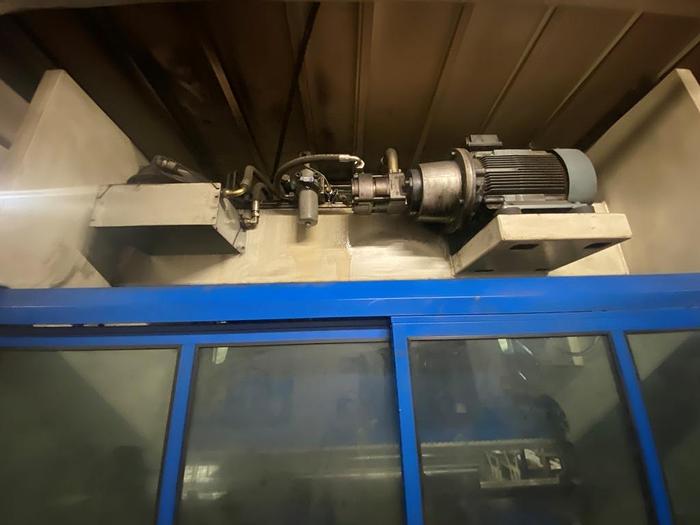

Motor Power: 30kW
Oil Tank Capacity: 400L
Dimensions: 3660 x 2310 x 3095mm
Machine Weight: 18210kg
Specifications
| Manufacturer | Trumpf |
| Model | TrumaBend V230 CNC Pressbrake |
| Year | 2003 |
| Condition | Used |

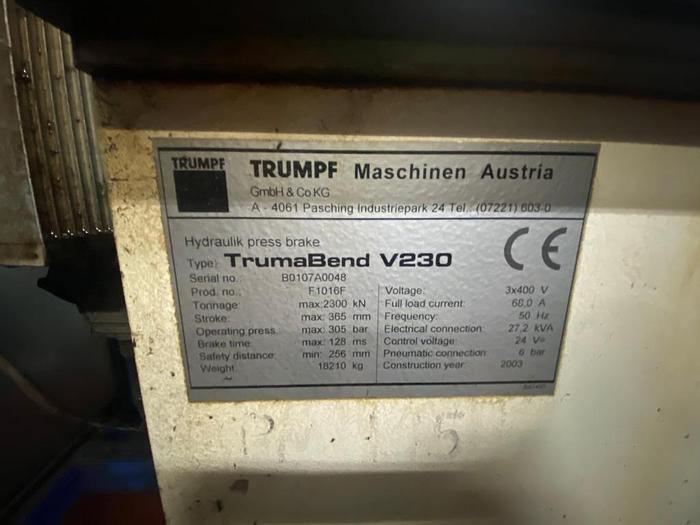

| Serial Number | B017A0048 |
| Machine Type | CNC Pressbrake |
| Year | 2003 |
| Axes | 7 Axis Machine |
| Condition | Good |
| Bending Length | 3060mm |
| Tonnage | 230T |
| Distance Btw Side Frames | 2690mm |
| Stroke | 365mm |
| Throat Depth | 420mm |
| Max Daylight | 535mm |
| Working Height | 1050mm |
| Back Gauge Travel | 600mm |
| Max Approach Speed | 200mm/sec |
| Max Bending Speed | 10mm/sec |
| Max Return Speed | 135mm/sec |
| CNC Crowning | Yes |
| Support Arm | 2 |
| Safety Guarding | Yes |
| Motor Power | 30kW |
| Oil Tank Capacity | 400L |
| Machine Weight | 18210kg |
