€22,000 + VAT

2018 CEMB ZB200-TC-GV Balancing Machine


Cork, Ireland

orCall +353 838108745


CEMB ZB200-TC-GV Horizontal Balancing Machine

Machine Type: Horizontal Balancing Machine

Year: 2018 (as new never used)

Condition: Excellent - As New - Never Used - In Original Packaging

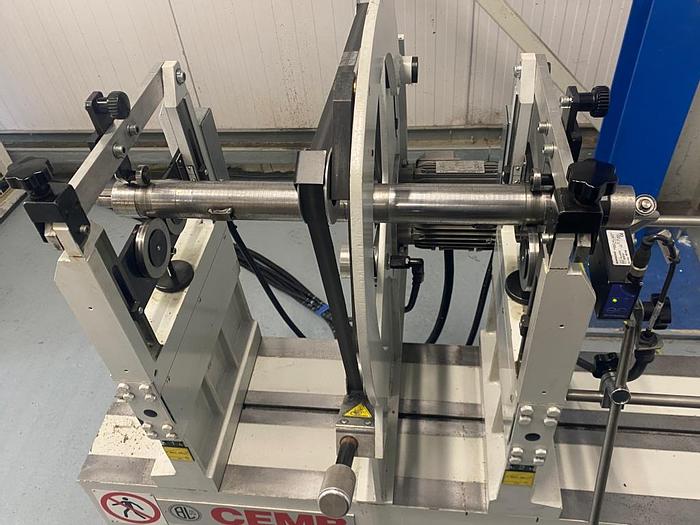

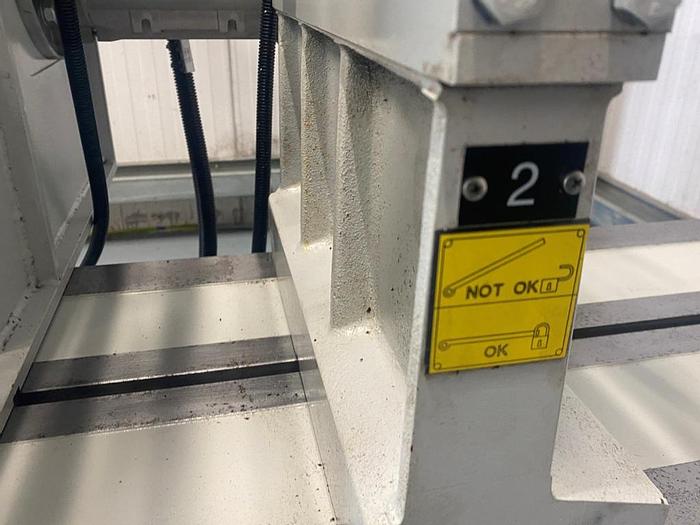

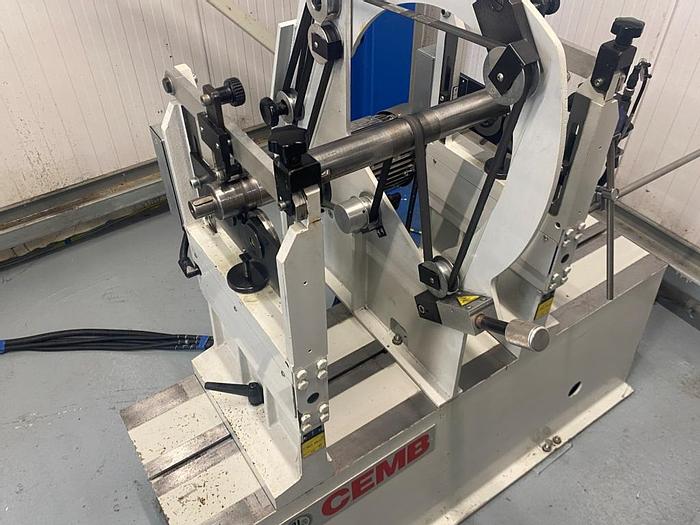

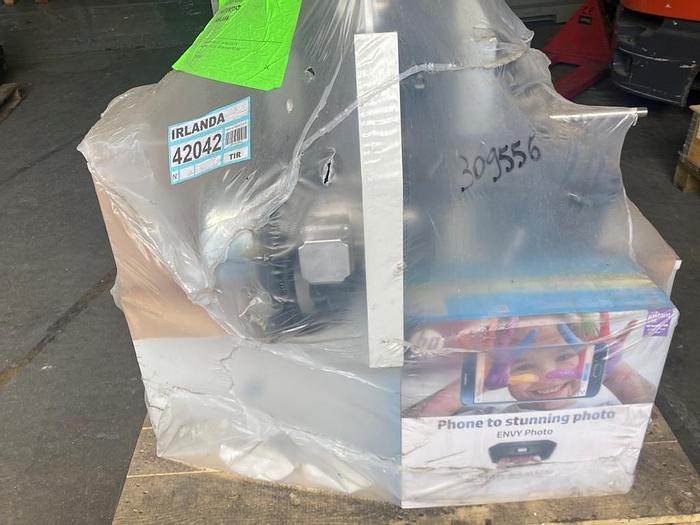

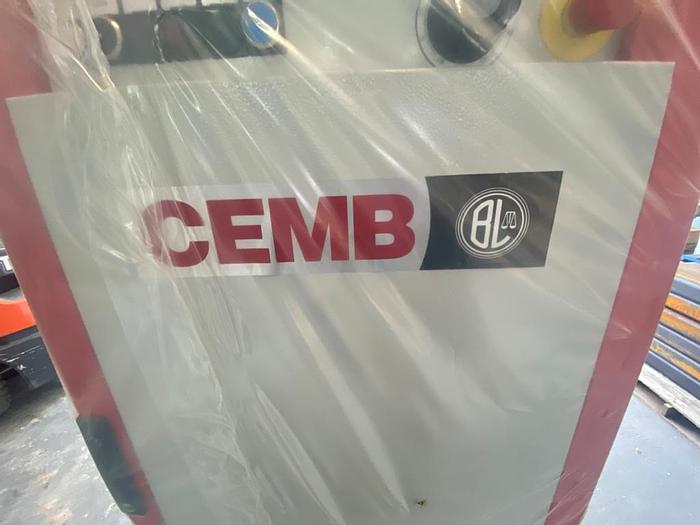

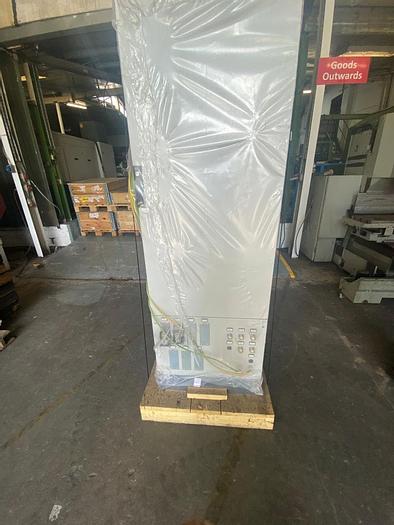

Some photos show installed machine for example purposes. Machine for sale is shown wrapped up.

Technical Specification

Max Weight For Symmetric Rotor: 300kg

Max Diameter of Rotor: 1000mm

Diameter of Rotor Journals: 5÷100mm

Max Sensitivity: 0.8g/mm

Balancing Speed (measuring unit): 70÷200000rpm

Standard Bed: 1200mm

Max. Length for Rotor: 900mm

Min. Distance Between Centreline of Pedestals: 180mm

Diameter Driven by Pulley: 30 ÷ 300 TCN/50 ÷ 400 TCI

Drive Pulley Diameter: 75-88mm

Balancing Speed: 160÷1250rpm

Power and Type of Drive: 2.2Kw

Braking: Resistor Braking


ModelZB200-TC-GV Balancing Machine
Machine TypeHorizontal Balancing Machine
Max Diameter of Rotor1000mm
Diameter of Rotor Journals5÷100mm
Max Sensitivity0.8g/mm
Balancing Speed (measuring unit)70÷200000rpm
Standard Bed1200mm
Max. Length for Rotor900mm
Drive Pulley Diameter75-88mm
Balancing Speed160÷1250rpm
BrakingResistor Braking
