Cormak Z5050 Pedestal Drilling Machine
Description

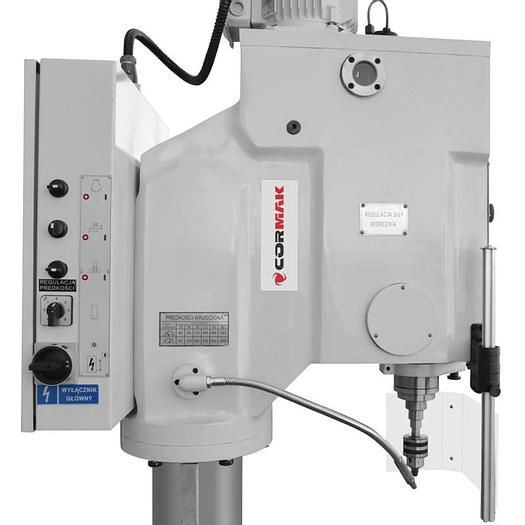

Cormak Z5050 Pedestal Drilling Machine
Machine Type: Gear Driven Pedestal Drilling Machine
Capacity: 50mm
Power: 3 Phase 400V
Machine Features
New, elegant design and compact construction
Broad range of speed adjustment
Simple and intuitive operation
180o worktable
Drilling machine equipped with a cooling system
Powerful spindle motor, designed in compliance with EC regulations
Includes

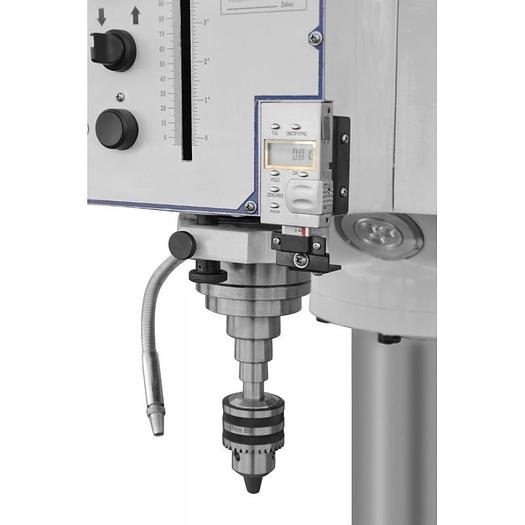

1–13 mm drill chuck
3 Morse reducing sleeves
Lighting
Cooling system
Technical Specifications
Maximum Drilling Diameter: 50 mm
Tapping (steel, cast iron): M22, M24
Distance from Spindle to Column Surface: 360 mm
Distance from Spindle to Worktable: 80–800 mm
Maximum Distance from Spindle to Base: 1325 mm
Spindle Extension: 200 mm

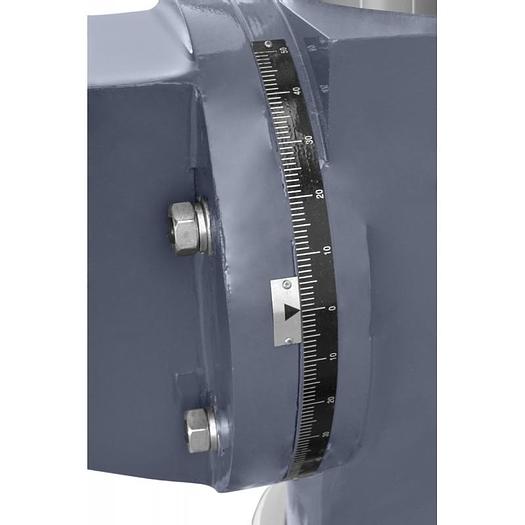

Table Swivel Angle: +/- 45°
Spindle taper: MT4
Number of Gears: 18
Spindle Speeds: 55, 80, 95, 120, 145, 160, 180, 240, 270, 335, 400,440, 500, 660, 750, 965, 1125, 1450 rpm
Number of Spindle Feeds: 4 levels
Spindle Feeds: 0.1; 0.2; 0.3; 0.4 mm/turn
Column Diameter: ø190

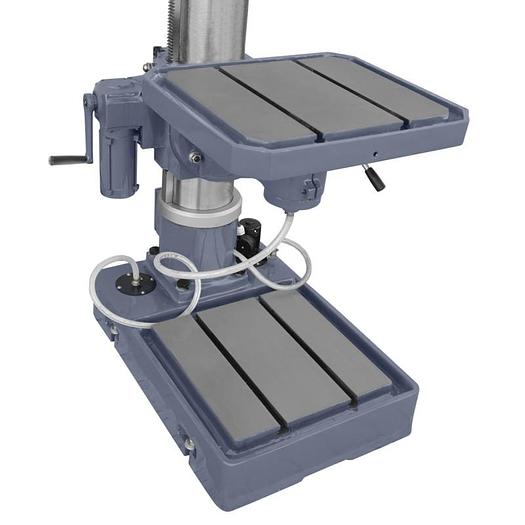

Table Dimensions: 580×580 mm
Base Dimensions: 860×580 mm
T-slots Width: 2–18 mm
Motor: 2.2/3 kW 400V 960/1440 rpm
Flood Coolant Pump: 75 W
Total Dimensions: 1050×590×2150 mm
Weight:860 kg
Specifications
| Manufacturer | Cormak |
| Model | Z5050 Pedestal Drilling Machine |
| Condition | New |
| Capacity | 50mm |
| Power | 3 Phase 400V |
| Maximum Drilling Diameter | 50 mm |
| Tapping (steel, cast iron) | M22, M24 |
| Spindle Extension | 200 mm |
| Table Swivel Angle | +/- 45° |
| Spindle taper | MT4 |
| Number of Gears | 18 |
| Number of Spindle Feeds | 4 levels |
| Column Diameter | ø190 |
| Table Dimensions | 580×580 mm |
| Base Dimensions | 860×580 mm |
| T-slots Width | 2–18 mm |
| Flood Coolant Pump | 75 W |
| Total Dimensions | 1050×590×2150 mm |
| Weight | 860 kg |
