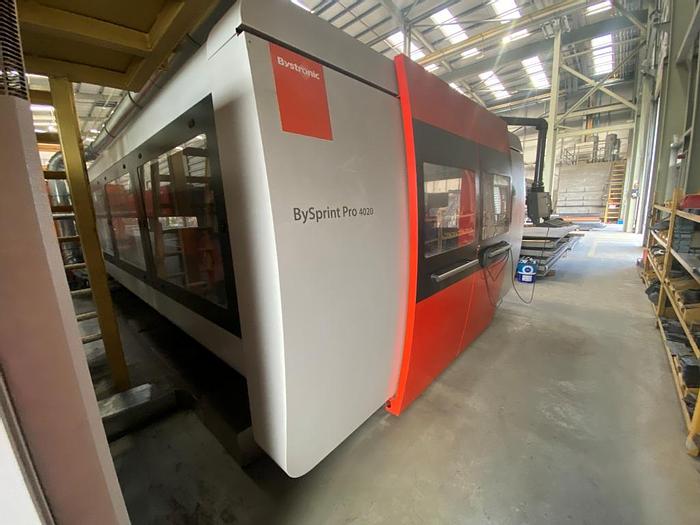

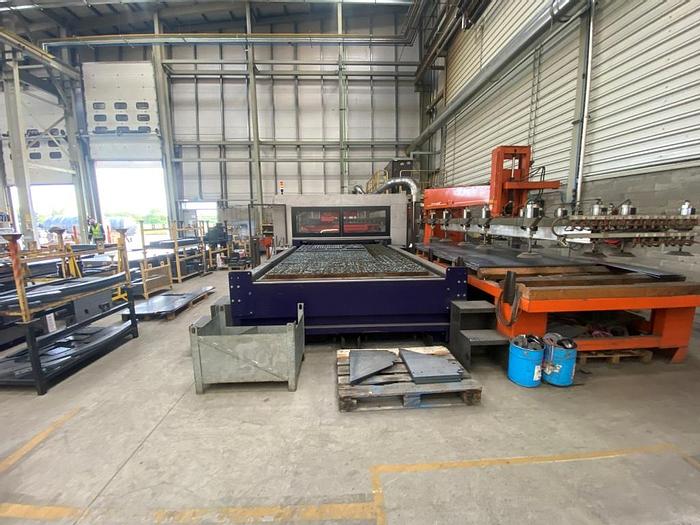

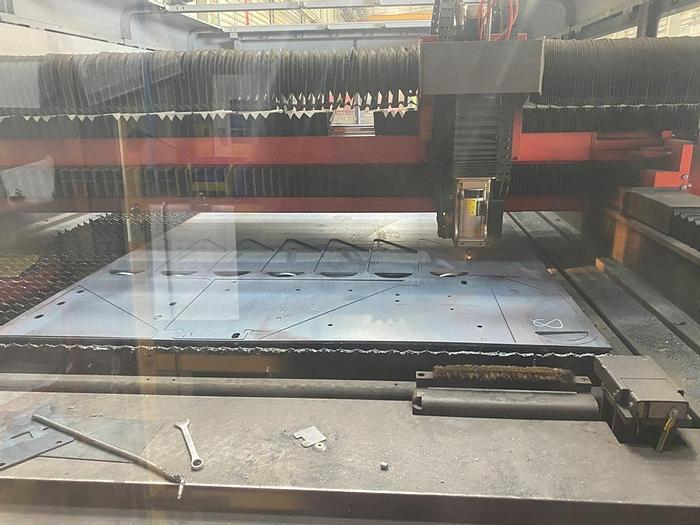

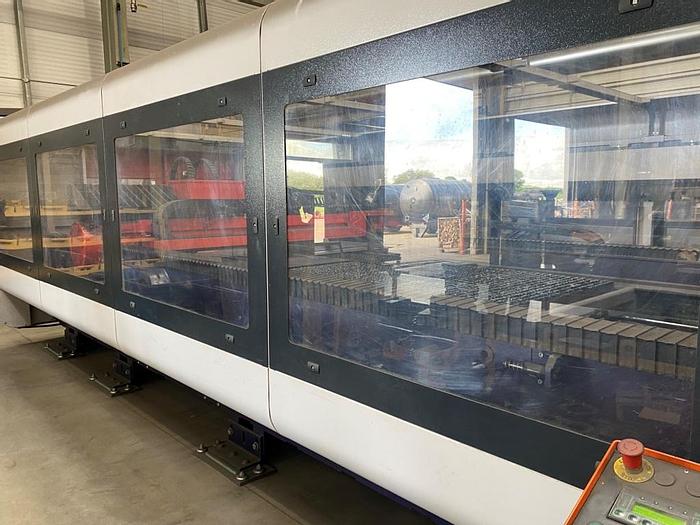

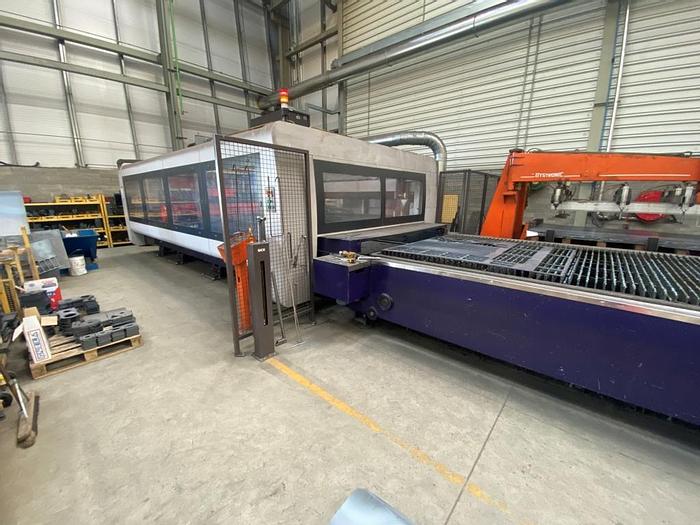

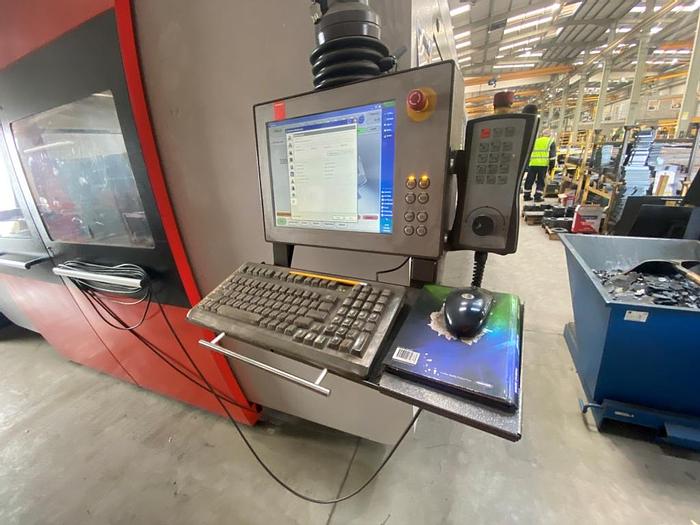

2014 Bystronic BySprint Pro 4020 Co2 Laser
Description

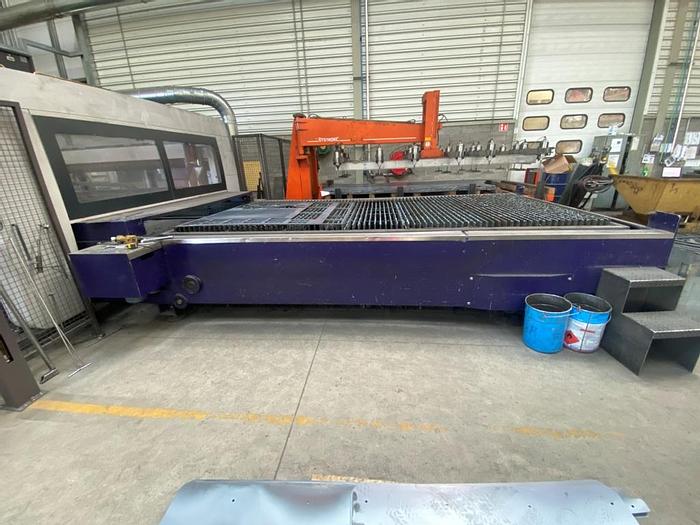

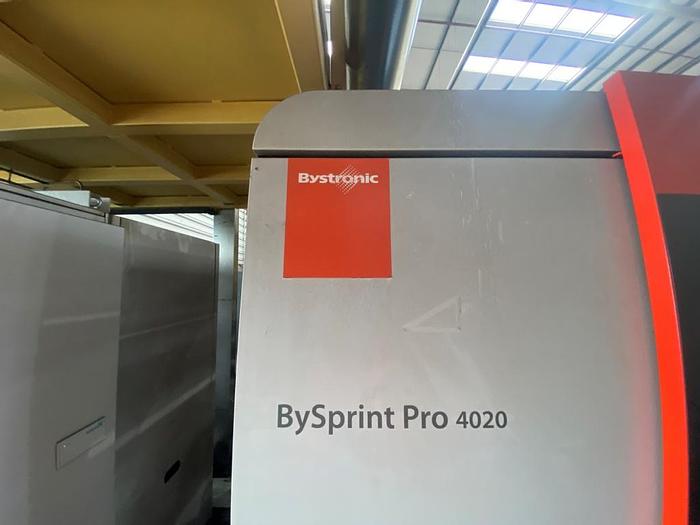

2014 Bystronic BySprint Pro 4020 Co2 Laser

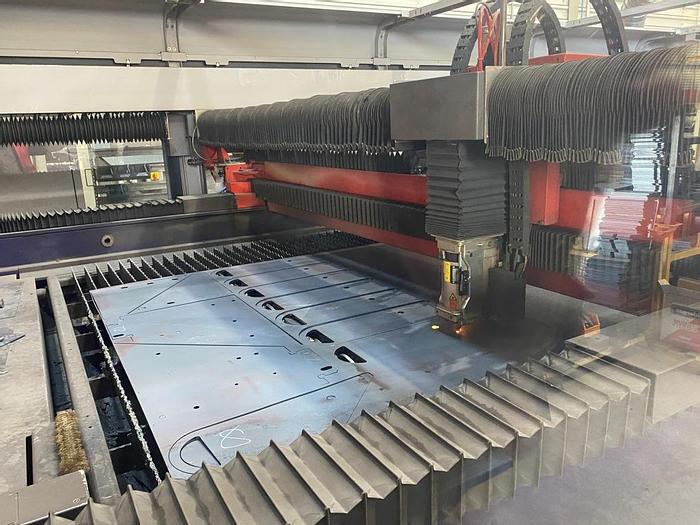

Machine Type: Flat Bed Co2 Laser
Year: 2014

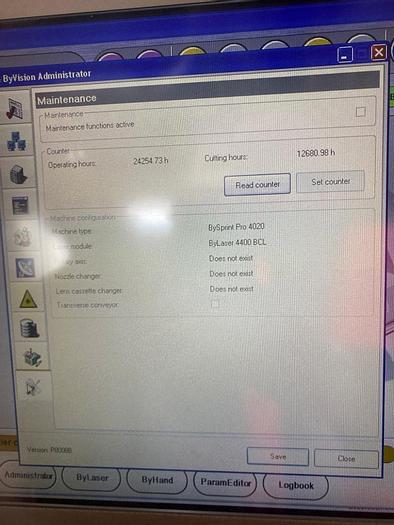

Hours: Approx 16,000hrs
Availability: May/Jun 2022
Condition: Very Good. Full Service History with Machine.
Notes
Dismantling & Loading Not Included in the price.
No Offline Software with Machine
Includes

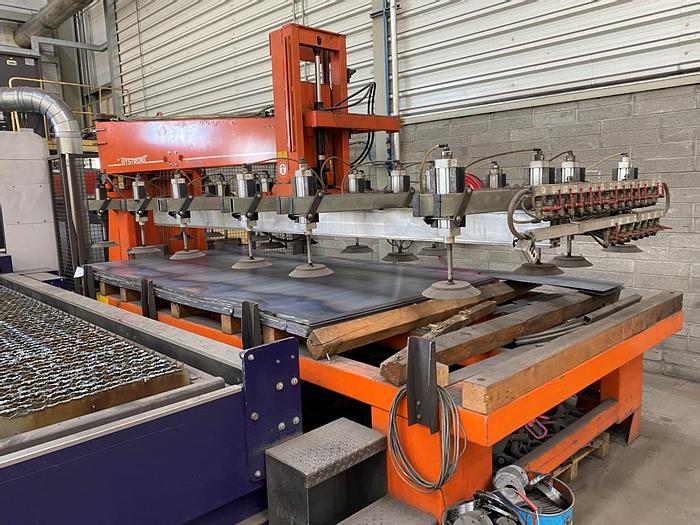

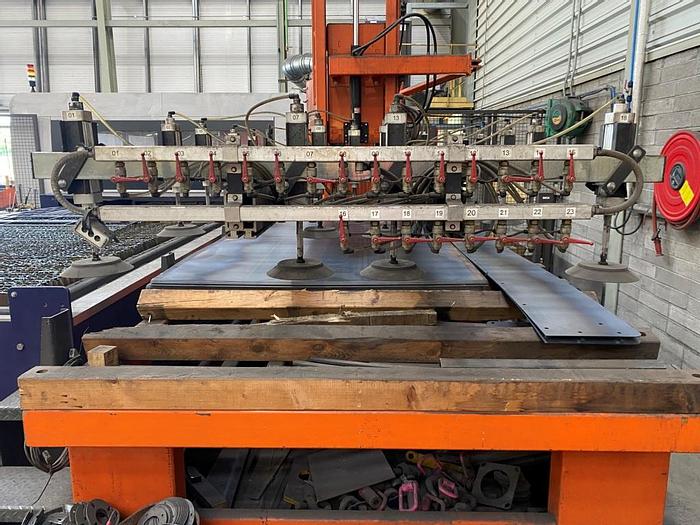

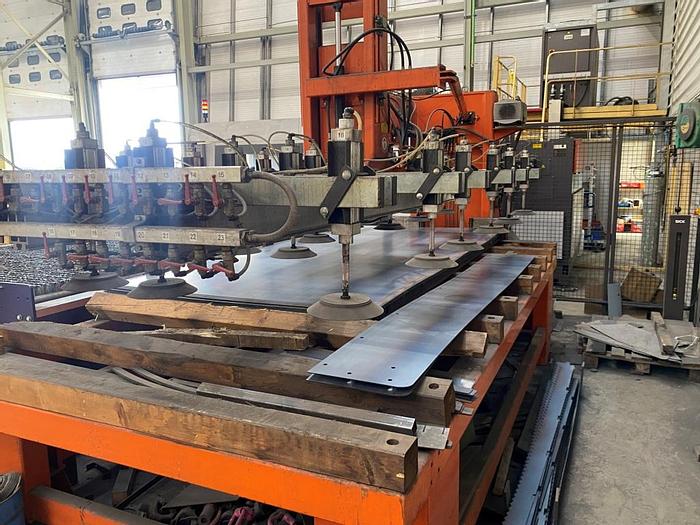

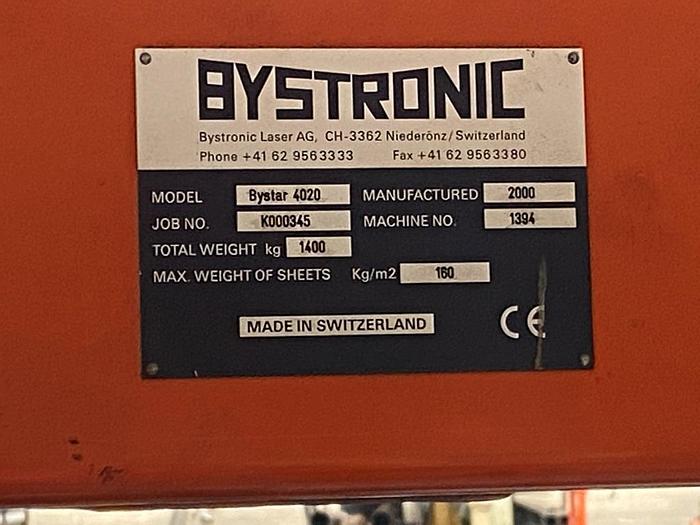

2000 Bystar 4020 Sheet Loader (Year 2007)

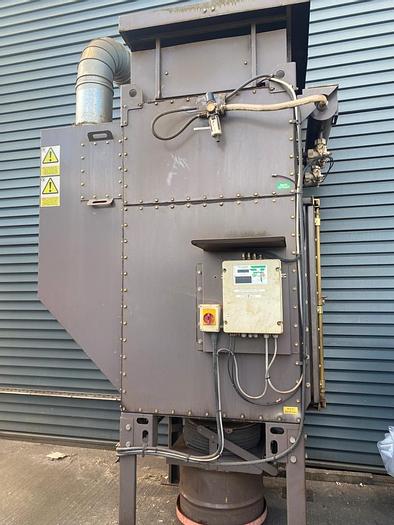

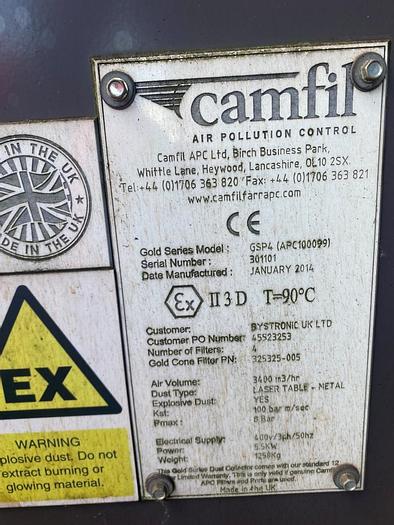

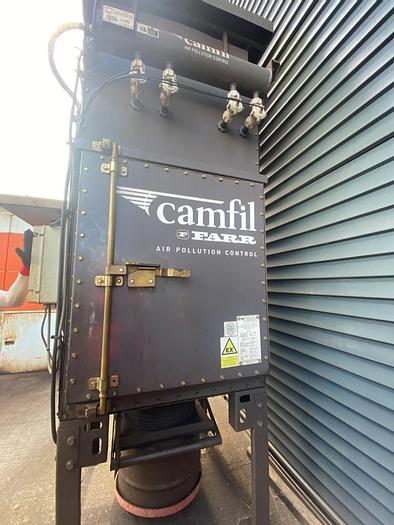

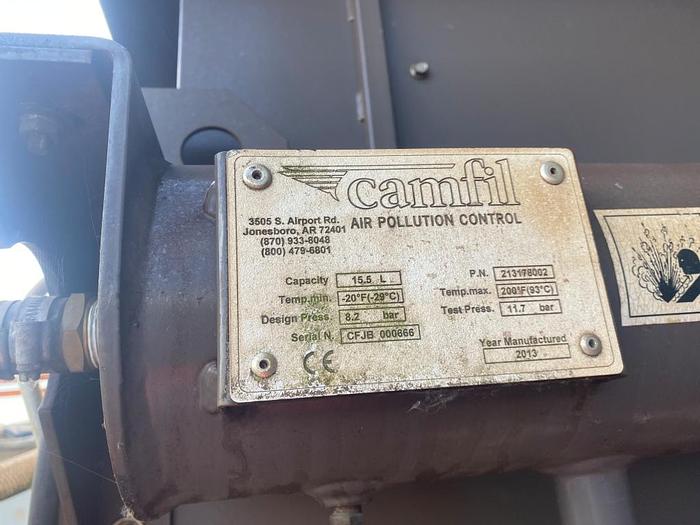

Camfill Filtration System

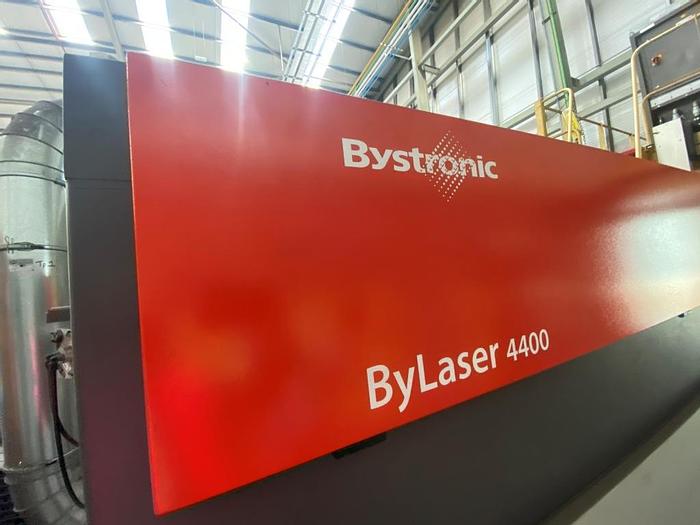

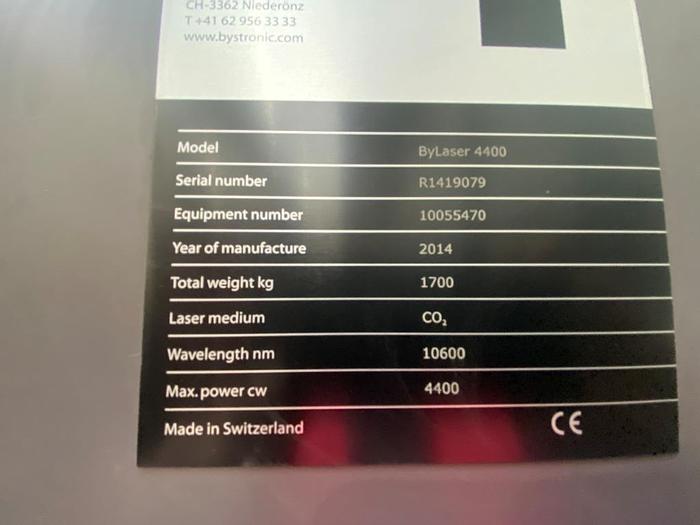

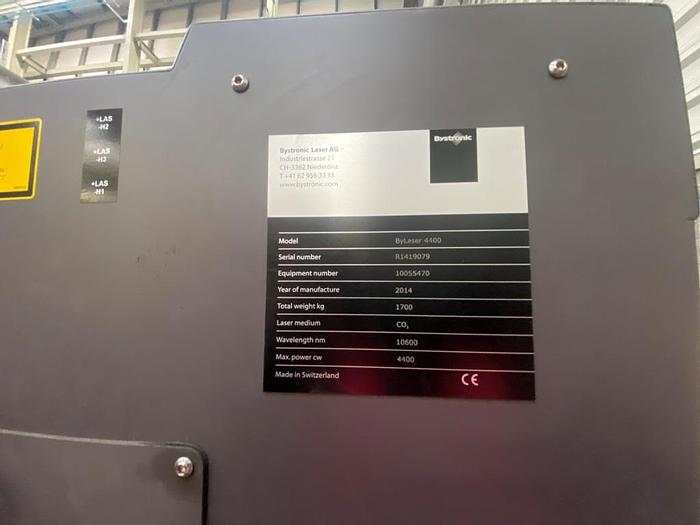

ByLaser 4400 - 4.4kW
Technical Specification

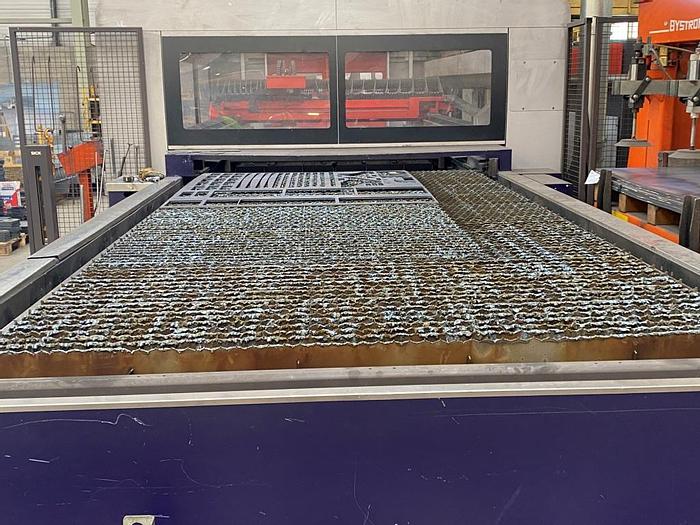

Nominal Sheet Size: 4000 x 2000mm

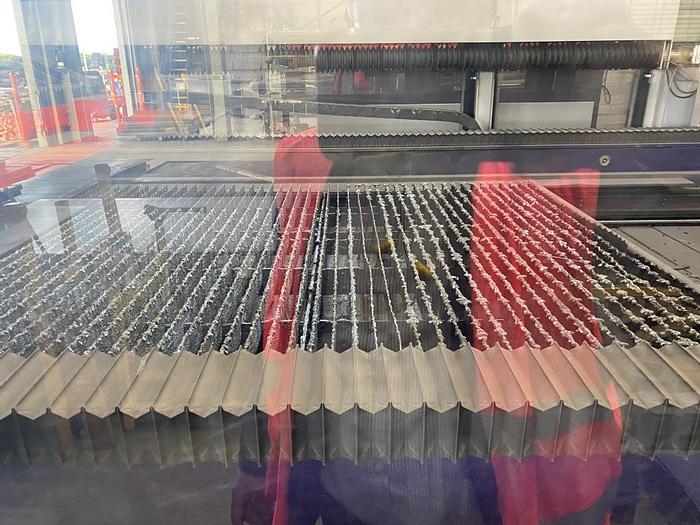

Cutting Area (X,Y,Z): 4064 x 2032 x 70mm
Max Positioning Speed Parallel Axis X,Y: 100m/min
Max Simultaneous Positioning Speed: 140m/min
Positional Accuracy(New Machine): +/- 0.1mm
Repeatability Accuracy(New Machine): +/- 0.05mm
Max Workpiece Weight: 1580kg
Machine Dimensions: 13050 x 7050 x 2450mm
Machine Weight: 15000kg
Laser Power: 4.4kW
Control Range: 150 - 4400W

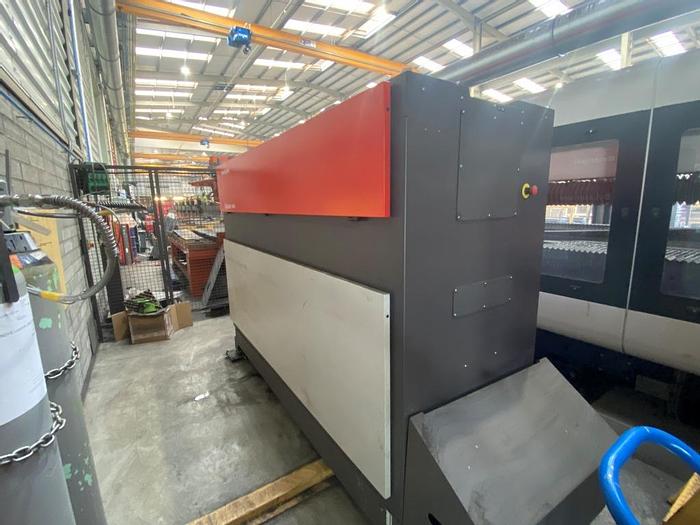

Laser Source Dimensions: 2840 x 920 x 1580mm
Weight: 1600kg
Technology: Co2
Max Thickness Mild Steel: 25mm
Max Thickness Stainless Steel: 20mm
Max Thickness Aluminum: 12mm
Electrical Consumption of Total System (approx): 53kW
Specifications
| Manufacturer | Bystronic |
| Model | BySprint Pro 4020 Co2 Laser |
| Year | 2014 |
| Condition | Used |
| Machine Type | Flat Bed Co2 Laser |
| Year | 2014 |
| Hours | Approx 16,000hrs |
| Availability | May/Jun 2022 |
| Nominal Sheet Size | 4000 x 2000mm |
| Max Simultaneous Positioning Speed | 140m/min |
| Positional Accuracy(New Machine) | +/- 0.1mm |
| Repeatability Accuracy(New Machine) | +/- 0.05mm |
| Max Workpiece Weight | 1580kg |
| Machine Weight | 15000kg |
| Laser Power | 4.4kW |
| Control Range | 150 - 4400W |
| Weight | 1600kg |
| Technology | Co2 |
| Max Thickness Mild Steel | 25mm |
| Max Thickness Stainless Steel | 20mm |
| Max Thickness Aluminum | 12mm |
