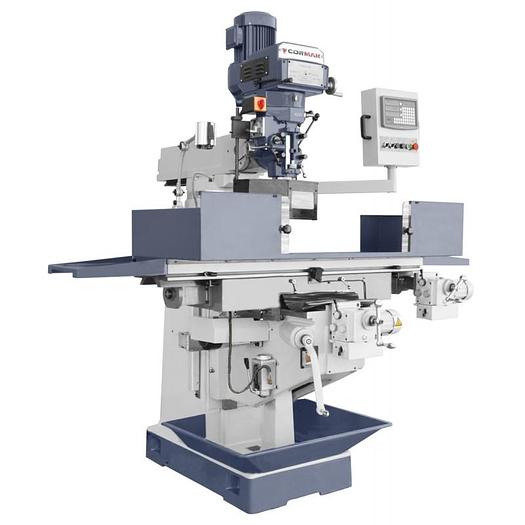

Cormak MFM 380 Manual Milling Machine

Cormak MFM380 Manual Milling Machine

Cormak's MFM380 universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing. It also provides smooth spindle speed adjustment, tempered guides and central guide lubrication system.

Technical Specification

Spindle taper: ISO 40

Spindle speeds: Variable - 2 Ranges

Spindle speed range L: 70 - 450rpm

Spindle speed range H: 450 - 3600rpm

Distance from spindle to column: 220–730 mm

Distance from spindle to table surface: 30–500 mm

Quill Travel: 125 mm

Table Dimensions: 1500×330 mm

Table Travel: 1000×380 mm

Motor Power: 3.7kW (5hp)

Total Dimensions: 2270×2200×2400 mm

Weight: 1700 kg
