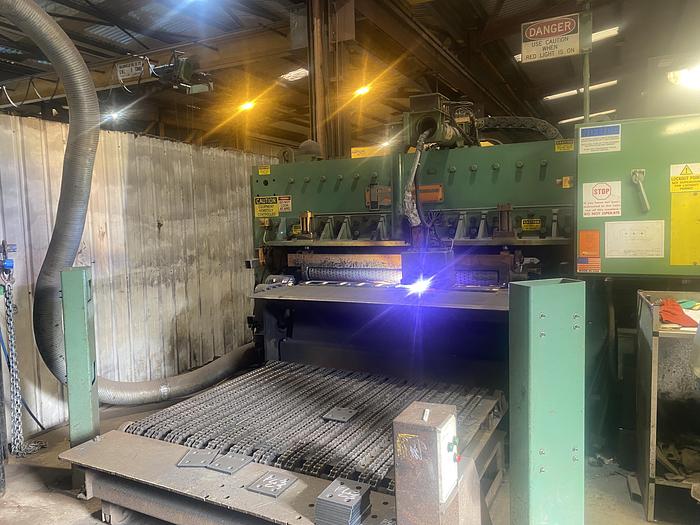

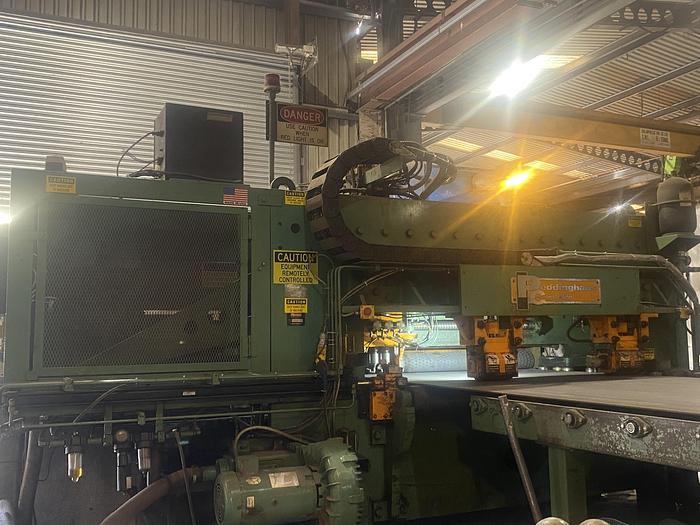

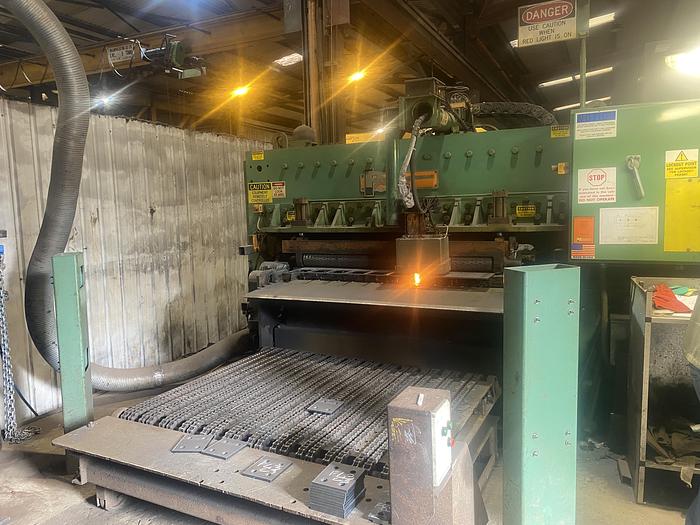

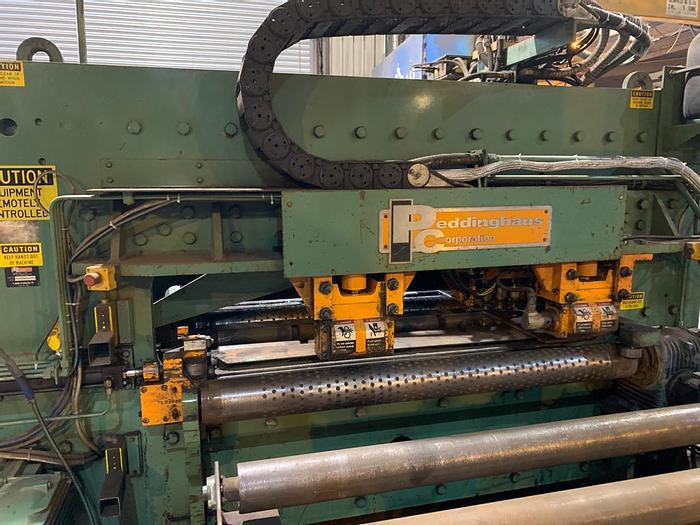

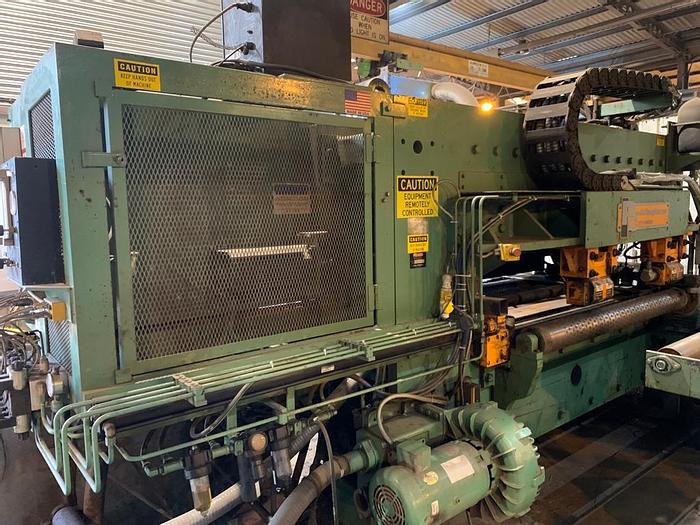

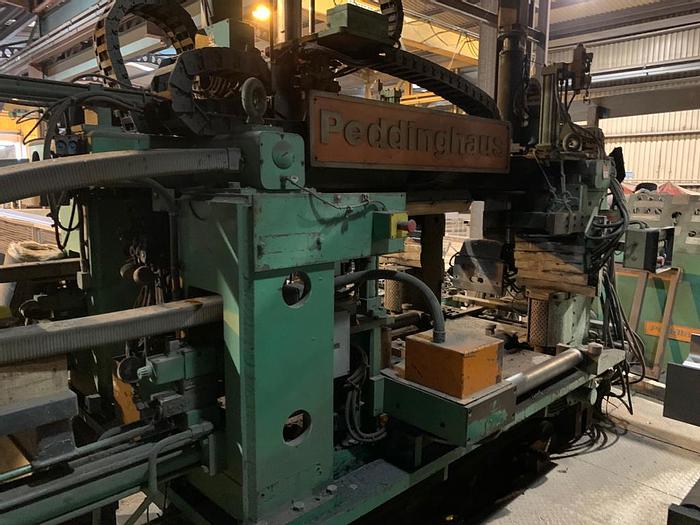

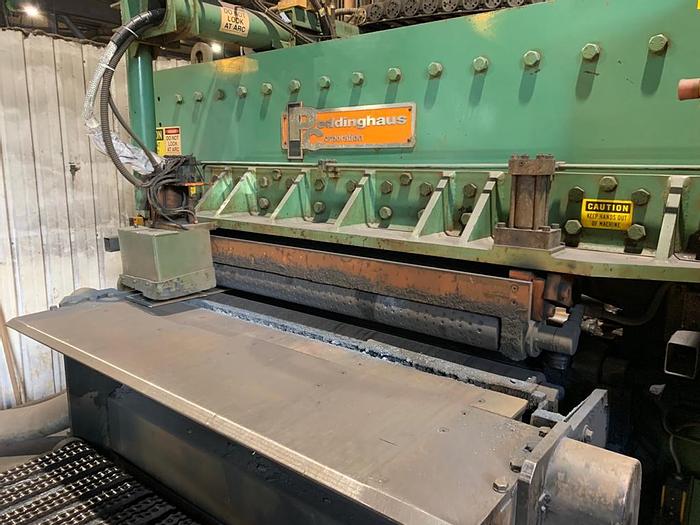

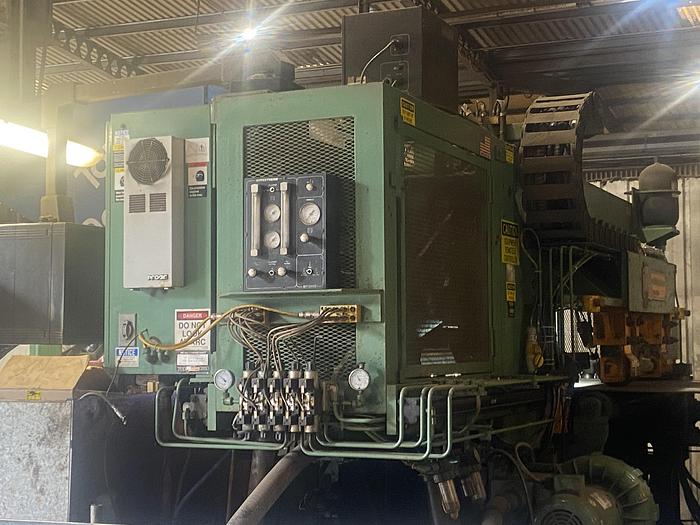

2000 Peddinghaus FPB 1500/3E CNC Plate Line
Description
2000 Peddinghaus FPB 1500/3E CNC Plate Line
Machine Type: CNC Plate Line
Year: 2000

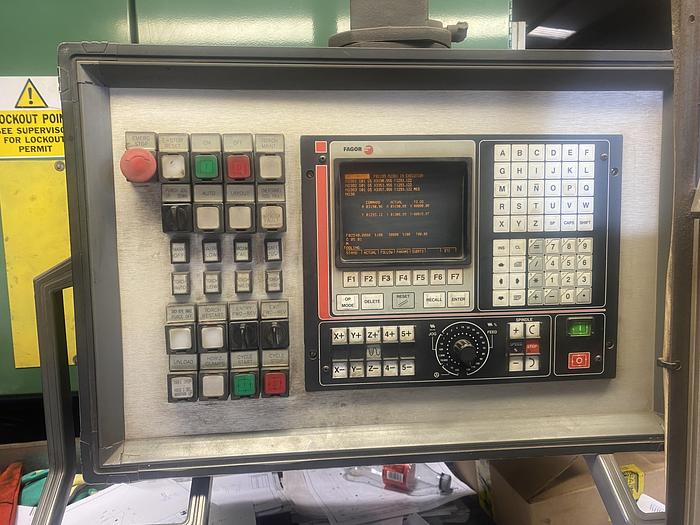

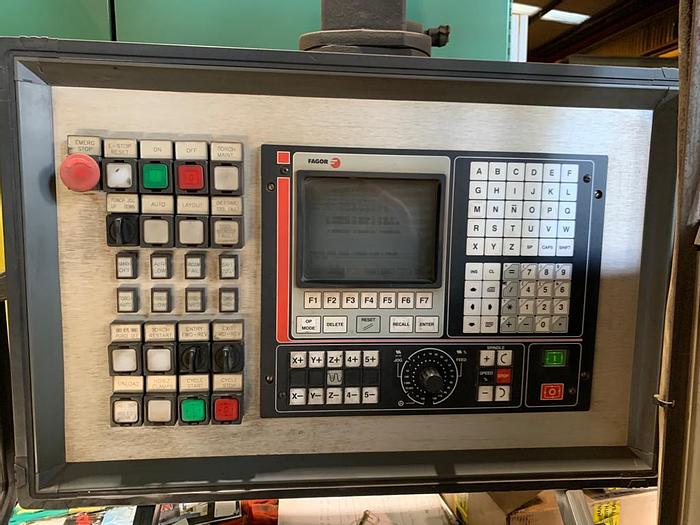

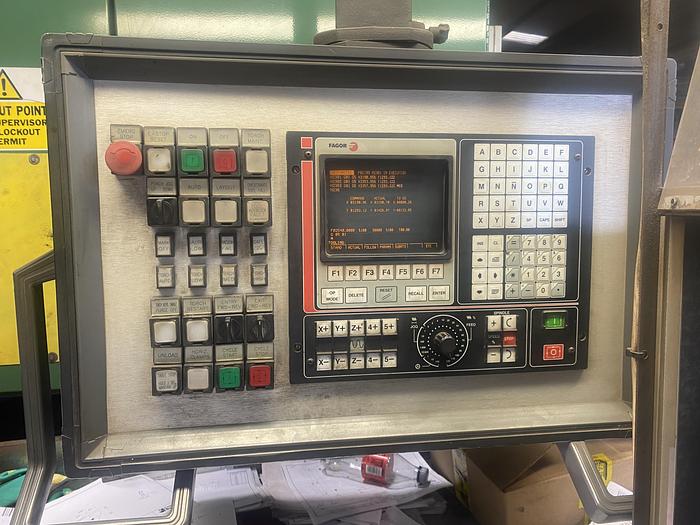

Control: Fagor
Condition: Machine in good condition. Fault with Hypertherm Plasma Source
Material Handling: No
Availability: June 2022
Notes
Machine offered with Hypertherm HT Plasma Source which has a fault on it.
Technical Specifications

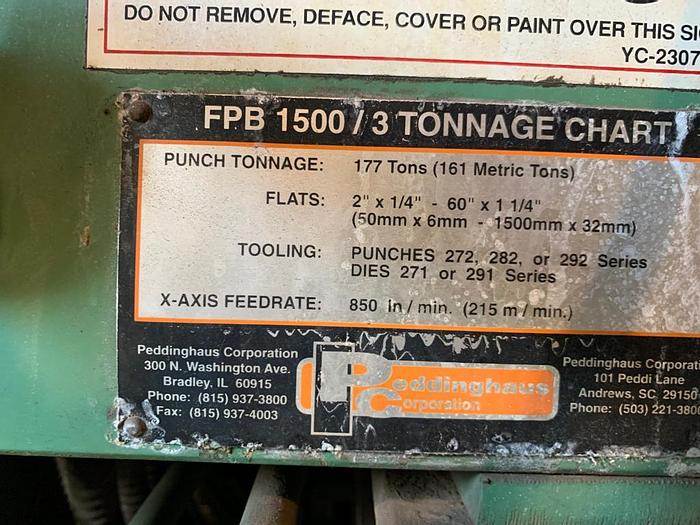

Punching Capacity: 160 Metric Tons
No of Tool Stations: 3
Min Plate Thickness: 0.125" (3.2mm)
Max Plate Thickness: 1" (25.4mm)
Min Plate Width: 3" (75mm)
Max Plate Width: 60.88" (1546mm)
Min Plate Length: 42.5" (1080mm)
Max Plate Length: 480" (12200mm)
Punch Types: 272,282 or 292 Series
Die Types: 271 or 291 Series
X Axis Feedrate: 21.5m/min
Y Axis Feedrate: 21.5m/min
Circular Interpolation Feedrate: 30.4m/min
Max Punch Diameter: 1.75"
Punch Stroke Length: 2.25" (57.15mm)
Machine Weight: 12,250kg
Specifications
| Manufacturer | Peddinghaus |
| Model | FPB 1500/3E CNC Plate Line |
| Year | 2000 |
| Condition | Used |
| Machine Type | CNC Plate Line |
| Year | 2000 |
| Control | Fagor |
| Material Handling | No |
| Punching Capacity | 160 Metric Tons |
| No of Tool Stations | 3 |
| Min Plate Thickness | 0.125" (3.2mm) |
| Max Plate Thickness | 1" (25.4mm) |
| Min Plate Width | 3" (75mm) |
| Max Plate Width | 60.88" (1546mm) |
| Min Plate Length | 42.5" (1080mm) |
| Max Plate Length | 480" (12200mm) |
| Punch Types | 272,282 or 292 Series |
| Die Types | 271 or 291 Series |
| X Axis Feedrate | 21.5m/min |
| Y Axis Feedrate | 21.5m/min |
| Circular Interpolation Feedrate | 30.4m/min |
| Max Punch Diameter | 1.75" |
| Punch Stroke Length | 2.25" (57.15mm) |
| Plasma Specifications | Please see attachment |
| Machine Weight | 12,250kg |
