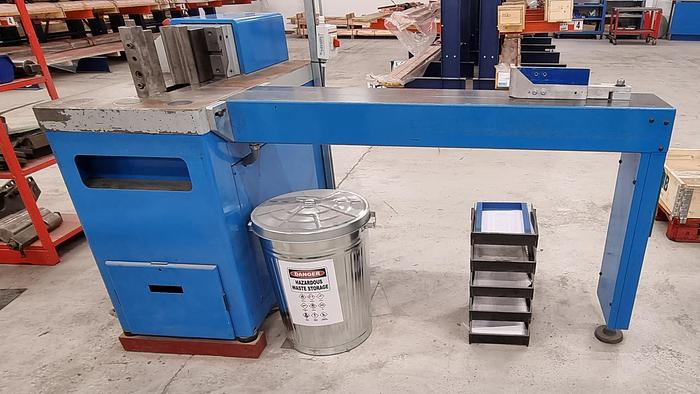

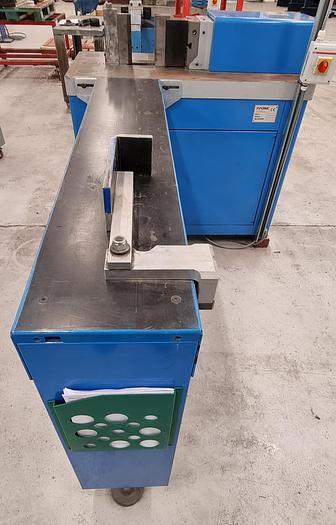

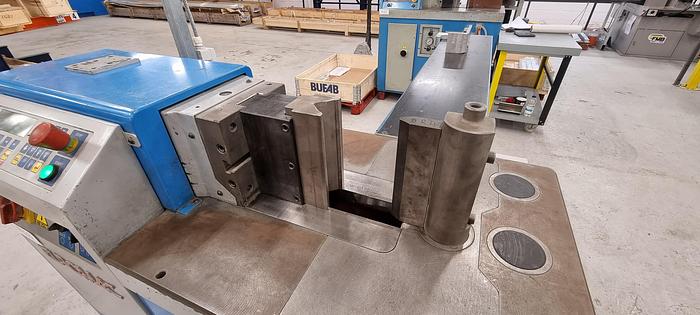

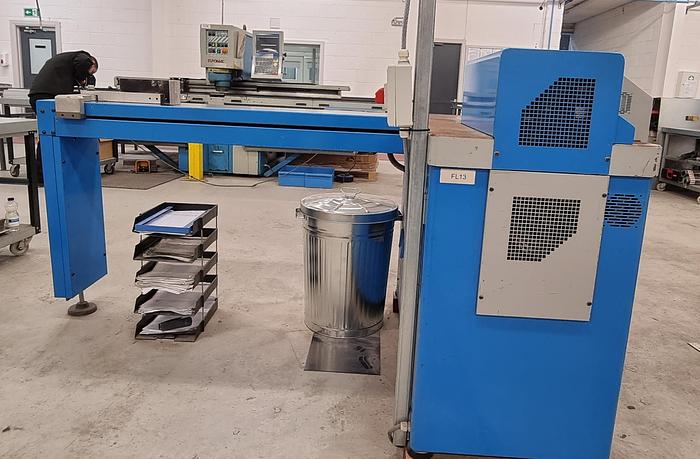

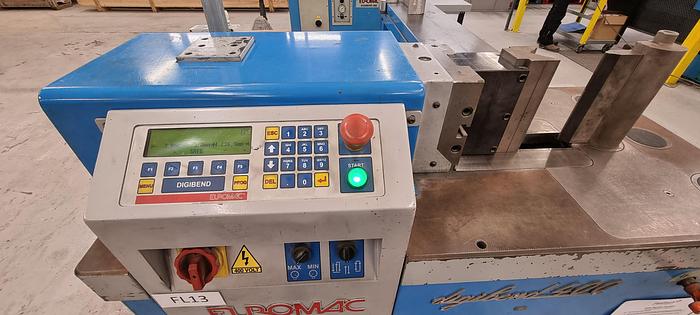

2014 Euromac Digibend 400 Horizontal Bending Machine
Description
2014 Euromac Digibend 400 Horizontal Bending Machine
Machine Type: Horizontal Bending Machine
Year: 2014
Condition: Very Good
Includes

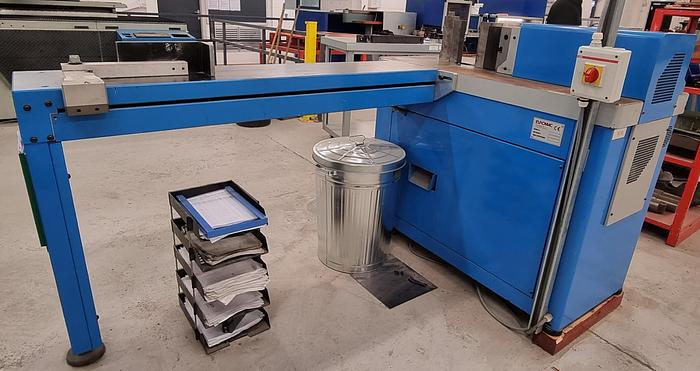

NC 1250mm Length Stop

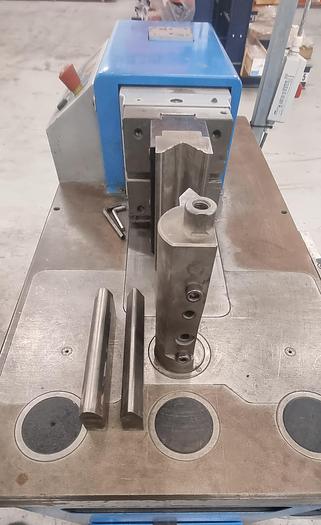

R8 Bending Tool
R4 Bending Tool
Sharp Bending Tool
Single Vee Block
Technical Specifications
Max Pressure: 400kN (40T)
Max Stroke: 245mm
Max Working Speed: 9.6mm/sec
Min Working Speed: 4.8mm/sec
Return Speed: 62mm/sec
Average Working Speed: 35.8mm/sec
Working Table Dimensions: 580 x 1230 x 925mm
Fixing Holes in Working Table: 4 x Ø 80mm
Working Height: 925mm
Oil Tank Capacity: 40L
Motor Power: 5.5hp/4Kw
Max Bending Height: 200mm
Extra Bending Height: 400mm - Needs special tooling
Max Shearing: 150 x 10mm - Needs special tooling
Max Punching: Ø 30 x 10mm - Needs special tooling
Back Gauge/Length Stop Length: 1250mm
Approx Weight: 700kg
Dimensions: 580 x 1230 x 1150mm (with out length stop)
Specifications
| Manufacturer | Euromac |
| Model | Digibend 400 Horizontal Bending Machine |
| Year | 2014 |
| Condition | Used |
| Machine Type | Horizontal Bending Machine |
| Year | 2014 |
| Condition | Very Good |
| Max Pressure | 400kN (40T) |
| Max Stroke | 245mm |
| Max Working Speed | 9.6mm/sec |
| Min Working Speed | 4.8mm/sec |
| Return Speed | 62mm/sec |
| Average Working Speed | 35.8mm/sec |
| Working Height | 925mm |
| Oil Tank Capacity | 40L |
| Motor Power | 5.5hp/4Kw |
| Max Bending Height | 200mm |
| Back Gauge/Length Stop Length | 1250mm |
| Approx Weight | 700kg |
