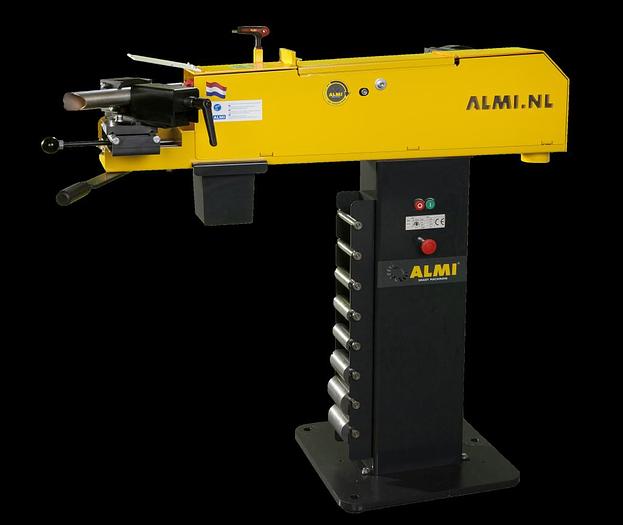

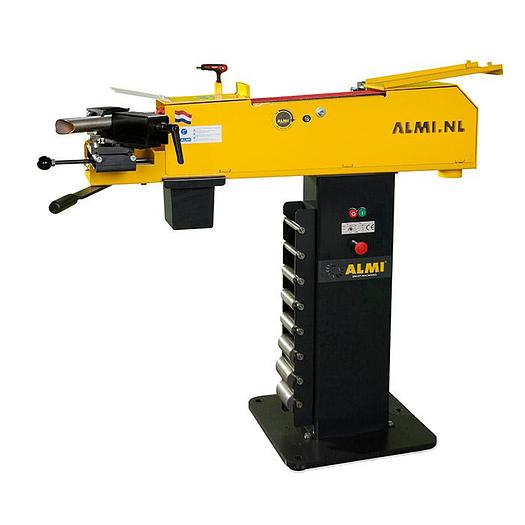

Almi AL100U-01 2 IN 1 PIPE GRINDER - 230V
ALMI AL100U-01 2 IN 1 PIPE GRINDER - 230V
The AL100U-01 is operated with a lever. With the AL 100U you can grind material from Ø20 to Ø76.1.
Easy To Use

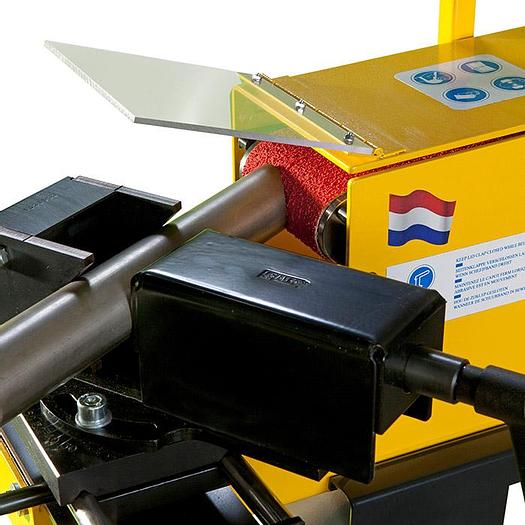

The AL100U-01 is operated with a lever. With the AL 100U you can grind material from Ø20 to Ø76.1. The cross support and the slide with rotatable clamp are infinitely adjustable. This allows all tube profiles to be grinded at any desired angle from 30° to 90°. The AL100U-01 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common material types. Thanks to the ALMI belt adjustment system, adjusting the grinding belt is now even easier with the supplied hex wrench. The grinding belt can be tensioned quickly and changing grinding rollers can be done in just a few seconds.
2 in 1 Pipe Grinder
The AL100U-01 is fitted with a deburring table, when a pipe has been ground it can be easily deburred on the deburring table. This makes the AL100U-01 multifunctional.
All ALMI pipe grinders are produced by professional craftsmen. All parts are provided with a protective coating, which guarantees a long service life.
Motor: 3 kW
Connection: 230V Single Phase
Belt speed: 30 m/s, 2800 rpm
Belt size: 100×2000 mm
Grinding diameters: Ø20-Ø76.1
Grinding angle: 30 – 90º
Operation: Lever operation
Weight: 190 kg
|Model||AL100U-01 2 IN 1 PIPE GRINDER - 230V|
|Connection||230V Single Phase|
|Belt speed||30 m/s, 2800 rpm|
|Belt size||100×2000 mm|
|Grinding angle||30 – 90º|
