Cormak KP 205 XY Table

Cormak KP 205 XY Table

Description

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed play.

Table Description

Cross table is well-made from high-quality materials

Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes

Screw guard protects the feed mechanism from chips

An additional benefit of the table is a pitch, which simplifies telling the X,Y axes position of the table

4.0mm/0.02mm vernier

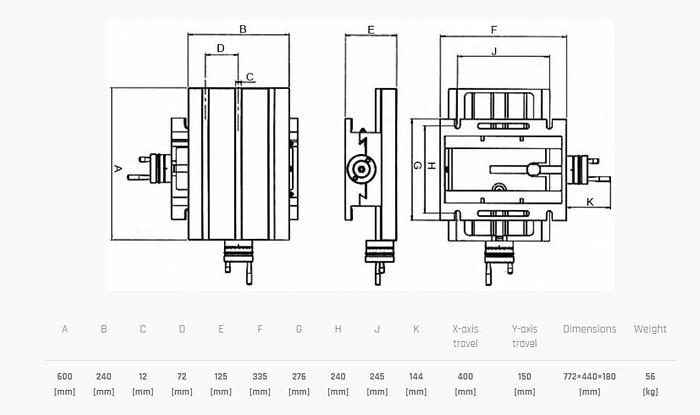

Technical Specification

Table Dimensions: 600 x 240mm

Table Height: 125mm

Tee Slot Size: 12mm

Distance Between T Slots: 72mm

Base Dimensions: 335 x 276mm

X Axis Travel: 400mm

Y Axis Travel: 150mm

Overall Dimensions: 772 x 440 x 180mm

Weight: 56kg
