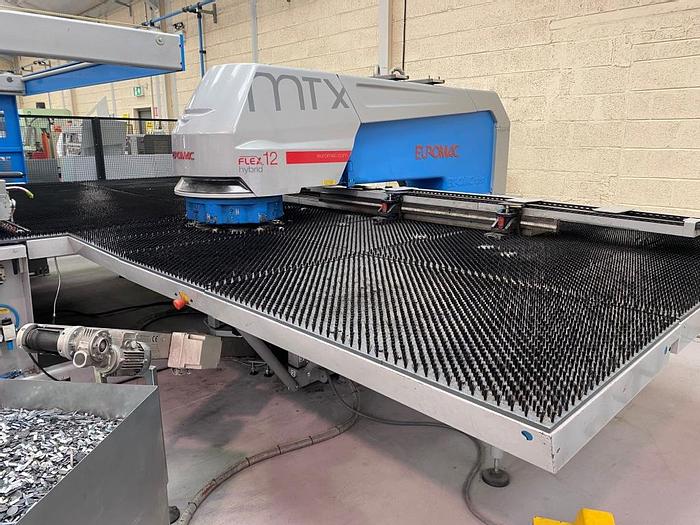

2014 Euromac MTX Flex 12 Hybrid CNC Punching Machine with Automation

2014 Euromac MTX Flex 12 Hybrid CNC Punching Machine with Automation

Machine Type: CNC Punching Machine with Sheet Loader

Year: 2014

Model: MTX 1250/30-2500

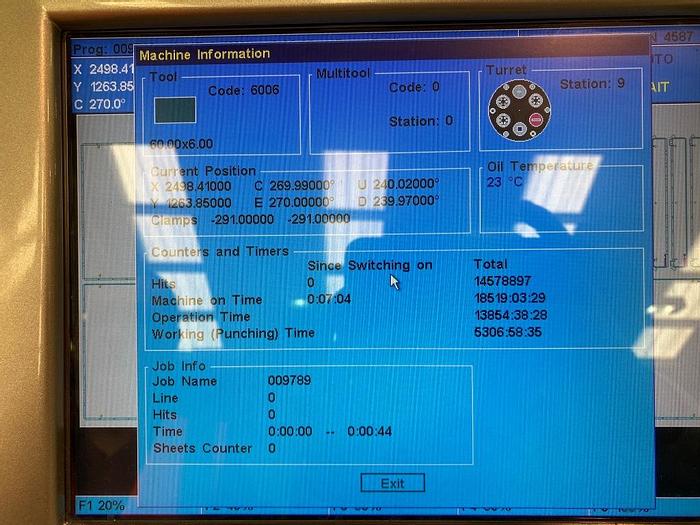

Punching Hours: Approx 5500hrs

Condition: Excellent

Includes

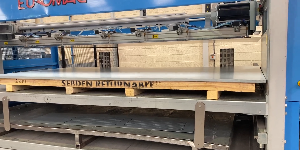

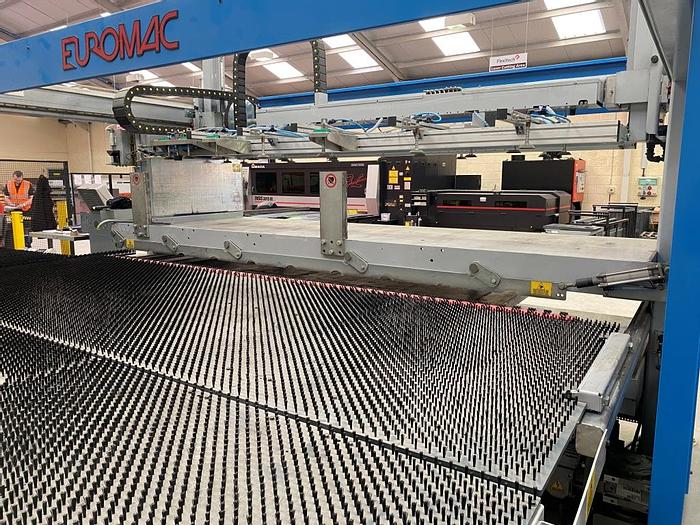

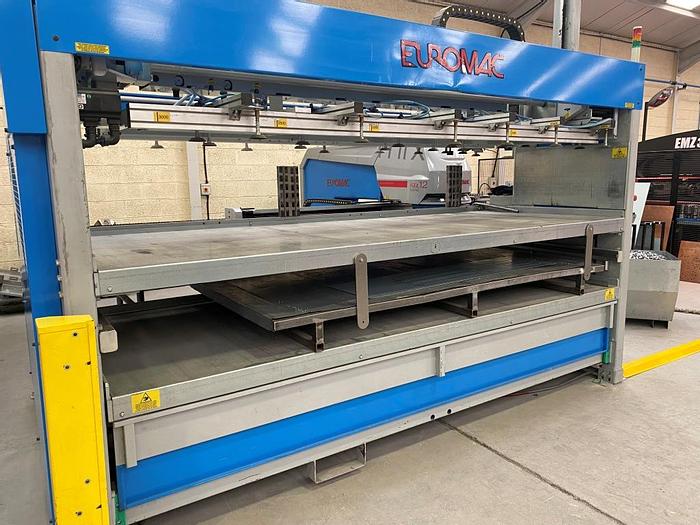

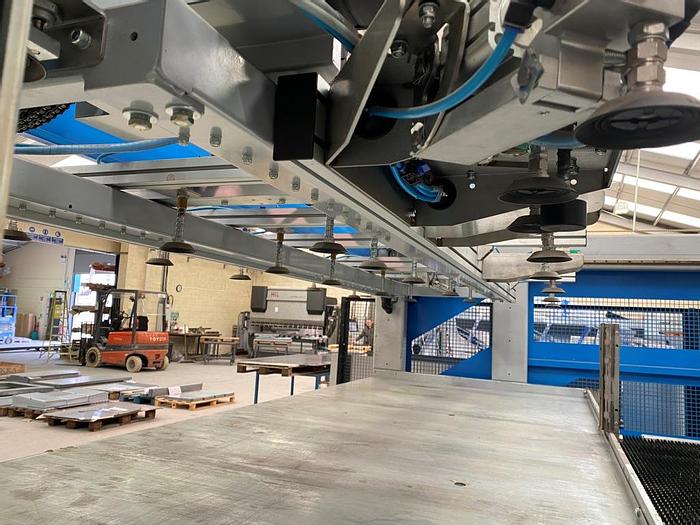

Euromac Automatic Sheet Loading/Unloading System

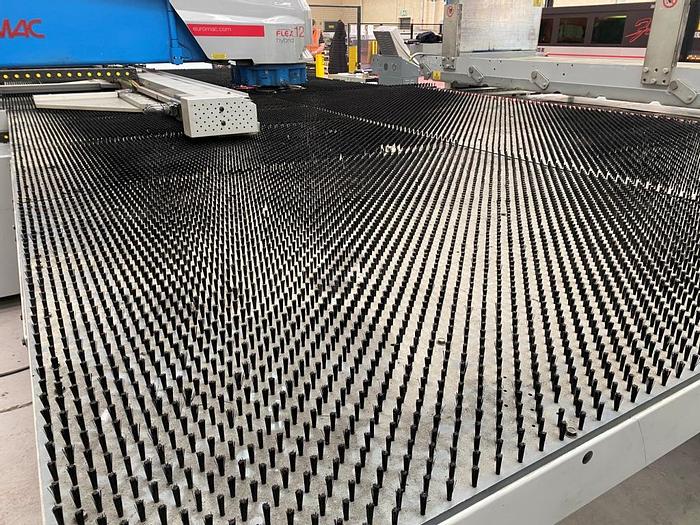

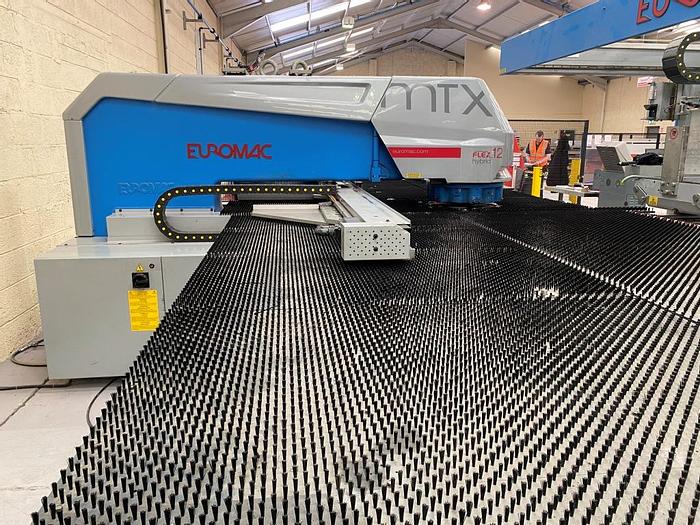

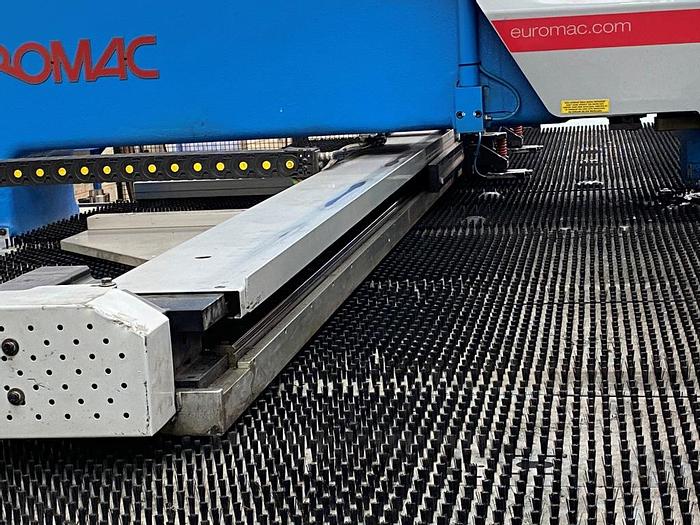

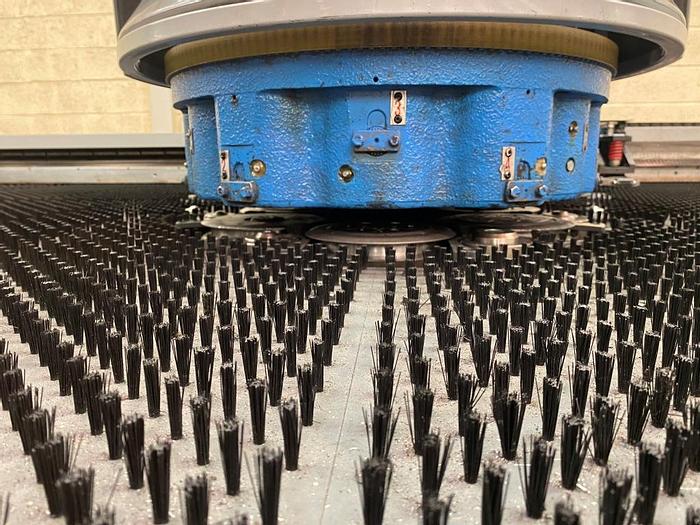

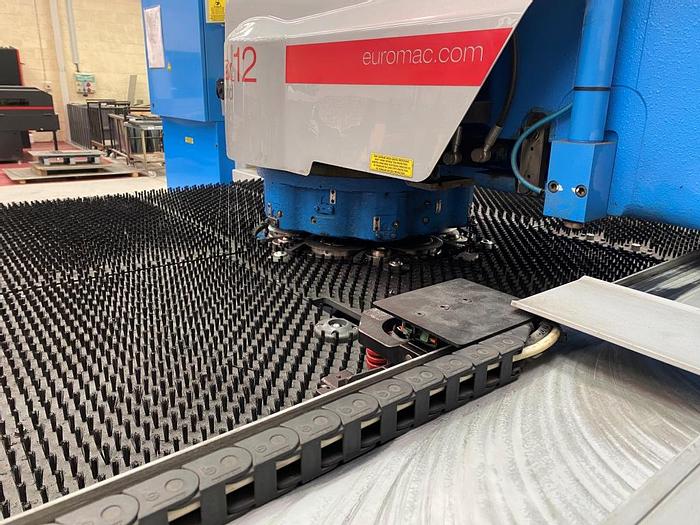

Brush Table

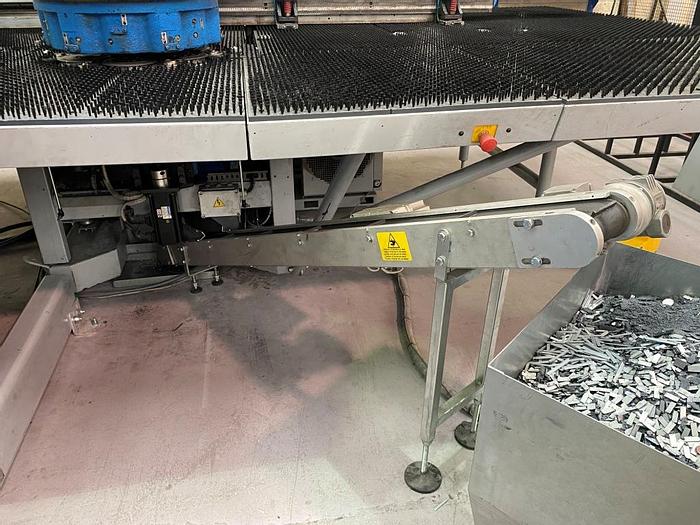

Scrap Conveyor

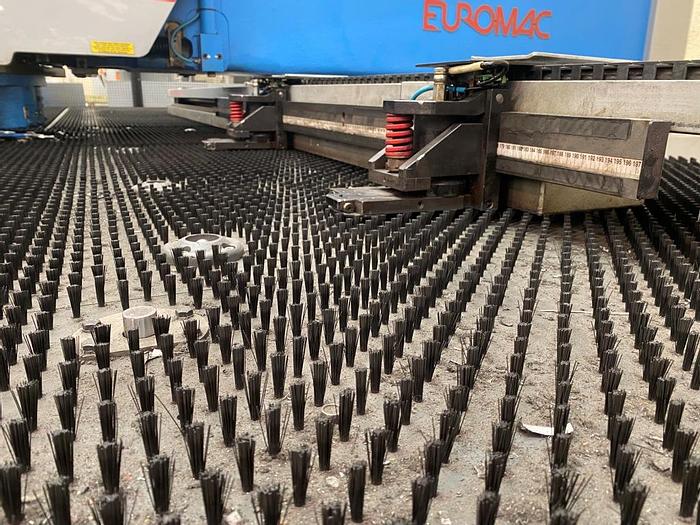

2 x Clamps

Safety Light Barriers

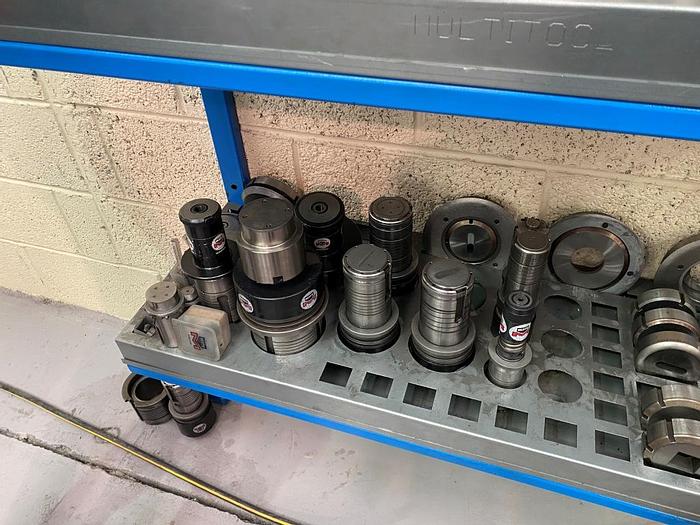

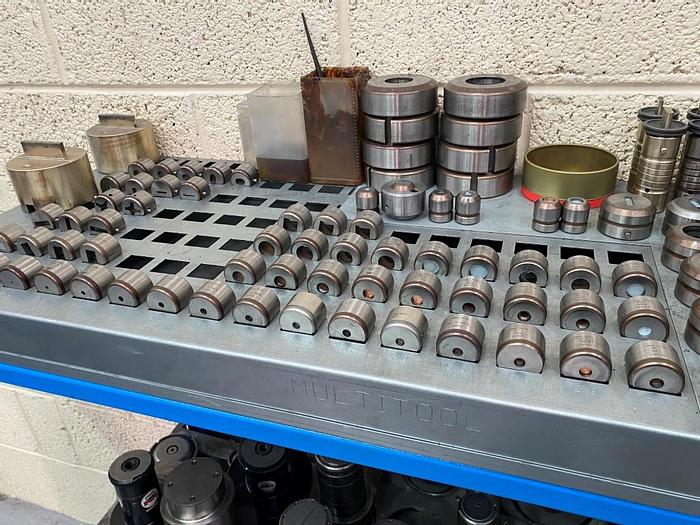

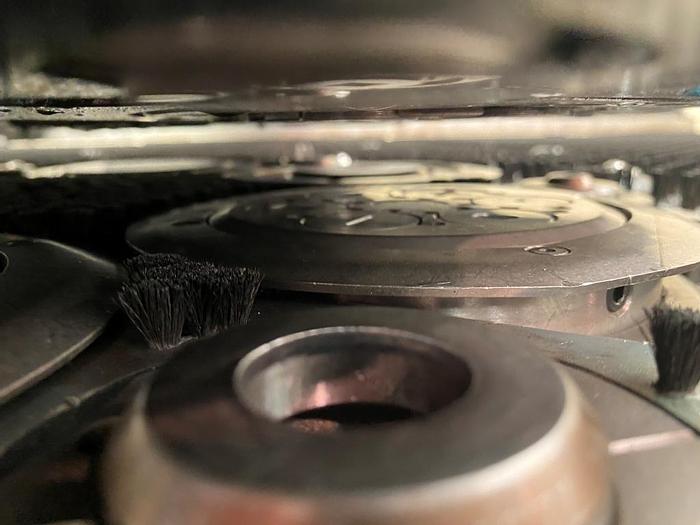

Large Selection of Tools

Technical Specification

Max Punching Force: 300kN

Stroke of Y Axis: 1250mm

Stroke of X Axis: 2500mm

Automatic Repositioning: up to 10,000mm

Punch Stroke Adjustment Range: 0.1 to 31mm

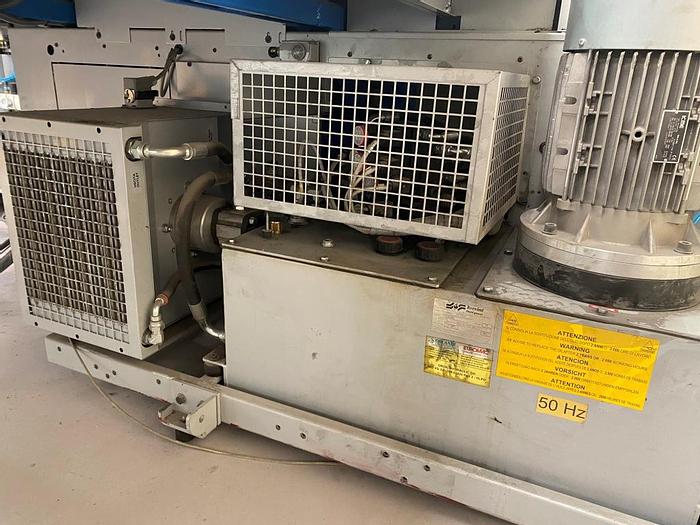

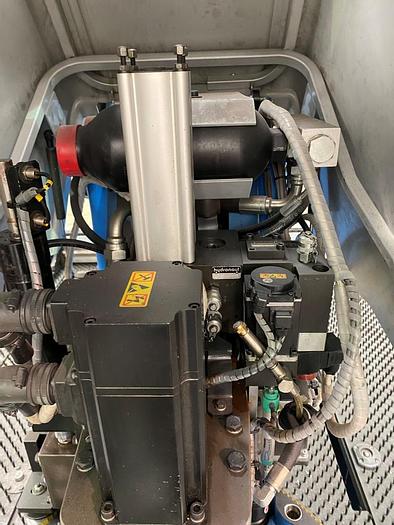

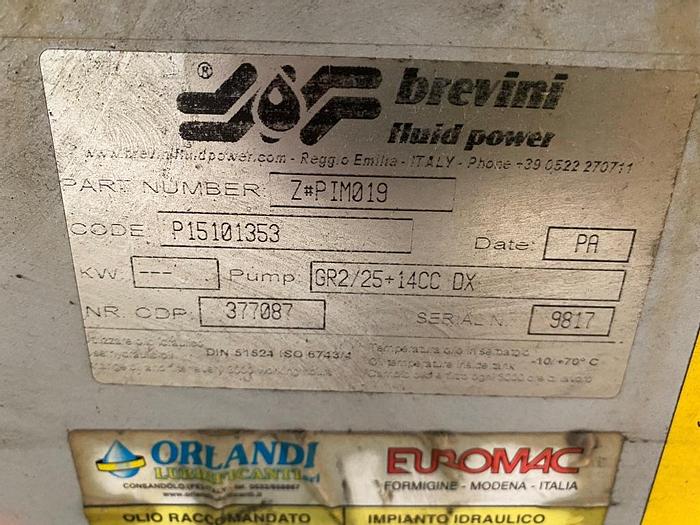

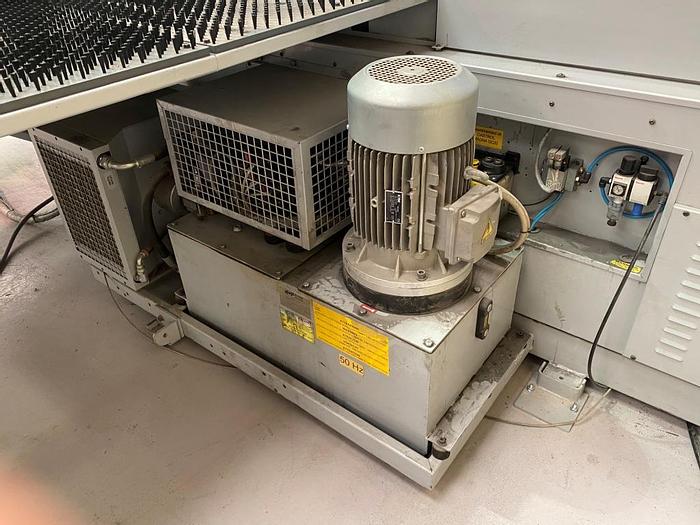

Hydraulic System Controlled by Servomotor: Yes

Punching Accuracy: +/-0.05mm (standard for new machine - not guaranteed)

Shape Repeatability Accuracy: +/- 0.1mm (standard for new machine - not guaranteed)

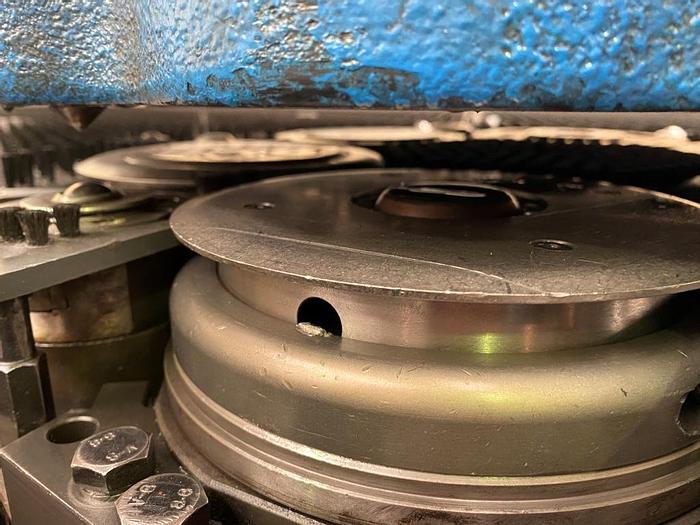

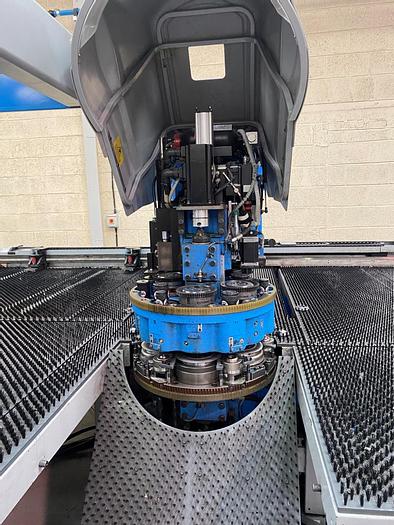

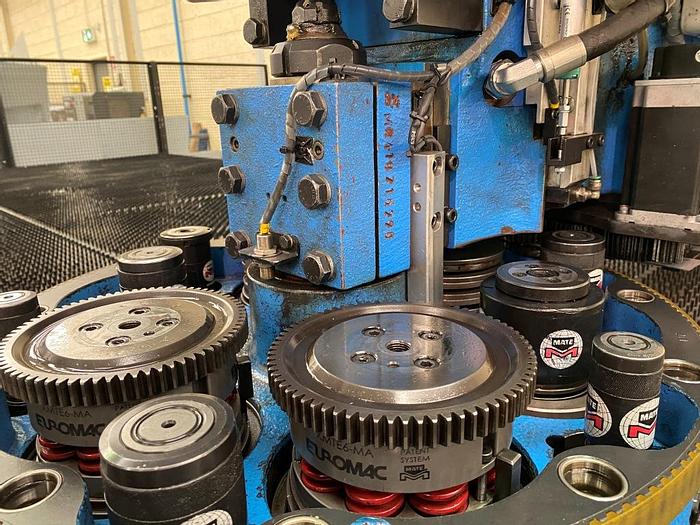

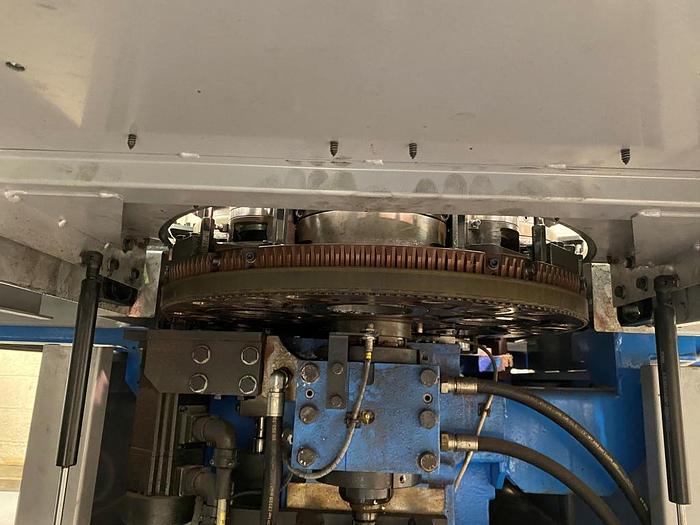

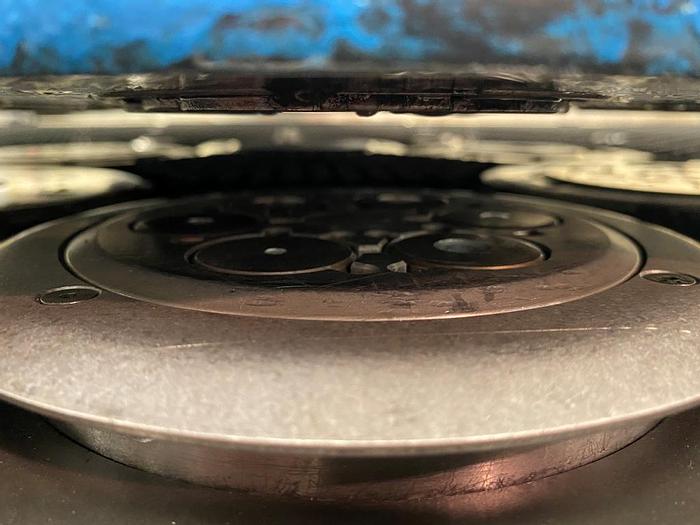

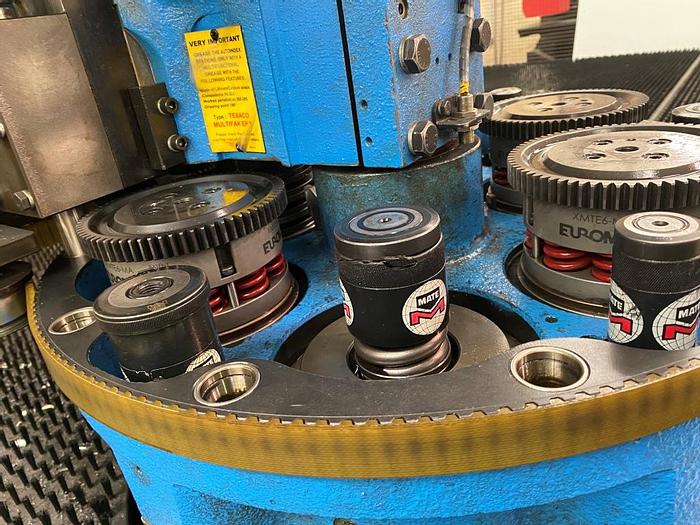

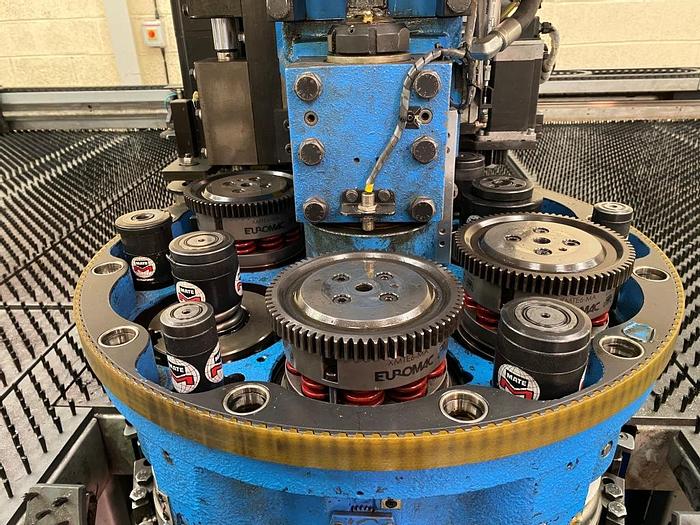

Autoindex Two-Way Stations 360 Deg: 3

Autoindex Rotation Speed: 174 rpm Programmable

Speed of Y+X Axis simultaneously: 80m/min

No. of Clamps: 2

Clamp Opening: 11mm

Punching Thickness Range: 0.6 to 6mm

Max Strokes Punching at 20mm Pitch: 375/min

Max Strokes Nibbling at 1mm Pitch: 1000/min

Max Strokes Marking: 2000/min

Shims: 0.5 to 10mm

Max Weight of Sheet at Reduced Speed: 200kg

Max Punching Diameter in Autoindex Stations: 85mm

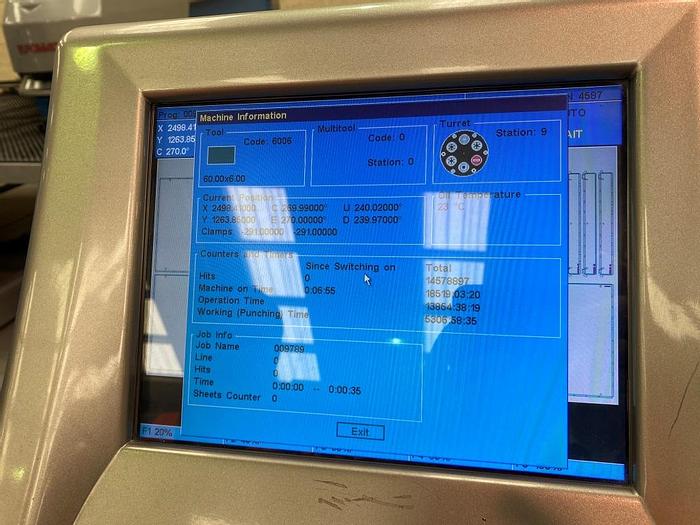

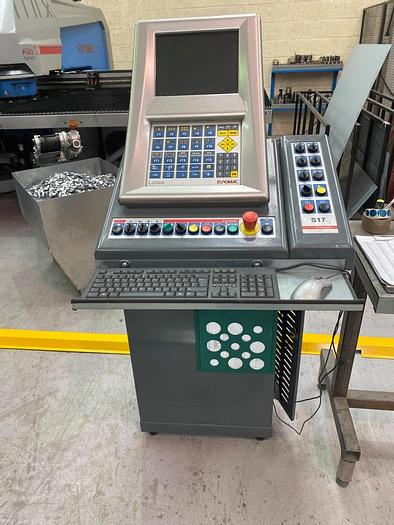

Operating System: Windows 7-64Bit

USB Ports: 6

Tank Capacity: 135L

Installed Power: 8.5kW

Average Power Draw: 4.5kW/h

Machine Dimensions: 4840 x 3630 x 2100mm

Machine Weight: 7300kg
