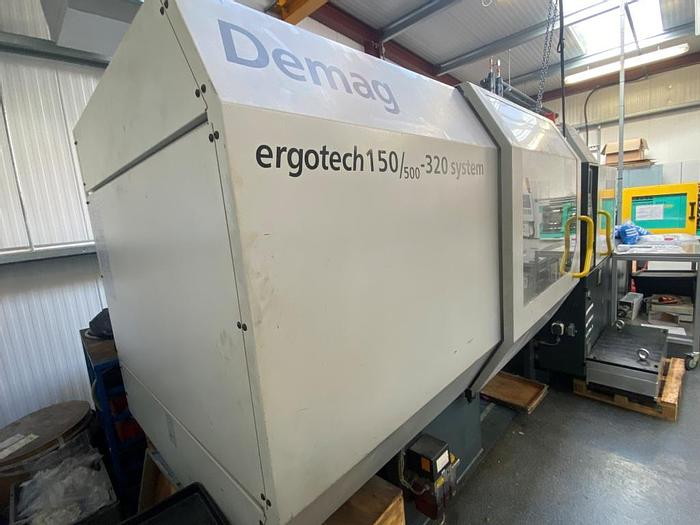

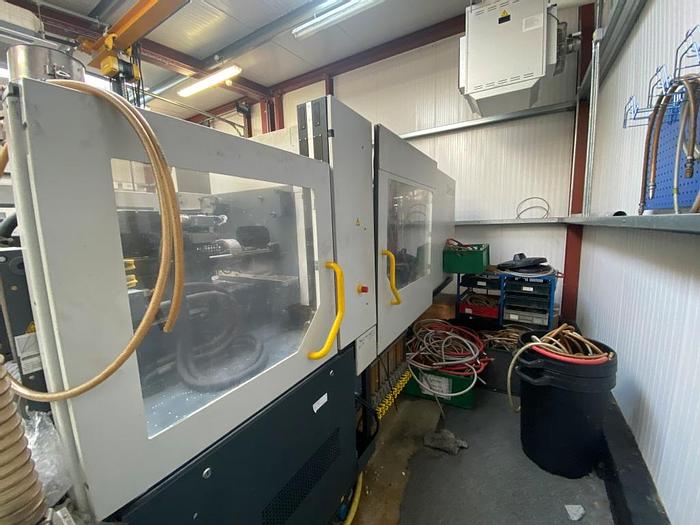

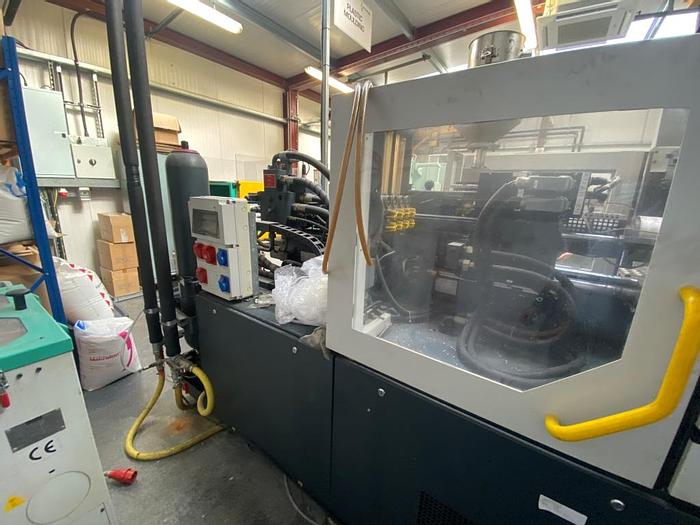

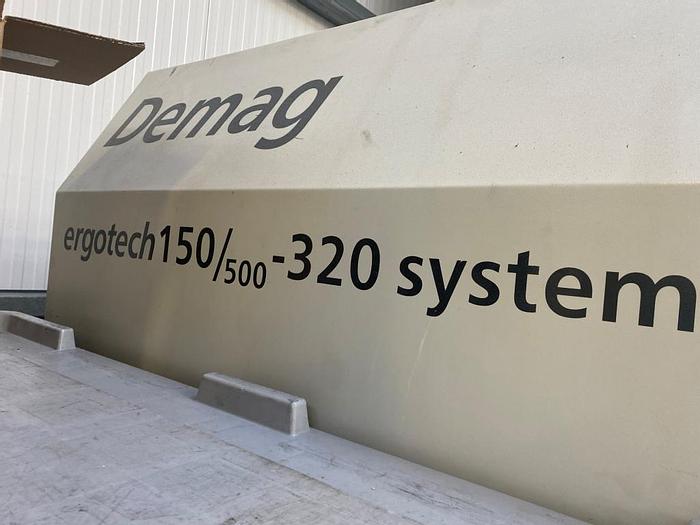

2000 Demag Ergotech 150/500-320 System Injection Moulding Machine

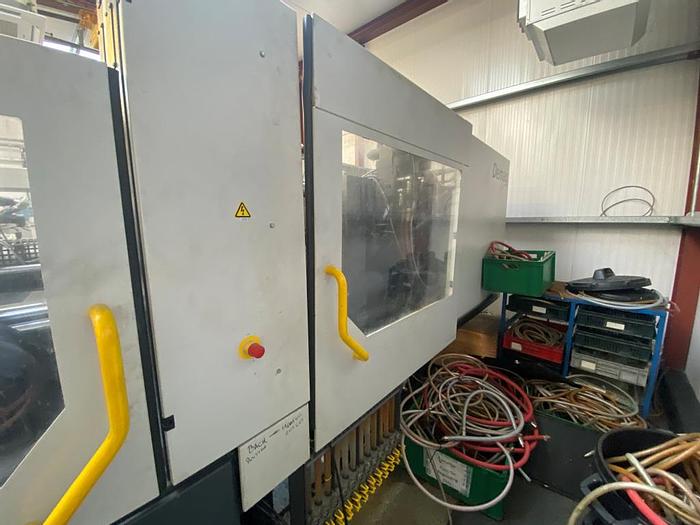

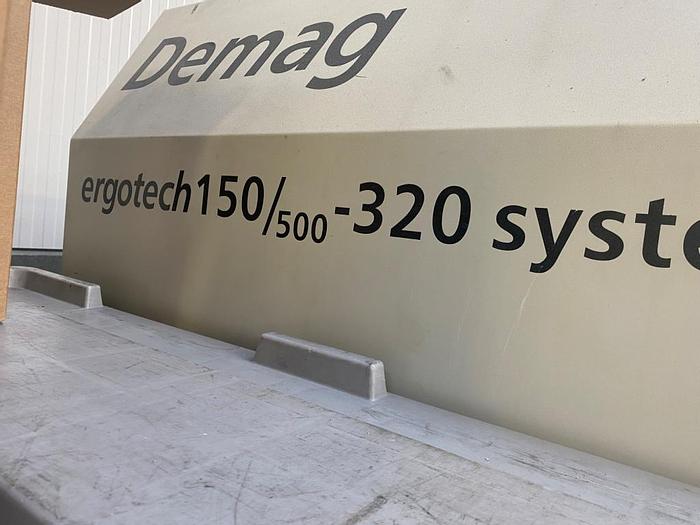

Demag Ergotech 150/500-320 System Injection Moulding Machine

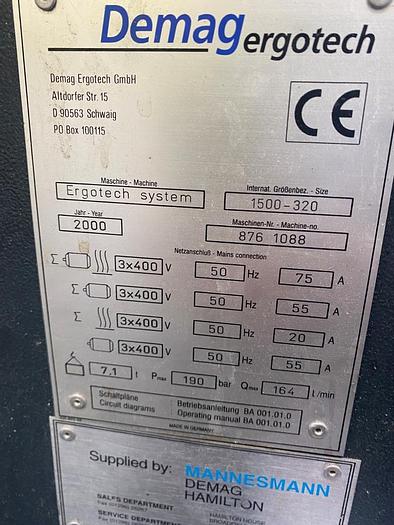

Machine Type: Injection Moulding Machine

Year: 2000

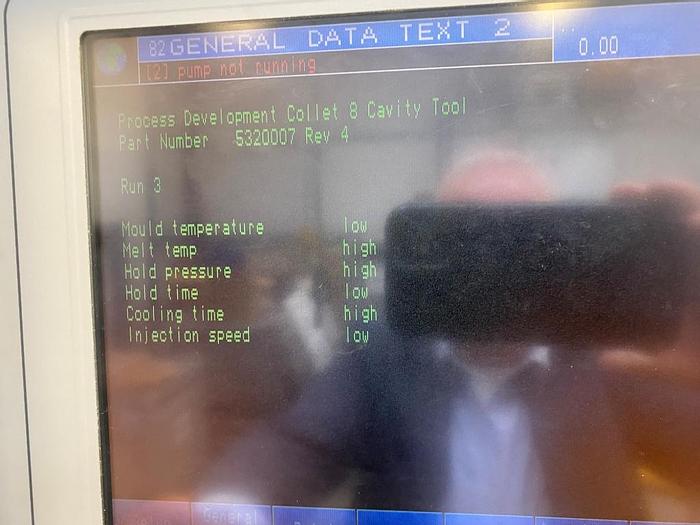

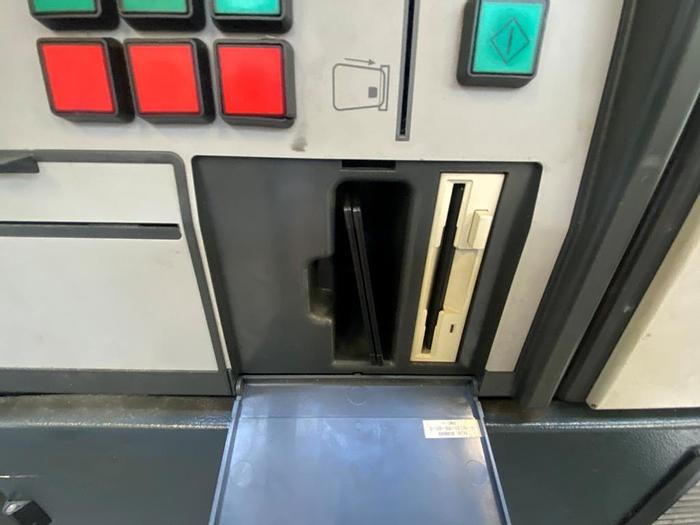

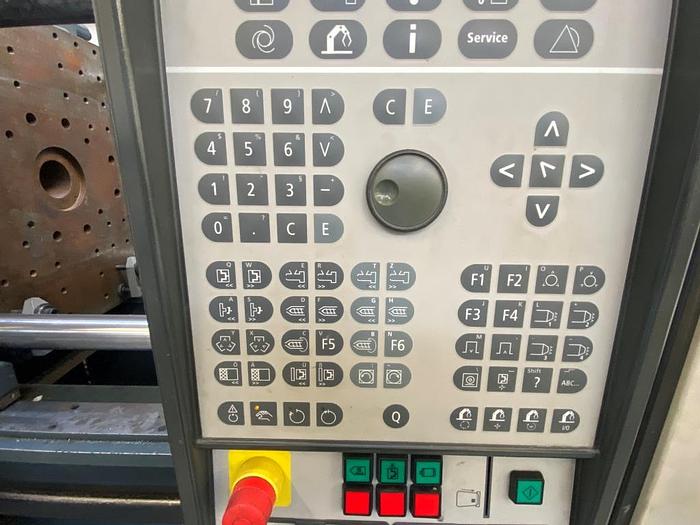

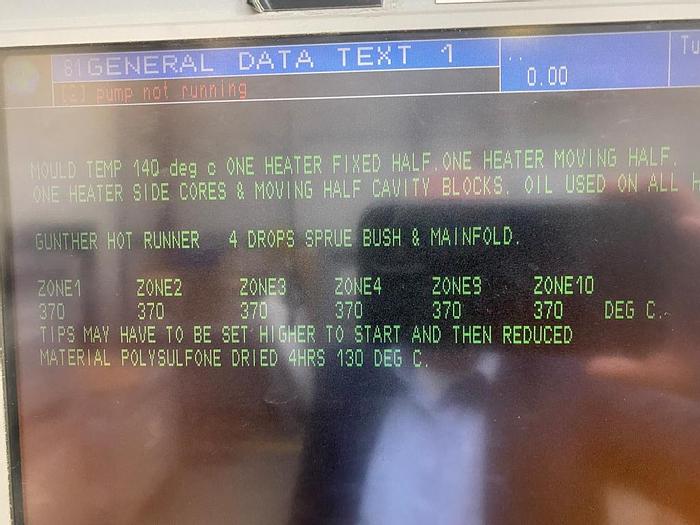

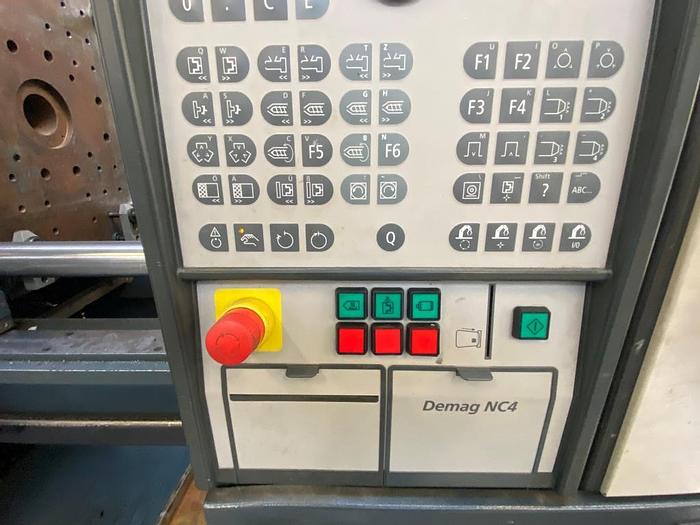

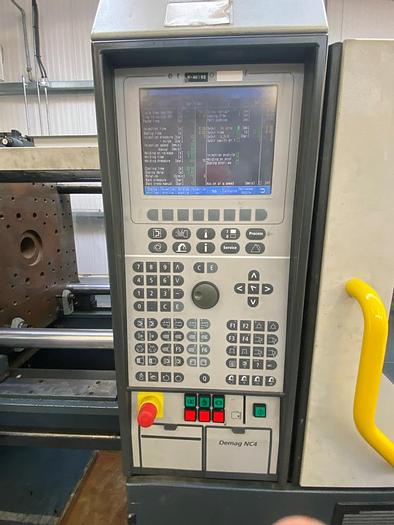

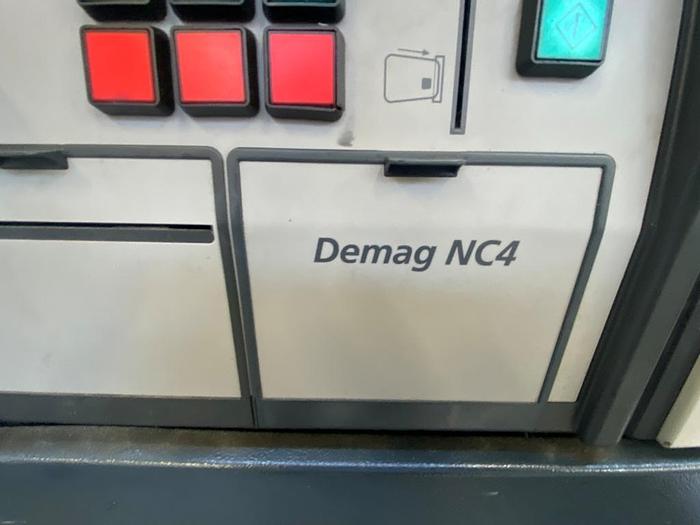

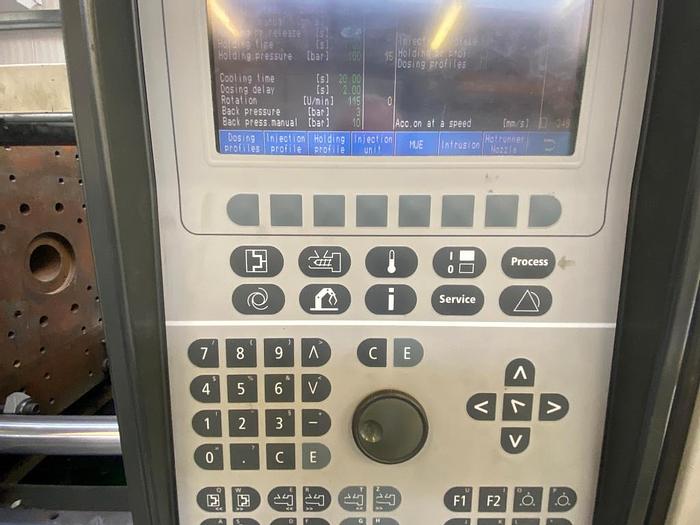

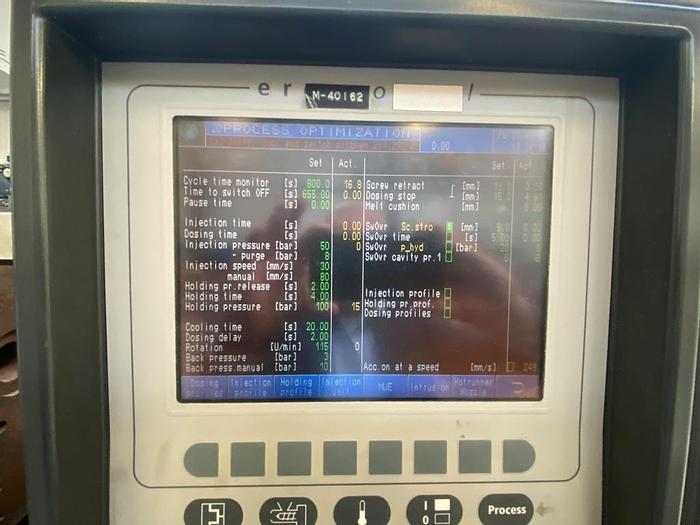

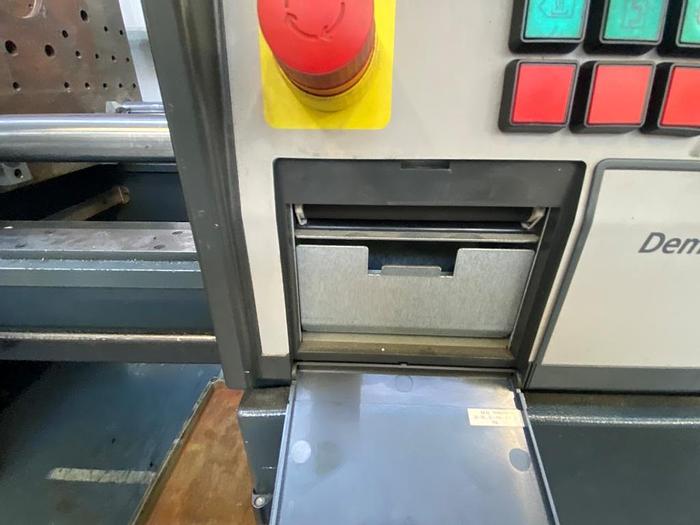

Control: Demag NC4

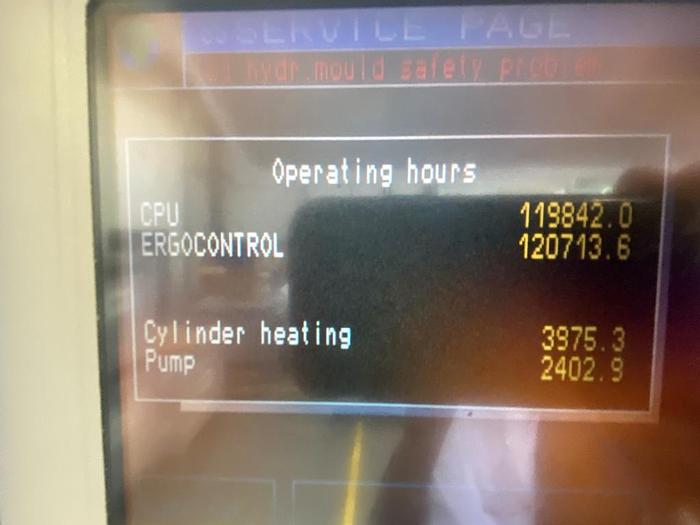

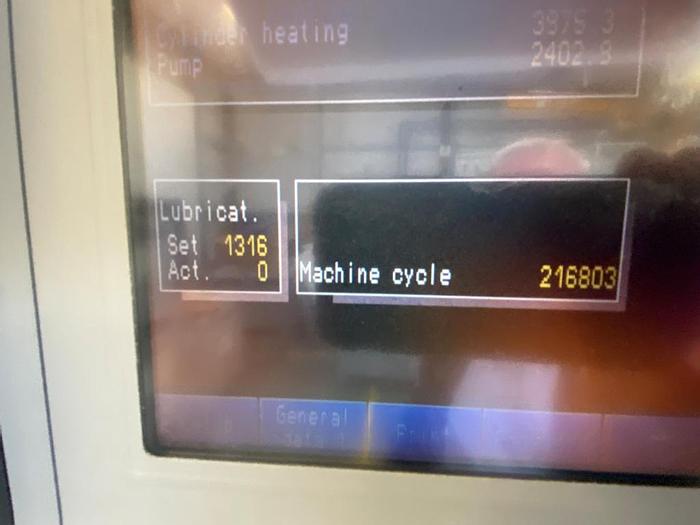

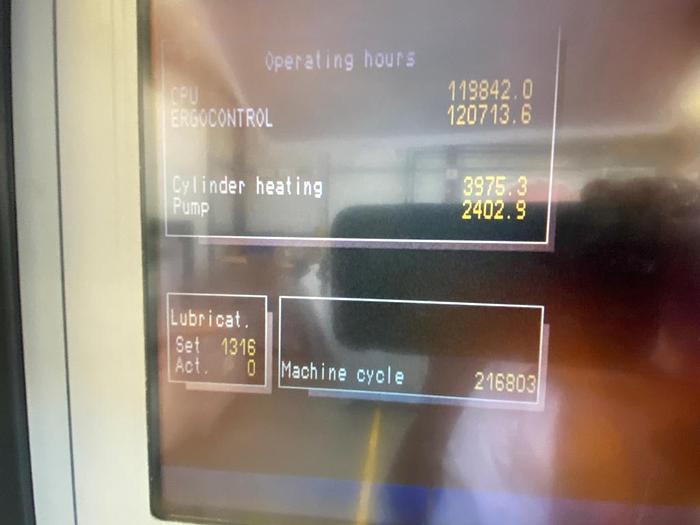

Pump Hours: 2403hrs

Condition: Excellent. This machine was never used in production. It was only used for mould testing.

Includes

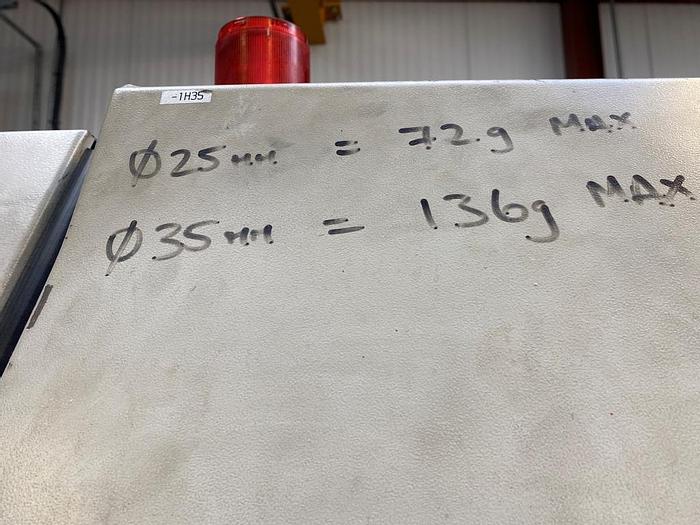

35mm Diameter Screw

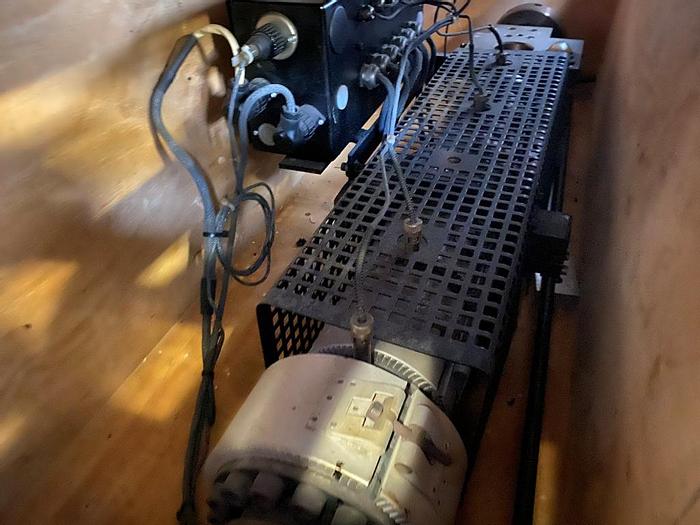

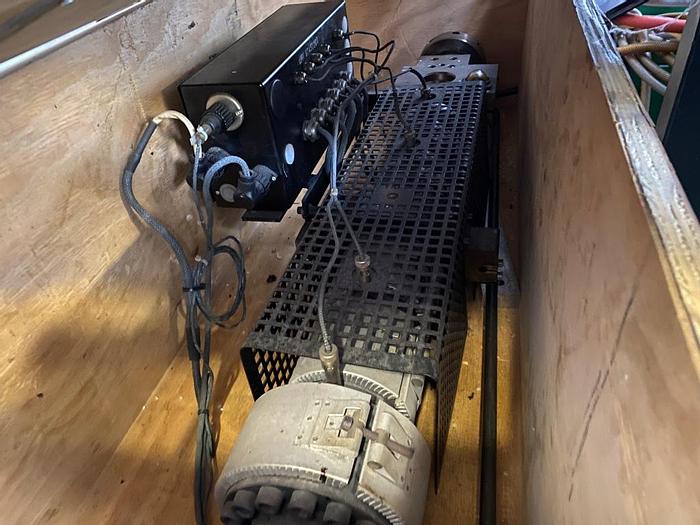

25mm Diameter Screw

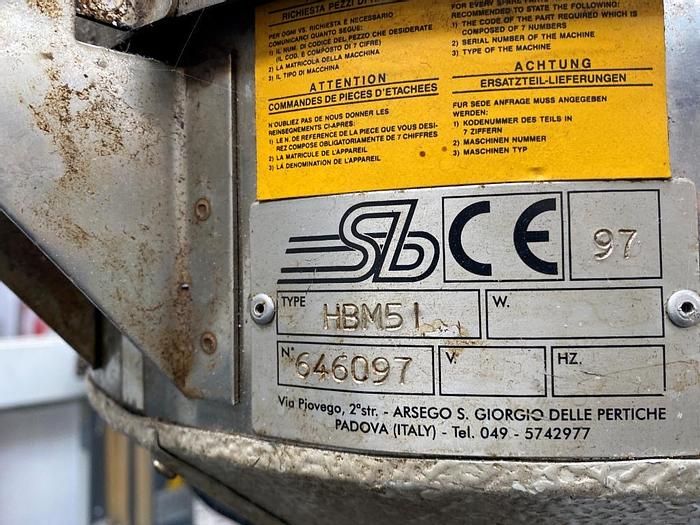

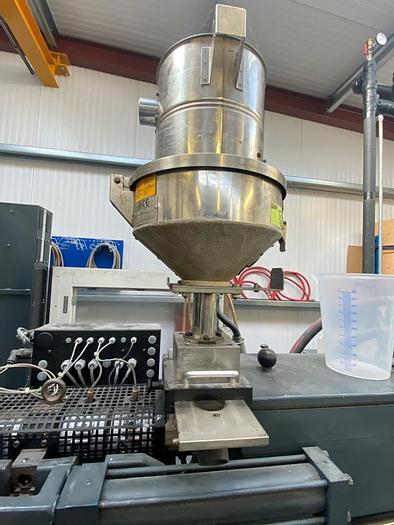

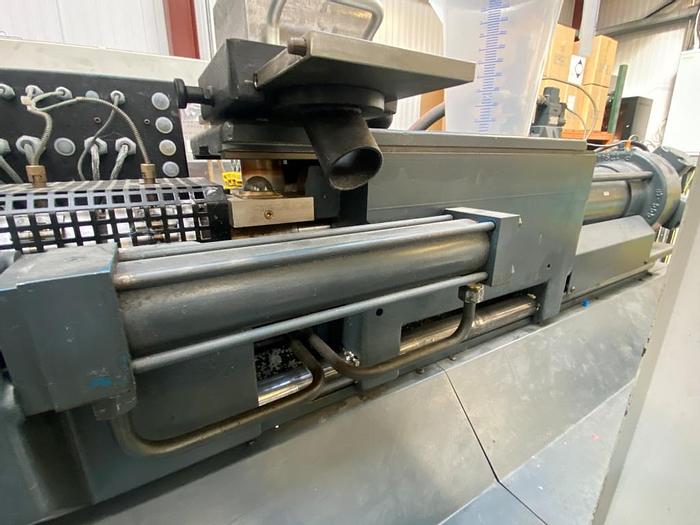

Hopper

Hopper Slide Plate

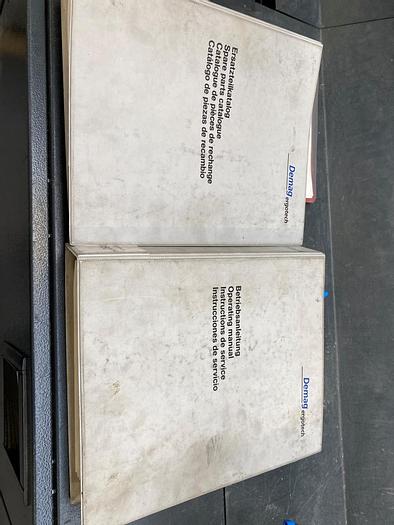

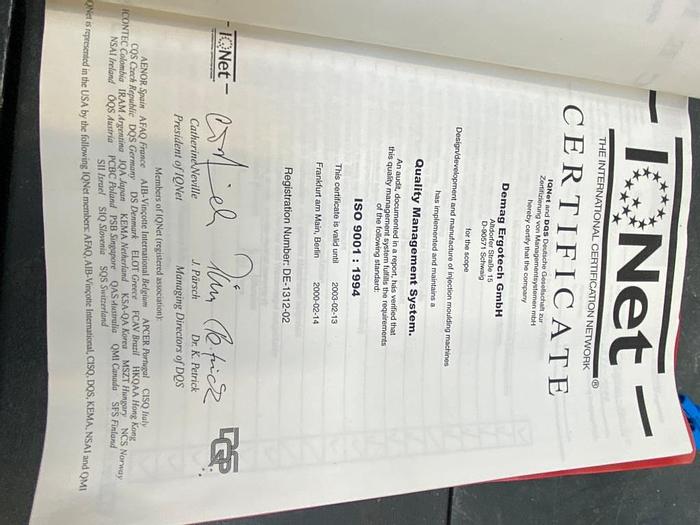

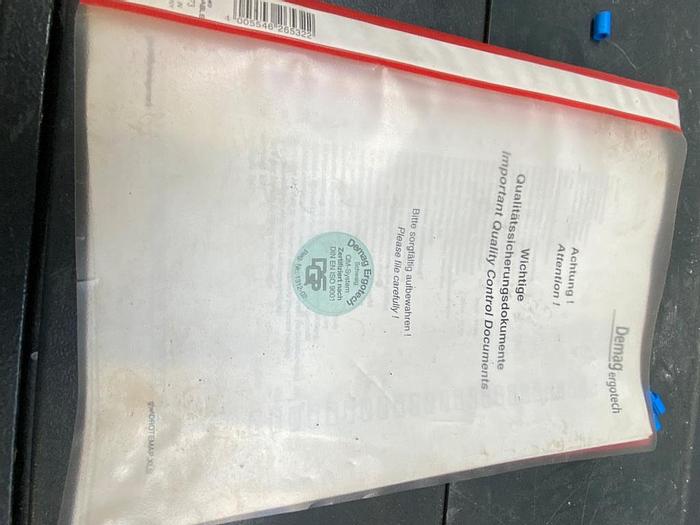

Manuals

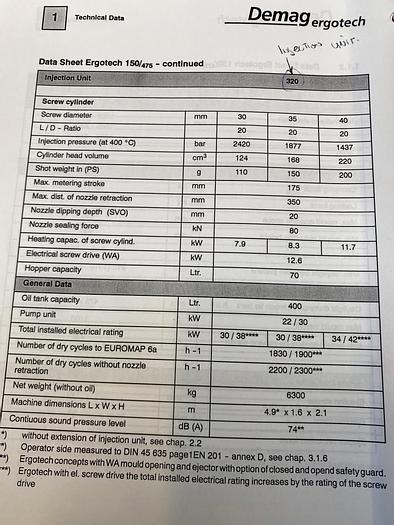

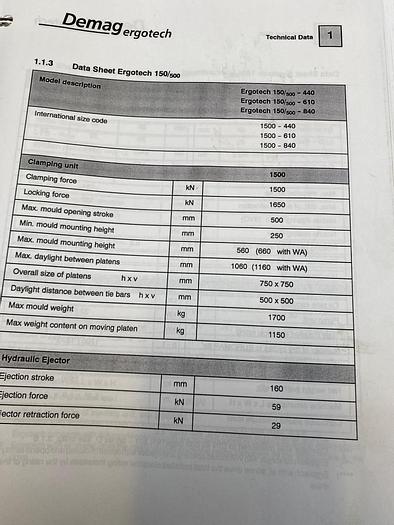

Technical Specification

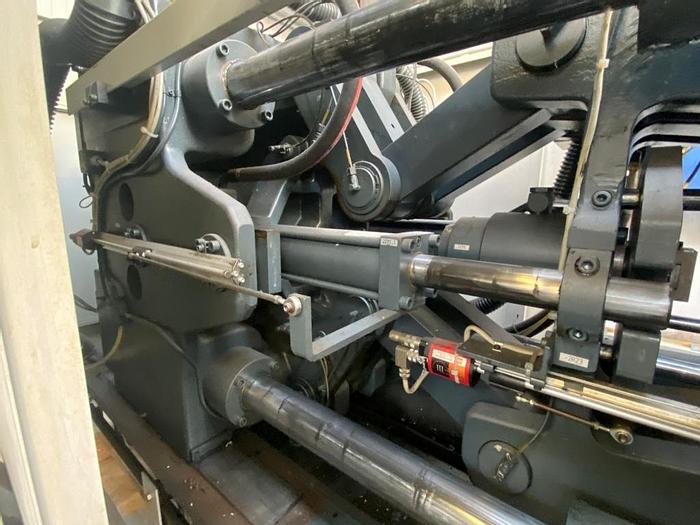

Clamping Unit: 1500

Clamping Force: 1500kN

Locking Force: 1650kN

Max Mould Opening Stroke: 500mm

Min Mould Opening Stroke: 250mm

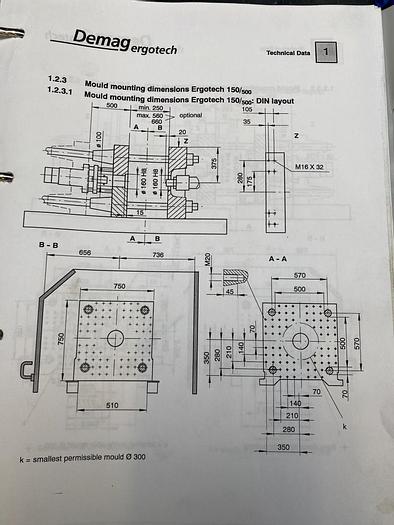

Max Mould Mounting Height: 560mm

Max Daylight Between Platens: 1060mm

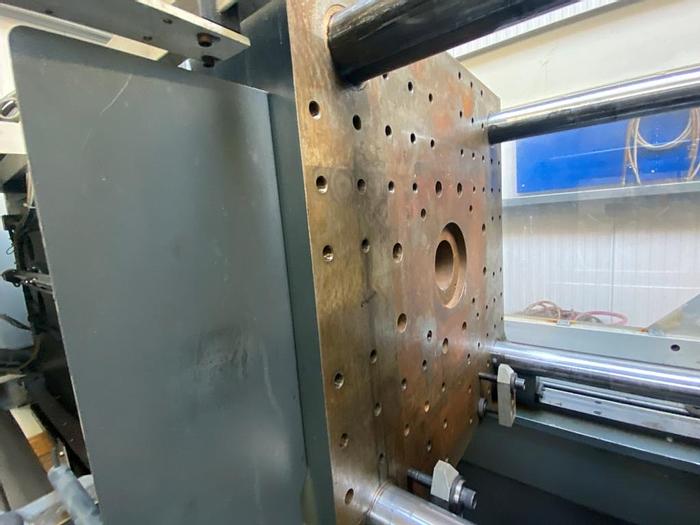

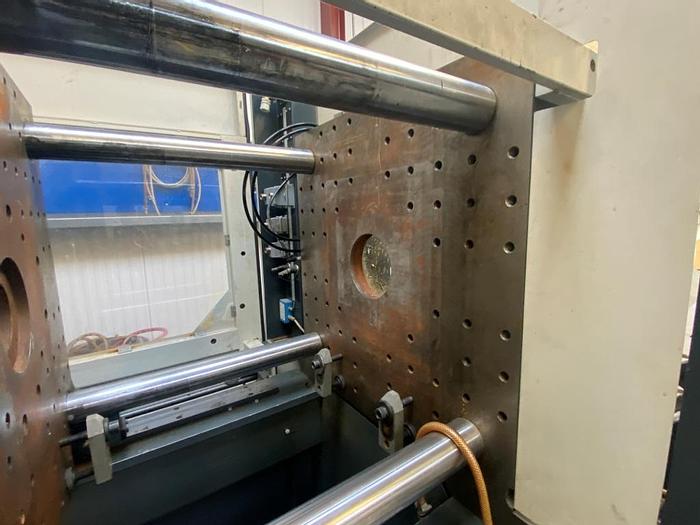

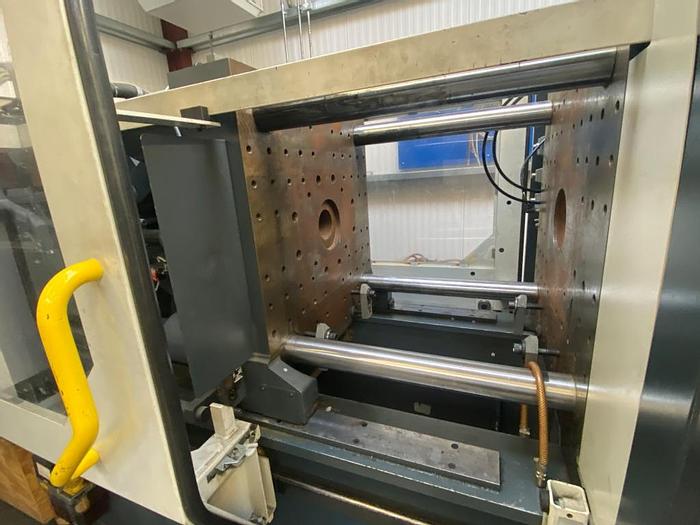

Overall Size of Platens: (h x v) 750 x 750mm

Daylight Distance Between Tie Bars: (h x v) 500 x 500mm

Max Mould Weight: 1700kg

Max Weight on Moving Platen: 1150kg

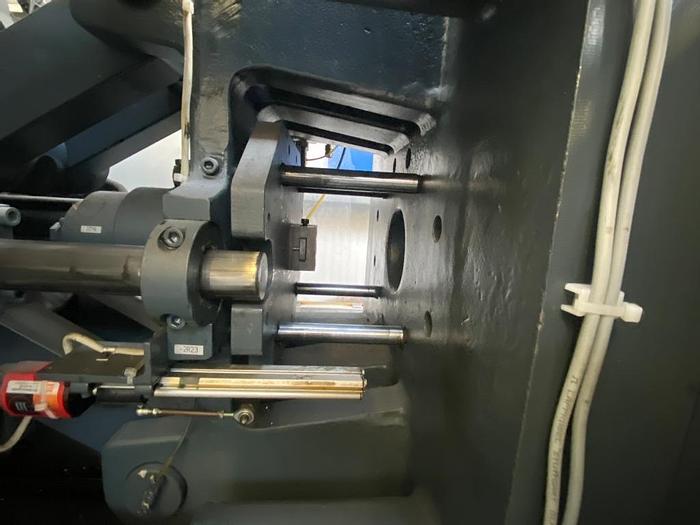

Ejection Stroke: 160mm

Ejection Force: 59kN

Ejector Retraction Force: 29kN

Hopper Capacity: 70ltr

Oil Tank Capacity: 400L

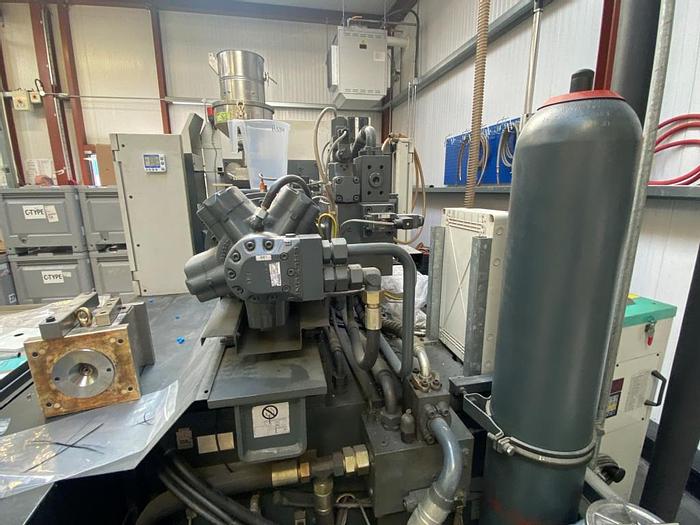

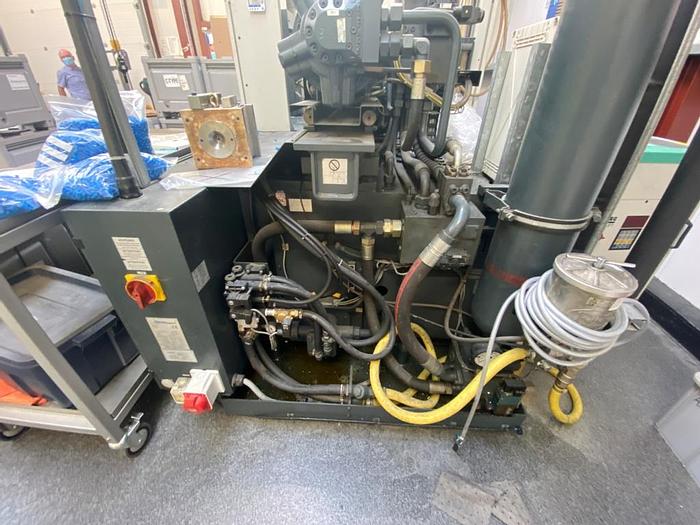

Pump Unit: 22/30kW

Total Installed Electrical Rating: 38kW

Net Weight: 6300kg

Machine Dimensions: 4900 x 1600 x 2100mm

Screw Diameter: 35mm

L/D Ratio: 20

Injection Pressure @ 400 Deg C: 1877bar

Cylinder Head Volume: 168cm3

Shot Weight in (PS): 150g

Max Metering Stroke: 175mm

Max Distance of Nozzle Retraction: 350mm

Nozzle Dipping Depth(SVO): 20mm

Nozzle Sealing Force: 80kN

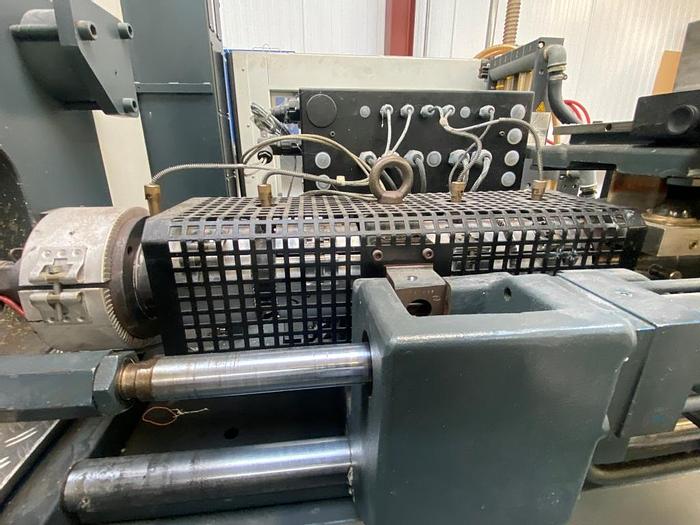

Heating Capacity of Screw Cylinder: 8.3kW

Electrical Screw Drive: 12.6kW
