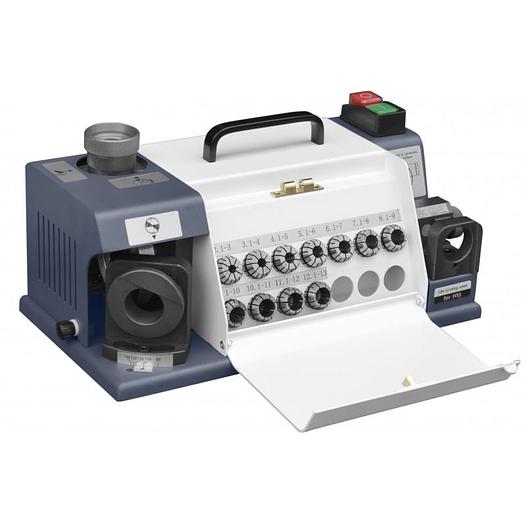

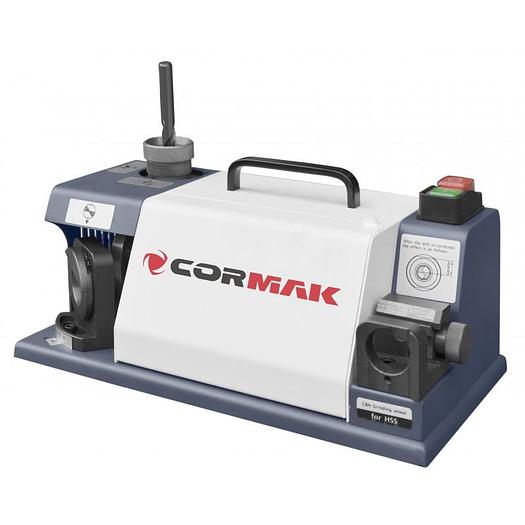

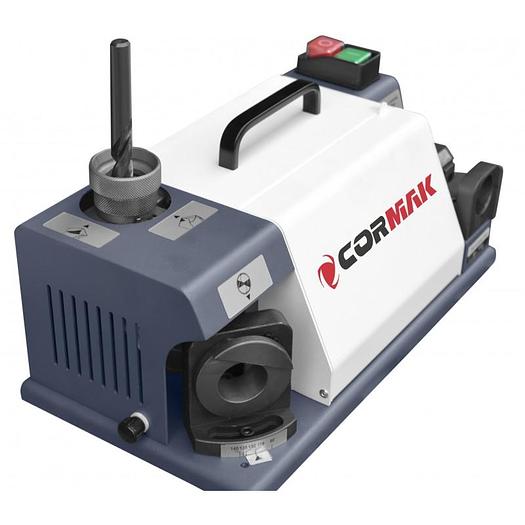

Cormak DG13M Drill Grinder

Cormak DG13M Drill Grinder

Machine Type: Drill Grinding Machine

Machine Description

Sharpening device for drill bits made of HSS or any other hard metals, ensuring precise grinding and easy handling. Adjustable tip angle in the 90°–135° range.

Machine Features

Precise grinding and convenient handling.

Sharpening drill bits with ease.

Portability due to its modest dimensions.

Dressing wheel promising superb efficiency.

Fully equipped with a handle inside the device.

Includes

Grinding wheel: 1 CBN (for HSS)

11 ER20 collets: ø 3 - ø 13 mm

1 clamping socket

Technical Specifications

Drill bits diameters capacity: ø2–13 mm

Angle of the tip: 90°–135°

Motor Power: 120 W / 230V

Motor speed: 4800 rpm

Approx. weight: 9 kg

Dimensions: 330 x 170 x 160 mm
