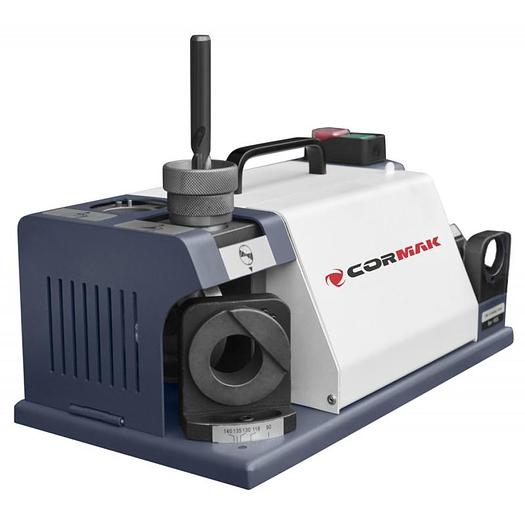

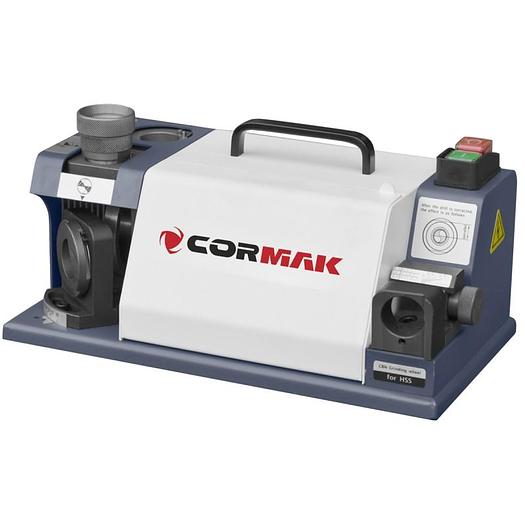

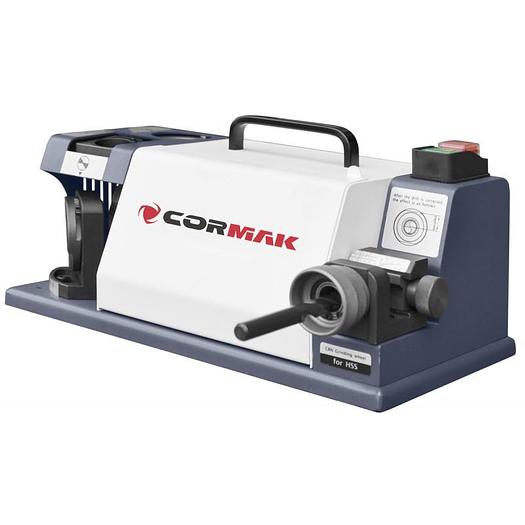

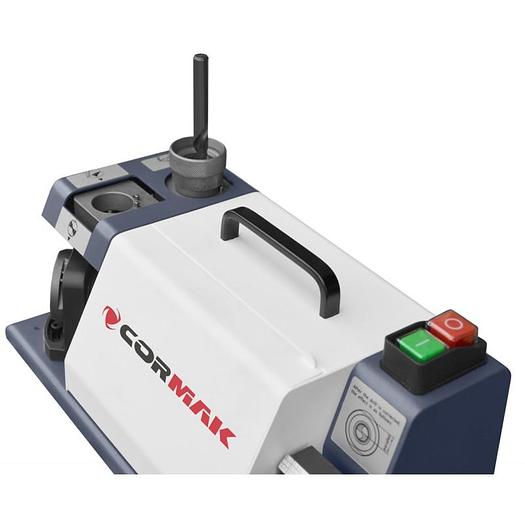

Cormak DG13MD Drill Grinder
Description
Cormak DG13MD Drill Grinder
Machine Type: Drill Grinding Machine
Machine Description
Sharpening device for drill bits made of HSS or any other hard metals, ensuring precise grinding and easy handling. Adjustable tip angle in the 90°–135° range. This model is equipped with an additional slot for sharpening undercuts.
Machine Features
Precise grinding and convenient handling.
Sharpening drill bits with ease.
Portability due to its modest dimensions.
Dressing wheel promising superb efficiency.
Fully equipped; with a handle inside the device.
Additional slot for sharpening undercuts.
Includes
Grinding wheel: 1 CBN (for HSS)

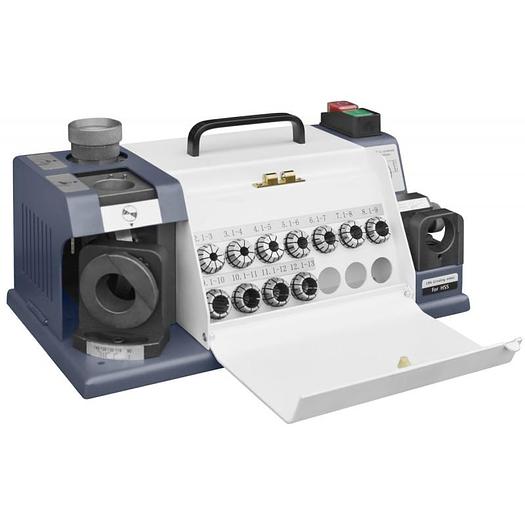

11 ER20 collets: ø 3 - ø 13 mm
1 clamping socket
Technical Specifications
Drill bits diameters capacity: ø2–13 mm
Angle of the tip: 90°–135°
Motor Power: 120 W / 230V
Motor speed: 4800 rpm
Approx. weight: 9 kg
Dimensions: 330 x 170 x 160 mm
Specifications
| Manufacturer | Cormak |
| Model | DG13MD Drill Grinder |
| Condition | New |
| Machine Type | Drill Grinding Machine |
| Grinding wheel | 1 CBN (for HSS) |
| Drill bits diameters capacity | ø2–13 mm |
| Angle of the tip | 90°–135° |
| Motor Power | 120 W / 230V |
| Motor speed | 4800 rpm |
| Approx. weight | 9 kg |
