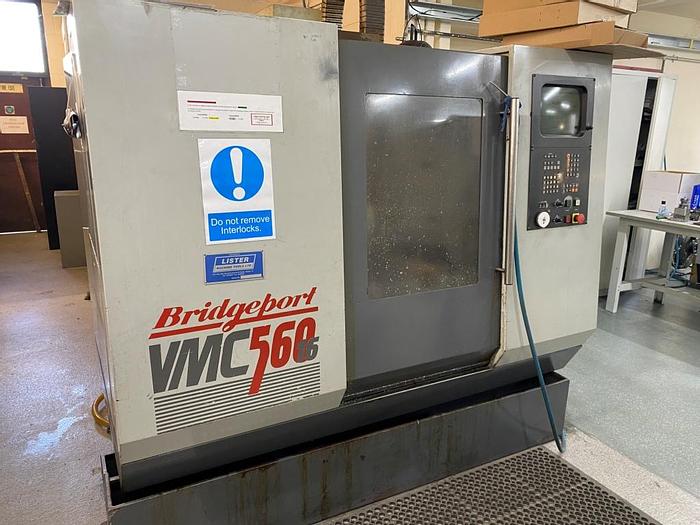

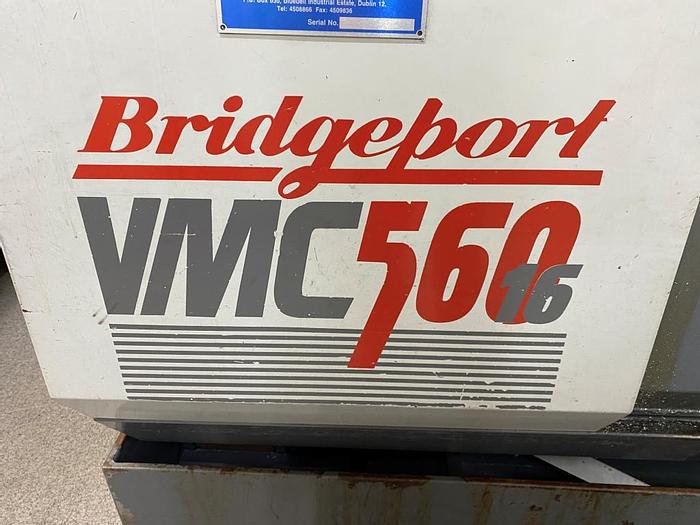

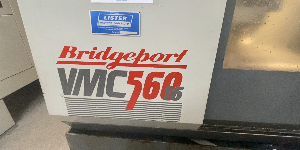

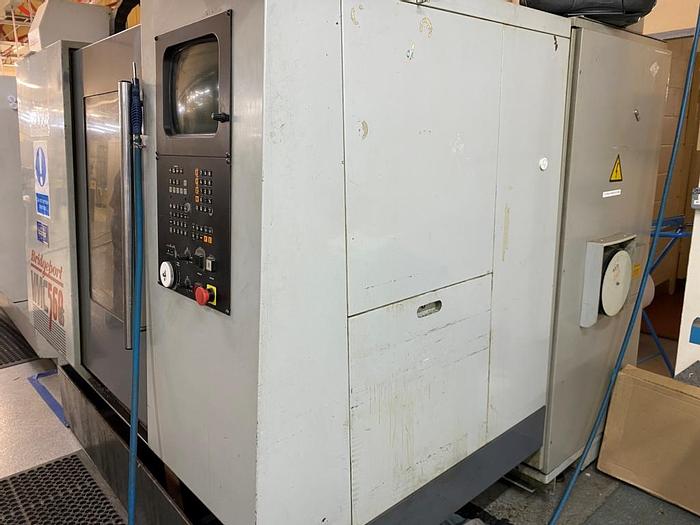

1992 Bridgeport VMC 560/16 Vertical Machining Center
Sold
Description
1992 Bridgeport VMC 560/16 Vertical Machining Center
Machine Type: 3 Axis Machining Center
Year: 1992

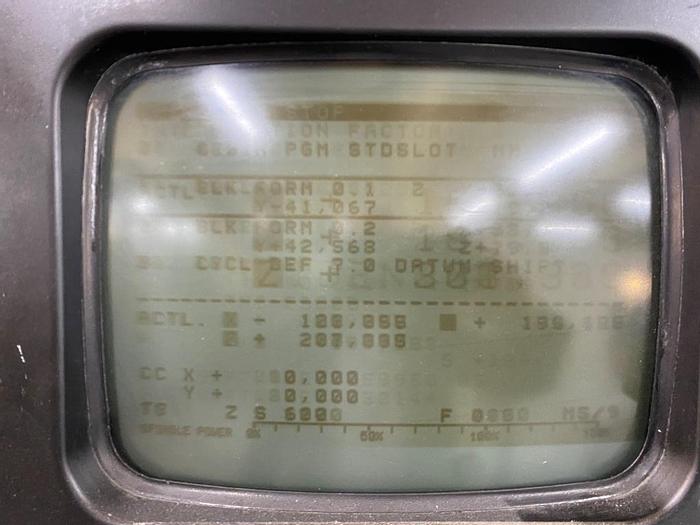

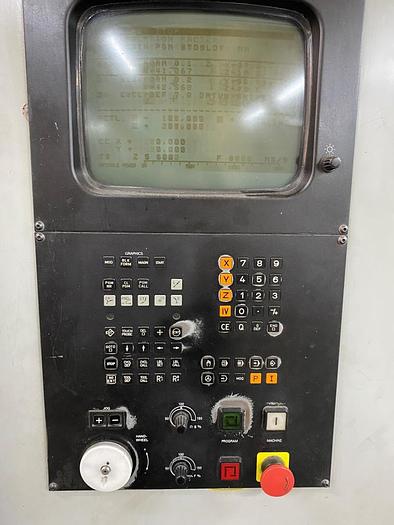

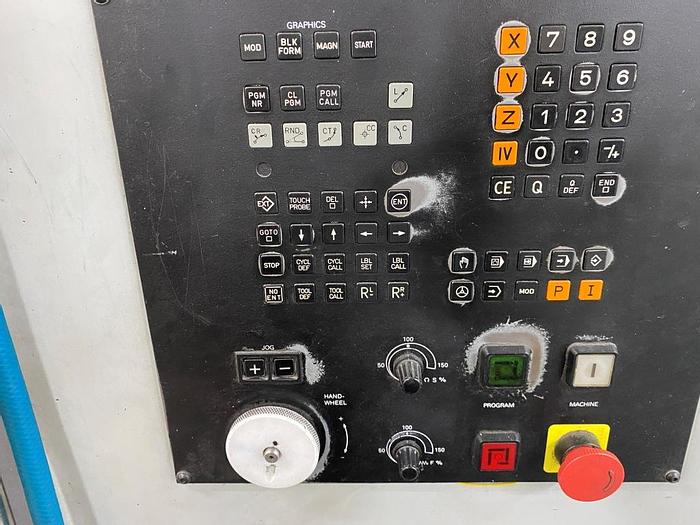

Control: Heidenhain CNC2500
Technical Specification

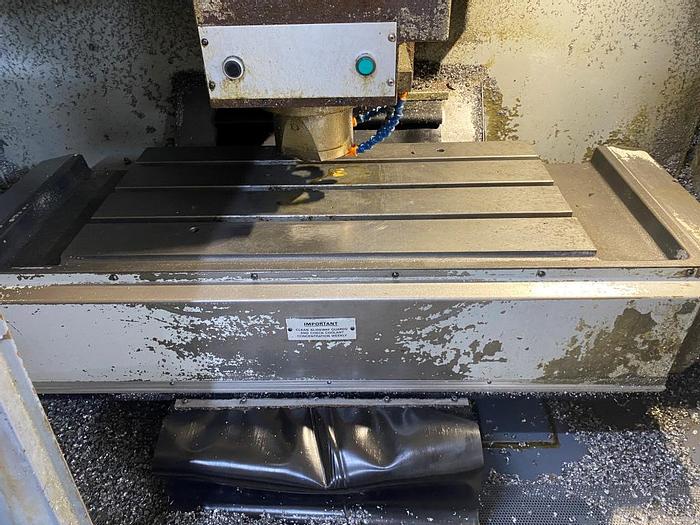

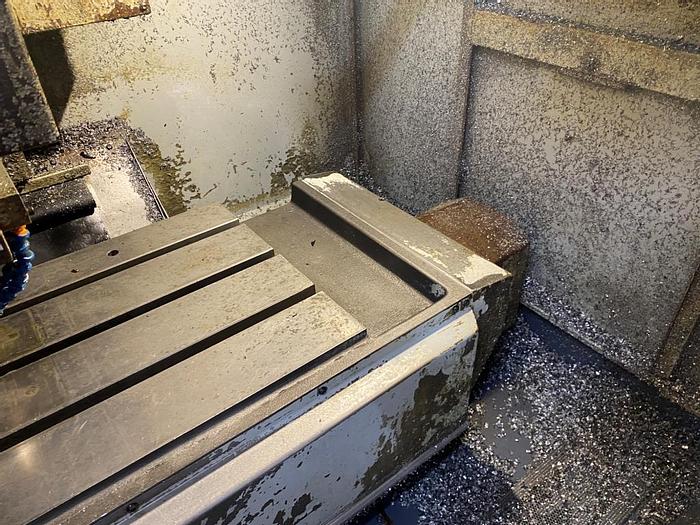

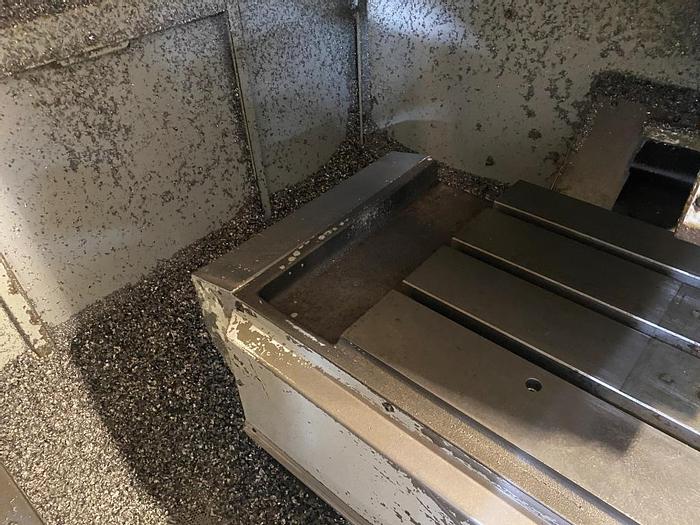

Table Size: 840 x 420mm
X Axis Travel: 560mm
Y Axis Travel: 410mm
Z Axis Travel: 520mm
Max Load on Table: 500kg
Rapid Traverse X axis: 32m/min
Rapid Traverse Y Axis: 32m/min
Rapid Traverse Z axis: 16m/min

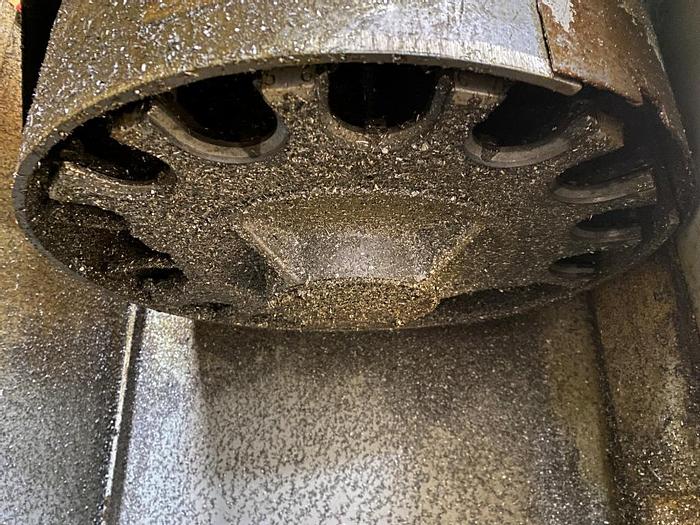

ATC: 16 Station

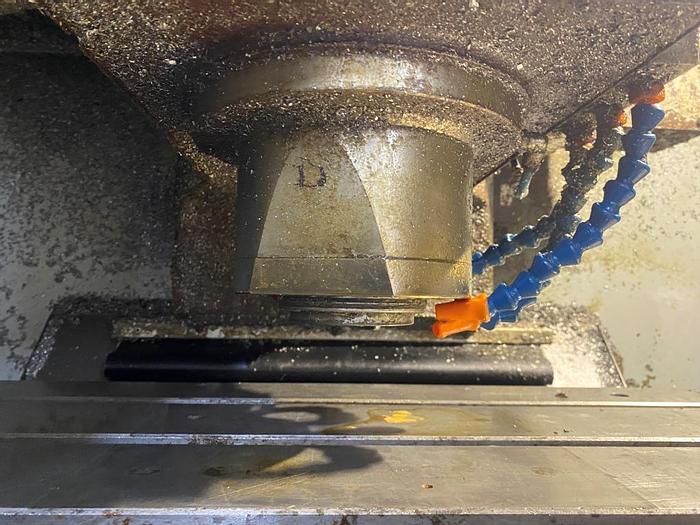

Spindle Speed: 6000rpm
Spindle Taper: BT40

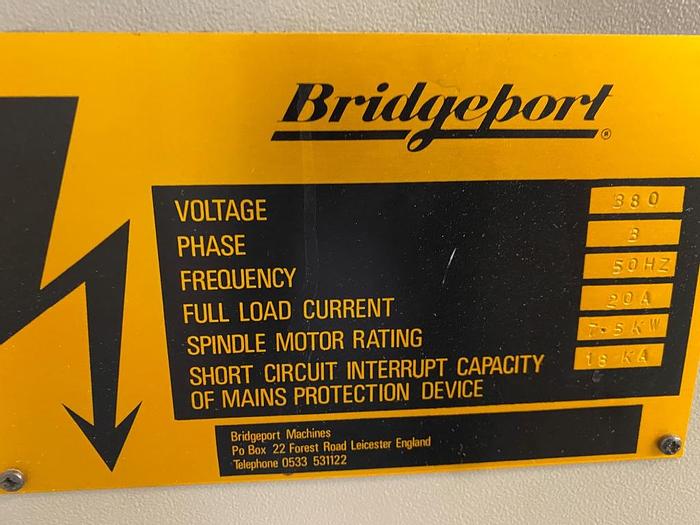

Spindle Motor Rating: 7.5kW
Max Tool Diameter: 75mm
Max Tool Length: 250mm
Max Tool Weight: 6kg
Machine Dimensions: 2100 x 2000 x 2500mm
Machine Weight: 2500kg
Specifications
| Manufacturer | Bridgeport |
| Model | VMC 560/16 Vertical Machining Center |
| Year | 1992 |
| Condition | Used |

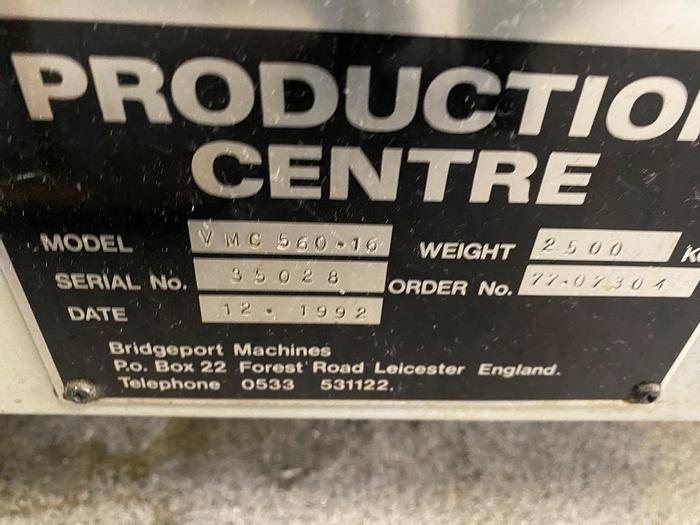

| Serial Number | 35028 |
| Machine Type | 3 Axis Machining Center |
| Year | 12-1992 |
| Control | Heidenhain CNC2500 |
| Table Size | 840 x 420mm |
| X Axis Travel | 560mm |
| Y Axis Travel | 410mm |
| Z Axis Travel | 520mm |
| Max Load on Table | 500kg |
| Rapid Traverse X axis | 32m/min |
| Rapid Traverse Y Axis | 32m/min |
| Rapid Traverse Z axis | 16m/min |
| ATC | 16 Station |
| Spindle Speed | 6000rpm |
| Spindle Taper | BT40 |
| Max Tool Diameter | 75mm |
| Max Tool Length | 250mm |
| Max Tool Weight | 6kg |
| Spindle Motor Rating | 7.5kW |
| Machine Weight | 2500kg |
