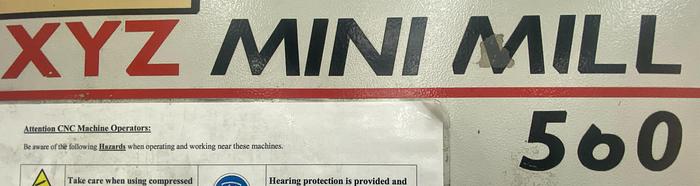

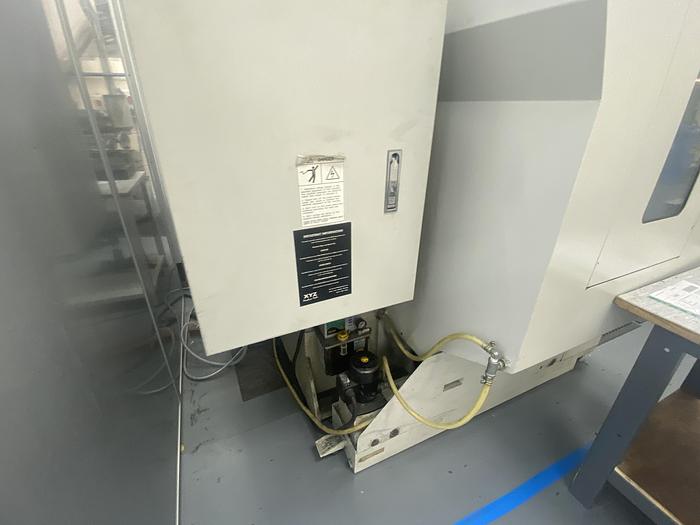

2006 XYZ Mini Mill 560 Vertical Machining Center
Sold
Description

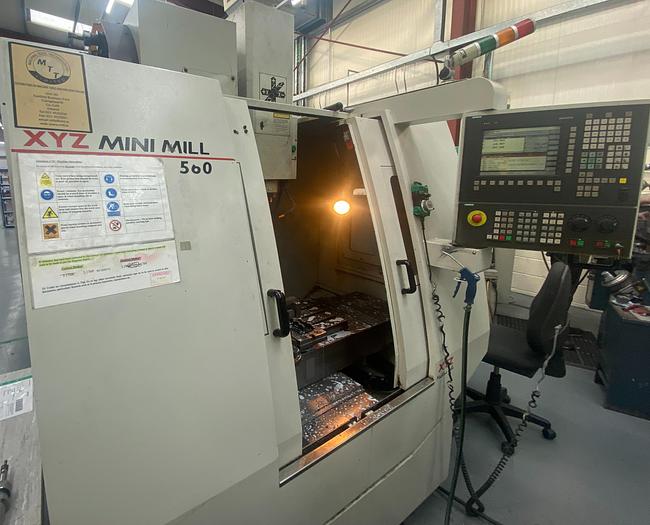

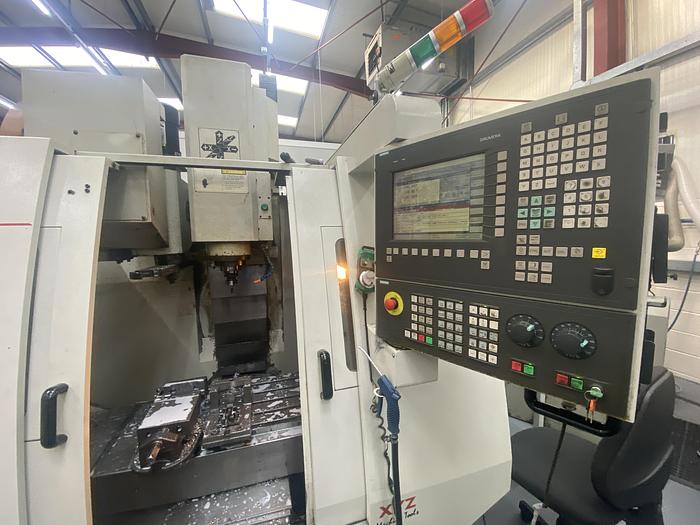

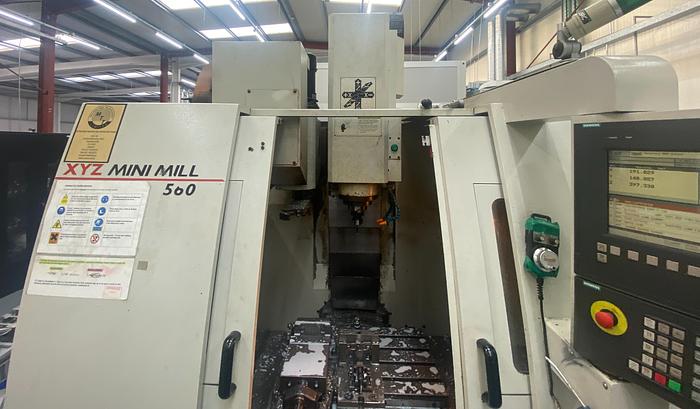

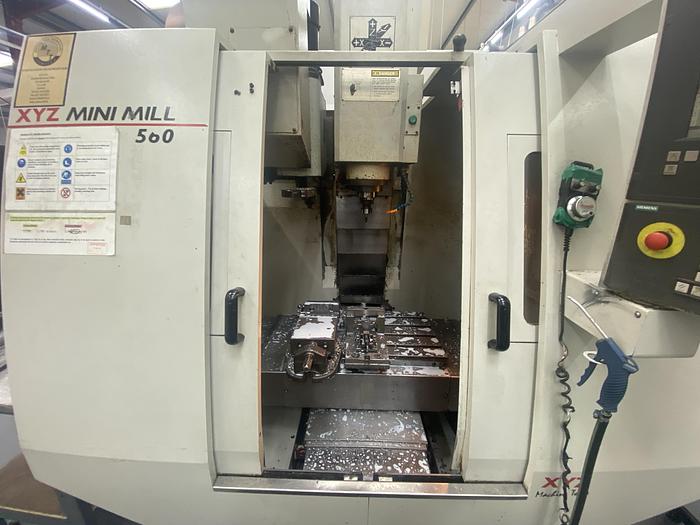

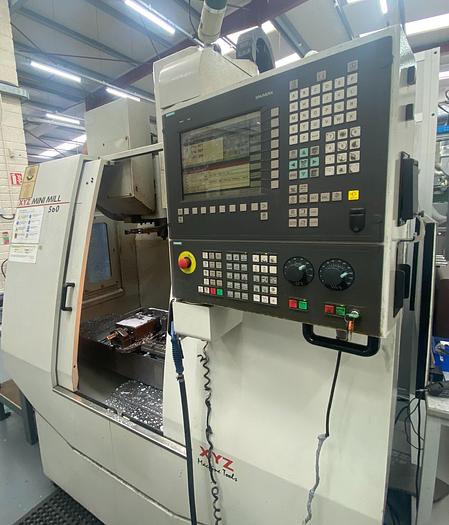

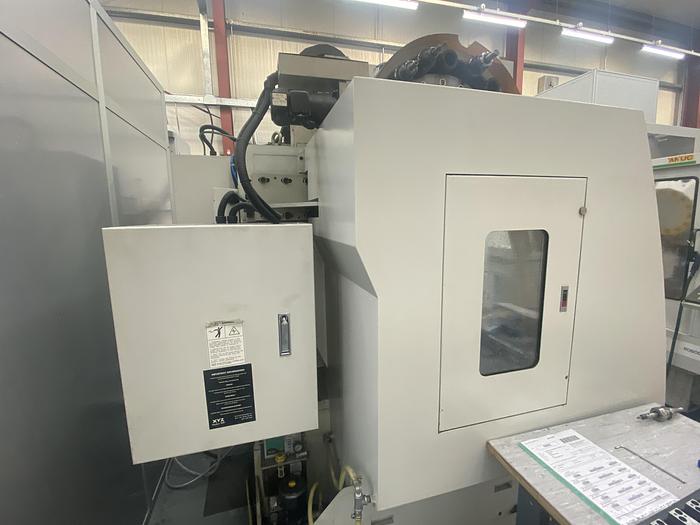

2006 XYZ Mini Mill 560 Vertical Machining Center
Machine Type: 3 Axis Vertical Machining Center
Year: 2006

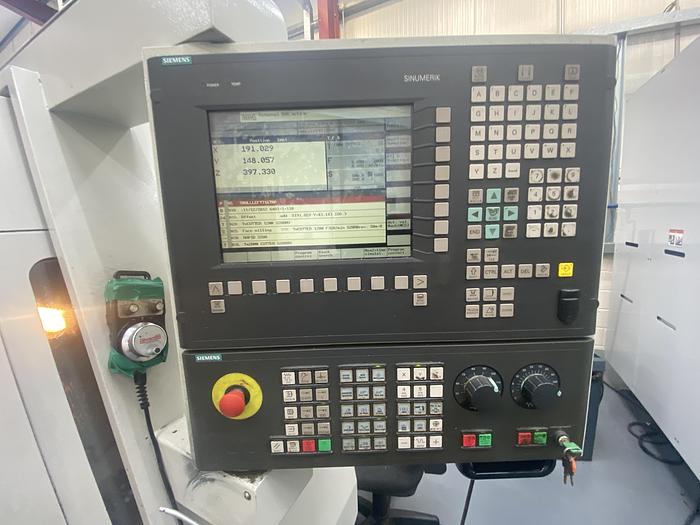

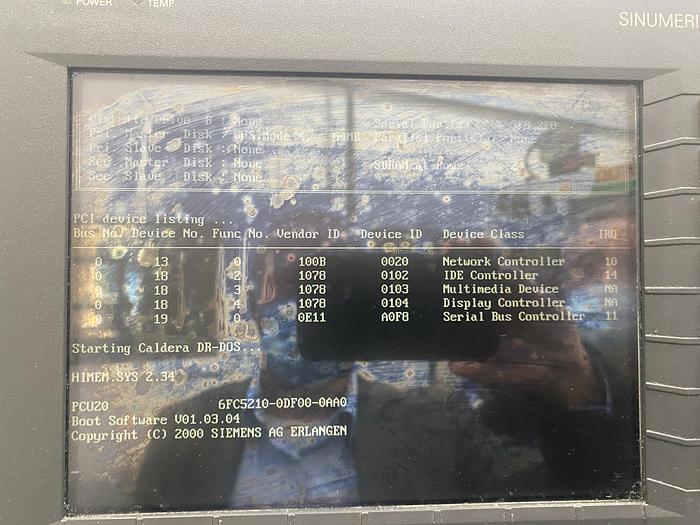

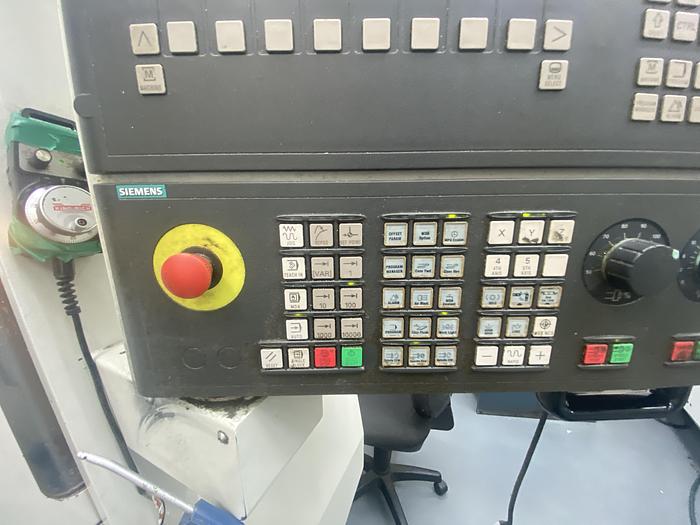

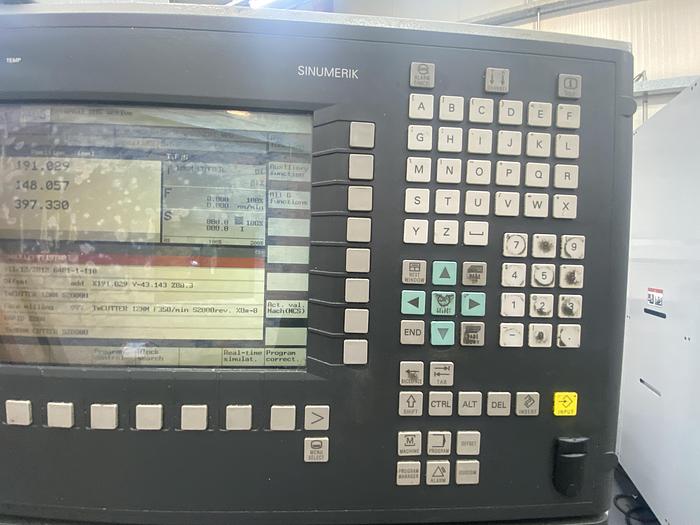

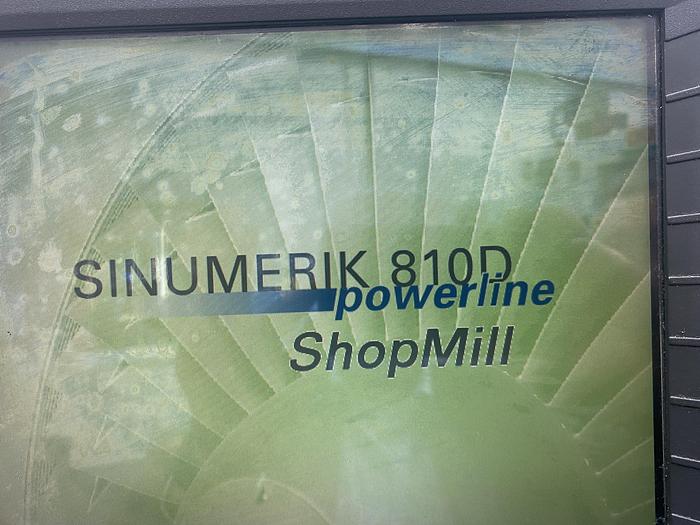

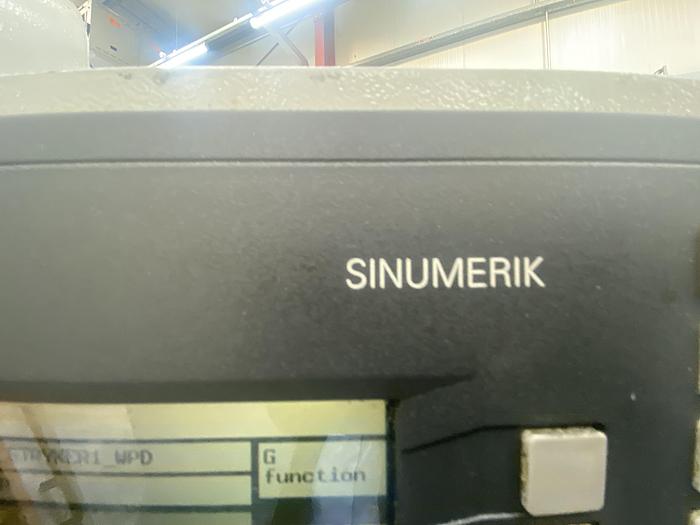

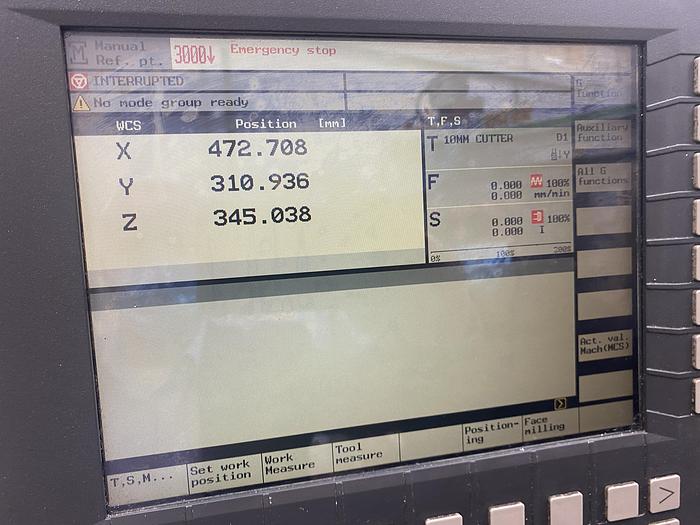

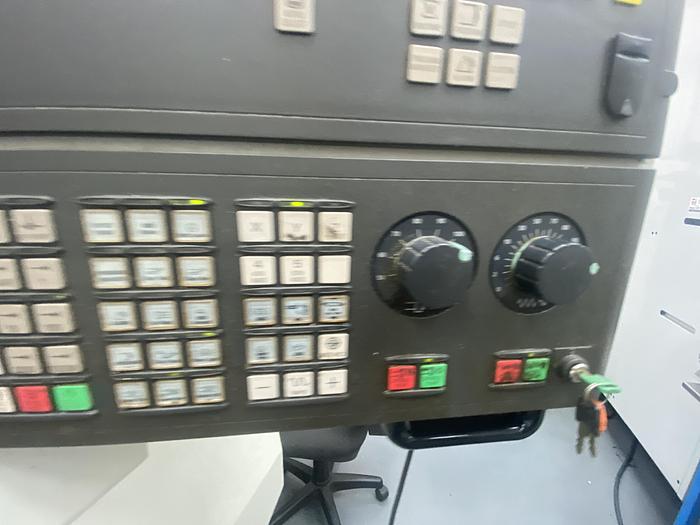

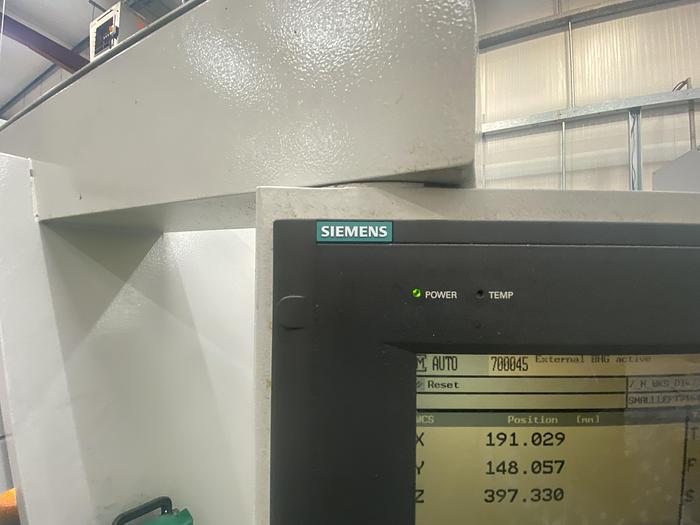

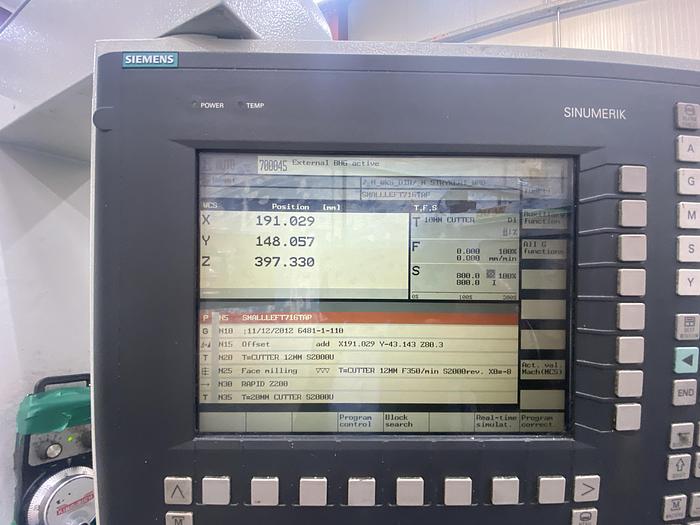

Control: Siemens Sinumerik 810D Powerline

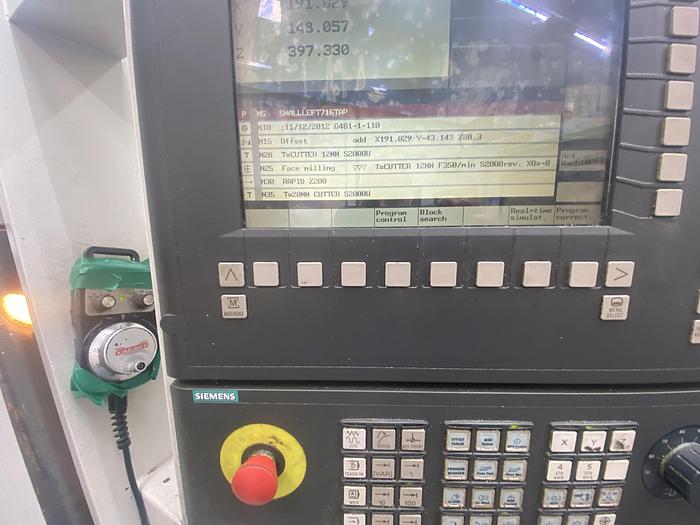

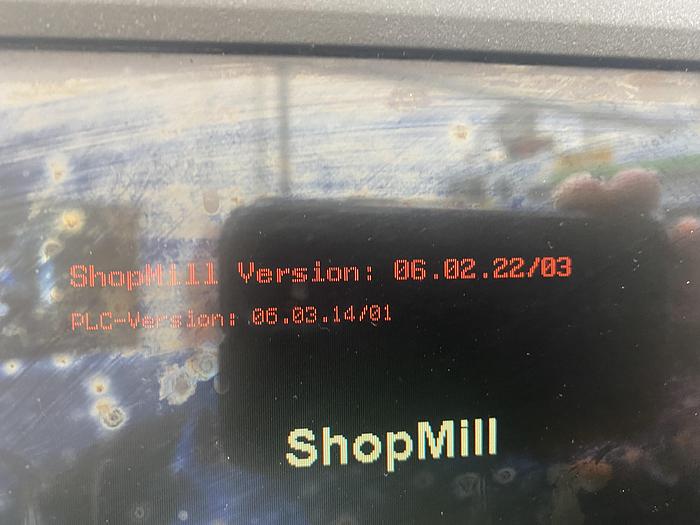

Software Version: Shopmill 06.02.22/03
Condition: Very Good
Availability: March 2022 (order now to secure machine)

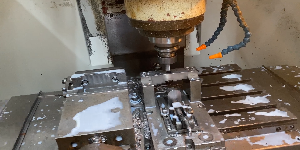

Note: Vice in photos/video not included with the machine
Technical Specification
Axis: 3 Axis

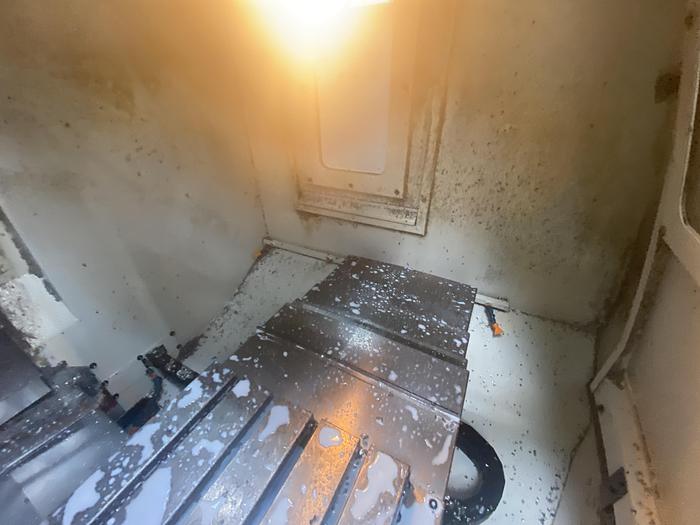

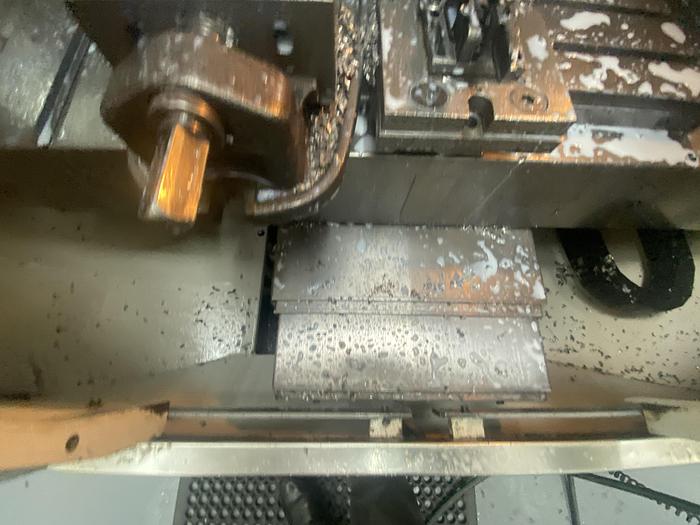

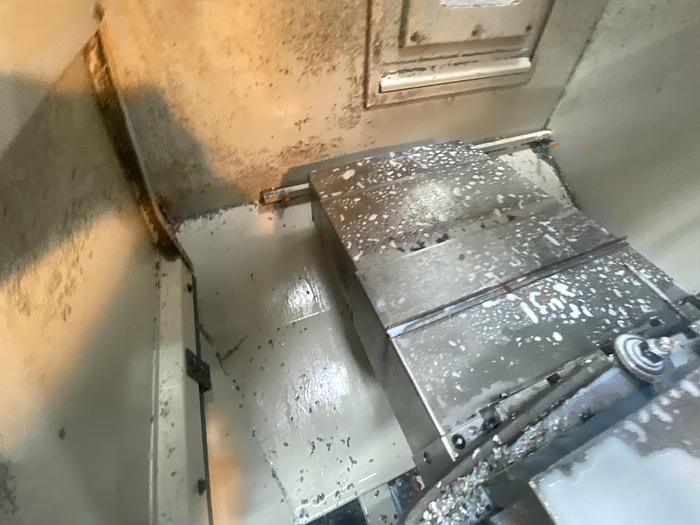

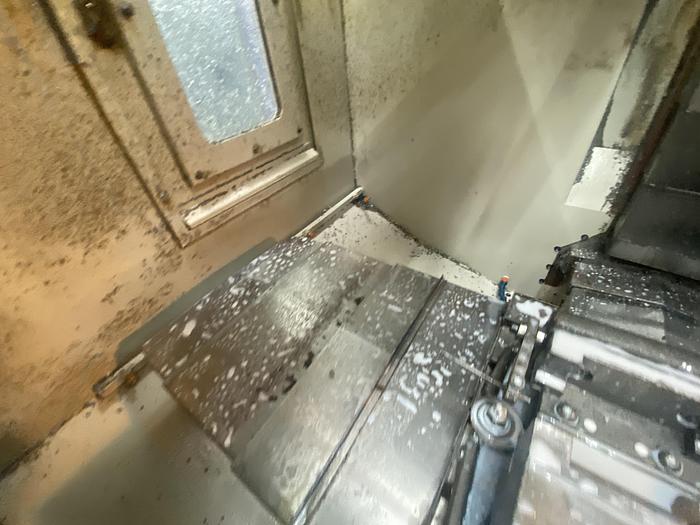

Table Size: 610 x 370mm
Max Load Capacity: 320kg
X Axis Travel: 560mm
Y Axis Travel: 400mm
Z Axis Travel: 500mm
Dist from Spindle Nose to Table: 100 to 600mm

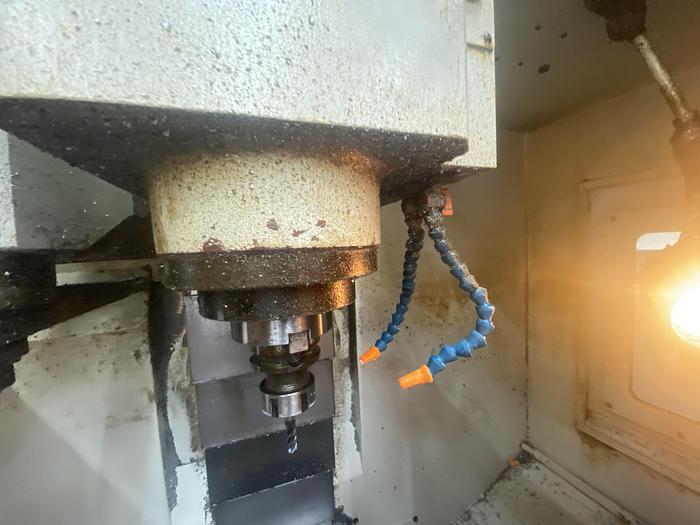

Spindle Taper: BT40
Spindle Speed: 60 - 8000rpm
Rapid Traverse (X,Y,Z): 20000mm/min

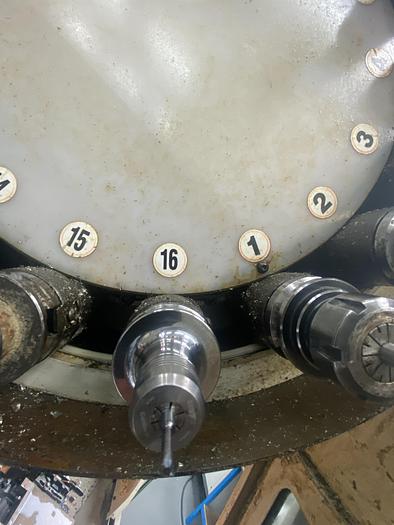

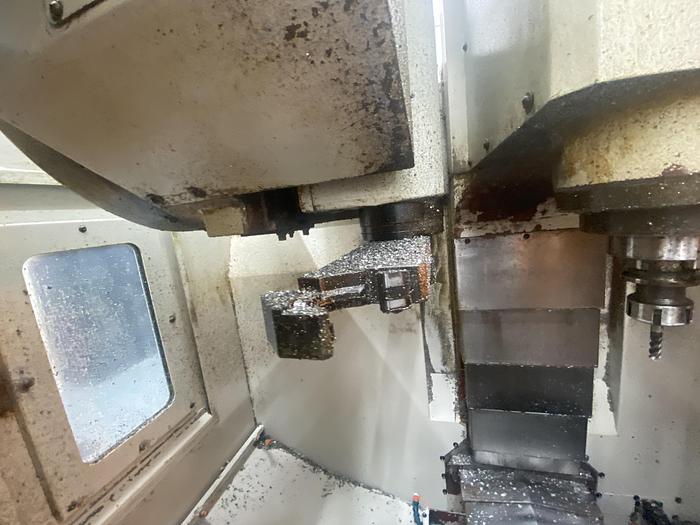

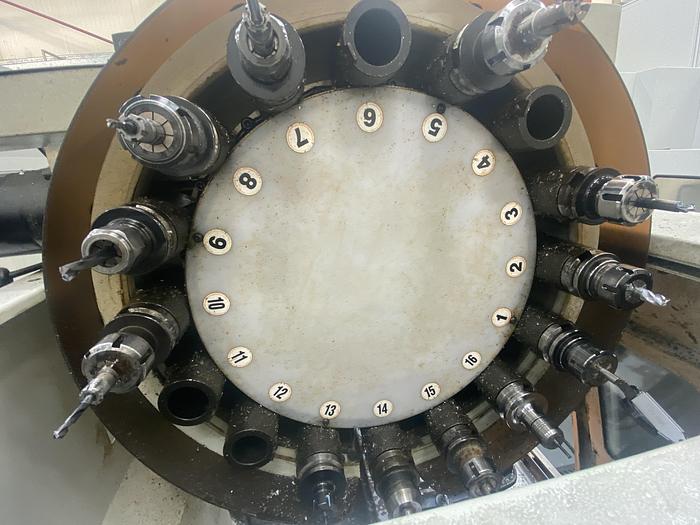

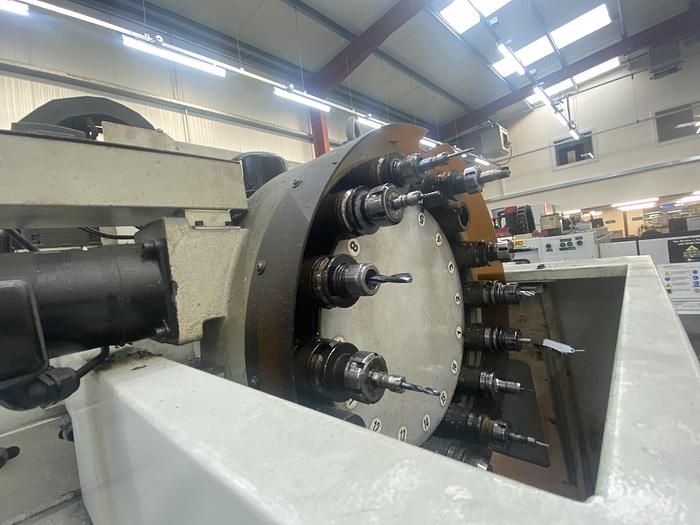

ATC: 16 Station
Max Tool Weight: 8kg
Spindle Motor: 7.5kW
Total Power Requirement: 13.5kW
Machine Dimensions: 1800 x 1900 x 2500mm
Machine Weight: 2750kg
Specifications
| Manufacturer | XYZ |
| Model | Mini Mill 560 Vertical Machining Center |
| Year | 2006 |
| Condition | Used |

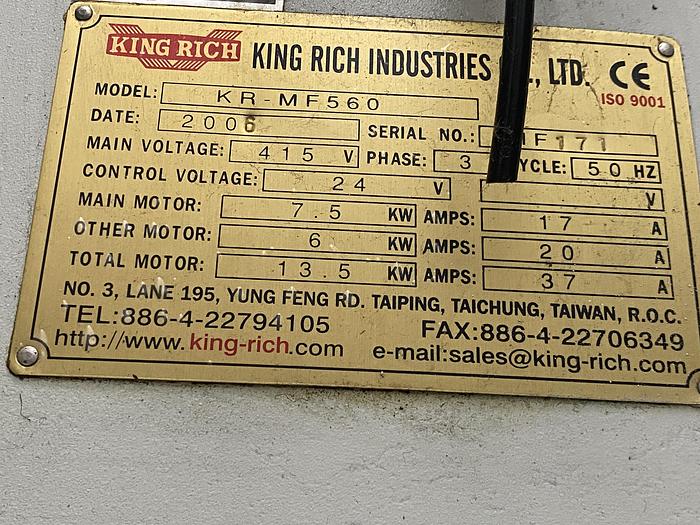

| Serial Number | MF171 |
| Year | 2006 |
| Control | Siemens Sinumerik 810D Powerline |
| Software Version | Shopmill 06.02.22/03 |
| Condition | Very Good |
| Axis | 3 Axis |
| Table Size | 610 x 370mm |
| Max Load Capacity | 320kg |
| X Axis Travel | 560mm |
| Y Axis Travel | 400mm |
| Z Axis Travel | 500mm |
| Spindle Taper | BT40 |
| Spindle Speed | 60 - 8000rpm |
| Rapid Traverse (X,Y,Z) | 20000mm/min |
| ATC | 16 Station |
| Max Tool Weight | 8kg |
| Spindle Motor | 7.5kW |
| Total Power Requirement | 13.5kW |
| Machine Weight | 2750kg |
