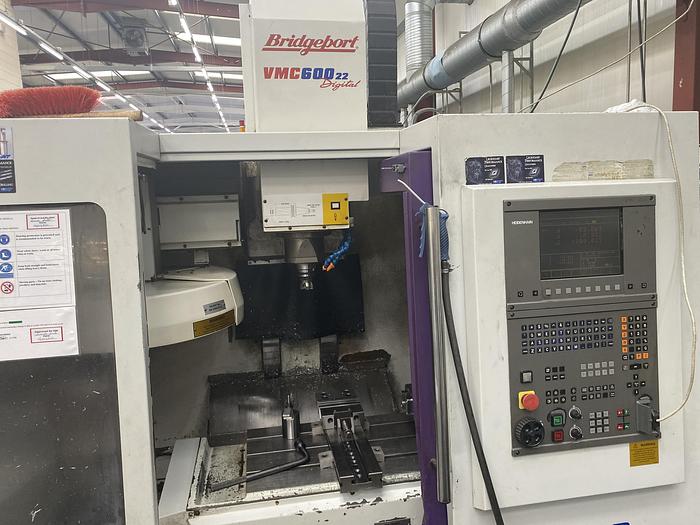

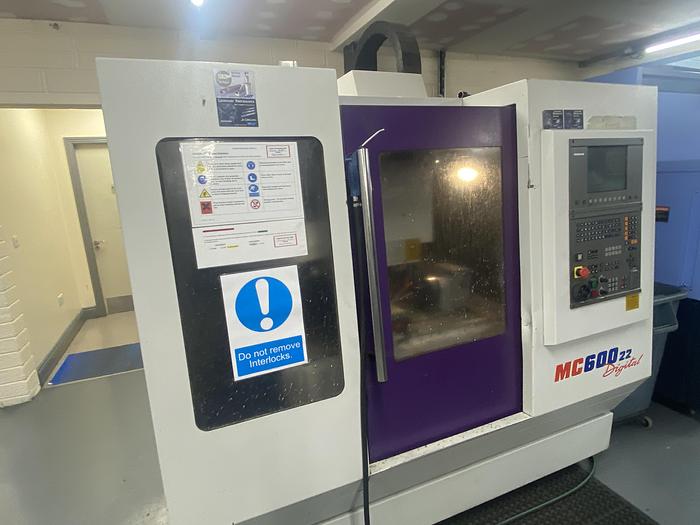

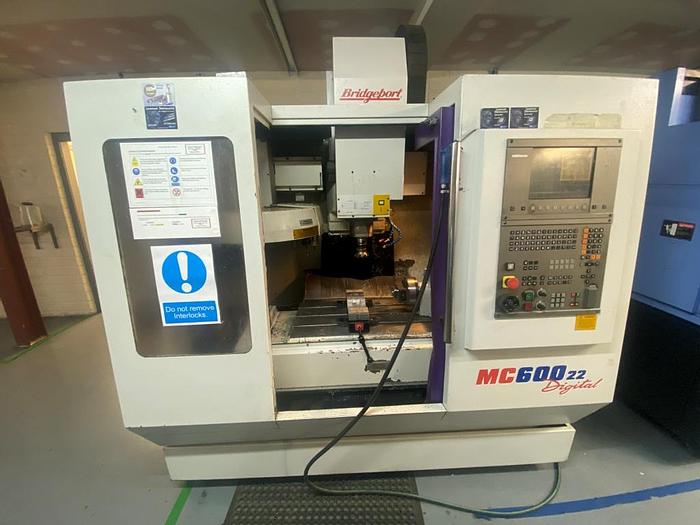

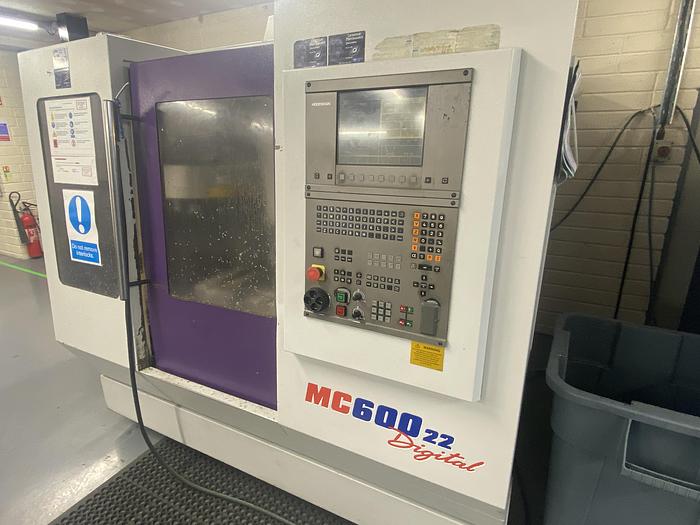

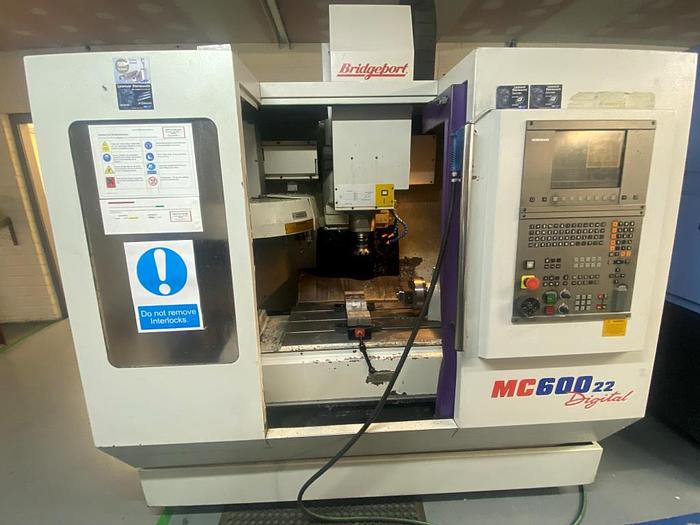

2000 Bridgeport VMC 600/22 Digital Machining Center
Description
2000 Bridgeport VMC 600/22 Digital Machining Center
Machine Type: 3 Axis Machining Center with PTG 4th Axis
Year: 2000

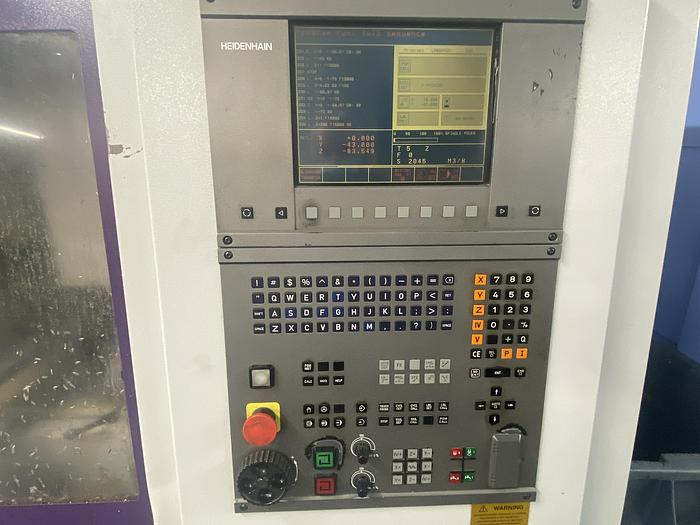

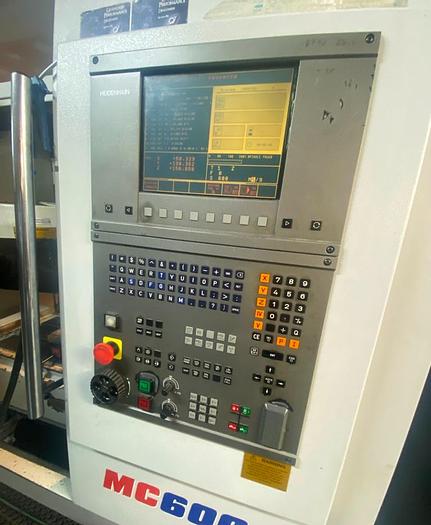

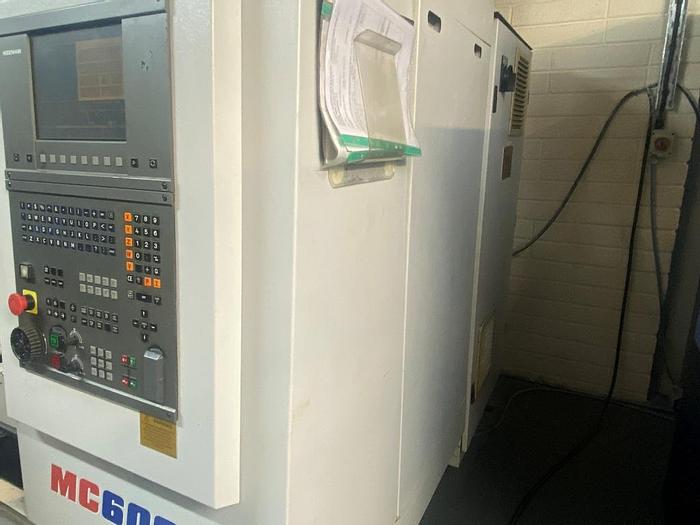

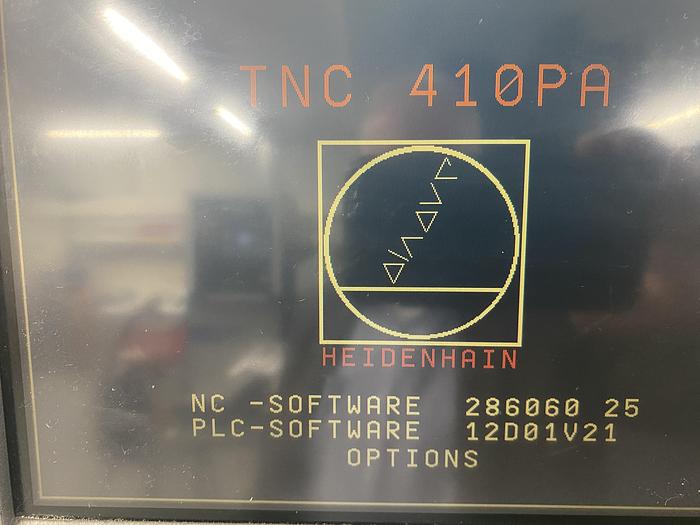

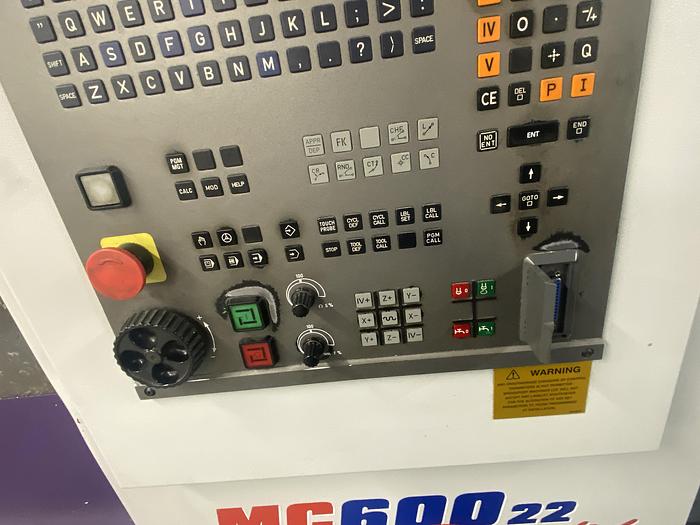

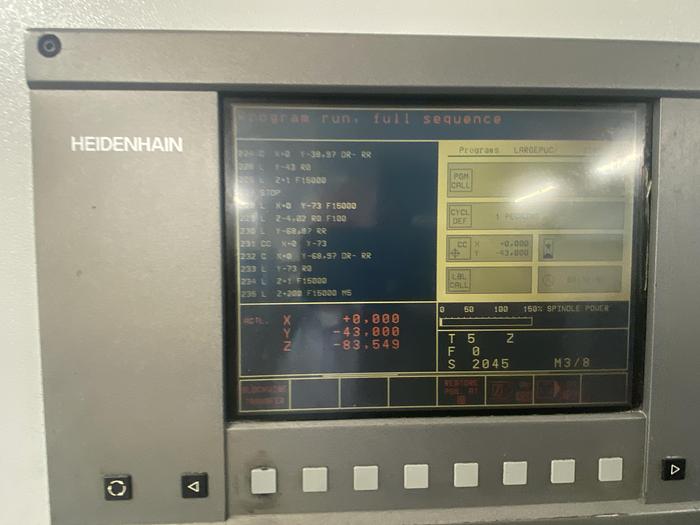

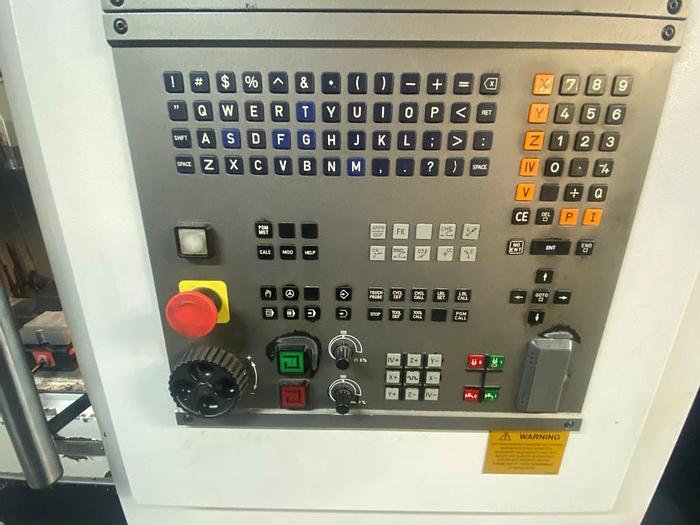

Control: Heidenhain TNC410PA
Availability: Immediately
Notes: Loading not included in the selling price.
Includes:

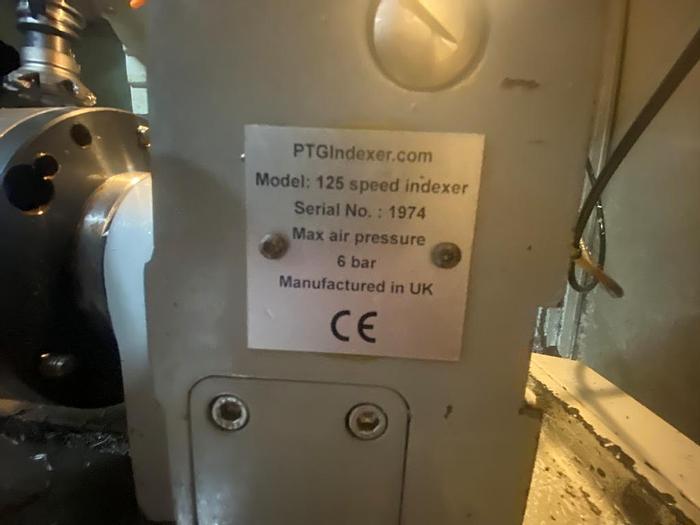

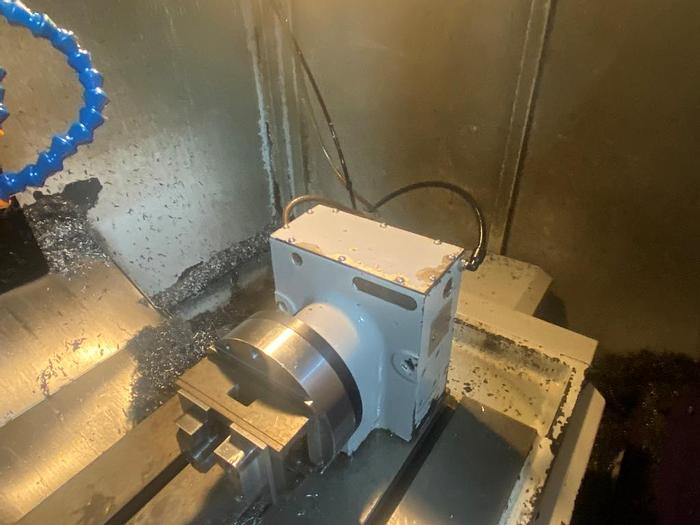

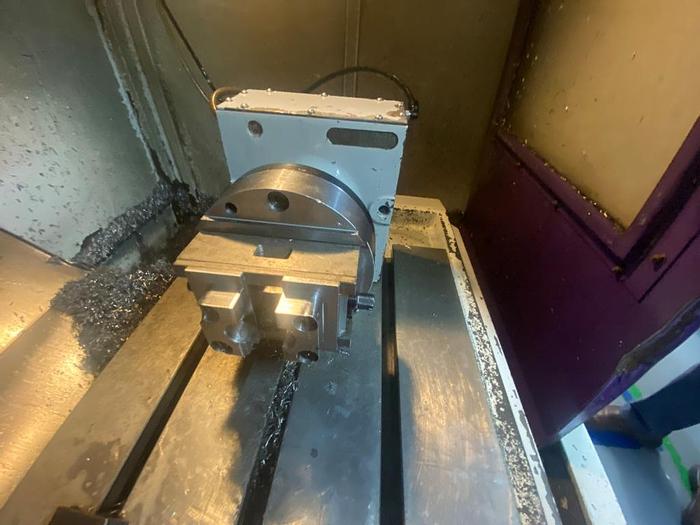

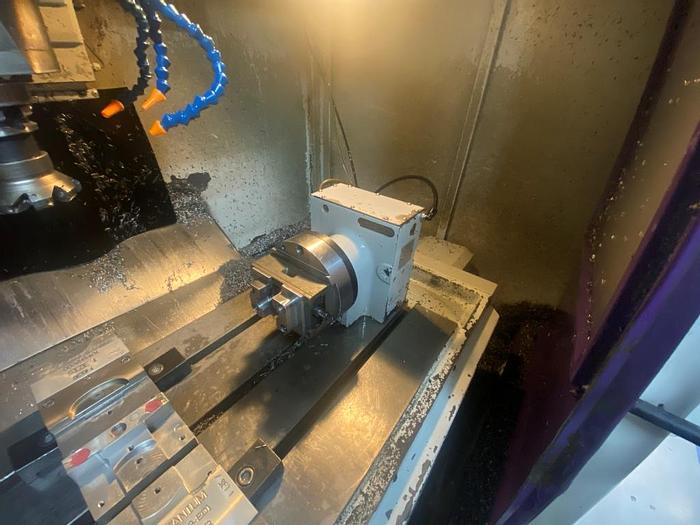

PTG Model 125 Speed Indexer

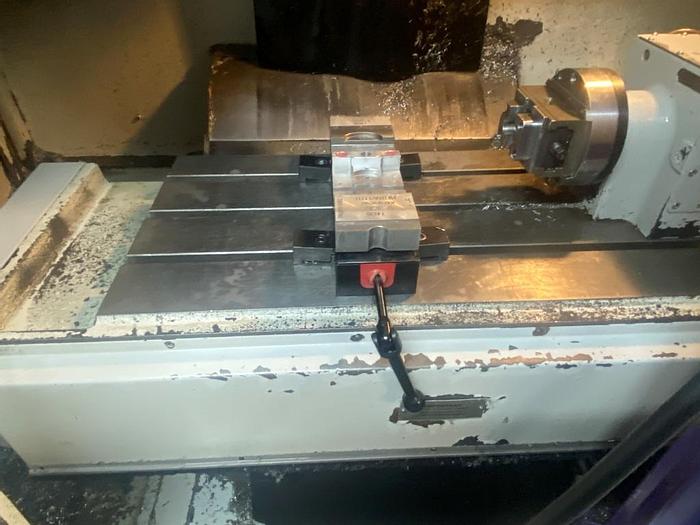

Vice in photos not Included
Technical Specification

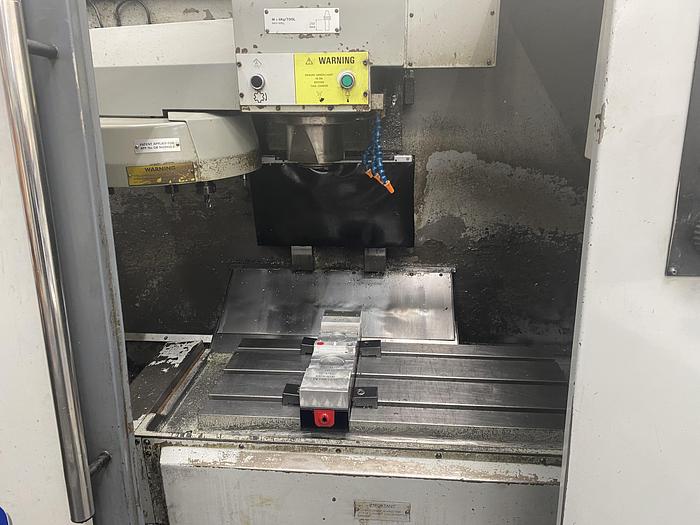

Table Size: 840 x 420mm
X Axis Travel: 600mm
Y Axis Travel: 410mm
Z Axis Travel: 520mm
Max Load on Table: 500kg
Rapid Traverse X axis: 36m/min
Rapid Traverse Y Axis: 36m/min
Rapid Traverse Z axis: 20m/min

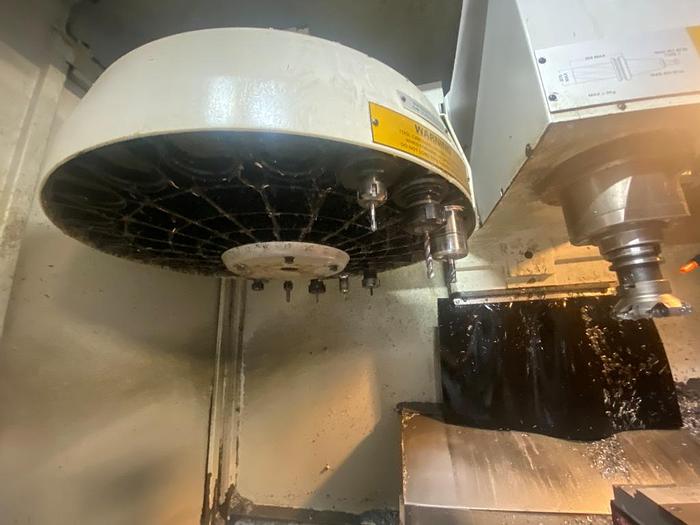

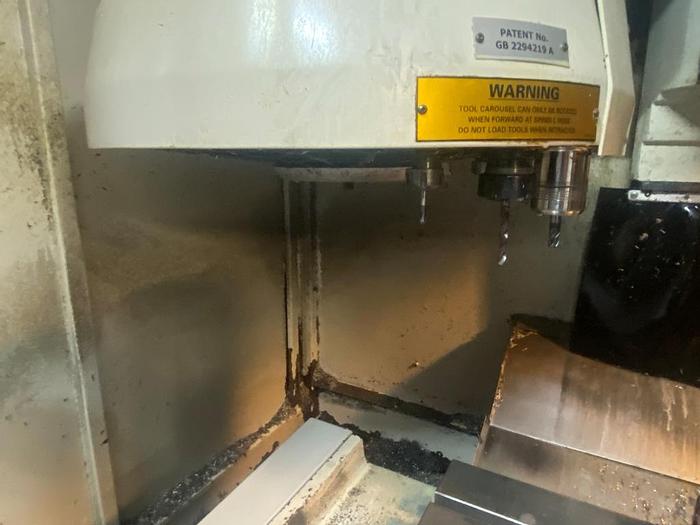

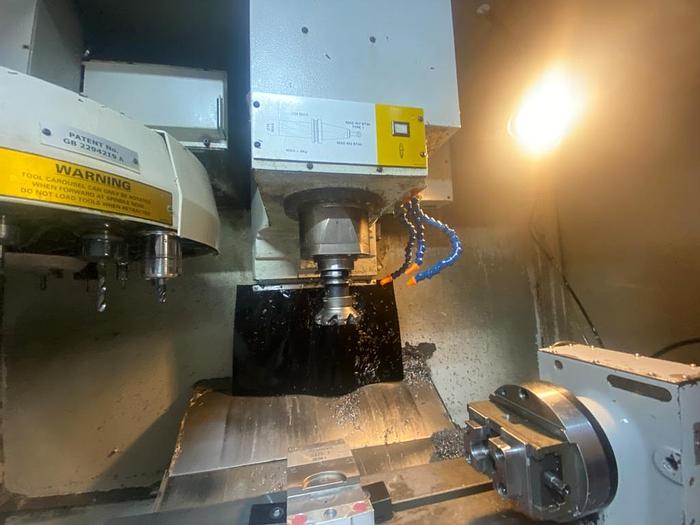

ATC: 22 Station
Spindle Speed: 6000rpm
Spindle Taper: BT40
Spindle Motor Rating: 7.5kW
Max Tool Diameter: 75mm
Max Tool Diameter with Empty Adjacent Pocket: 130mm

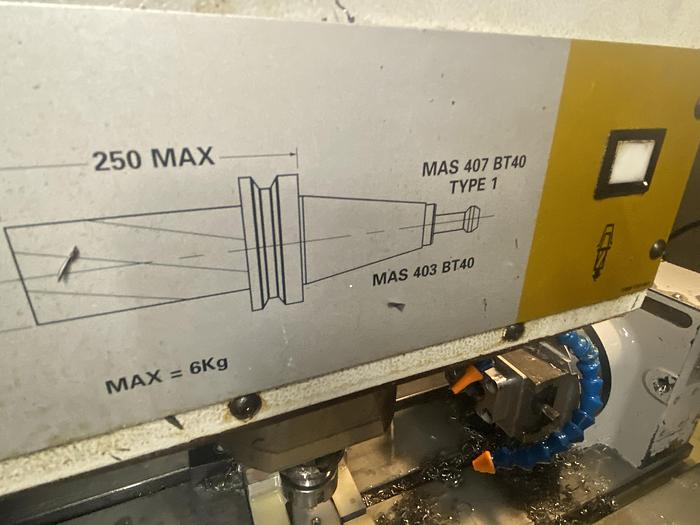

Max Tool Length: 250mm
Max Tool Weight: 6kg
Machine Dimensions: 2000 x 2050 x 2535mm
Machine Weight: 2500kg
Specifications
| Manufacturer | Bridgeport |
| Model | VMC 600/22 Digital Machining Center |
| Year | 2000 |
| Condition | Used |

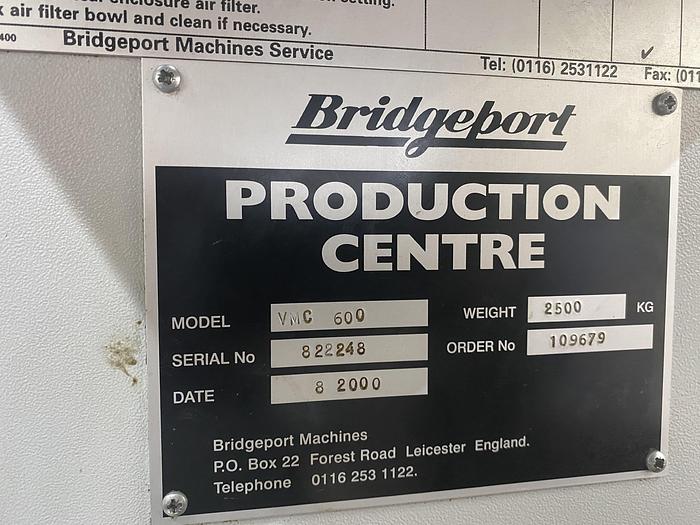

| Serial Number | 822248 |
| Machine Type | 3 Axis Machining Center |
| Year | 2000 |
| Control | Heidenhain TNC410PA |
| Table Size | 840 x 420mm |
| X Axis Travel | 600mm |
| Y Axis Travel | 410mm |
| Z Axis Travel | 520mm |
| Max Load on Table | 500kg |
| Rapid Traverse X axis | 36m/min |
| Rapid Traverse Y Axis | 36m/min |
| Rapid Traverse Z axis | 20m/min |
| ATC | 22 Station |
| Spindle Speed | 6000rpm |
| Spindle Taper | BT40 |
| Max Tool Diameter | 75mm |
| Max Tool Length | 250mm |
| Max Tool Weight | 6kg |
| Spindle Motor Rating | 7.5kW |
| Machine Weight | 2500kg |
