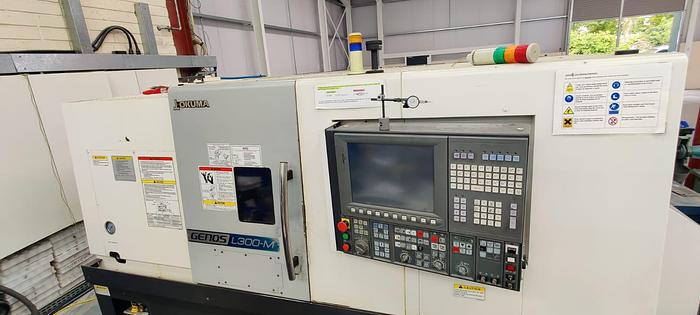

2013 Okuma Genos L300 MW CNC Turning Center

1

Cork, Ireland

Sold

Description

2013 Okuma L300MW CNC Turning Center


Machine Type: CNC Turning Center with Sub Spindle & Driven Tool Turret

Year: 2013

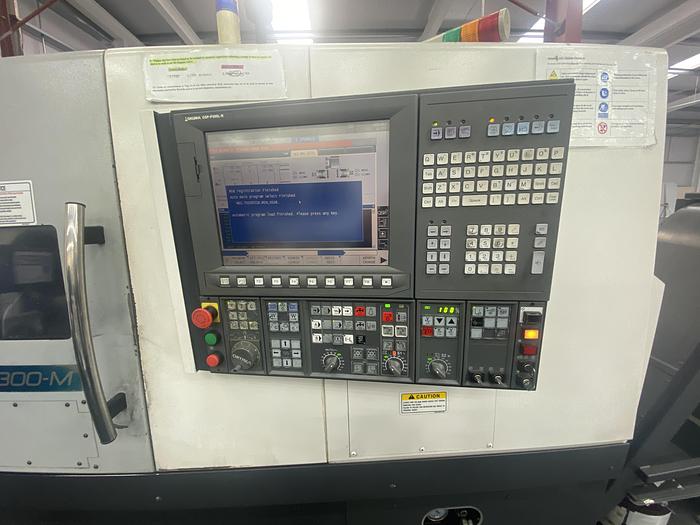

Control: Okuma OSP-P300L-R

Operating Hours: 6705hrs (as per 14/10/21)

Condition: Very Good

Available: Immediately


Includes

Tool Holders

250mm Hydraulic Chuck on Main Spindle

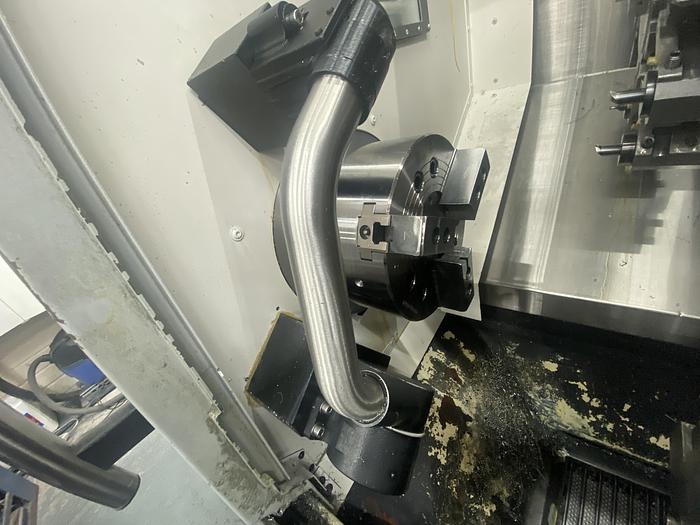

150mm Hydraulic Chuck on Sub Spindle

Tool Setter

Jaws

Collets

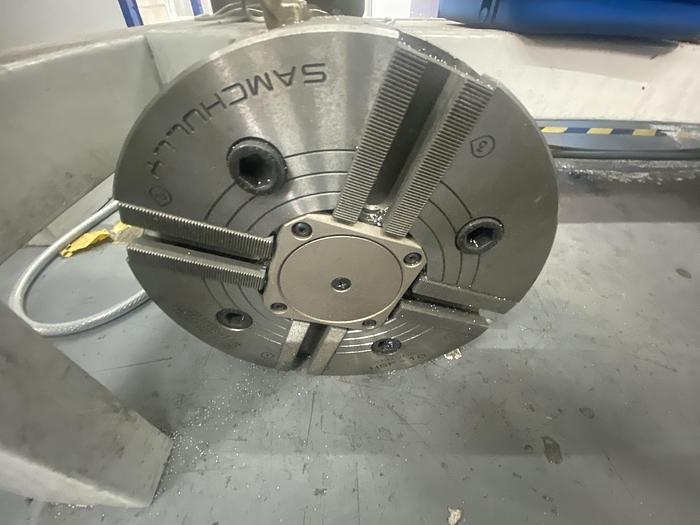

Samchully 4 Jaw Self Centering Chuck

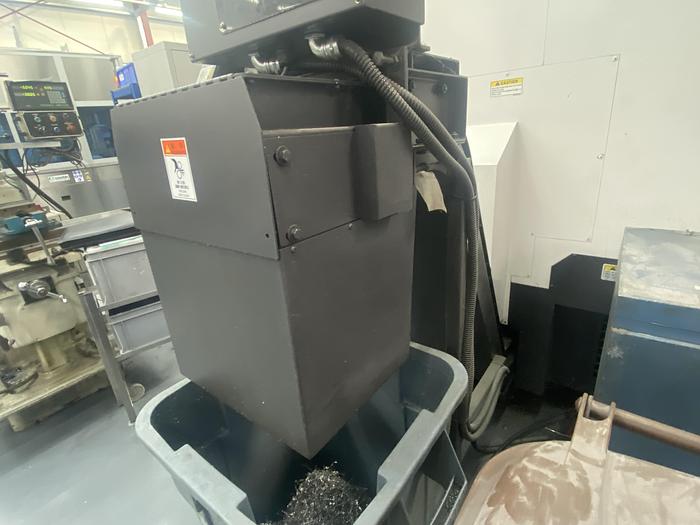

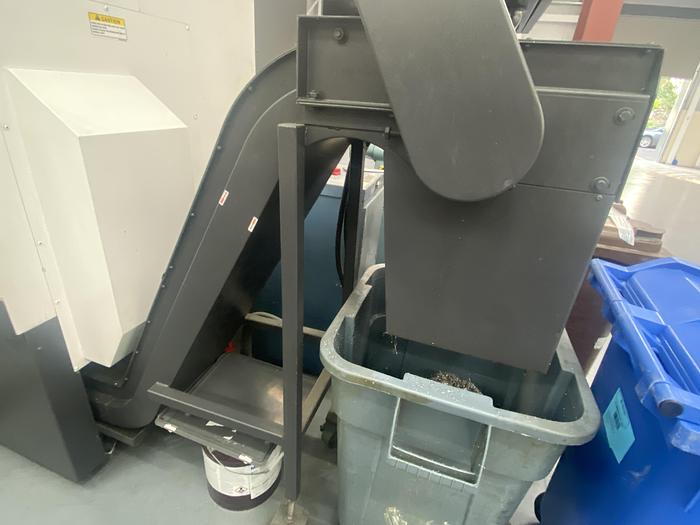

Swarf Conveyor

Transformer


Technical Specification

Swing Over Bed: 520mm

Max Turning Diameter: 300mm

Max Work Length: 150mm

X Axis Travel: 237mm

Z Axis Travel: 460mm

W Axis Travel: 520mm

C Axis Travel: 360° ( 0.001° increments)

Spindle Speed: 25 to 3000rpm

Spindle Nose: JIS A2-8

Spindle Bore Diameter: 80mm

Sub Spindle Speed: 100 to 6000rpm

Spindle Nose: Ø140mm Flat

Spindle Bore Diameter: 53mm

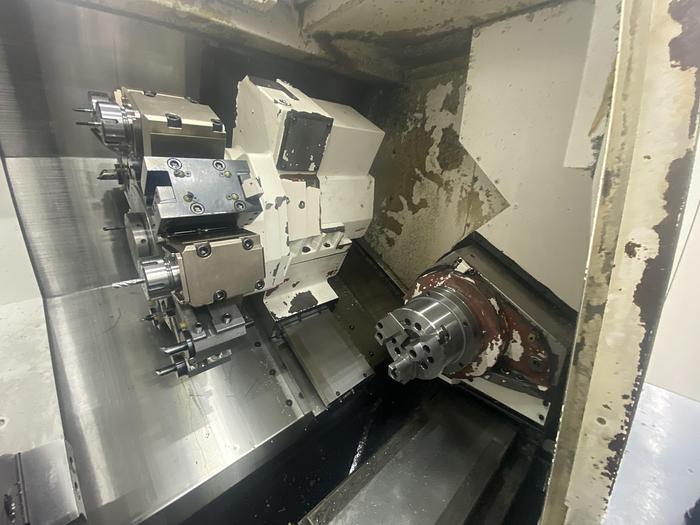

Turret Type: V12 BMT (Radial)

No. of Stations: 12

OD tool shank: 25×25mm

ID tool shank dia: Ø40mm

Milling Tool Speed: 6000rpm

X Axis Rapid Traverse: 20m/min

Z Axis Rapid Traverse: 25m/min

W Axis Rapid Traverse: 25m/min

C Axis Rapid Traverse: 200rpm

Feedrate (X & Z): 0.001 to 1000mm/rev

Main Spindle Motor Power: VAC 15/11kW

Sub Spindle Motor Power: VAC 7.5/5.5 Built-in

Milling Tool Spindle Power: PREX 5.5/3.7 (2min/cont)

Machine Dimensions: 3030 x 2240 x 2210mm

Machine Weight: 5,300kg

Specifications

ManufacturerOkuma
ModelGenos L300 MW CNC Turning Center
Year2013
ConditionUsed

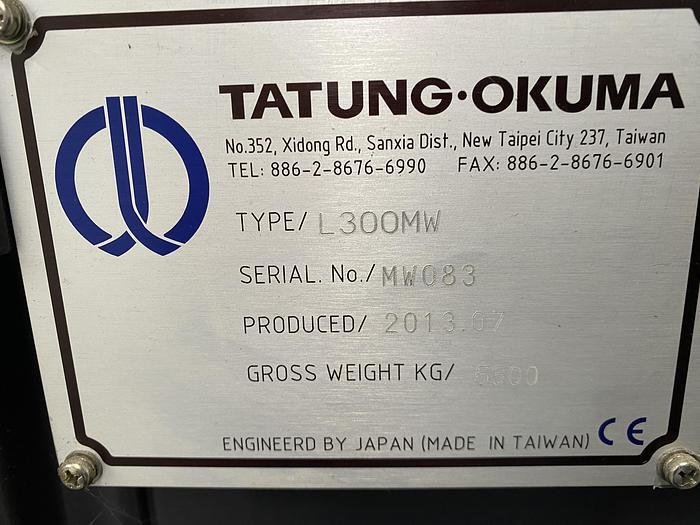

Serial NumberMW083
Year2013
ControlOkuma OSP-P300L-R
Operating Hours6705hrs (as per 14/10/21)
ConditionVery Good
Max Turning Diameter300mm
Max Work Length150mm
X Axis Travel235mm
Z Axis Travel460mm
W Axis Travel520mm
C Axis Travel360° ( 0.001° increments)
Spindle Speed3000rpm
Spindle NoseJIS A2-8
Sub Spindle Speed6000rpm
Spindle NoseØ140mm
Turret TypeV12 BMT (Radial)
No. of Stations12
OD tool shank25×25mm
ID tool shank diaØ40mm
Milling Tool Speed6000rpm
X Axis Rapid Traverse20m/min
Z Axis Rapid Traverse25m/min
W Axis Rapid Traverse25m/min
C Axis Rapid Traverse200rpm
Feedrate (X & Z)0.001 to 1000mm/rev
Main Spindle Motor PowerVAC 15/11kW
Sub Spindle Motor PowerVAC 7.5/5.5 Built-in
Milling Tool Spindle PowerPREX 5.5/3.7 (2min/cont)
Machine Weight6,200kg
