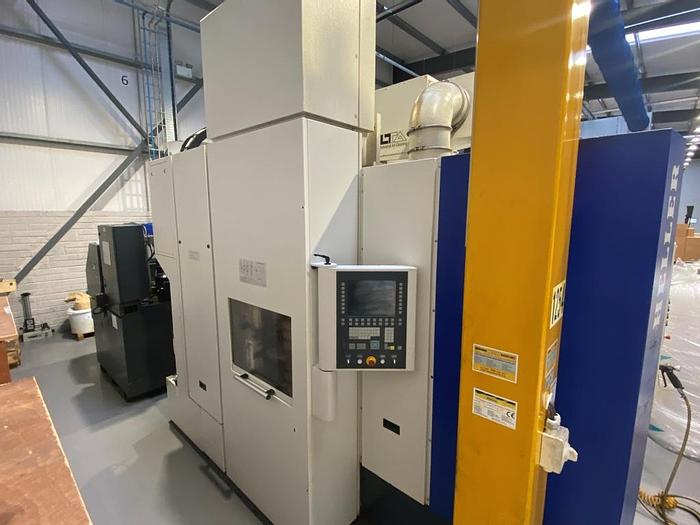

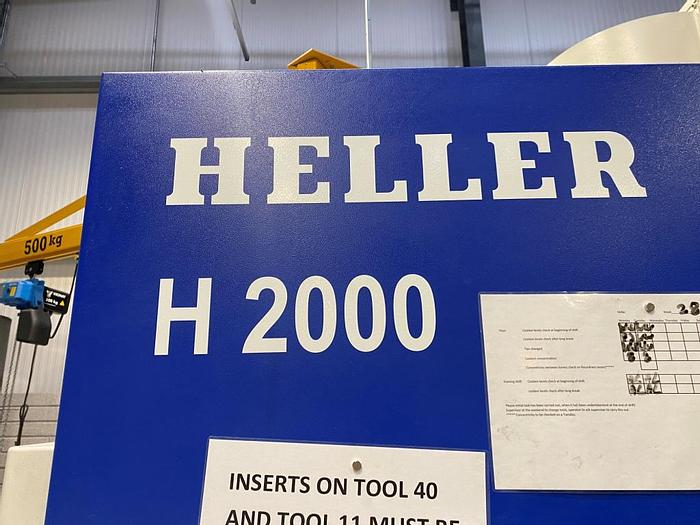

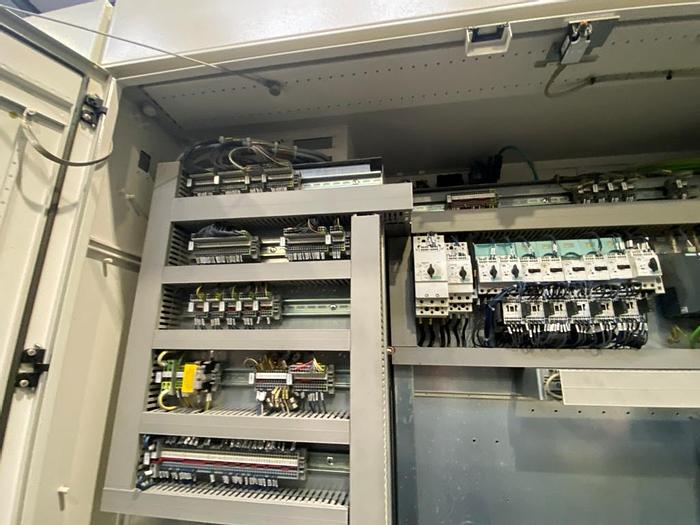

2008 Heller H2000 Horizontal Machining Center

2008 Heller H2000 Horizontal Machining Center

Machine Type: Horizontal Machining Center

Year: 2008

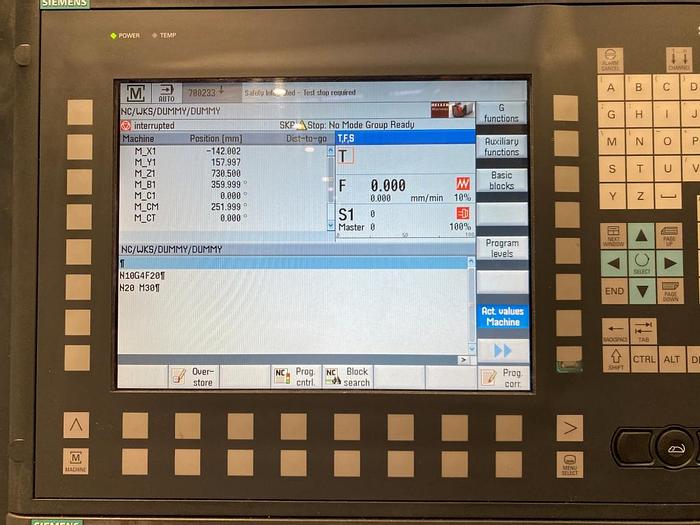

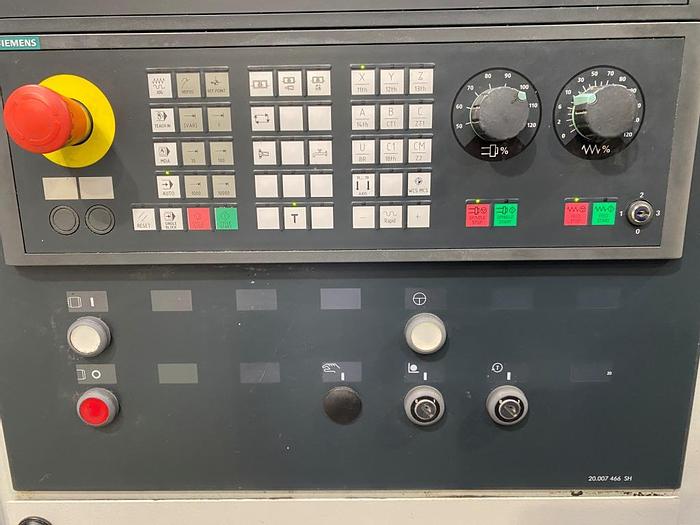

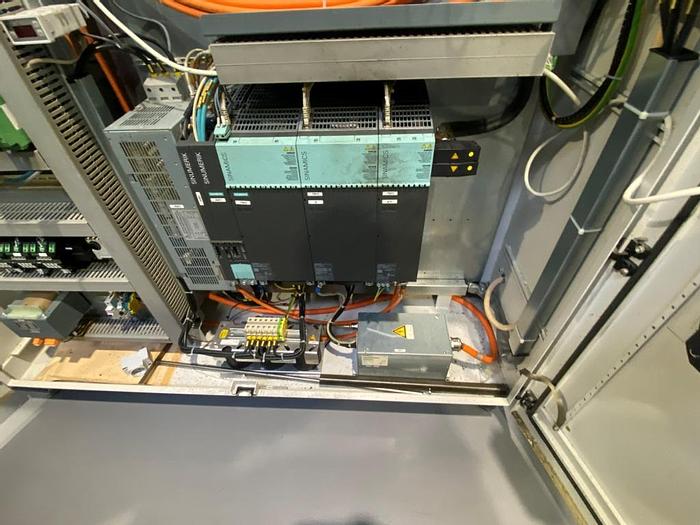

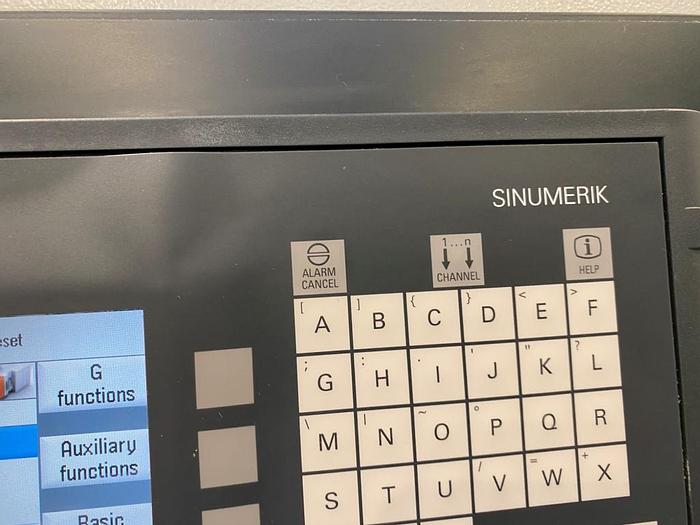

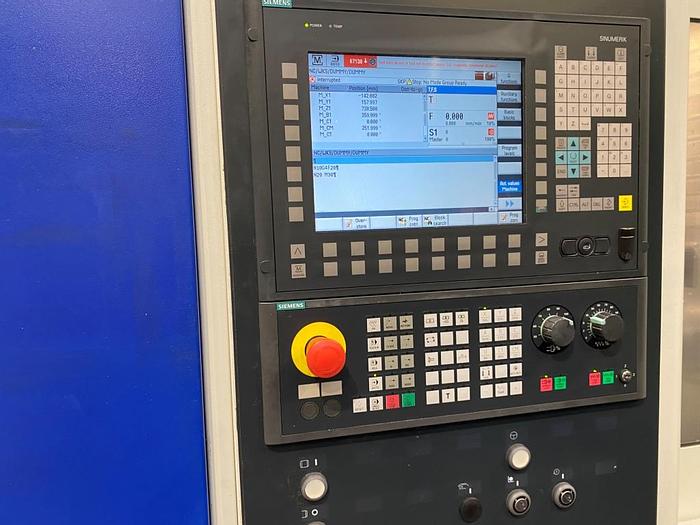

Control: Siemens 840D Solution Line

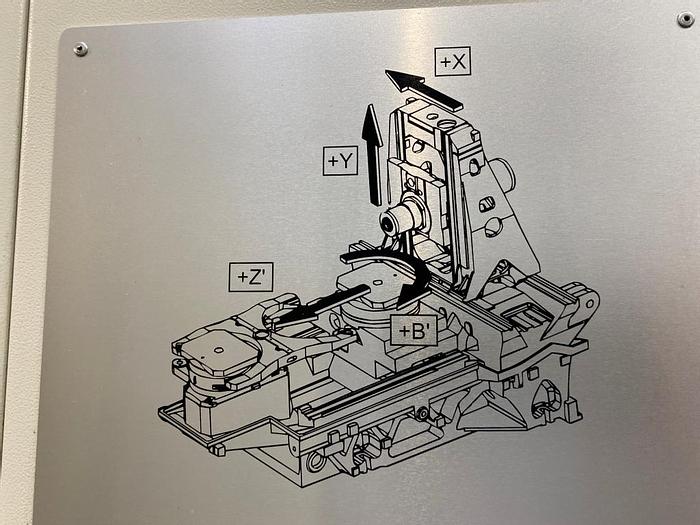

Controlled Axis: 4 (X,Y,Z,B)

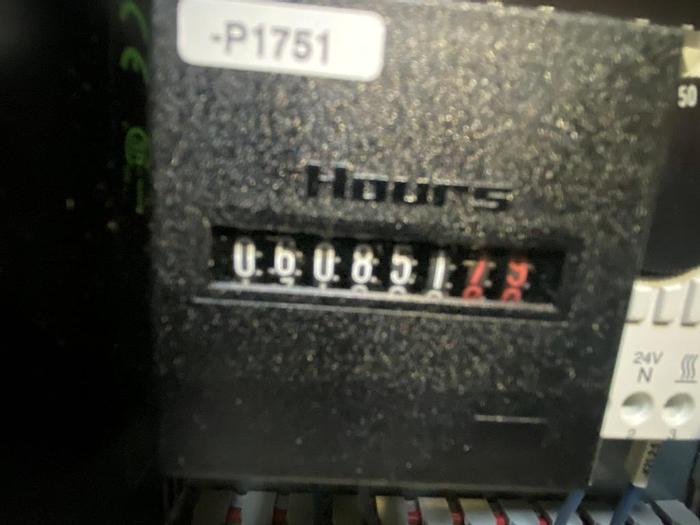

Machine On Hours: 60,851hrs

Condition: Very Good

Availability: Immediately

Includes

Tool Holders

4 Pallets (2 on machine & 2 spare pallets)

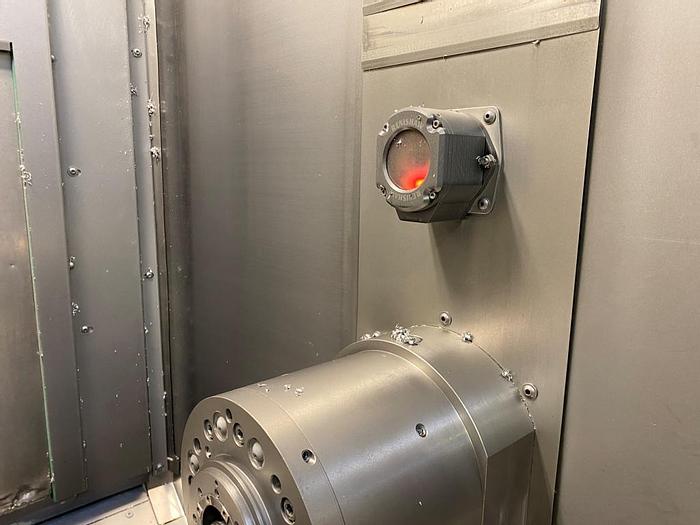

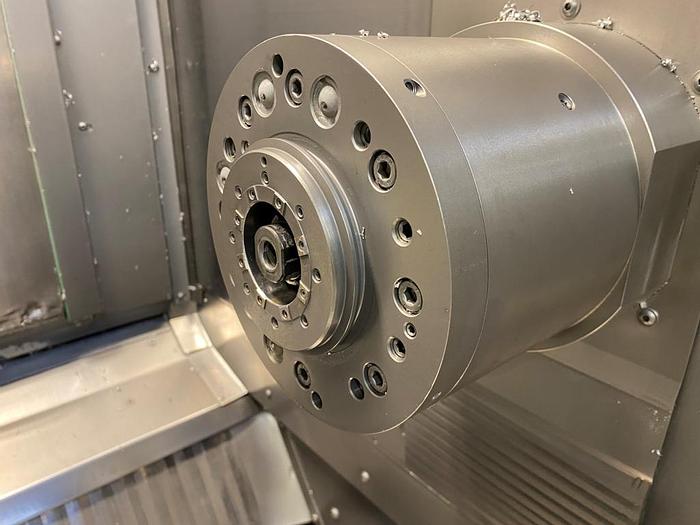

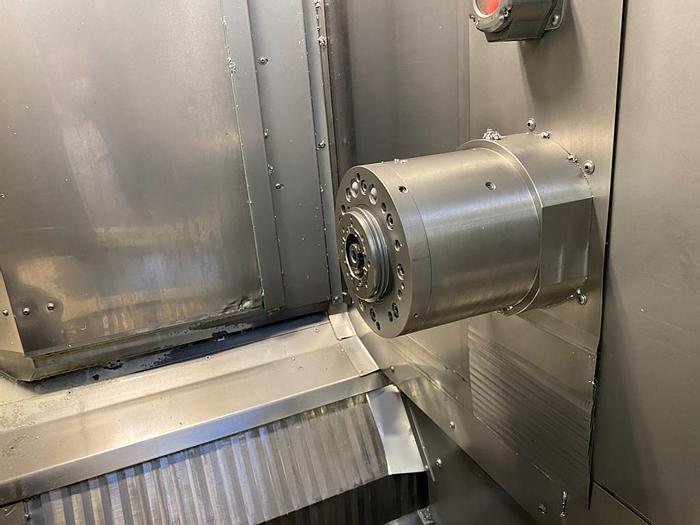

16,000rpm Spindle

Workpiece Setting Station

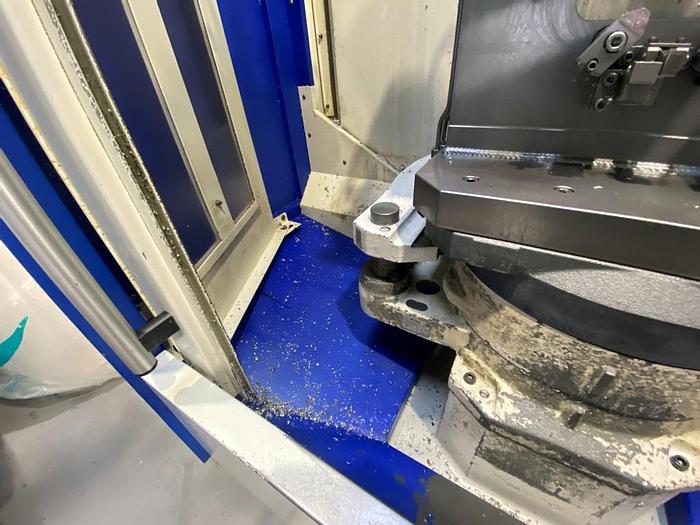

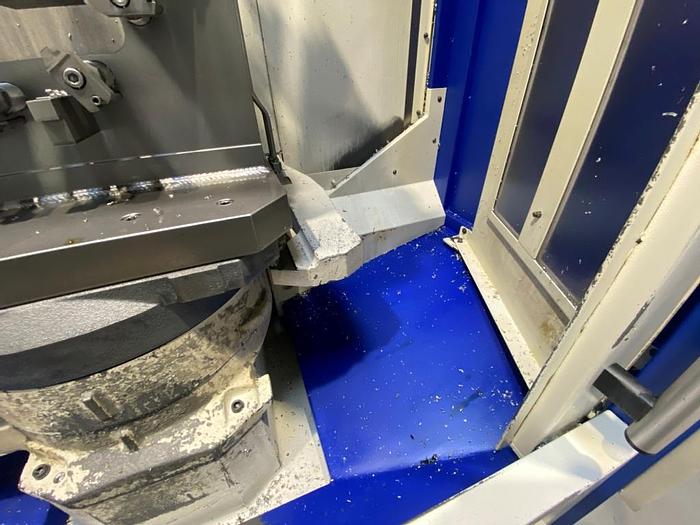

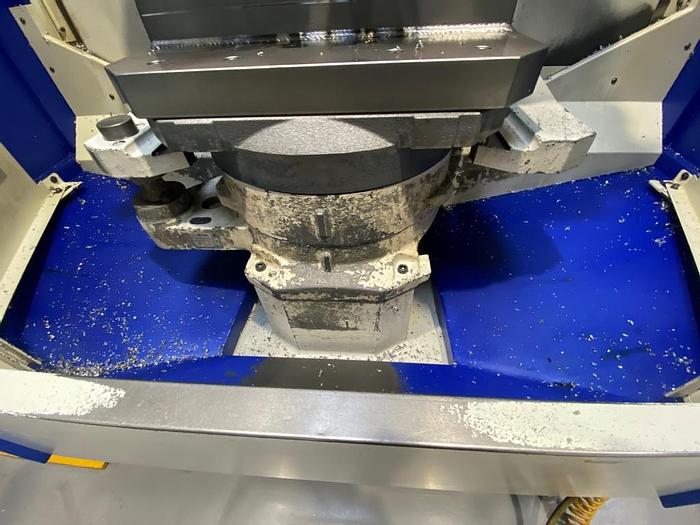

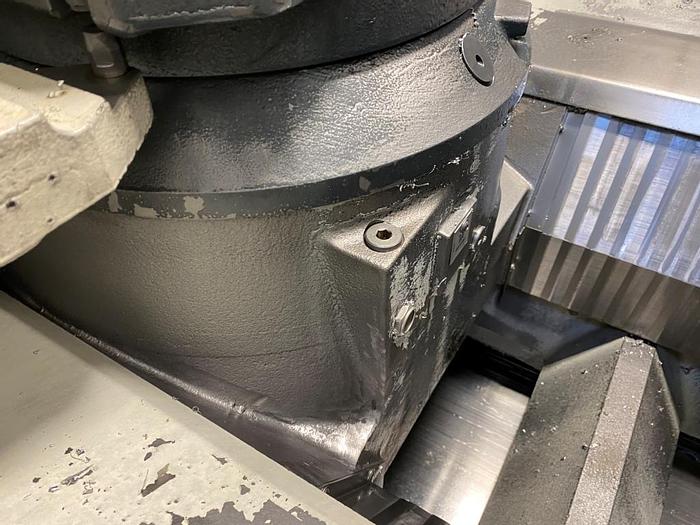

NC Rotary Feed Table

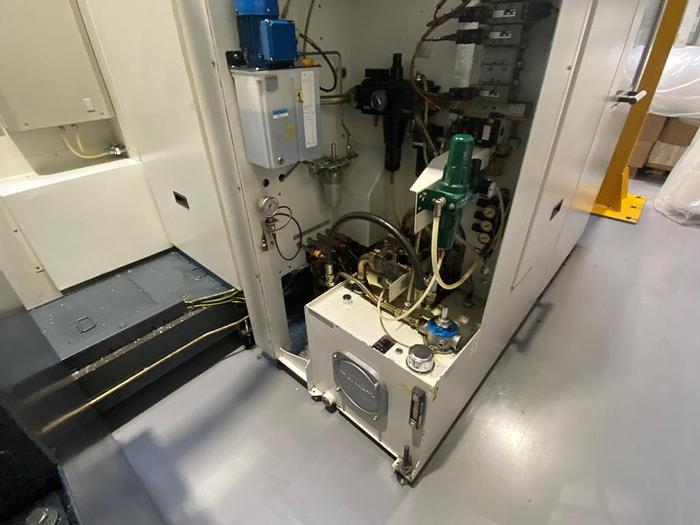

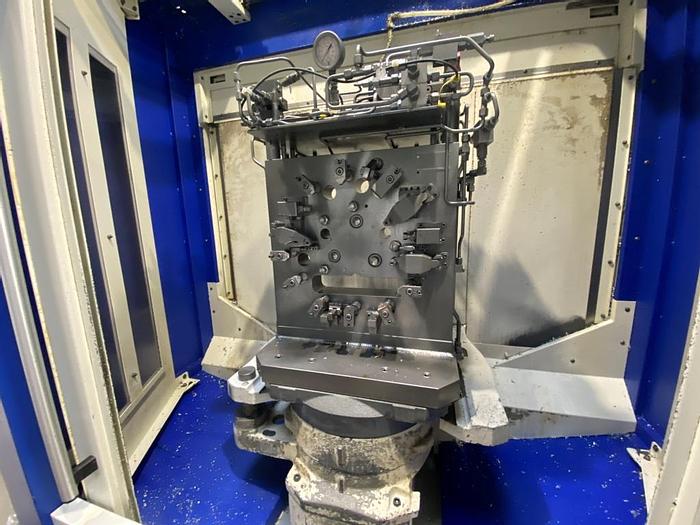

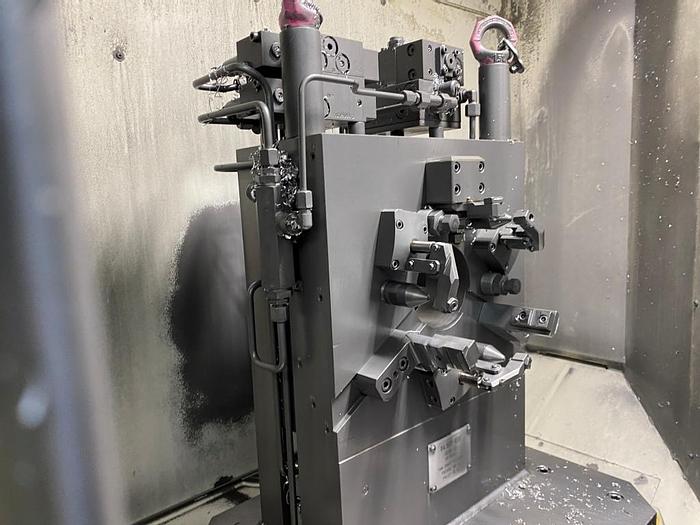

5 Point Hydraulic Workpiece Clamping

80 Tool ATC

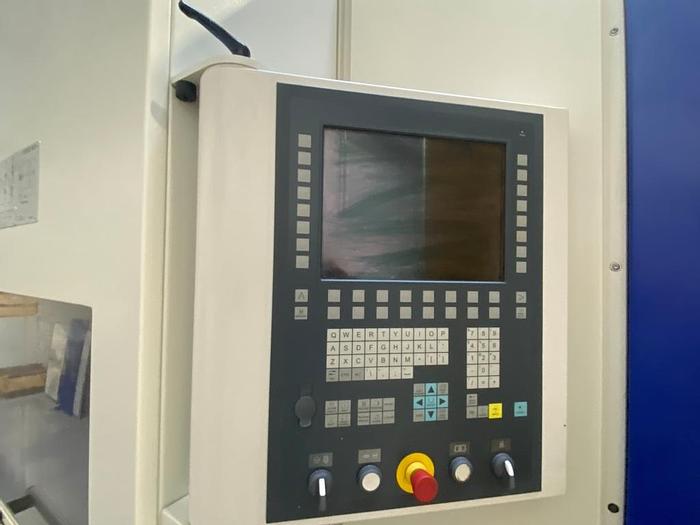

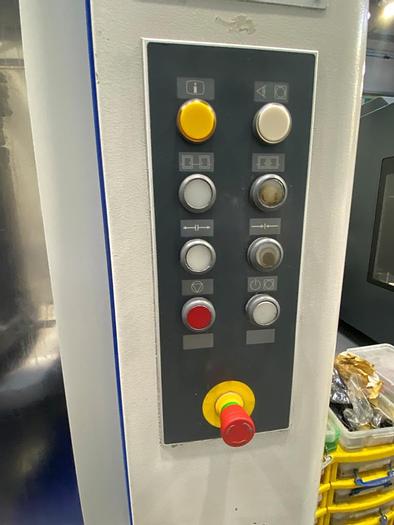

Additional Operating Panel at ATC

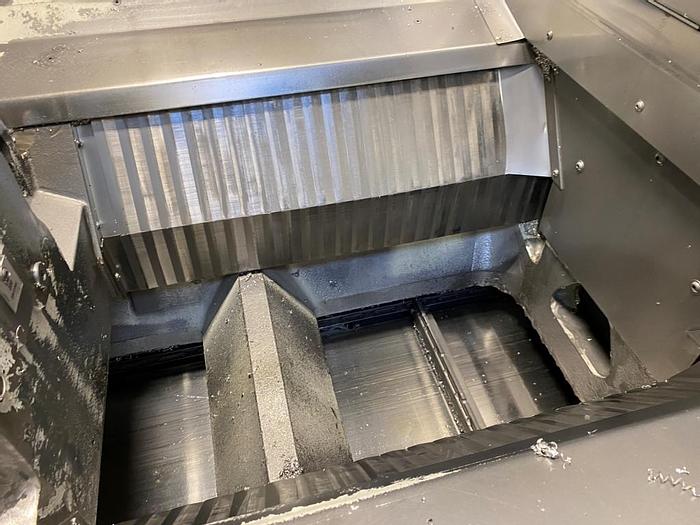

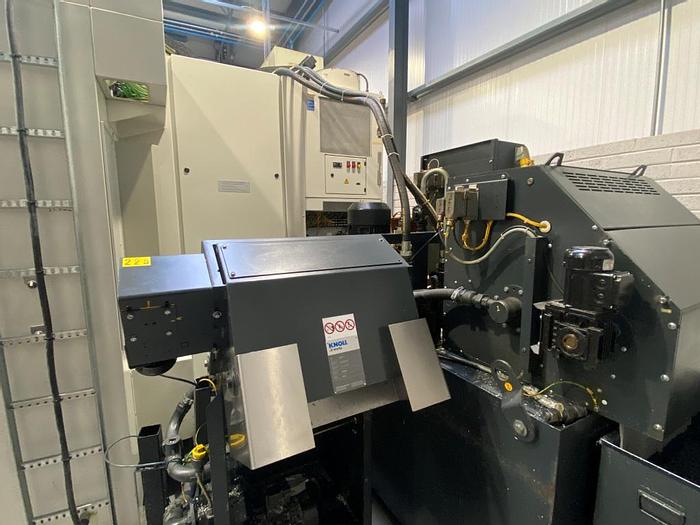

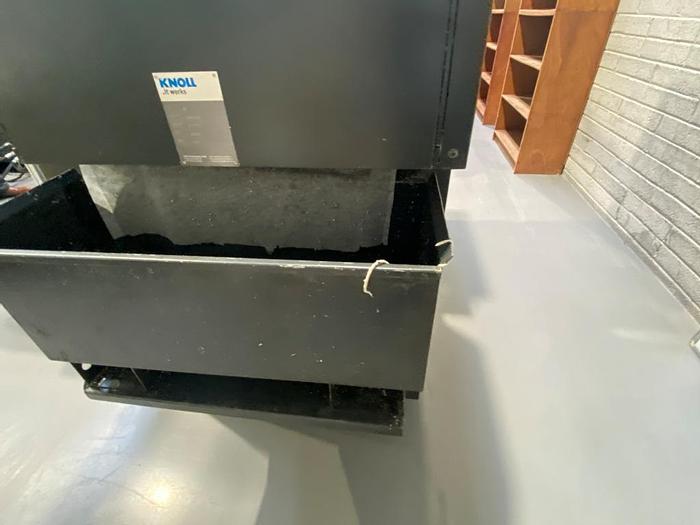

Chip Conveyor

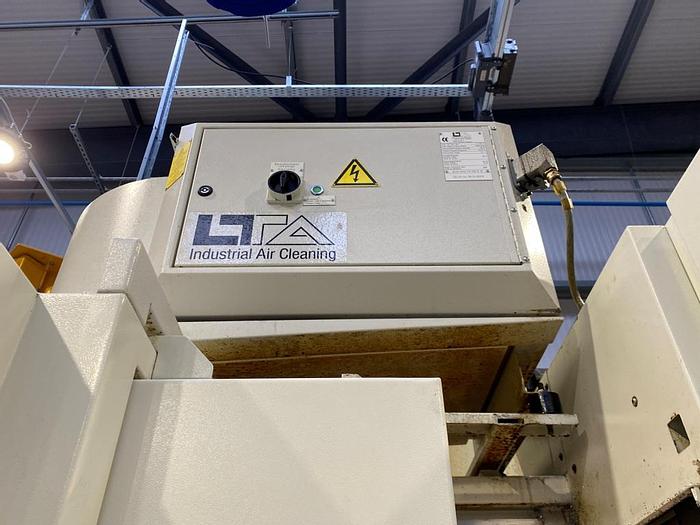

Mist Extraction Unit

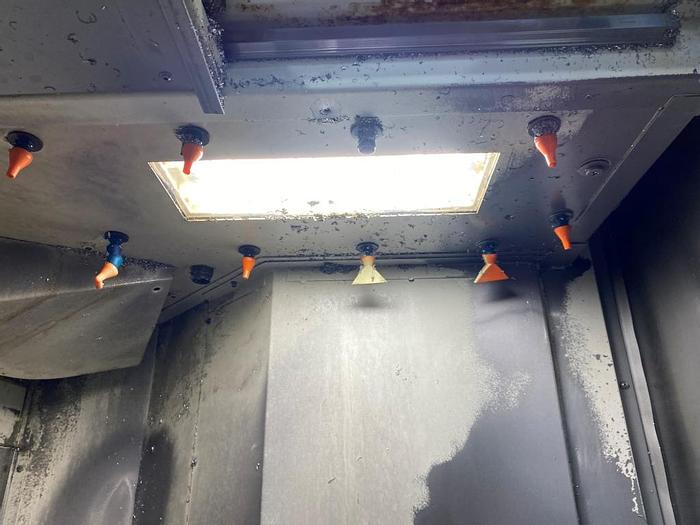

High Pressure Coolant

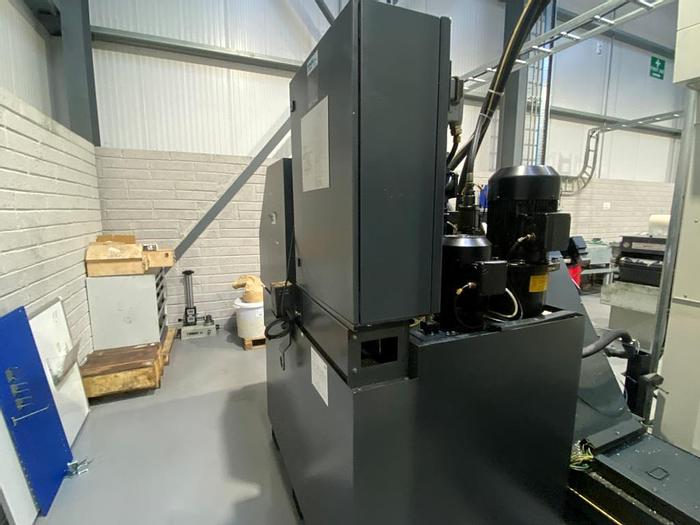

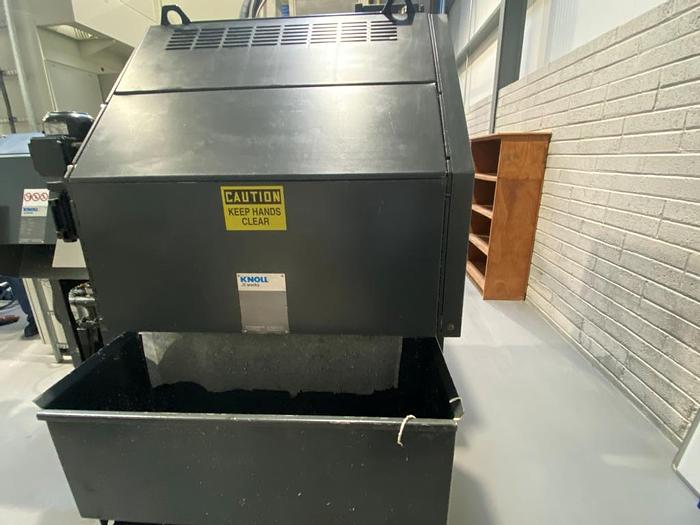

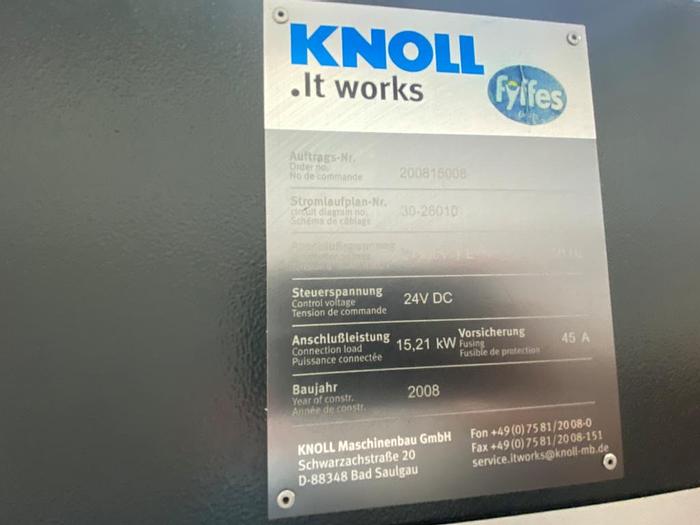

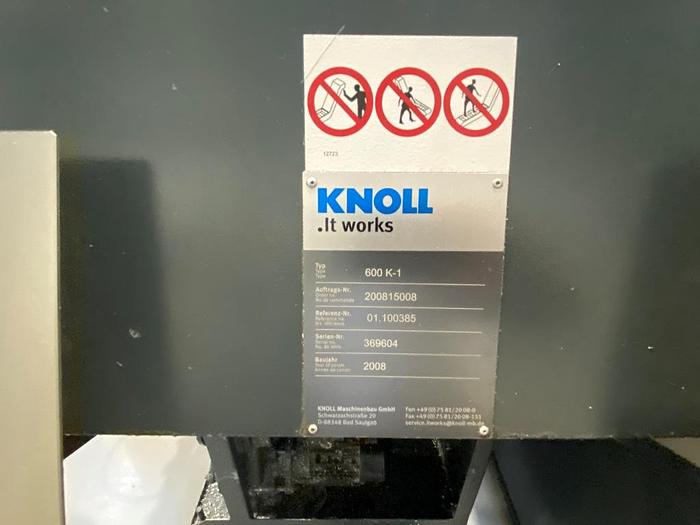

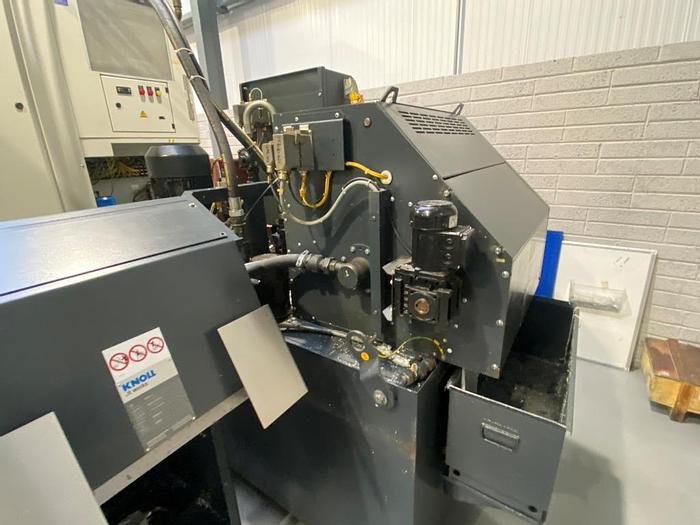

Coolant Filtration System

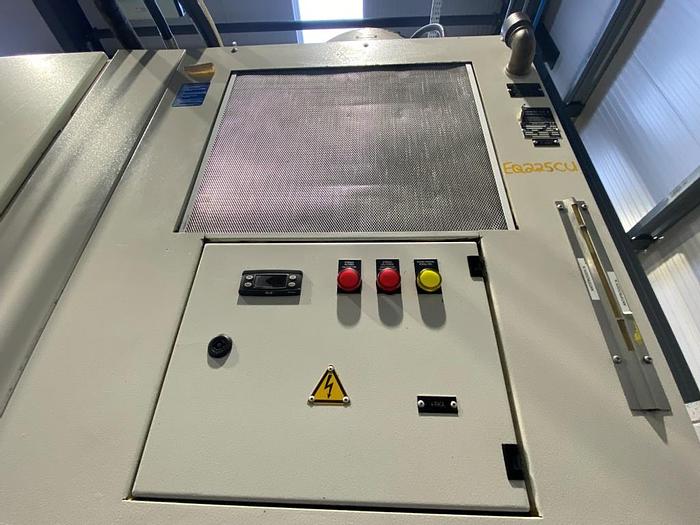

Spindle Chiller

Technical Specification

X-axis Travel: 630mm

Y-axis Travel: 630mm

Z-axis Travel: 630mm

No of Pallets: 2

Pallet Change Time: 9sec

Pallet working surface: 400 x 500mm

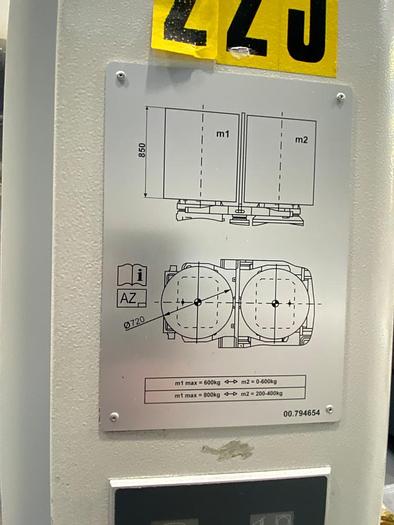

Pallet loading capacity: 800kg

Maximum workpiece swing diameter: 720mm

Maximum workpiece height: 850mm

Minimum pallet Indexing angle: 0.001Deg Full indexing table

Maximum spindle speed: 16,000rpm

Number of spindle speed ranges: 1

Type of spindle Taper: HSK63A

Rapid traverse rate X Axis: 60,000mm/min

Rapid traverse rate Y Axis: 60,000mm/min

Rapid traverse rate Z Axis: 60,000mm/min

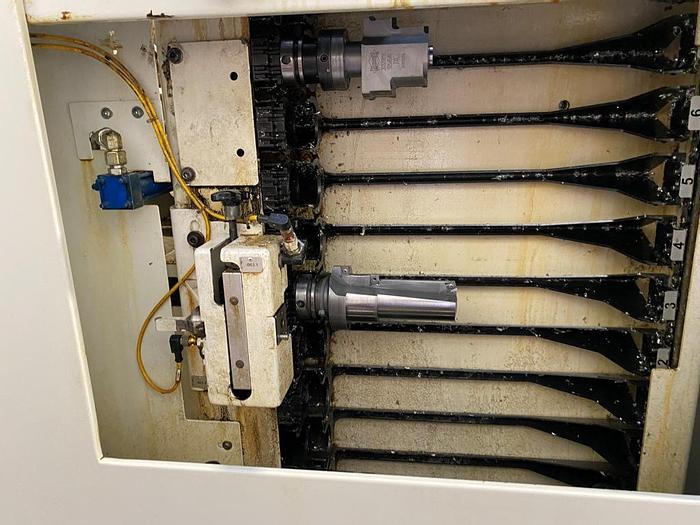

ATC Capacity: 80 Tool Chain Type

Tool Shank Taper: HSK 63A

Max Tool Diameter: 72mm

Max Tool Diameter with Empty Adj. Pockets: 260mm

Max Tool Length: 350mm

Max Tool Weight: 12kg

Machine Dimensions: 5800 x 2500 x 3100mm

Machine Weight: 10,000kg
