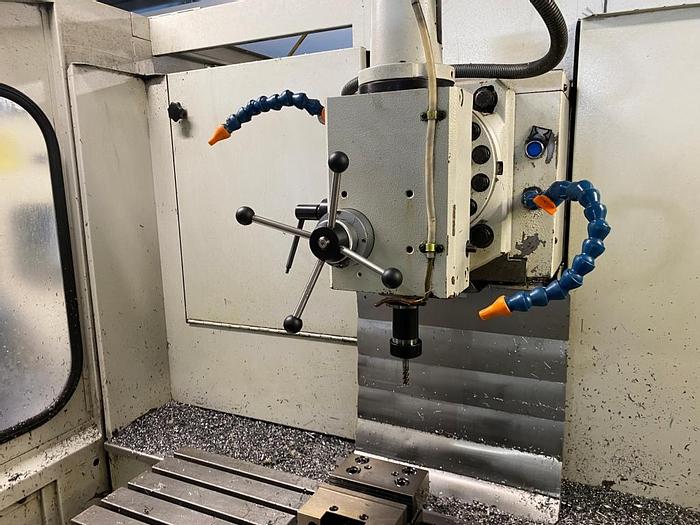

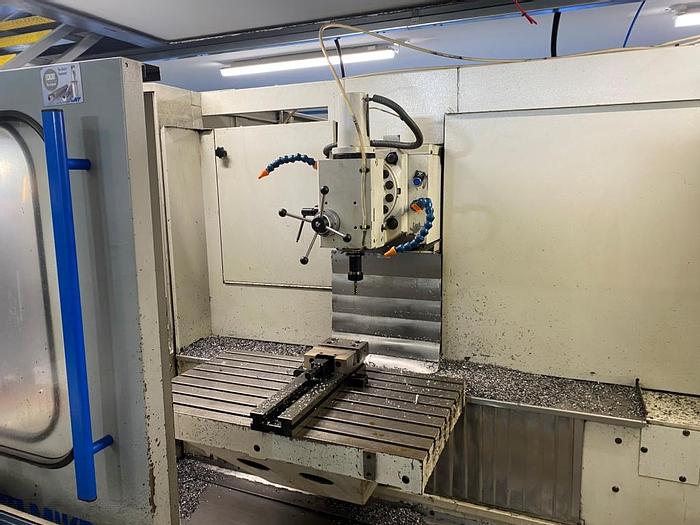

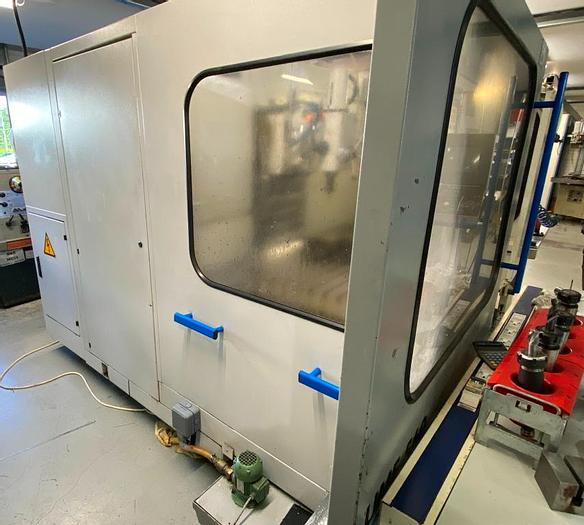

1994 Mikron UME 560 3 Axis Machine CNC Milling Machine

1

Cork, Ireland

Sold

Description

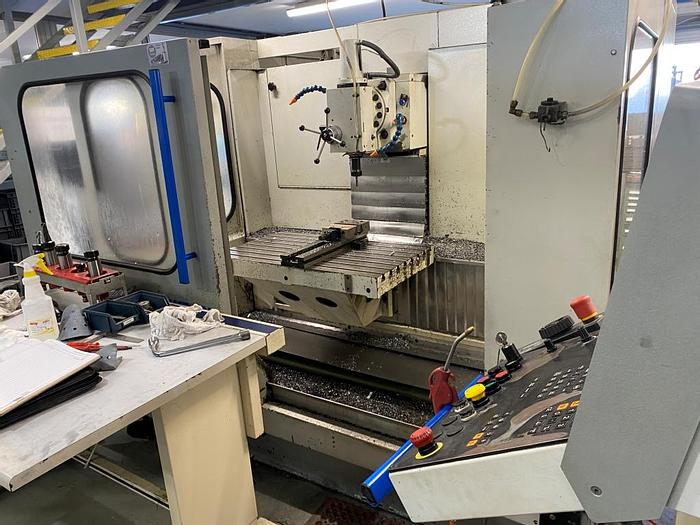

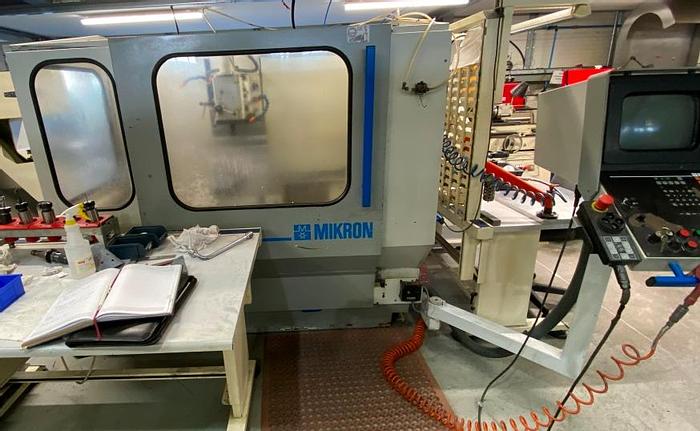

1994 Mikron UME 560 3 Axis CNC Milling Machine


Machine Type: 3 Axis CNC Milling Machine

Year: 1994

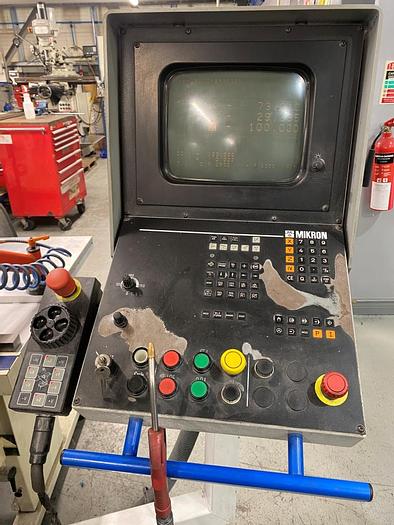

Control: Heidenhain TNC 360

Condition: Very Good


Includes

5 x Tool Holders


Notes:

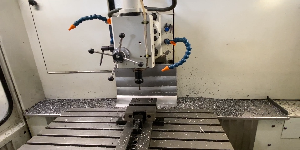

Vise in Photos/Videos not included with Machine.

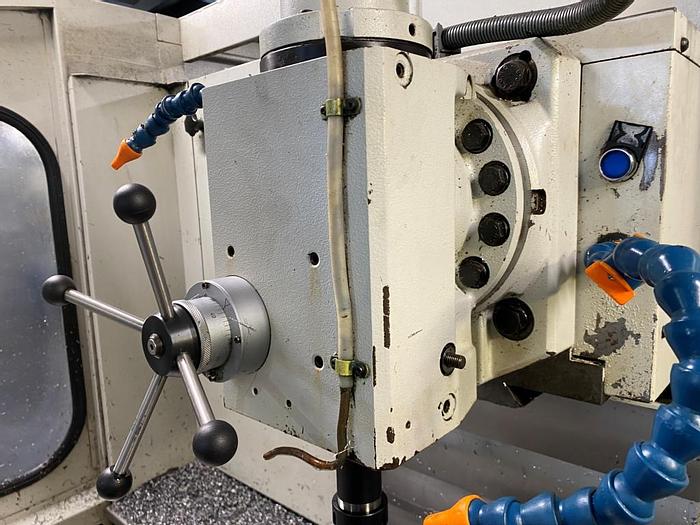

Can also be used as a Horizontal Machine


Technical Specification

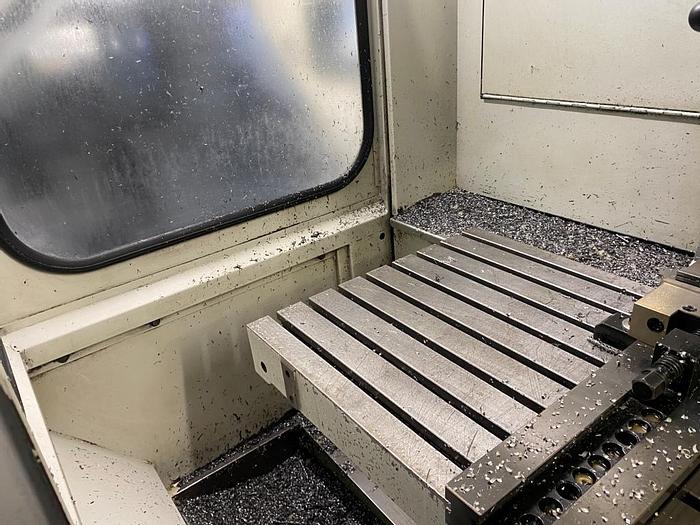

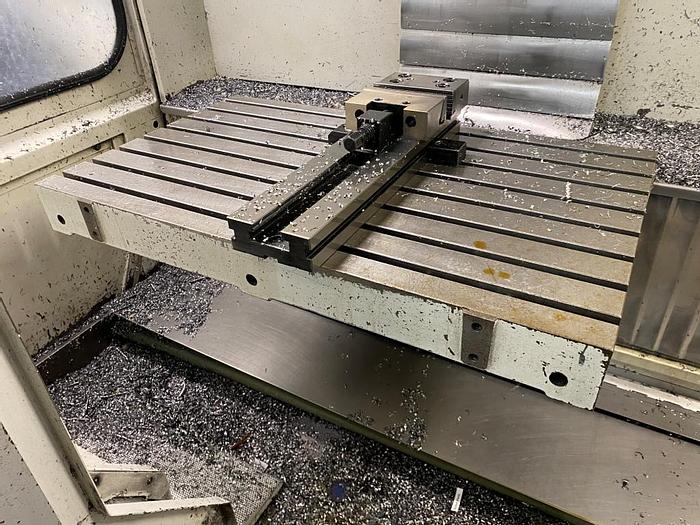

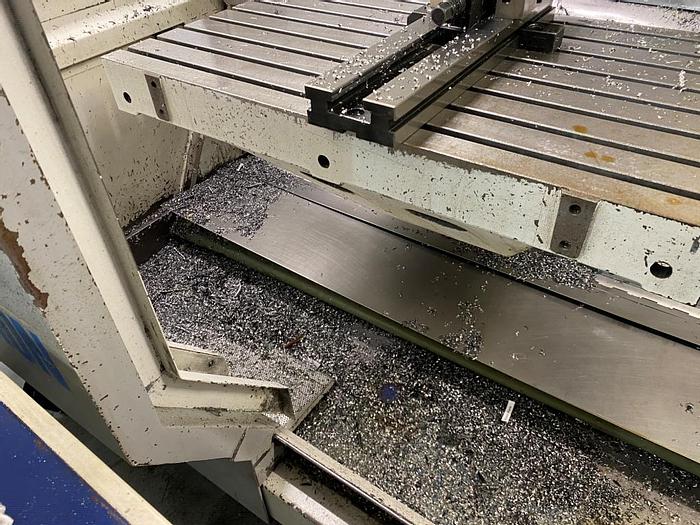

Table Size: 900 x 530mm

X Axis Travel: 560mm

Y Axis Travel: 500mm

Z Axis Travel: 400mm

Max Work Piece Weight: 350kg

Spindle Speeds: 3600rpm

Spindle Taper: SK40

Spindle Power: 6kW

Rapid Traverse: 10m/min

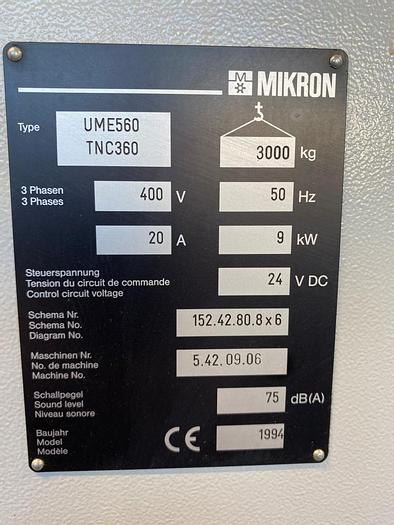

Power Supply: 400V/3Ph/50Hz

Connected Load: 20A

Power Requirement: 9kW

Control Voltage: 24V DC

Machine Dimensions: 2625 x 2650 x 2140mm

Machine Weight: 3000kg

Show All

Specifications

ManufacturerMikron
ModelUME 560 3 Axis Machine CNC Milling Machine
Year1994
ConditionUsed
Serial Number5.42.09.06
Year1994
ControlHeidenhain TNC 360
ConditionVery Good
Table Size900 x 530mm
X Axis Travel560mm
Y Axis Travel500mm
Z Axis Travel400mm
Max Work Piece Weight350kg
Spindle Speeds3600rpm
Spindle TaperSK40
Spindle Power6kW
Rapid Traverse10m/min
Power Supply400V/3Ph/50Hz
Connected Load20A
Power Requirement9kW
Control Voltage24V DC
Machine Weight3000kg
