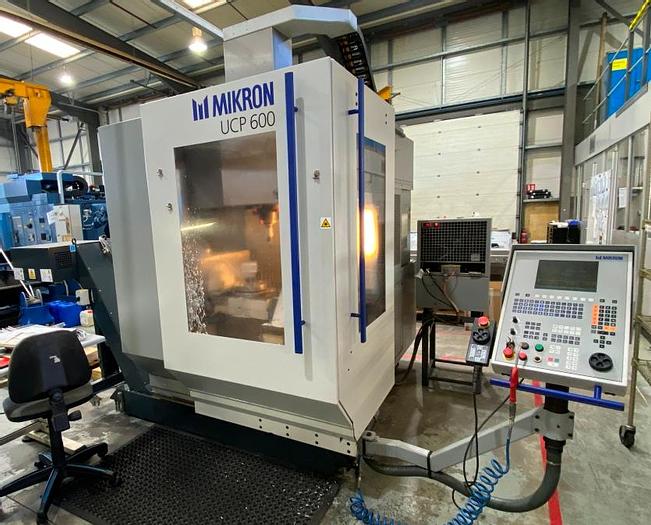

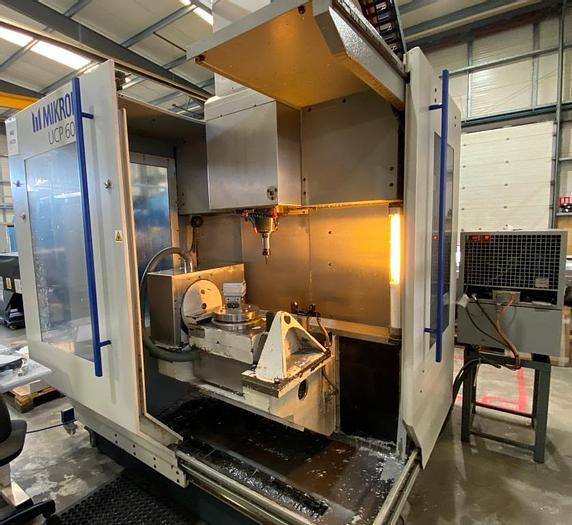

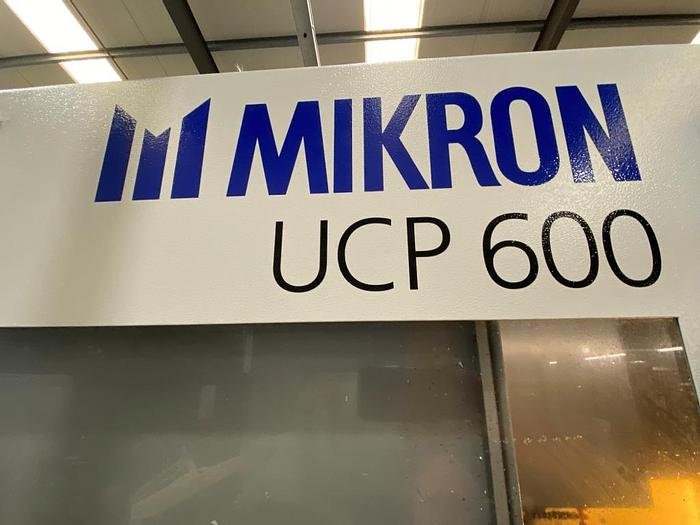

2000 Mikron UCP 600 5 Axis Machining Center
Description
2000 Mikron UCP 600 5 Axis Machining Center
Machine Type: 5 Axis (4+1) Machining Center
Year: 2000

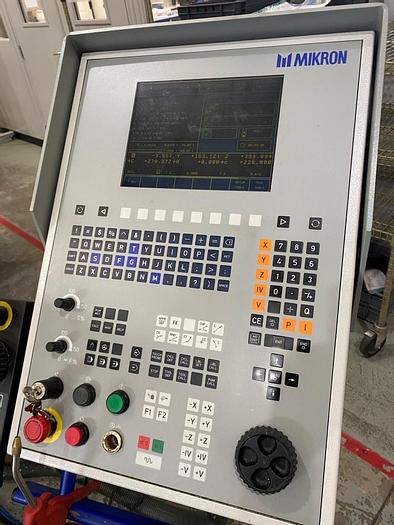

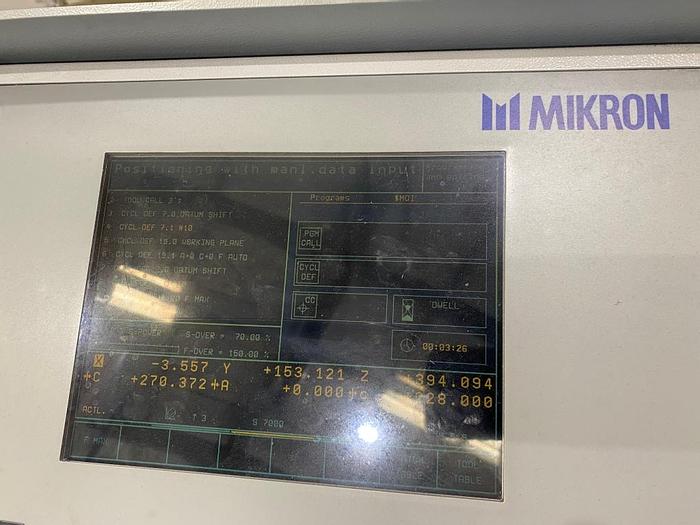

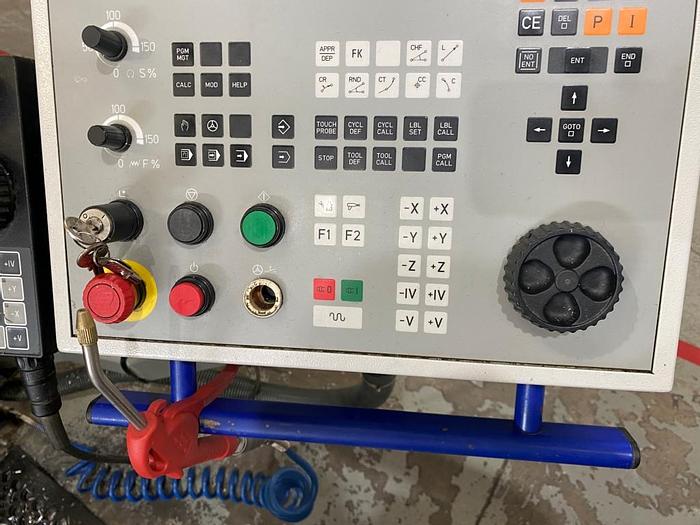

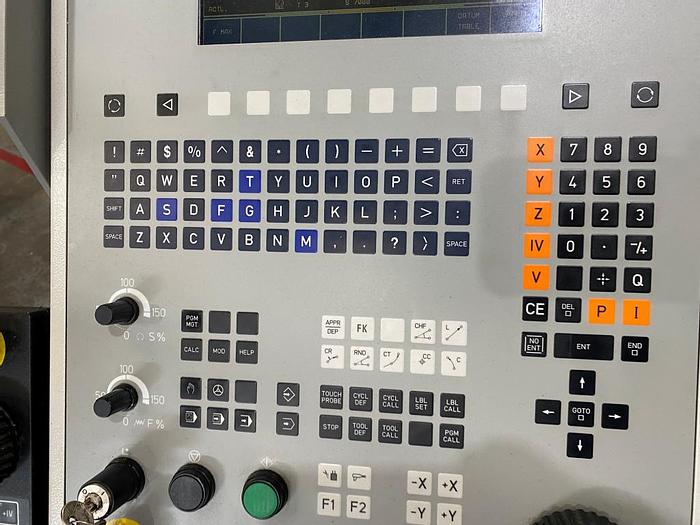

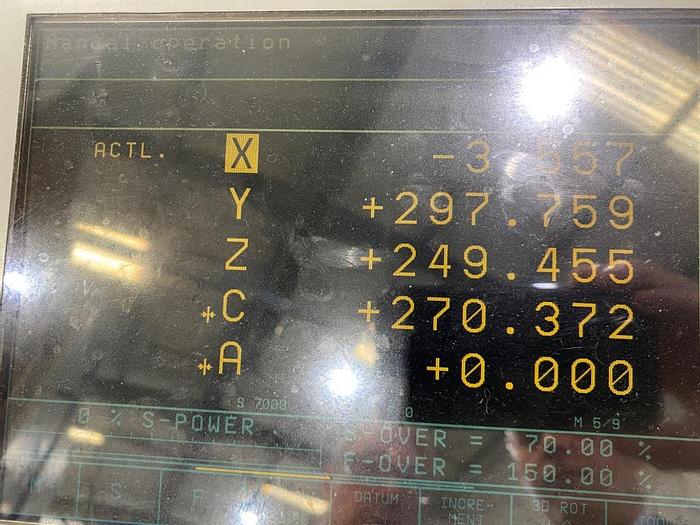

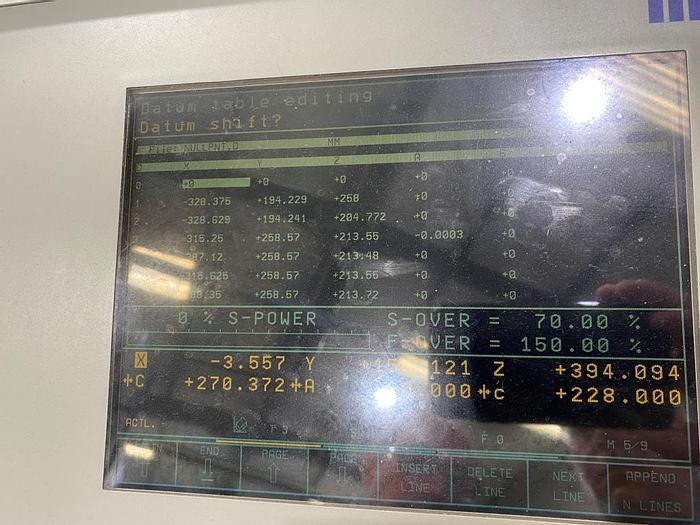

Control: Heidenhain TNC 430
Condition: Very Good
Includes

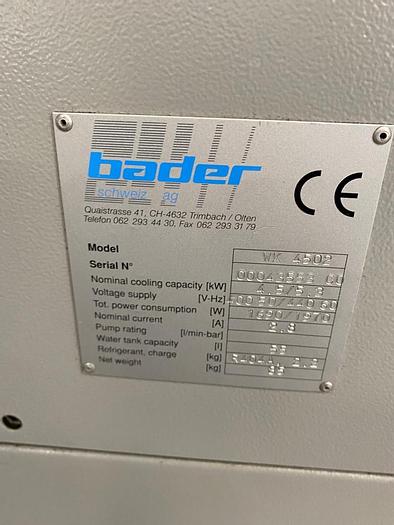

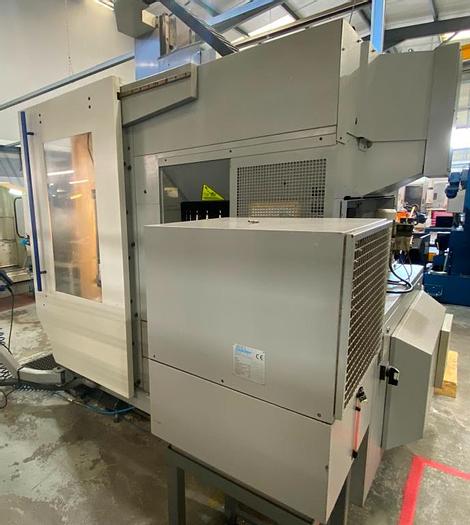

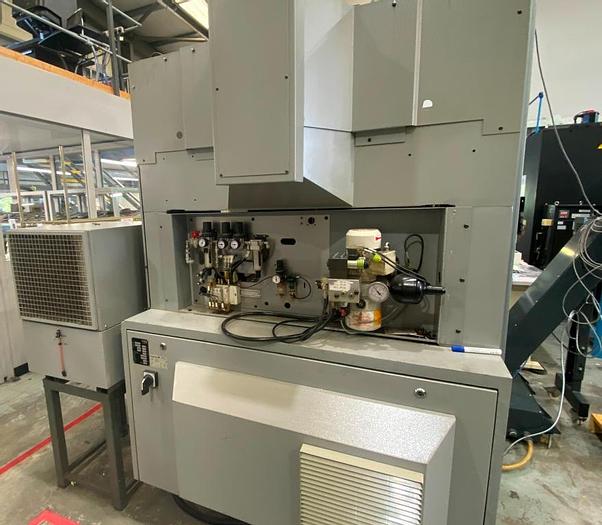

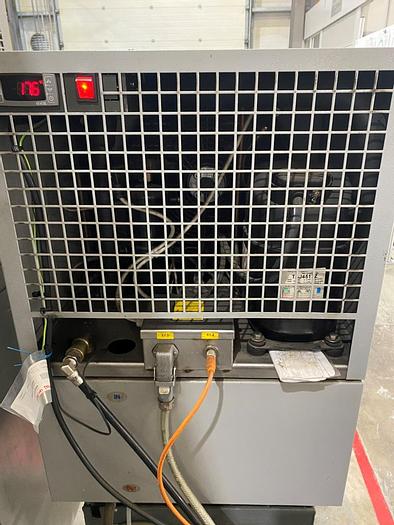

Bader Spindle Chiller

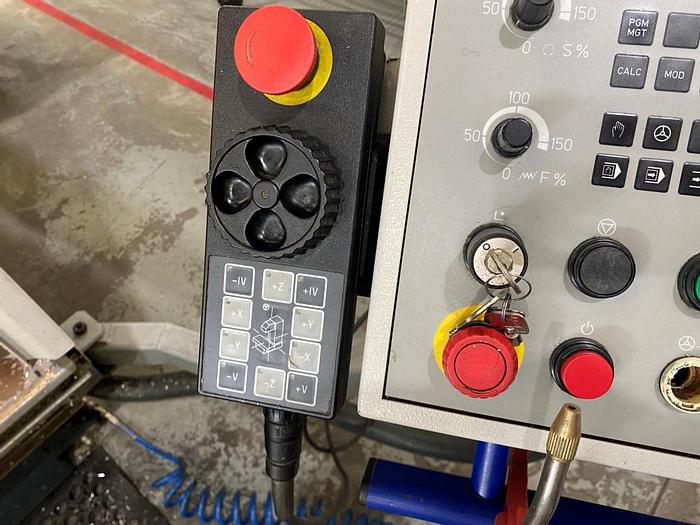

MPG

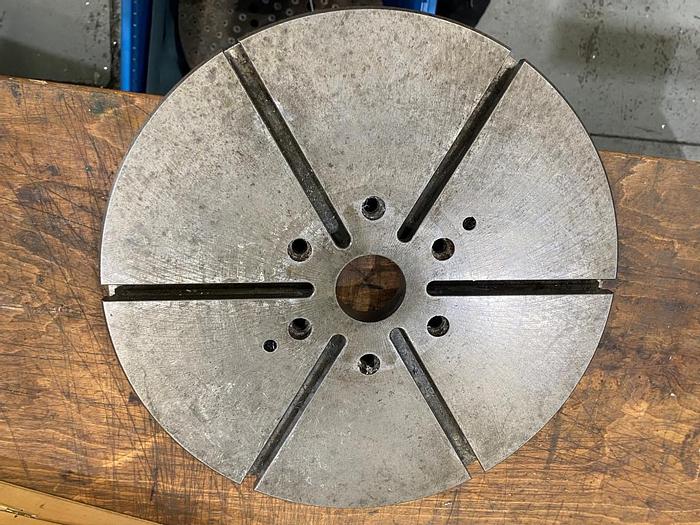

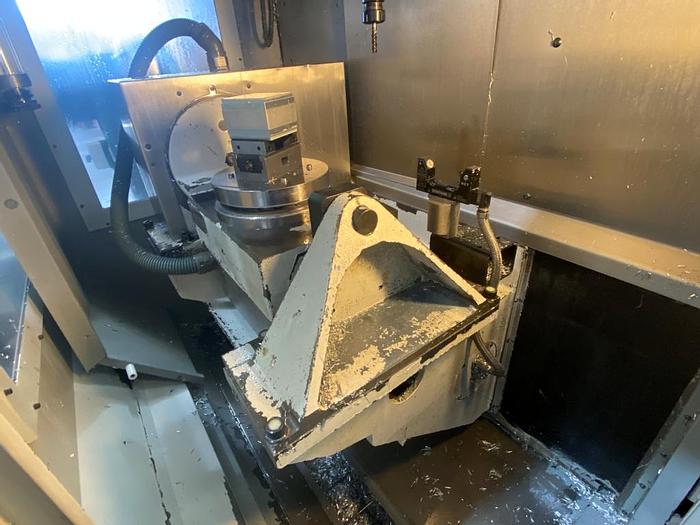

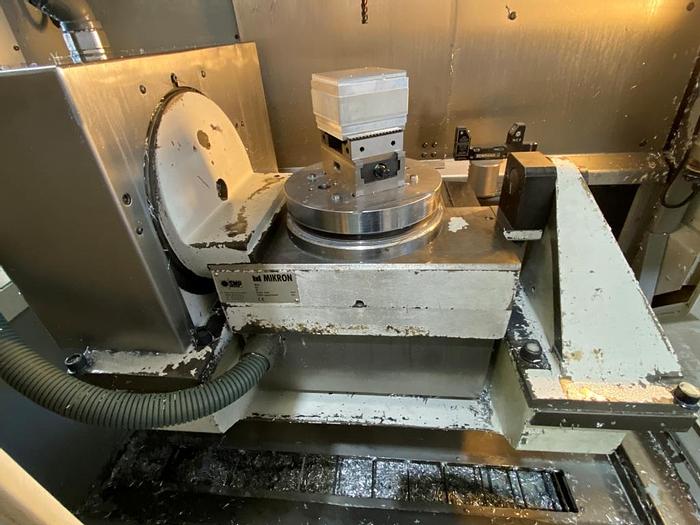

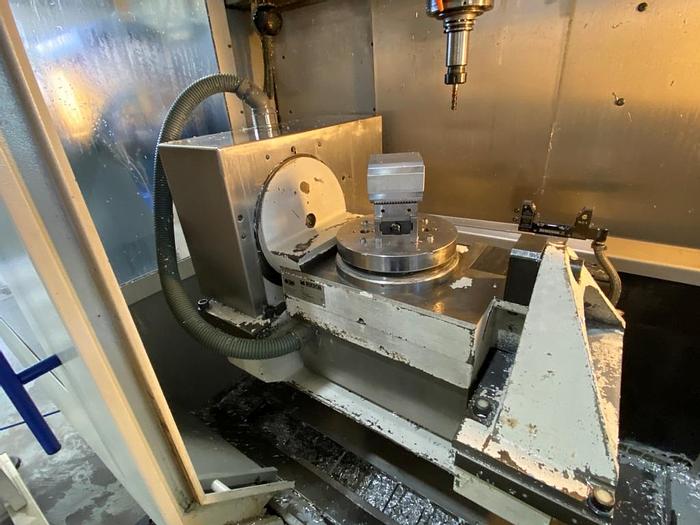

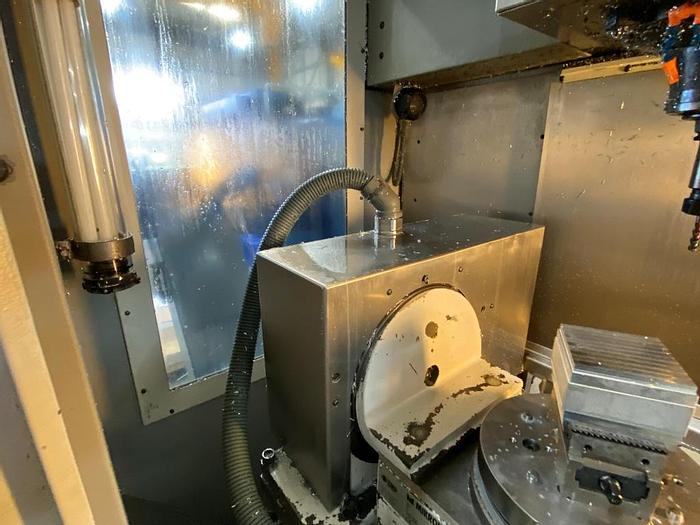

Face Plates for 4th/5th Axis

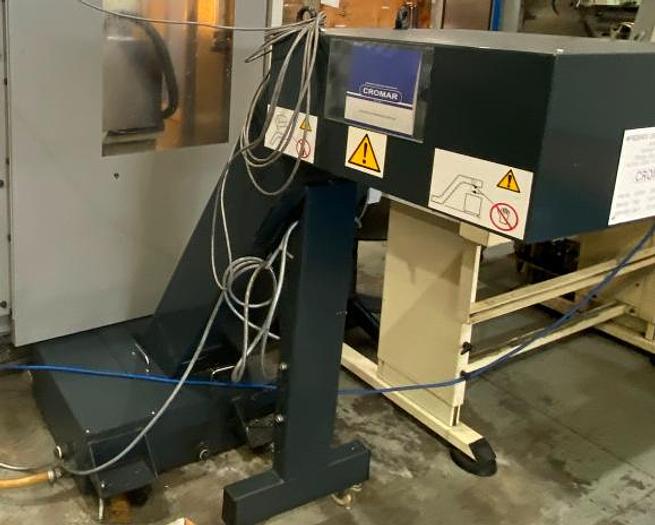

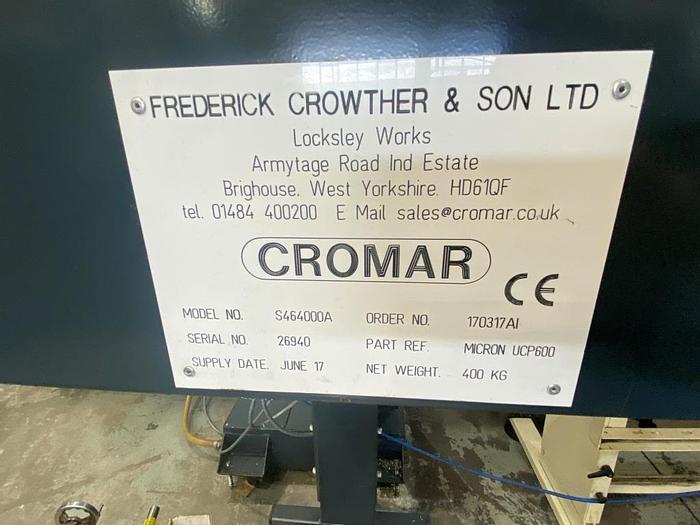

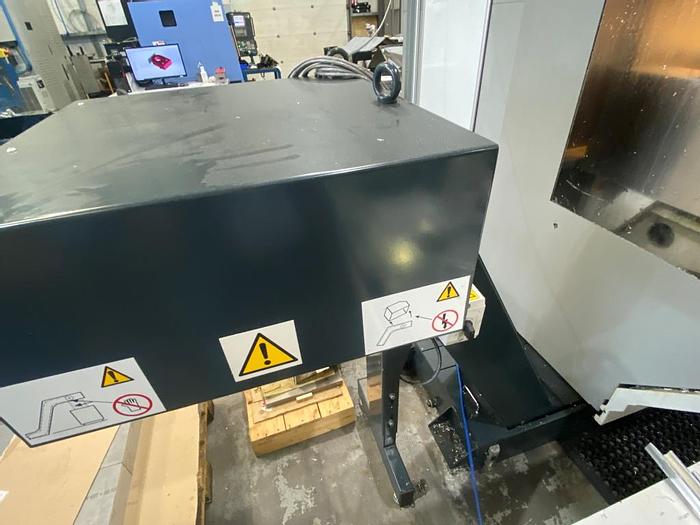

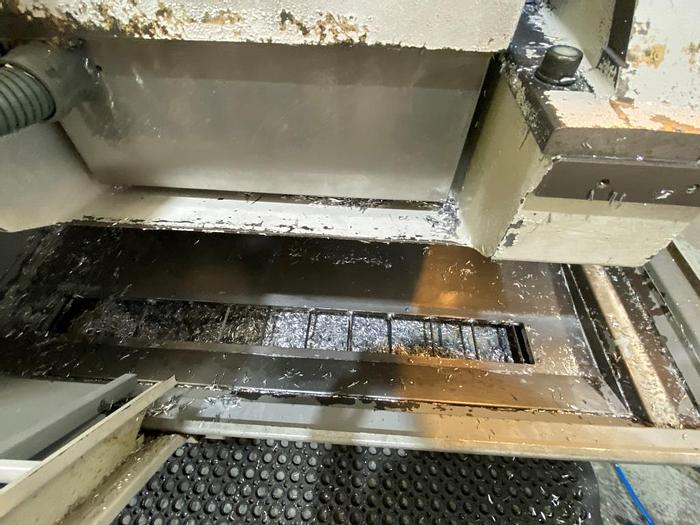

Cromar Swarf Conveyor
5 x Tool Holders
Notes: Vise in photos/videos not included with machine
Technical Specification

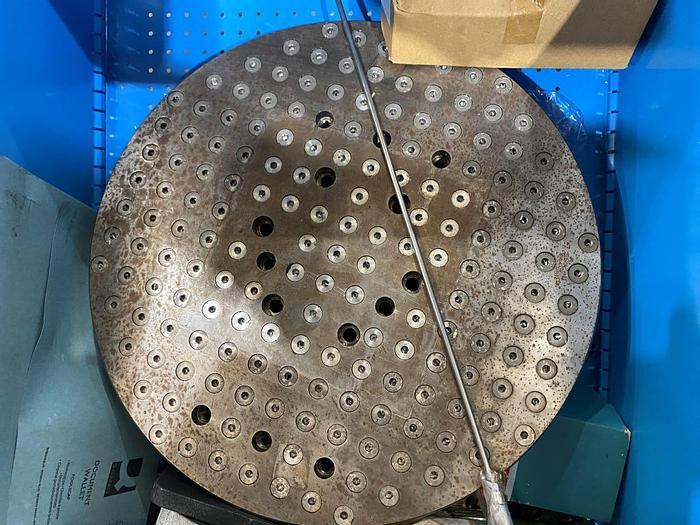

Table Diameter: 280mm (Larger Face Plates with Machine)
X Axis Travel: 530mm
Y Axis Travel: 450mm
Z Axis Travel: 450mm

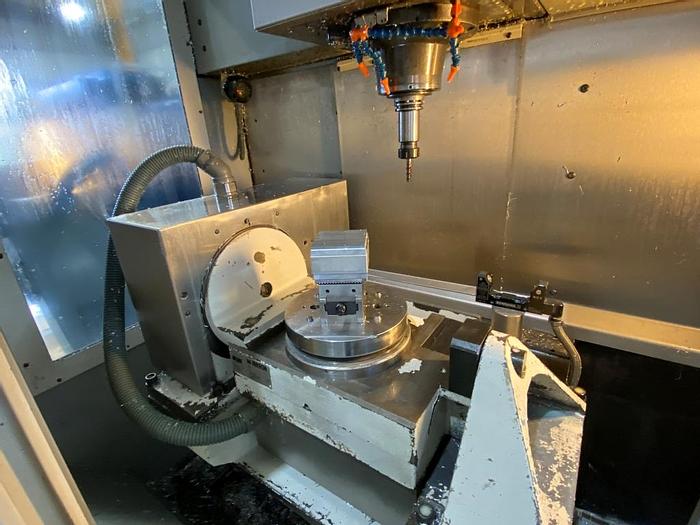

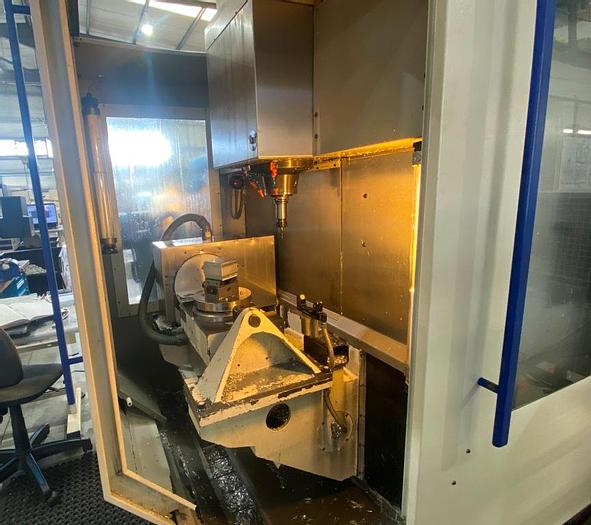

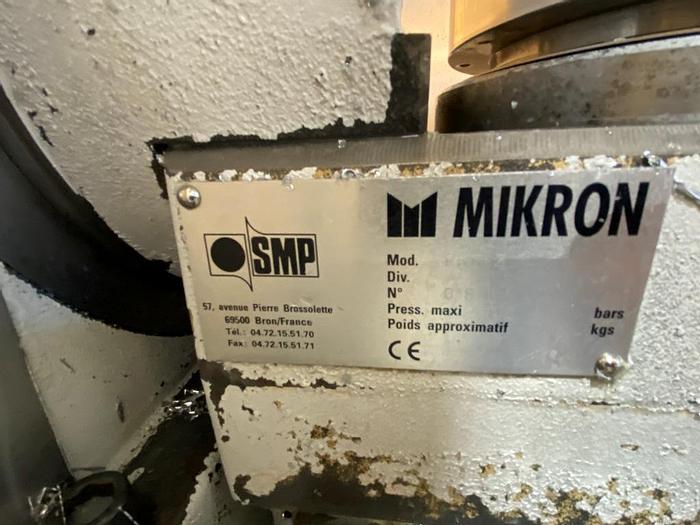

C & A Axis: Mikron PRC 3
Max Weight on Table: 380kgs

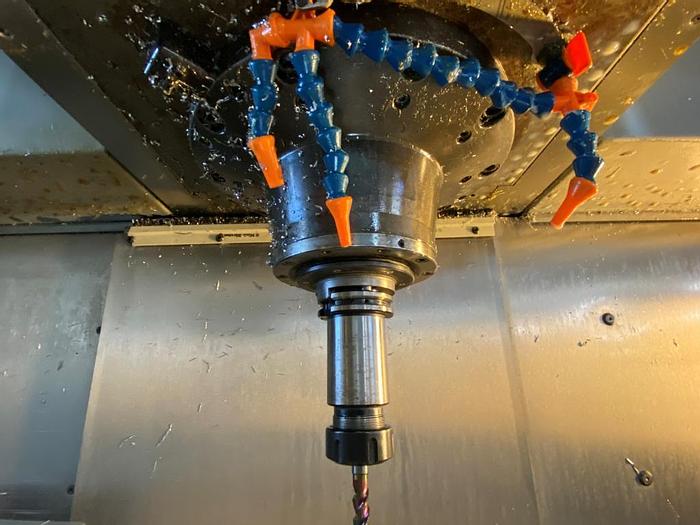

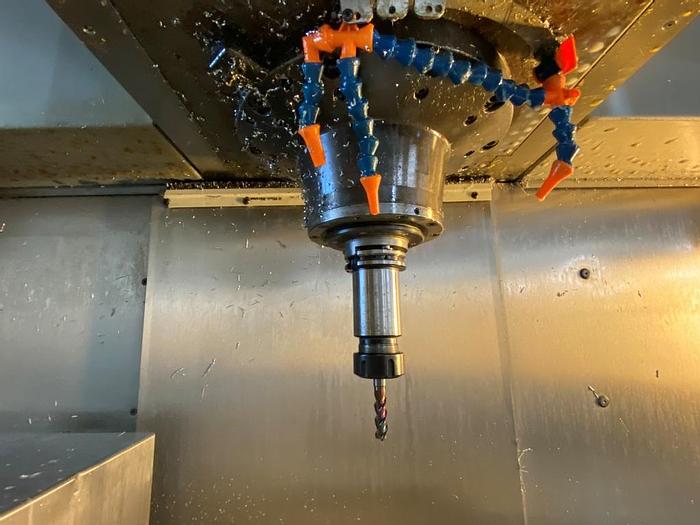

Spindle Speeds: 12,000rpm
Spindle Taper: NSK 50
Spindle Power: 15kW

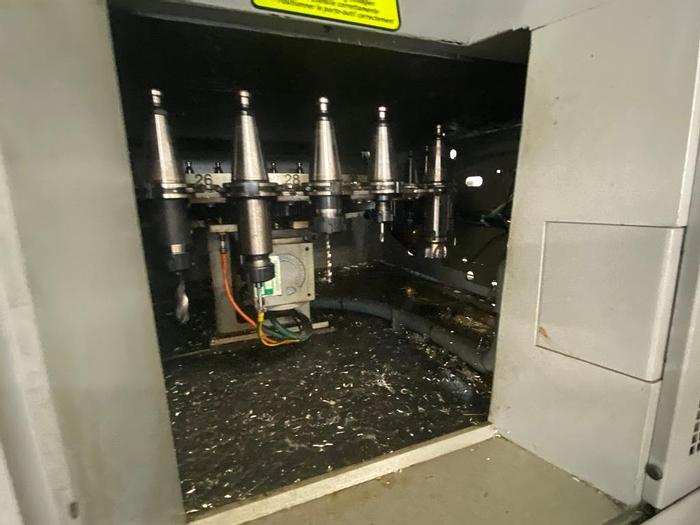

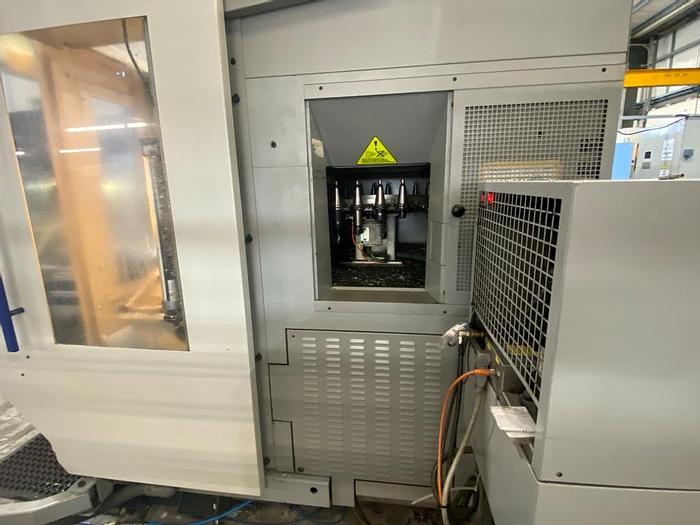

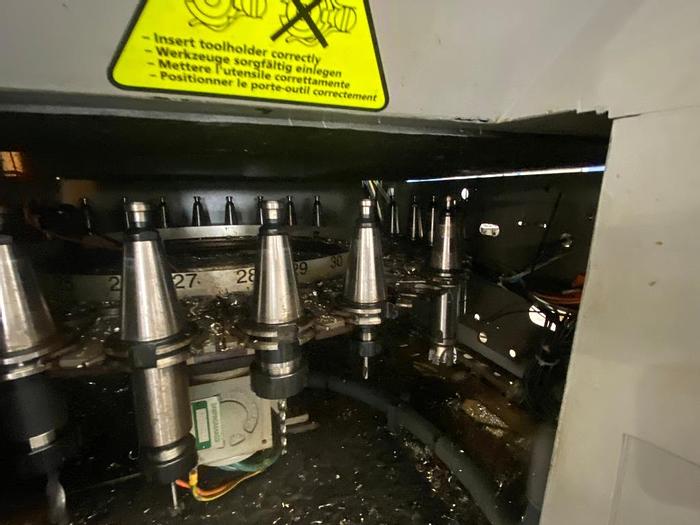

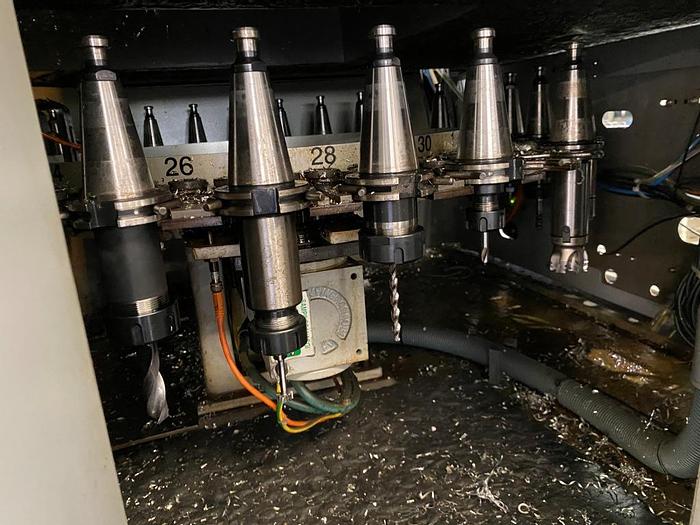

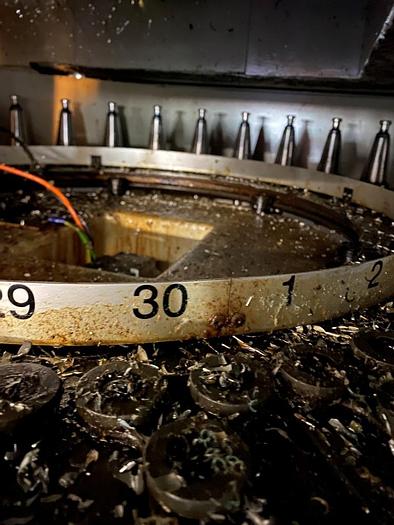

ATC: 30 Stations
Max Tool Diameter: 90mm
Max Tool Diameter with Empty Adj. Pocket: 110mm
Max Tool Length: 250mm
Max Tool Weight: 6kg
Tool Change Time: 5 Secs
Max Rapid Traverse: 22m/min
Max Feed Torque: 5000N
Recommended Working Feed: 15m/min
Connected Power: 400V/3ph/50Hz
Connected Load: 80A
Power Requirement: 40kW
Control Voltage: 24V DC
Machine Dimensions: 2800 x 2200 x 2400mm
Machine Weight: 6,500kg
Specifications
| Manufacturer | Mikron |
| Model | UCP 600 5 Axis Machining Center |
| Year | 2000 |
| Condition | Used |

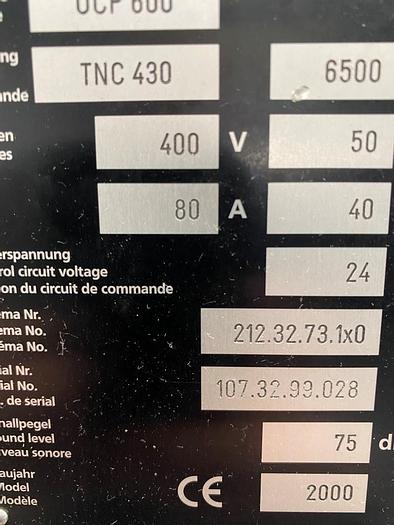

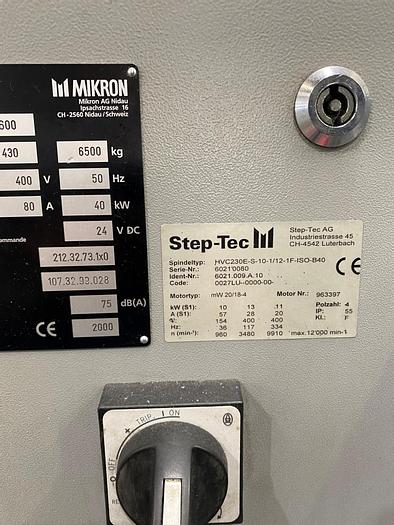

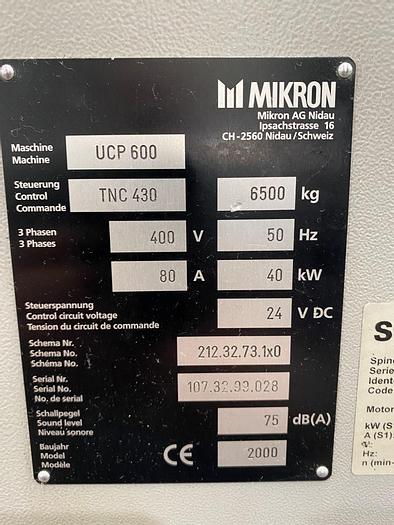

| Serial Number | 107.32.99.028 |
| Year | 2000 |
| Control | Heidenhain TNC 430 |
| Condition | Very Good |
| X Axis Travel | 530mm |
| Y Axis Travel | 450mm |
| Z Axis Travel | 450mm |
| C & A Axis | Mikron PRC 3 |
| Max Weight on Table | 380kgs |
| Spindle Speeds | 12,000rpm |
| Spindle Taper | NSK 50 |
| Spindle Power | 15kW |
| ATC | 30 Stations |
| Max Tool Diameter | 90mm |
| Max Tool Length | 250mm |
| Max Tool Weight | 6kg |
| Tool Change Time | 5 Secs |
| Max Rapid Traverse | 22m/min |
| Max Feed Torque | 5000N |
| Recommended Working Feed | 15m/min |
| Connected Power | 400V/3ph/50Hz |
| Connected Load | 80A |
| Power Requirement | 40kW |
| Control Voltage | 24V DC |
| Machine Weight | 6,500kg |
