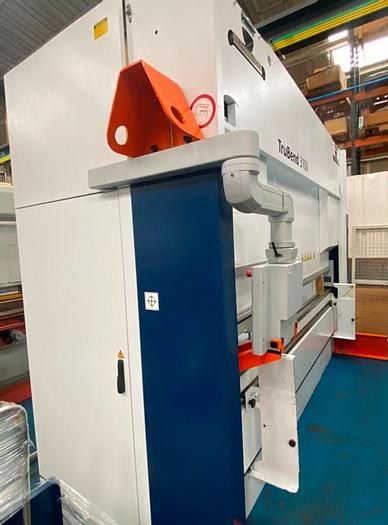

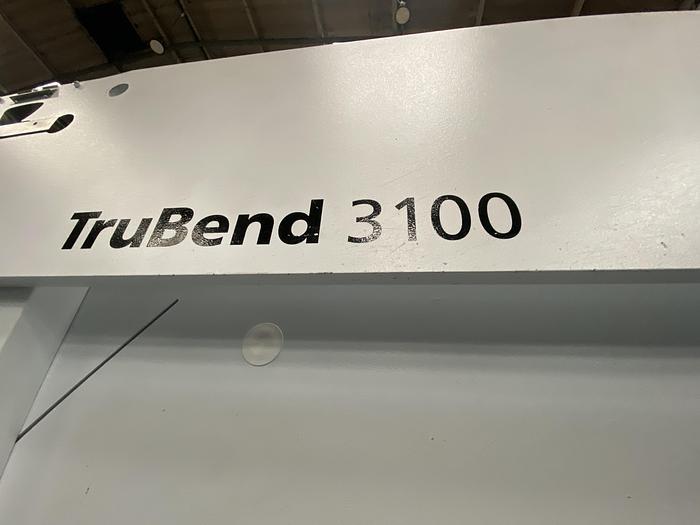

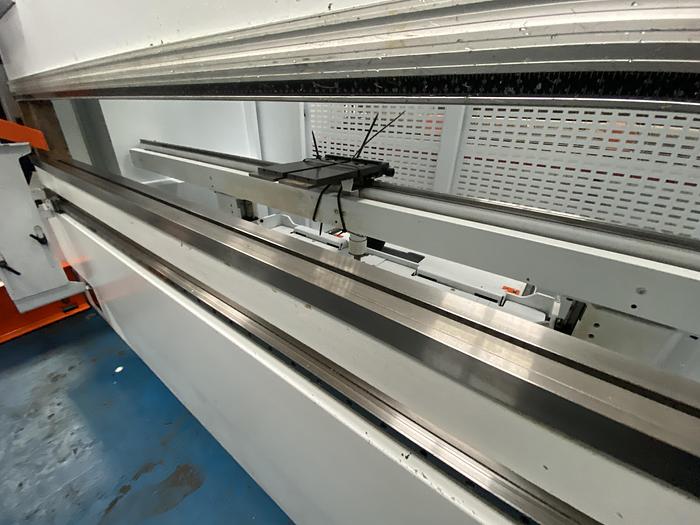

2019 Trumpf Trubend 3100 Pressbrake
Description
2019 Trumpf Trubend 3100 Pressbrake
Machine Type: Hydraulic Pressbrake
Year: 2019
Control: Trumpf T3500T Multi-Touch Control

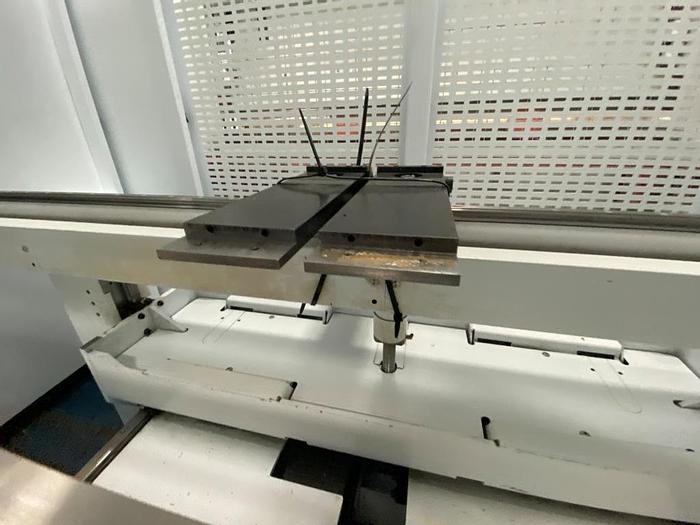

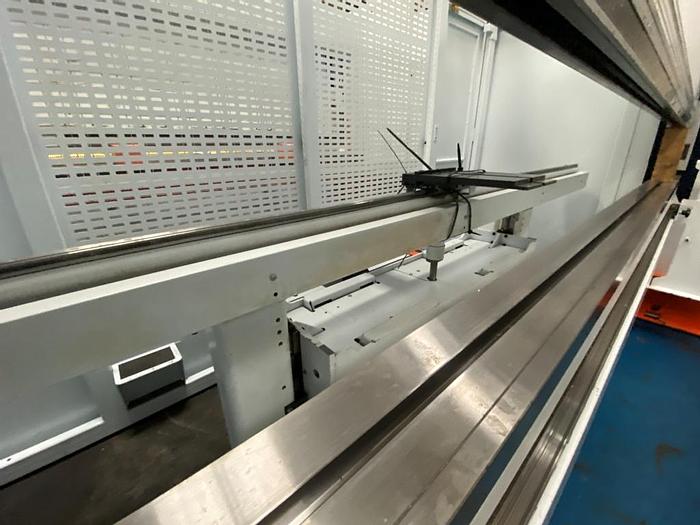

Axes: 6 Axes. Y1,Y2,X, R, Z1+Z2

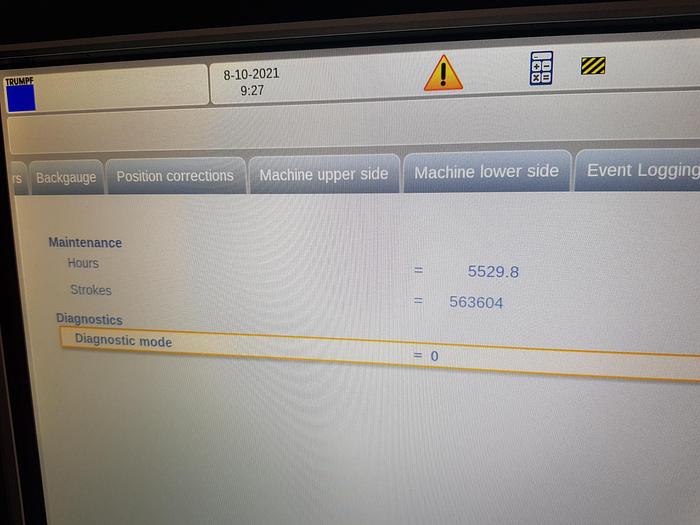

Hours: 5529.8hrs
Condition: Excellent. Currently decommissioned but can be seen running.
Availability: Immediately
Includes
Full Length 220mm Top Tool
Full Length 24mm Single Vee Die

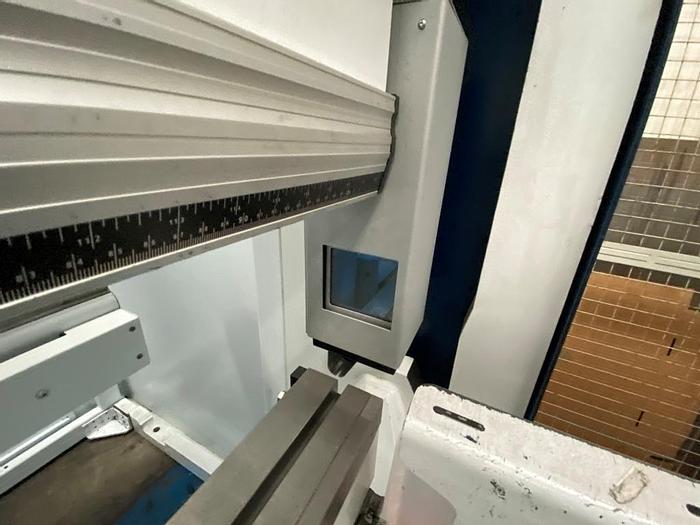

Laser Bend Guard

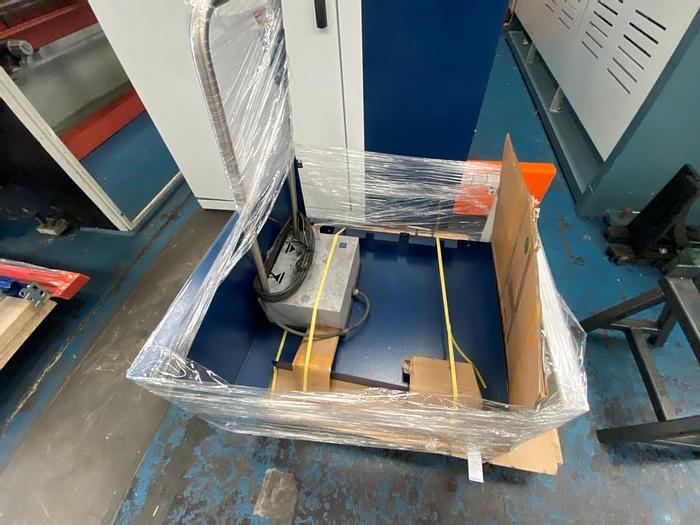

Double Footpedal

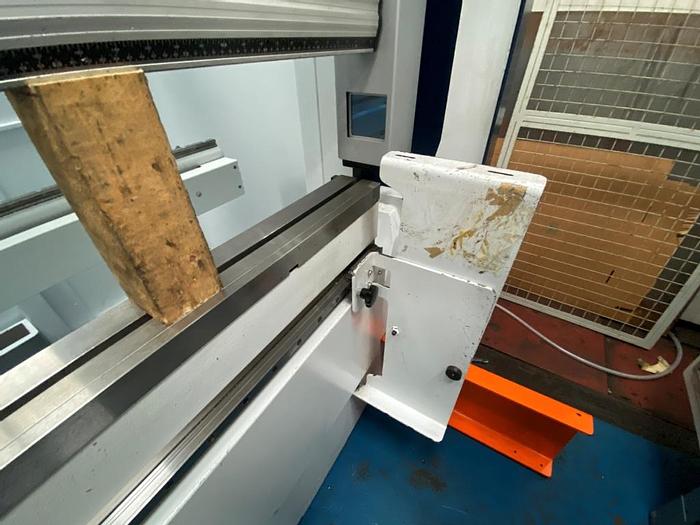

Front Support Brackets
Technical Specification
Bending Force: 100T/1000kN
Bending Length: 3060mm
Distance Between Columns: 3384mm
Maximum Bending Speed: 15mm/s
Opening Height/Stroke: 350mm
Bed Width: 100mm
Working Height: 1000mm
Y Axis Rapid/Approach Speed: 200mm/s
Y Axis Return Speed: 200mm/s
X Axis Speed: 500mm/s
R Axis Speed: 200mm/s
X Axis Travel: 600mm
R Axis Travel: 150mm
Max Brake Time: 46ms
Max Over Travel: 8mm
Min Safety Distance: 167mm
Connected Power: 400V/50Hz
Connected Load: 20.0kVA
Full Load Current: 29.0A
Control Voltage: 24V
Machine Dimensions: 3600x1645x2370mm
Weight: 8300kg
Specifications
| Manufacturer | Trumpf |
| Model | Trubend 3100 Pressbrake |
| Year | 2019 |
| Condition | Used |

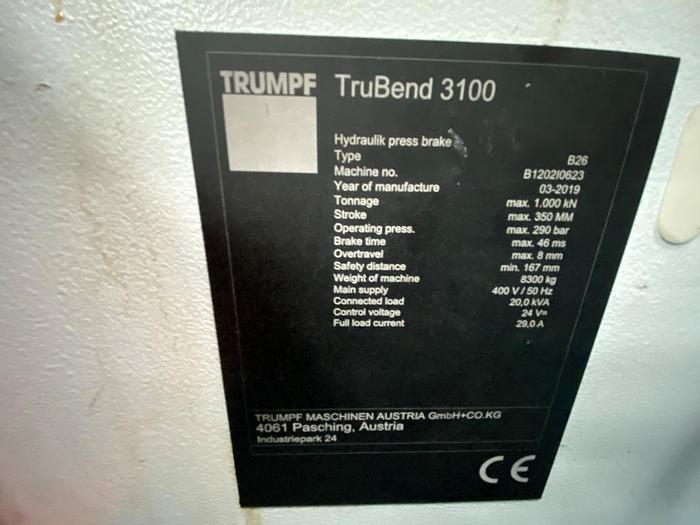

| Serial Number | B1202I0623 |
| Machine Type | Hydraulic Pressbrake |
| Year | 2019 |
| Control | Trumpf T3500T Multi-Touch Control |
| Availability | Immediately |
| Bending Force | 100T/1000kN |
| Hours | 5529.8hrs |
| Bending Length | 3060mm |
| Distance Between Columns | 3384mm |
| Maximum Bending Speed | 15mm/s |
| Max Brake Time | 46ms |
| Max Over Travel | 8mm |
| Min Safety Distance | 167mm |
| Connected Power | 400V/50Hz |
| Connected Load | 20.0kVA |
| Full Load Current | 29.0A |
| Control Voltage | 24V |
| Opening Height/Stroke | 350mm |
| Bed Width | 100mm |
| Working Height | 1000mm |
| Y Axis Rapid/Approach Speed | 200mm/s |
| Y Axis Return Speed | 200mm/s |
| X Axis Speed | 500mm/s |
| R Axis Speed | 200mm/s |
| X Axis Travel | 600mm |
| R Axis Travel | 150mm |
| Machine Dimensions | 3600x1645x2370mm |
| Weight | 8300kg |
