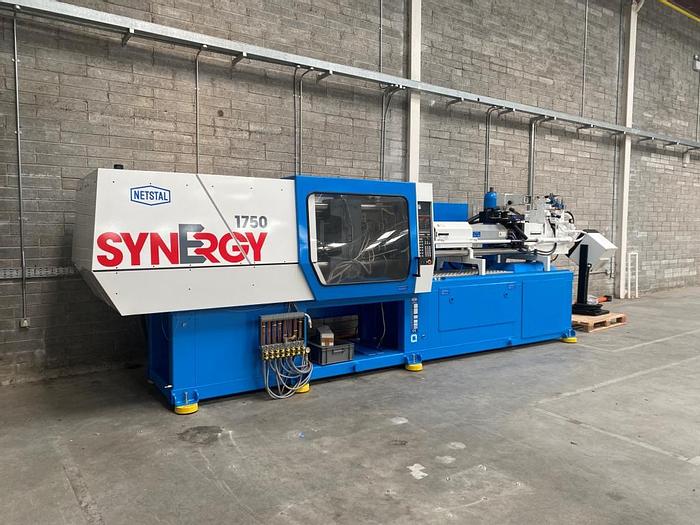

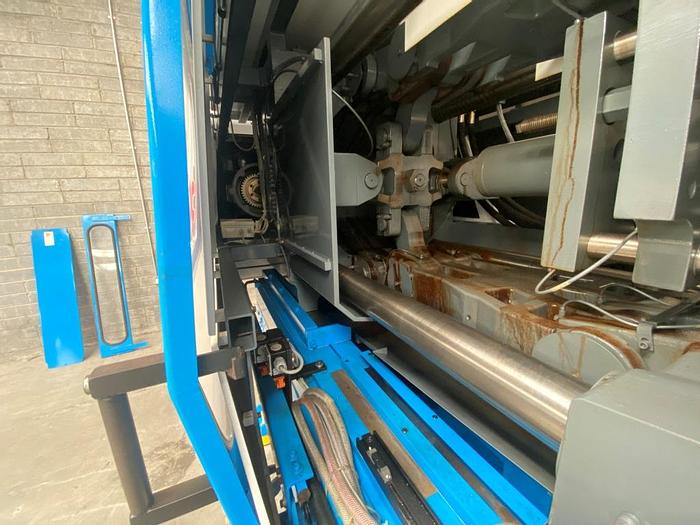

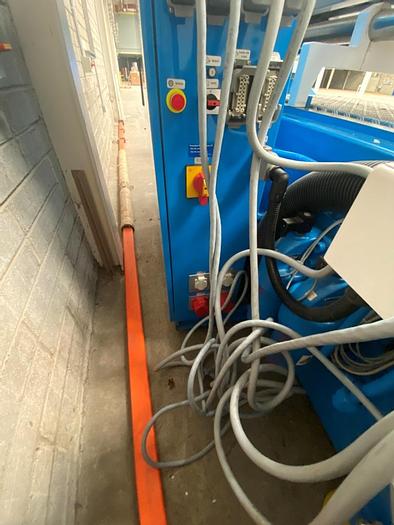

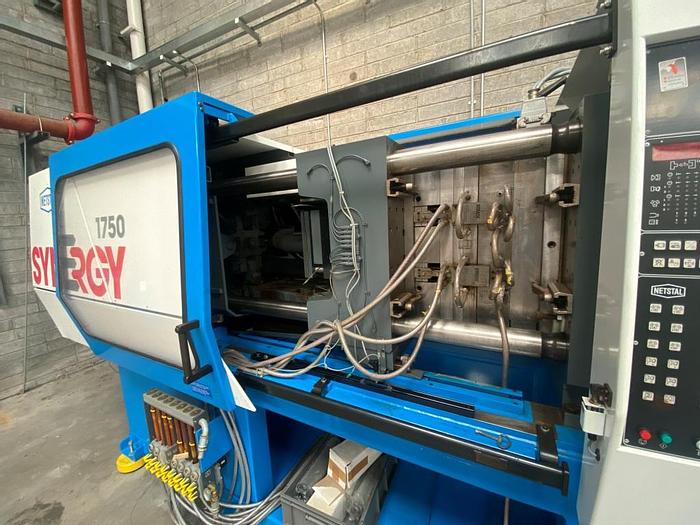

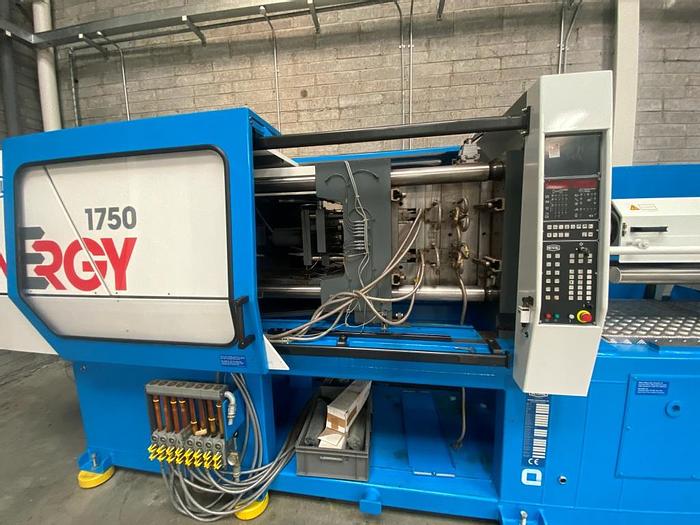

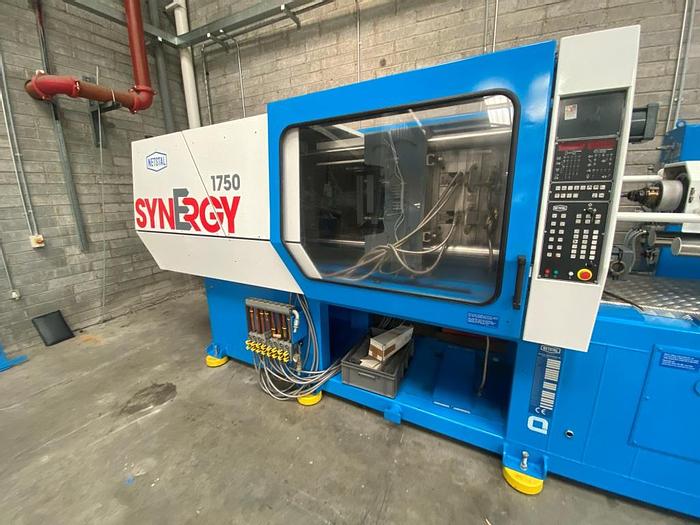

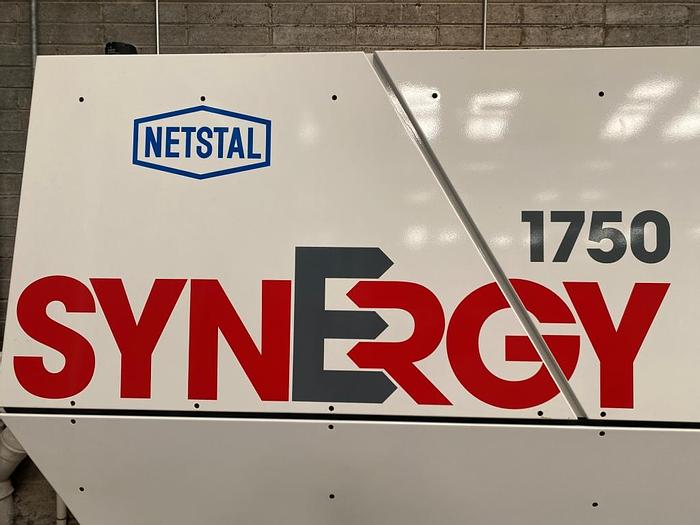

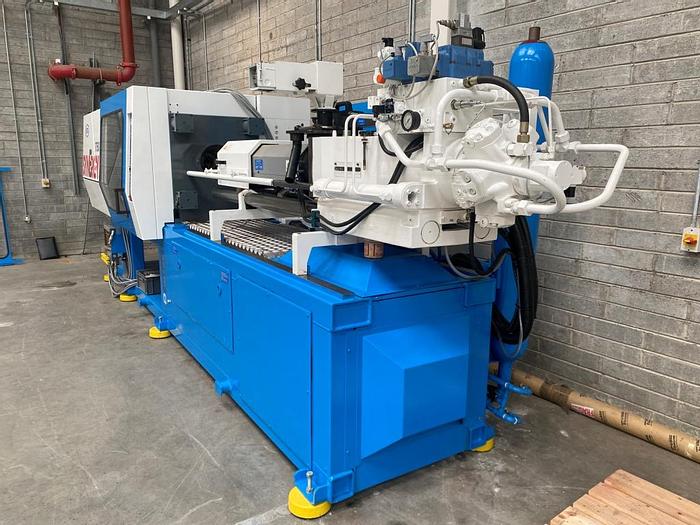

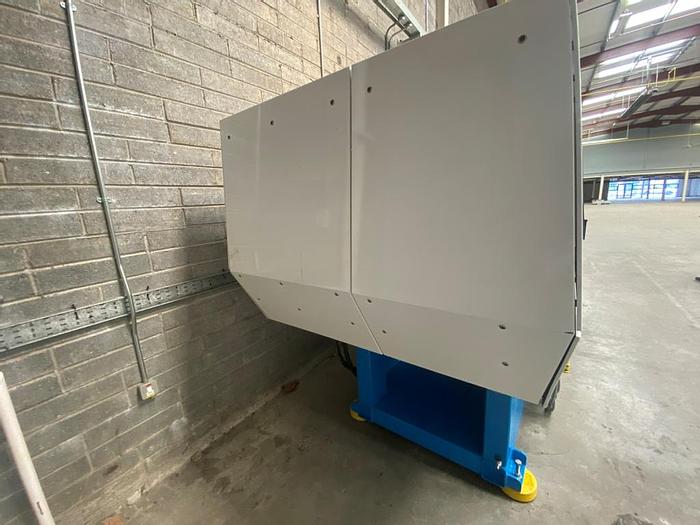

2000 Netstal Synergy S-1750-900 Moulding Machine
Description
2000 Netstal Synergy S-1750-900 Moulding Machine
Year: 2000

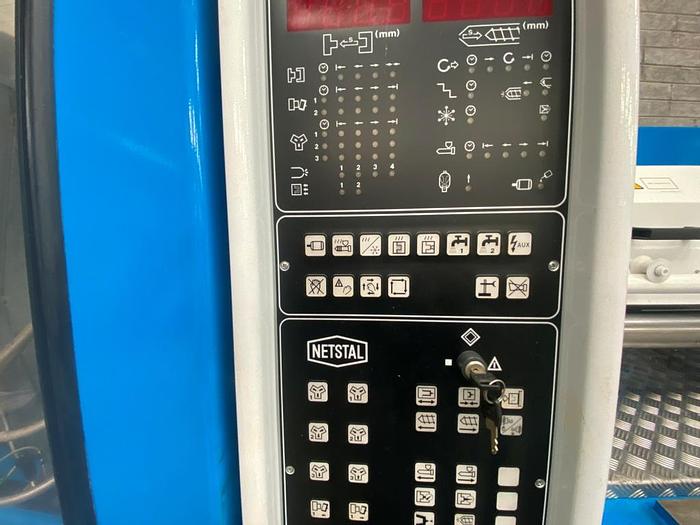

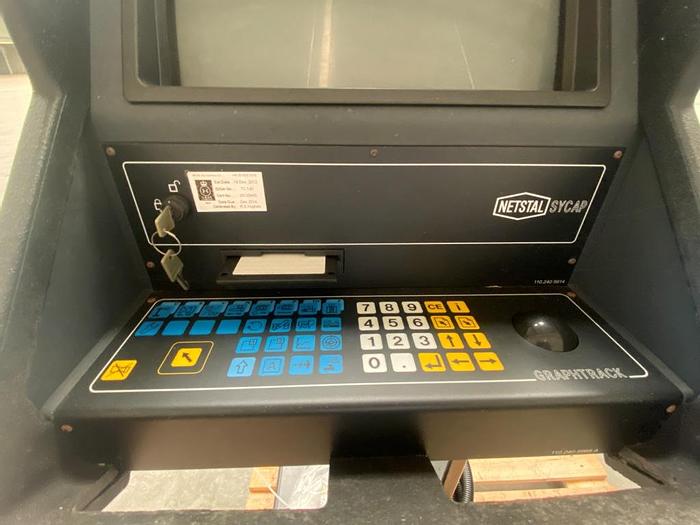

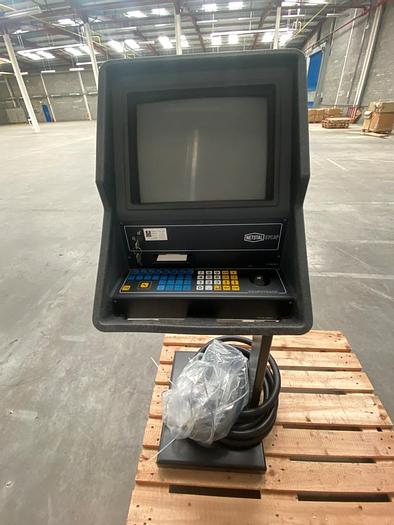

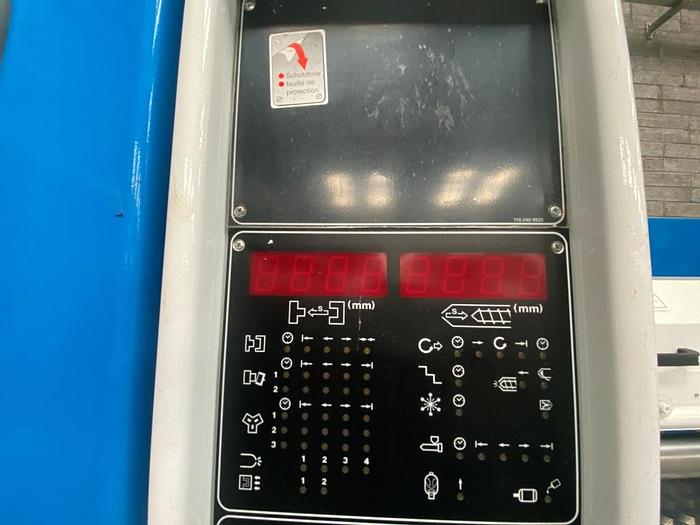

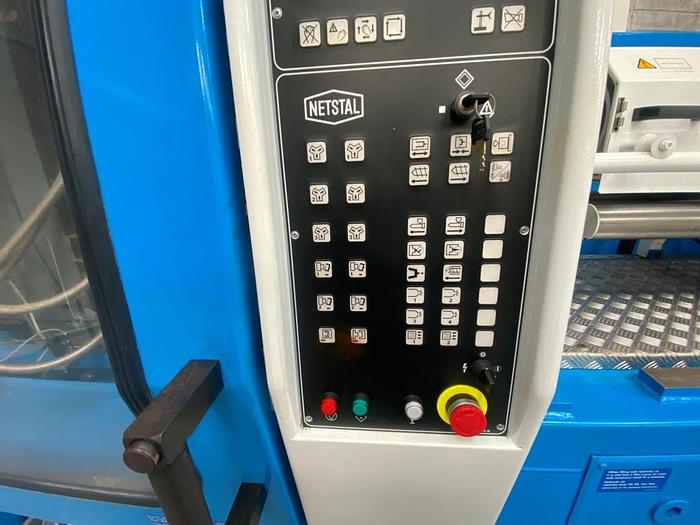

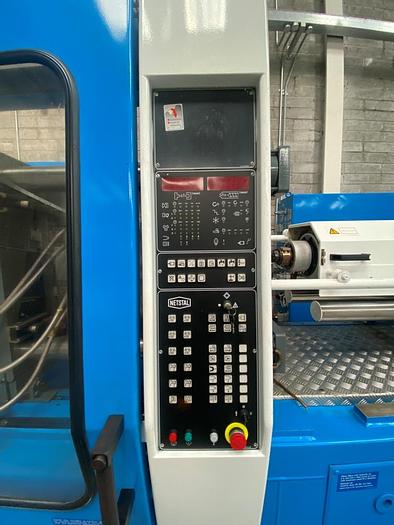

Control: Netstal Sycap Graphtrack

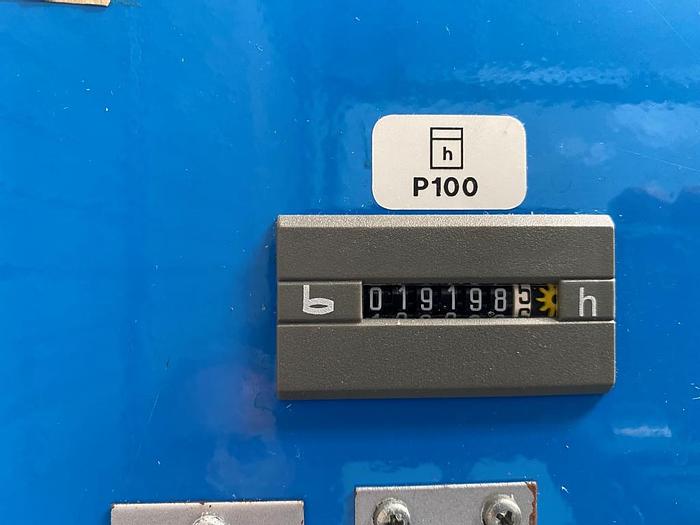

Hours: 19,198hrs
Condition: Excellent. Now decommissioned. Low Hours
Technical Details

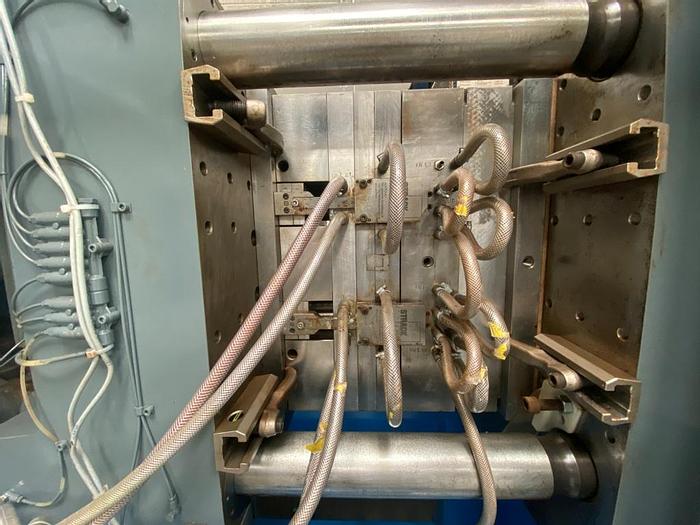

Clamping Force: 1750kN
Max Mould Height: 550mm
Min Mould Height: 250mm
Opening Stroke: 0-450mm
Opening Force: 412kN

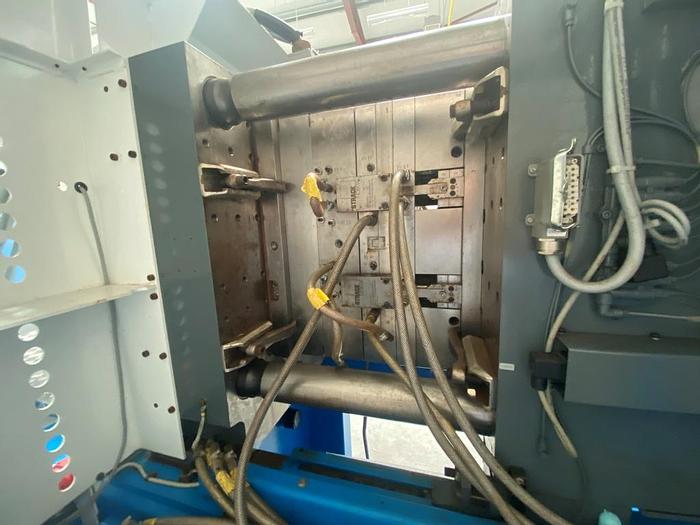

Distance Between Tie Bars: 510 x 510mm
Tie Bar Diameter: 85mm
Dry Cycle: 1.5sec

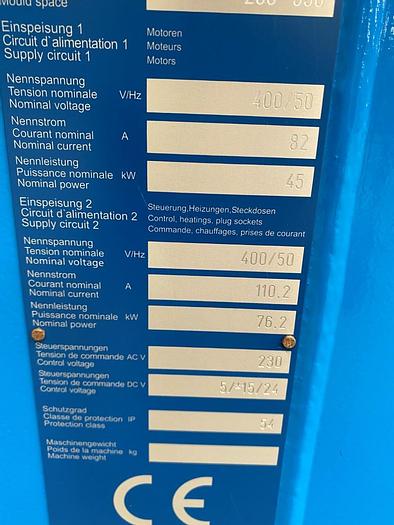

Drive Power: 45kW

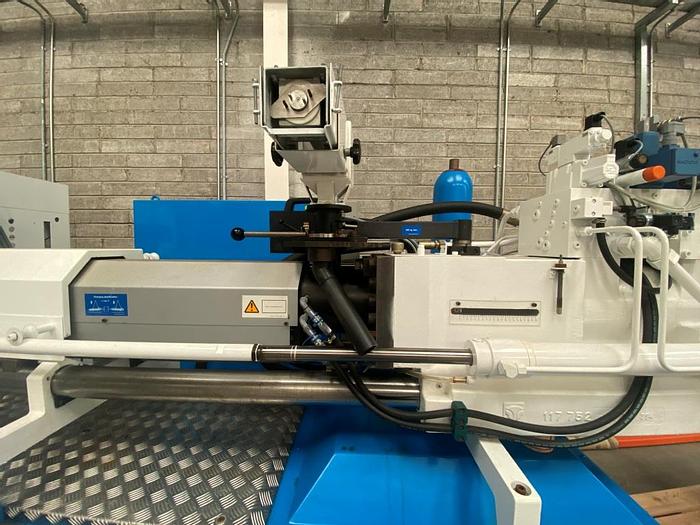

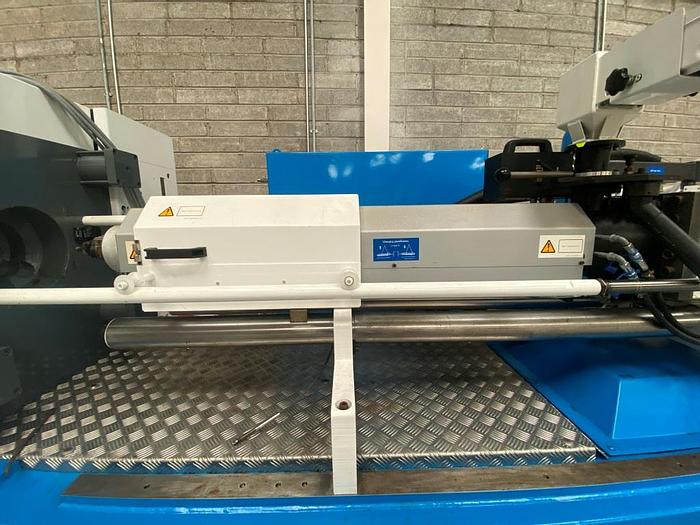

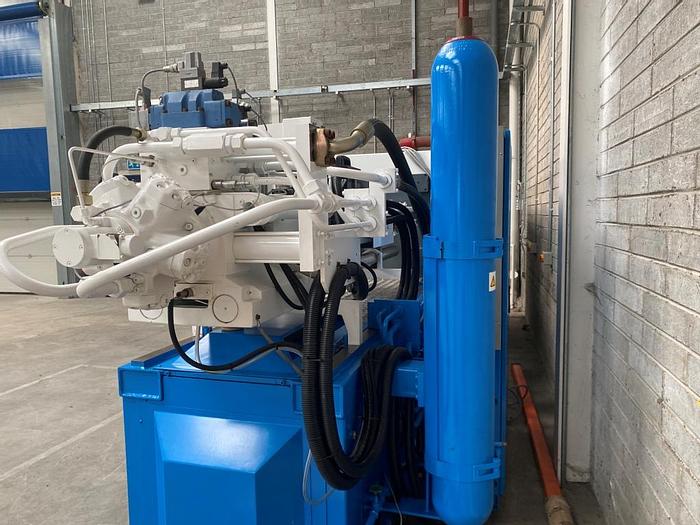

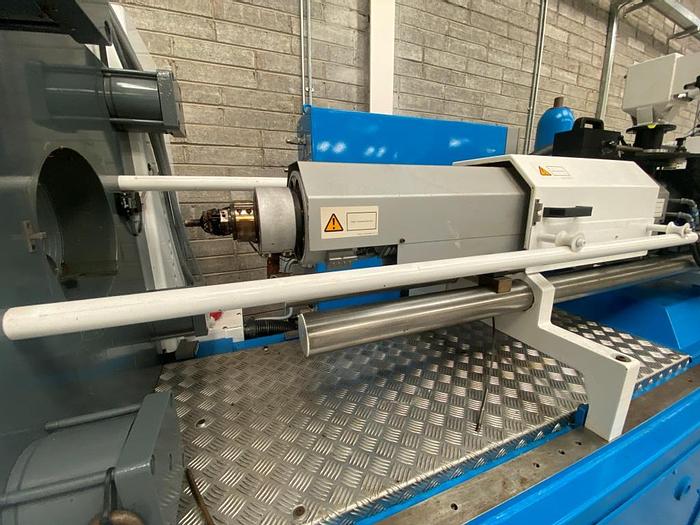

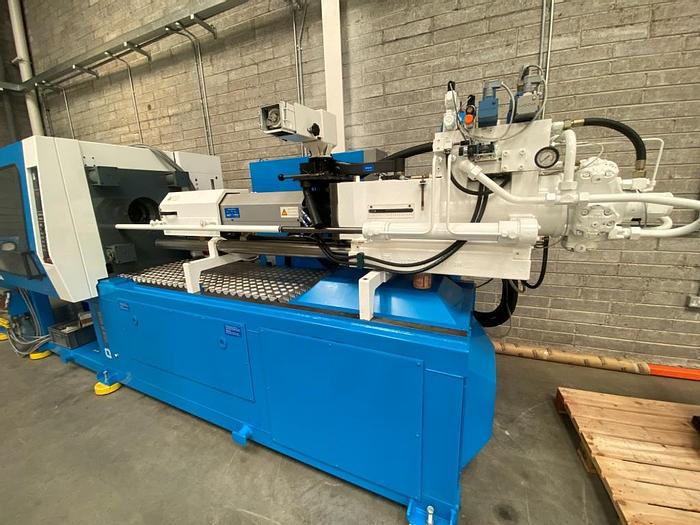

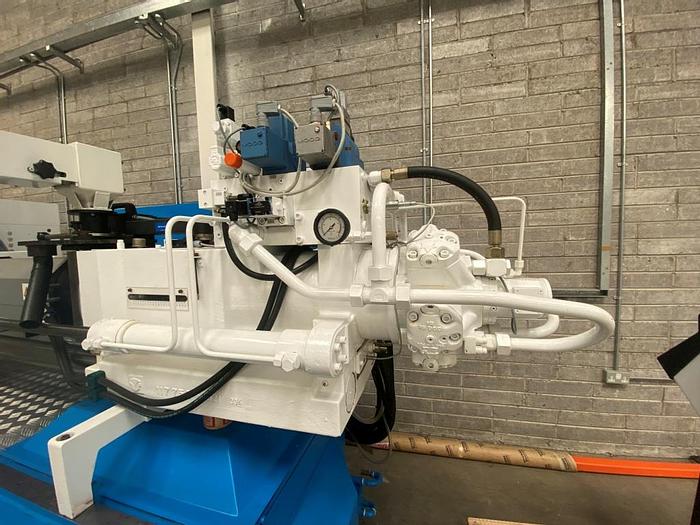

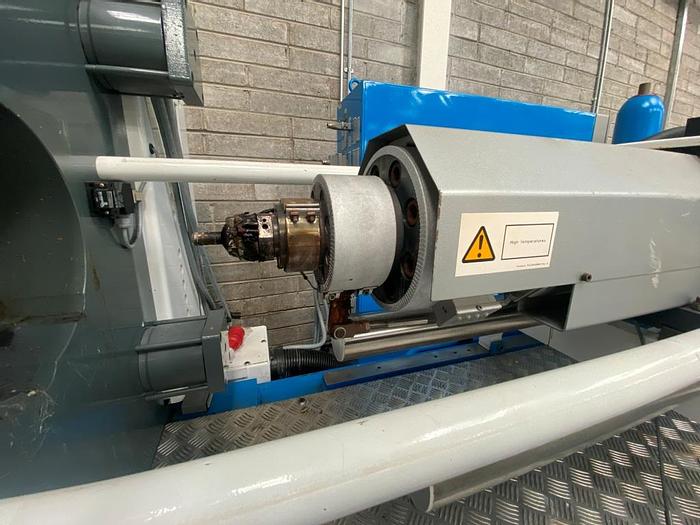

Injection Unit Type: 900
Screw Stroke: 200mm

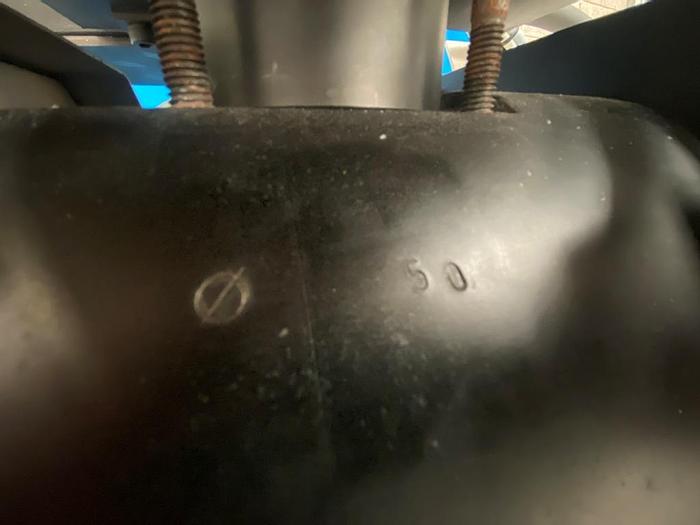

Screw Diameter: 50mm
Max Injection Volume: 393cm3
Max Shot Weight: 377gr
Injection Pressure: 2287bar
Max Injection Volume: 1963cm3/sec
Plasticizing Rate with PS: 48gr/sec
Max Screw Revs: 45rpm
Max Screw Torque: 1432Nm
Heating Capacity: 30.3kW
Nozzle Contact Force: 88kN
Oil Tank Capacity: 372L
Dimensions: 6.82 x 1.78 x 2.25m
Weight: 11,500kg
Specifications

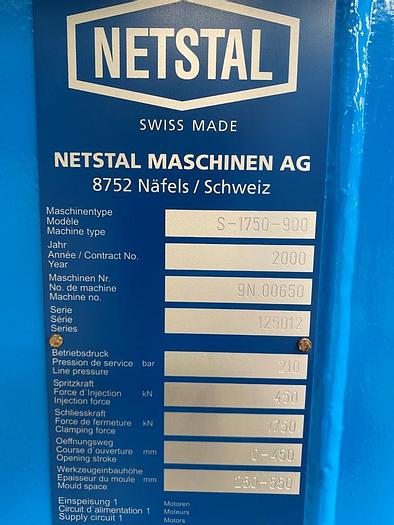

| Manufacturer | Netstal |
| Model | Synergy S-1750-900 Moulding Machine |
| Year | 2000 |
| Condition | Used |
| Year | 2000 |
| Control | Netstal Sycap Graphtrack |
| Hours | 19,198hrs |
| Clamping Force | 1750kN |
| Max Mould Height | 550mm |
| Min Mould Height | 250mm |
| Opening Stroke | 0-450mm |
| Opening Force | 412kN |
| Distance Between Tie Bars | 510 x 510mm |
| Tie Bar Diameter | 85mm |
| Dry Cycle | 1.5sec |
| Drive Power | 45kW |
| Injection Unit Type | 900 |
| Screw Stroke | 200mm |
| Screw Diameter | 50mm |
| Max Injection Volume | 393cm3 |
| Max Shot Weight | 377gr |
| Injection Pressure | 2287bar |
| Plasticizing Rate with PS | 48gr/sec |
| Max Screw Revs | 45rpm |
| Max Screw Torque | 1432Nm |
| Heating Capacity | 30.3kW |
| Nozzle Contact Force | 88kN |
| Oil Tank Capacity | 372L |
| Weight | 11,500kg |
