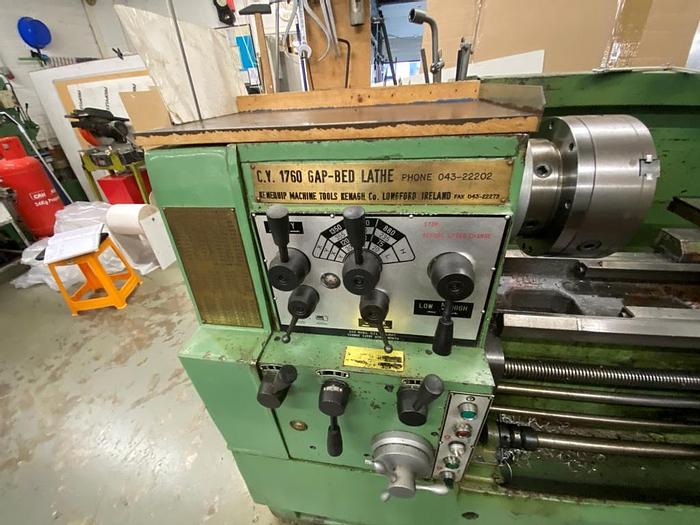

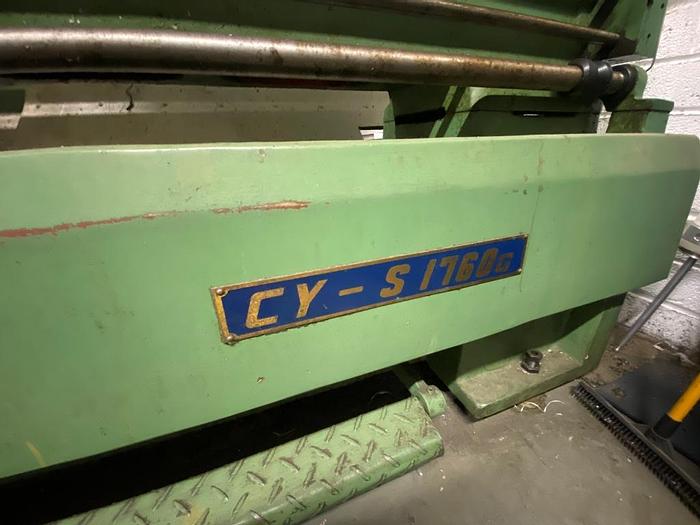

YMT(Yunnan Machine Tools) CY - S1760G Gap Bed Manual Center Lathe
Description
YMT (Yunnan Machine Tools) CY-S1760G Manual Gap Bed Center Lathe
Machine Type: Gap Bed Center Lathe
Condition: Very Good. No loading facilities on site
Includes

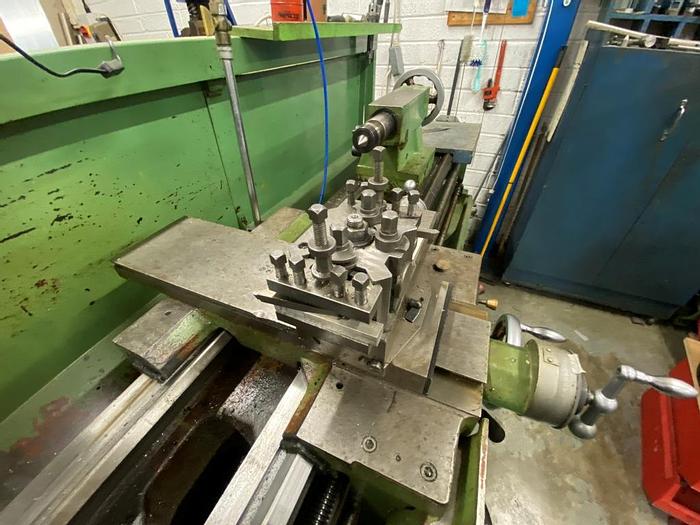

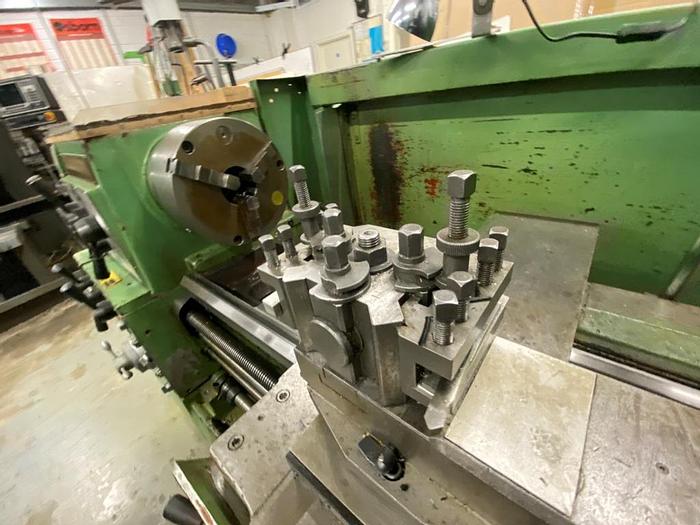

Quick Change Tool Post & Holders
Tailstock

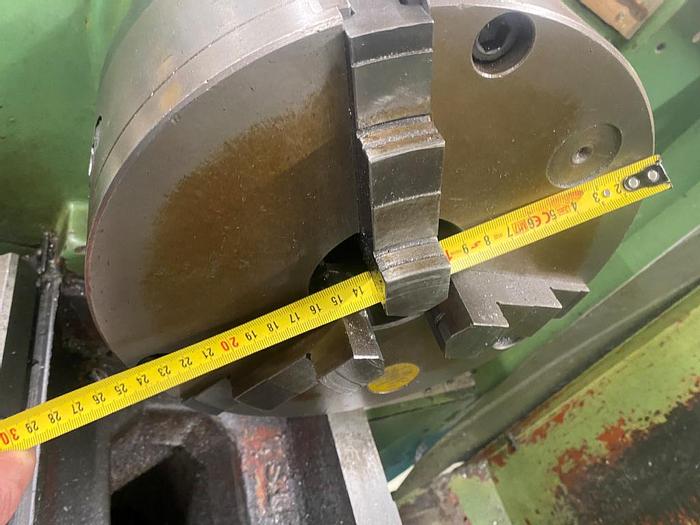

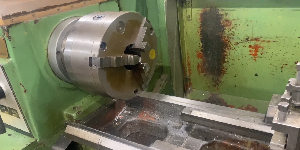

250mm 3 Jaw Self Centring Chuck

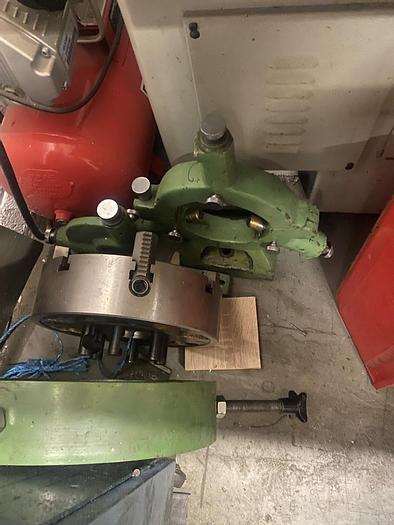

4 Jaw Chuck
Fixed Steady
Travelling Steady
Technical Specification

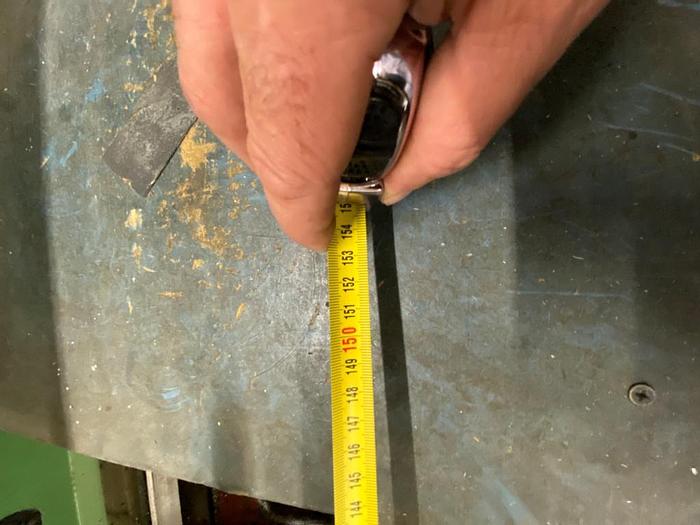

Distance Between Centers: 1500mm
Swing Over Bed: 425mm
Swing Over Cross-Slide: 240mm

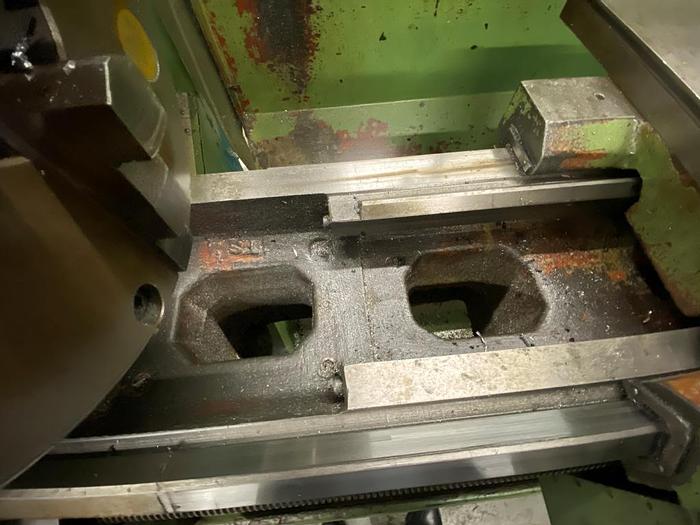

Swing in Gap: 650mm
Width of Gap: 275mm
Width of Bed: 300mm
Spindle Nose: D6

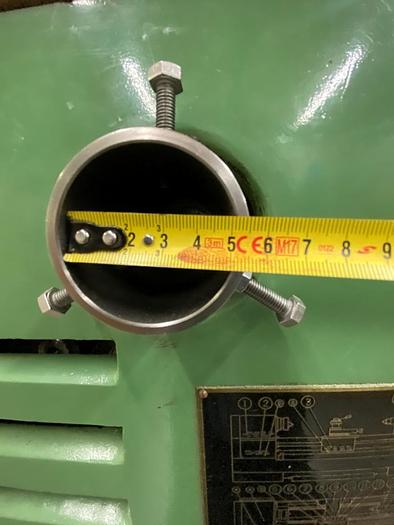

Spindle Bore Diameter: 50mm
Spindle Taper: 6MT

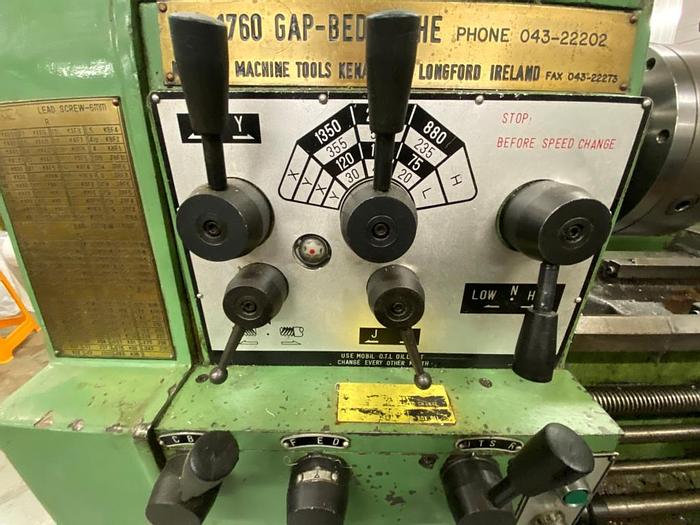

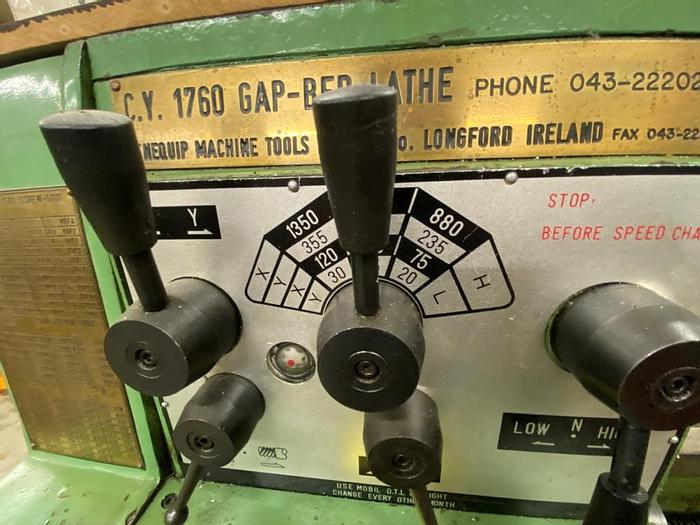

Spindle Speeds: 20-2000rpm
Imperial Threads: 2-56TPI
Metric Threads: 0.5-14mm
Longitudinal Feed: 0.06-0.82mm/rev
Cross Feed: 0.02-0.29mm/rev
Lead Screw Pitch: 4mm/4TPI
Tailstock Taper: 4MT
Tailstock Quill Travel: 127mm
Tailstock Quill Diameter: 58mm
Main Motor Power: 5.5kW
Coolant Pump Motor: 0.1kW
Machine Dimensions: 2880 x 1150 x 1700mm
Machine Weight: 1800kg
Specifications
| Manufacturer | YMT(Yunnan Machine Tools) |
| Model | CY - S1760G Gap Bed Manual Center Lathe |
| Condition | Used |
| Machine Type | Gap Bed Center Lathe |
| Distance Between Centers | 1500mm |
| Swing Over Bed | 425mm |
| Swing Over Cross-Slide | 240mm |
| Swing in Gap | 650mm |
| Width of Gap | 275mm |
| Width of Bed | 300mm |
| Spindle Nose | D6 |
| Spindle Bore Diameter | 50mm |
| Spindle Taper | 6MT |
| Spindle Speeds | 20-2000rpm |
| Imperial Threads | 2-56TPI |
| Metric Threads | 0.5-14mm |
| Longitudinal Feed | 0.06-0.82mm/rev |
| Cross Feed | 0.02-0.29mm/rev |
| Lead Screw Pitch | 4mm/4TPI |
| Tailstock Taper | 4MT |
| Tailstock Quill Travel | 127mm |
| Tailstock Quill Diameter | 58mm |
| Main Motor Power | 5.5kW |
| Coolant Pump Motor | 0.1kW |
| Machine Weight | 1800kg |
