€11,000 + VAT

2000 XYZ DPM CNC Toolroom Milling Machine

1

Ireland

orCall +353 838108745

Description

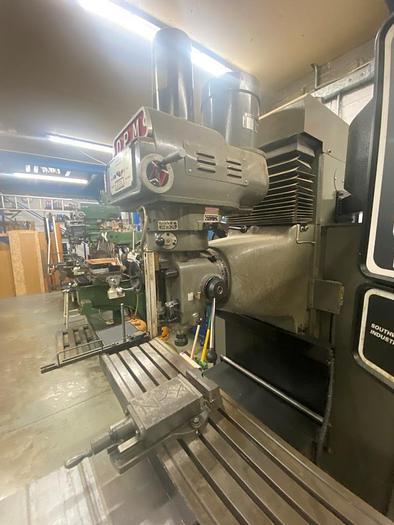

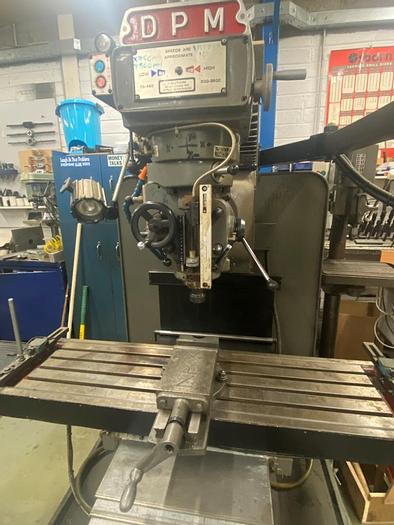

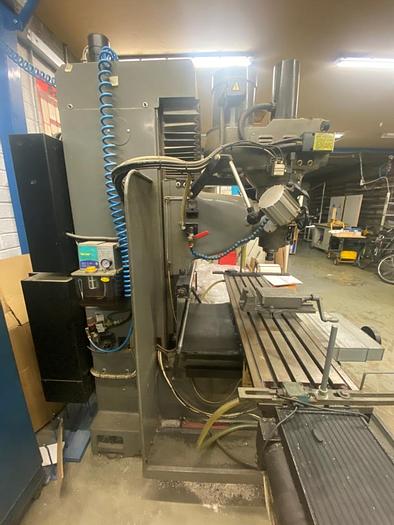

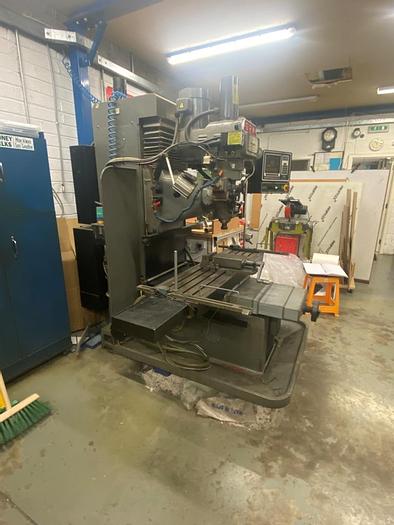

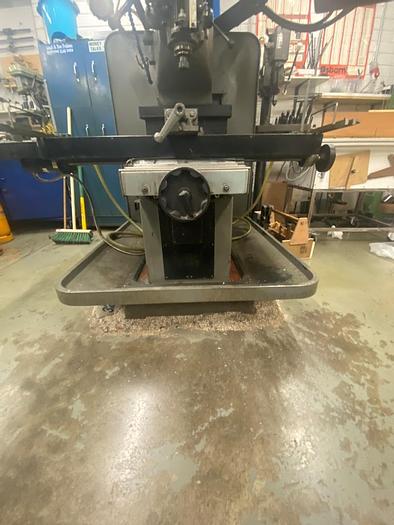

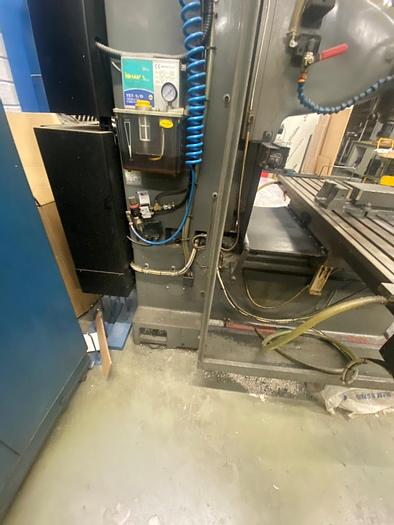

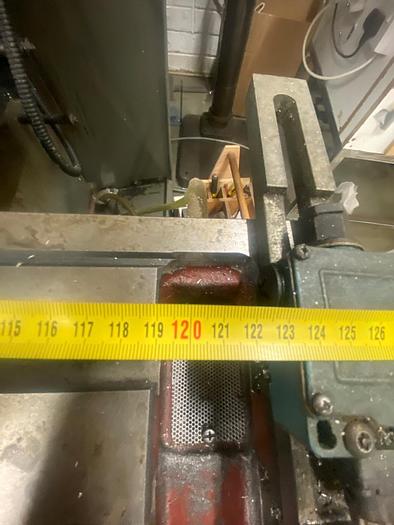

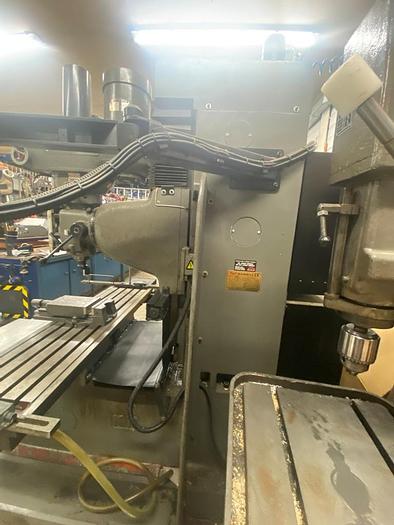

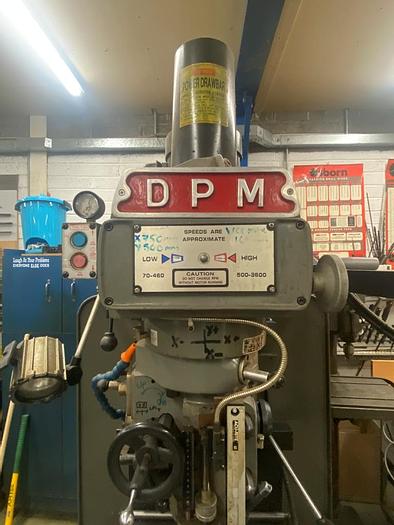

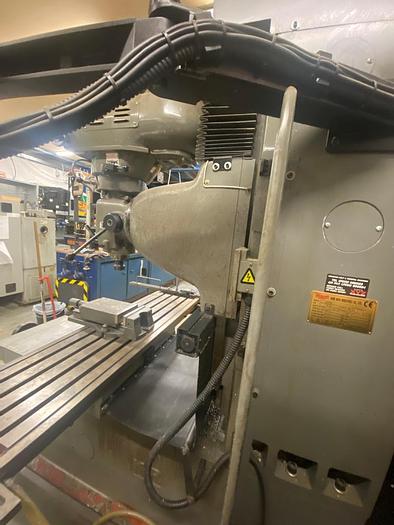

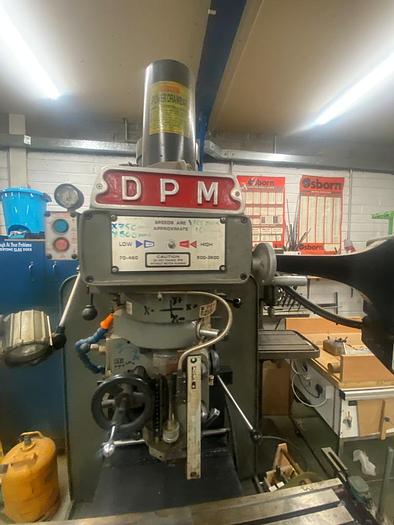

2000 XYZ DPM CNC Toolroom Milling Machine


Machine Type: 3 Axis CNC Toolroom Milling Machine

Year: 2000

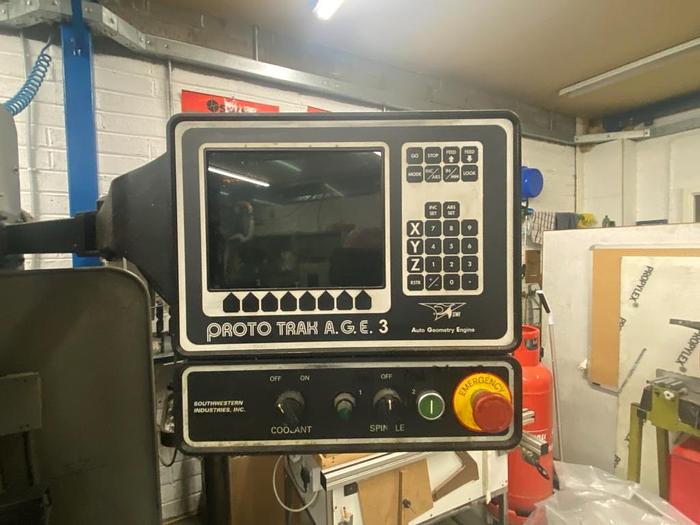

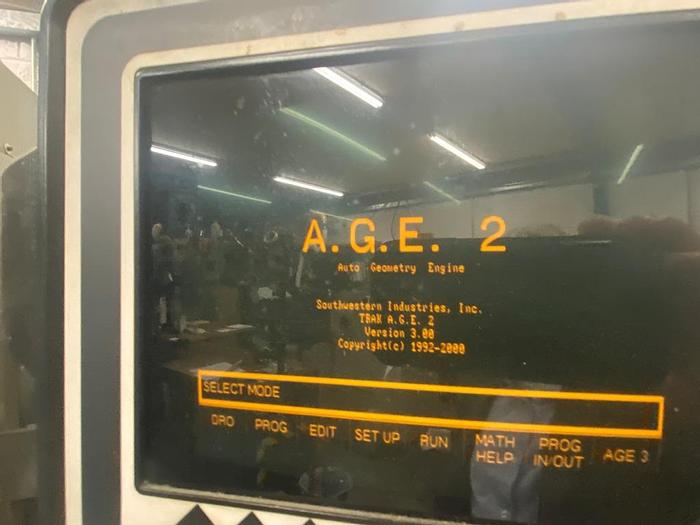

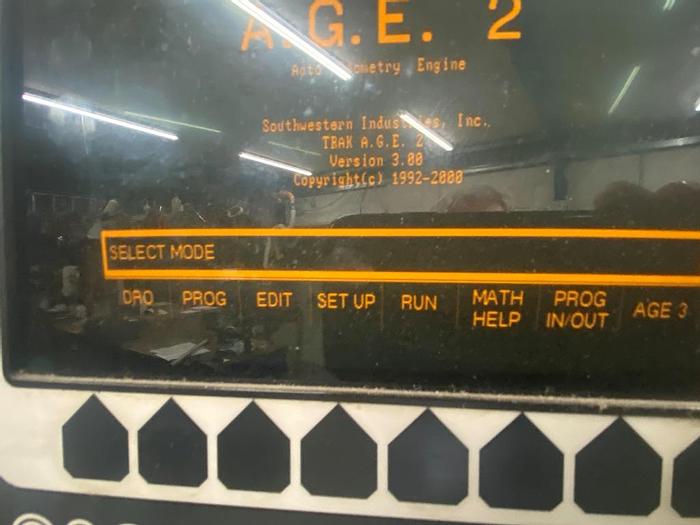

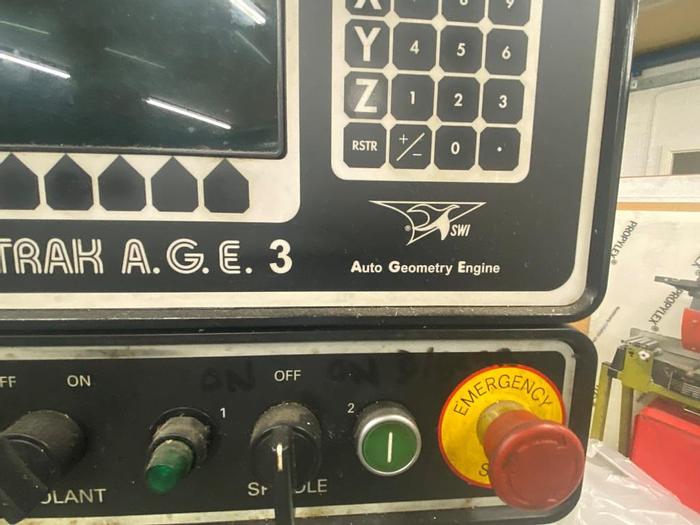

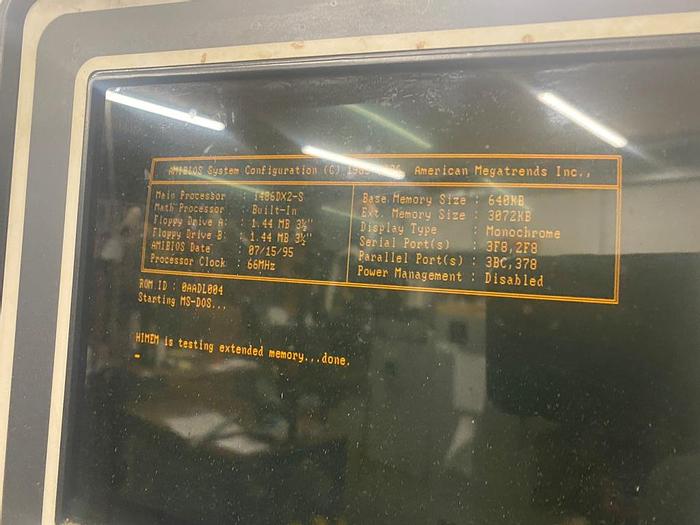

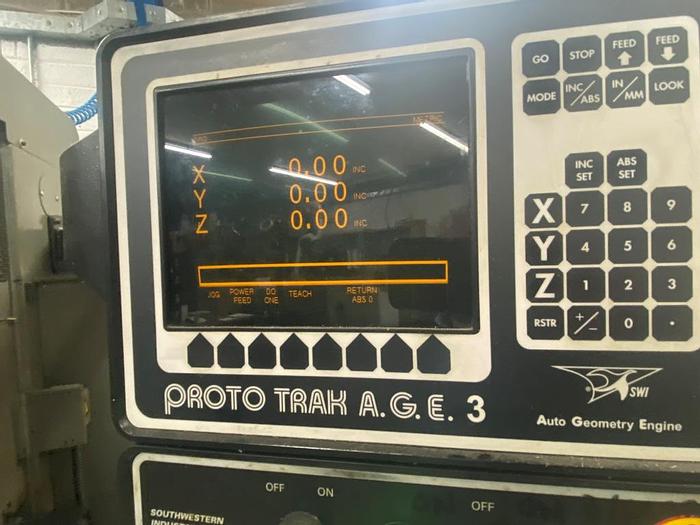

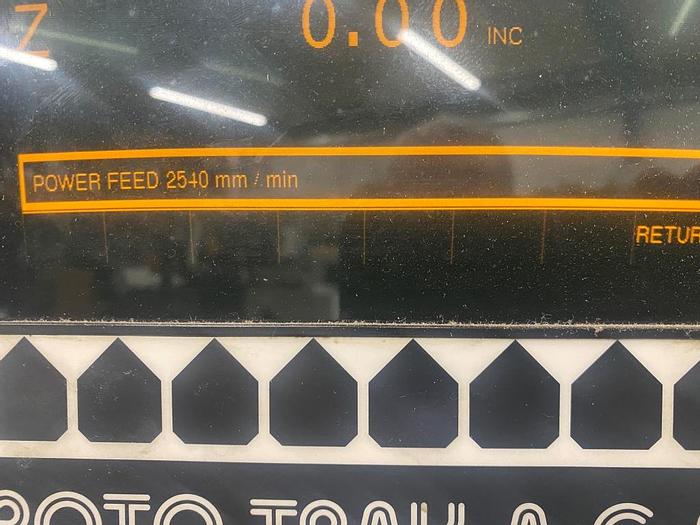

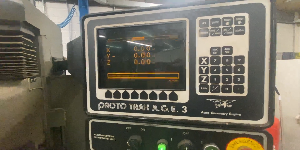

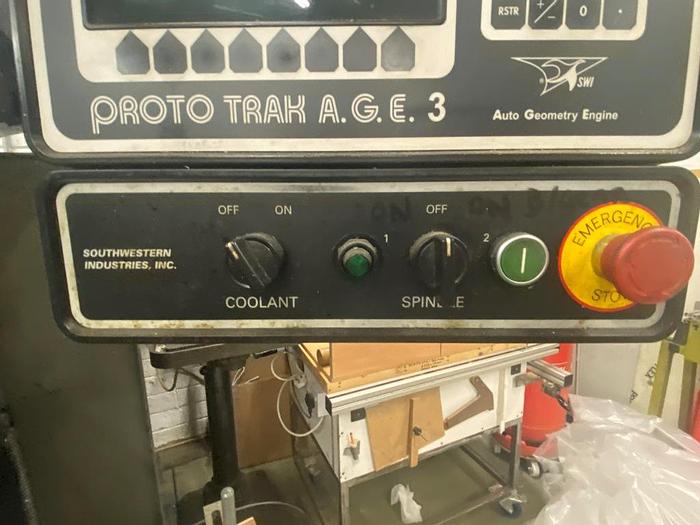

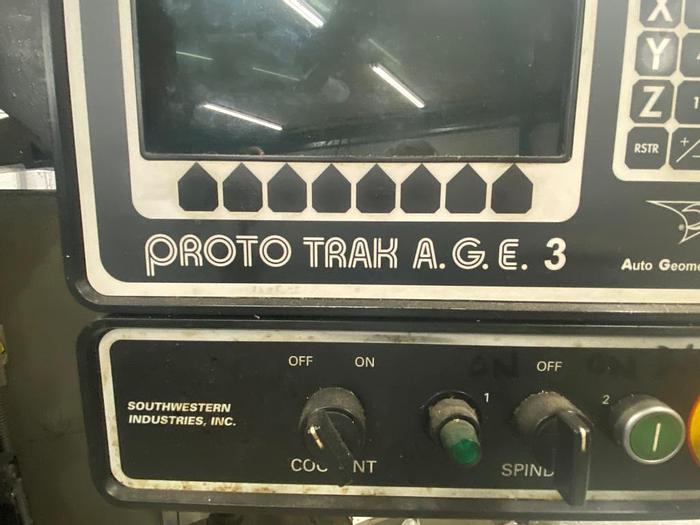

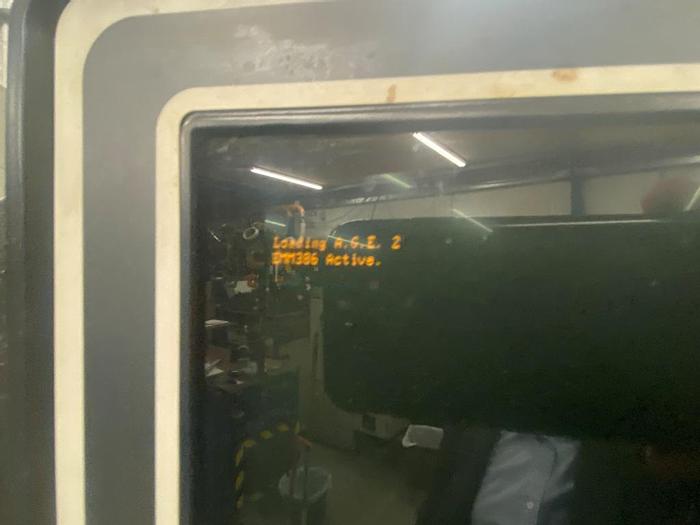

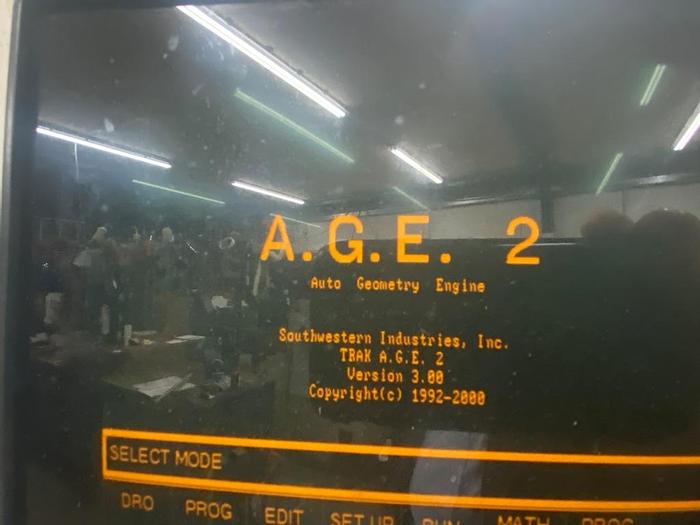

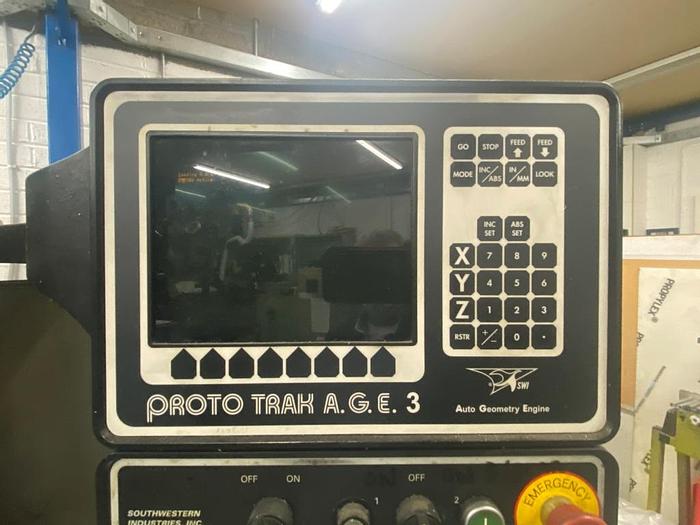

Control: Proto Trak A.G.E. 3

Condition: Machine in very good condition

Notes: No Loading Facilities on Site


Includes:

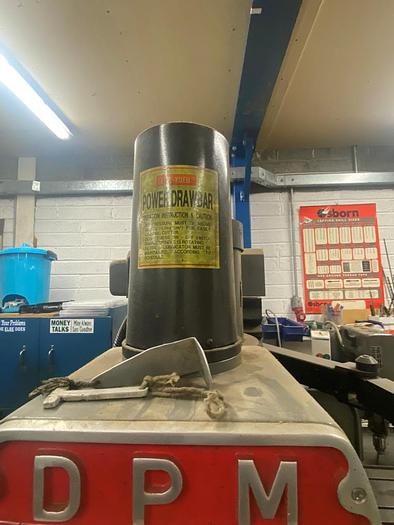

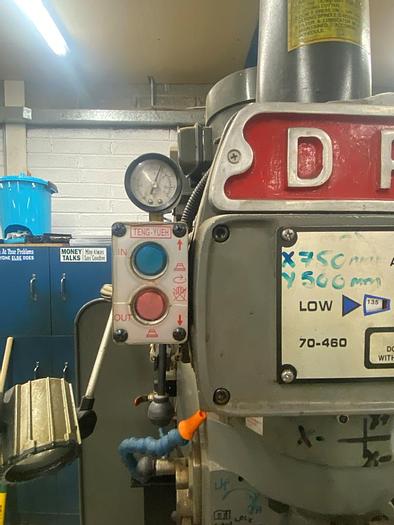

Pneumatic Drawbar

Pneumatic Spindle Brake

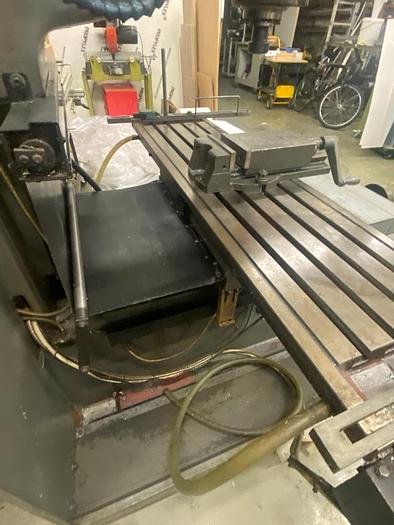

Machine Vice

Collets

Coolant Equipment

Machine Manuals


Technical Specification

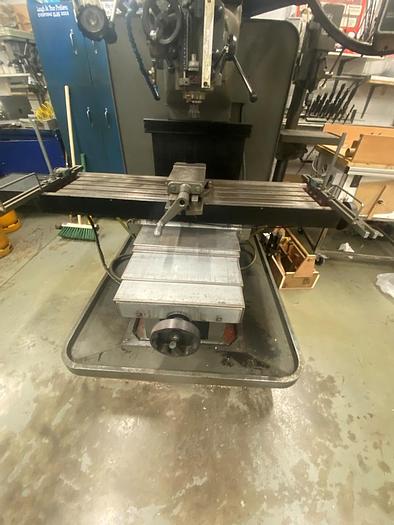

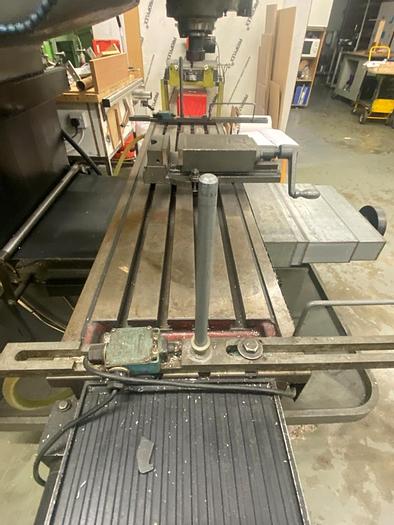

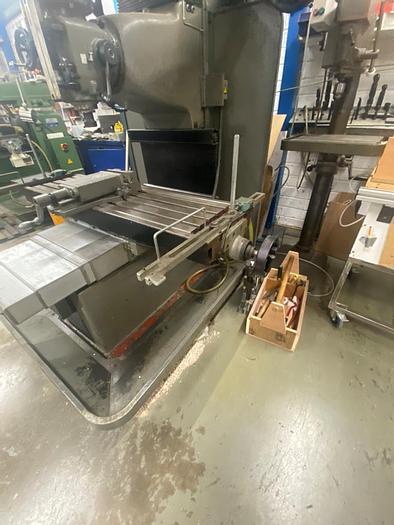

Table Size: 1370 x 355mm

Spindle Taper: ISO 40

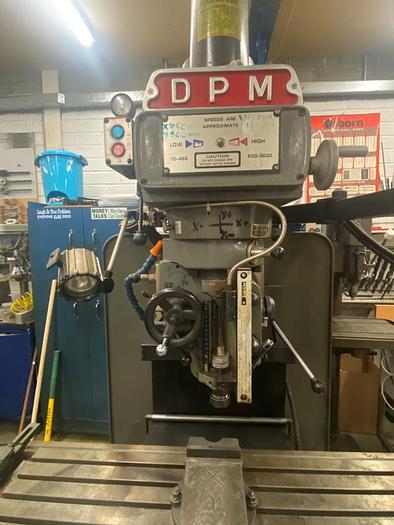

Spindle Speeds: 70-3600rpm

X Axis Travel: 785mm

Y Axis Travel: 508mm

Z Axis Travel: 585mm

Quill Travel: 127mm

Throat Depth: 530mm

Spindle Nose to Table: 125 to 620mm

Max Table Load: 450kg

Head Tilting Range: 45 Degrees Left/Right

Spindle Motor: 5HP

Power Connection: 415V/3PH/50Hz



Specifications

ManufacturerXYZ
ModelDPM CNC Toolroom Milling Machine
Year2000
ConditionUsed

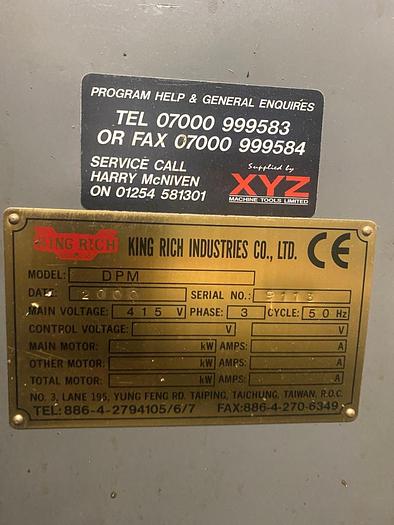

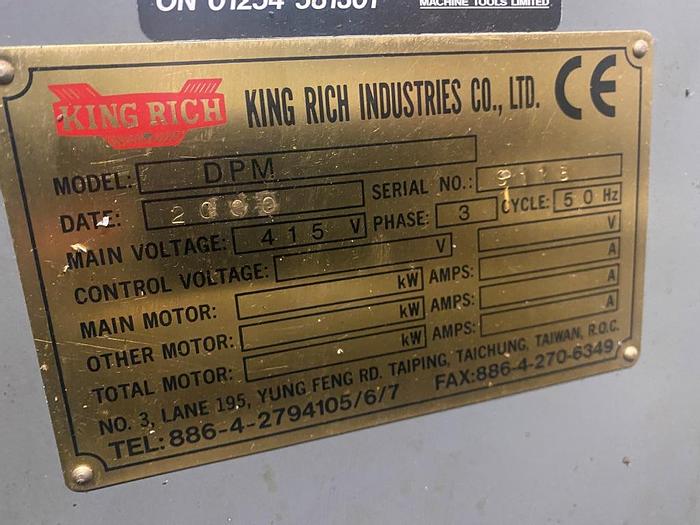

Serial Number9173
Year2000
ControlProto Trak A.G.E. 3
Table Size1370 x 355mm
Spindle TaperISO 40
Spindle Speeds70-3600rpm
X Axis Travel785mm
Y Axis Travel508mm
Z Axis Travel585mm
Quill Travel127mm
Throat Depth530mm
Spindle Nose to Table125 to 620mm
Max Table Load450kg
Head Tilting Range45 Degrees Left/Right
Spindle Motor5HP
Power Connection415V/3PH/50Hz
