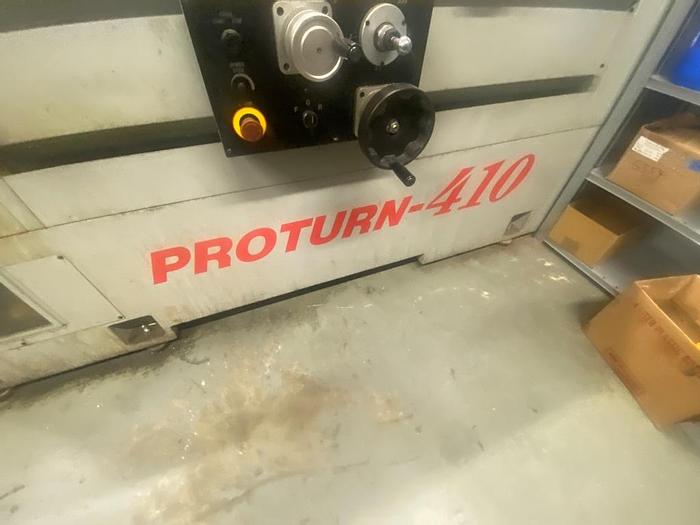

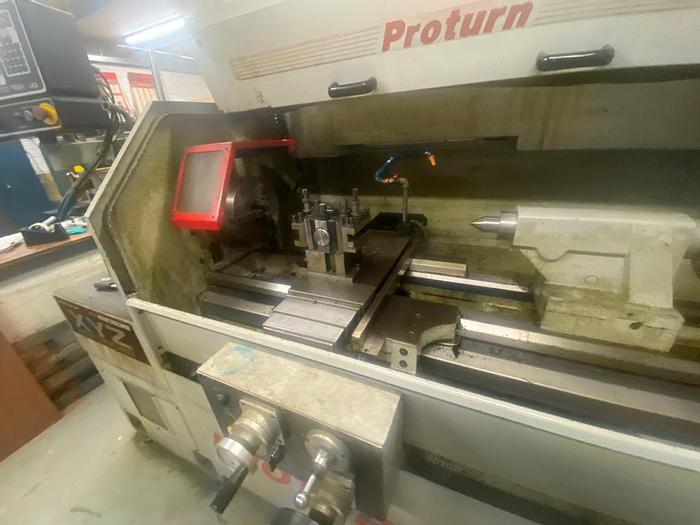

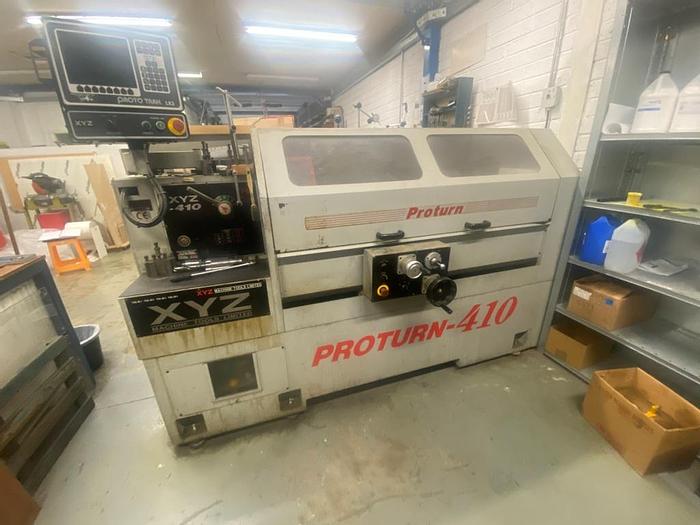

2000 XYZ Proturn 410 CNC Lathe
Sold
Description
2000 XYZ Proturn 410 CNC Lathe
Machine Type: Manual/CNC Lathe
Year: 2000

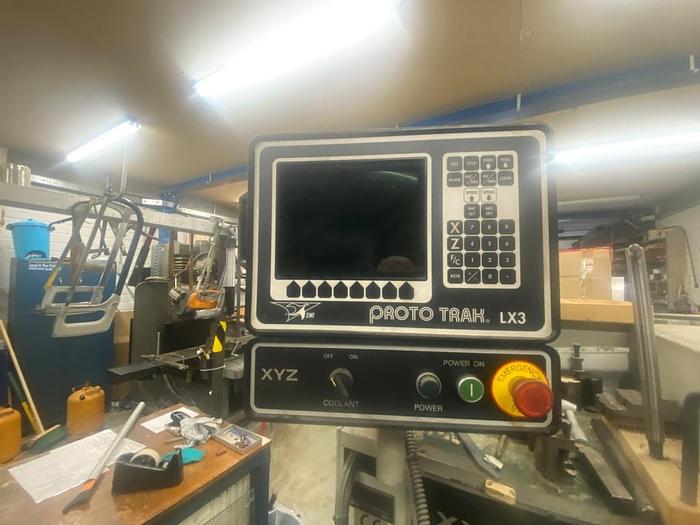

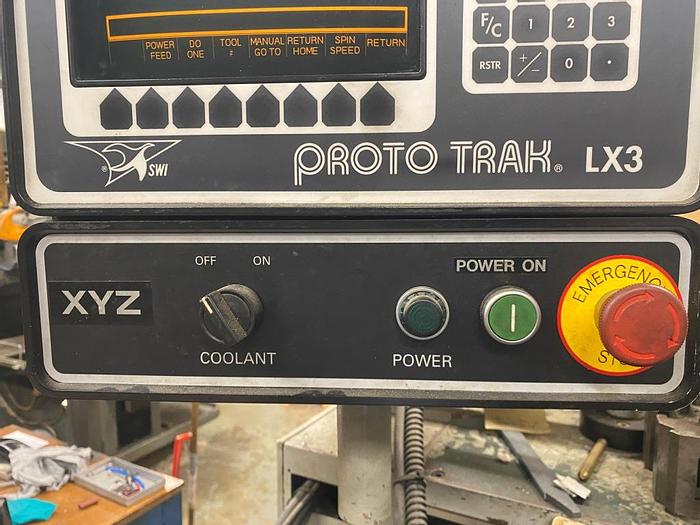

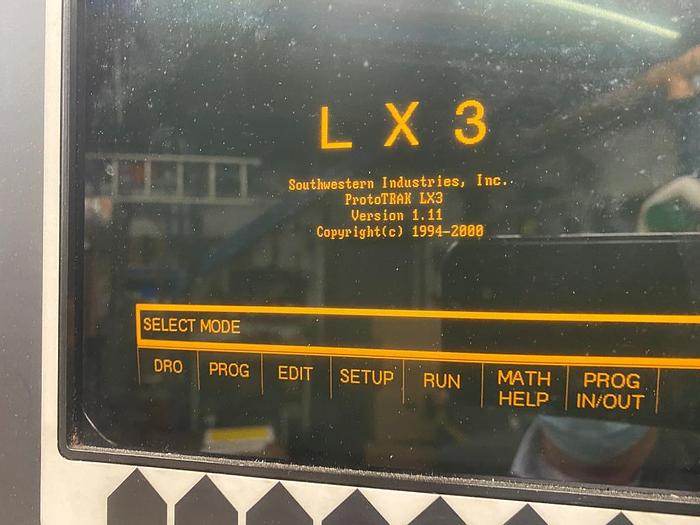

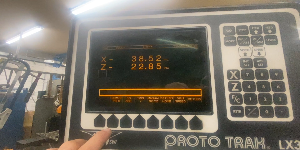

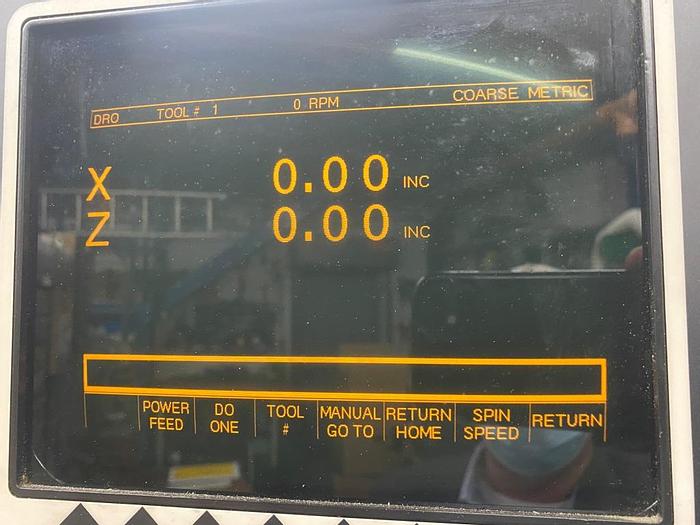

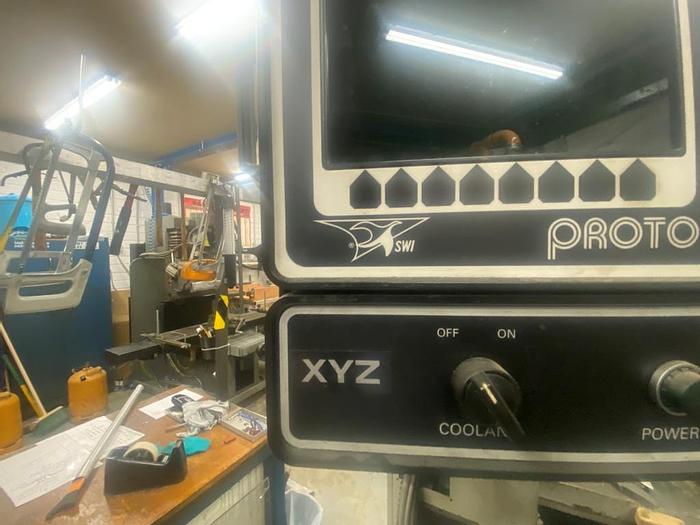

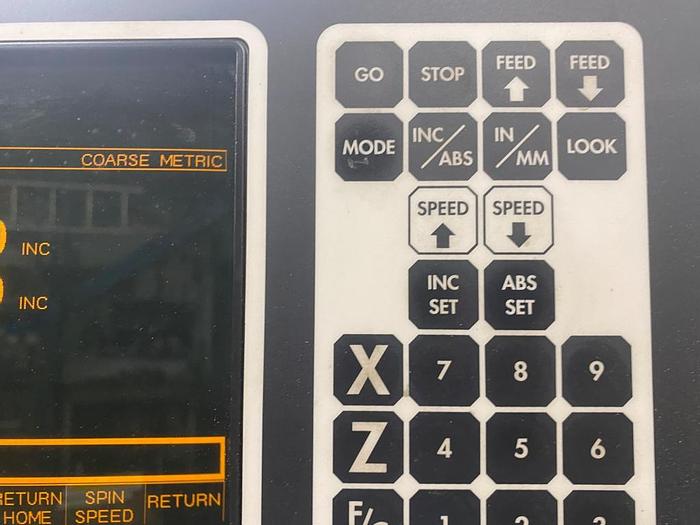

Control: XYZ Proto Trak LX3
Condition: Machine in Very Good Condition
Notes: No Loading Facilities on Site
Includes

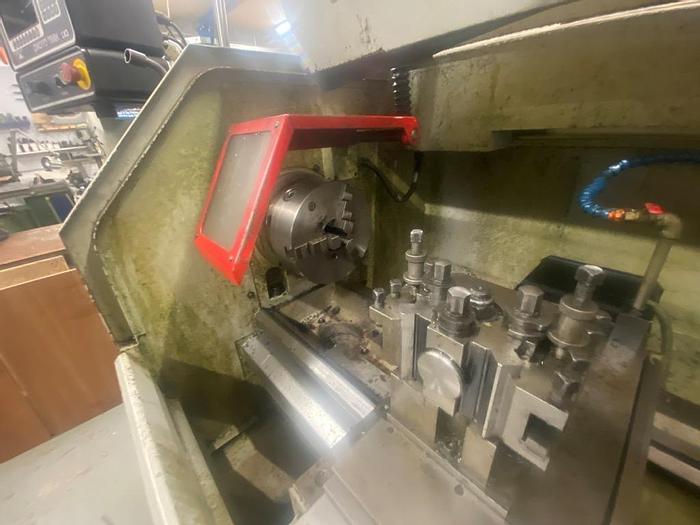

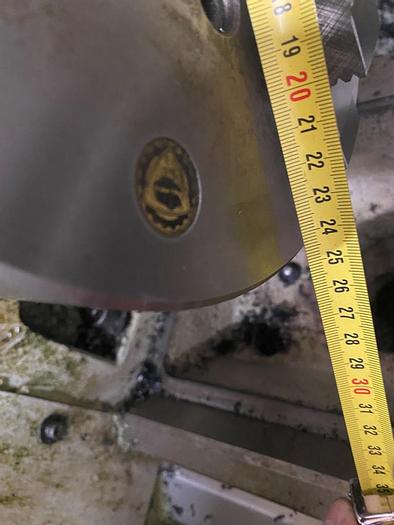

250mm 3 Jaw Chuck

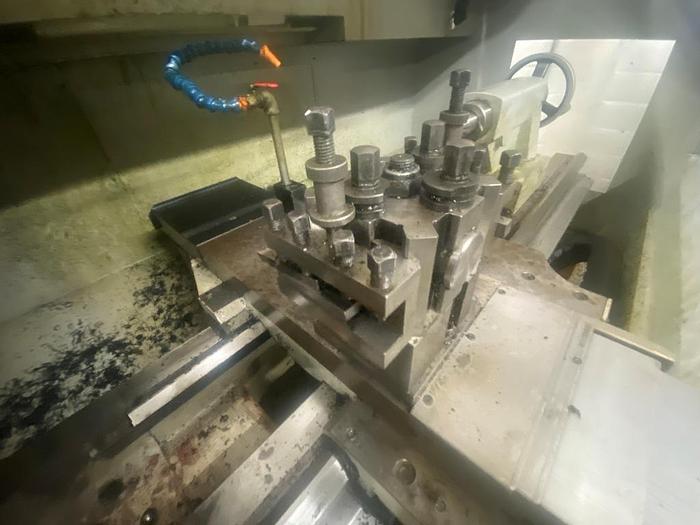

QCTP & Tool Holders
Coolant Equipment

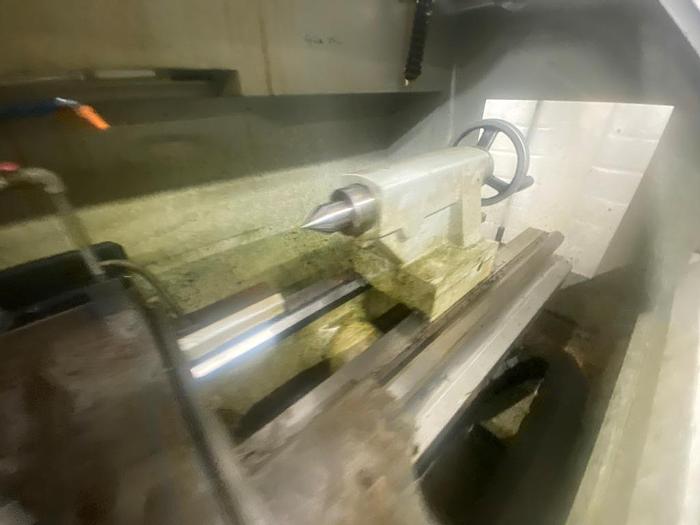

Manual Tailstock
Manuals
Technical Details
Number of Controlled Axes: 2
Chuck Size: 250mm

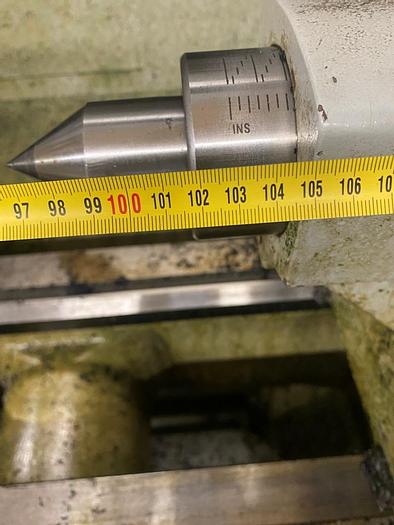

Distance Between Centres: 1000mm
Turning Diameter: 410mm
Swing in Gap: 730mm
Swing over Saddle: 470mm
Swing over Cross-Slide: 290mm

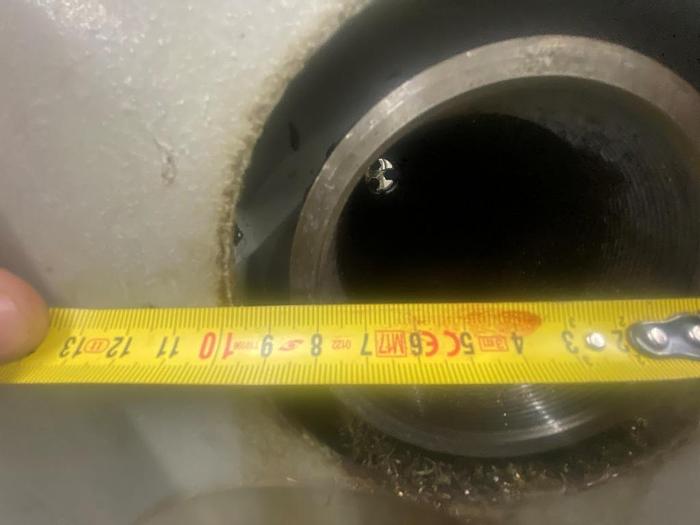

Spindle Bore: 80mm
Tool Post: Quick Change Tool Post
Tool Holders: Quick Change Tool Holders
Tailstock: Manual

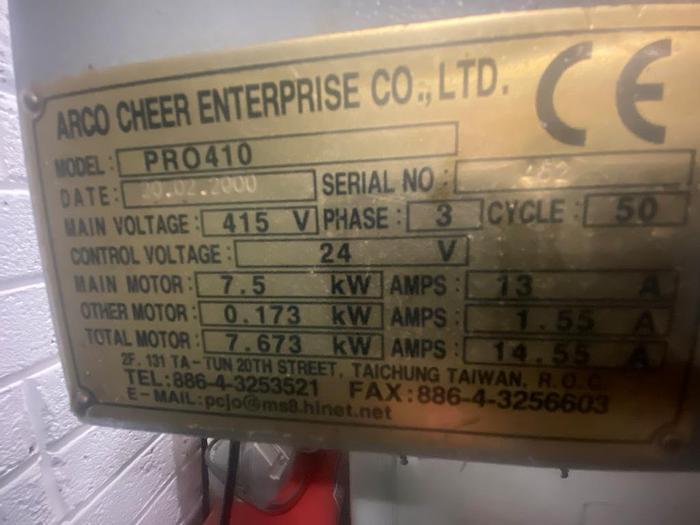

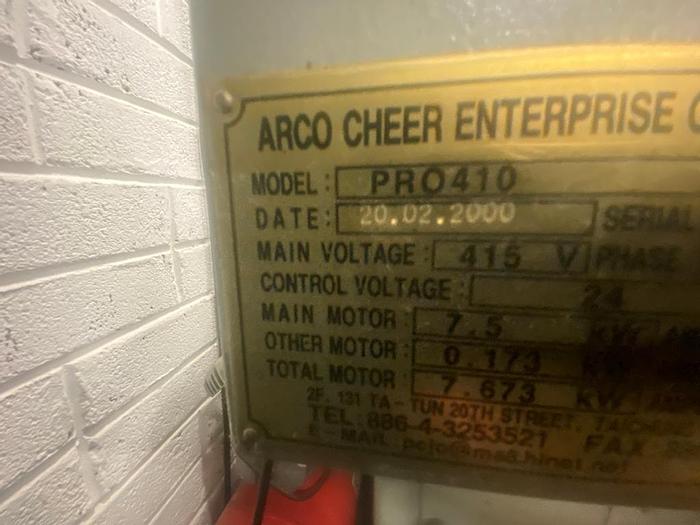

Spindle Motor Power: 7.5kW
Total Power Requirement: 7.673kW
Connection: 415V/3PH/50Hz
Specifications
| Manufacturer | XYZ |
| Model | Proturn 410 CNC Lathe |
| Year | 2000 |
| Condition | Used |
| Serial Number | 482 |
| Machine Type | Manual/CNC Lathe |
| Year | 2000 |
| Control | XYZ Proto Trak LX3 |
| Condition | Machine in Very Good Condition |
| Number of Controlled Axes | 2 |
| Chuck Size | 250mm |
| Distance Between Centres | 1000mm |
| Turning Diameter | 410mm |
| Swing in Gap | 730mm |
| Swing over Saddle | 470mm |
| Swing over Cross-Slide | 290mm |
| Spindle Bore | 80mm |
| Tool Post | Quick Change Tool Post |
| Tool Holders | Quick Change Tool Holders |
| Tailstock | Manual |
| Spindle Motor Power | 7.5kW |
| Total Power Requirement | 7.673kW |
| Connection | 415V/3PH/50Hz |
