Alfra GmbH Rotabest RB 80 B R/L-E Magnetic Core Drill

5

Germany

orCall +353 838108745

Description

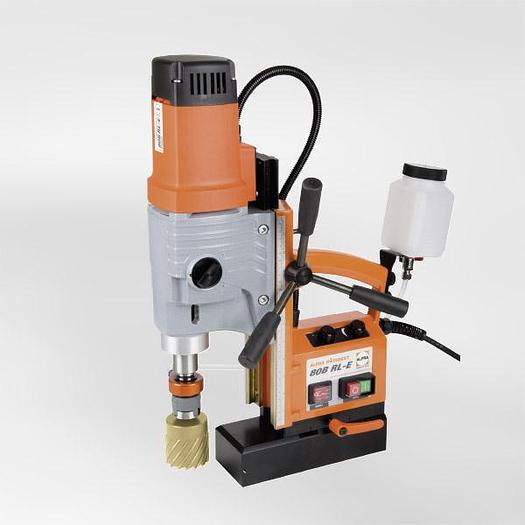

Alfra Rotabest RB 80 B RL-E Magnetic Core Drill


Type: Magnetic Core Drill

Product No: 18629

Power: 230V (also available in 110V)

Magnet: Electromagnet


Drill Description

Robust meets versatile - our devices, belonging to the Alfra basic line with right/left run function are combining all performance features of efficient metal core drilling with user friendliness and additional application possibilities. Metalworkers will soon no longer want to do without the RB 80 B RLE as a perfect tool for core drilling, tapping, countersinking and spiral drilling. This high-performance device can be combined with core drills up to a diameter of 80 mm, with step drills up to a diameter of 55 mm and with twist drills up to a diameter of 32 mm. With a tap you can cut threads for screws up to M30 (using a thread cutting device). We recommend using a tapping chuck for screws up to M 30. The RB 80 B RLE is based on the principle 'everything at a glance'. The clear operating concept is virtually self-explanatory. Mistakes or application errors are almost impossible.


Technical Specifications:

Core drill dimensions: Ø 12.0 - 80.0 mm / Ø 20.0 - 50.0 mm (Cutting Depth: 110 mm)

Cutting depth: 50.0 mm / 110.0 mm

Twist drill: Ø 1.0 - 16.0 mm with drill chuck up to Ø 32.0 mm with MT3 DIN 345

Counterboring: Ø 10,0 - 55,0 mm

Tapping: with taping chuck/tapping attachment: up to M30

Arbor: MT3

Stroke: 190 mm

Height adjustment: 60 mm

Gearbox – on-load speed: right/left 1. Step 50 - 110 rpm 2. Step 75 - 175 rpm 3. Step 105 - 245 rpm 4. Step 165 - 385 rpm

Power consumption: 1,800 W

Voltage: 230 V 50/60 Hz 110 V 50/60 Hz

Magnetic holding force: 22,000 N

Tool-Force (10 mm): 2,500 N

Min. material thickness: 10 mm

Magnetic base: 92 x 238 mm (30° adjustable right and left,10 mm front and back)

Weight: 22.0 kg


Features:


Motor

Smooth Start

Right/left run

Overload protection


Gearboxes

Oil bath gearbox

Mechanical slipping clutch



Slide

Stepless adjustment

Self-adjusting guide



Operation

Soft-touch grips

Cord length 5 m



Magnet

Electromagnet



Specifications

ManufacturerAlfra GmbH
ModelRotabest RB 80 B R/L-E Magnetic Core Drill
ConditionNew
TypeMagnetic Core Drill
Product No18629
MagnetElectromagnet
ArborMT3
Stroke190 mm
Height adjustment60 mm
Power consumption1,800 W
Magnetic holding force22,000 N
Tool-Force (10 mm)2,500 N
Min. material thickness10 mm
Magnetic base94 x 255 mm
Weight22.0 kg
