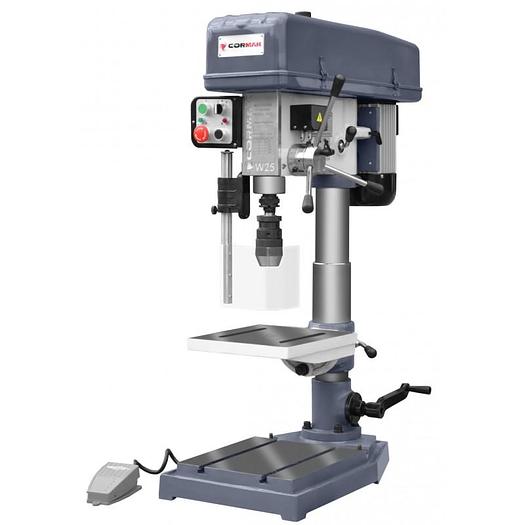

Cormak W25 Bench Mounted Drilling Machine

Cormak W25 Bench Mounted Drilling Machine

Power: 3ph/400V

Machine Description

General purpose drilling machine, for reaming, boring, tapping and drilling. Equipped with a swivel, rotary table and a self-gripping drilling chuck.

Includes

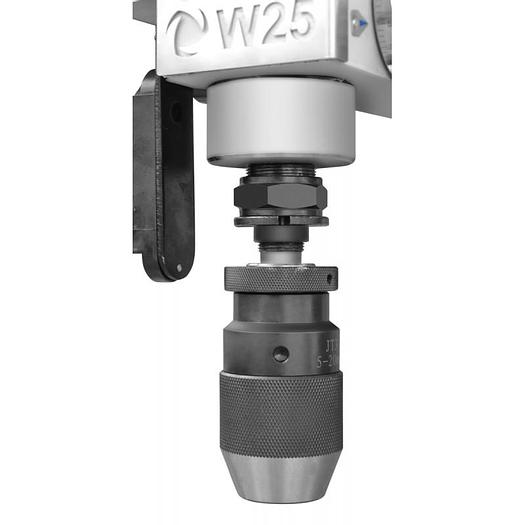

B22 5-20 mm self-tightening drilling chuck

MT3 drilling chuck mandrel

Machine Features

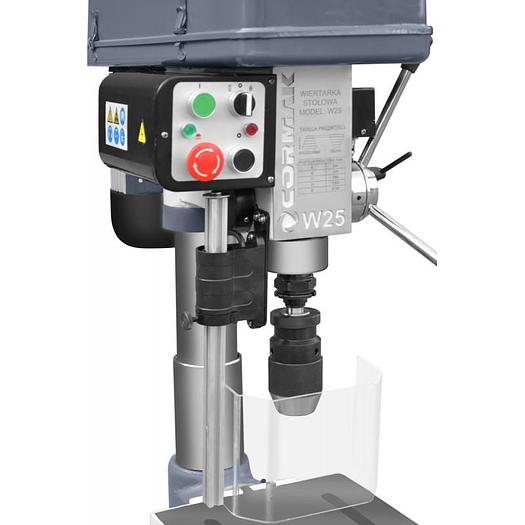

Tapping function

Automatic spindle rotation direction during tapping

Manual rotation direction change with a hand lever

High spindle rigidity

Capability of setting required drilling/tapping depth

Power transmitted through a belt drive

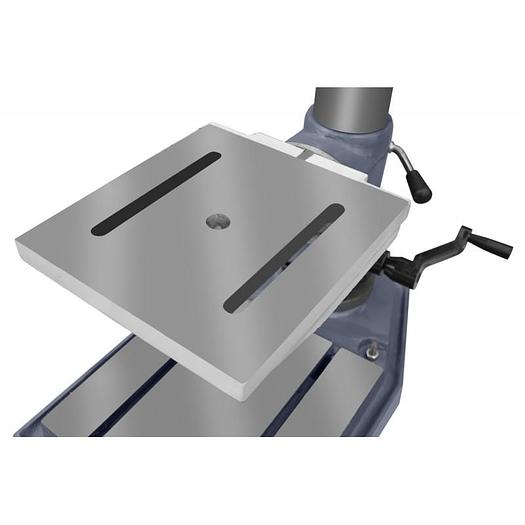

Worktable with adjustable height, from -45 to +45 degrees swiveling, with 360 degrees rotation around column

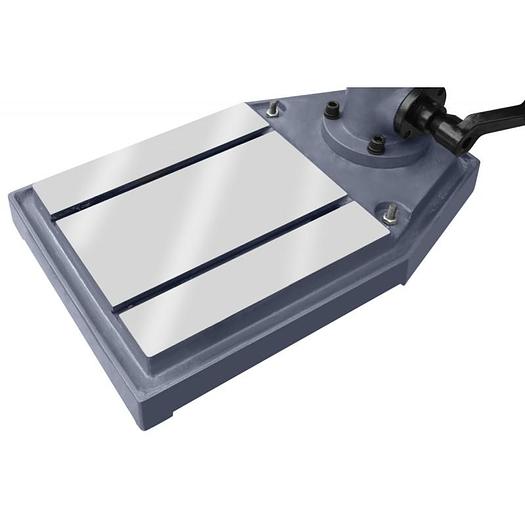

Base equipped with 14 mm wide T-slots

Belt drive guard equipped with limit safety switch

Technical Specification

Maximum drilling depth: 25 mm

Maximum spindle quill extension: 125 mm

Spindle taper: MT3

Spindle speeds: 290, 420, 740, 1260, 2150 rpm

Spindle axis from column distance: 240 mm

Table dimensions: 280x300 mm

Base dimensions: 590x375 mm

Maximum spindle tip from table distance: 367 mm

Maximum spindle tip from base distance: 630 mm

Worktable horizontal axis rotation range: ±45°

Worktable vertical axis rotation range: 360°

Motor power: 1100 W

Weight: 165 kg
