€210 + VAT

Cormak QH125 x 100mm Machine Vice

10

Poland

orCall +353 838108745

Description

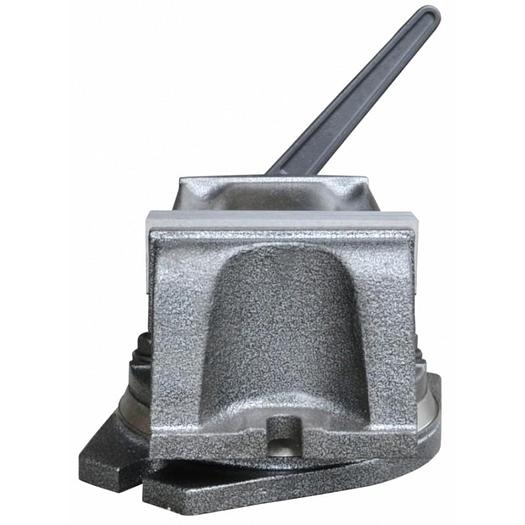

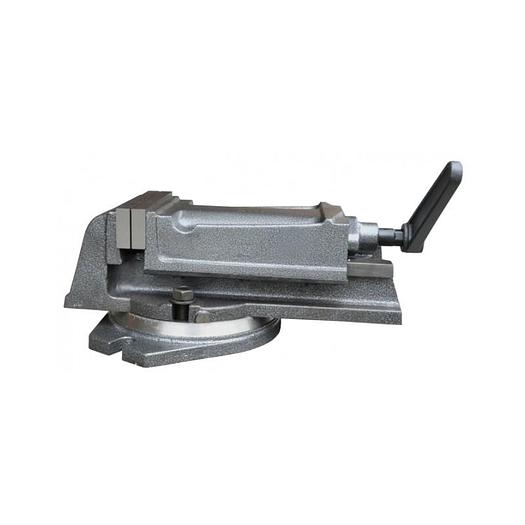

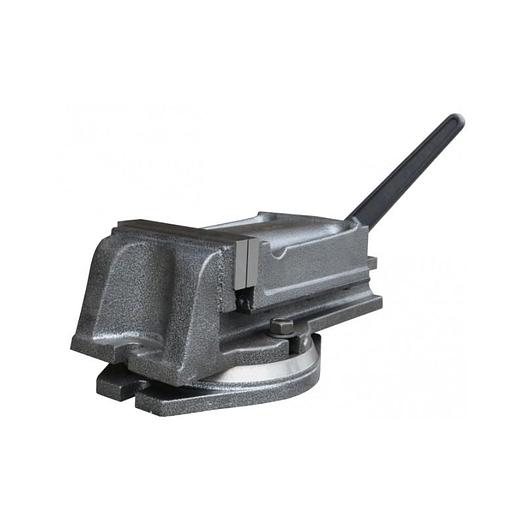

Cormak QH125 x 100mm Machine Vice


Vice Description

The machine vice is made of cast iron with smooth, hardened and ground jaw blocks. A swivel vice graduated 360 Deg. Cast iron rotary QH machine vice, useful while working with grinding, milling, drilling and planing machines, etc.

Made of high-quality cast iron

Equipped with swivel base with 360o pitch, 1o gradation

Body, along with the moving jaw, is made of high-quality cast iron

Top side of the lead screw secured from dirt and chips

Possible disassembly of the swivel base

While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy parameters specified in the technical documentation

Technical Specification

Jaws Width: 125 mm Jaw Height: 40mm Max Opening: 100 mm Swivel Base: 360°

Clamping Force: 2500kg Weight: 16kg

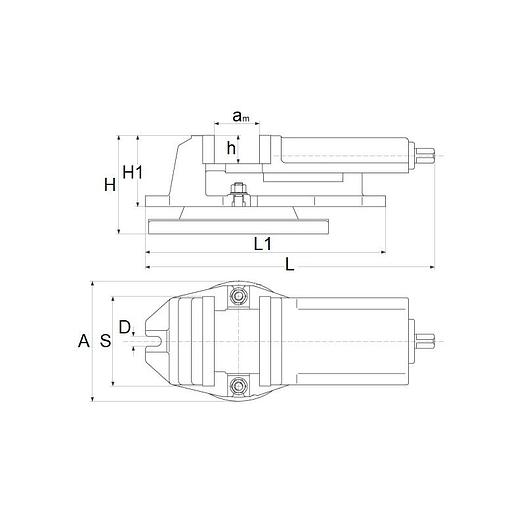

Vice Dimensions

S: 125mm

am: 100mm

h: 40mm

H1: 92mm

H: 125mm

A: 166mm

L: 295mm

L1: 285mm

D: 14mm





Specifications

ManufacturerCormak
ModelQH125 x 100mm Machine Vice
ConditionNew
Jaw Width125mm
Jaw Height40mm
Max Opening100mm
Swivel Base360°
Clamping Force2500kg
Weight16kg
