€27,950 + VAT

2011 Durma AD-R 30135 CNC Pressbrake

1

Ireland

orCall +353 838108745

Description

2011 Durma AD-R CNC Pressbrake


Machine Type: CNC Pressbrake

Year: 2011

Control: Durma CNC Advantage Control

Condition: Very Good


Includes

Full Length Top & Bottom Euro Style Tooling

Laser Safe Safety Guarding

Wanderer Type Foot Pedal

Manual Crowning


Technical Specification

Bending Force: 135T

Bending Length: 3050mm

Distance Between Columns: 2600mm

Y Rapid Speed: 160mm/sec

Y Working Speed: 10mm/sec

Y Return Speed: 120mm/sec

Daylight: 530mm

Table Width: 104mm

Table Height: 900mm

Stroke: 265mm

Throat Depth: 410mm

Support Arms: 2

Back Gauge Finger Blocks: 2

Speed of Travel in X-axis: 650mm/sec

Travel in X-axis: 650mm

Motor Power: 15kW

Oil Tank Capacity: 200L

Length: 4570mm

Width: 2360mm

Height: 2800mm

Weight (approx): 9,600kg

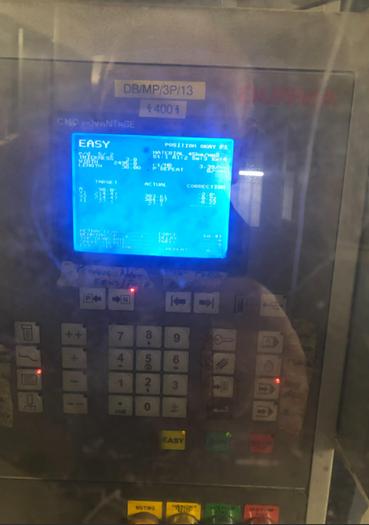

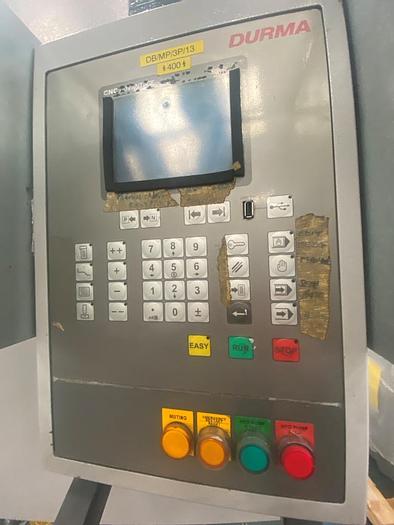

Durma CNC Advantage Control Details

2D graphic display (7,4” ) & work piece in programming page

Easy bend function

Automatic bending sequence

Part calculation

Safety guard PLC communication

Diagnose of I/O

USB interface for backup and restore programs/tools/parameters

Maintenance- free

85 programs (up to 12 steps each program); 12x85 = 1020 step

32 Punches & Dies

Programs, Punches, Dies and Parameters can be copied using USB

Wide language options

Easy upgrade possibility to color graphic control unit

Specifications

ManufacturerDurma
ModelAD-R 30135 CNC Pressbrake
Year2011
ConditionUsed
Machine TypeCNC Pressbrake
Year2011
ControlDurma CNC Advantage Control
ConditionVery Good
Bending Force135T
Bending Length3050mm
Distance Between Columns2600mm
Y Rapid Speed160mm/sec
Y Working Speed10mm/sec
Y Return Speed120mm/sec
Daylight530mm
Table Width104mm
Table Height900mm
Stroke265mm
Throat Depth410mm
Support Arms2
Back Gauge Finger Blocks2
Travel in X-axis650mm
Motor Power15kW
Oil Tank Capacity200L
Length4570mm
Width2360mm
Height2800mm
Weight (approx)9,600kg
