€8,250 + VAT

Chevalier FSG-1020AD Automatic Surface Grinder

1

Ireland

orCall +353 838108745

Description

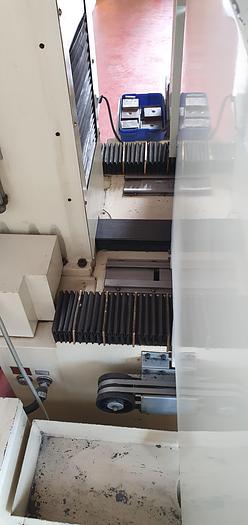

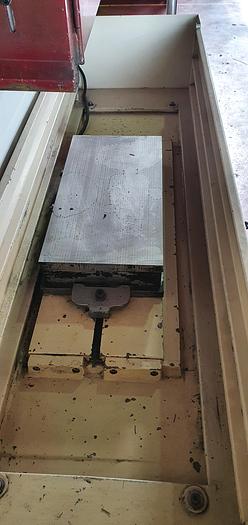

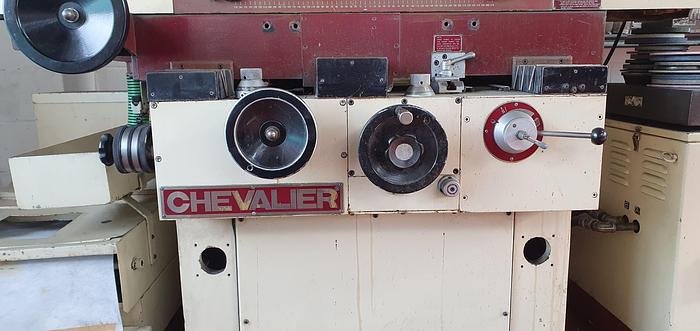

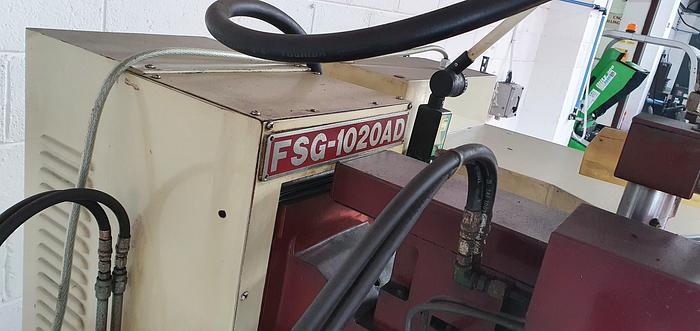

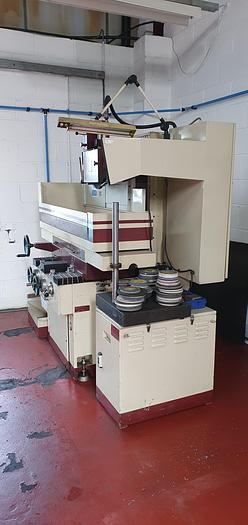

Used Chevalier FSG-1020AD Automatic Hydraulic Surface Grinder


Machine Type: Automatic Hydraulic Surface Grinder

Condition: Working Well


Technical Specification

Maximum Grinding Length: 20″ (508mm)

Maximum Grinding Width: 10″ (254mm)

Maximum Distance Between Spindle Center to Table Surface: 21″(533mm)

Longitudinal Travel, Manual: 24-3/8″ (620mm)

Longitudinal Travel, Hydraulic: 22-7/8″ (581mm)

Longitudinal Table Speed (infinitely variable): 16 to 82 fpm (5 - 25m/min)

Crossfeed Travel, Manual: 11-3/4″ (298mm)

Crossfeed Rapid Travel Speed: 12.5 fpm (3.8m/min)

Crossfeed Micro Feed (per graduation): 0.00005″

Crossfeed Micro Feed (per revolution) 0.005″

Wheelhead Infeed Auto. Infeed: 0.000050″ to 0.002″

Wheelhead Infeed Rapid Travel: 8 ipm (203mm/min)

Wheelhead Micro Feed: 0.000050″/0.0001″

Wheelhead Infeed (per graduation): 0.0005″

Wheelhead Infeed (per revolution): 0.05″

Spindle Motor: 60hz / 2HP

Grinding Wheel: 8″ x 1/2″ x 1-1/4″ (203 x 12.7 x 31.75mm)

Packing Dimensions: 90″ x 63″ x 83″ (2286 x 1600 x 2108mm)

Machine Weight: 1980kg

Voltage: 400V, 3 Phase


Machine Description

3-Axis fully automatic and plunge grinding system

Spark-out 0-9 times for fine finish

Precision roller bearings on longitudinal and cross feed guiderails

Heavy duty spindle with 2 sets of class 7 super precision angular contact ball bearings

Hardened and ground cross feed and elevating lead screws

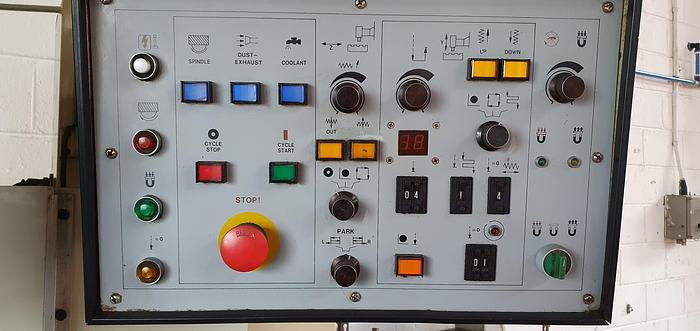

Microprocessor control system for ease of operation and trouble free production

Hardened and ground guide ways for durability

Quick table and cross feed stroke adjusting device

Wheel head will raise up automatically and table parks at left or right side after cycle is completed

All castings are specially designed for permanent stability. They are made of special wear resisting alloys, and scientifically stress relieved.

The maximum distance from table surface to spindle centerline is 21″ which provides more clearance for grinding.

The spring loaded type table travel stops will dampen the over travel caused by abnormal operations.

The optimum span of double V crossfeed guideways is designed based on bending moment, kinematics and supporting force.

All essential castings are made of high grade Meehanite cast iron that is stress relieved through annealing to eliminate internal stress. With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and form grinding.

Specifications

ManufacturerChevalier
ModelFSG-1020AD Automatic Surface Grinder
ConditionUsed

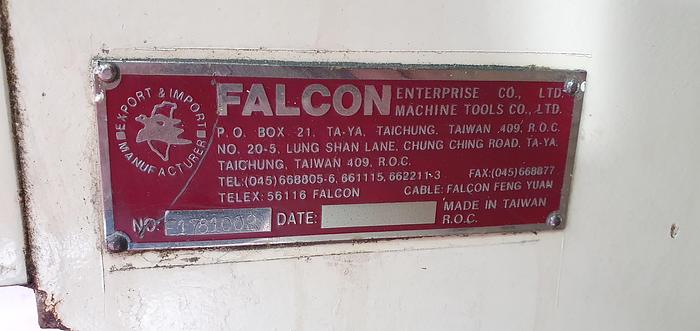

Serial NumberF1781002
Machine TypeAutomatic Hydraulic Surface Grinder
ConditionWorking Well
Maximum Grinding Length20″ (508mm)
Maximum Grinding Width10″ (254mm)
Longitudinal Travel, Manual24-3/8″ (620mm)
Longitudinal Travel, Hydraulic22-7/8″ (581mm)
Crossfeed Travel, Manual11-3/4″ (298mm)
Crossfeed Rapid Travel Speed12.5 fpm (3.8m/min)
Wheelhead Infeed Auto. Infeed0.000050″ to 0.002″
Wheelhead Infeed Rapid Travel8 ipm (203mm/min)
Wheelhead Micro Feed0.000050″/0.0001″
Wheelhead Infeed (per graduation)0.0005″
Wheelhead Infeed (per revolution)0.05″
Spindle Motor60hz / 2HP
Machine Weight1980kg
Voltage400V, 3 Phase
