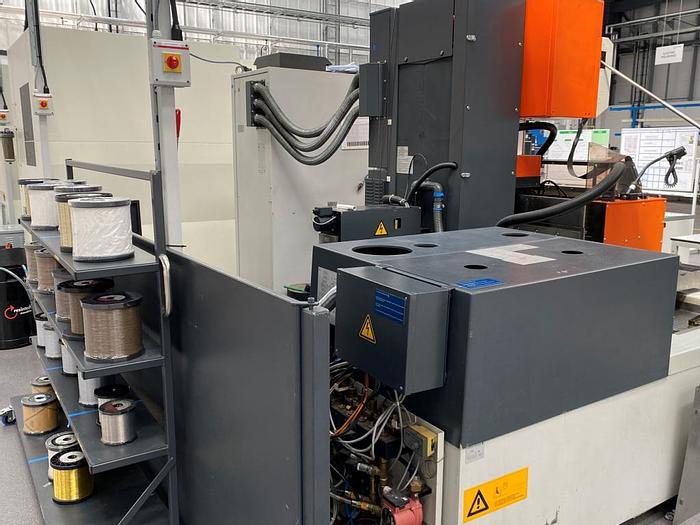

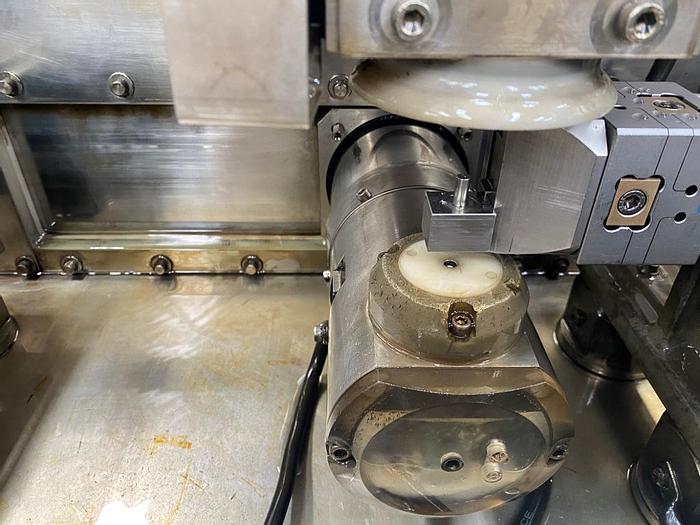

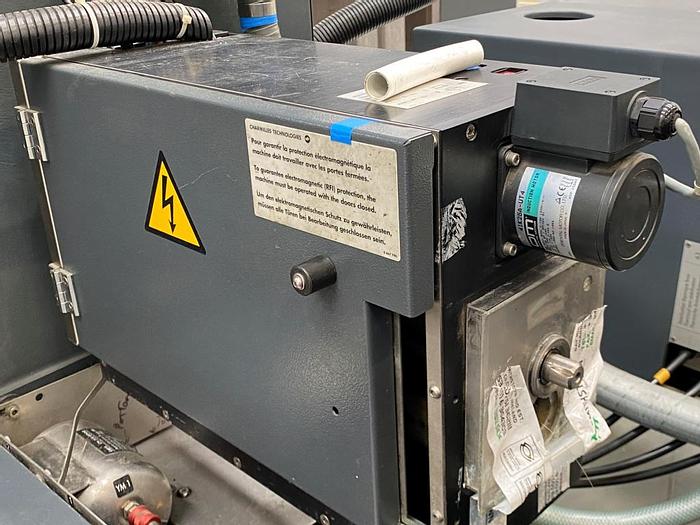

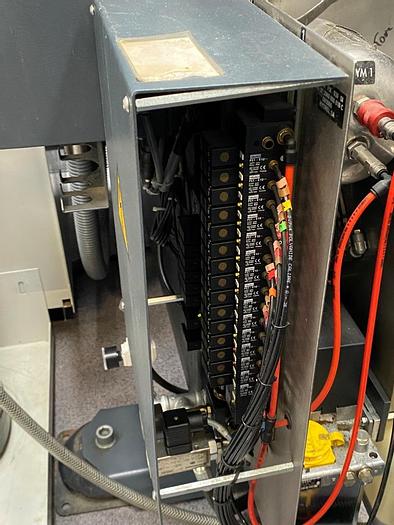

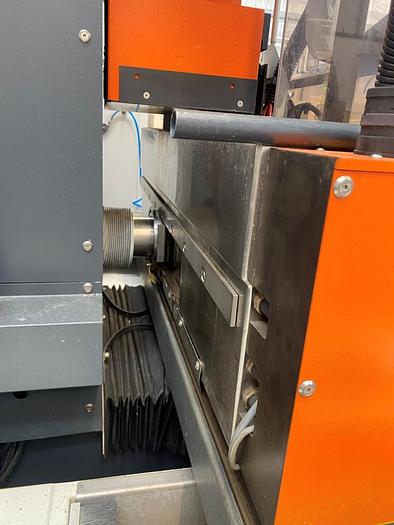

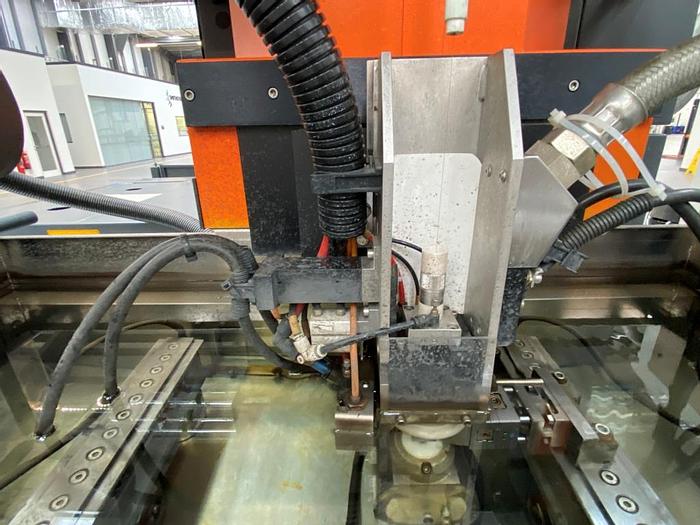

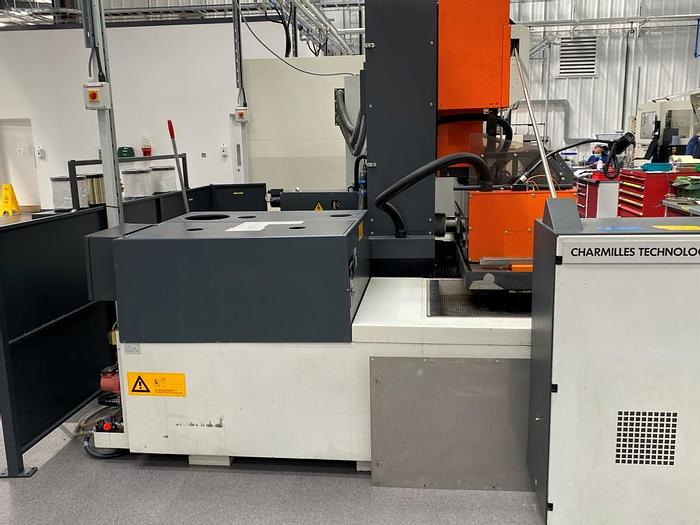

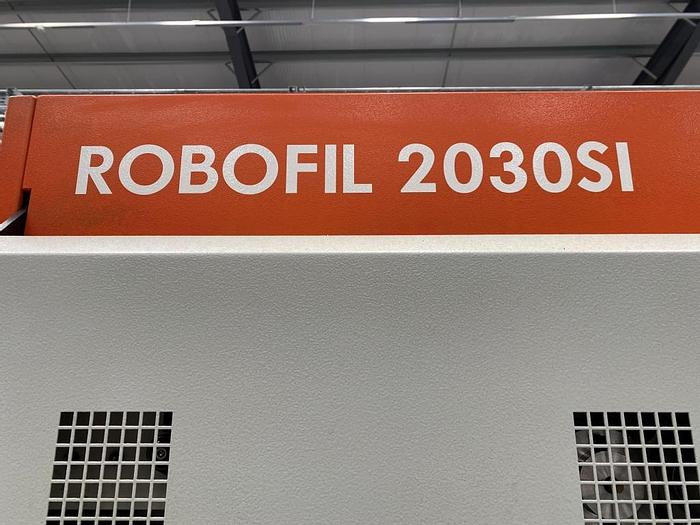

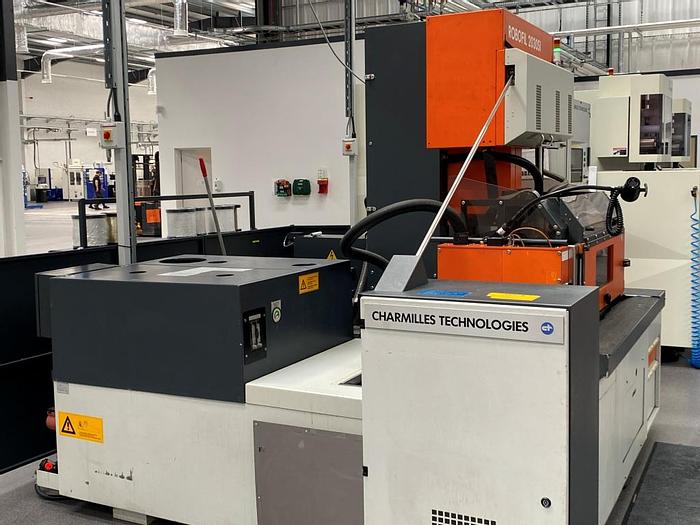

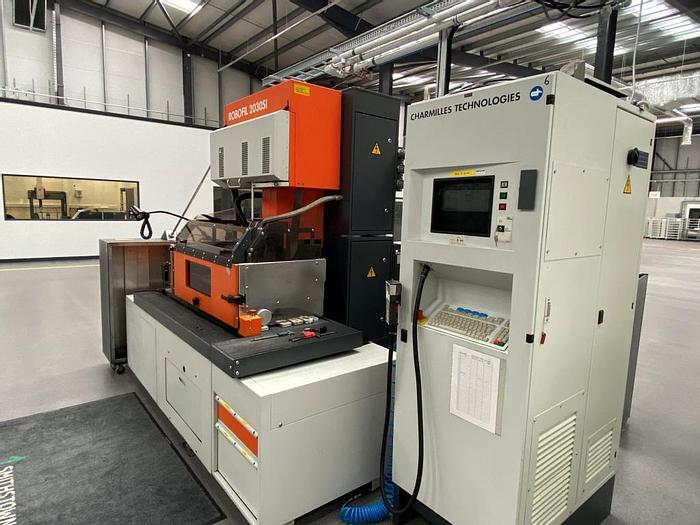

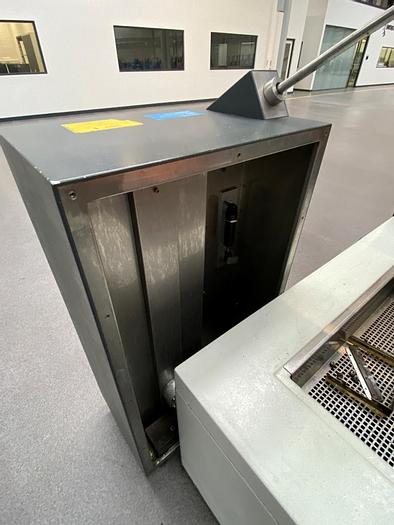

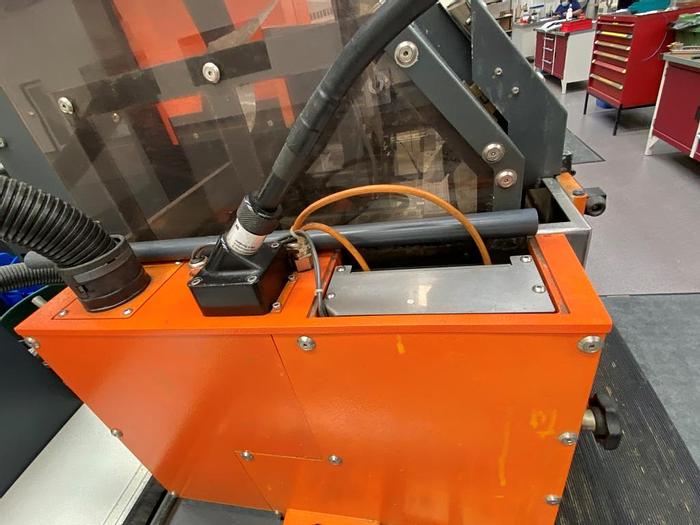

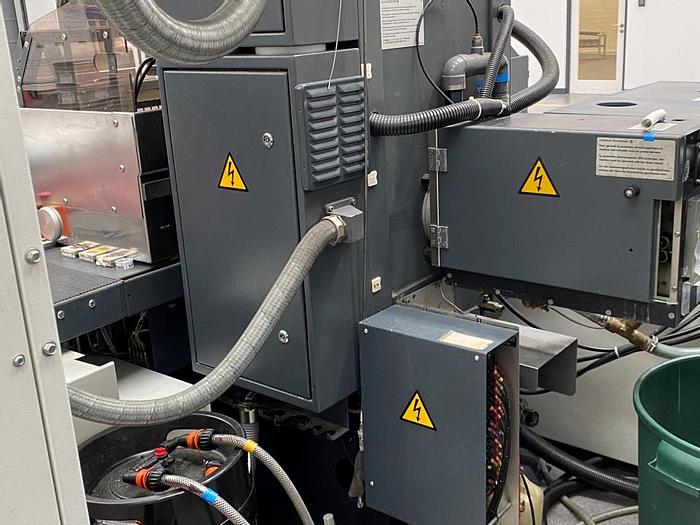

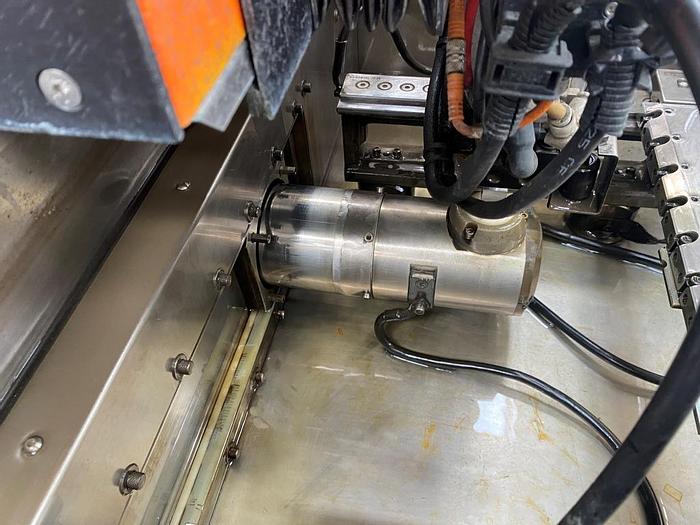

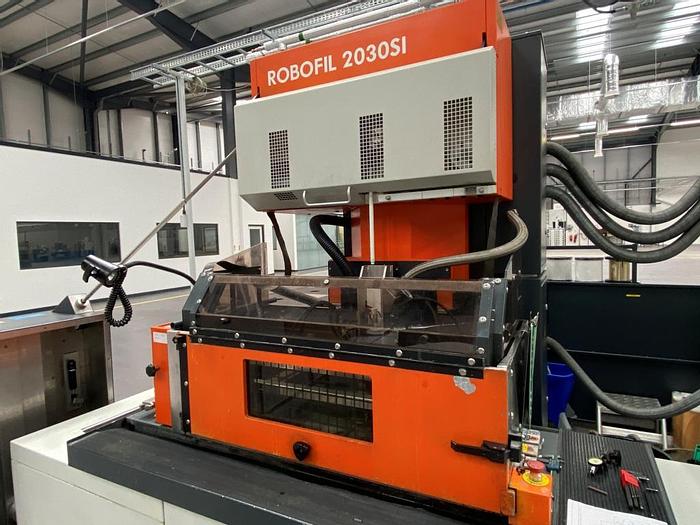

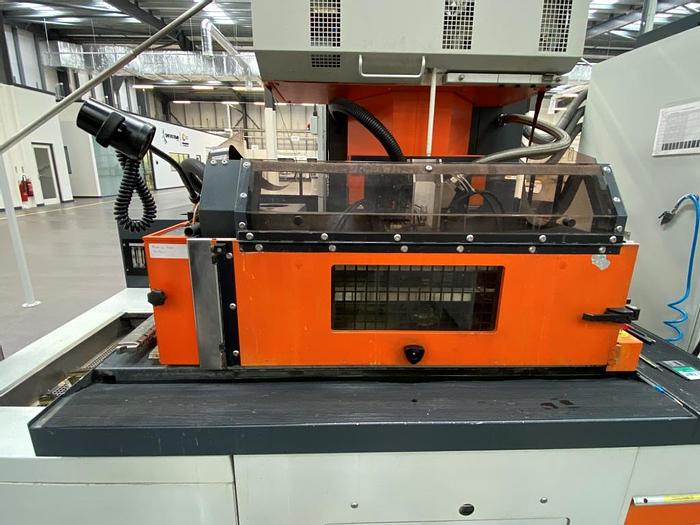

2000 Charmilles Technologies Robofil 2030SI Wire EDM Machine
Description
2000 Charmilles Technologies Robofil 2030SI Wire EDM Machine
Machine Type: Wire EDM Machine
Year: 2000

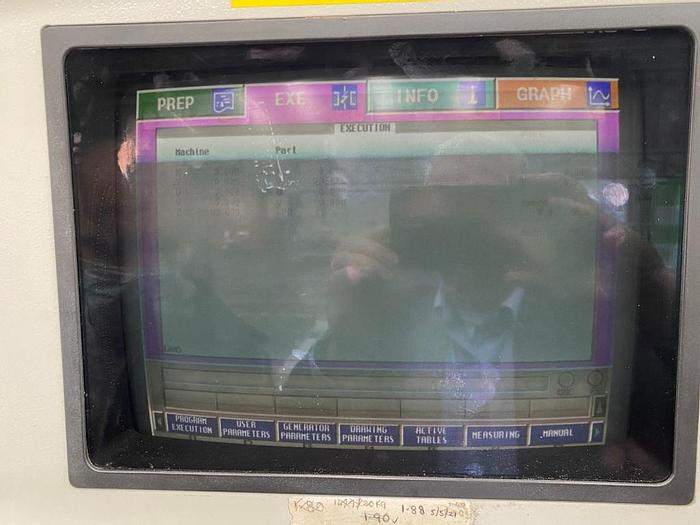

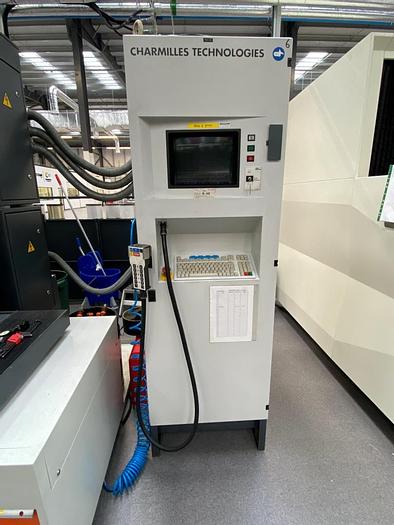

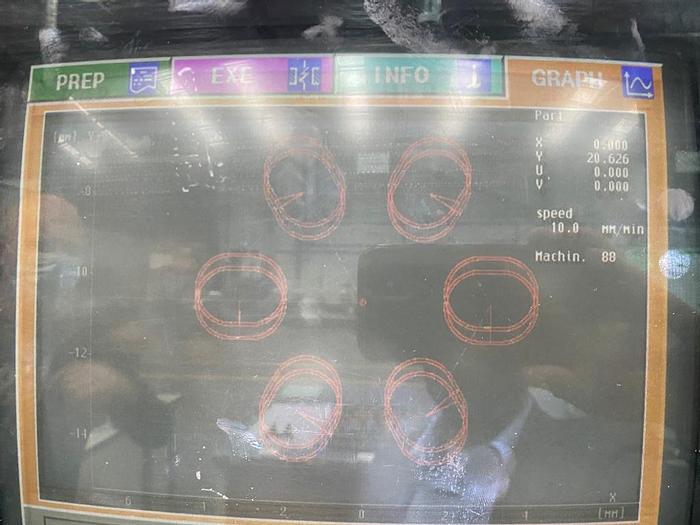

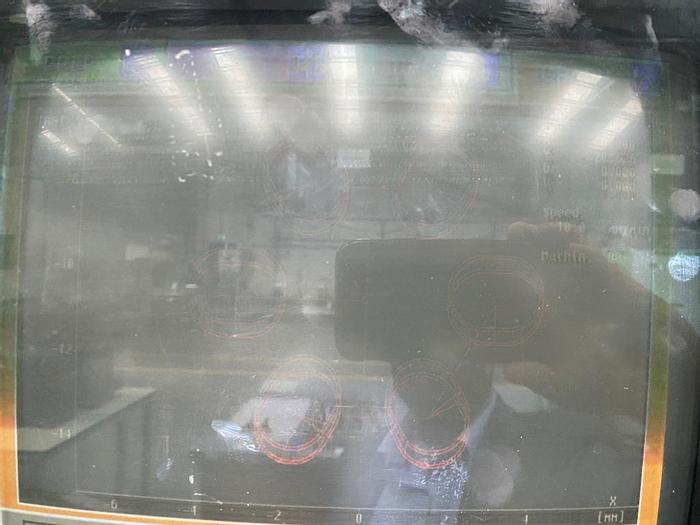

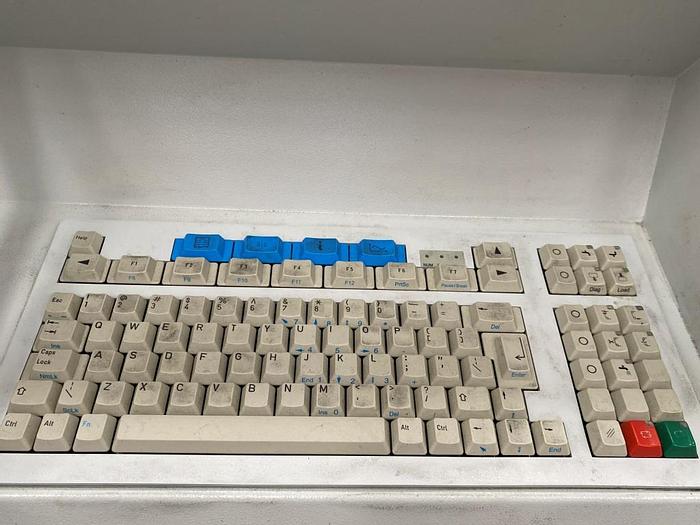

Control: Charmilles CNC Control
Condition: Very Good

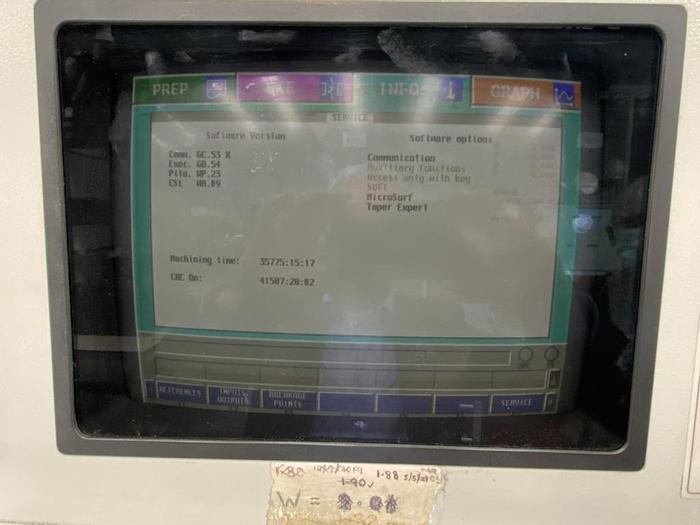

CNC On Hours: 41,587hrs
Machining Hours: 35,775hrs
Includes

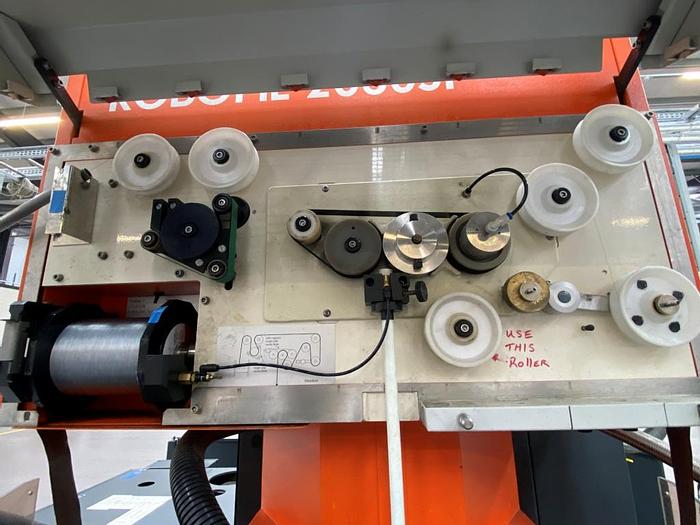

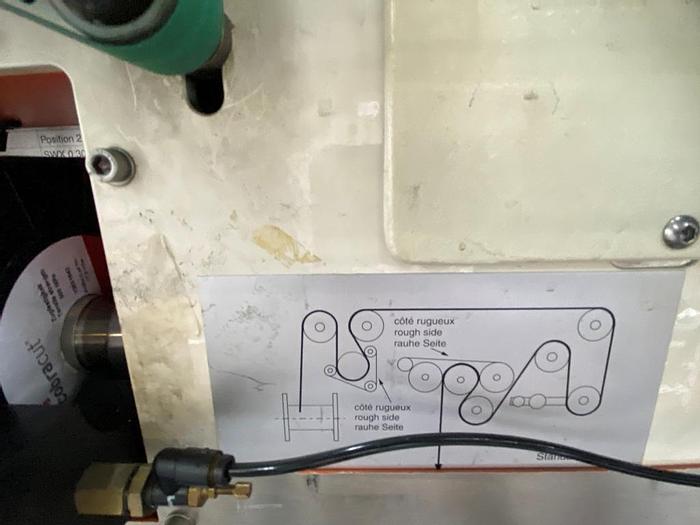

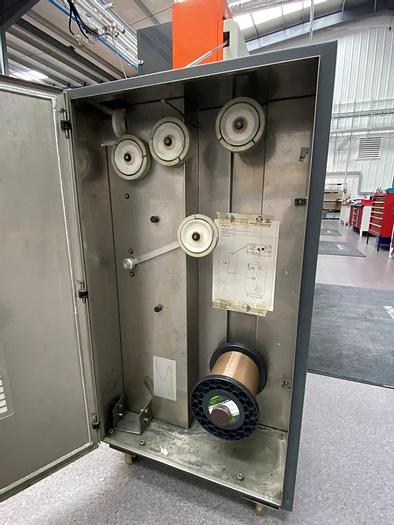

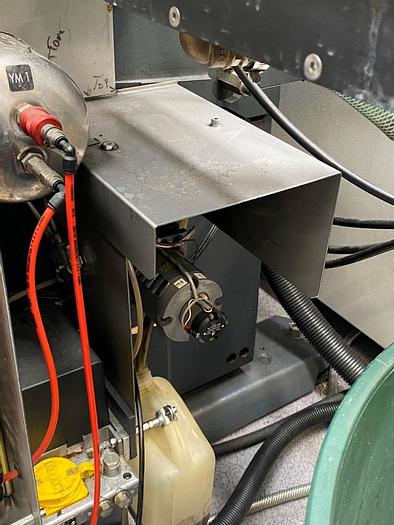

Wire Spool Feeder

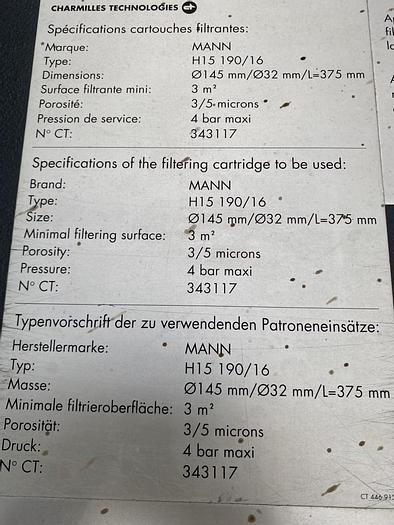

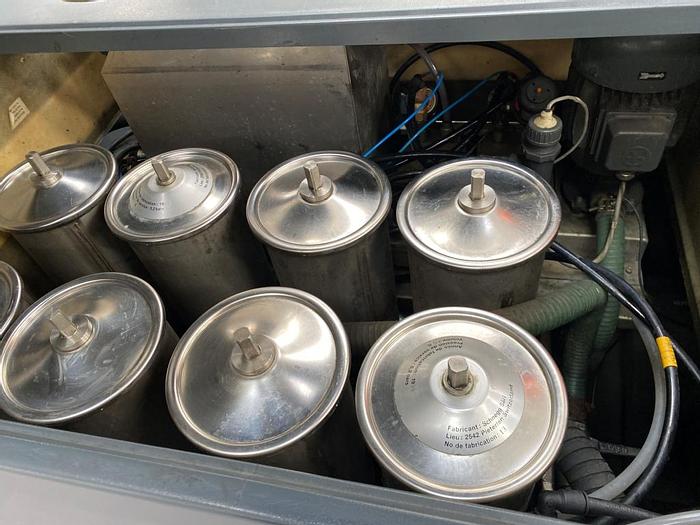

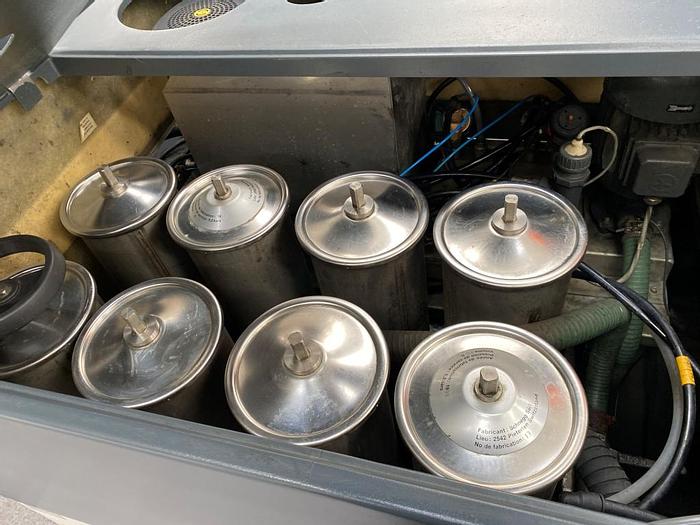

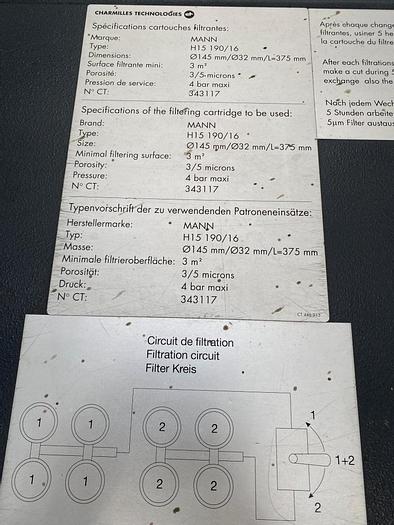

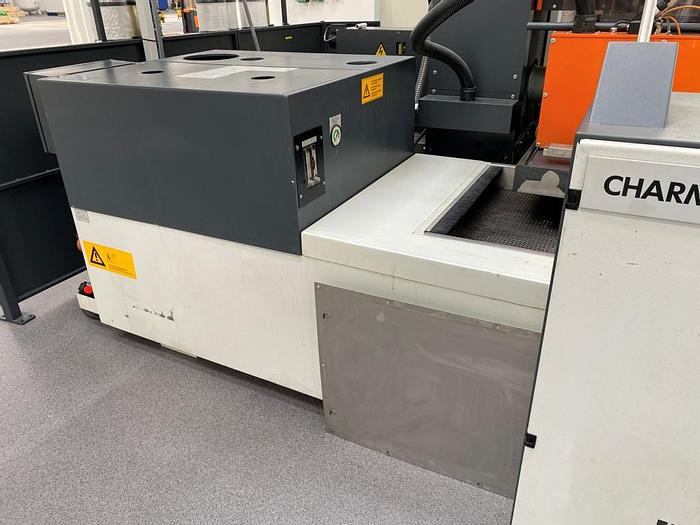

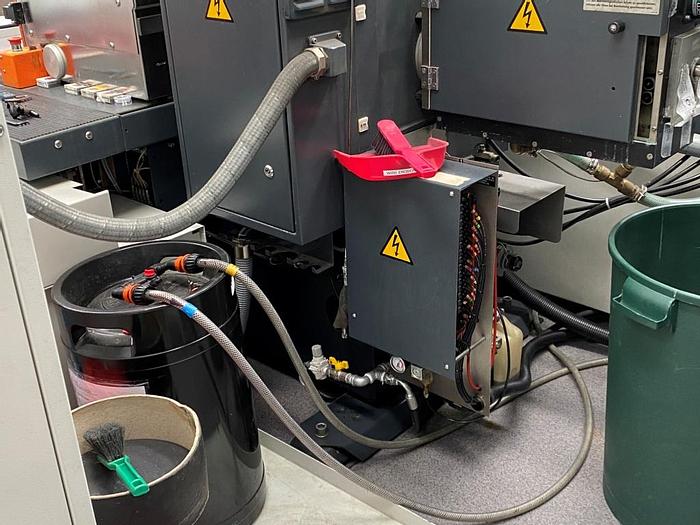

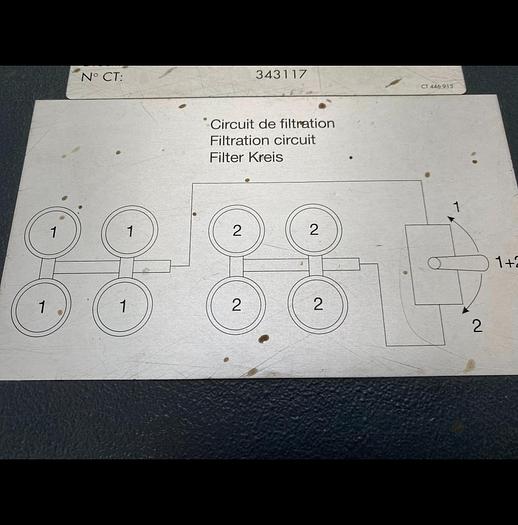

MANN H15 190/16 Di-Electric Filtration Unit

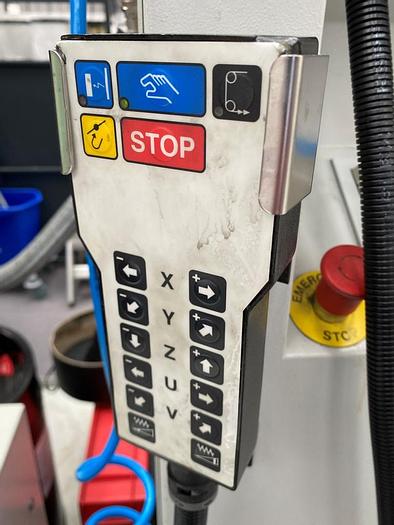

Hand Held Control
Control Specification
CAM-CT/Path programming: Standard
Wire breakage prevention: Standard
PROFIL-EXPERT/Geometrical Strategy: Standard
CT-EXPERT/Automatic generator settings selection: Standard
Technical Specification

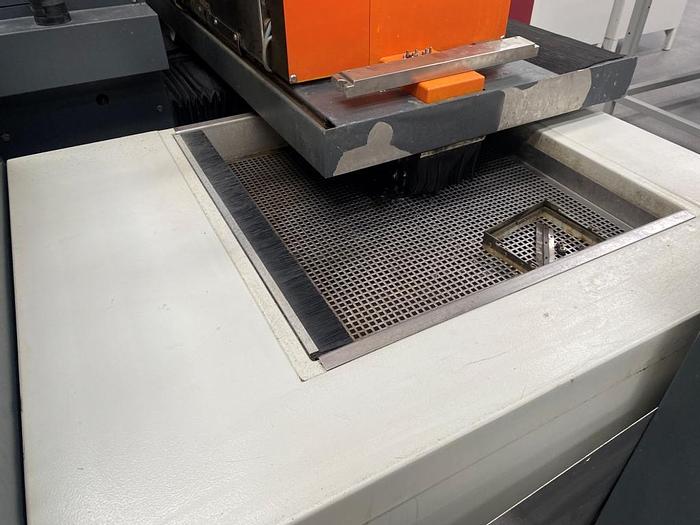

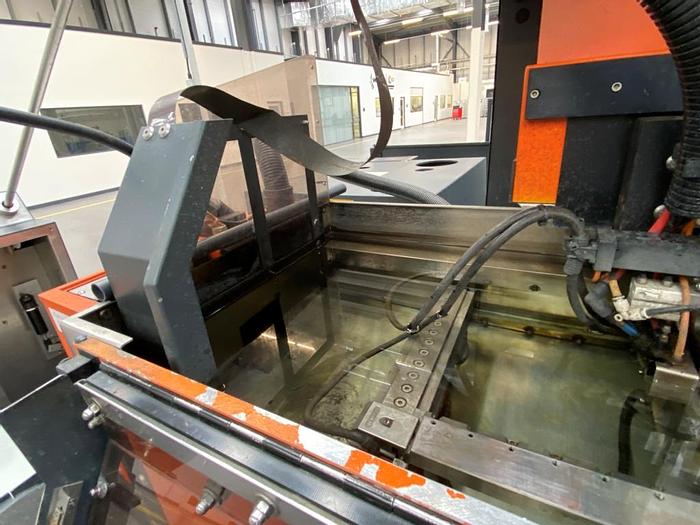

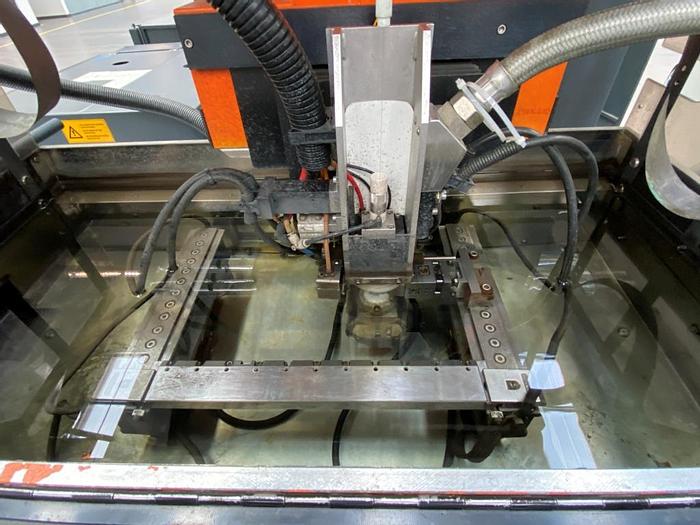

Working table: 560x440mm
Max. Dimensions of Work Piece:1130x510x260mm
Table Load Max.: 500 kg
Longitudinal Traverse (X-axis): 318 mm
Cross Traverse (Y-axis): 218 mm
Vertical Travel (Z axis): 114 mm
U/V Axis Travel: +/-48 mm
Diameter of Electrode Wire: 0.05 to 0.3mm
Forward Feed of Wire Electrode: 0.2 to 15m/min
Max. Coil Weight:16 kg
Dielectric Tank: 240L
Generator Cut Capacity Max.: 300mm2/min

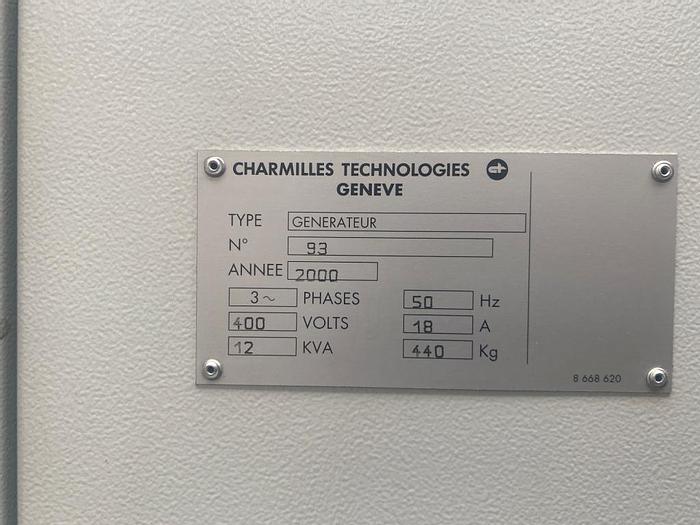

Voltage: 50Hz/3ph/400V
Amperage: 18A
Total Power Required: 12 kVA
Machine Weight approx.: 2200 kg

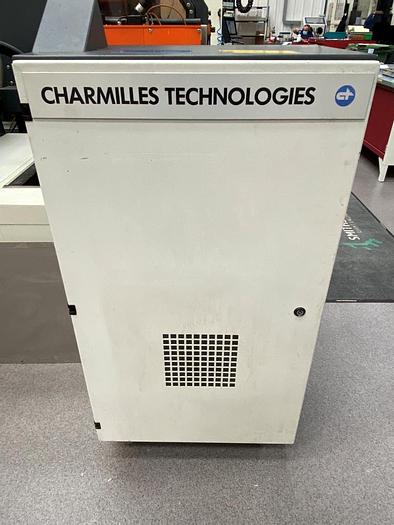

Generator Weight approx.: 440kg
Dimensions: 3700x2600x2300mm
Specifications
| Manufacturer | Charmilles Technologies |
| Model | Robofil 2030SI Wire EDM Machine |
| Year | 2000 |
| Condition | Used |

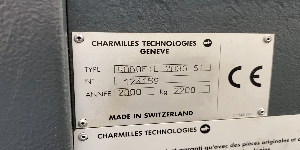

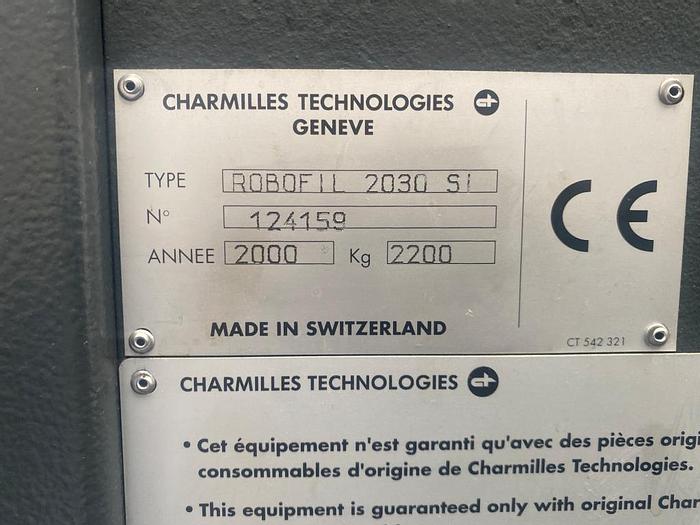

| Serial Number | 124159 |
| Machine Type | Wire EDM Machine |
| Year | 2000 |
| Control | Charmilles CNC Control |
| Condition | Very Good |
| Working table | 560x440mm |
| Table Load Max. | 500 kg |
| Longitudinal Traverse (X-axis) | 318 mm |
| Cross Traverse (Y-axis) | 218 mm |
| Vertical Travel (Z axis) | 114 mm |
| U/V Axis Travel | +/-48 mm |
| Diameter of Electrode Wire | 0.05 to 0.3mm |
| Max. Coil Weight | 16 kg |
| Dielectric Tank | 240L |
| Generator Cut Capacity Max. | 300mm2/min |
| Voltage | 50Hz/3ph/400V |
| Total Power Required | 12 kVA |
| Amperage | 18A |
| Machine Weight approx. | 2200 kg |
| Generator Weight approx. | 440kg |
| Dimensions | 3700x2600x2300mm |
