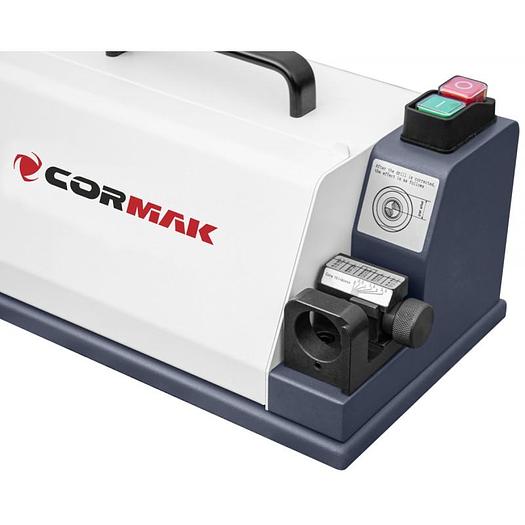

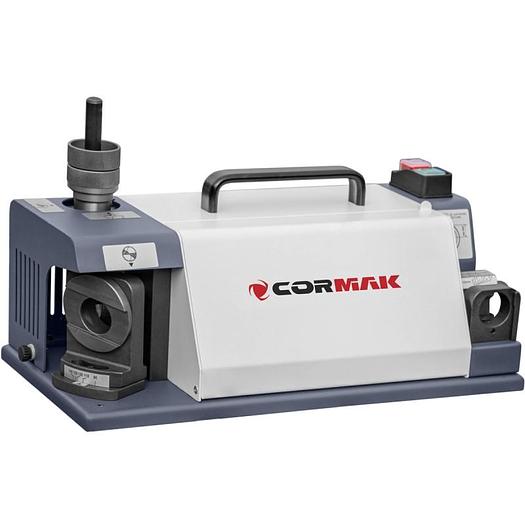

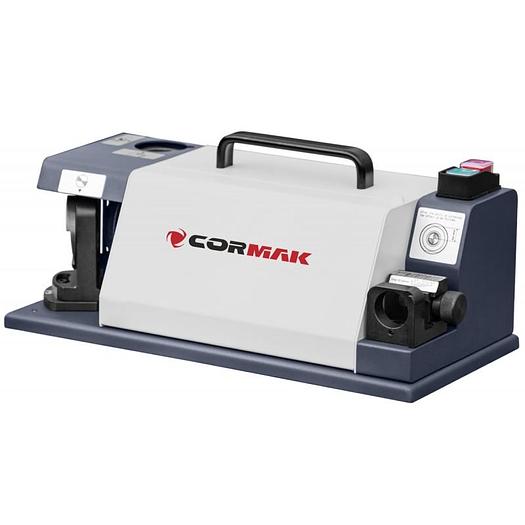

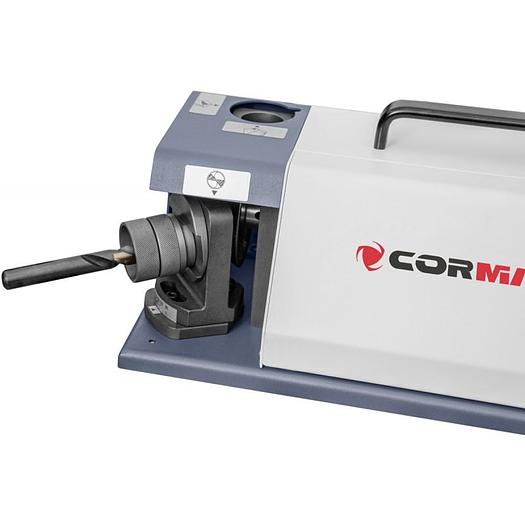

Cormak DG20 Drill Grinding Machine

Cormak DG20 Drill Grinder

Machine Description

Sharpening device for drill bits made of HSS or any other hard metals, ensuring precise grinding and easy handling. Adjustable tip angle in the 90°–135° range. This model can sharpen drill bits up to 20 mm in diameter.

Machine Features

Precise grinding and convenient handling.

Sharpening drill bits with ease.

Portability due to its modest dimensions.

Fully equipped; with a handle inside the device.

Includes

Grinding wheel: 1 CBN (for HSS)

11 ER20 collets: ø 3 - ø 13 mm

6 ER25 collets: ø 14 - ø 20 mm

2 clamping sockets

Technical Details

Drill Bit Diameters Capability: ø2–20 mm

Angle of the Drill Bit: 90°–135°

Motor Power:180 W

Electrical Connection: 230V

Motor Speed: 4800 rpm

Approx. Weight: 11 kg

Dimensions: 390 x 175 x 170 mm
