2006 Optimum D360 x 1000 Manual Centre Lathe

1

Cork, Ireland

Sold

Description

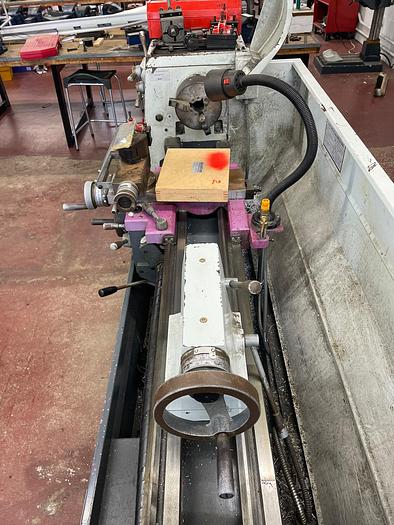

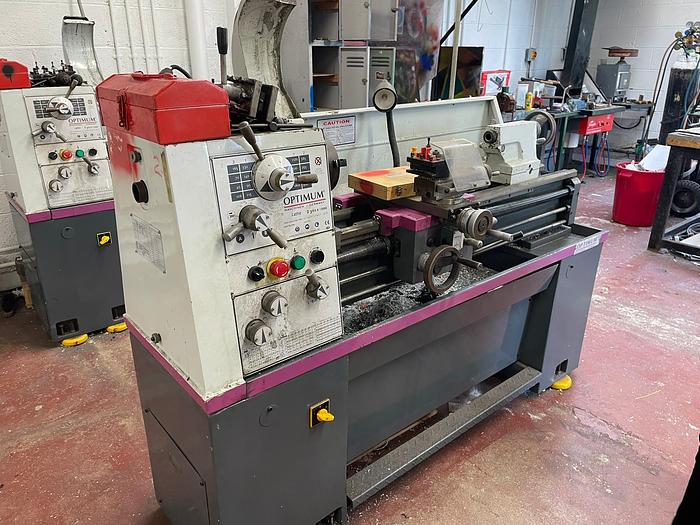

Optimum D360 x 1000 Manual Centre Lathe


Machine Type: Manual Centre Lathe

Year: 2006

DRO: No

Condition: Very Good. Ex Secondary School Machine


Includes

Quick Change Tool Post & Holders

Chuck Guard

Cross-Slide Guard

Coolant Equipment

Machine Light

Foot Brake

3 Jaw Chuck

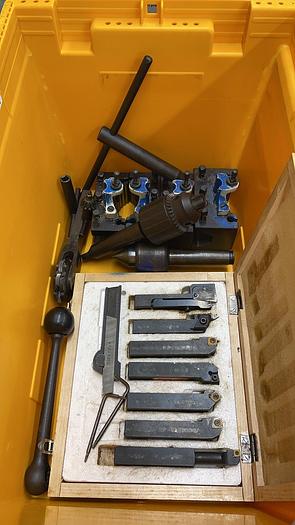

Selection of Tooling


Technical Specification

Distance Between Centres: 1000mm

Centre Height: 180mm

Max Swing Over Bed: 356mm

Max Swing Over Saddle: 220mm

Max Swing Over Gap: 240mm

Bed Width: 205mm

Cross-Slide Travel: 180mm

Top Slide Travel: 95mm

Tool Post: Quick Change Tool Post

Spindle Bore: 38mm

Spindle Taper: 5MT

Spindle Nose: Camlock Din ISO 702-2 D1-4

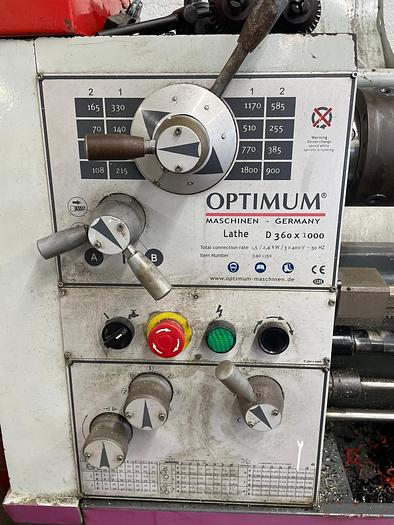

No of Spindle Speeds: 16

Spindle Speed Range: 45-1800rpm

Tailstock Taper: 3MT

Tailstock Quill Travel: 126mm

Longitudinal Feed (42): 0.043-0.653mm/rev

Cross Feed(42): 0.015-0.220mm/rev

Metric Threads(37): 0.45-7.5mm/rev

Imperial Threads(28): 4-112TPI

Leadscrew Diameter: 22mm

Leadscrew Pitch: 4mm

Motor Power: 1.5/2.4kW

Dimensions: 1920 x 800 x 1490mm

Weight: 750kg


Specifications

ManufacturerOptimum
ModelD360 x 1000 Manual Centre Lathe
Year2006
ConditionUsed
Machine TypeManual Centre Lathe
Year2006
DRONo
Distance Between Centres1000mm
Centre Height180mm
Max Swing Over Bed356mm
Max Swing Over Saddle220mm
Max Swing Over Gap240mm
Bed Width205mm
Cross-Slide Travel180mm
Top Slide Travel95mm
Tool PostQuick Change Tool Post
Spindle Bore38mm
Spindle Taper5MT
No of Spindle Speeds16
Spindle Speed Range45-1800rpm
Tailstock Taper3MT
Tailstock Quill Travel126mm
Longitudinal Feed (42)0.043-0.653mm/rev
Cross Feed(42)0.015-0.220mm/rev
Metric Threads(37)0.45-7.5mm/rev
Imperial Threads(28)4-112TPI
Leadscrew Diameter22mm
Leadscrew Pitch4mm
Motor Power1.5/2.4kW
Weight750kg
