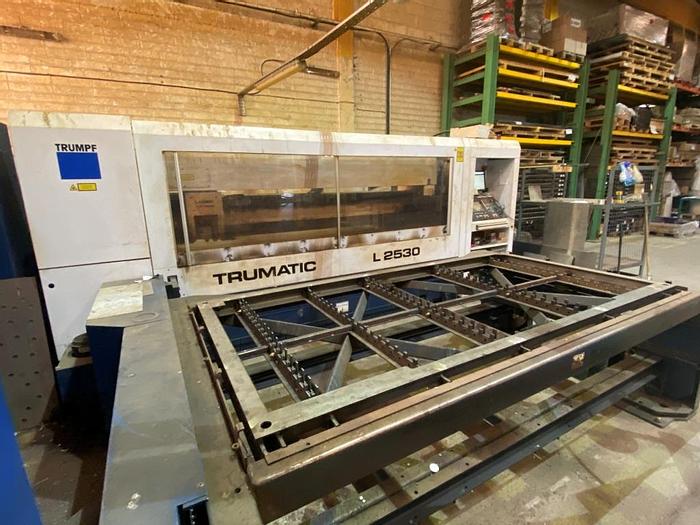

2000 Trumpf Trumatic L2530 Flat Bed Laser for Repair or Parts
Description

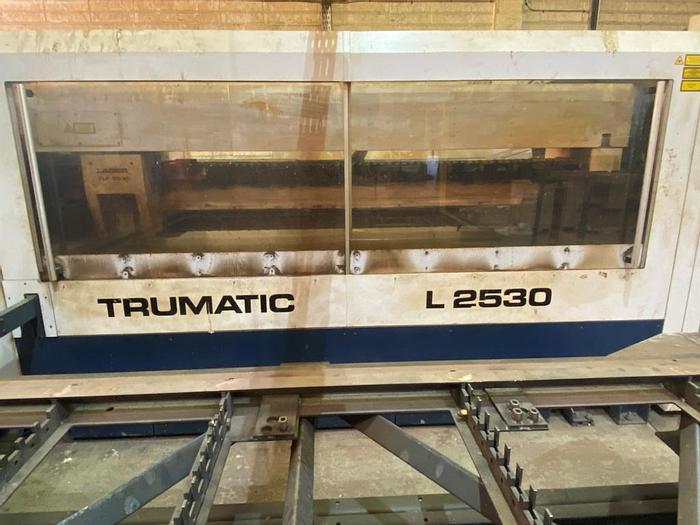

2000 Trumpf Trumatic L2530 Flat Bed Laser for Repair or Parts
Machine Type: 3kW Co2 Flat Bed Laser
Year: 2000

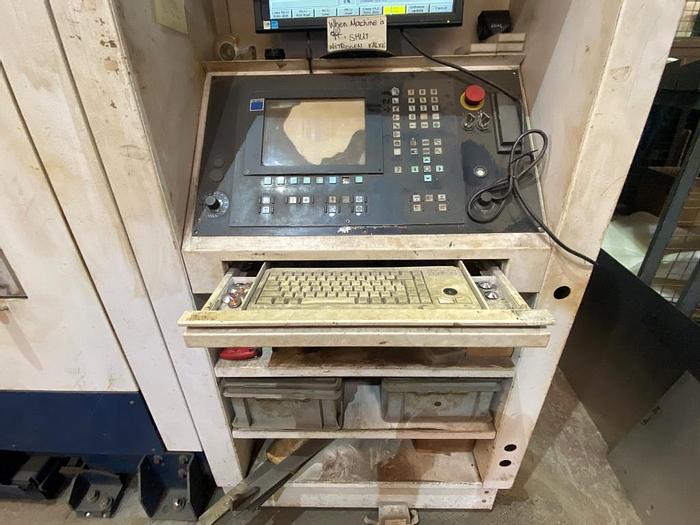

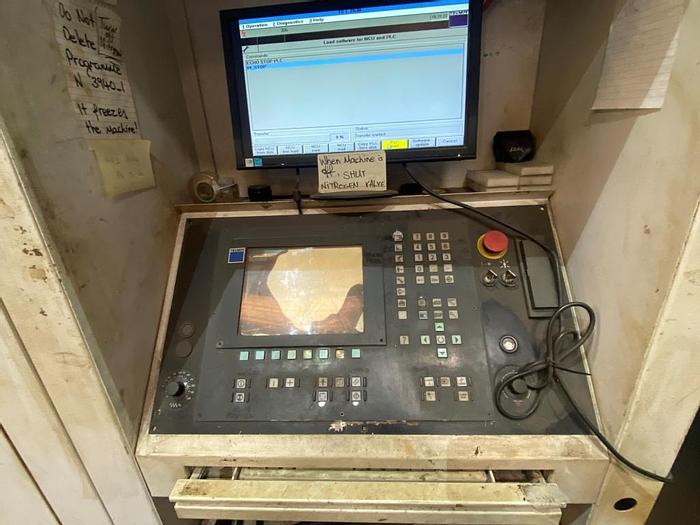

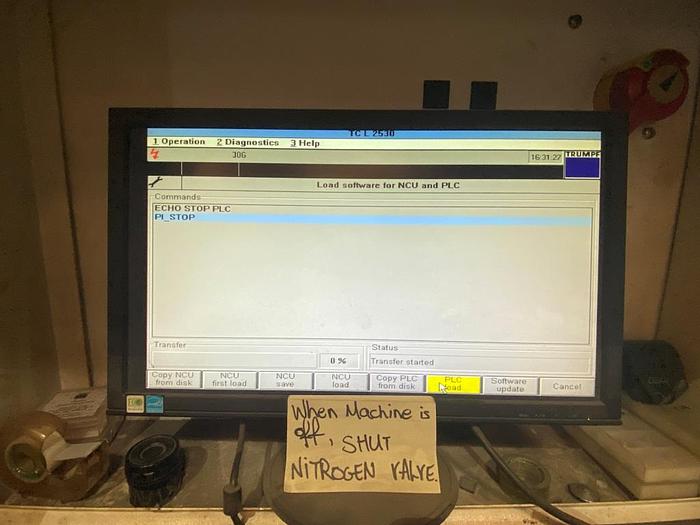

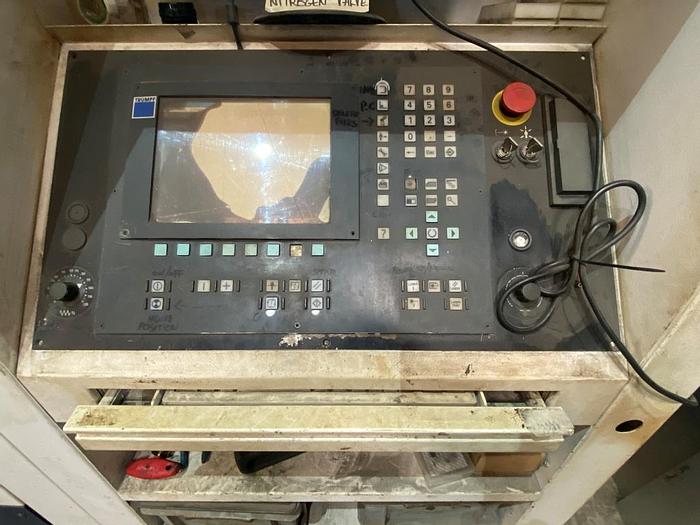

Control: Trumpf CNC Control (Based on Sinumerik 840D
Condition: Board Gone in the control panel. Will not be replaced.
Includes

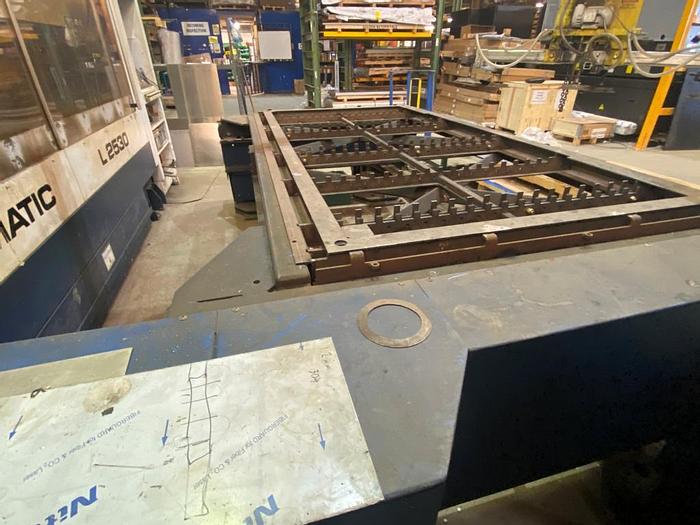

Pallet Changer

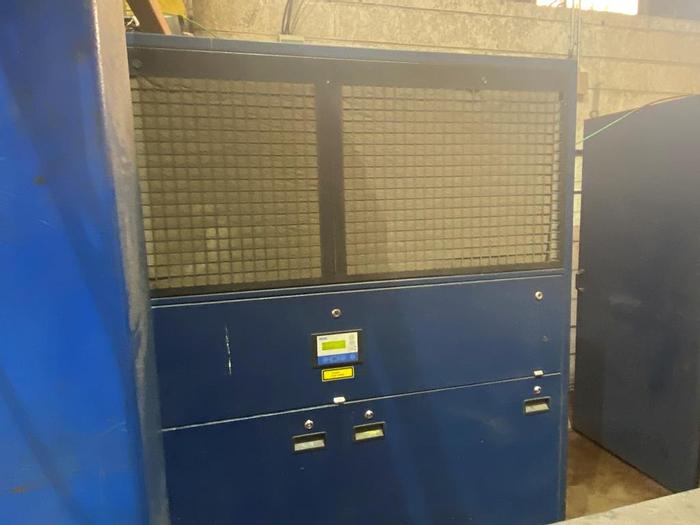

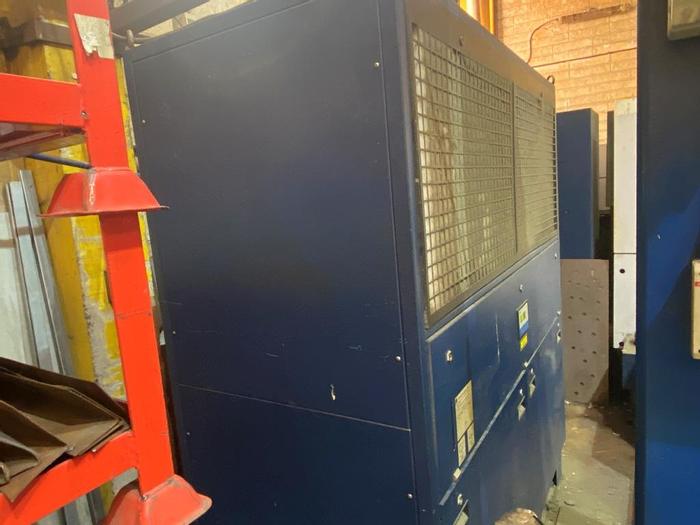

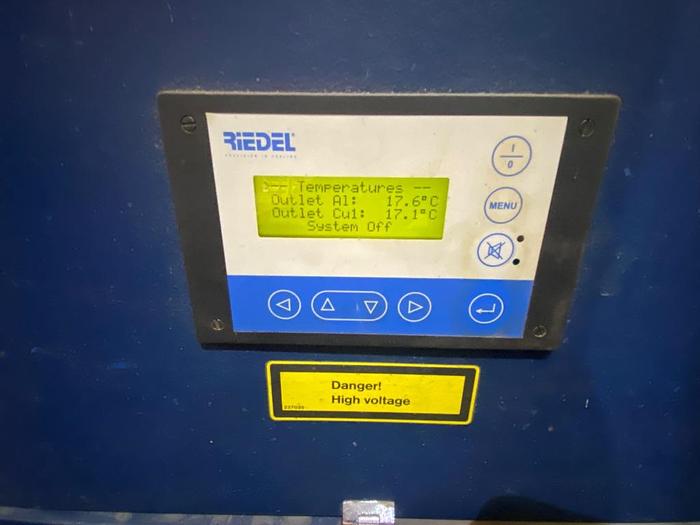

Chiller

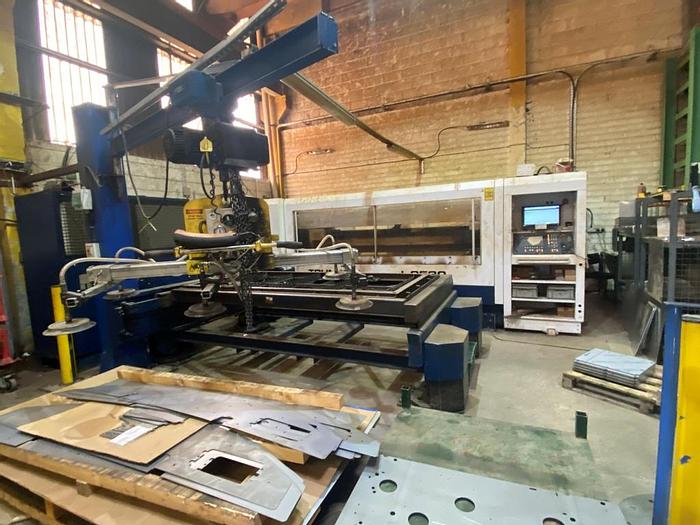

Manual Sheet Loader
Technical Description
Working Range X: 2500mm
Working Range Y: 1250mm
Working Range Z: 115mm
Max Workpiece Weight: 500kg
Cutting Capacity Mildsteel: 20mm
Cutting Capacity Stainless Steel: 12mm
Cutting Capacity Aluminum: 8mm
Max Speed Parallel to Axis: 60m/min
Max Speed Simultaneous: 85m/min

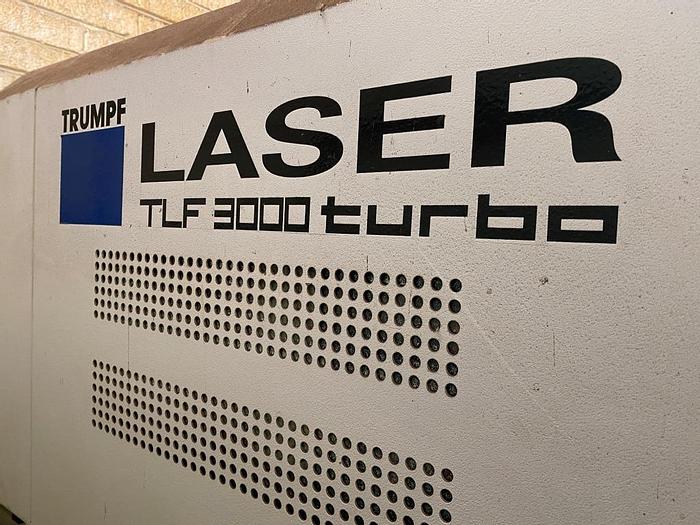

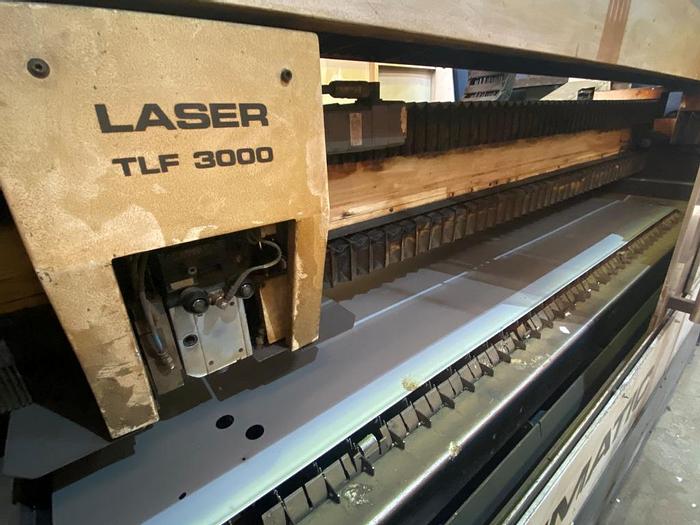

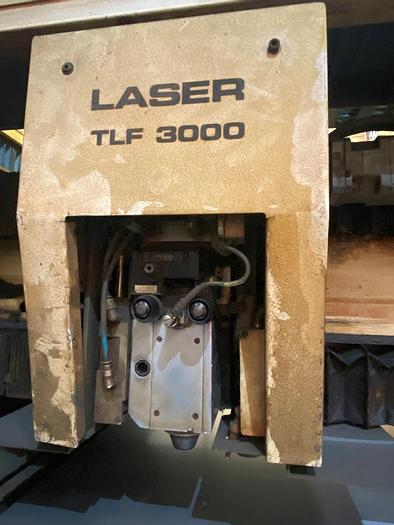

Laser Source: Trumpf TLF 3000 Turbo
Adjustable Power Range: 150 to 3000W
Compressed Air Connection: 6 Bar
Nitrogen Connection: 30 Bar
Oxygen Connection: 16 Bar
Electrical Connection: 65 kVA
Machine Dimensions: 7100 x 5900 x 2000mm
Machine Weight: 7900kg
Specifications
| Manufacturer | Trumpf |
| Model | Trumatic L2530 Flat Bed Laser for Repair or Parts |
| Year | 2000 |
| Condition | Used |

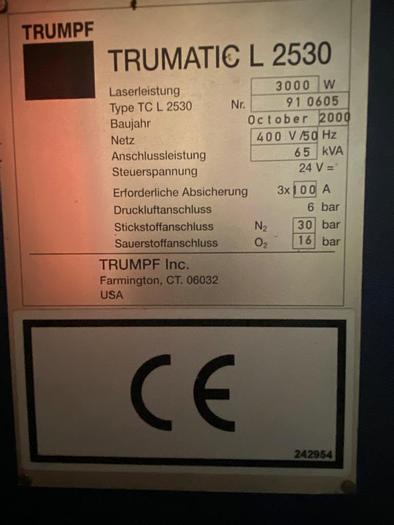

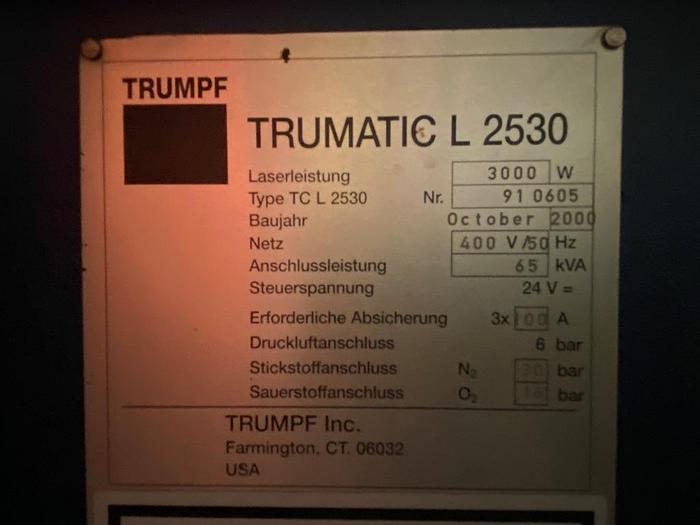

| Serial Number | 910605 |
| Year | 2000 |
| Working Range X | 2500mm |
| Working Range Y | 1250mm |
| Working Range Z | 115mm |
| Max Workpiece Weight | 500kg |
| Cutting Capacity Mildsteel | 20mm |
| Cutting Capacity Stainless Steel | 12mm |
| Cutting Capacity Aluminum | 8mm |
| Max Speed Simultaneous | 85m/min |
| Laser Source | Trumpf TLF 3000 Turbo |
| Adjustable Power Range | 150 to 3000W |
| Compressed Air Connection | 6 Bar |
| Nitrogen Connection | 30 Bar |
| Oxygen Connection | 16 Bar |
| Electrical Connection | 65 kVA |
| Machine Weight | 7900kg |
