€12,915 + VAT

Cormak MFM 320 Universal Manual Milling Machine

Ireland

orCall +353 838108745

Description

Cormak MFM320 Manual Milling Machine


Cormak MFM320 universal milling machine with 3 axes swivel head. The machine has broad capabilities, capable of low and high quantity manufacturing. It also provides smooth spindle speed adjustment, tempered guides and central guide lubrication system. Machine available straight away.

This machine can be used as a Vertical or Horizontal Milling Machine Machine Description

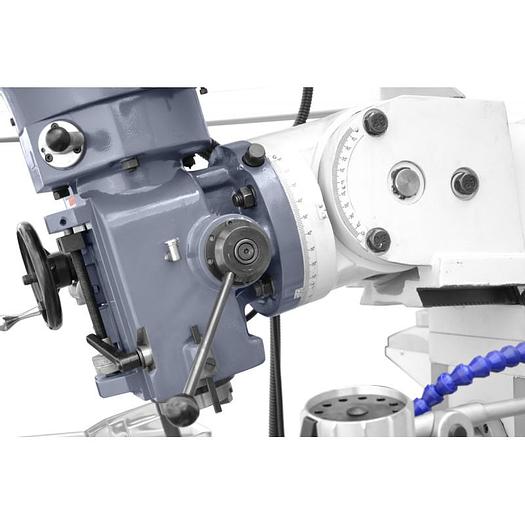

  • Head tilting in 2 axes right/left inclination ±90, front/back pivoting ±45°
  • 3 automatic feeds
  • Manual collet feed
  • Right/left movement switch
  • Central spindle, nuts and guides lubrication system
  • Manual spindle brake
  • Cooling system with chips container
  • 3 axes digital display

Technical Specification

Maximum drilling diameter: 50 mm

Maximum horizontal milling width: 80 mm

Maximum vertical milling diameter: 25 mm

Spindle taper: ISO 40

Vertical/horizontal spindle speeds: 8 / 12

Vertical spindle speed range: 66–4540 rpm

Horizontal spindle speed range: 32–1320 rpm

Distance from spindle to column surface: 200–550 mm

Distance from spindle to table surface: 100–480 mm

Distance from Horizontal Spindle Axis to Table Surface: 0–320 mm

Quill Travel: 120 mm

Table Dimensions: 1370×320 mm

Table Travel: 750×320 mm

Motor (vertical/horizontal): 2.2 / 2.2 kW

Total Dimensions: 1900×1800×2340 mm

Weight: 1450 kg

Specifications

ManufacturerCormak
ModelMFM 320 Universal Manual Milling Machine
ConditionNew
Maximum drilling diameter50 mm
Maximum horizontal milling width80 mm
Maximum vertical milling diameter25 mm
Spindle taperISO 40
Vertical/horizontal spindle speeds8 / 12
Vertical spindle speed range66–4540 rpm
Horizontal spindle speed range32–1320 rpm
Quill Travel120 mm
Table Dimensions1370×320 mm
Table Travel750×320 mm
Motor (vertical/horizontal)2.2 / 2.2 kW
Total Dimensions1900×1800×2340 mm
Weight1450 kg
