€920 + Vat
Cormak HBS350N/BS 350 Vertical Bandsaw
Description

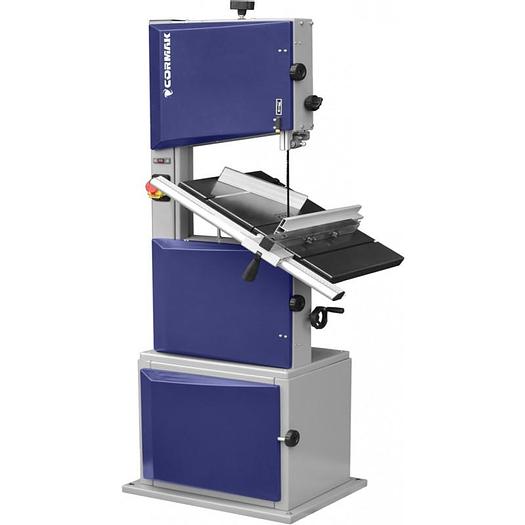

Cormak HBS350N/HBS 350 Vertical Bandsaw
Machine Description
Simple in handling band saw of durable design. Allows for precise work parameters setting, directly influencing cutting efficiency.
- Rapid tension / band release lever is also used for quick band removal

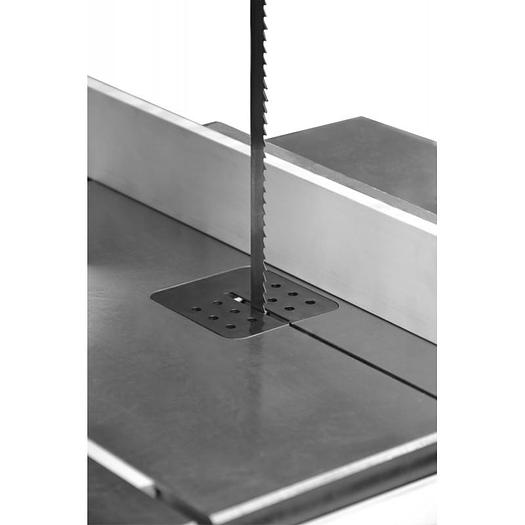

- Made of cast iron, precise table of ground and polished surface

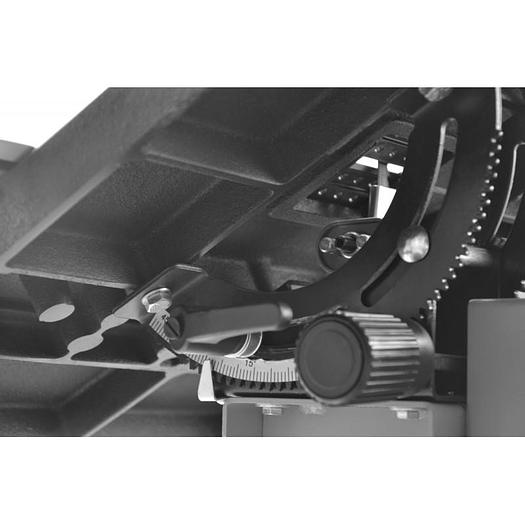

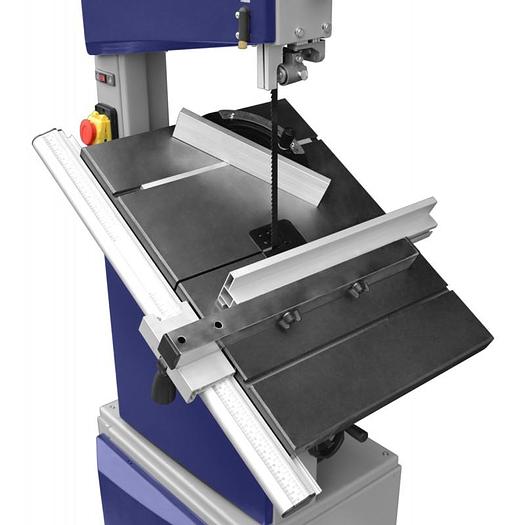

- -10° to +45° worktable tilting
- A window for a band tension indicator readout

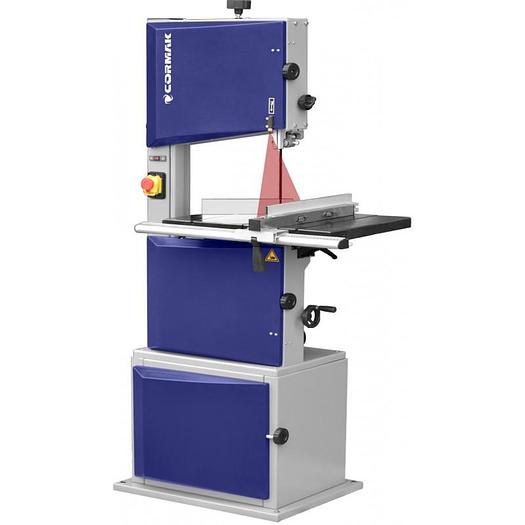

- Equipped with a laser indicator ensuring precise cut
Includes

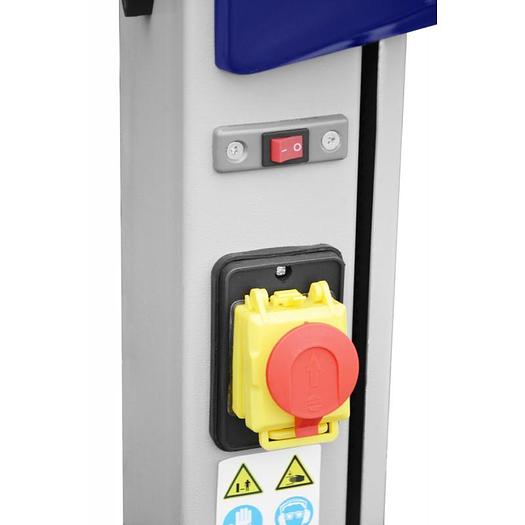

- On/off switch with an overload release
- Rapid tension / band release lever

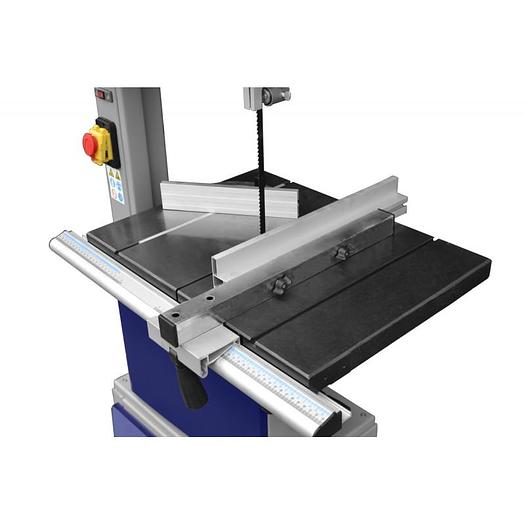

- Precise T-square
- 2560×10 t 6.3 cutting band
Technical Specification
Band Wheels Diameter: 350 mm
Maximum Cutting Height: 230 mm
Maximum Cutting Width: 335 mm
Worktable Dimensions (L×W): 545×400 mm
Worktable Tilt: -10° to +45°
Blade Width: 6 to 15 mm
Blade Length:2560 mm
Blade Speed: 370/800 m/min
Dimensions (L×W×H): 750×650×1730 mm
Weight: 88 kg
Motor Power: 1.1 kW
Voltage: 230V
Specifications
| Manufacturer | Cormak |
| Model | HBS350N/BS 350 Vertical Bandsaw |
| Condition | New |
| Band Wheels Diameter | 350 mm |
| Maximum Cutting Height | 230 mm |
| Maximum Cutting Width | 335 mm |
| Worktable Dimensions (L×W) | 545×400 mm |
| Worktable Tilt | -10° to +45° |
| Blade Width | 6 to 15 mm |
| Blade Length | 2560 mm |
| Blade Speed | 370/800 m/min |
| Dimensions (L×W×H) | 750×650×1730 mm |
| Weight | 88 kg |
| Motor Power | 1.1 kW |
| Voltage | 230V |
