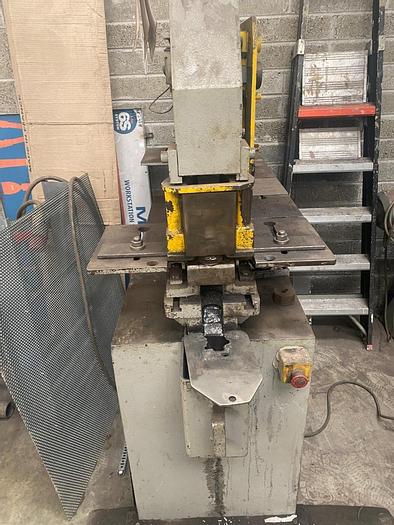

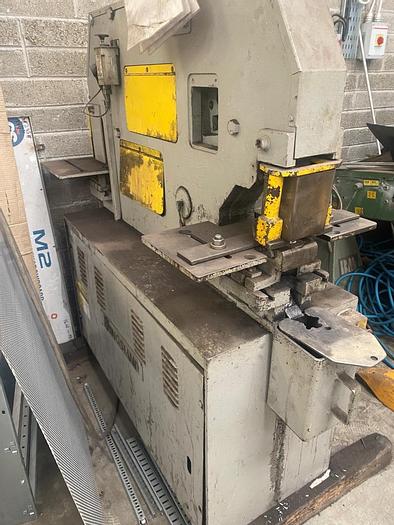

Kingsland 60T Ironworker/Metalworker/Steelworker

1

Ireland

Sold

Description

Kingsland 60T Ironworker/Metalworker/Steelworker


Machine Type: Hydraulic Ironworker/Metalworker/Steelworker

Condition: Good

Electrical Connection: 3 Phase

Capacity: 60 Ton

Stations: 4

Cylinders: 1


Includes

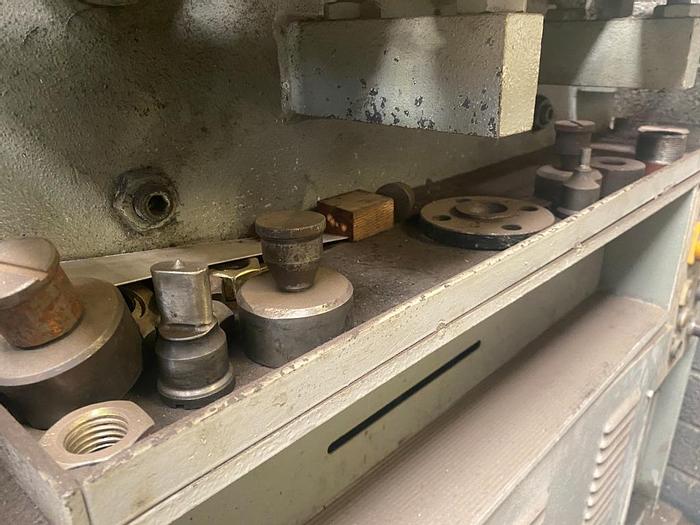

Various Punches & Dies

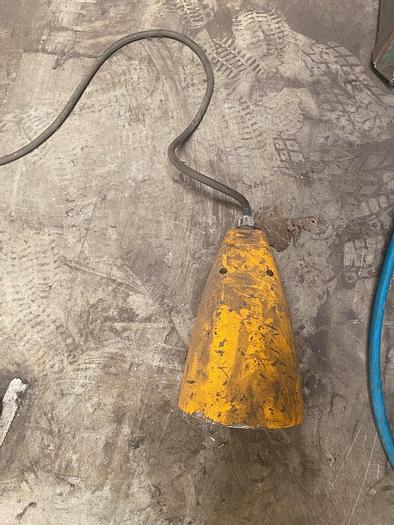

Wanderer Type Footpedal


Technical Details

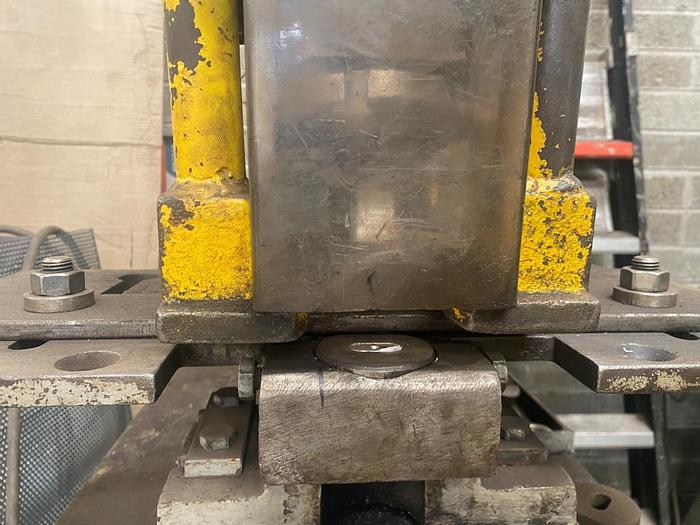

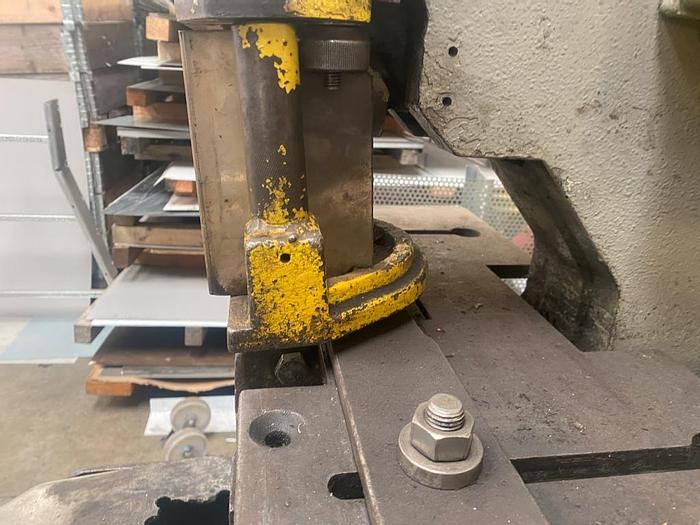

Punching

Punching Pressure: 60 tons

Punching Capacity: 28 x 15 mm dia.

Punching Capacity: 38 x 11 mm dia.

Throat Depth: 220 mm

Max. Stroke Length: 55 mm

Cycles/min. (15 mm stroke): 26

Working Height up to Die: 940 mm

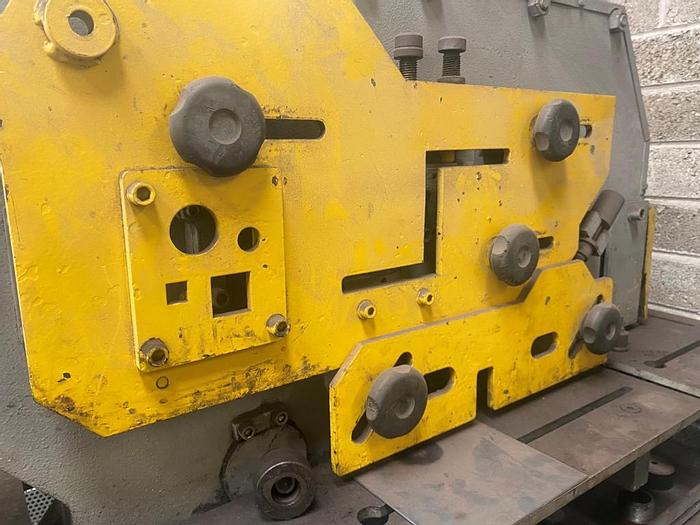

Shearing

Flat Bar Shear Capacity: 310 x 15 mm

Flat Bar Shear Capacity: 200 x 20 mm

Shear Blade length: 340 mm

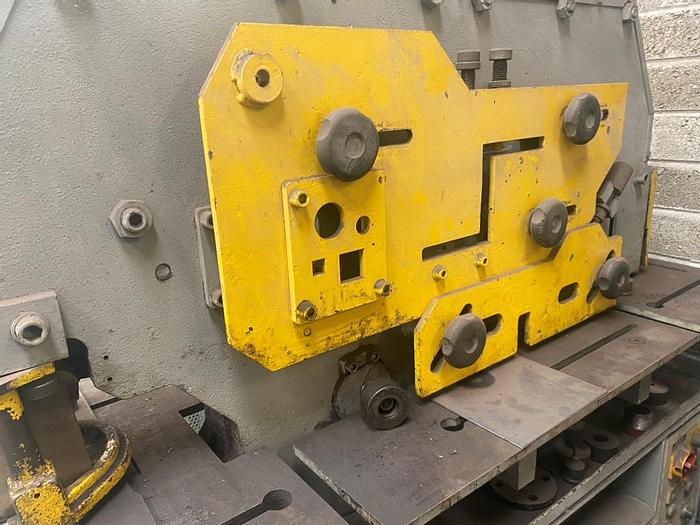

Angle Shearing

Angle 90° Shearing: 120 x 120 x 12 mm

Angle 45° Mitre Shearing: 80 x 8 mm

Angle Shear Working Height: 1140 mm


Bar Shearing

Round Bar Shear: 40 mm dia.

Square Bar Shear: 35 x 35 mm


Notching

Rectangular Notching Capacity: 42 x 100 x 10 mm

Notcher Working Height: 1006 mm


Motor Power: 4 kW

Machine Weight: 1250 kg approx.

Machine Dimensions: 1510 x 590 x 1570 mm approx.

Specifications

ManufacturerKingsland
Model60T Ironworker/Metalworker/Steelworker
ConditionUsed
Machine TypeHydraulic Ironworker/Metalworker/Steelworker
ConditionGood
Electrical Connection3 Phase
Capacity60 Ton
Stations4
Cylinders1
Punching Pressure60 tons
Throat Depth220 mm
Max. Stroke Length55 mm
Cycles/min. (15 mm stroke)26
Flat Bar Shear Capacity310 x 15 mm
Flat Bar Shear Capacity200 x 20 mm
Shear Blade length340 mm
Angle 45° Mitre Shearing80 x 8 mm
Angle Shear Working Height1140 mm
Round Bar Shear40 mm dia.
Square Bar Shear35 x 35 mm
Notcher Working Height1006 mm
Motor Power4 kW
Machine Weight1250 kg approx.
