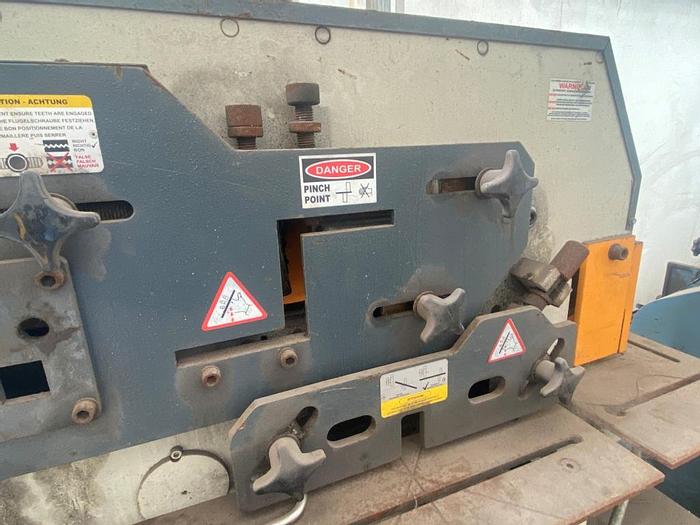

2013 Sahinler HKM Ironworker/Metalworker/Steelworker
Description

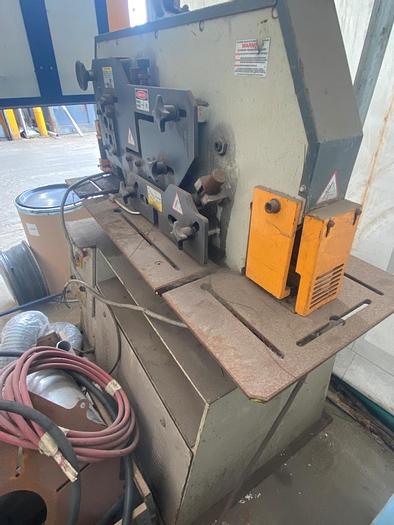

2013 Sahinler HKM 60 Ironworker/Metalworker/Steelworker
Machine Type: Hydraulic Ironworker/Metalworker/Steelworker
Year: 2013
Electrical Connection: 3 Phase
Stations: 4
Cylinders: 1
Includes
Wanderer Type Footpedal
No Tooling with this machine

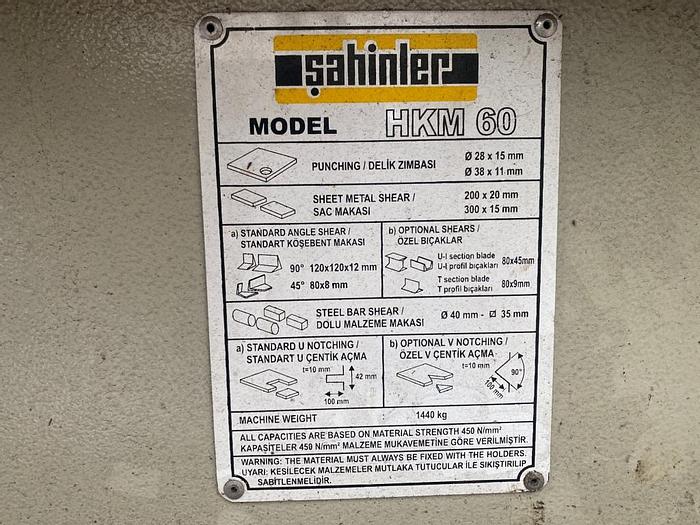

Technical Details

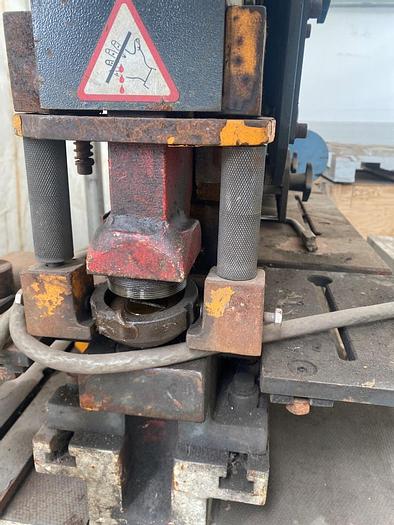

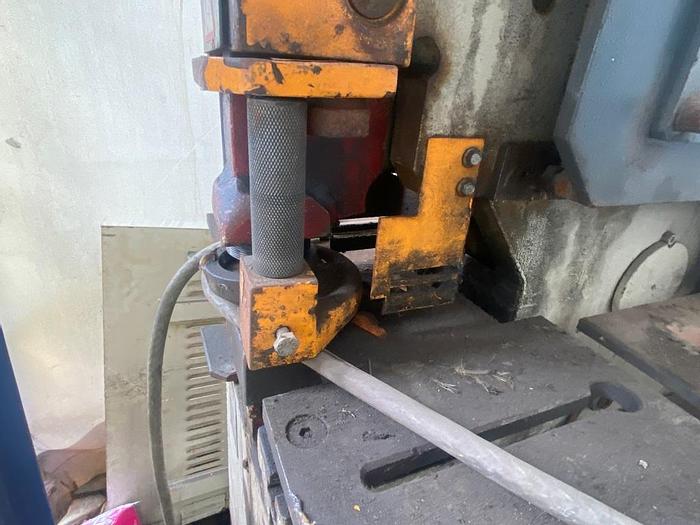

Punching
Punching Pressure: 60 tons
Punching Capacity: 28 x 15 mm dia.
Punching Capacity: 38 x 11 mm dia.
Throat Depth: 220 mm
Max. Stroke Length: 55 mm
Cycles/min. (15 mm stroke): 25
Working Height up to Die: 955 mm
Shearing
Flat Bar Shear Capacity: 300 x 15 mm
Flat Bar Shear Capacity: 200 x 20 mm
Shear Blade length: 317 mm
Shear Working Height: 955 mm

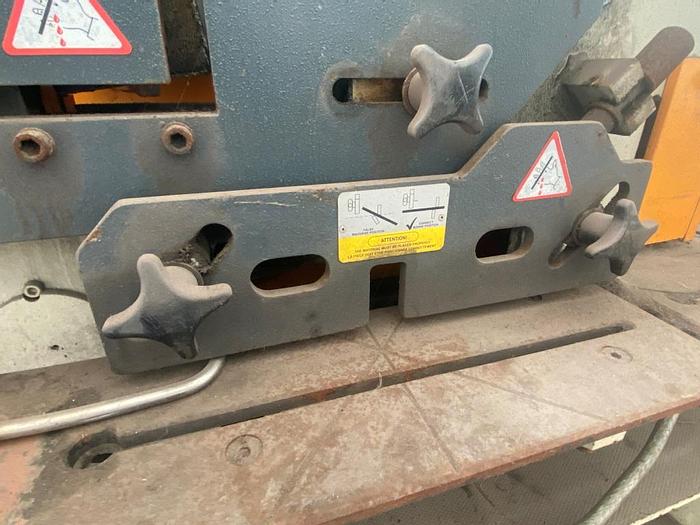

Angle Shearing
Angle 90° Shearing: 120 x 120 x 12 mm
Angle 45° Mitre Shearing: 80 x 8 mm
Angle Shear Working Height: 1155 mm

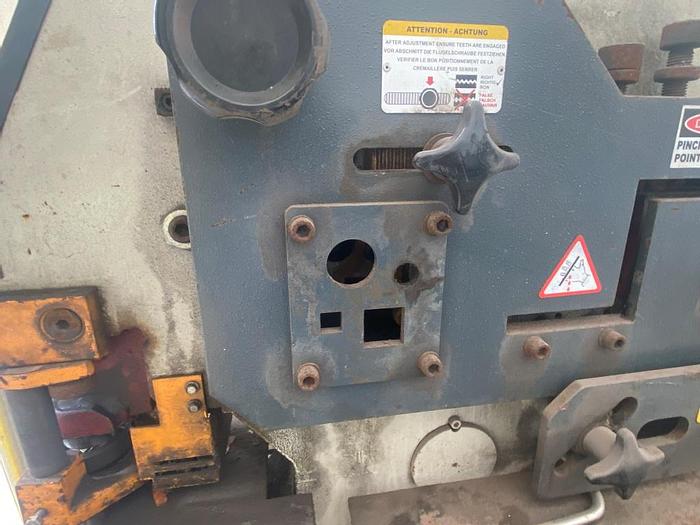

Bar Shearing
Round Bar Shear: 40 mm dia.
Square Bar Shear: 35 x 35 mm

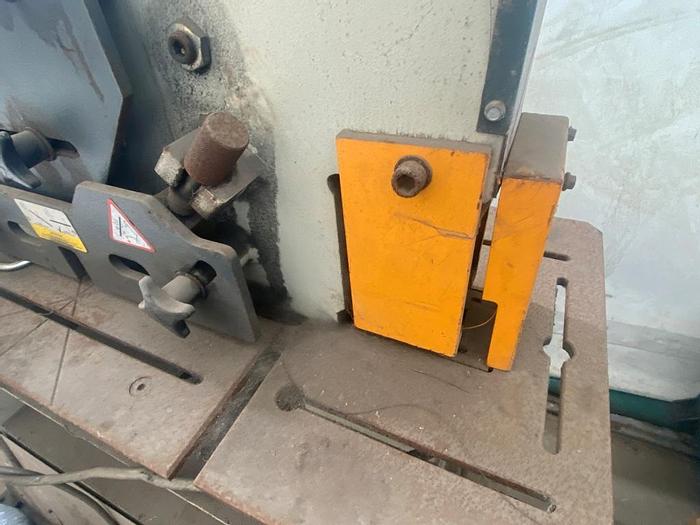

Notching
Rectangular Notching Capacity: 42 x 100 x 10 mm
Notcher Working Height: 955 mm
Motor Power: 4 kW
Machine Weight: 1440 kg approx.
Machine Dimensions: 1520 x 950 x 1780 mm approx.
Specifications
| Manufacturer | Sahinler |
| Model | HKM Ironworker/Metalworker/Steelworker |
| Year | 2013 |
| Condition | Used |

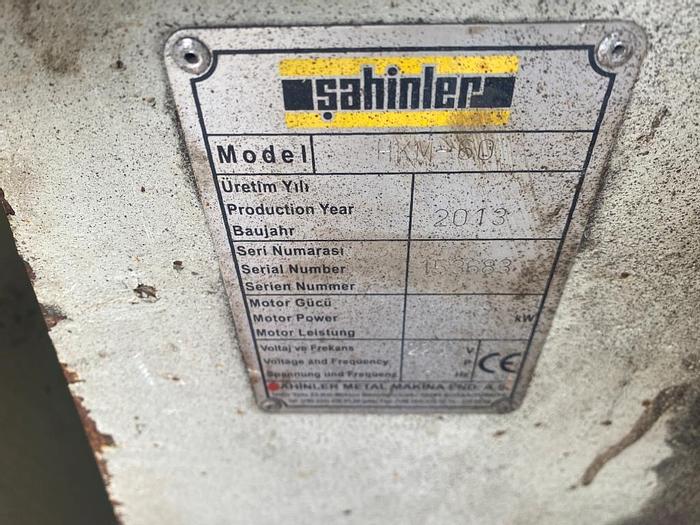

| Serial Number | 153683 |
| Machine Type | Hydraulic Ironworker/Metalworker/Steelworker |
| Year | 2013 |
| Condition | Good |
| Electrical Connection | 3 Phase |
| Stations | 4 |
| Cylinders | 1 |
| Punching Pressure | 60 tons |
| Throat Depth | 220 mm |
| Max. Stroke Length | 55 mm |
| Cycles/min. (15 mm stroke) | 25 |
| Flat Bar Shear Capacity | 300 x 15 mm |
| Flat Bar Shear Capacity | 200 x 20 mm |
| Shear Blade length | 317 mm |
| Shear Working Height | 955 mm |
| Angle 45° Mitre Shearing | 80 x 8 mm |
| Angle Shear Working Height | 1155 mm |
| Round Bar Shear | 40 mm dia. |
| Square Bar Shear | 35 x 35 mm |
| Notcher Working Height | 955 mm |
| Motor Power | 4 kW |
| Machine Weight | 1440 kg approx. |
