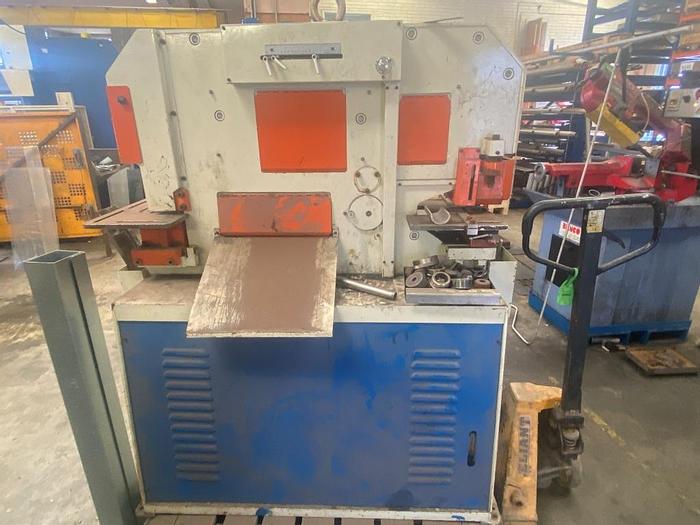

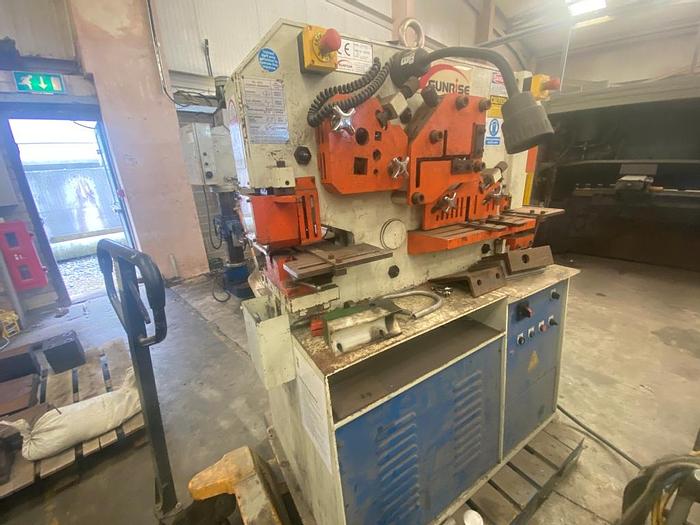

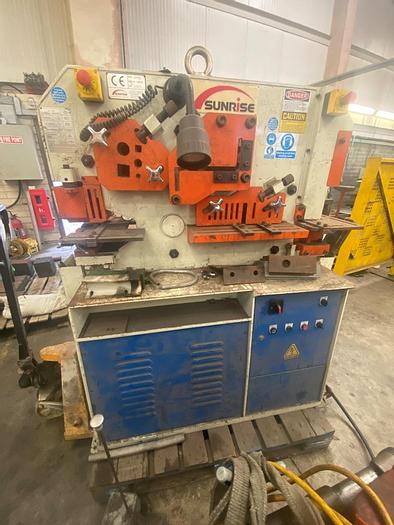

2010 Sunrise IW-60H Hydraulic Ironworker/Steelworker/Metalworker

1

Ireland

Sold

Description

2010 Sunrise IW-60H Hydraulic Ironworker/Metalworker/Steelworker


Machine Type: Hydraulic Ironworker/Metalworker/Steelworker

Year: 2010

Condition: Good

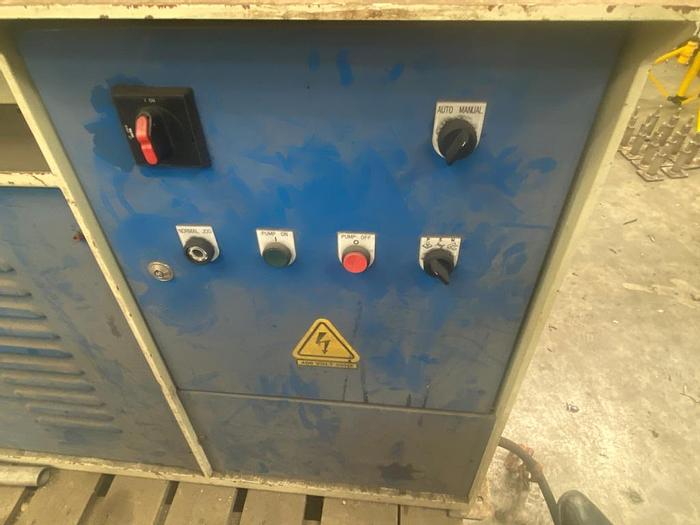

Electrical Connection: 3 Phase

Capacity: 60 Ton

Stations: 4

Cylinders: 1


Includes

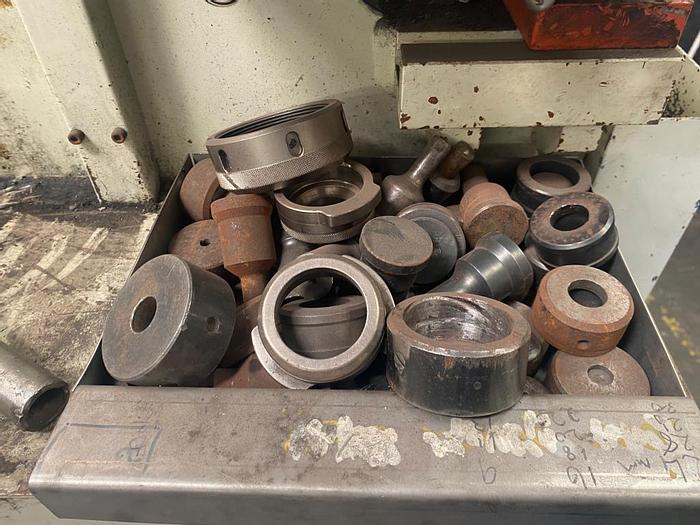

Various Punches & Dies

Wanderer Type Footpedal

Machine Light

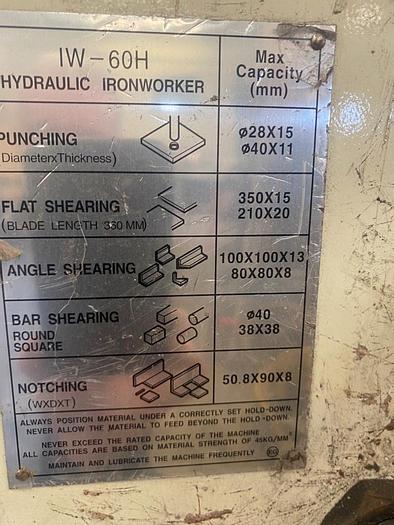

Technical Details

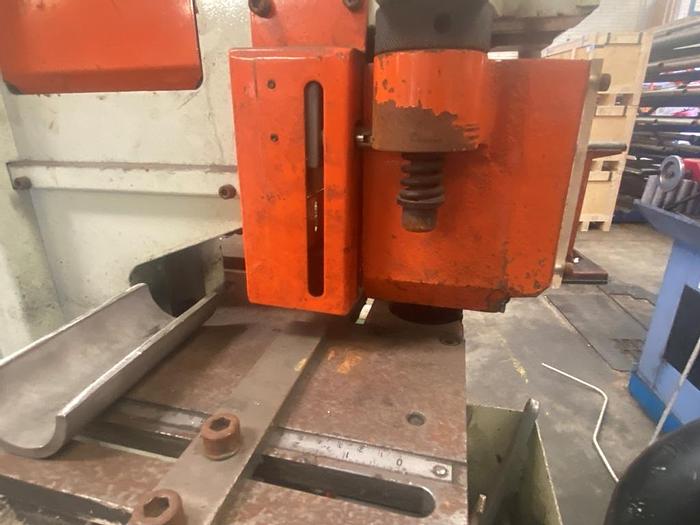

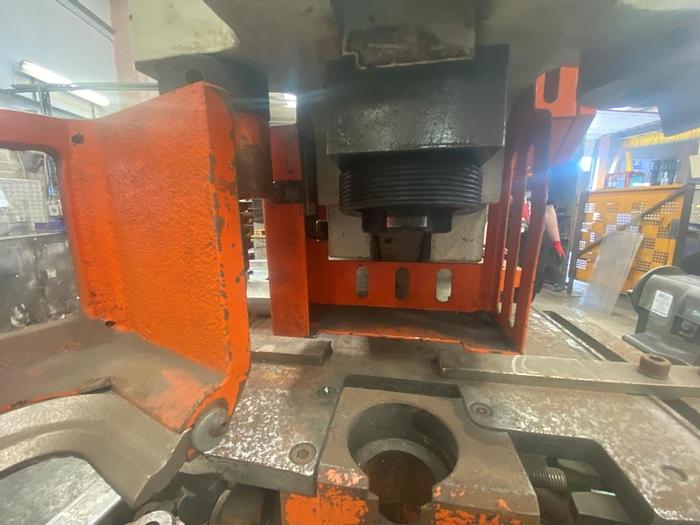

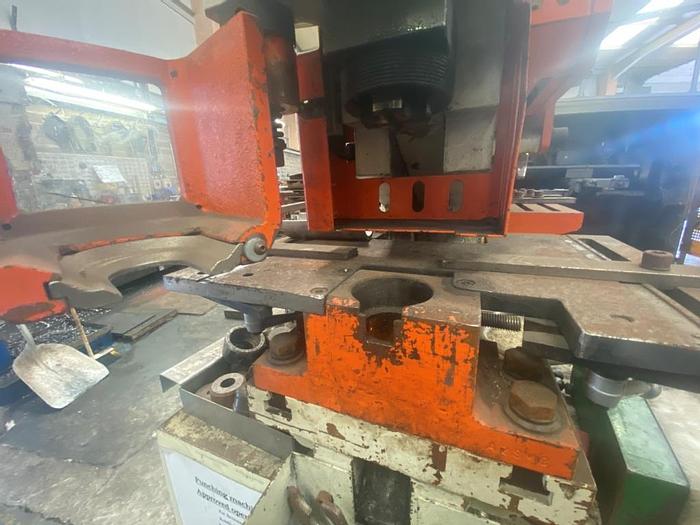

Punching

Punching Pressure: 60 tons

Punching Capacity: 28 x 15 mm dia.

Punching Capacity: 40 x 11 mm dia.

Throat Depth: 220 mm

Max. Stroke Length: 55 mm

Cycles/min. (15 mm stroke): 29

Working Height up to Die: 1000 mm

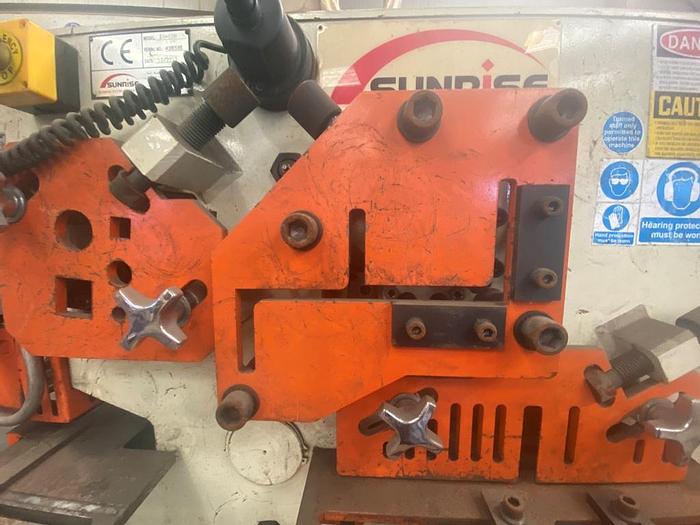

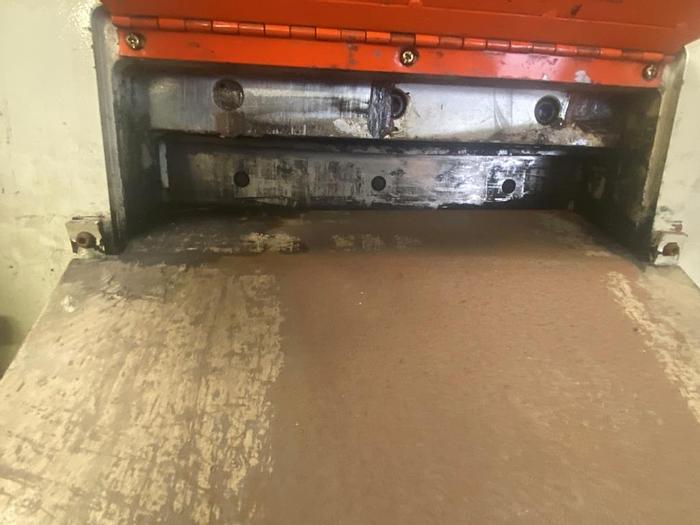

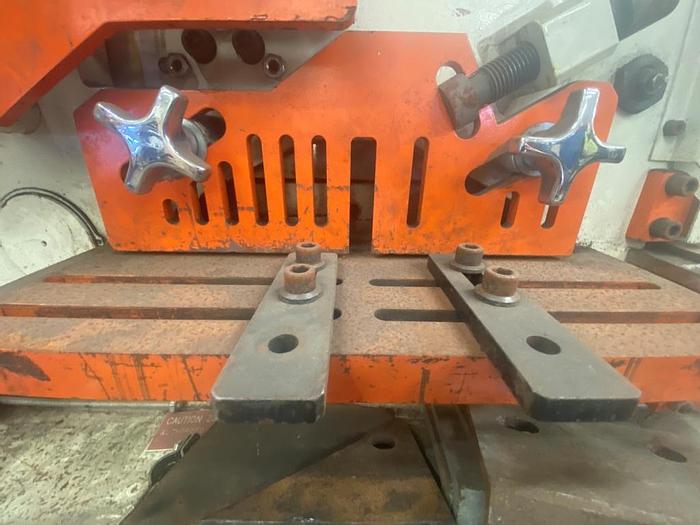

Shearing

Flat Bar Shear Capacity: 350 x 15 mm

Flat Bar Shear Capacity: 210 x 20 mm

Shear Blade length: 360 mm

Angle Flange Trim: 100 mm

Shear Working Height: 1006 mm

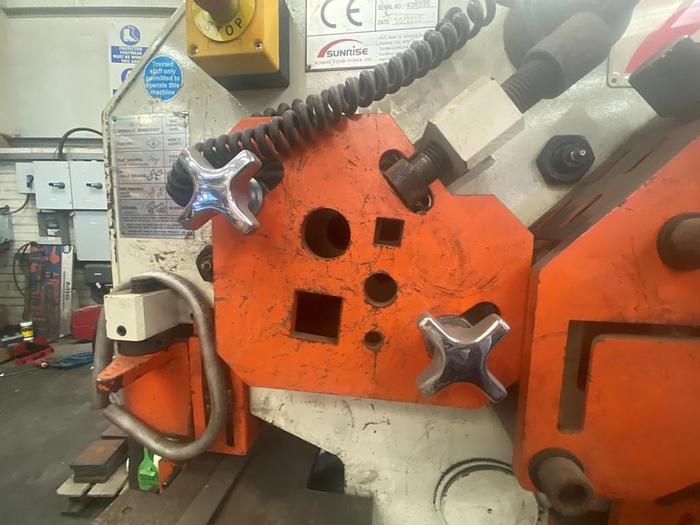

Angle Shearing

Angle 90° Shearing: 100 x 100 x 13 mm

Angle 45° Mitre Shearing: 80 x 80 x 8 mm

Angle Shear Working Height: 1236 mm

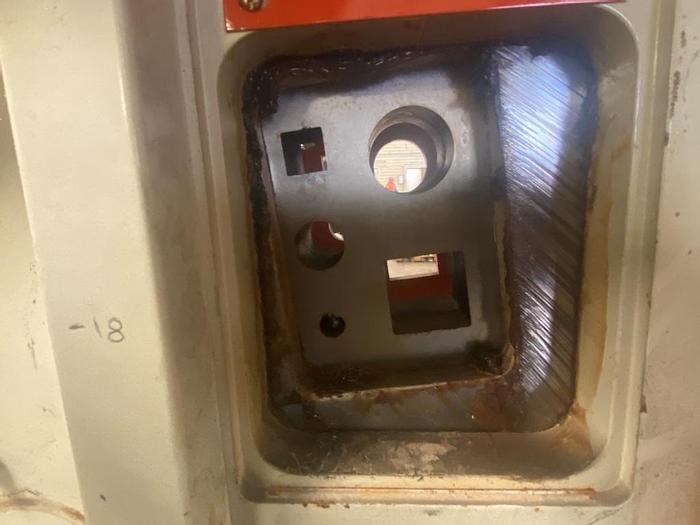

Bar Shearing

Round Bar Shear: 40 mm dia.

Square Bar Shear: 38 x 38 mm

Bar Shear Working Height: 1260 mm

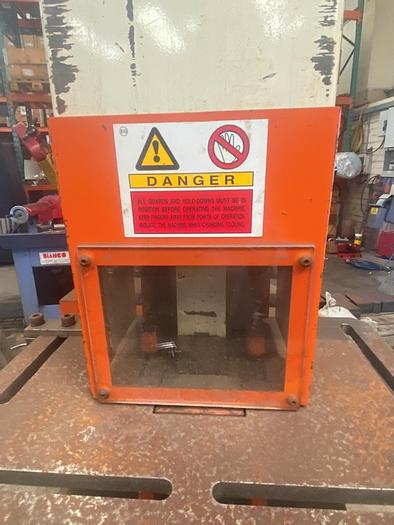

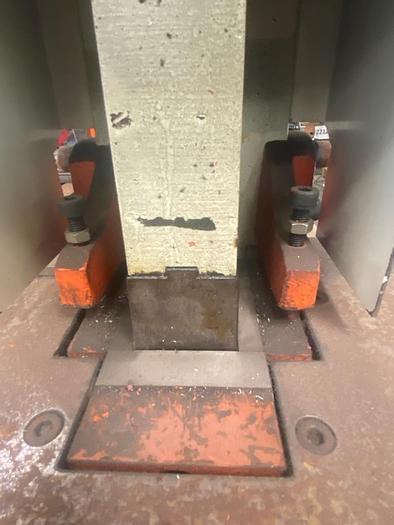

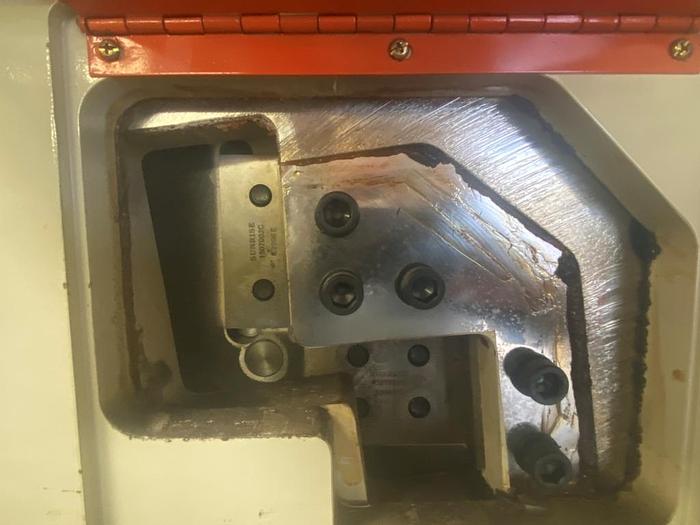

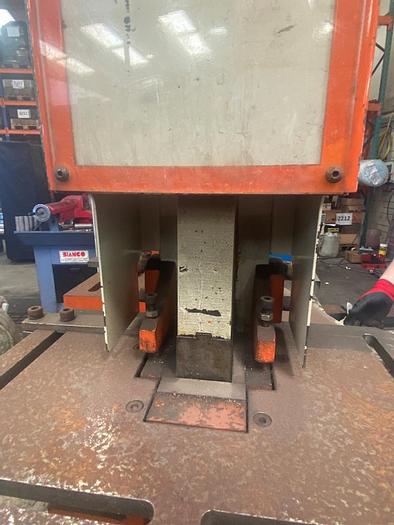

Notching

Rectangular Notching Capacity: 50.8 x 90 x 8 mm

Notcher Working Height: 1006 mm


Motor Power: 7.5 HP

Machine Weight: 1500 kg approx.

Machine Dimensions: 1460 x 770 x 1560 mm approx.

Specifications

ManufacturerSunrise
ModelIW-60H Hydraulic Ironworker/Steelworker/Metalworker
Year2010
ConditionUsed

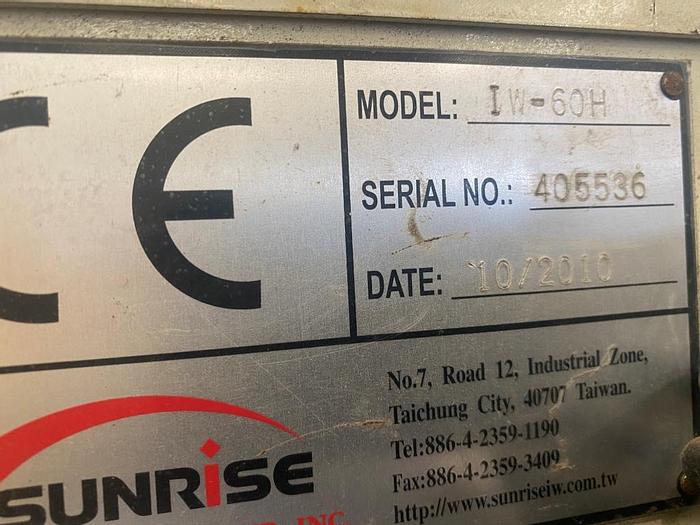

Serial Number405536
Machine TypeHydraulic Ironworker/Metalworker/Steelworker
Year2010
ConditionGood
Electrical Connection3 Phase
Capacity60 Ton
Punching Pressure60 tons
Throat Depth220 mm
Max. Stroke Length55 mm
Cycles/min. (15 mm stroke)29
Flat Bar Shear Capacity350 x 15 mm
Flat Bar Shear Capacity210 x 20 mm
Shear Blade length360 mm
Angle Flange Trim100 mm
Shear Working Height1006 mm
Angle Shear Working Height1236 mm
Round Bar Shear40 mm dia.
Square Bar Shear38 x 38 mm
Bar Shear Working Height1260 mm
Notcher Working Height1006 mm
Motor Power7.5 HP
Machine Weight1500 kg approx.
