€13,315 (EUR)
+ VAT

Cormak 460 x 1000 Universal Manual Lathe

1

Poland

Description

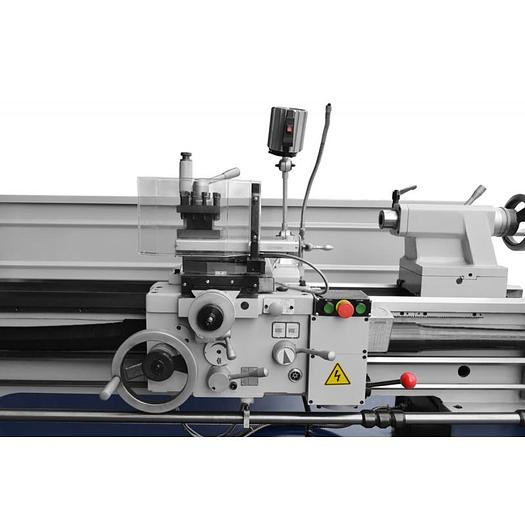

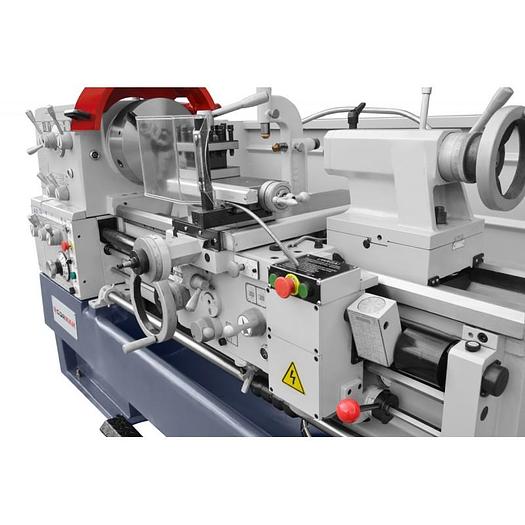

Cormak 460 x 1000 Universal Manual Lathe


The industrial CORMAK 460x1000 metal lathe features a robust cast iron bed construction, equipped with a 12-speed gearbox and a powerful 5.5kW/400V induction motor for maximum torque. With a large 80mm spindle bore, it is recommended for machining hard steels and mechanical turning. Suitable for various operations such as internal and external turning, taper machining, polishing, metric and imperial threading, drilling and broaching.


Manufacturer: Cormak

Model: 460 x 1000

Machine Type: Manual Lathe

Year: New


Machine Description

This CORMAK 460x1000 is a professional universal lathe designed for precise metal machining in industrial plants, locksmith workshops and toolrooms. With its rigid cast iron structure, large spindle bore and 3-axis digital readout, this conventional lathe provides stability, repeatability and efficiency even in the most demanding applications.


Machine Features

  • Solid cast iron bed construction, hardened and precisely ground, ensures excellent vibration damping and long service life.
  • Stable cast iron base guarantees precise work and secure positioning even under heavy load.
  • Long turning length – 1000mm – enables machining of long parts in a single setup.
  • 80mm spindle bore allows machining of pipes and shafts with large internal diameters.
  • 3-axis digital readout (optical scales) – full control over carriage position and repeatability of operations.

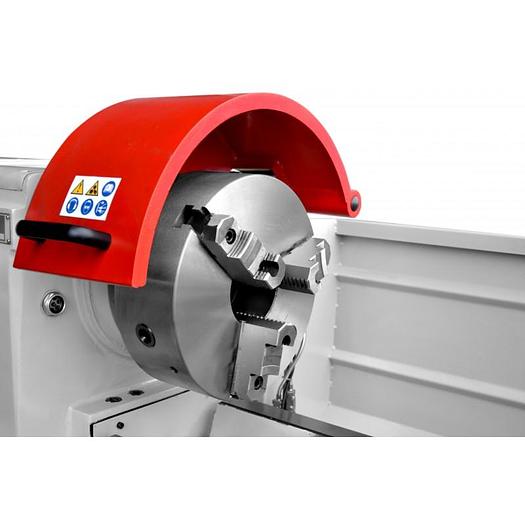

  • 3-jaw chuck 250mm – quick clamping and high holding force.
  • High-quality spindle bearings – smooth and stable operation across all speed ranges.
  • 5.5kW (S1) motor – reliable operation even during long machining cycles.
  • Rapid longitudinal and cross feed – increased productivity and shorter machining time.
  • Removable bed bridge – allows machining of workpieces up to 690mm in diameter.


Standard Equipment

  • 250mm 3 Jaw Chuck
  • 3-axis digital readout (optical scales)
  • 6 vibration isolators
  • Fixed and travelling steadies
  • Dead centre MK4
  • Reduction sleeve MK7/MK4
  • Change gears
  • Cooling system with pump
  • LED work light
  • Oiler and service tools
  • Safety guards compliant with CE standards
  • User manual
  • CE Declaration of Conformity


Optional equipment

  • Set of 25x25mm turning tools (9 pcs with carbide inserts)
  • Precision live centre MK4
  • Taper turning attachment
  • Grinding attachment PS125
  • 4-jaw chuck 250mm + drive plate D8
  • Drill arbor MK4/B16 and drill chuck B16 (3–16mm)
  • HSS-Co5 drill set (1–13mm)
  • ES-12 coolant – 5L


Technical Details

3-jaw chuck: 250mm

Maximum turning diameter over bed: 460mm

Turning diameter over cross slide: 260mm

Turning diameter in gap: 690mm

Turning length between centres: 1000mm

Maximum workpiece length: 900mm

Bed width: 300mm

Spindle bore: 80mm

Spindle speed range: (12 ranges) 25–1700rpm

Spindle speed steps: 25, 40, 55, 75, 115, 170, 250, 375, 560, 750, 1100, 1700rpm

Spindle mount: D1-8 CAMLOCK

Spindle taper: MT7

Toolpost dimensions: 110 x 110 x 42mm

Maximum tool size: 25 x 25mm

Top slide travel: 125mm

Cross slide travel: 295mm

Longitudinal travel: 750mm

Metric threads: (41) 0.1–14mm

Inch threads: (60) 2–112TPI

Module threads: (34) 0.1–7MP

DP threads: (50) 4–112DP

Longitudinal feed range and count: (42) 0.031–1.7mm/rev

Cross feed range and count: (42) 0.014–0.784mm/rev

Rapid feed: Yes

Tailstock quill travel: 130mm

Tailstock quill diameter: 60mm

Tailstock quill taper: MT4

Main motor power S1/S6: 5.5/6.6kW/400V

Coolant pump power: 0.1kW

Overall dimensions (L/W/H): 2200 x 1080 x 1650mm

Net weight: 1655kg


Design and technology

The CORMAK 460x1000 model has been designed for intensive industrial use. The large-bore spindle is mounted on reinforced bearings and driven by a multi-range gearbox with hardened and ground gears. All parameters are conveniently adjusted from the ergonomic control panel. The machine enables thread cutting across a wide range (metric, inch, module, D.P.) without the need to replace gears in the gearbox, which significantly improves operator efficiency.


Precision and performance

The lathe is equipped with a leadscrew and feed shaft for automatic feeds and accurate threading. The built-in threading dial indicator makes it easy to reproduce thread pitches and accelerates subsequent passes. The digital readout system provides full control of positioning on three axes, making this machine ideal for high-precision and repeatable work.


Applications

The CORMAK 460x1000 lathe is ideal for any facility where precision and reliability are essential:

  • Maintenance and repair departments
  • Toolmaking workshops
  • Production plants
  • Technical schools and training workshops


Specifications

ManufacturerCormak
Model460 x 1000 Universal Manual Lathe
ConditionNew
Stock Number969215
Swing over bed460 mm
Swing over cross slide260 mm
Swing over gap690 mm
Turning length in gap165 mm
Centres distance1000 mm
BedInductively hardened
Bed width300 mm
Spindle bore diameter80 mm
Spindle noseD1-8 Camlock
Spindle mountMT7
Spindle speed(12) 25–1700 rpm
Maximum tool dimensions25×25 mm
Toolpost4 Way
Longitudinal feed range(42) 0.031–1.7 mm/turn
Metric thread(41) 0.1–14 mm
Inch thread(60) 2–112 T.P.I.
Modular thread0.1–7 M.P (34)
D.P. thread4–112 D.P. (50)
Tailstock quill diameter60 mm
Tailstock quill extension130 mm
Tailstock quill taperMK4
Digital readout3 axes
Main motor power5.5 kW
Flood coolant pump power0.1 kW
Dimensions2200×1080x1650 mm
Net weight1655 kg
