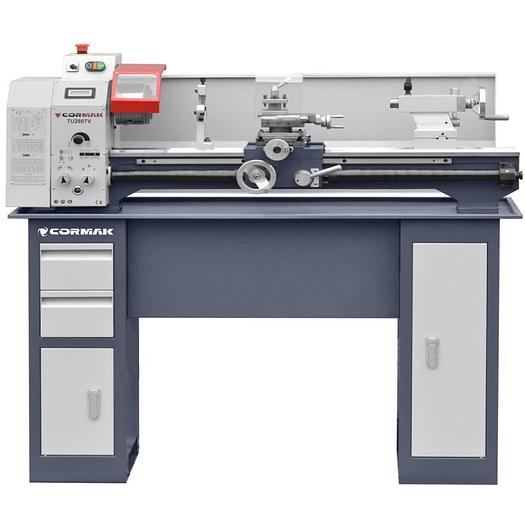

Cormak 280 x 700 Manual Lathe
Description
New Cormak 280 x 700 Universal Single Phase Manual Lathe
Machine Description
Manual Universal Lathe suitable for small workshops, training centres and hobby machinists.
Includes
Machine Base

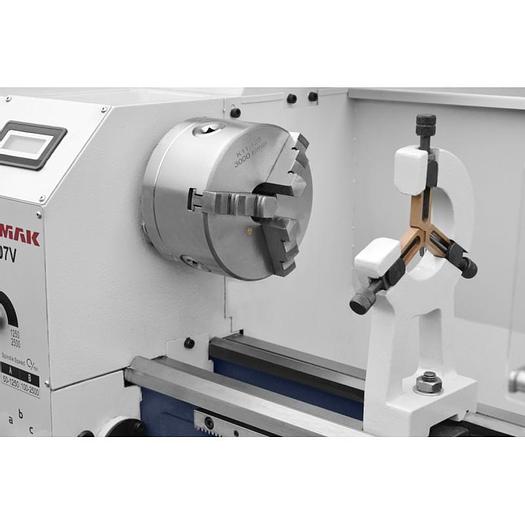

125mm 3 jaw Chuck
Set of Chuck Jaws
Chuck key
Steady Rest
Tools
Power: 230V Single Phase
Technical Specification:
Swing Over Bed: 280mm
Distance Between Centers: 700mm
Swing Over Cross-Slide: 180mm
Spindle Nose: MT4
Spindle Bore: 29mm
Speed Speed: 50 -2500 RPM

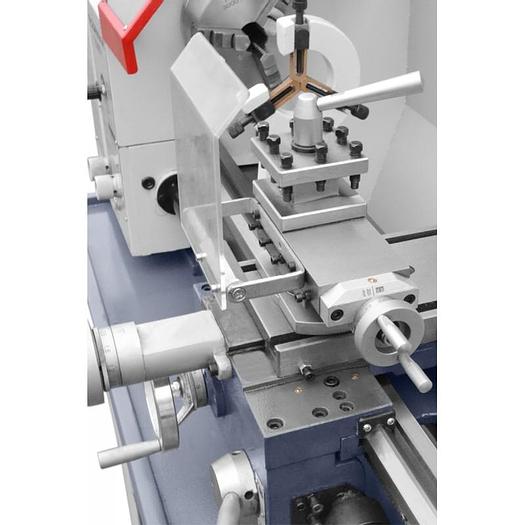

ToolPost: 4 Way
Tool Holder Dims: 12 x 12mm
Metric Threading: 0.2 - 3.5mm/rev
Imperial Threading:(18) 8-56 Teeth/Inch
Longitudinal Feedrate:(21) 0.085 - 0.832mm/rev
Traverse Feedrate: 0.07 - 0.4mm/rev
Max Top-slide Travel: 65mm
Max Cross-Slide Travel: 140mm
Max Carriage Travel: 650mm

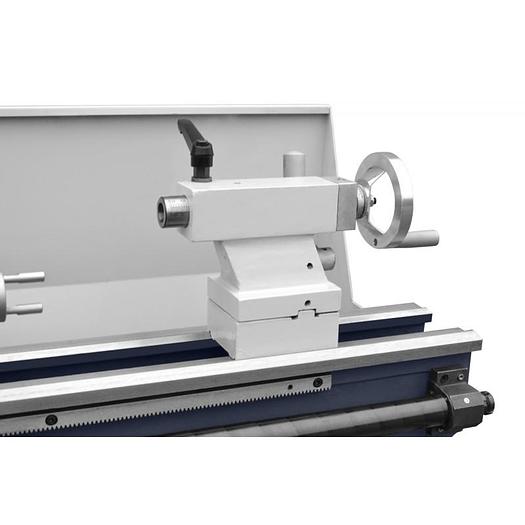

Tailstock Quill Travel: 65mm
Tailstock Taper: MT2
Spindle Motor: 0.75kW 230V
Machine Dimensions: 1320 x 560 x 1280mm
Weight: 160Kg
Specifications
| Manufacturer | Cormak |
| Model | 280 x 700 Manual Lathe |
| Condition | New |
| Power | 230V Single Phase |
| Swing Over Bed | 280mm |
| Distance Between Centers | 700mm |
| Swing Over Cross-Slide | 180mm |
| Spindle Nose | MT4 |
| Spindle Bore | 29mm |
| Speed Speed | 50 -2500 RPM |
| ToolPost | 4 Way |
| Tool Holder Dims | 12 x 12mm |
| Metric Threading | 0.2 - 3.5mm/rev |
| Imperial Threading | (18) 8-56 Teeth/Inch |
| Longitudinal Feedrate | (21) 0.085 - 0.832mm/rev |
| Traverse Feedrate | 0.07 - 0.4mm/rev |
| Max Top-slide Travel | 65mm |
| Max Cross-Slide Travel | 140mm |
| Max Carriage Travel | 650mm |
| Tailstock Quill Travel | 65mm |
| Tailstock Taper | MT2 |
| Spindle Motor | 0.75kW 230V |
| Weight | 160Kg |
