2006 Mori Seiki NL2000Y/500 CNC Lathe

1

Cork, Ireland

Sold

Description

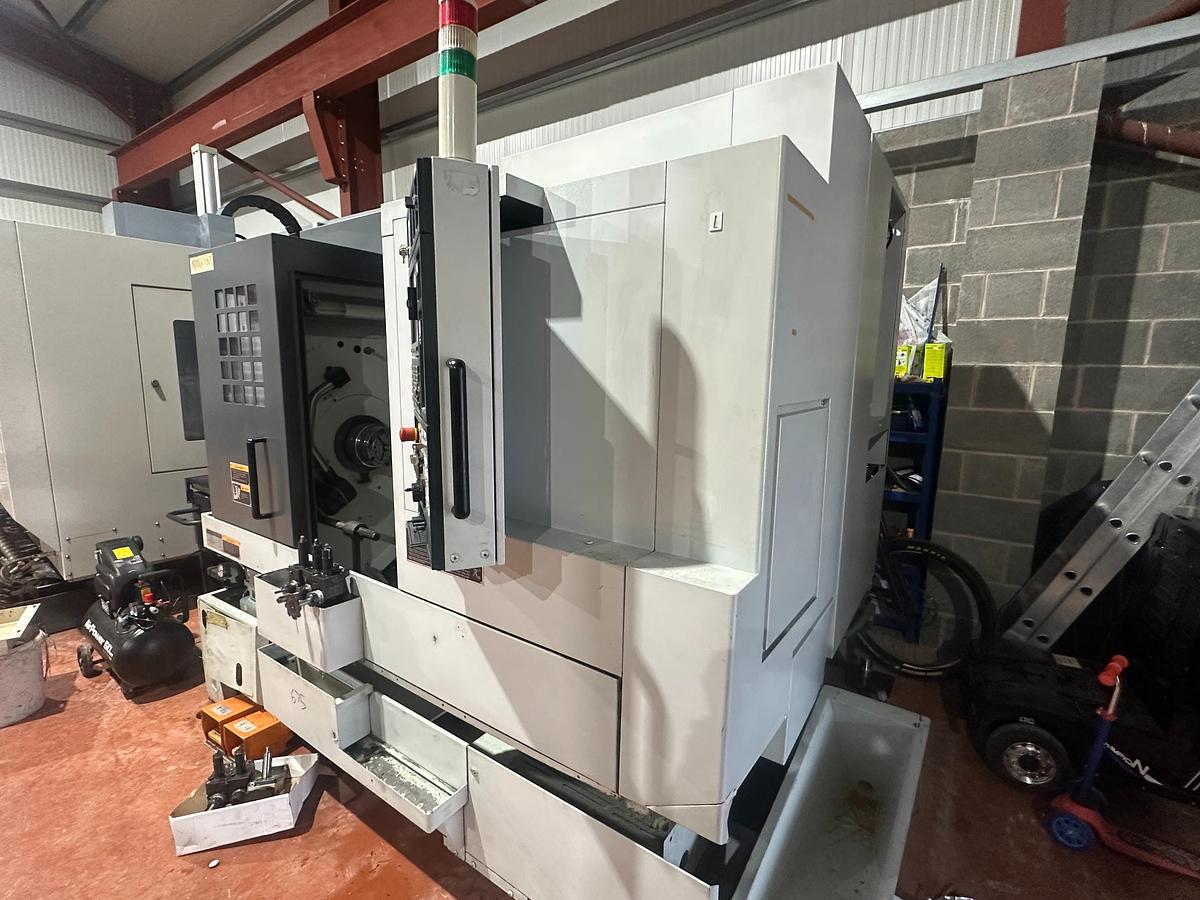

2006 Mori Seiki NL2000Y/500 CNC Lathe – Very Good Condition


2006 Mori Seiki NL2000Y/500 CNC Lathe with Y-Axis and live tooling. Plastics-only medical device use. Available now in Ireland.


Machine Type: CNC Turning Centre with Y-Axis & Live Tooling

Manufacturer: Mori Seiki (DMG MORI)

Model: NL2000Y/500

Year: 2006

Location: Ireland

Availability: Immediate


Machine Overview

Available now from Used Machine Tools Ireland, this 2006 Mori Seiki NL2000Y/500 CNC Lathe is presented in excellent working condition with a very clean operational history.

The machine was used exclusively for machining plastics by a medical device manufacturer, resulting in:

  • Minimal spindle and guideway wear
  • Clean internal condition
  • Long remaining service life

Unlike many plastics-only machines, this example is fully equipped with coolant, making it immediately suitable for both plastic and metal machining applications.

The NL2000Y/500 is widely regarded as one of the most capable and reliable Y-axis CNC lathes in its class, featuring Mori Seiki’s renowned BMT turret technology for rigidity, accuracy, and thermal stability.



Key Features & Highlights

  • Y-Axis CNC Lathe – complex milling and turning in one setup
  • Live Tooling (6,000 RPM) – drilling, tapping, and milling capability
  • BMT (Built-in Motor Turret) – exceptional rigidity and precision
  • Plastics-Only Medical Use – exceptionally low wear
  • Full Coolant System Installed
  • Coolant Tank Capacity: 235 Litres
  • Tailstock & Workpiece Unloader – production-ready configuration

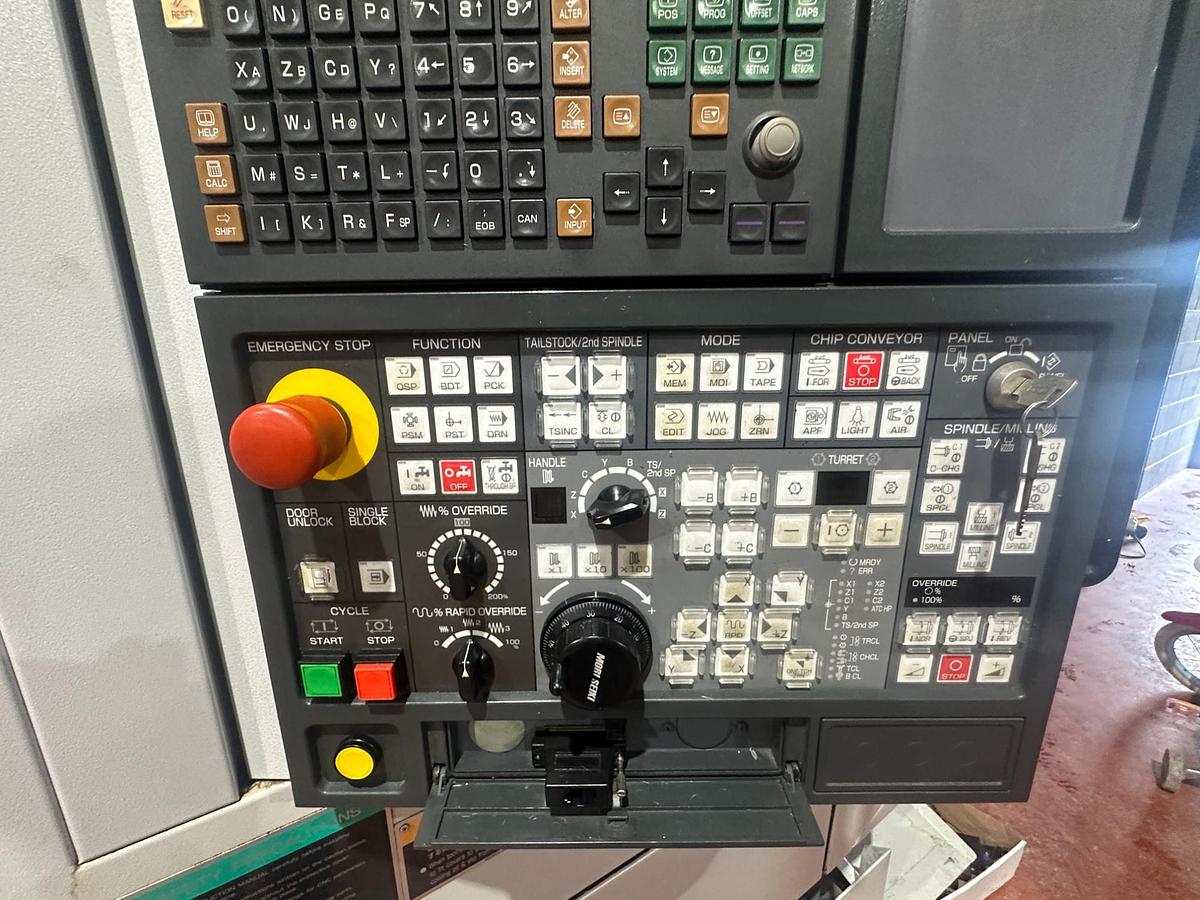

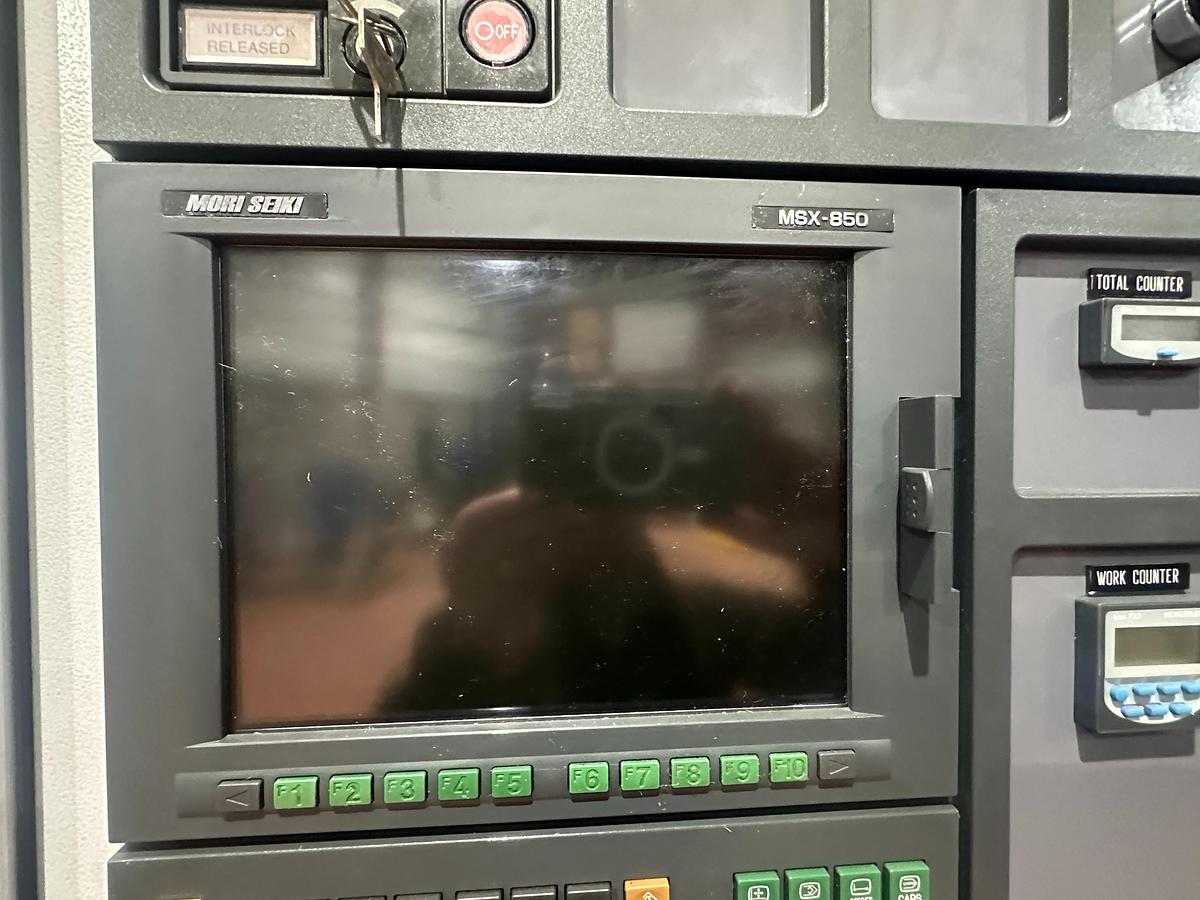

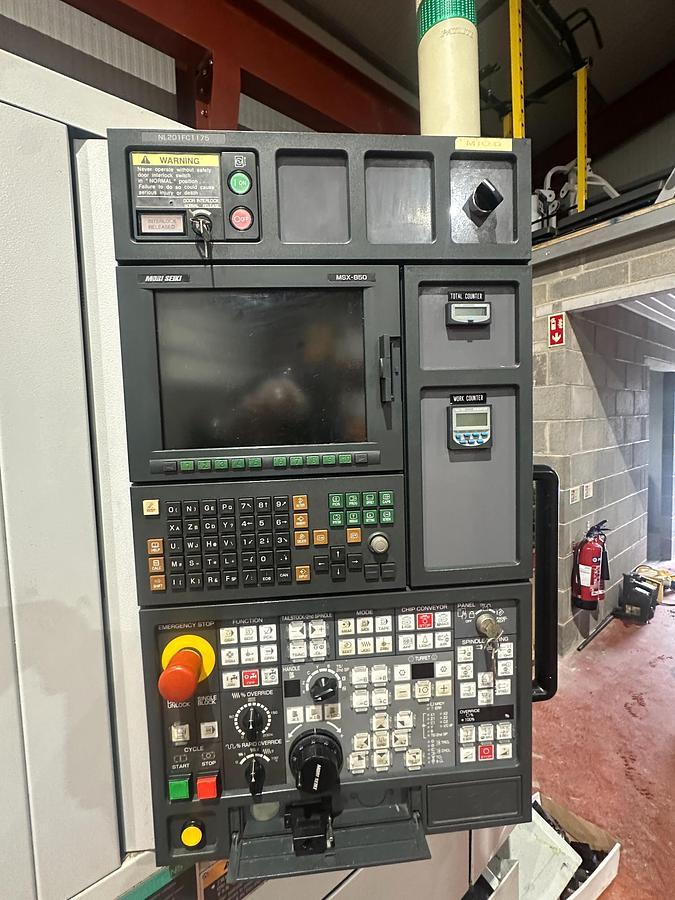

  • MSX-850 III Control – powerful and reliable Mori Seiki control

Technical Specifications – Mori Seiki NL2000Y/500

Capacity

  • Distance Between Centres: 500 mm

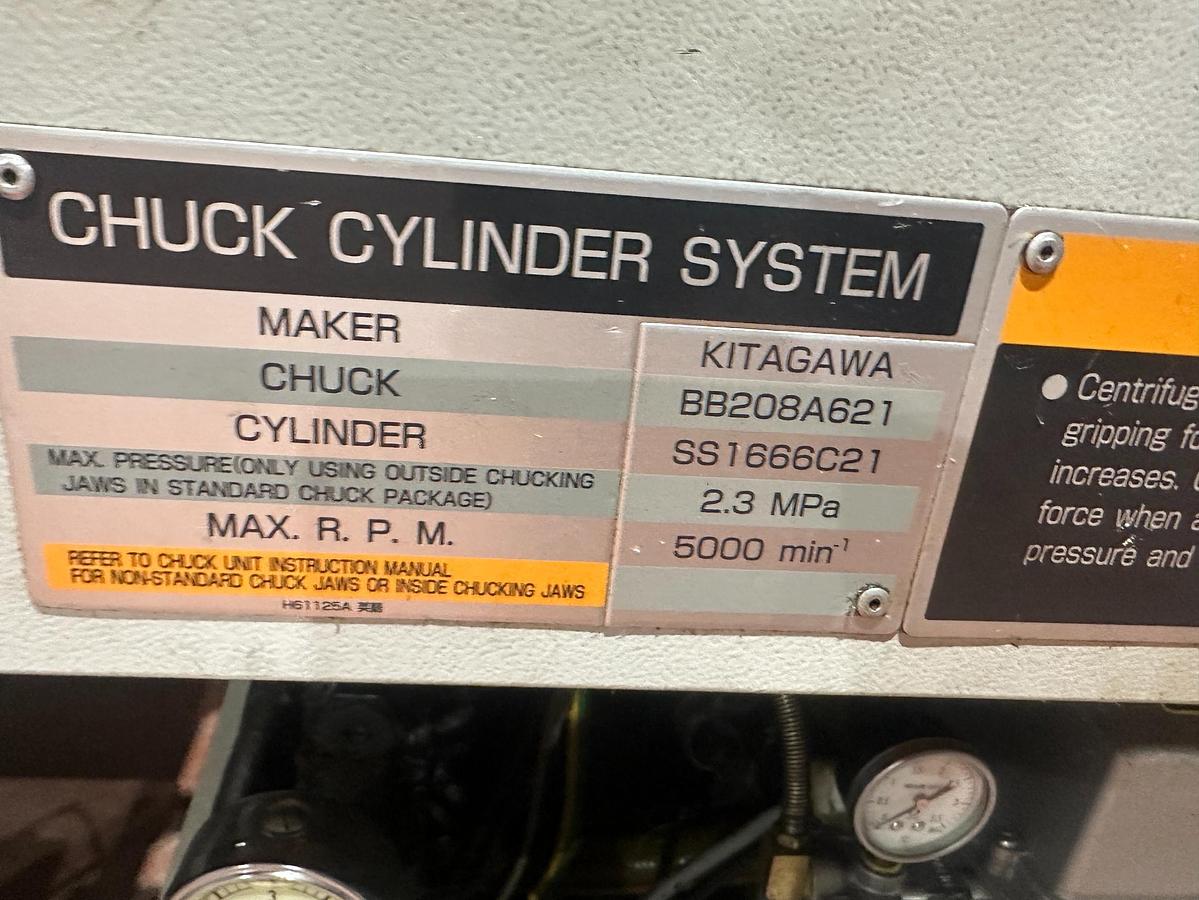

  • Chuck Size: 8 Inch
  • Max Turning Diameter: 366 mm
  • Standard Turning Diameter: 275 mm
  • Max Turning Length: 510 mm
  • Bar Capacity: 65 mm
  • Swing Over Bed: 923.8 mm
  • Swing Over Cross Slide: 755 mm

Axis Travel

  • X-Axis Travel: 260 mm
  • Z-Axis Travel: 590 mm
  • Y-Axis Travel: ±50 mm (100 mm total)

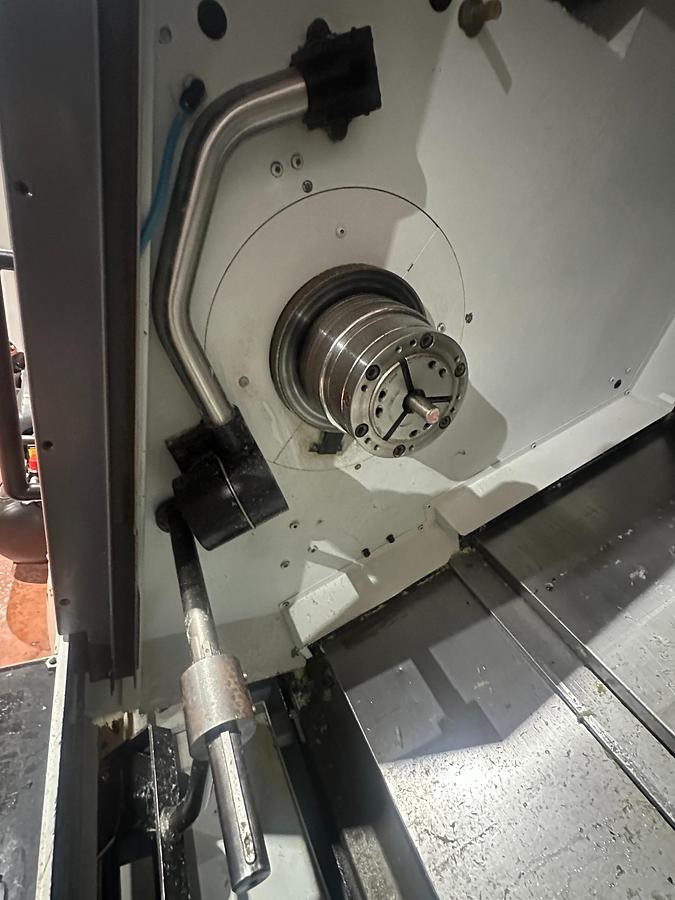

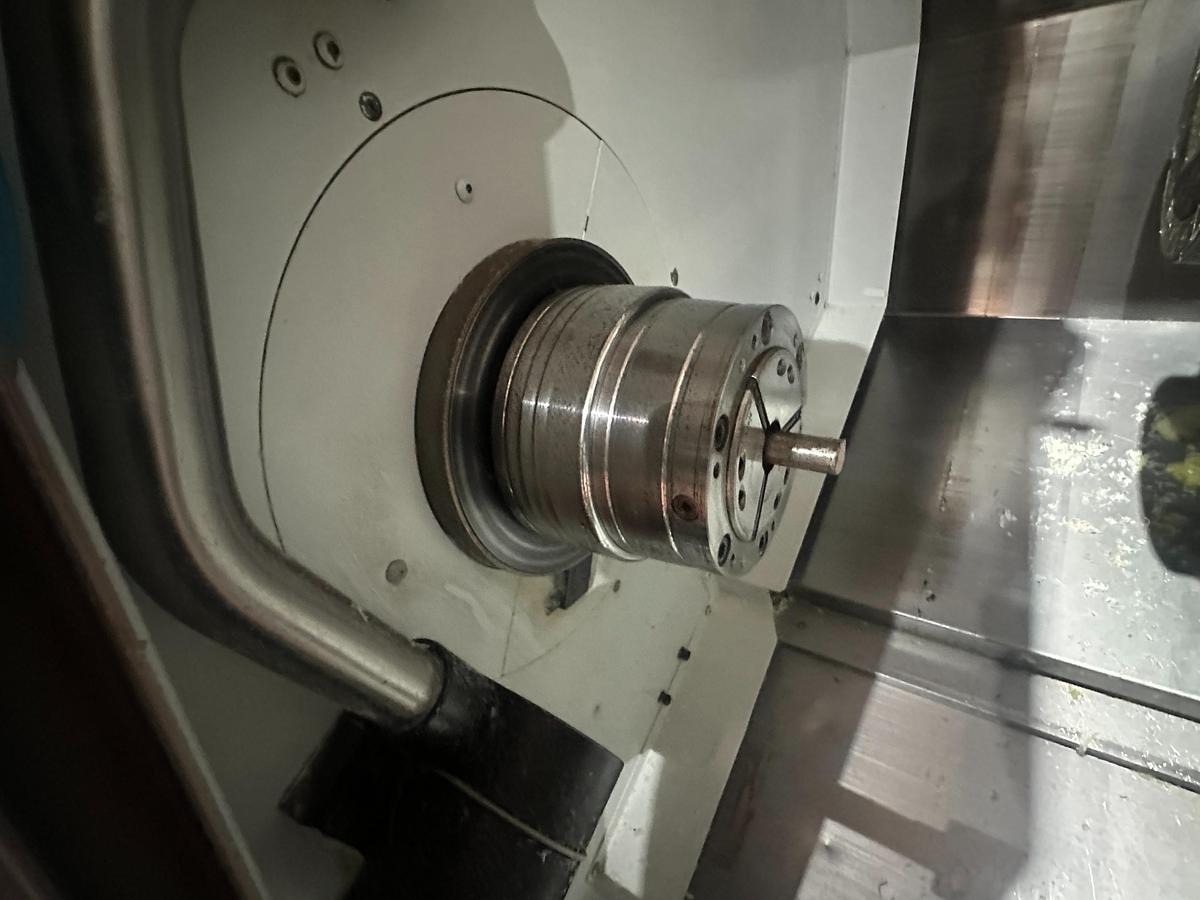

Spindle

  • Max Spindle Speed: 5,000 RPM
  • Spindle Nose: JIS A2-6
  • Through-Spindle Bore: 73 mm
  • Spindle Motor: 15 / 15 / 11 kW

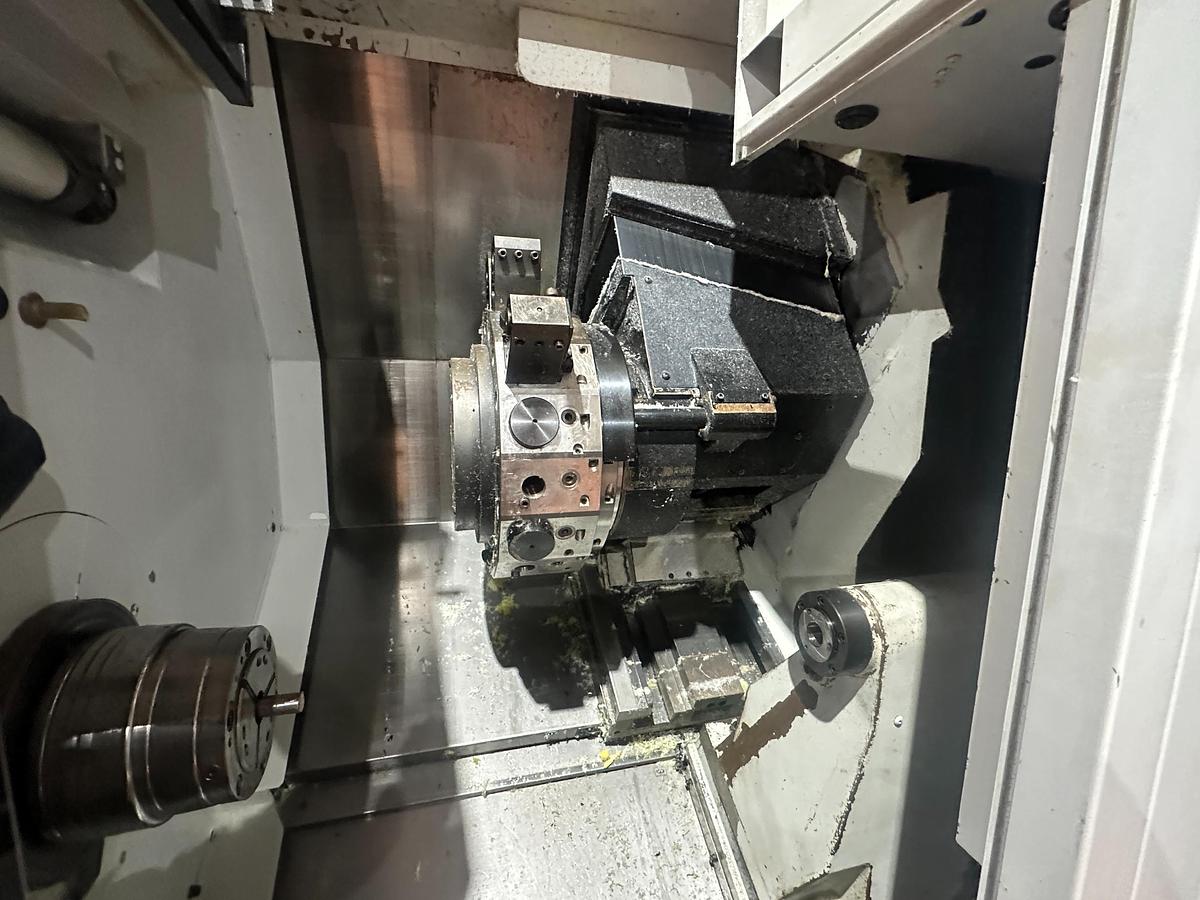

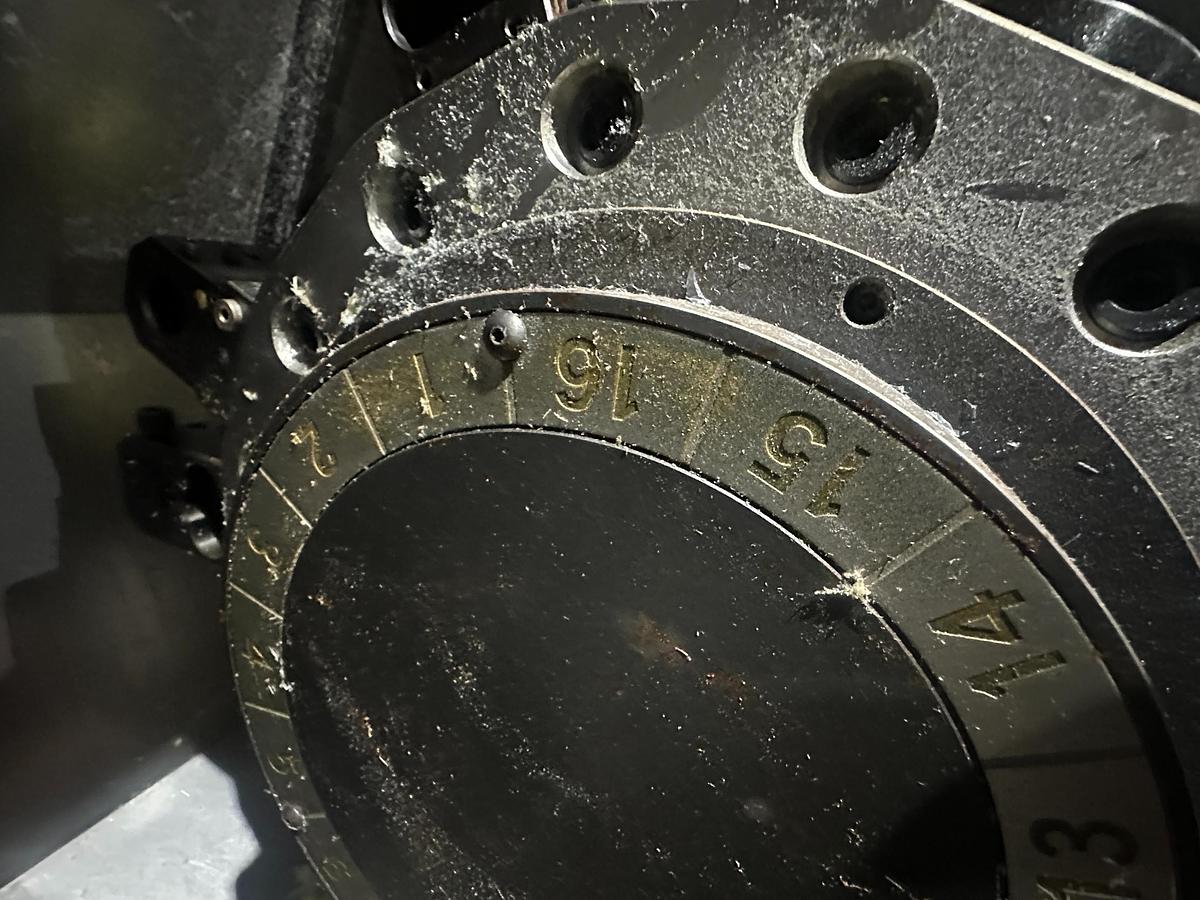

Turret & Tooling

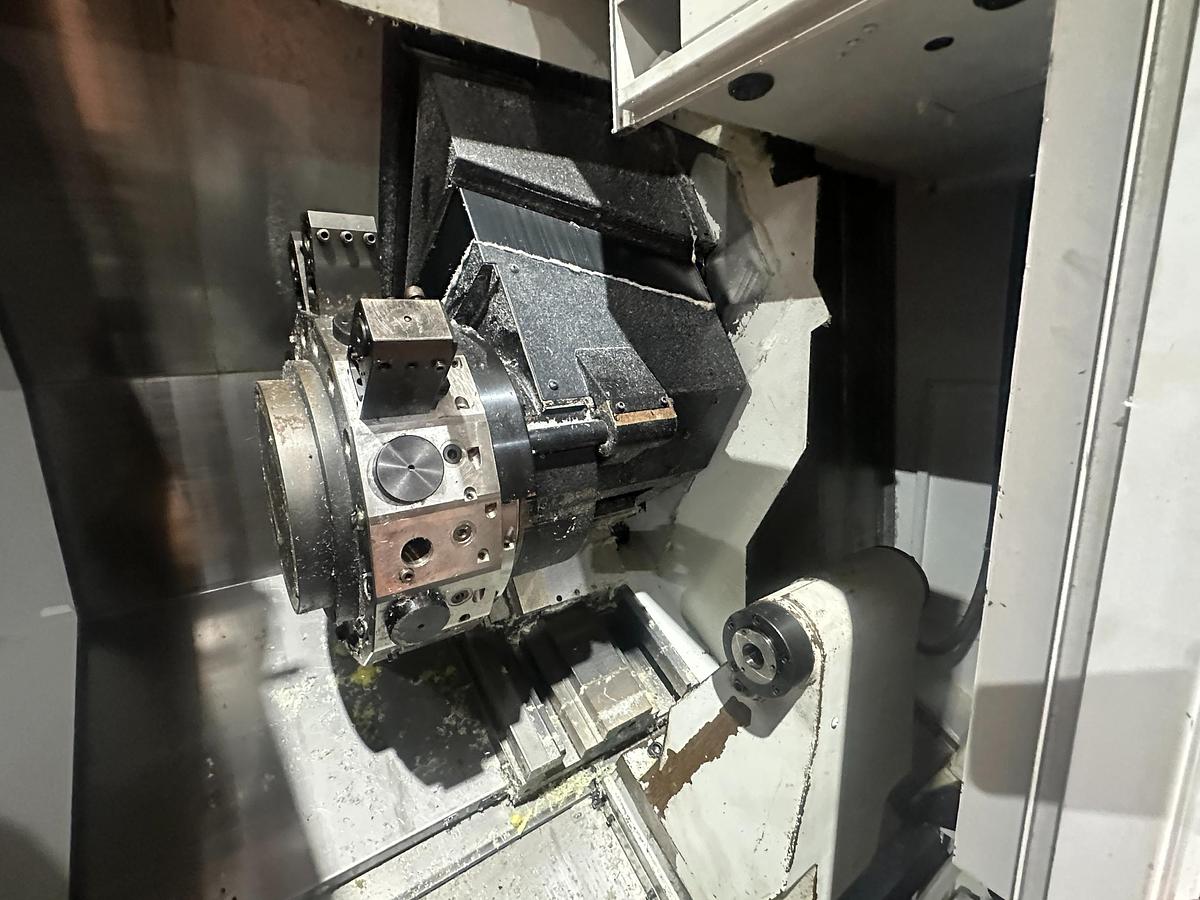

  • Turret Type: BMT (Built-in Motor Turret)
  • Number of Tool Stations: 16
  • Max Live Tool Speed: 6,000 RPM
  • Max Live Tool Torque: 29 Nm
  • Turret Index Time: 0.2 seconds

Feed Rates

  • Rapid Traverse (X / Z): 30,000 mm/min
  • Rapid Traverse (Y): 10,000 mm/min

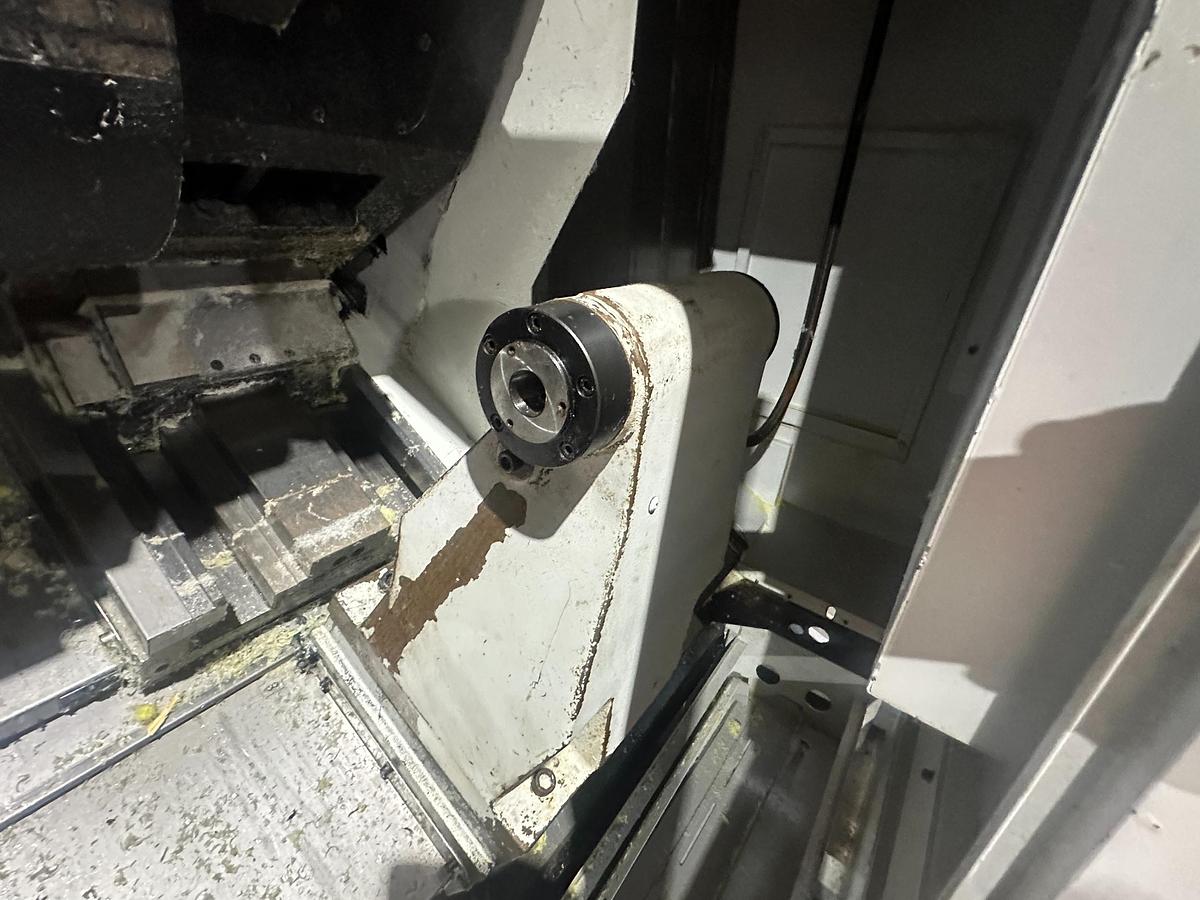

Tailstock

  • Tailstock Travel: 564 mm
  • Spindle Diameter: 80 mm
  • Tailstock Taper: MT4 Live Centre

Automation

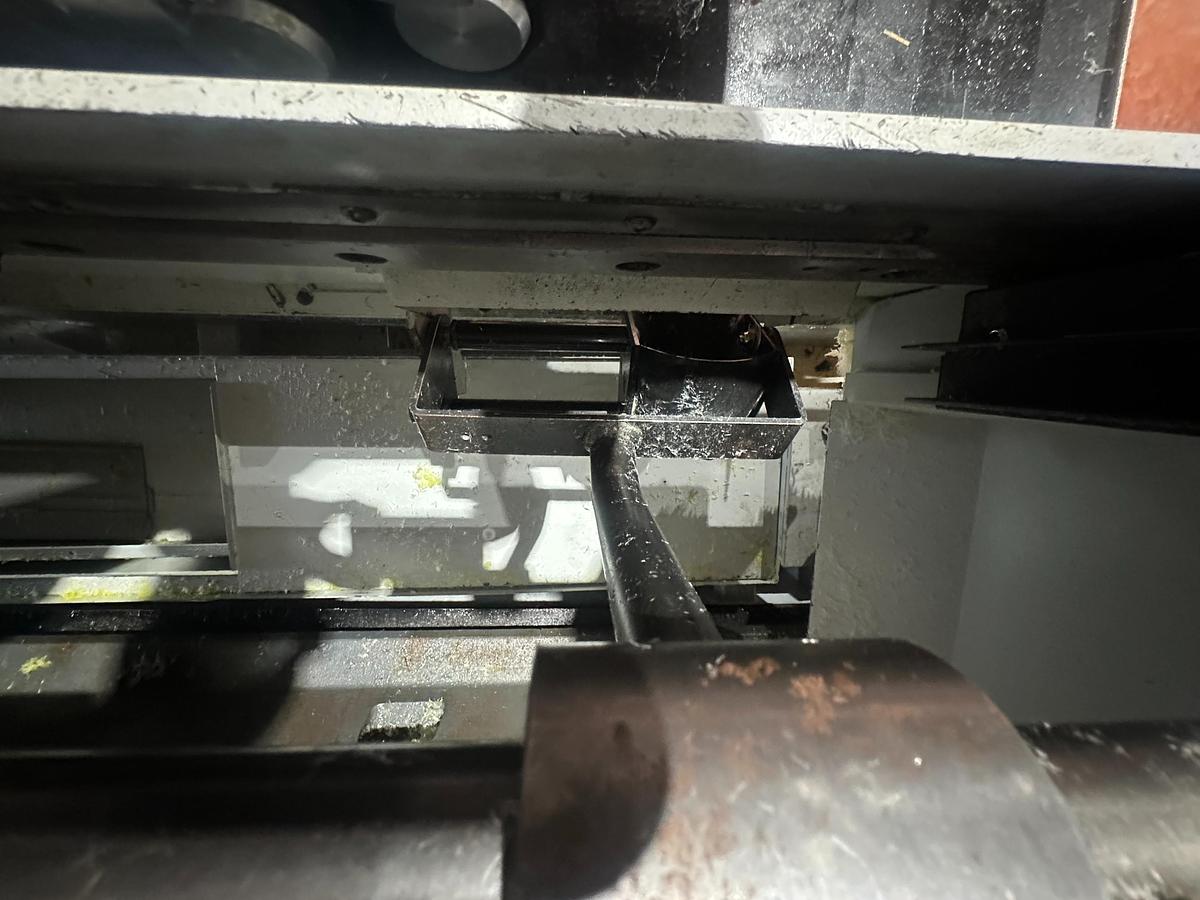

  • Workpiece Unloader: Yes
  • Max Workpiece Diameter: 80 mm
  • Max Workpiece Length: 200 mm
  • Max Workpiece Weight: 3 kg

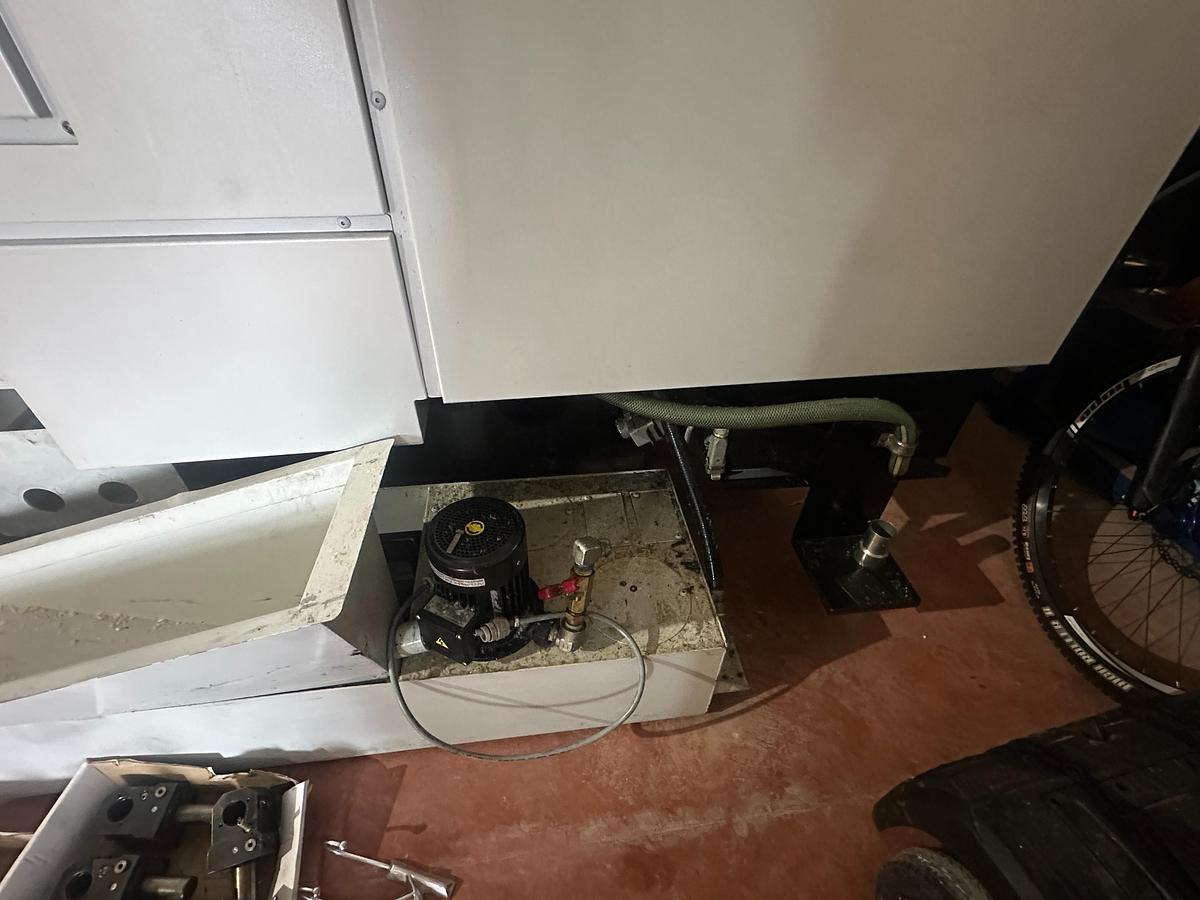

Coolant System

  • Coolant Equipment: Yes
  • Coolant Tank Capacity: 235 Litres

Electrical & Dimensions

  • Power Requirement: 31.5 kVA
  • Machine Dimensions (L × W × H): 2705 × 1922 × 2120 mm
  • Machine Weight: 5,700 kg

Included with Machine

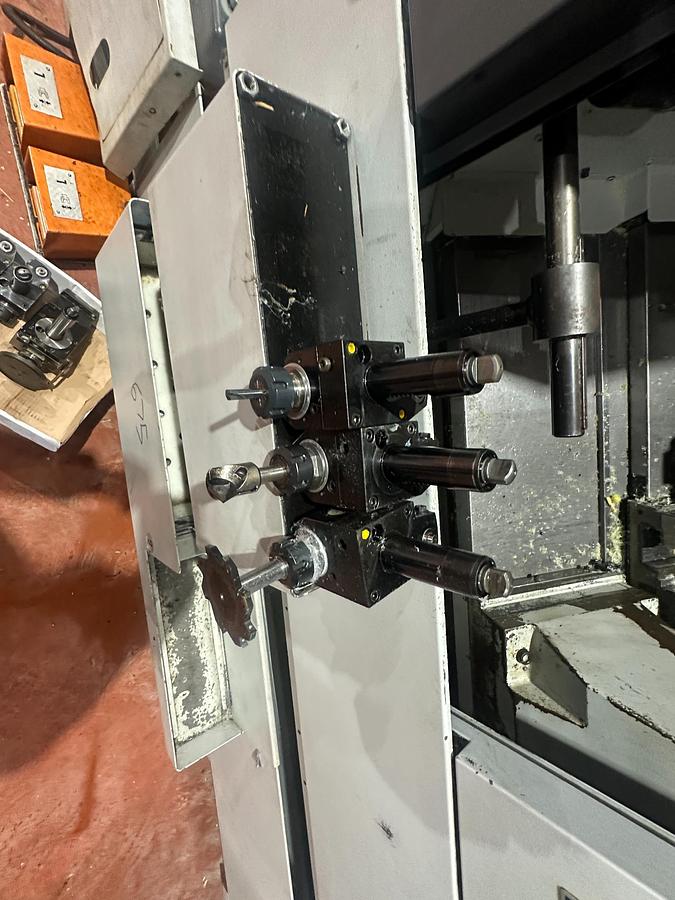

✔ Selection of axial driven toolholders

✔ Selection of radial driven toolholders

✔ Selection of static toolholders


Additional Notes

  • Used exclusively for plastic machining in a medical device environment
  • Fully equipped with coolant equipment, suitable for plastics or metals
  • Clean, well-maintained Mori Seiki turning centre
  • Specifications provided in good faith but not guaranteed


Ideal Applications

  • Medical device manufacturing
  • Precision plastic machining
  • CNC turning & milling with Y-axis
  • Aerospace, electronics & high-precision components


This 2006 Mori Seiki NL2000Y/500 CNC Lathe is a rare opportunity to acquire a production-ready Y-axis lathe with coolant, backed by an exceptionally clean medical-device usage history.



Specifications

ManufacturerMori Seiki
ModelNL2000Y/500 CNC Lathe
Year2006
ConditionUsed
Stock Number969728
ManufacturerMori Seiki (DMG MORI)
ModelNL2000Y/500
Year2006
LocationIreland
AvailabilityImmediate
* Coolant Tank Capacity235 Litres
* Distance Between Centres500 mm
* Chuck Size8 Inch
* Max Turning Diameter366 mm
* Standard Turning Diameter275 mm
* Max Turning Length510 mm
* Bar Capacity65 mm
* Swing Over Bed923.8 mm
* X-Axis Travel260 mm
* Z-Axis Travel590 mm
* Max Spindle Speed5,000 RPM
* Spindle NoseJIS A2-6
* Through-Spindle Bore73 mm
* Turret TypeBMT (Built-in Motor Turret)
* Turret Index Time0.2 seconds
* Rapid Traverse (Y)10,000 mm/min
* Tailstock Travel564 mm
* Spindle Diameter80 mm
* Tailstock TaperMT4 Live Centre
* Workpiece UnloaderYes
* Max Workpiece Diameter80 mm
* Max Workpiece Length200 mm
* Max Workpiece Weight3 kg
* Coolant EquipmentYes
* Power Requirement31.5 kVA
* Machine Weight5,700 kg
