2009 Mori Seiki NL2000Y/500 CNC Lathe for Sale | Y-Axis, Live Tooling | Ireland

1

Cork, Ireland

Sold

Description

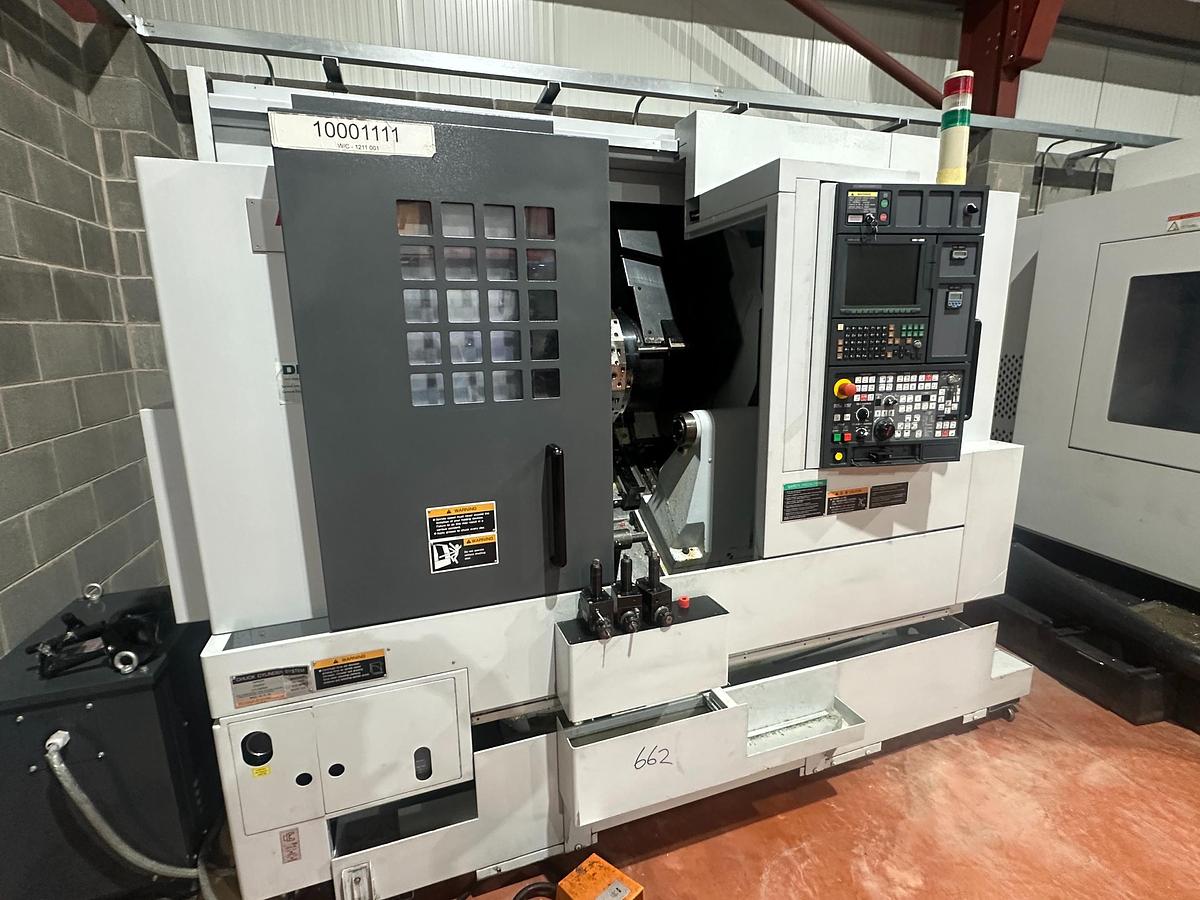

2009 Mori Seiki NL2000Y/500 CNC Lathe – Very Good Condition


2009 Mori Seiki NL2000Y/500 CNC Lathe in excellent condition. Plastics-only medical device use. Y-Axis, live tooling, tailstock, workpiece unloader. Available now in Ireland.


Machine Type: CNC Turning Centre with Y-Axis & Live Tooling

Manufacturer: Mori Seiki (DMG MORI)

Model: NL2000Y/500

Year: 2009

Location: Ireland

Availability: Immediate


Machine Overview

We are pleased to offer this 2009 Mori Seiki NL2000Y/500 CNC Lathe in very good condition, available through Used Machine Tools Ireland.

This machine was used only for dry machining of plastics by a medical device manufacturer, meaning:

  • No heavy metal cutting
  • No coolant contamination
  • Exceptionally low mechanical wear

The Mori Seiki NL Series is globally recognised as a benchmark for high-precision CNC turning, and the NL2000Y/500 is especially sought after due to its Y-axis capability, live tooling, and BMT (Built-in Motor Turret) design.



Key Features & Benefits

  • Y-Axis CNC Lathe – complex milling and turning in one setup
  • BMT Turret Technology – superior rigidity, accuracy, and thermal stability
  • Live Tooling up to 6,000 RPM – ideal for milling, drilling, and tapping
  • Medical / Plastics-Only Use – extremely clean operating history
  • Tailstock & Workpiece Unloader – ideal for automated production

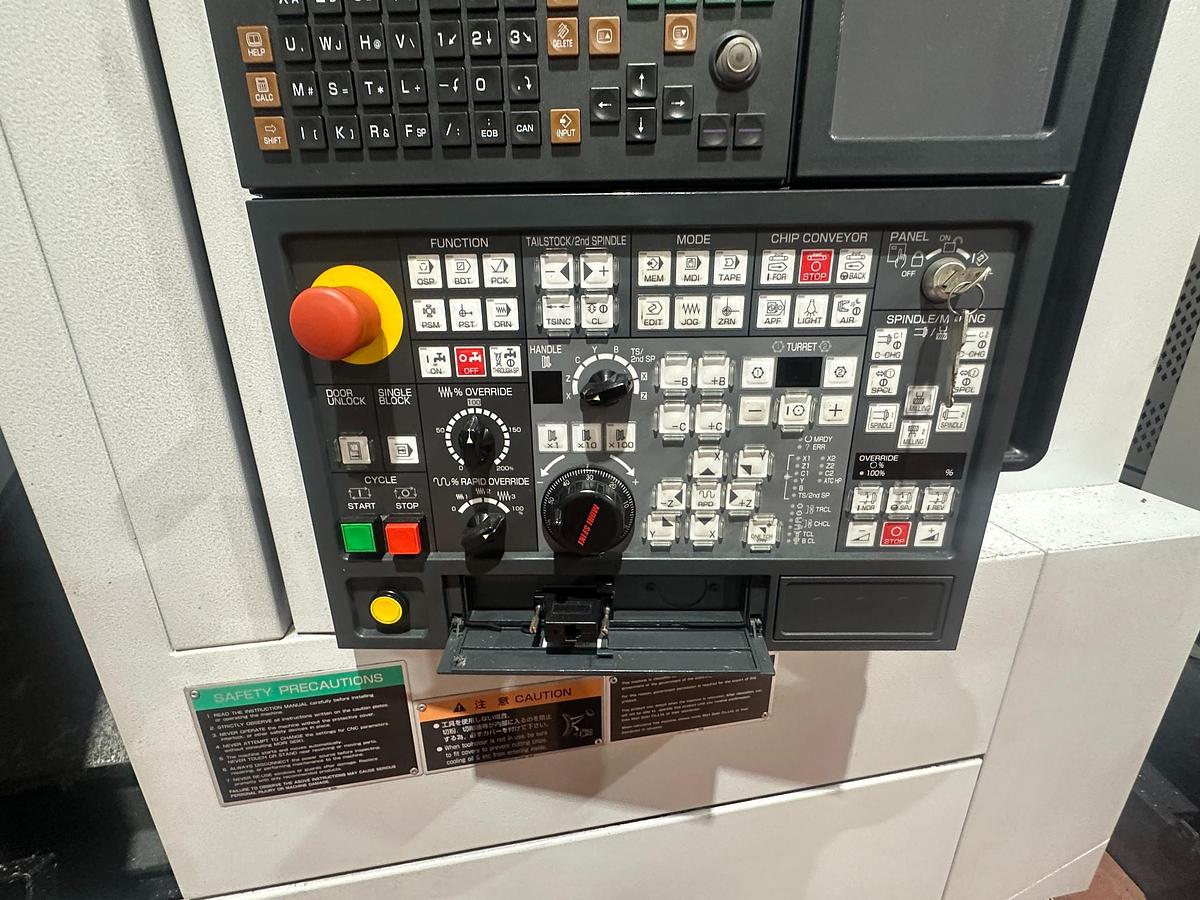

  • MSX-850 III Control – powerful, reliable Mori Seiki control system

Technical Specifications – Mori Seiki NL2000Y/500

Capacity

  • Distance Between Centres: 500 mm
  • Chuck Size: 8 Inch
  • Max Turning Diameter: 366 mm
  • Standard Turning Diameter: 275 mm
  • Max Turning Length: 510 mm
  • Bar Capacity: 65 mm
  • Swing Over Bed: 923.8 mm
  • Swing Over Cross Slide: 755 mm

Axis Travel

  • X-Axis: 260 mm
  • Z-Axis: 590 mm
  • Y-Axis: ±50 mm (100 mm total)

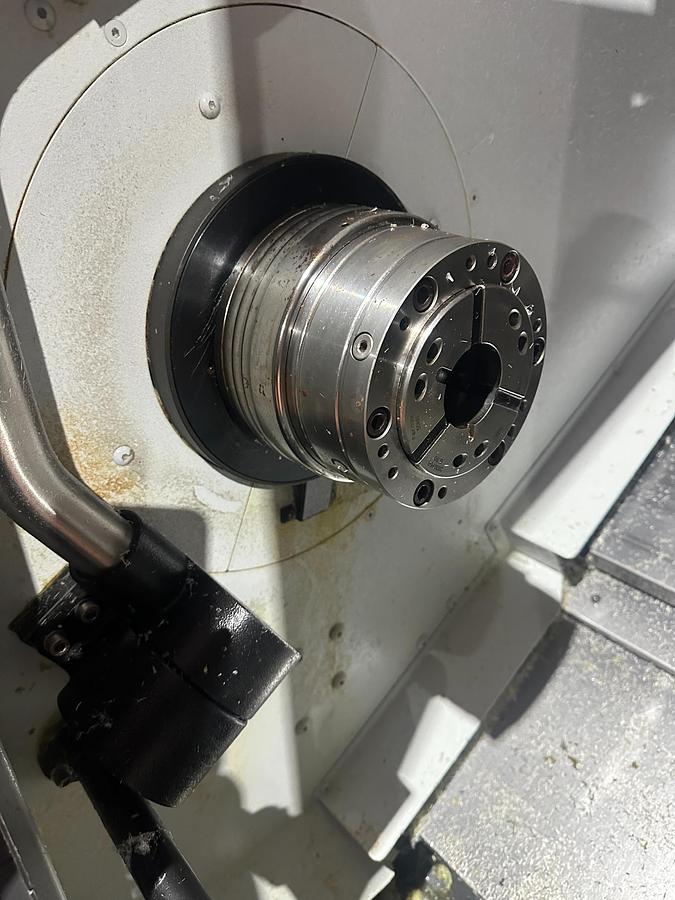

Spindle

  • Max Spindle Speed: 5,000 RPM
  • Spindle Nose: JIS A2-6
  • Through-Spindle Bore: 73 mm
  • Spindle Motor: 15 / 15 / 11 kW

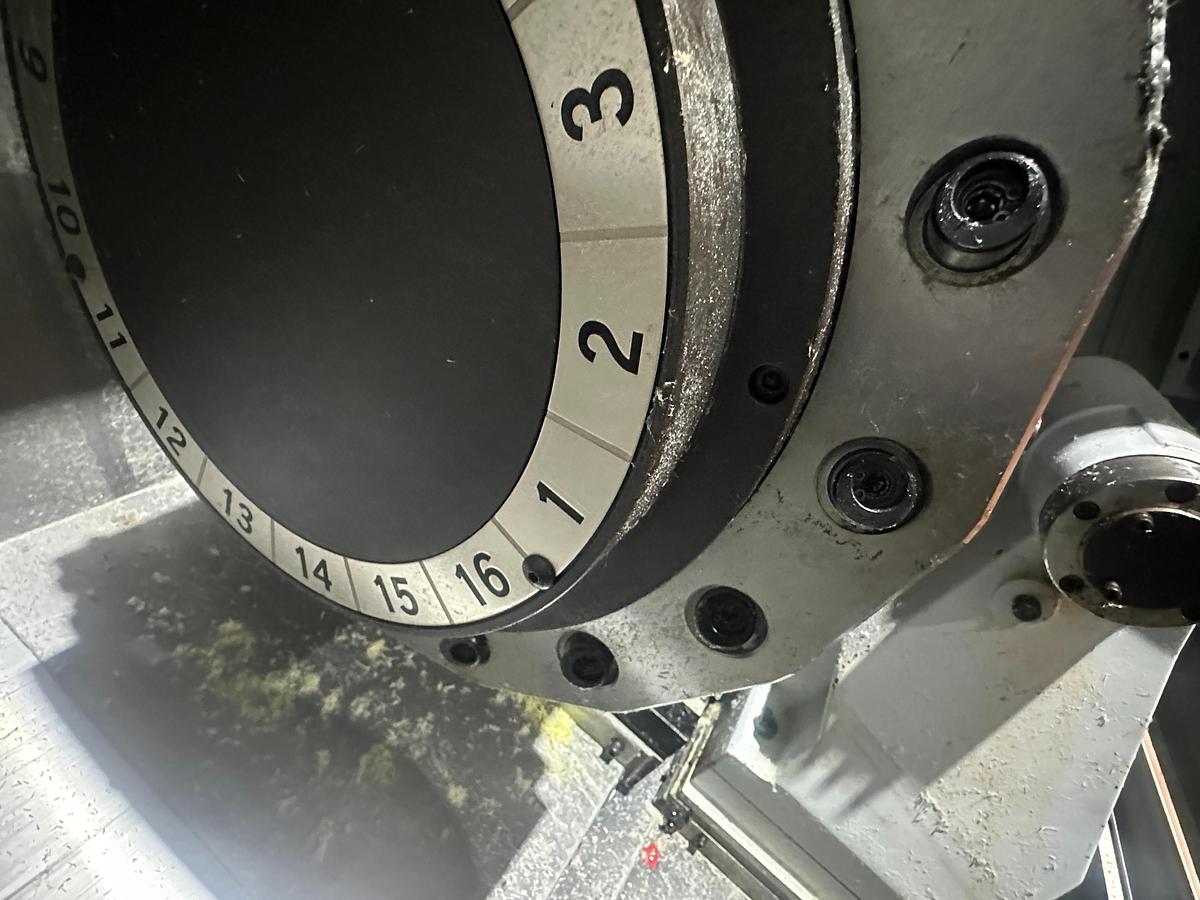

Turret & Tooling

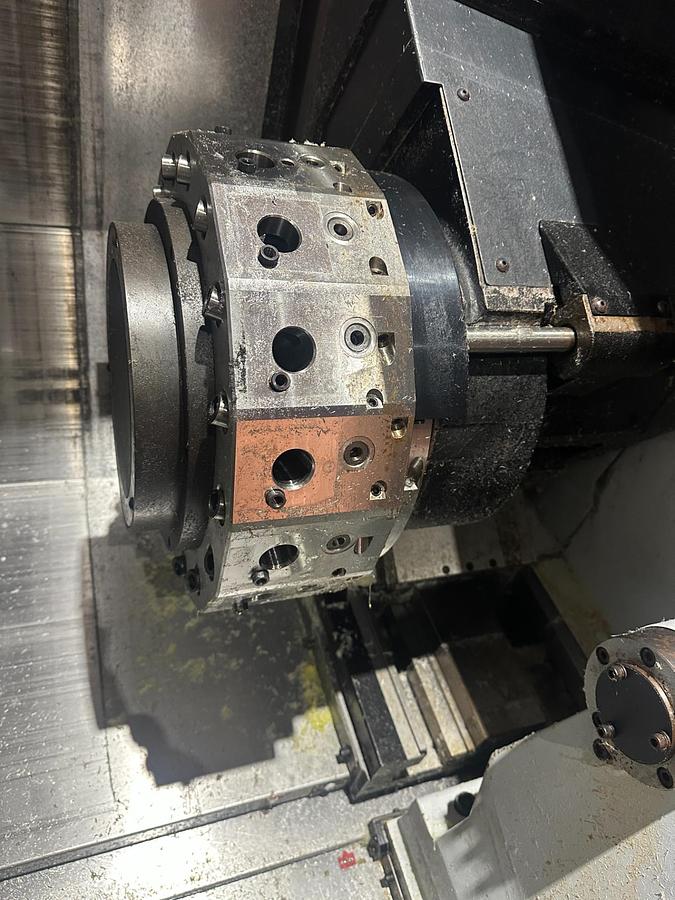

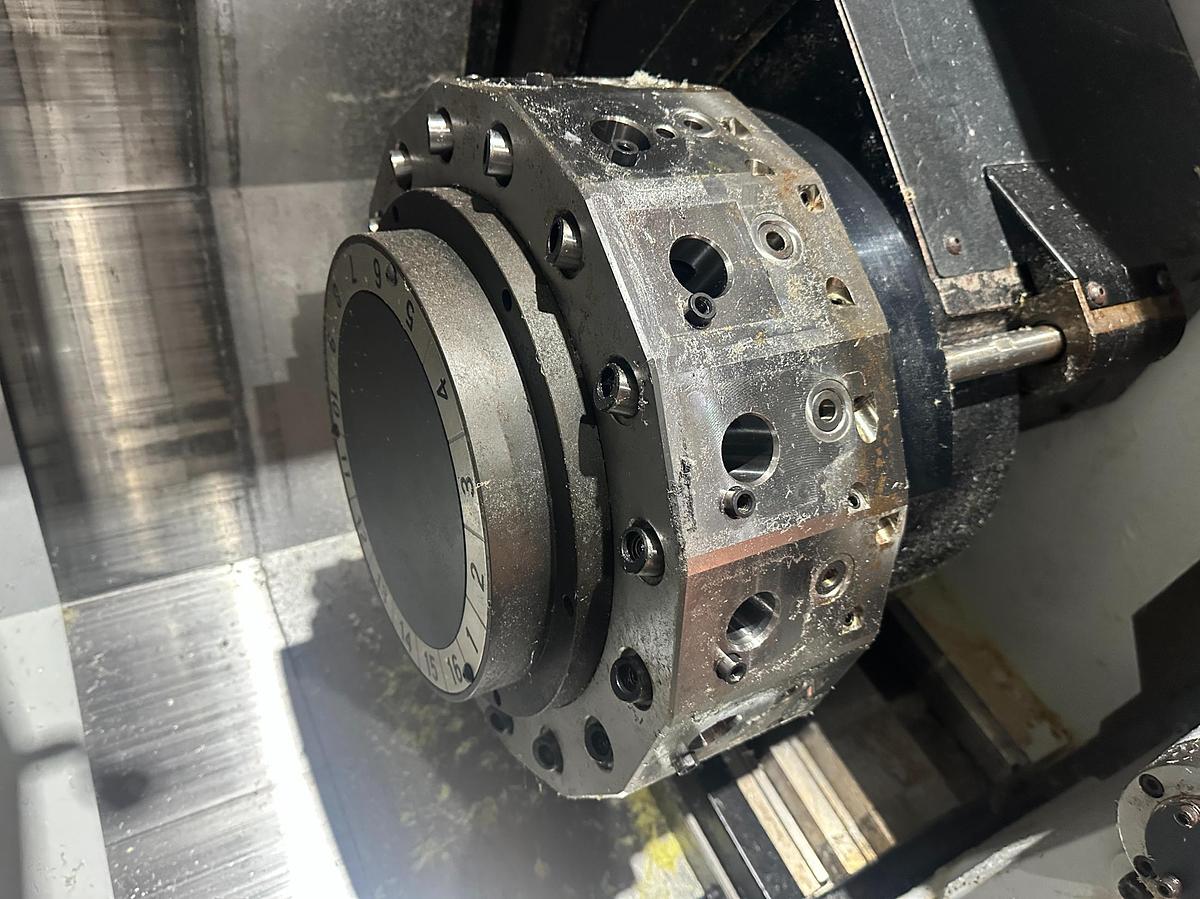

  • Turret Type: BMT (Built-in Motor Turret)
  • Tool Stations: 16
  • Max Live Tool Speed: 6,000 RPM
  • Live Tool Torque: 29 Nm
  • Turret Index Time: 0.2 seconds

Feed Rates

  • Rapid Traverse (X / Z): 30,000 mm/min
  • Rapid Traverse (Y): 10,000 mm/min

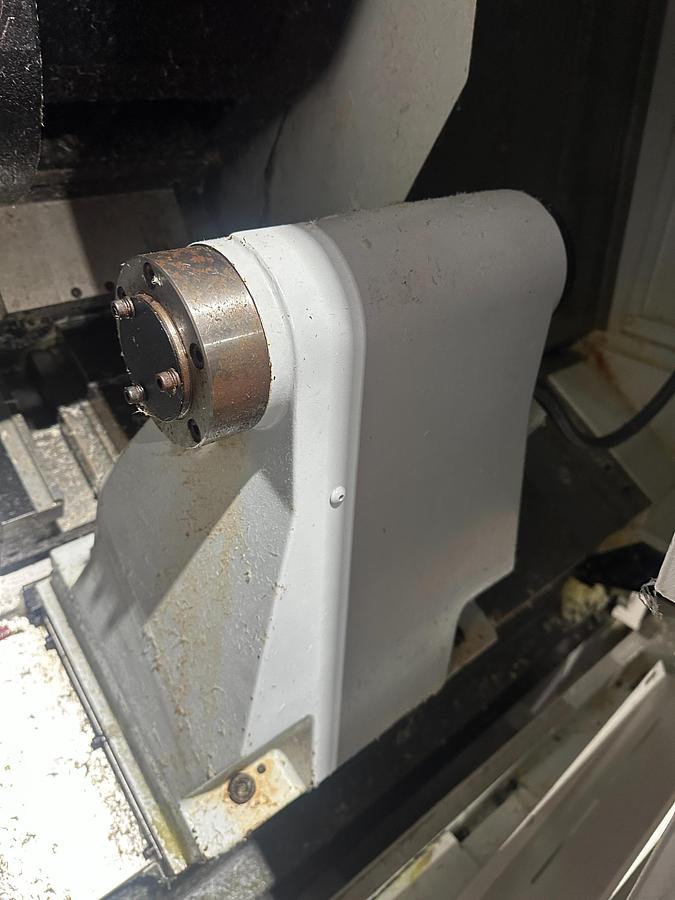

Tailstock

  • Tailstock Travel: 564 mm
  • Spindle Diameter: 80 mm
  • Taper: MT4 Live Centre

Automation

  • Workpiece Unloader: Yes
  • Max Workpiece Diameter: 80 mm
  • Max Workpiece Length: 200 mm
  • Max Workpiece Weight: 3 kg

Electrical & Dimensions

  • Power Requirement: 31.5 kVA
  • Machine Dimensions (L × W × H): 2705 × 1922 × 2120 mm
  • Machine Weight: 5,700 kg

Included with Machine

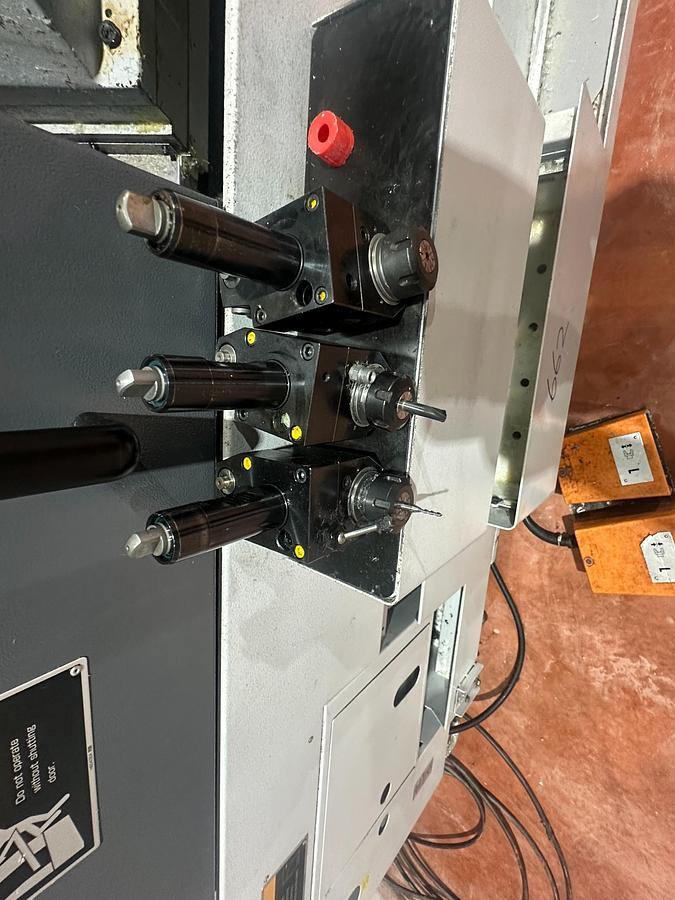

✔ Selection of axial & radial driven toolholders

✔ Selection of static toolholders

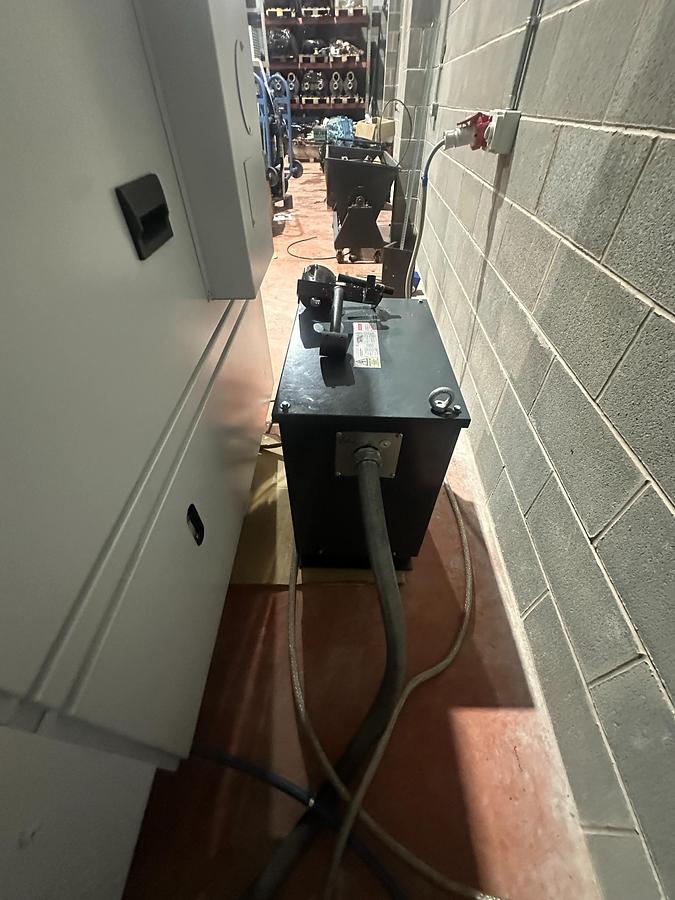

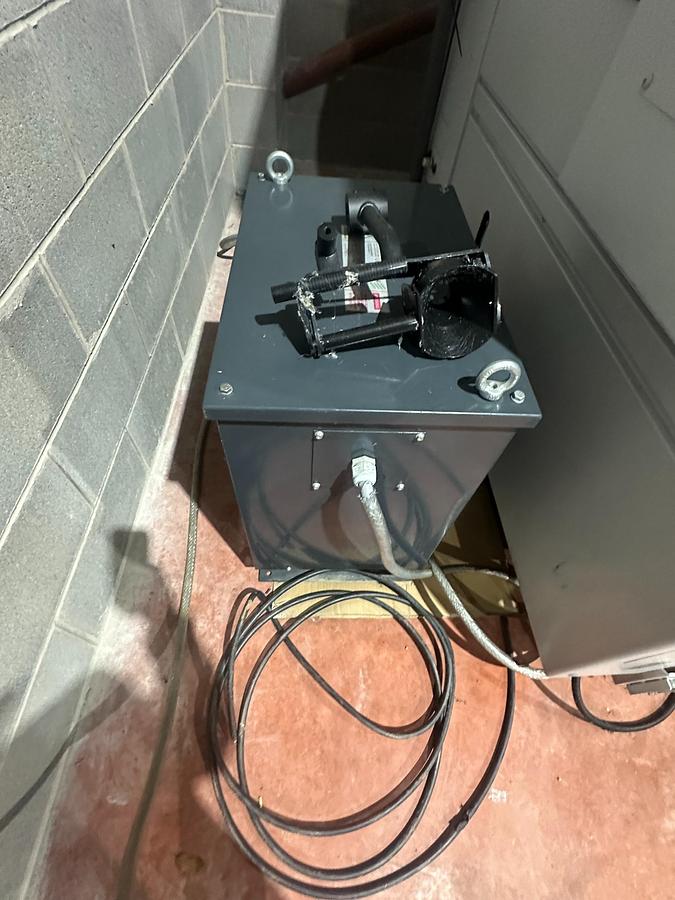

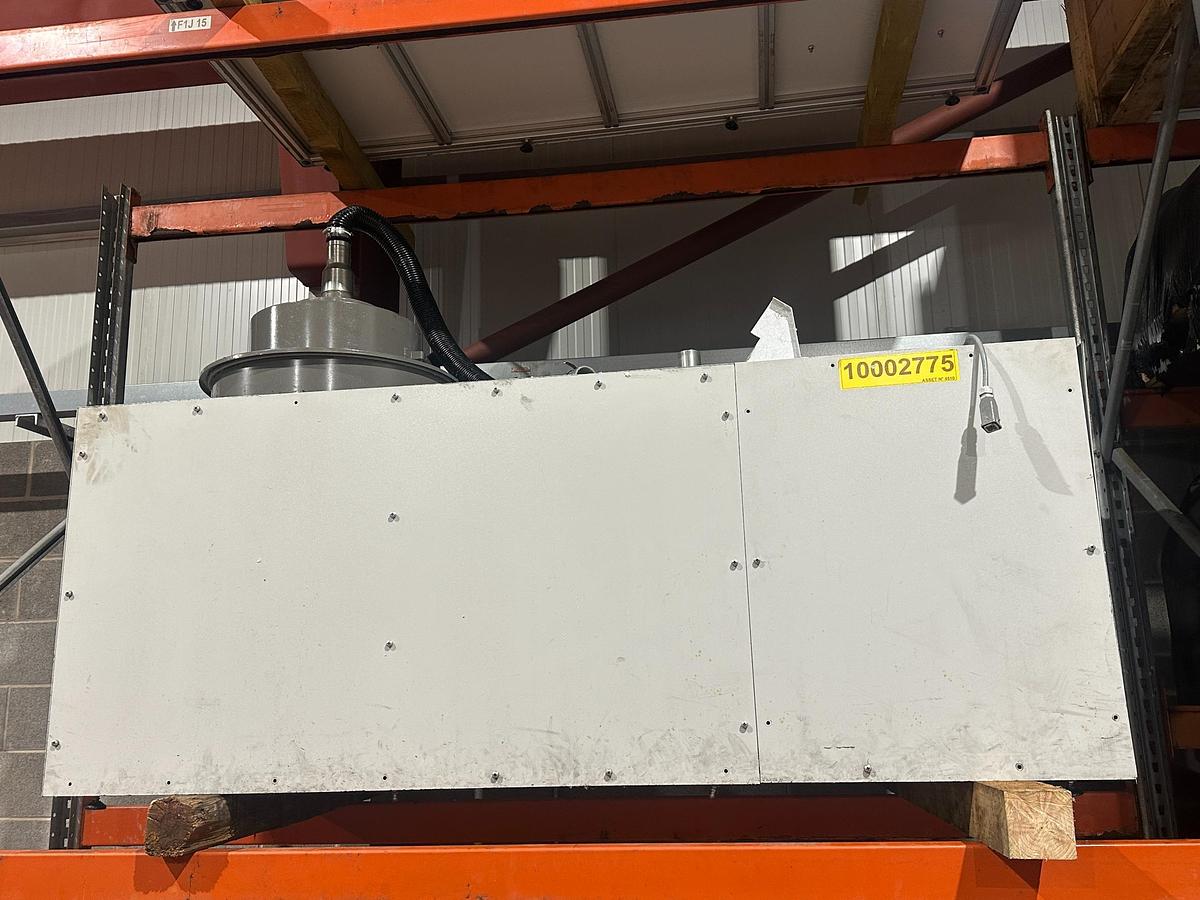

✔ Extraction unit for plastic machining


Additional Notes

  • Used exclusively for dry plastic machining
  • No coolant system fitted, however the machine is prepared for coolant installation and this can be added at cost
  • Specifications provided in good faith but not guaranteed

Ideal Applications

  • Medical device manufacturing
  • Plastic & polymer machining
  • Precision CNC turning & milling
  • Aerospace, electronics & high-tolerance components


This Mori Seiki NL2000Y/500 CNC Lathe represents a rare opportunity to acquire a premium Japanese turning centre with an exceptionally clean usage history.

Specifications

ManufacturerMori Seiki
ModelNL2000Y/500 CNC Lathe
Year2009
ConditionUsed
Stock Number969727
ManufacturerMori Seiki (DMG MORI)
ModelNL2000Y/500
Year2009
LocationIreland
AvailabilityImmediate
* Distance Between Centres500 mm
* Chuck Size8 Inch
* Max Turning Diameter366 mm
* Standard Turning Diameter275 mm
* Max Turning Length510 mm
* Bar Capacity65 mm
* Swing Over Bed923.8 mm
* X-Axis260 mm
* Z-Axis590 mm
* Max Spindle Speed5,000 RPM
* Spindle NoseJIS A2-6
* Through-Spindle Bore73 mm
* Turret TypeBMT (Built-in Motor Turret)
* Tool Stations16
* Live Tool Torque29 Nm
* Turret Index Time0.2 seconds
* Rapid Traverse (Y)10,000 mm/min
* Tailstock Travel564 mm
* Spindle Diameter80 mm
* TaperMT4 Live Centre
* Workpiece UnloaderYes
* Max Workpiece Diameter80 mm
* Max Workpiece Length200 mm
* Max Workpiece Weight3 kg
* Power Requirement31.5 kVA
* Machine Weight5,700 kg
