Fanuc Robodrill Alpha T21iDL 5-Axis CNC | Nikken 5Ax130FA | BT30

Cork, Ireland

Sold

Description

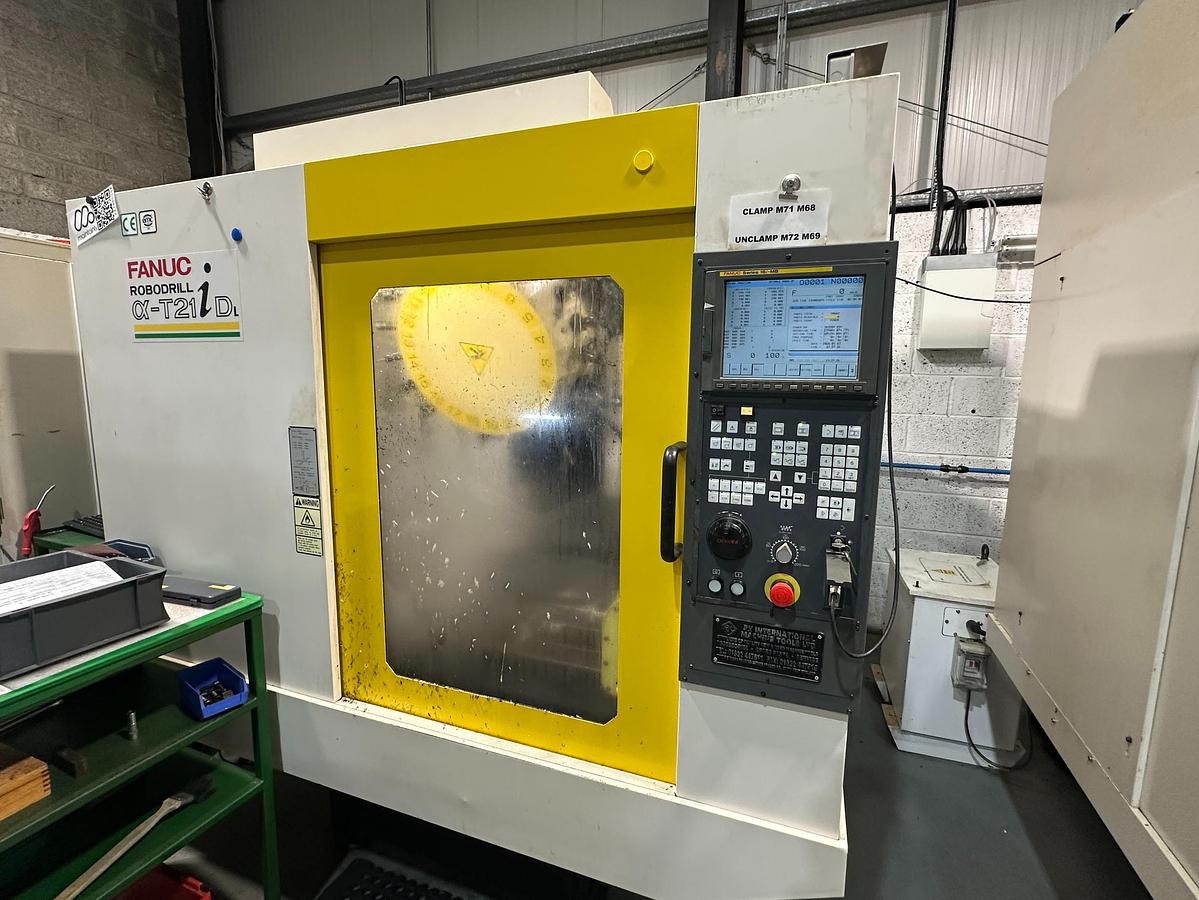

Fanuc Robodrill Alpha T21iDL 5-Axis Machining Centre – 2004

Fanuc 16i-MB | Nikken 5Ax130FA 4th & 5th Axis | BT30


Fanuc Robodrill Alpha T21iDL 5-Axis Machining Centre with Nikken 5Ax130FA trunnion table (2018). BT30 10,000 RPM spindle, Fanuc 16i-MB control, compact high-speed 5-axis CNC. Available now.

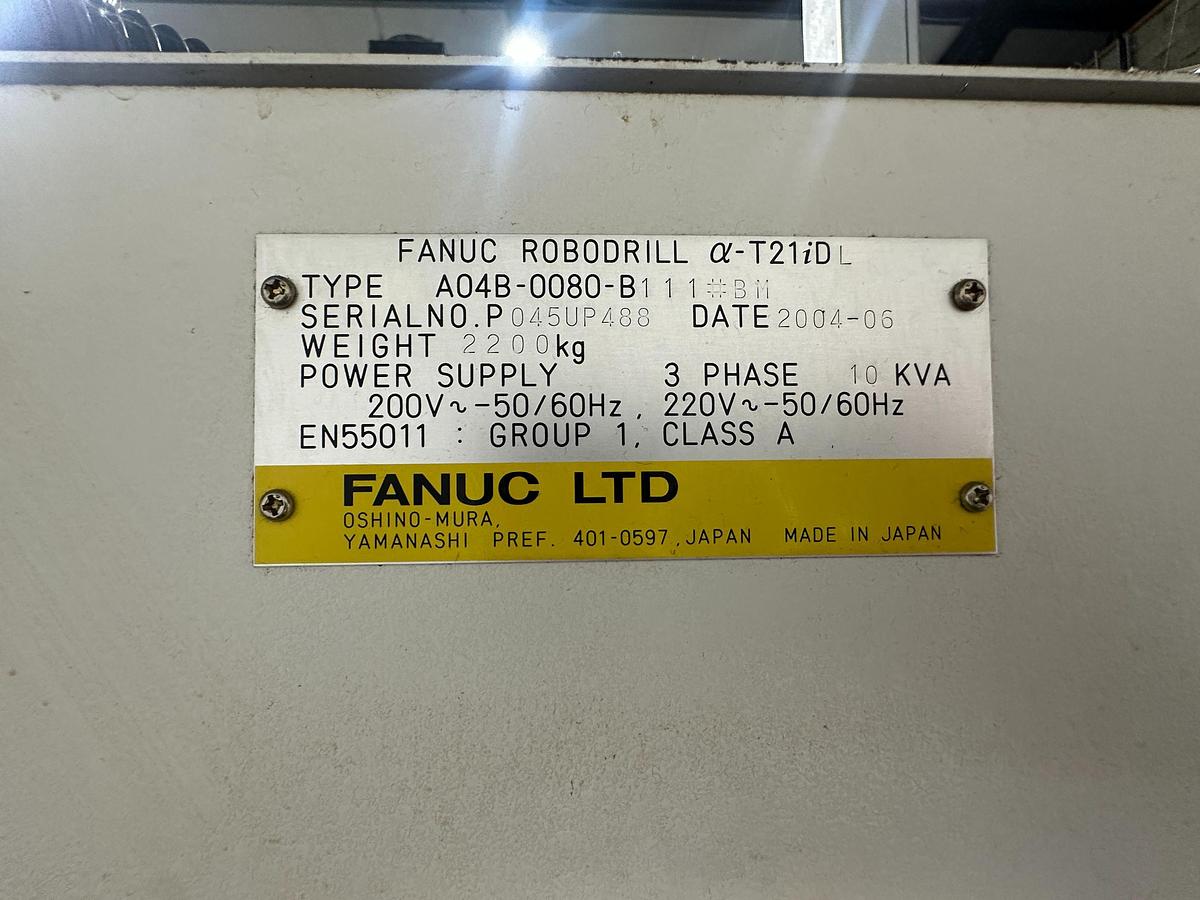

Manufacturer: Fanuc

Model: T21iDL with Nikken 5AX130FA Table

Machine Type: 5 Axis Vertical Machining Centre

Year: 2004

Control: Fanuc Series 16i-MB Control

Condition: Very Good

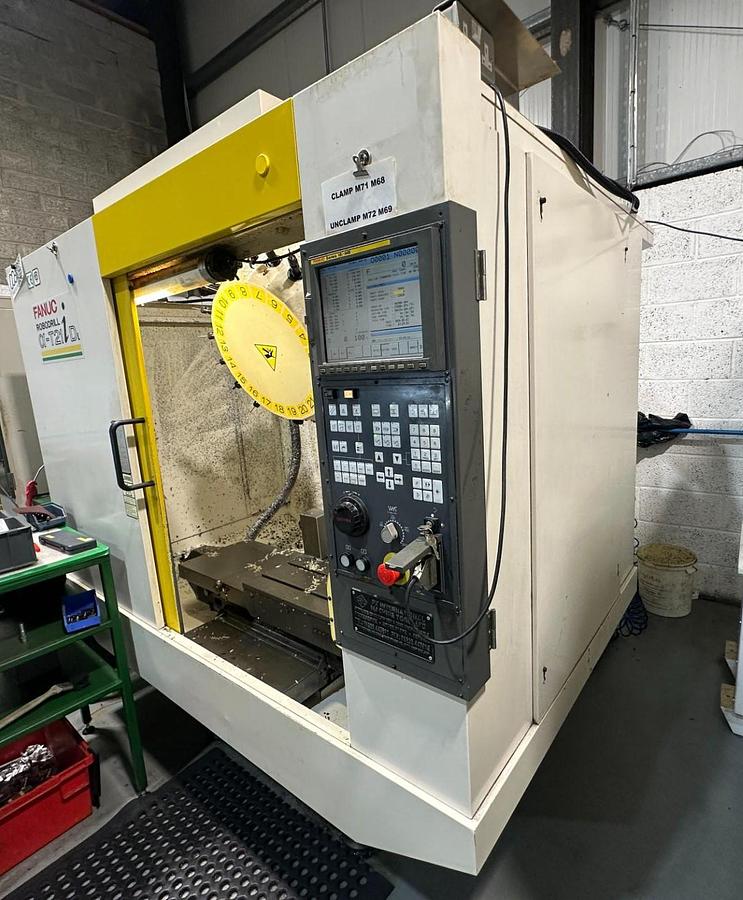

We are pleased to offer this 2004 Fanuc Robodrill Alpha T21iDL Vertical Machining Centre, professionally upgraded with a 2018 Nikken 5Ax130FA 4th & 5th Axis Trunnion Table, transforming this machine into a compact, high-speed 5-axis machining solution.


This system combines the legendary speed and reliability of the Fanuc Robodrill platform with Nikken’s industry-leading rotary table accuracy, making it ideal for complex multi-face machining, aerospace, medical, and precision engineering applications.



Base Machine Specifications

General

  • Manufacturer: Fanuc
  • Model: Alpha T21iDL
  • Year: 2004
  • Type: 5 Axis Vertical Machining Centre
  • Control: Fanuc Series 16i-MB

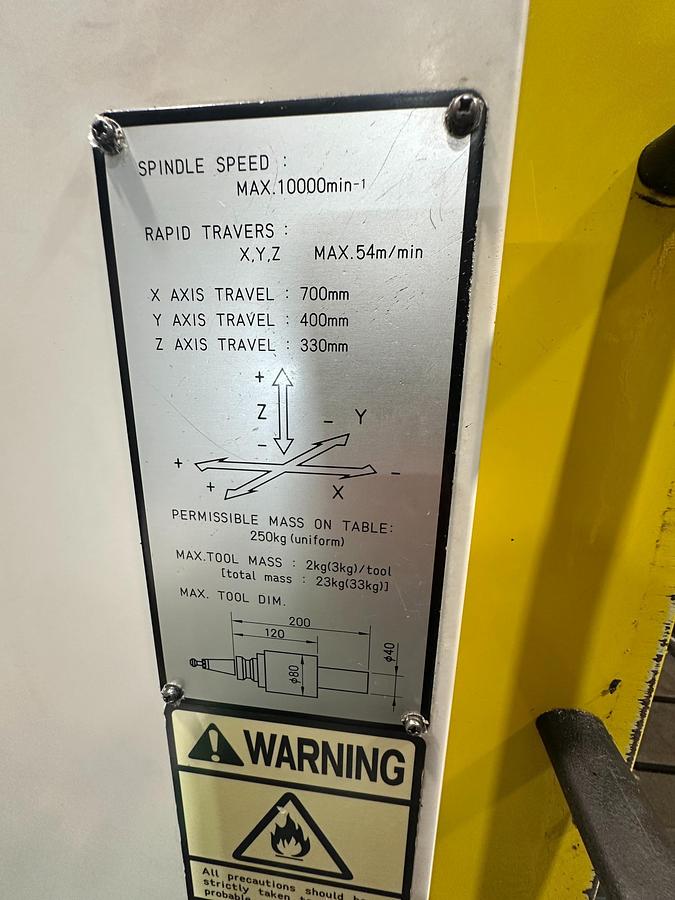

Axis Travels

  • X Axis: 700 mm
  • Y Axis: 400 mm
  • Z Axis: 330 mm

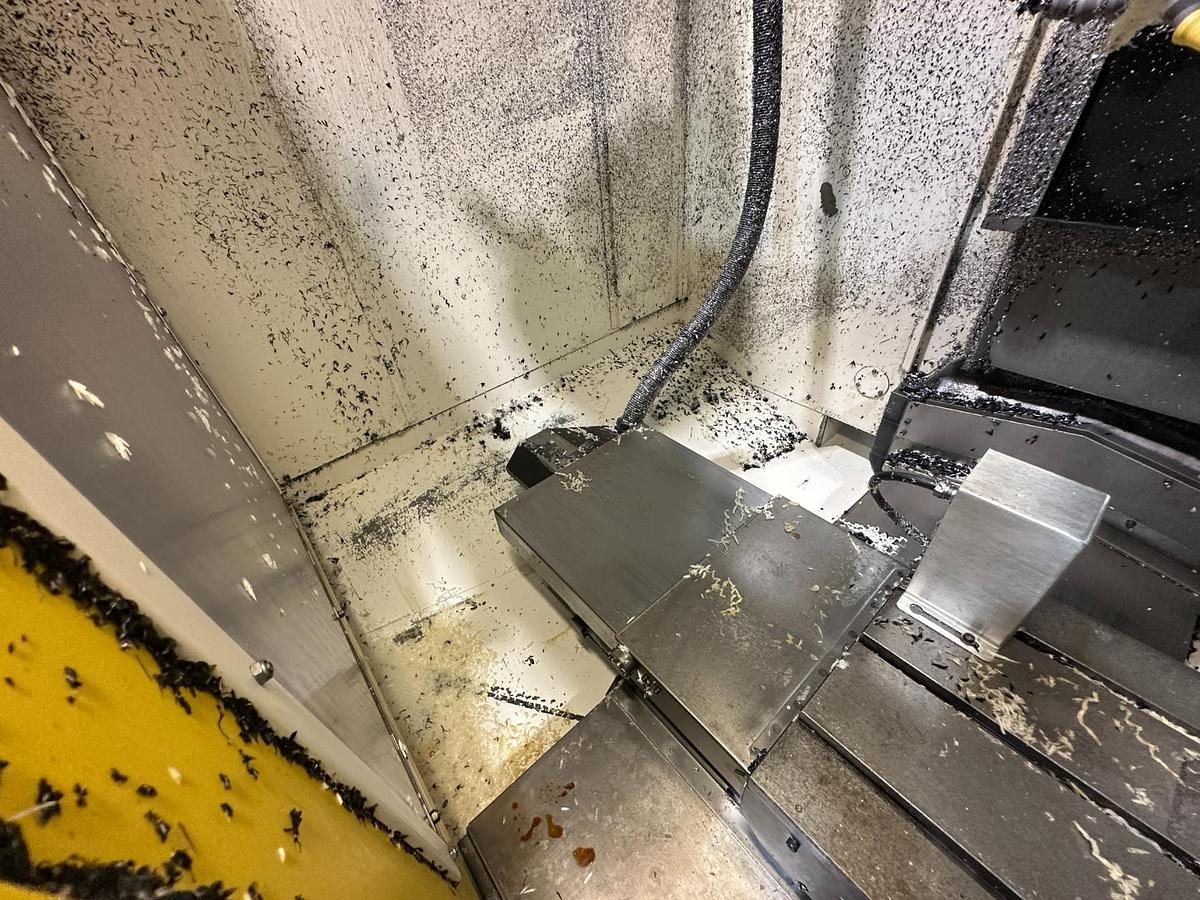

Table

  • Table Size: 850 × 410 mm
  • Maximum Table Load: 250 kg (uniform)

Spindle

  • Spindle Speed: 10,000 RPM
  • Spindle Taper: BT30

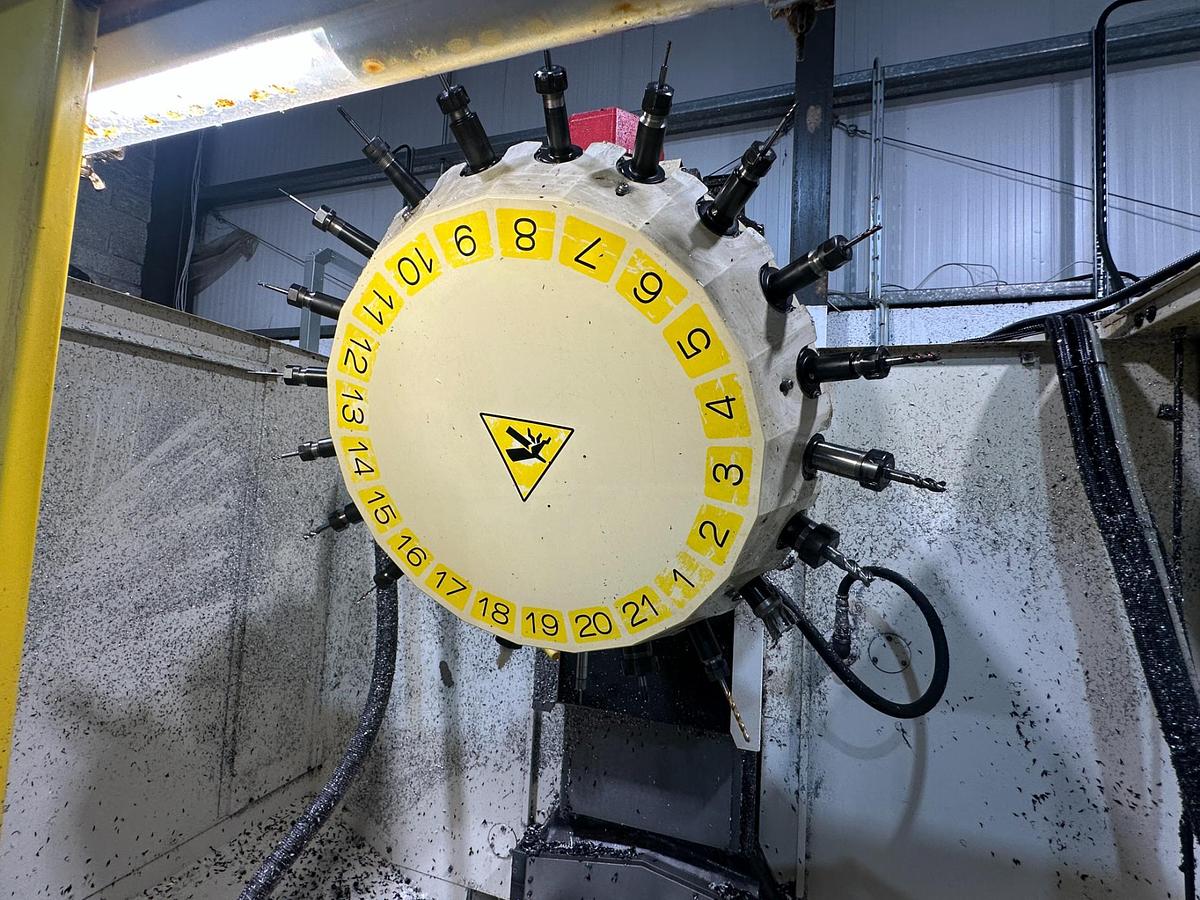

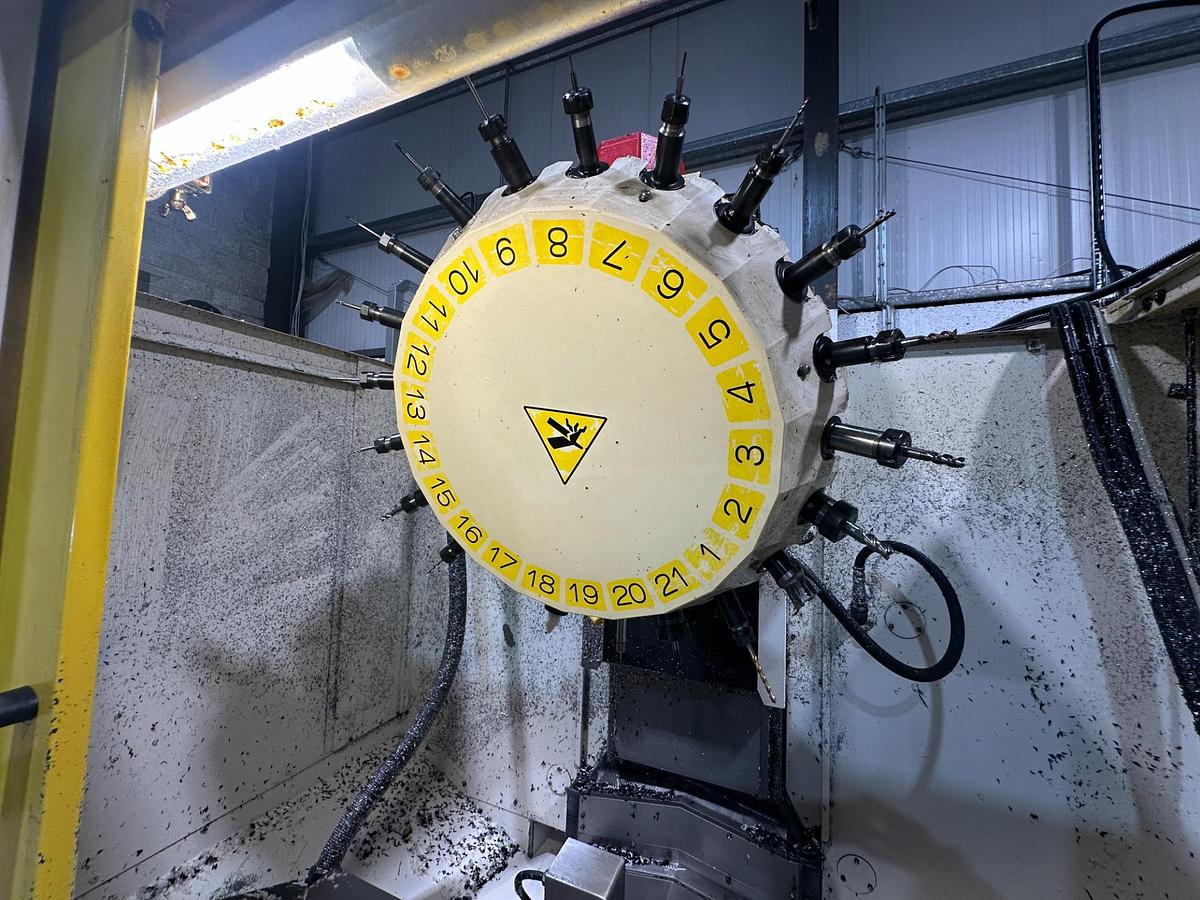

Toolchanger

  • Automatic Tool Changer: 21 Tool Stations
  • Maximum Tool Weight:
  • 2 kg per tool
  • Total tool weight: 23 kg
  • Maximum Tool Length: 200 mm
  • Maximum Tool Diameter: 80mm

Rapid Traverse

  • X / Y / Z Rapids: Up to 54 m/min

Machine Weight: 2,200kg

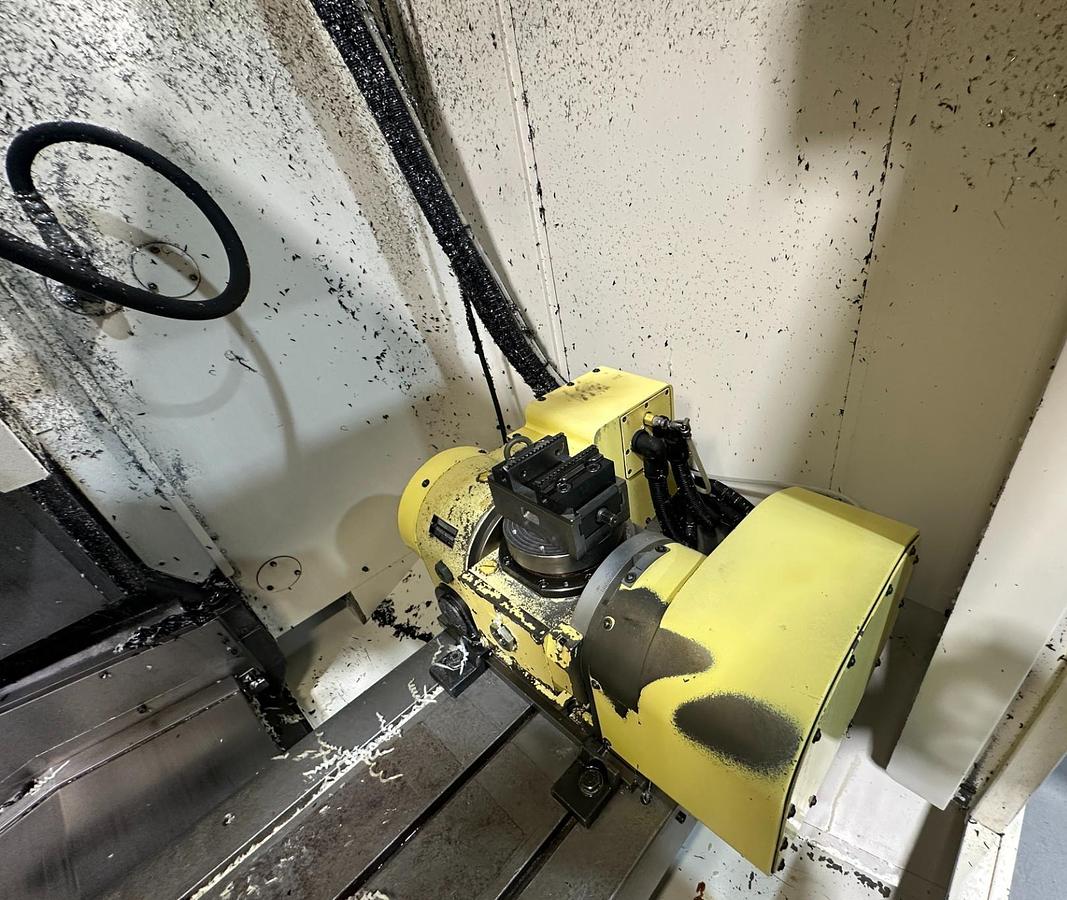

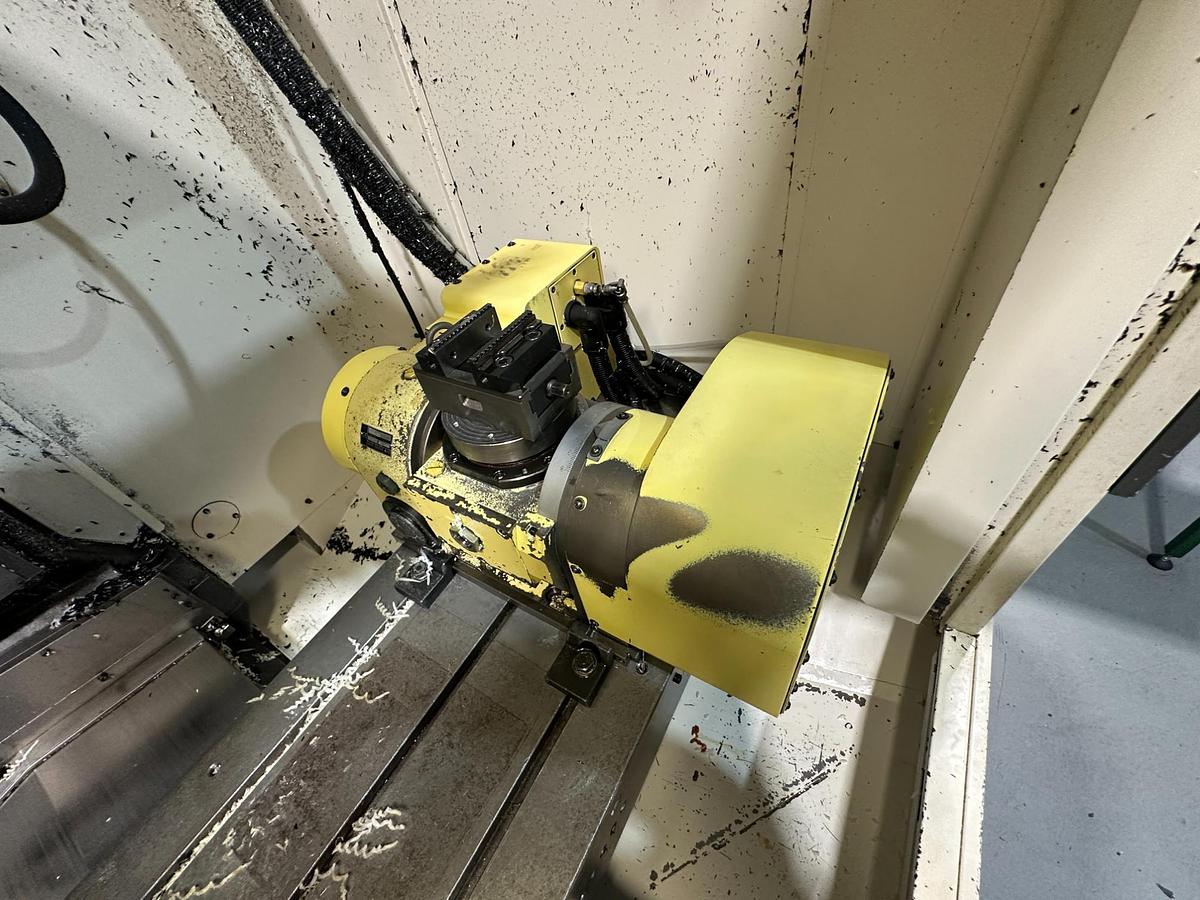

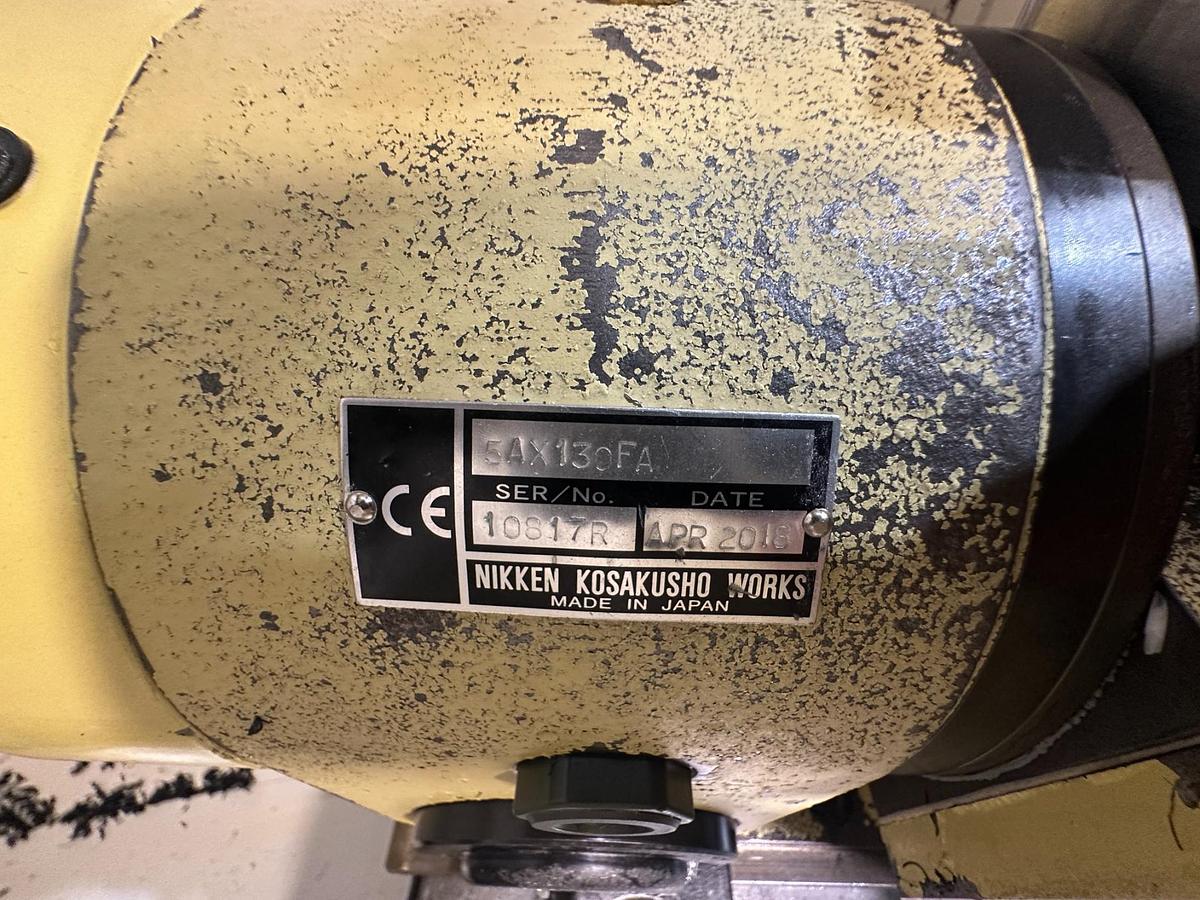

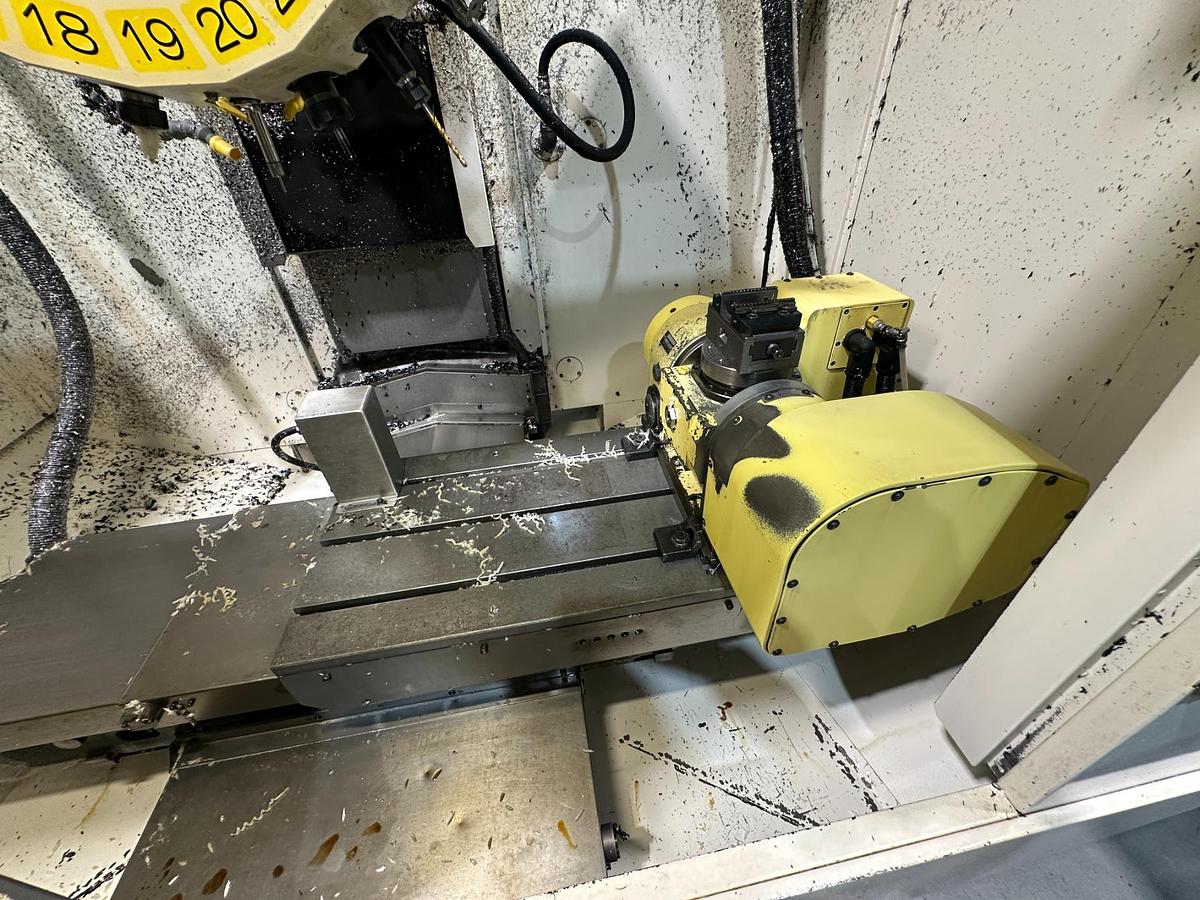

Nikken 5Ax130FA 4th & 5th Axis Trunnion Table

  • Manufacturer: Nikken
  • Model: 5Ax130FA
  • Year: 2018
  • Configuration: 4th & 5th Axis Trunnion
  • Table Diameter: Ø130 mm
  • Tilt Axis (A-Axis): ±110°
  • Rotary Axis (C-Axis): 360° continuous
  • Drive Type: Direct servo drive
  • Positioning Accuracy: ±5 arc-sec (typical Nikken spec)
  • Repeatability: ±2 arc-sec
  • Maximum Workpiece Weight: Approx. 20 kg

✔ One of the most popular compact 5-axis rotary tables for Robodrill and small-format machining centres.

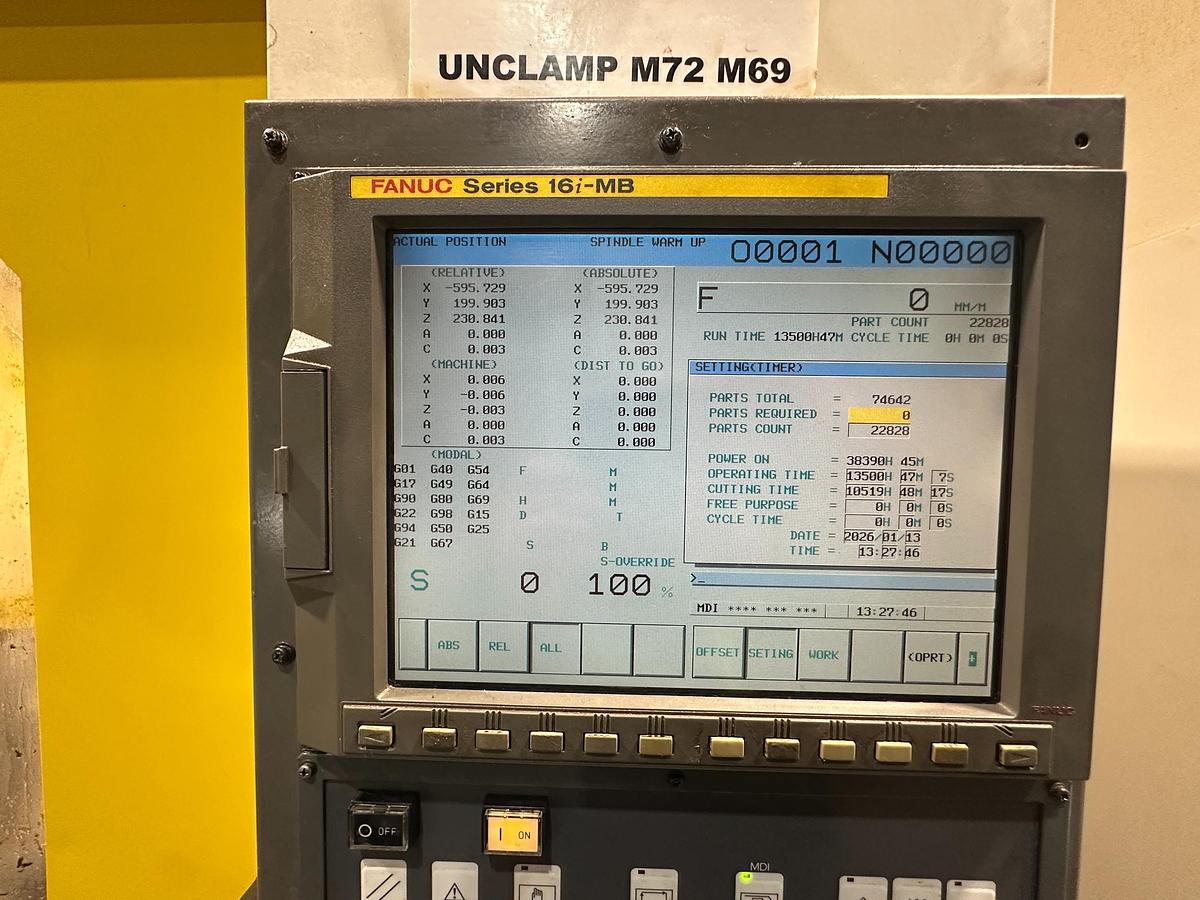

Machine Hours (Correct at time of advertising)

  • Power On Time: 38,390 hours
  • Operating Time: 13,500 hours
  • Cutting Time: 10,519 hours

Features & Equipment

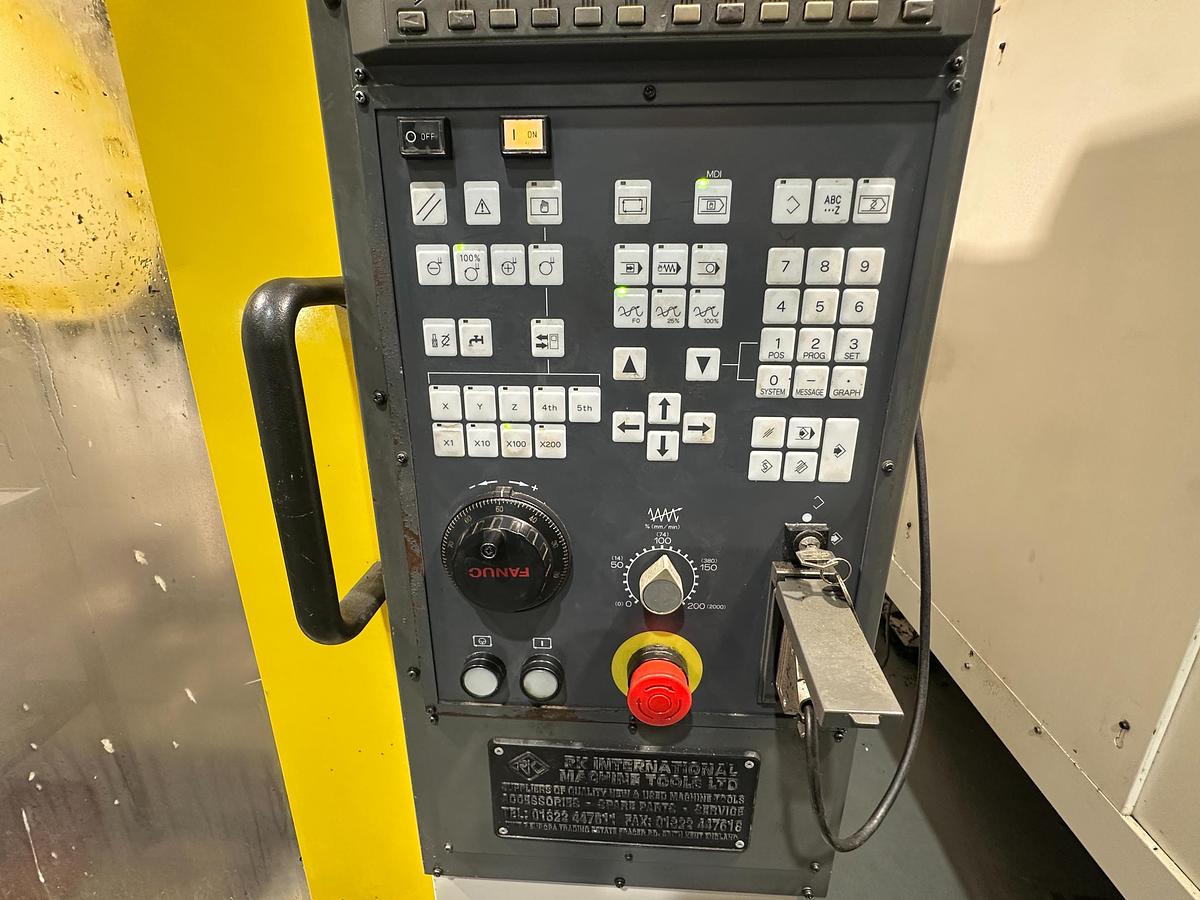

  • Fanuc Series 16i-MB CNC control
  • High-speed Robodrill platform with Nikken 5-axis capability
  • Compact footprint with full 5-axis functionality
  • Ideal for complex multi-face and simultaneous machining
  • Excellent rigidity and thermal stability

Please Note

  • No vices included with the machine
  • Includes 21 BT30 Tool Holders

Ideal Applications

  • 5-axis precision machining
  • Aerospace & medical components
  • Complex aluminium and steel parts
  • High-speed small component production


This Fanuc Robodrill Alpha T21iDL with Nikken 5Ax130FA offers an outstanding opportunity to acquire a cost-effective, compact 5-axis machining centre from two world-class manufacturers.


Notes: *Specifications are given in good faith but not guaranteed*

Specifications

ManufacturerFanuc
ModelAlpha T21iDL 5 Axis Machining Centre
Year2004
ConditionUsed
Stock Number969692
ManufacturerFanuc
Year2004
ControlFanuc Series 16i-MB Control
ConditionVery Good
* X Axis700 mm
* Y Axis400 mm
* Z Axis330 mm
* Table Size850 × 410 mm
* Maximum Table Load250 kg (uniform)
* Spindle Speed10,000 RPM
* Spindle TaperBT30
* Automatic Tool Changer21 Tool Stations
* Total tool weight23 kg
* Maximum Tool Length200 mm
* Maximum Tool Diameter80mm
Machine Weight2,200kg
* ManufacturerNikken
* Model5Ax130FA
* Year2018
* Table DiameterØ130 mm
* Tilt Axis (A-Axis)±110°
* Rotary Axis (C-Axis)360° continuous
* Drive TypeDirect servo drive
* Repeatability±2 arc-sec
* Maximum Workpiece WeightApprox. 20 kg
* Power On Time38,390 hours
* Operating Time13,500 hours
* Cutting Time10,519 hours
